SPECIFICATIONS

Battery Included: no

Brand Name: GOYOJO

Certification: CE

Choice: yes

High-concerned chemical: None

Origin: Mainland China

Coating Thickness Gauge Calibration Certificate LS236 Car Parts Dry Film Paint Thickness Gauge

Overview

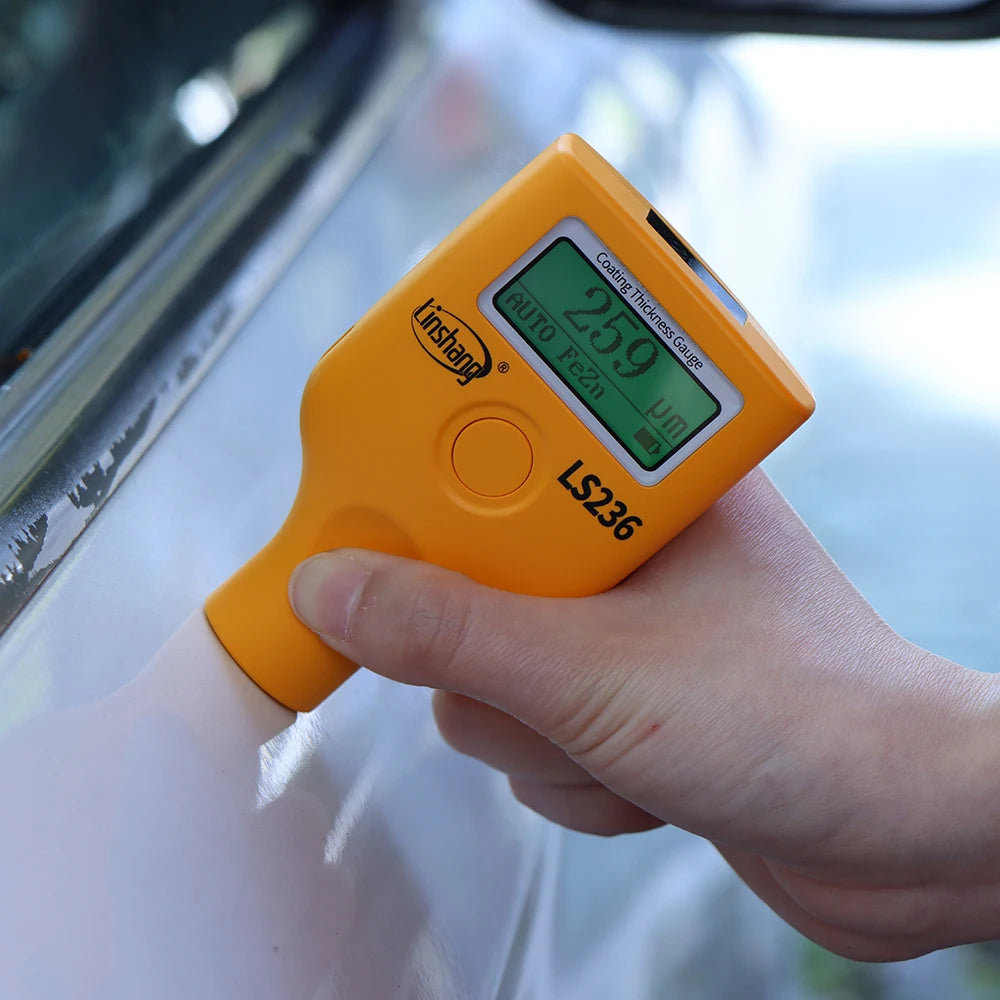

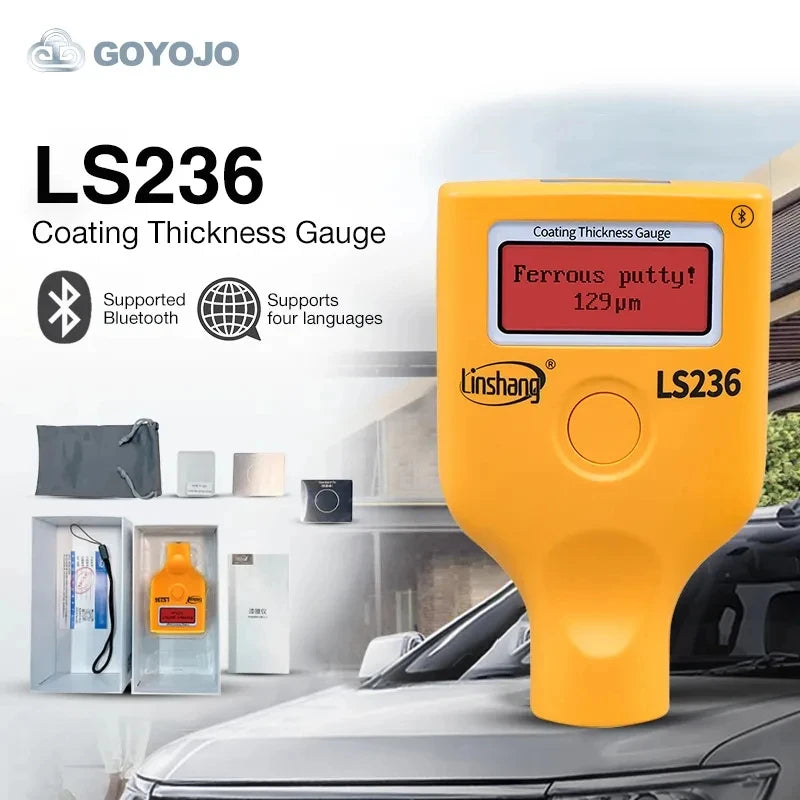

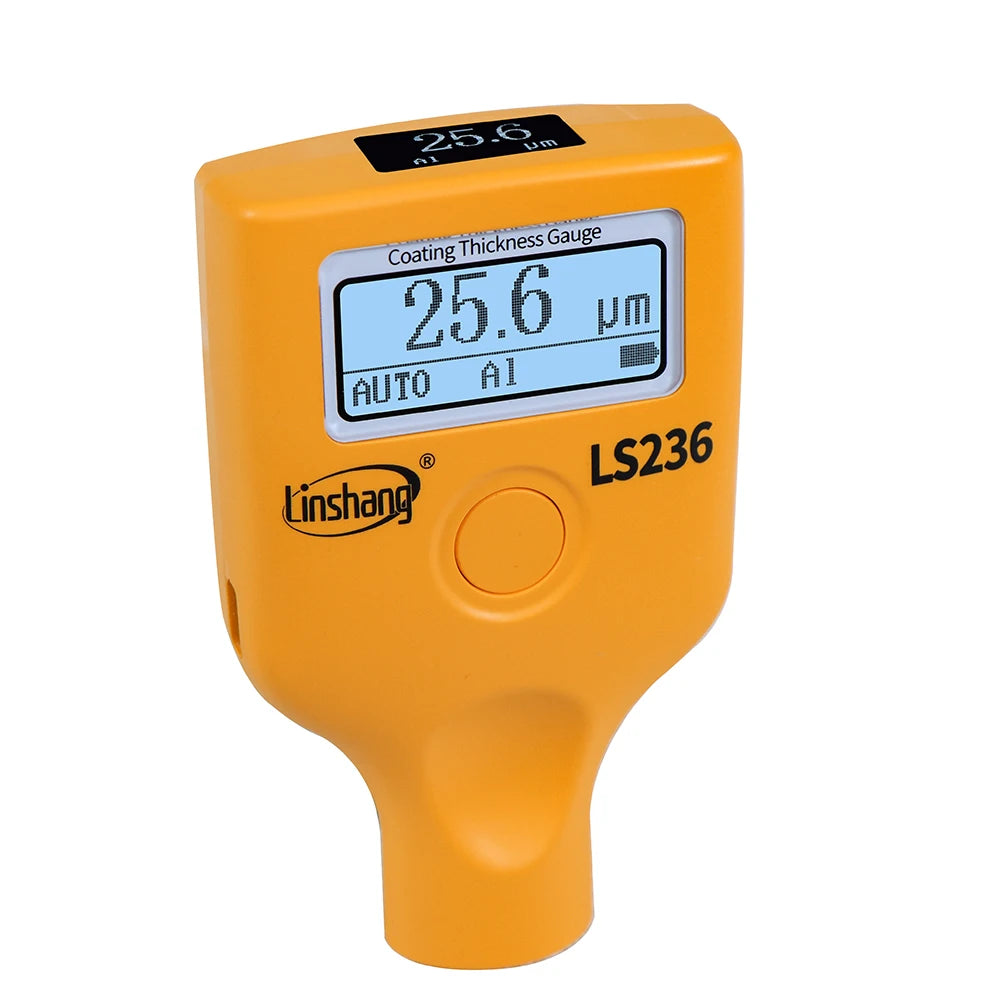

LS236 Car Paint Meter

LS236 paint film instrument is professionally used for automotive paint thickness inspection. It features the classic function of automatically identifying iron, aluminum body and plastic substrate. In addition, LS236 adopts new intelligent identification algorithm, which can detect accident cars refined with metallic putty, and can also automatically identify galvanized-iron high-grade anti-corrosion body. Equipped with high-definition LCD screen and ultra-low temperature LCD screen, it can be used normally in strong light and -40 °C temperature environment. The dual-screen design ensures that users can read quickly when measuring the car at any angle. paint mil gaugepaint mil thickness testingpaint mill gauge

coating thickness gauge costcoating thickness gauge calibration certificate

Features

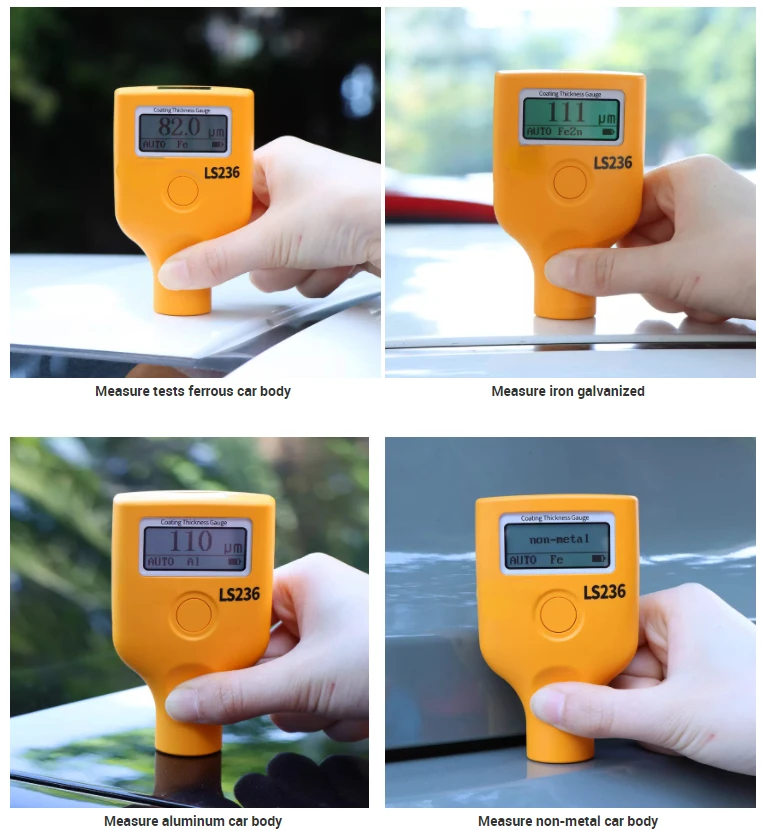

1. Various functions, practical and convenient

Automotive Paint meter has multiple functions and powerful performance which can quickly discover iron, aluminum, iron galvanized and non-metallic materials on.

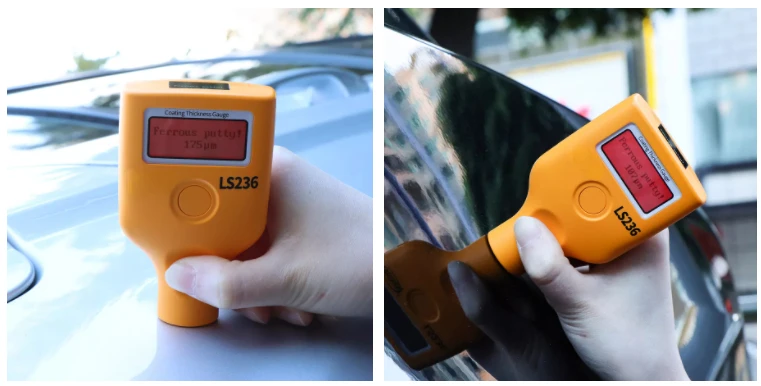

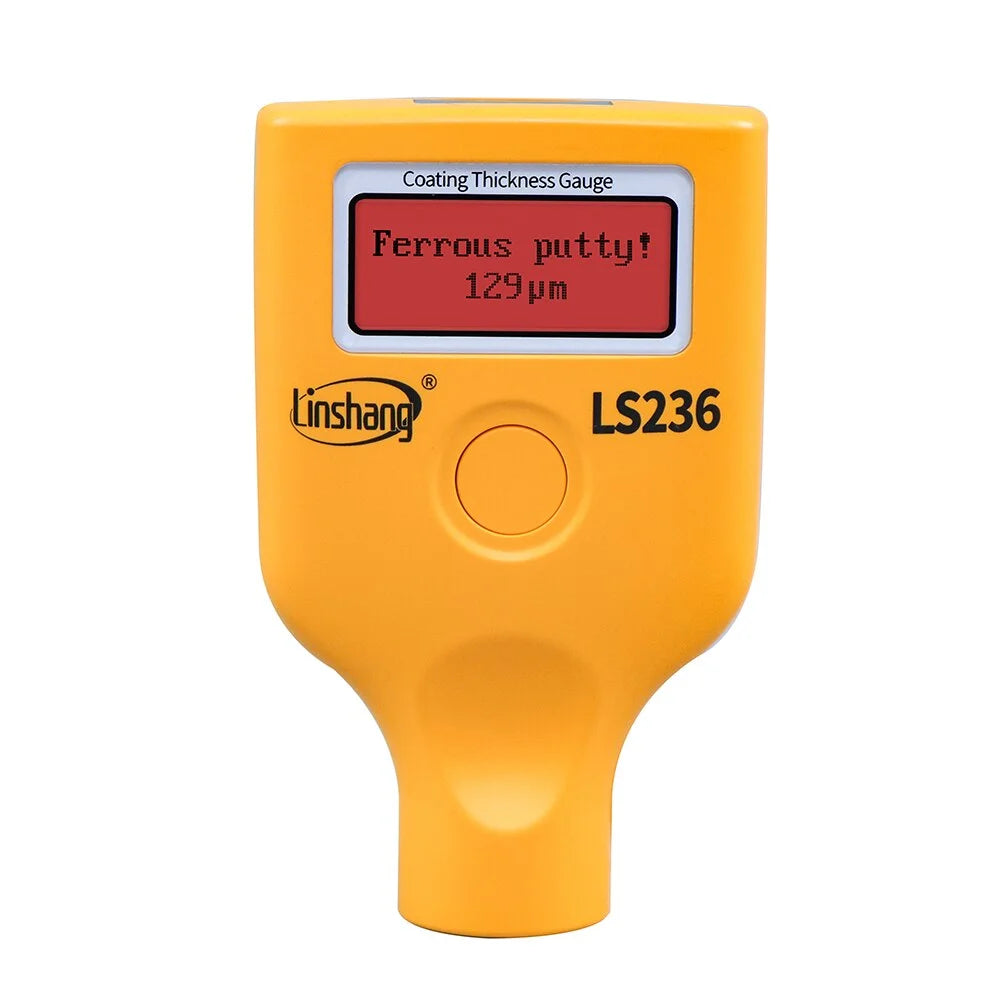

2. Detect the metallic putty quickly

If a car shell has been repaired with metallic putty, LS235 car paint meter can dig out it accompanied two buzzers in the
automatic measurement pattern (FE/NFE pattern) and red light is on.

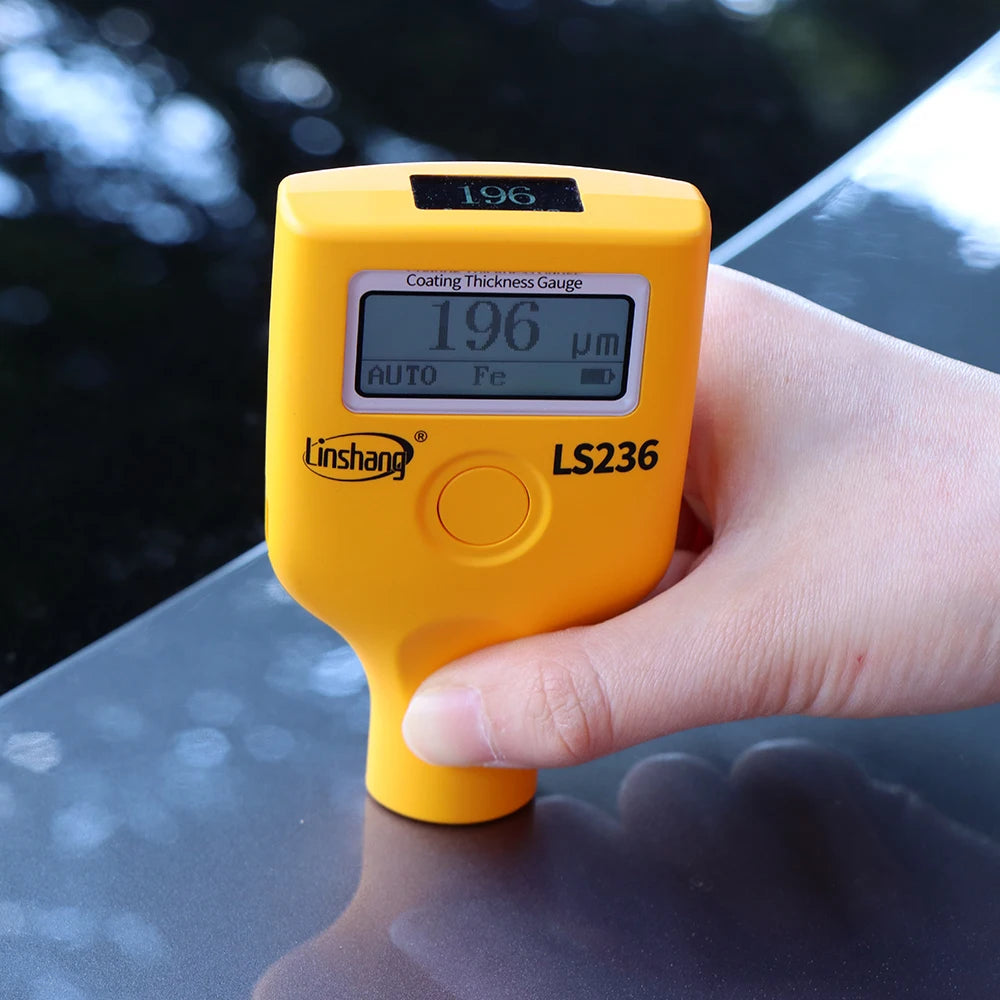

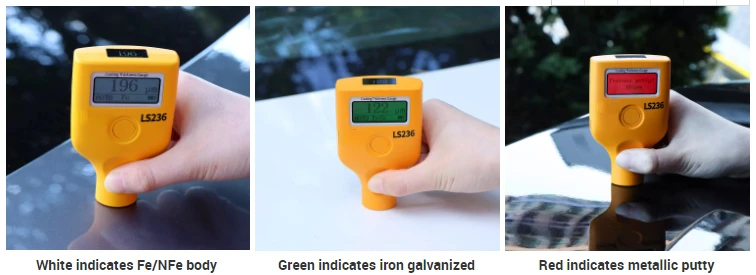

3. Motor vehicle body's material reminder with three backlights.

Red, green and white backlight indicates different material recognized by the car paint meter. Bright red represents metallic powder , iron galvanized is recognized as bright green, while others are bright white.

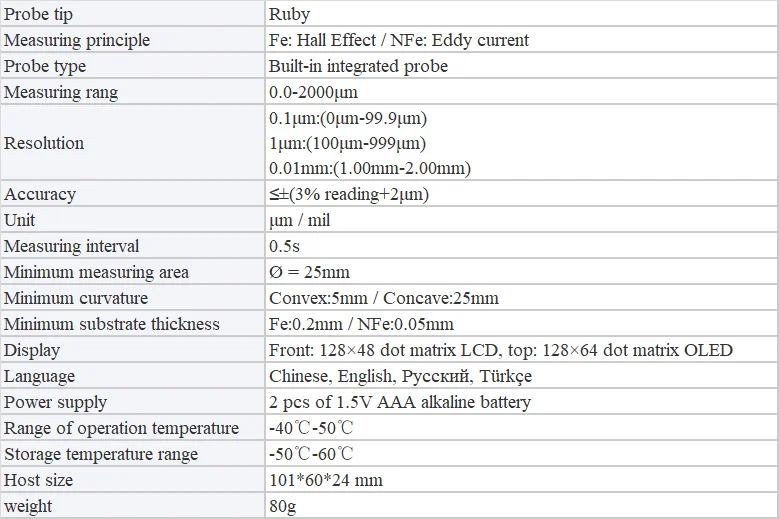

Paramenters

Probe tip	Ruby
Measuring principle	Fe: Hall Effect / NFe: Eddy current
Probe type	Built-in integrated probe
Measuring rang	0.0-2000μm
Resolution	0.1μm:(0μm-99.9μm)
	1μm:(100μm-999μm)
	0.01mm:(1.00mm-2.00mm)
Accuracy	≤±(3% reading+2μm)
Unit	μm / mil
Measuring interval	0.5s
Minimum measuring area	Ø = 25mm
Minimum curvature	Convex:5mm / Concave:25mm
Minimum substrate thickness	Fe:0.2mm / NFe:0.05mm
Display	Front: 128×48 dot matrix LCD, top: 128×64 dot matrix OLED
Language	Chinese, English, Русский, Türkçe
Power supply	2 pcs of 1.5V AAA alkaline battery
Range of operation temperature	-40℃-50℃
Storage temperature range	-50℃-60℃
Host size	1016024 mm
weight	80g

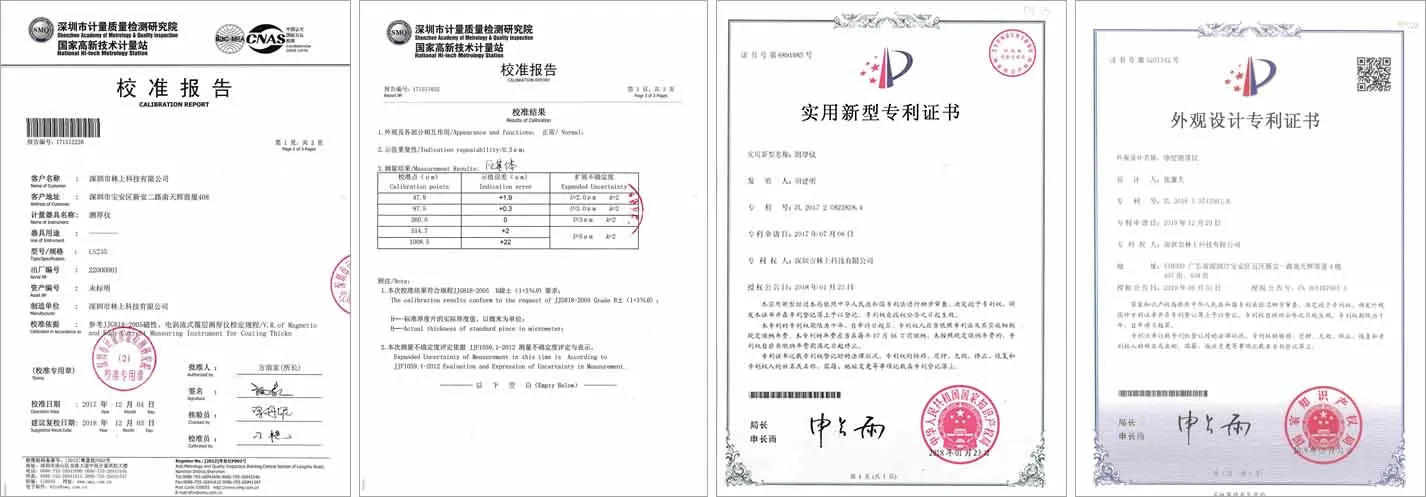

Qualification and Standards

* GB/T 4956-2003 Non-magnetic Coatings on Magnetic Substrates-Measurement of Coating Thickness-Magnetic Method
* GB/T 4957-2003 Non-conductive Coatings on Non-magnetic Basis Metals-Measurement of Coating Thickness-Eddy Current
* DIN EN ISO 2808 Paints and Varnishes-Determination of Film Thickness
* JJG-818-2005 Verification Regulation of Magnetic and Eddy Current Measuring Instrument for Coating Thickness
