SPECIFICATIONS

Audio output effects: Multi-effects

Brand Name: M-VAVE

Choice: yes

Control Type: Knob,Button,Pedal

Hardware interface: USB

High-concerned chemical: None

Is Batteries Included: Yes

Origin: Mainland China

semi_Choice: yes

Feature

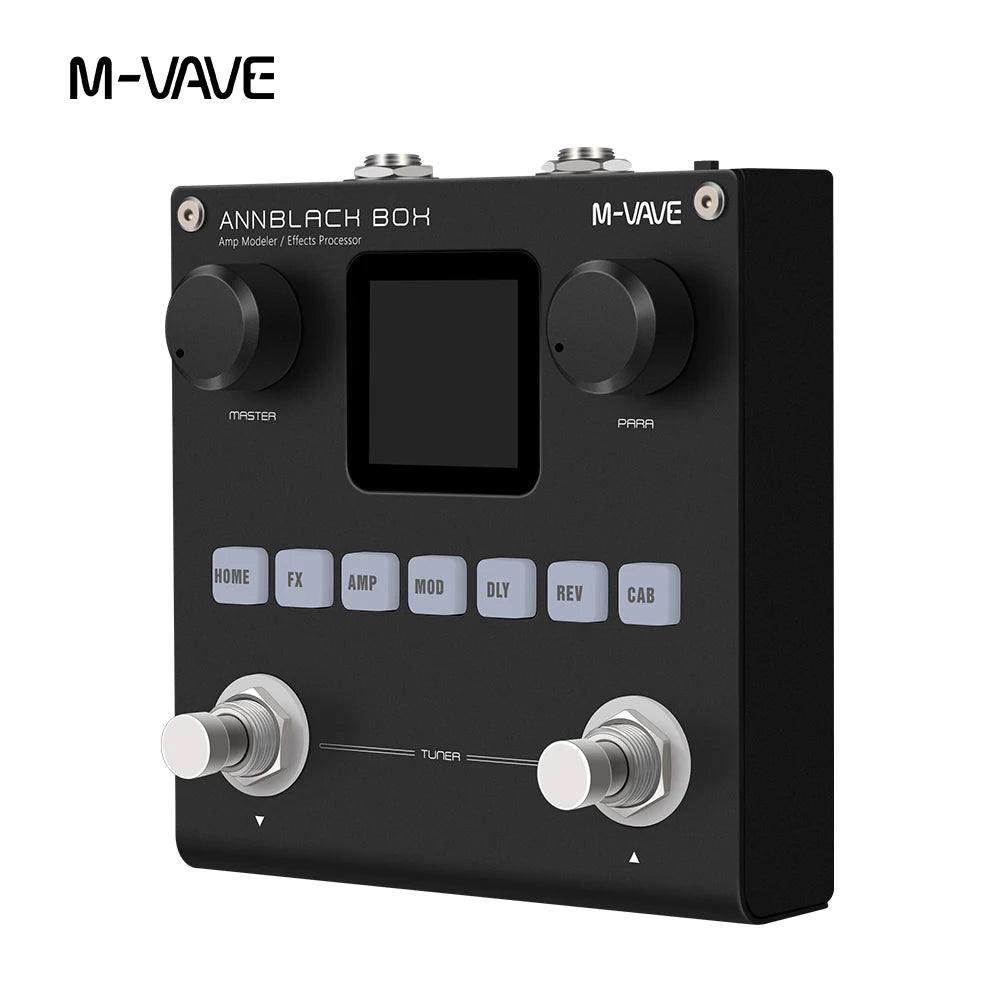

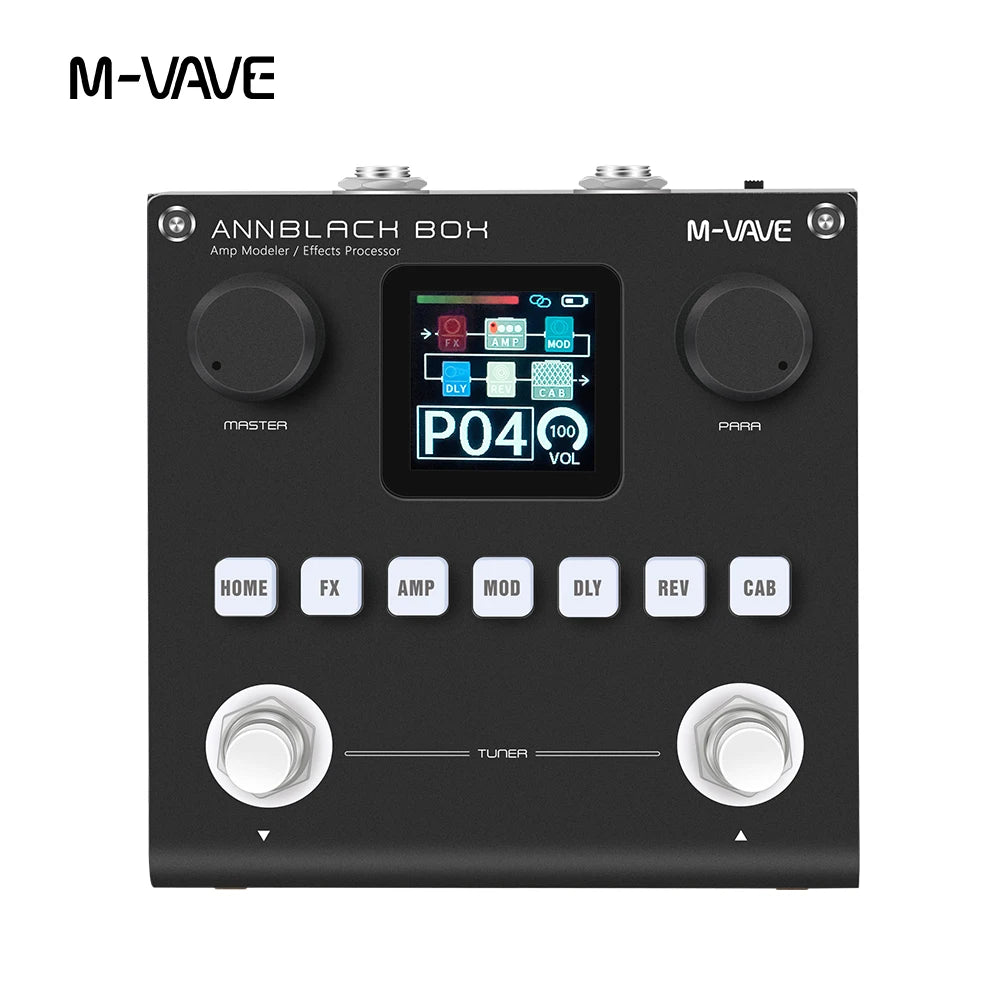

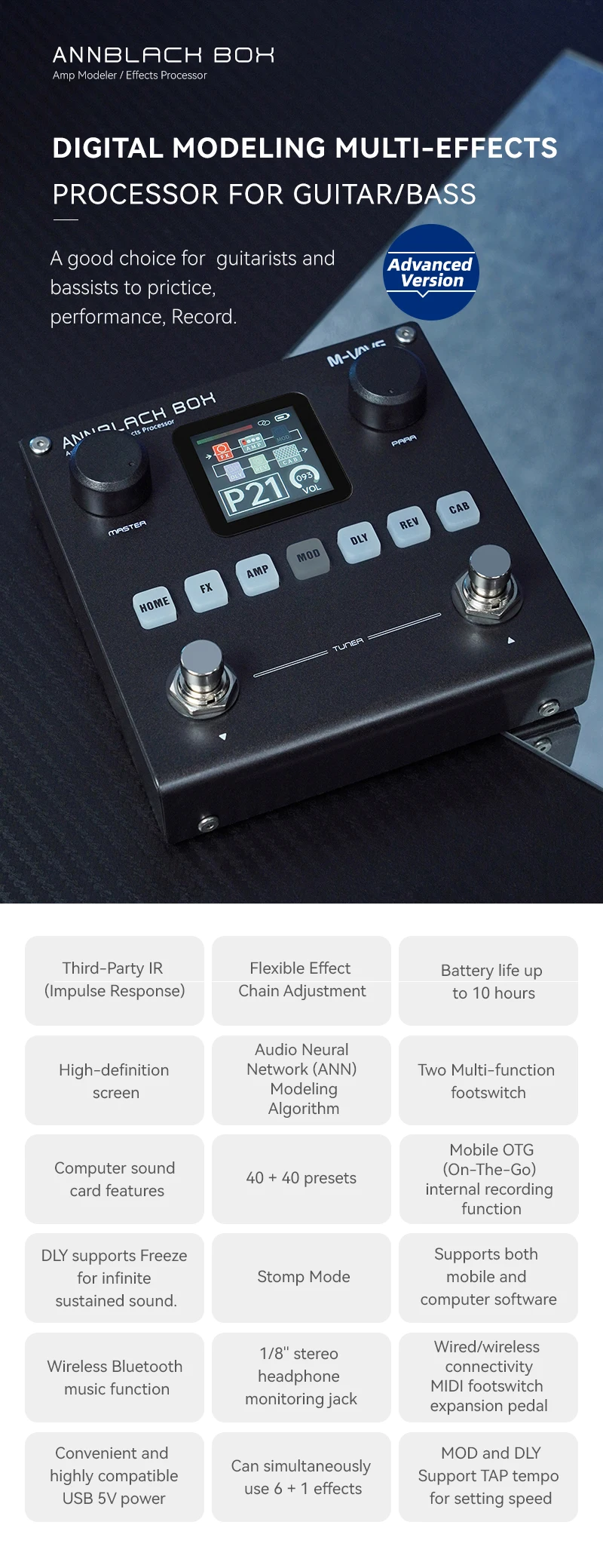

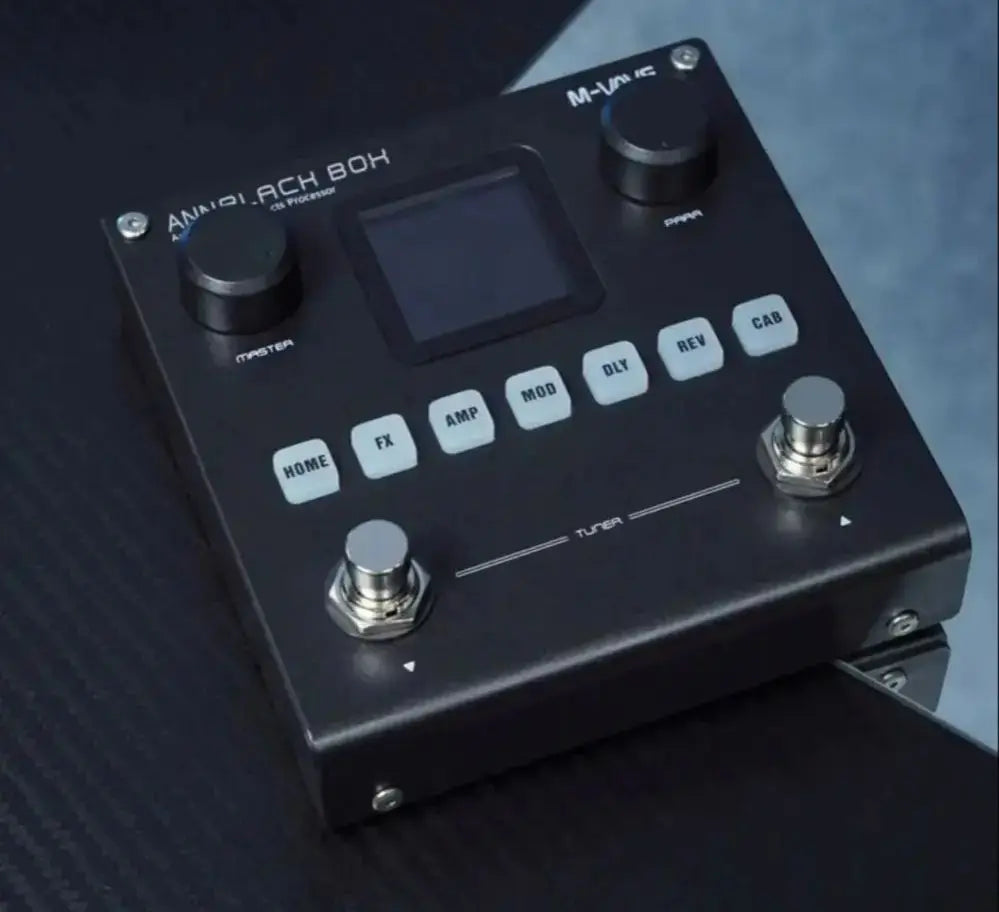

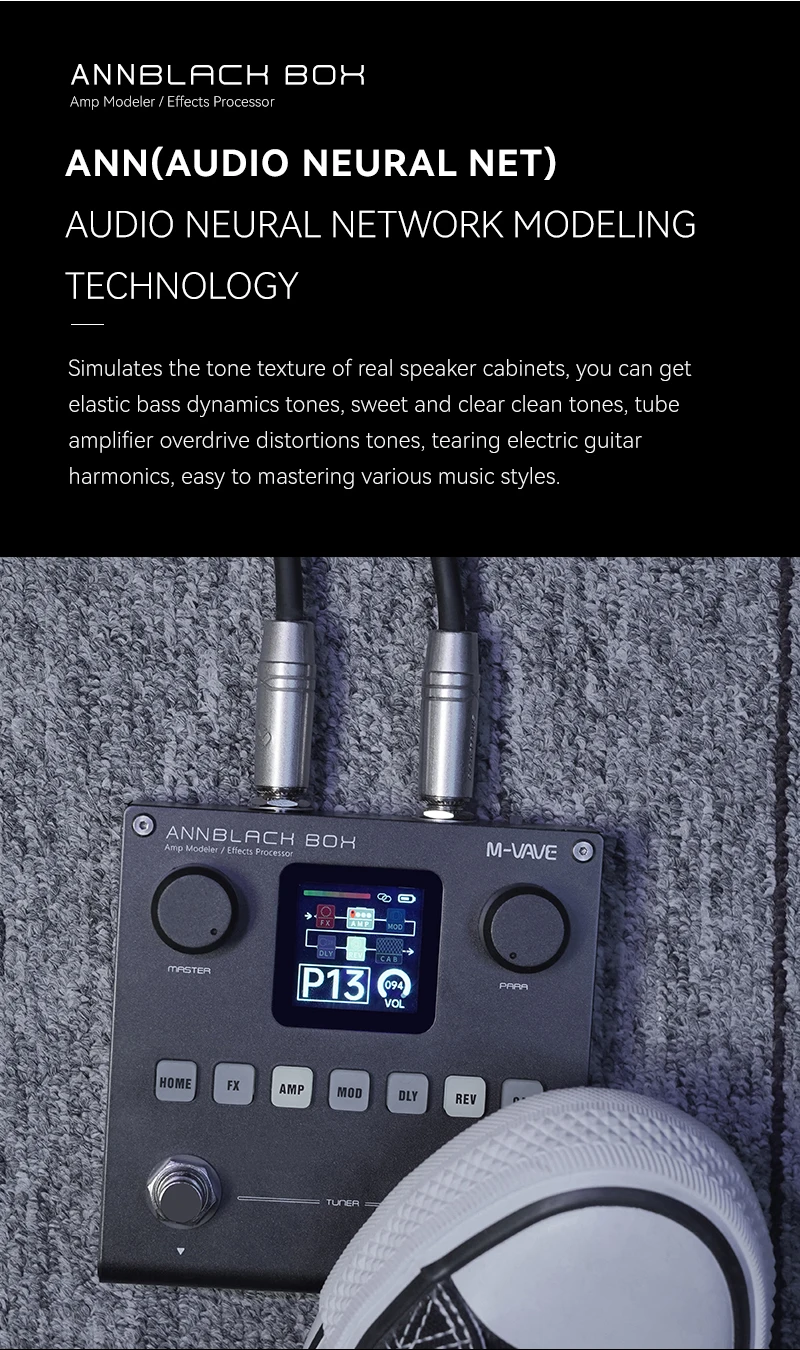

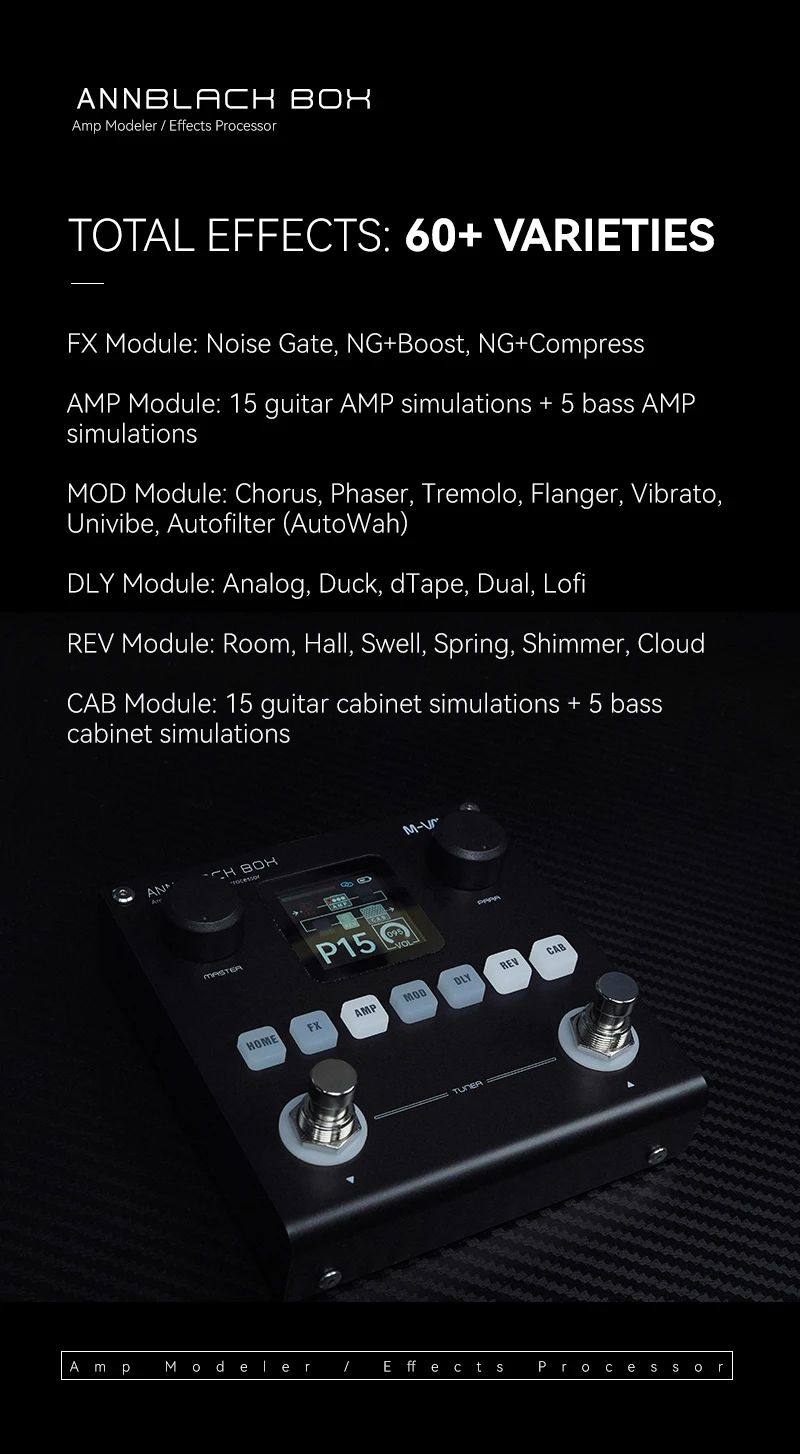

ANNBLACKBOX is a portable and multifunctional Guitar/Basseffector lt has 80 editable Presets, the users also can customizeeffectors chain and save. lt has built-in battery, it can last up to 10hours on a full charge. BLACKBOX has 6 effects Modules, itcontains the Noise Gate,Boost,Compressor,20 Preamp,3-bandEQ,7 Modulations,5 Delays,6 Reverbs,20 IR CAB slots.

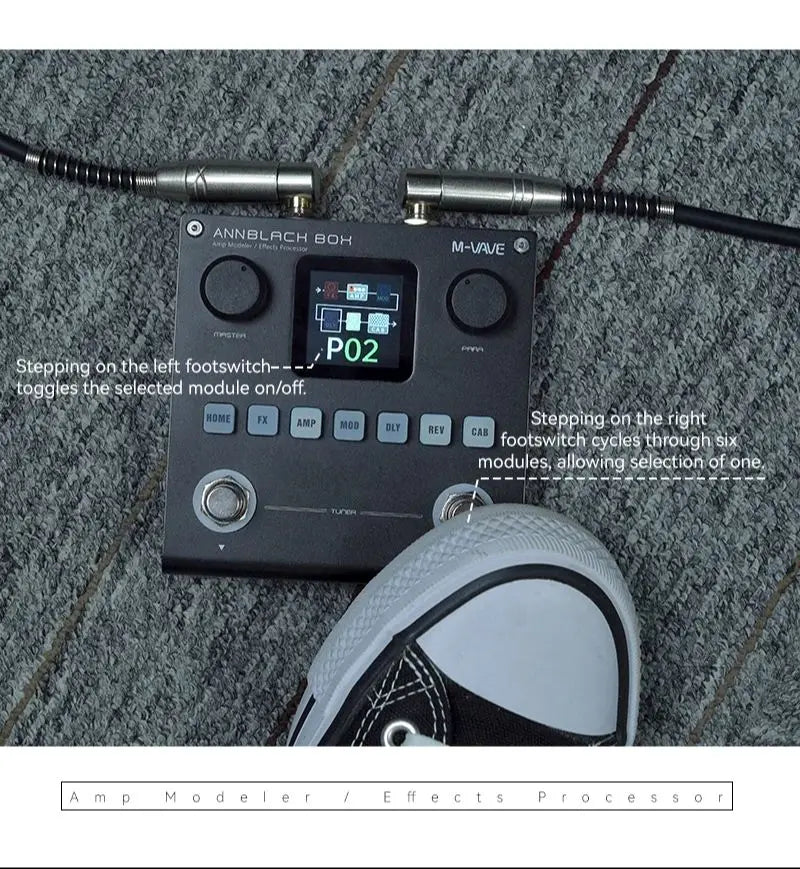

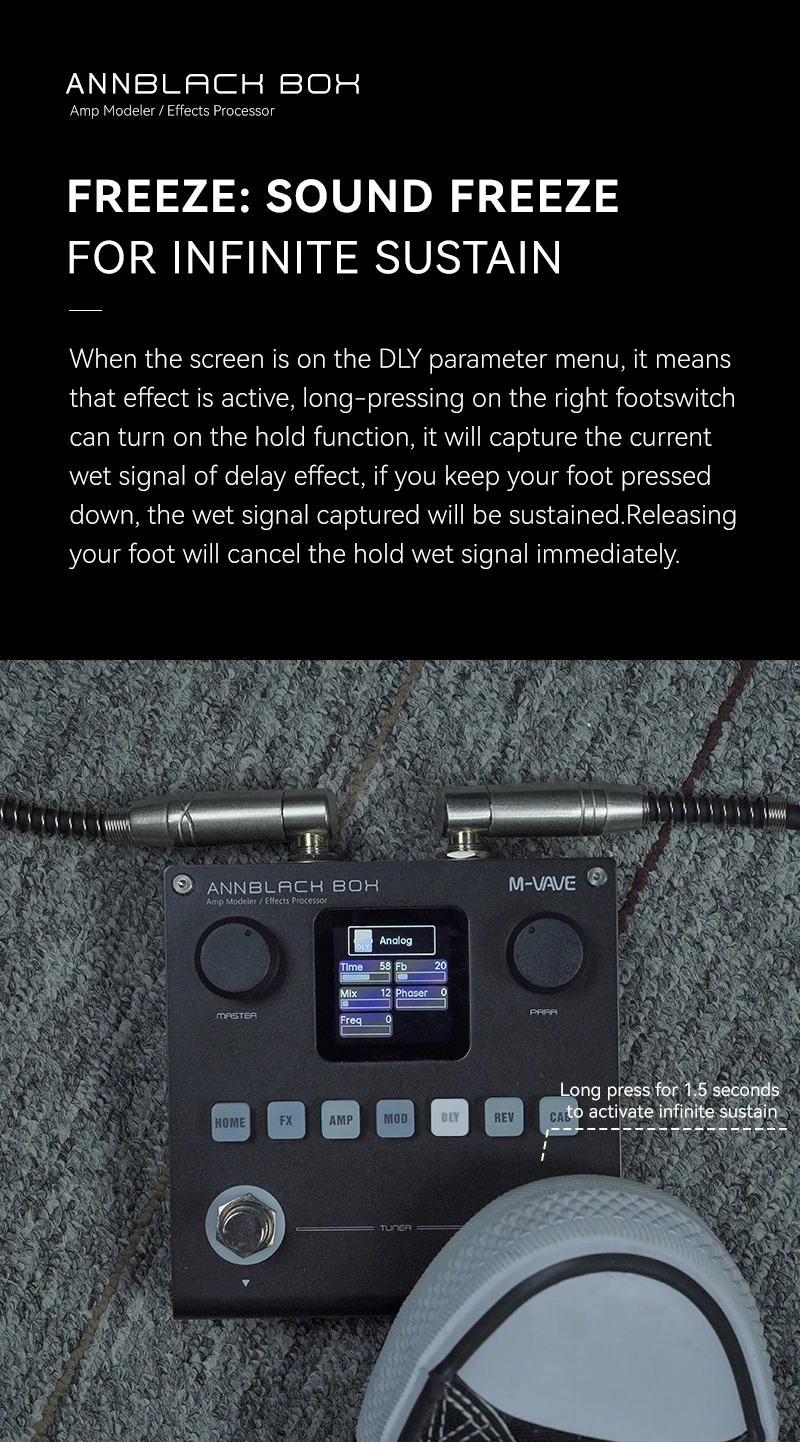

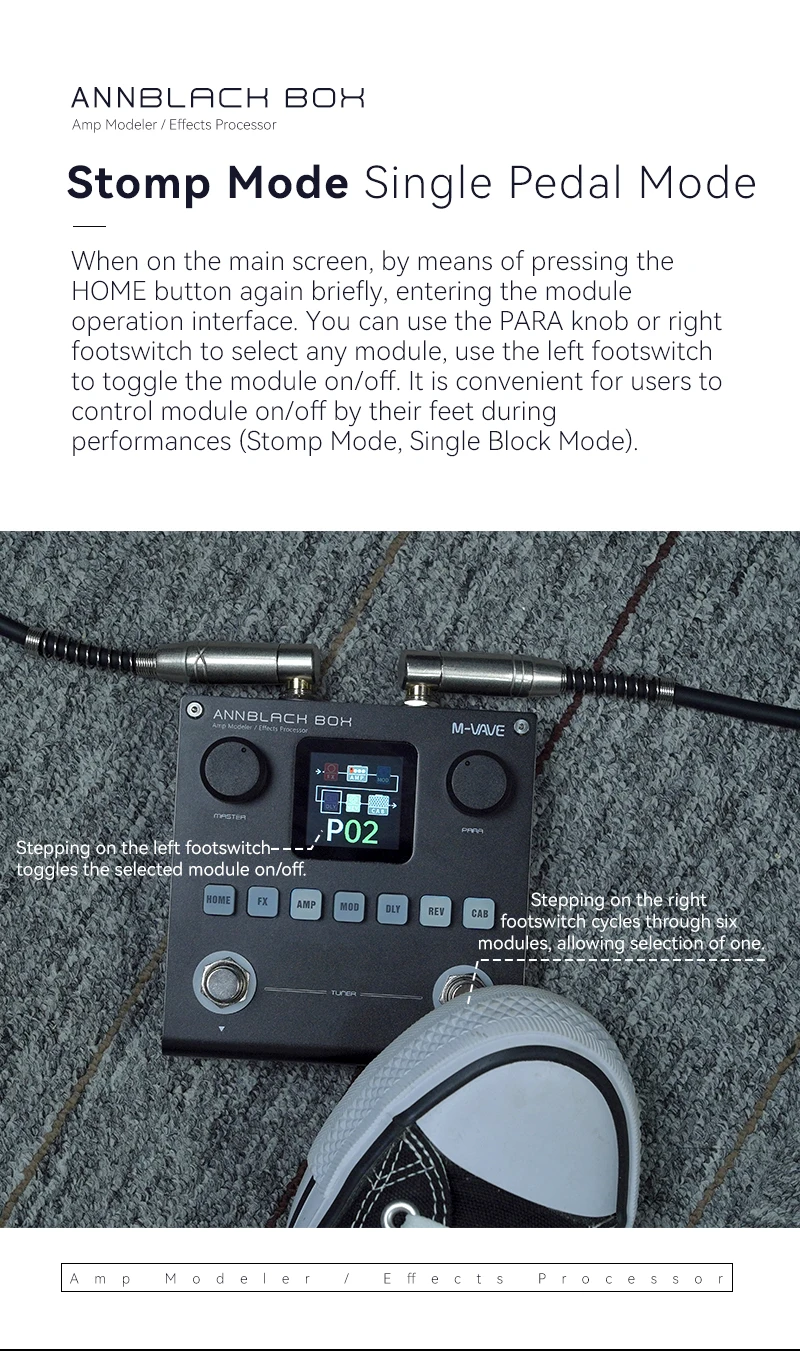

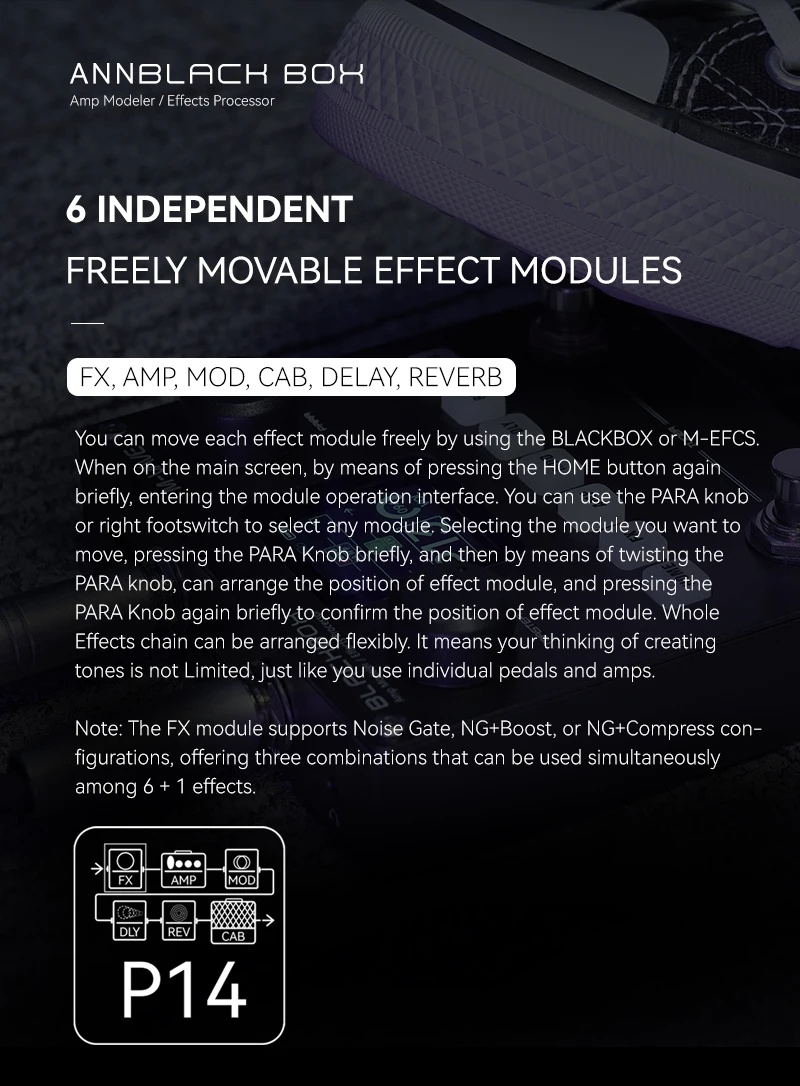

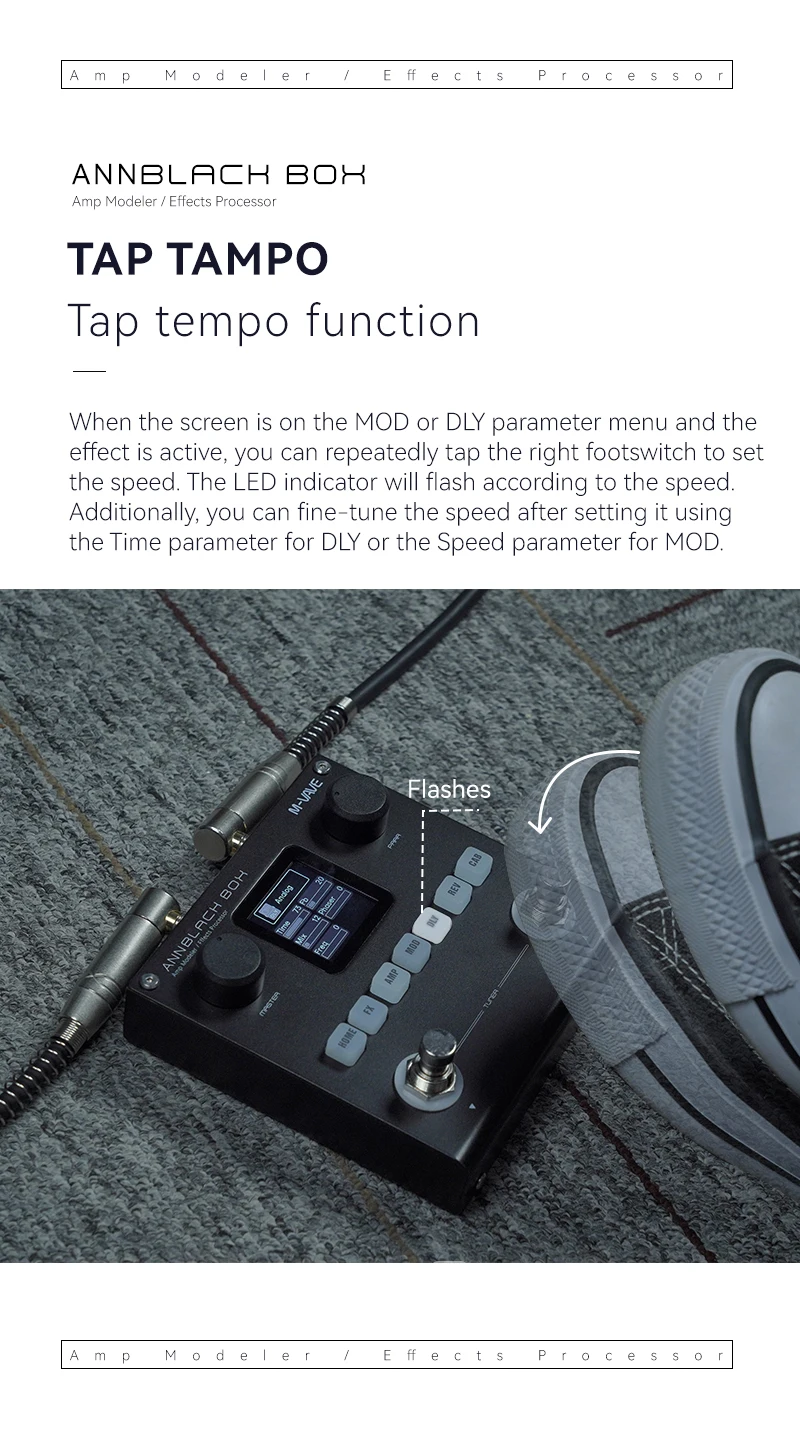

Press the HOME button on the Main Display Screen to enterthe Module Operation Screen, then use the PARA Knob tocustomize the position of the effects Module. At this time, you canalso select any Module by pressing the Right-Footswitch and thenopen/close this module with the Left-Footswitch, which isconvenient for the user to control the Module on/off with the footduring the performance. When you click the MOD/DLY Button, theMOD/DLY Module opens on the screen, you can tap theRight-Footswitch to adjust the effect speed of the MOD/DLYModule.

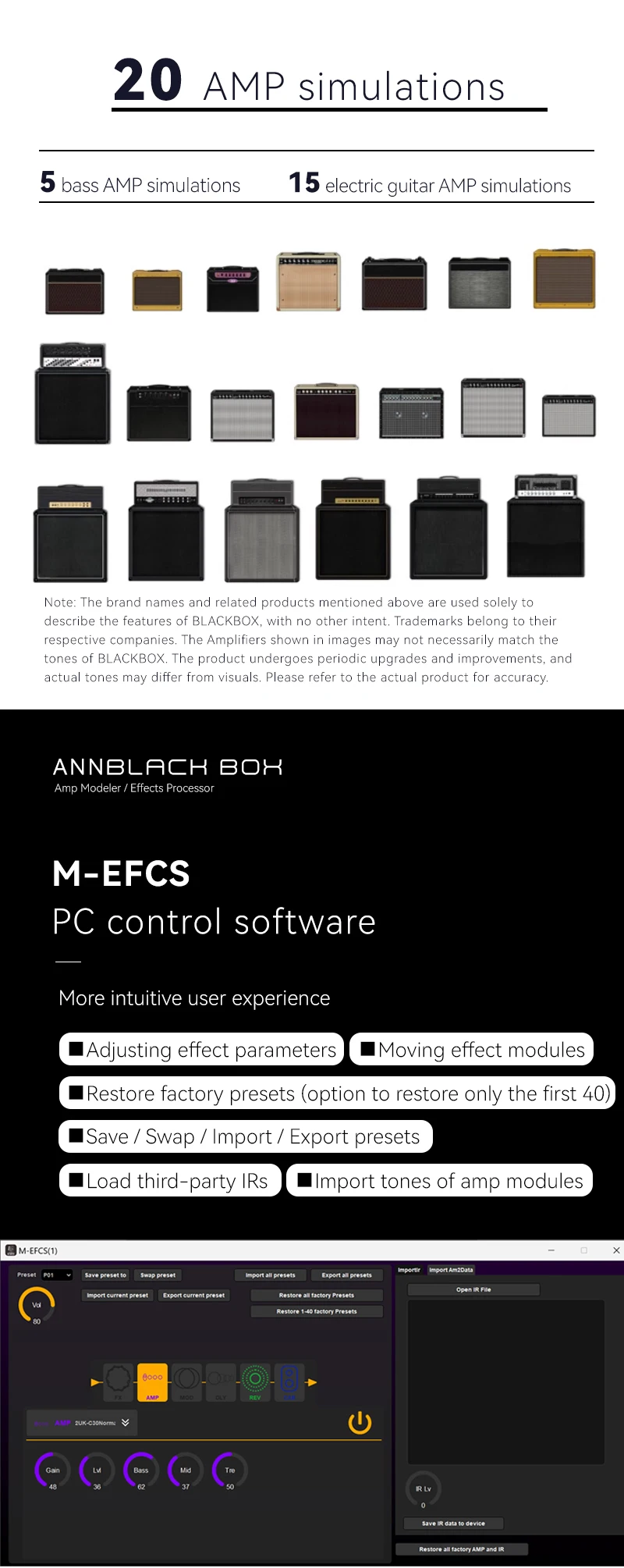

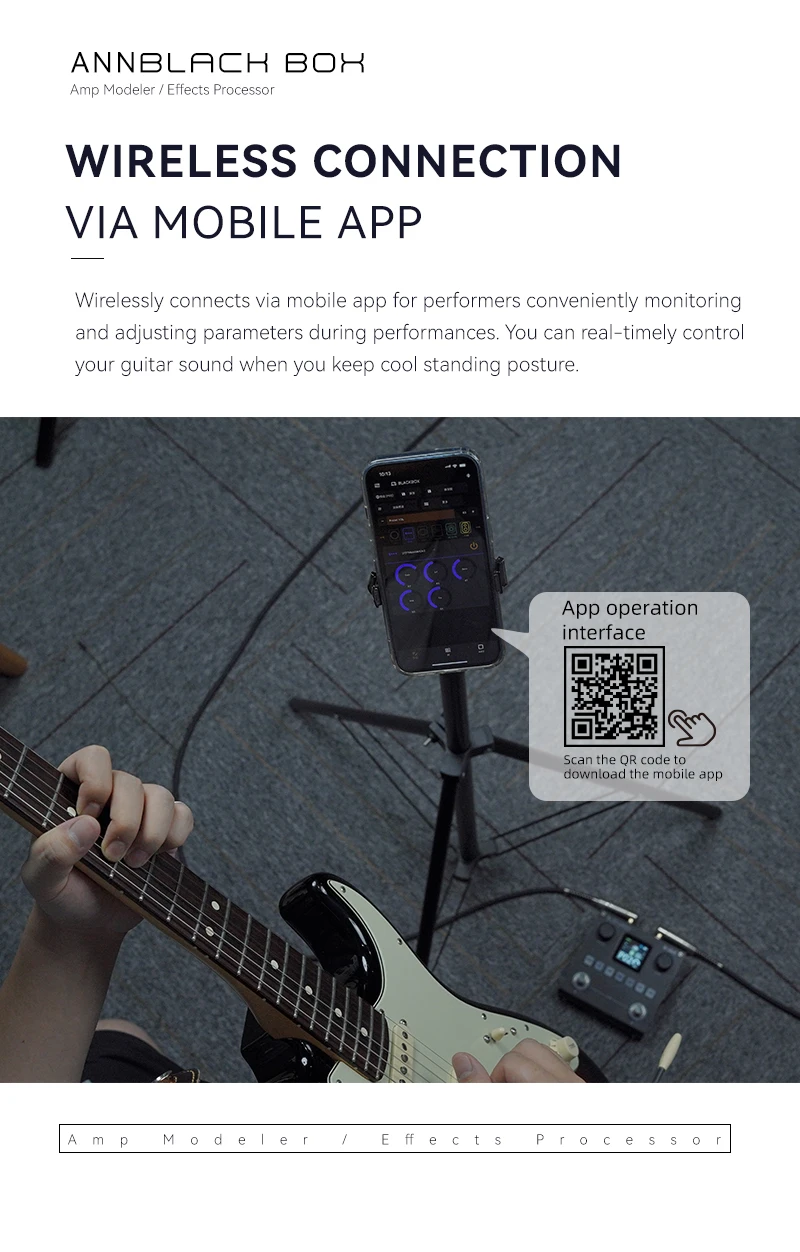

You can download the computer software or mobile APp fromour official channels, use it to edit presets,swap presets,sharepresets,import/export presets, and import the iR files, import theAMP module timbre data, besides you can restore the factorySettings or firmware upgrade on the computer. lt support BTwireless music, earphone monitoring function, and computersound card, etc. lt integrates a variety of function, it is easy-carryand it has excellent sound! lt could be a good partner of yourmusic instruments.

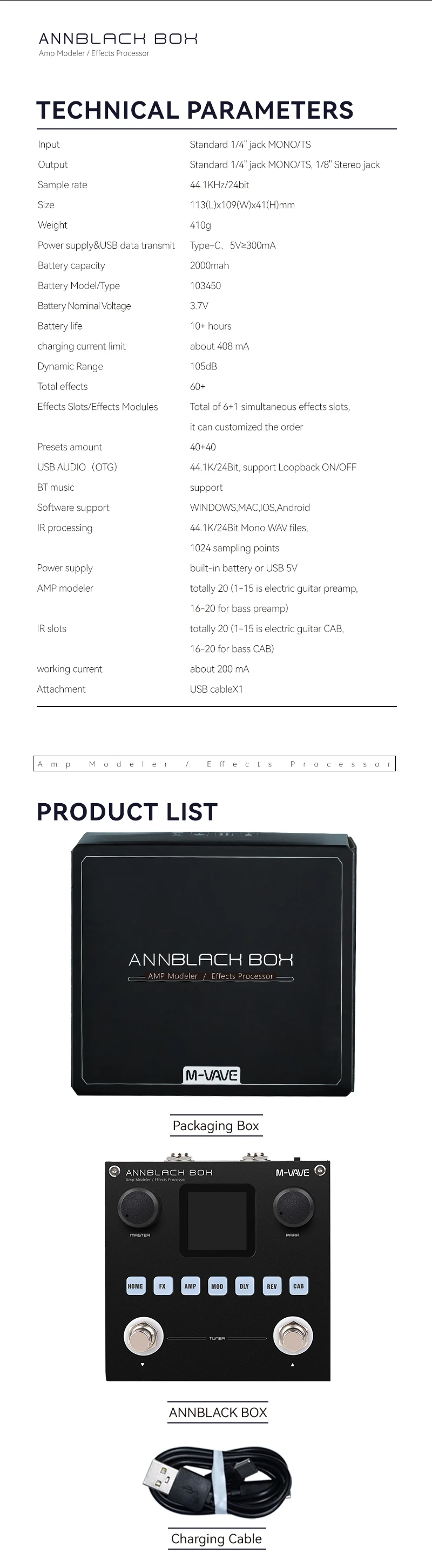

specification

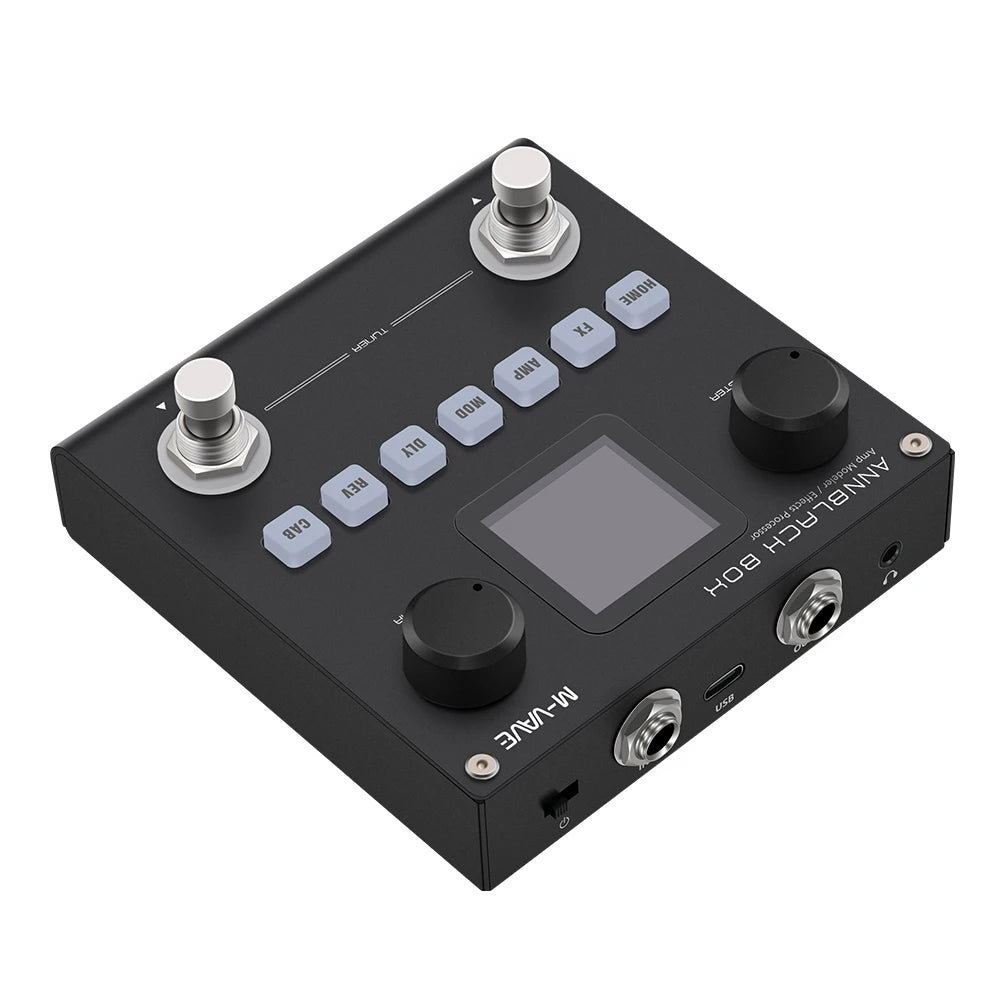

Input: Standard 1/4" jack MONO/TS

Output: Standard 1/4" jack MONO/TS, 1/8" Stereo jack

Sample rate: 44.1KHz/24bit

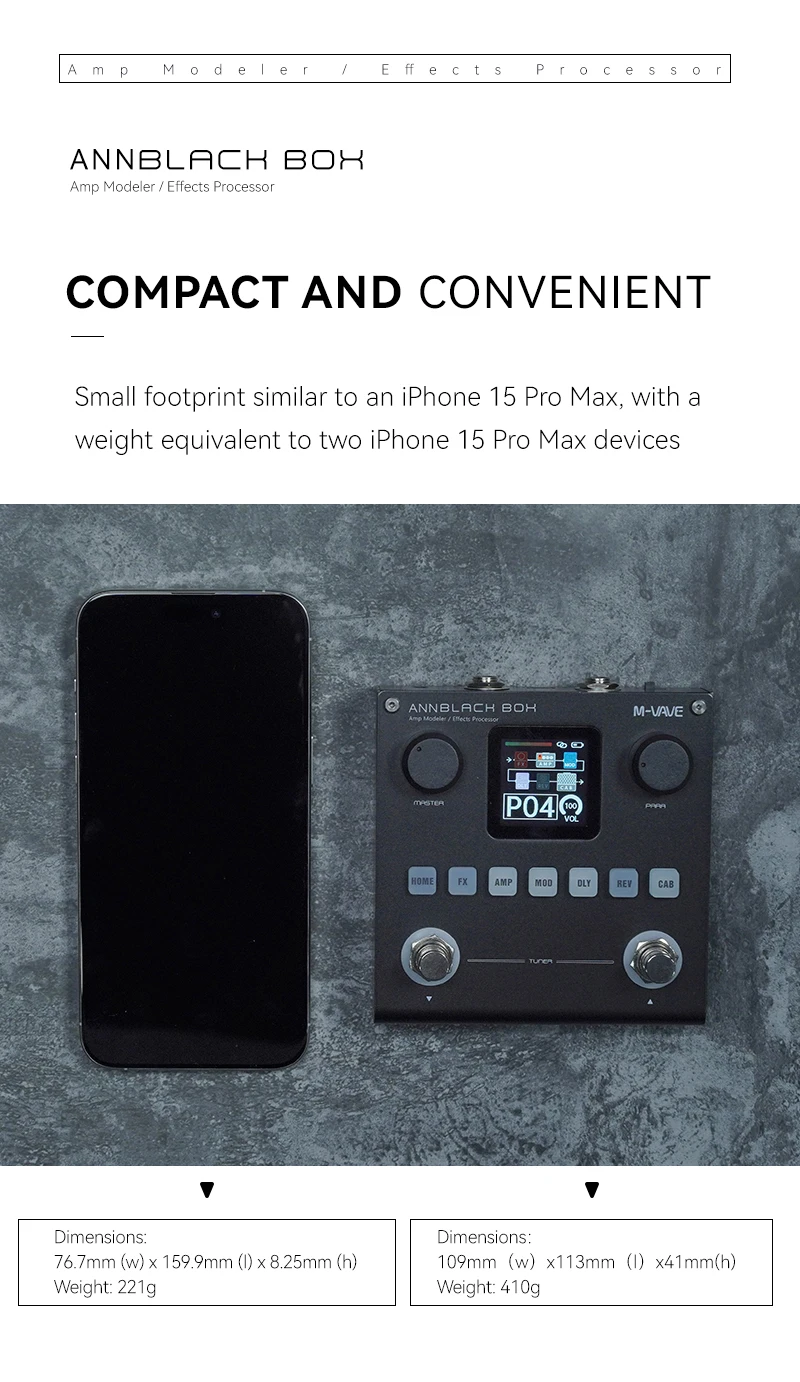

Size: 113(L)x109(W)x41(H)mm

weight: 410g

Power supply & USB data transmit: Type-C、5V≥300mA

Battery capacity: 2000mah

Battery Model/Type: 103450

Battery Nominal Voltage: 3.7V

Battery life: 10+ hours

icharging current limit: about 408 mA

Dynamic Range: 105dB

Total effects: 60+

Effects Slots/Effects Modules: Total of 6+1 simultaneous effects slots, it can customized the order

Presets amount: 40+40

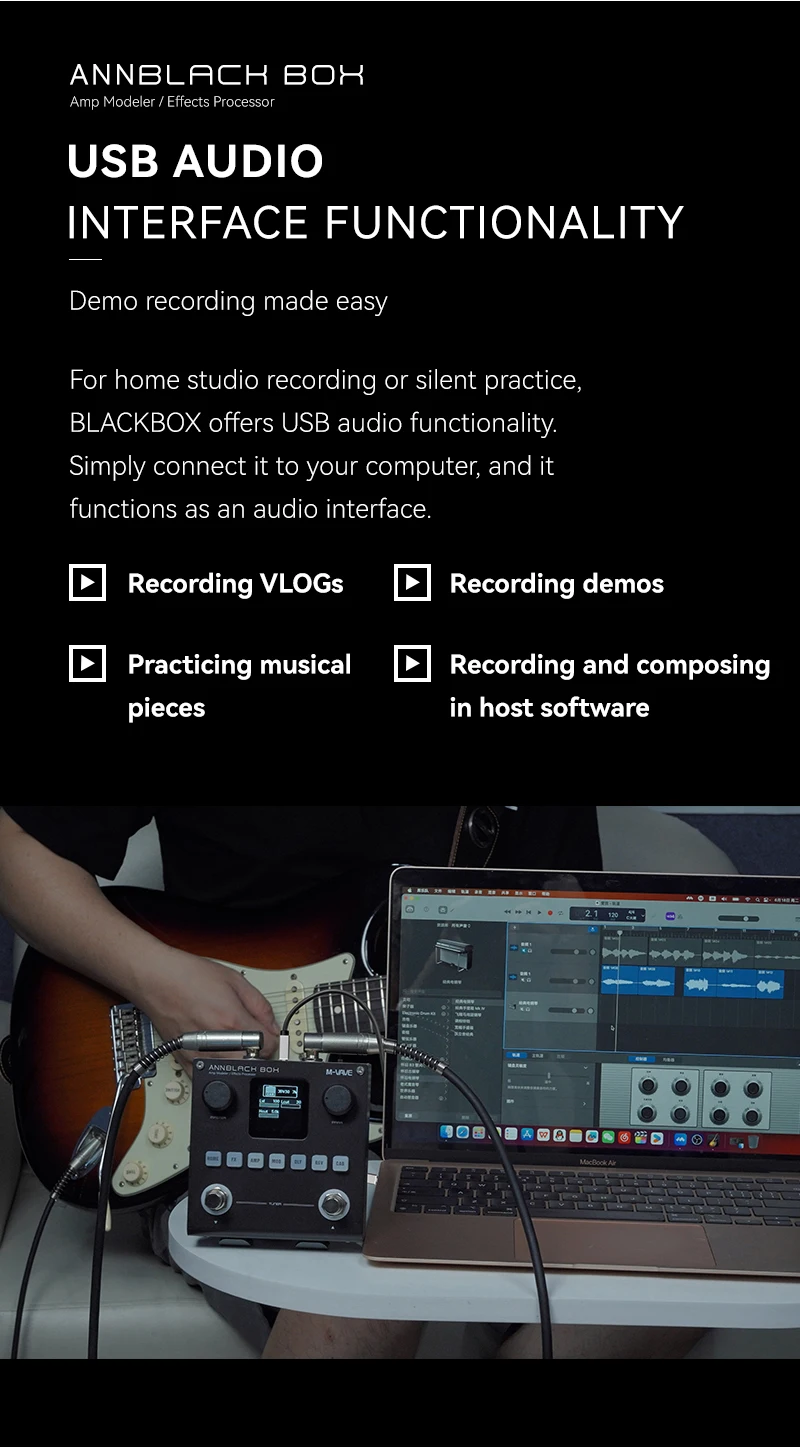

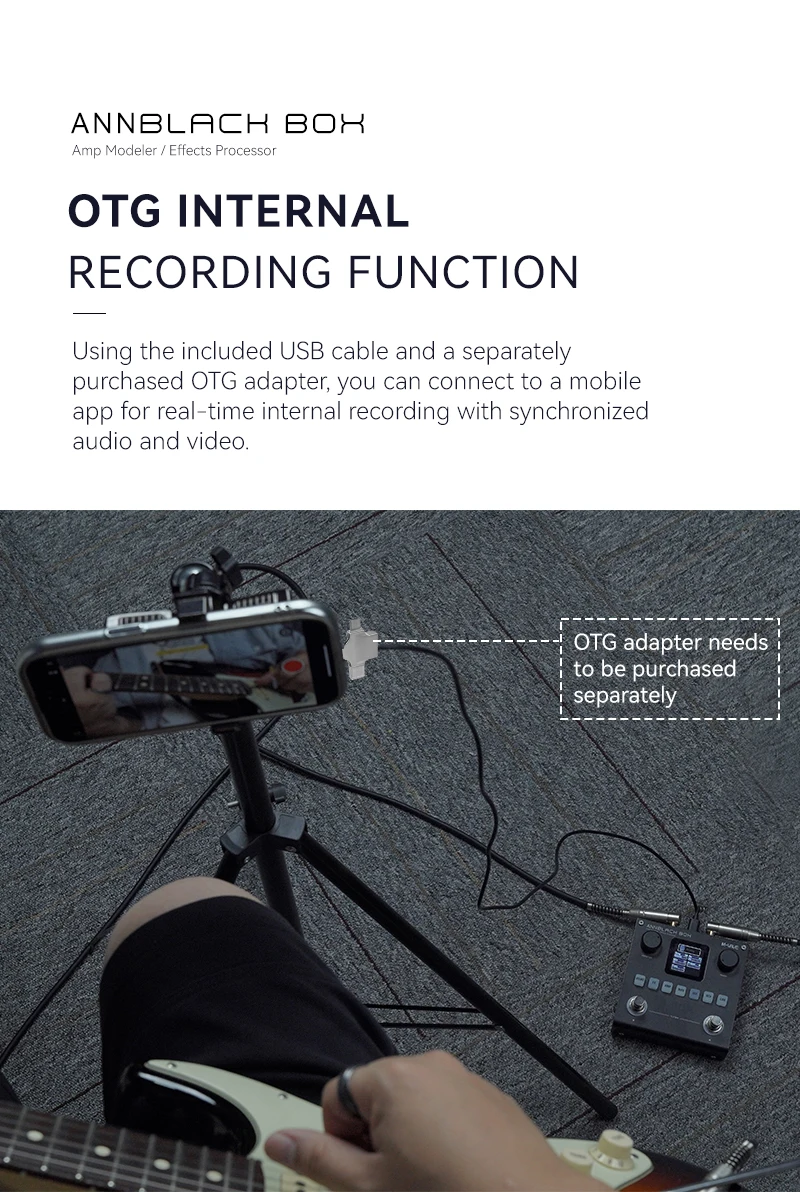

USB AUDIO (OTG): 44.1K/24Bit, support Loopback ON/OFF

BT music: support

Software support: WINDOWS,MAC,IOS,Androind

lR processing: 44.1K/24Bit Mono WAV files, 1024 sampling points

Power supply: built-in battery or USB 5V

AMP modeler: totally 20 (1-15 is electric guitar preamp, 16-20 for bass preamp)

IR slots: totally 20 (1-15 is electric guitar CAB, 16-20 for bass CAB)

working current: about 200 mA

Attachment: USB cable  X 1

Attentions

■The power supply:

It is equipped with built-in battery for power supply, which can last

for 10 hours after full charge. It can charge with the 5V adapter or

the power bank. When the battery run low, you can use the 5V 2A

adapter, you need 5 hours to fully charge the battery.When the

battery run low,don't use it for a long time to avoid unstable

working performance,please charge it in time.

■The connection:

Be sure to turn off the power of related equipment before

connecting or disconnecting the device.

■The electrical interference:

The electromagnetic wave of radio,television and other equipment

may cause interference to the equipment,so please try to stay away

from radio,television and other equipment.

■The location:

To avoid deformation,discoloration,or other serious damage,do not

expose this unit to the following conditions:

a. Heat sources

b. Magnetic fields

c. Sunlight

d. High temperature or moist district

e. Excessively dusty or dirty locations

f . Strong vibrations or shocks
