SPECIFICATIONS

Accuracy: 2.5%

Brand Name: MAIRUIKESI

Certification: CE

Choice: yes

Dia: 2.5"(63mm)

Dial Diameter: 2 - 3.9 Inches

Display Type: ANALOG

High-concerned chemical: None

Max Measuring Range: 49 PSI & Under

Model Number: YE60

Origin: Mainland China

Semi-finishedproduct: No

connection: bottom

range: 3psi,5psi

semi_Choice: yes

thread: NPT1/4

Ordering Instructions：

Select the "Can be customized" option, please comment or contact our customer service to inform you of the model you want

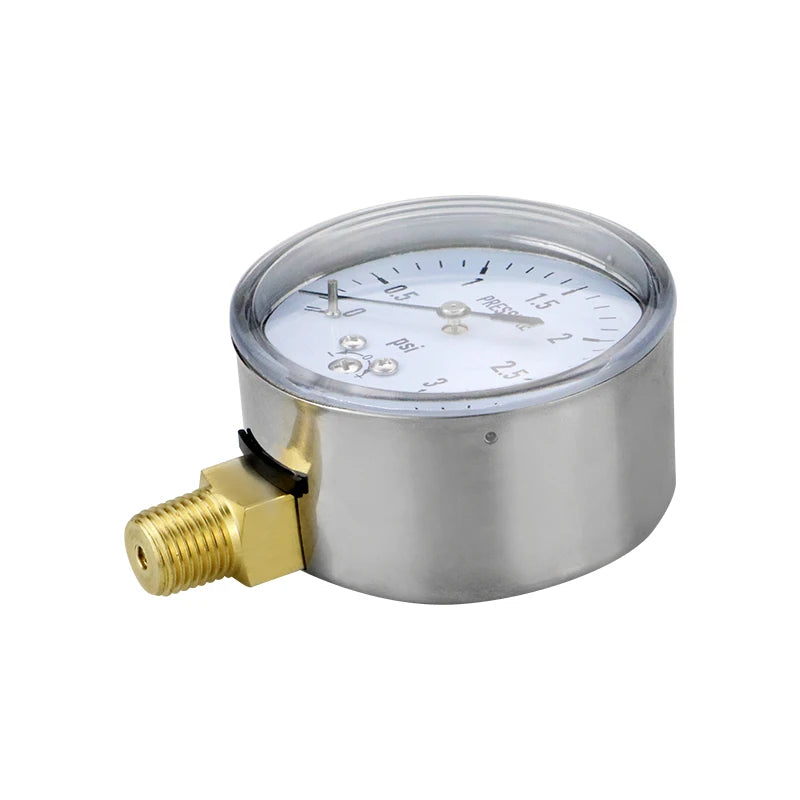

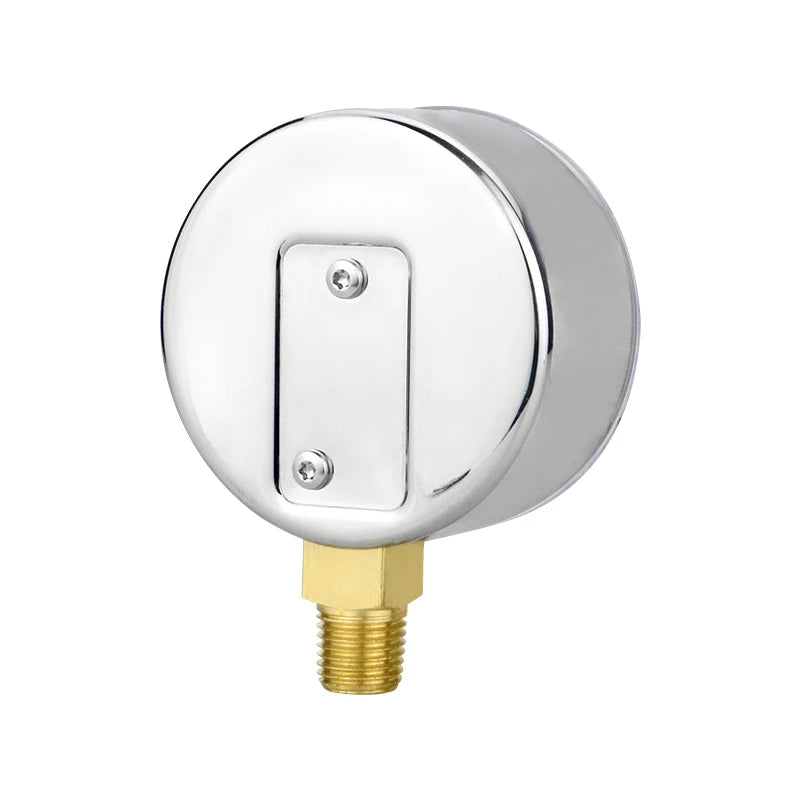

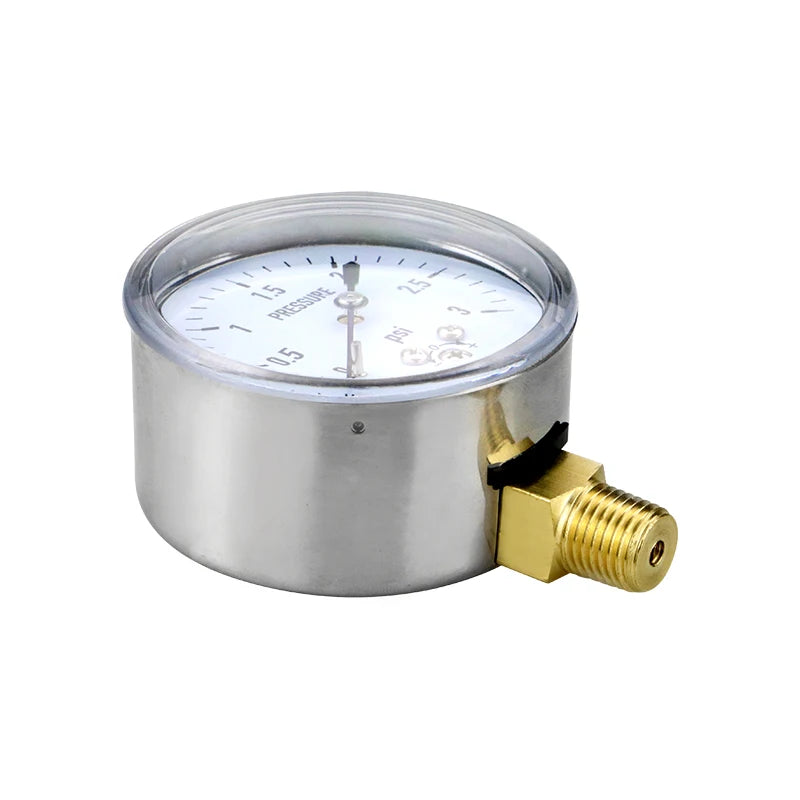

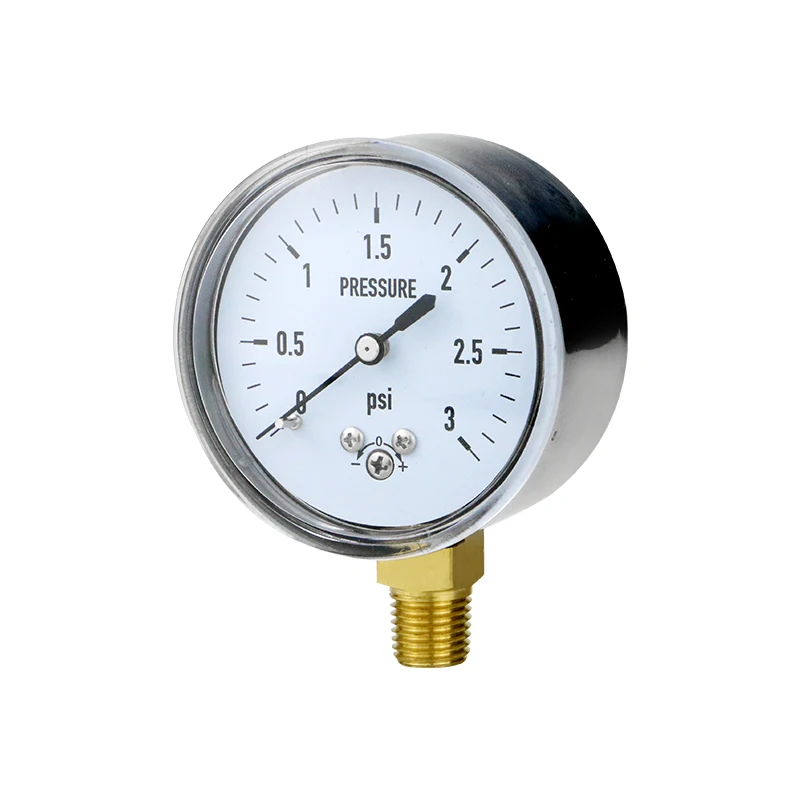

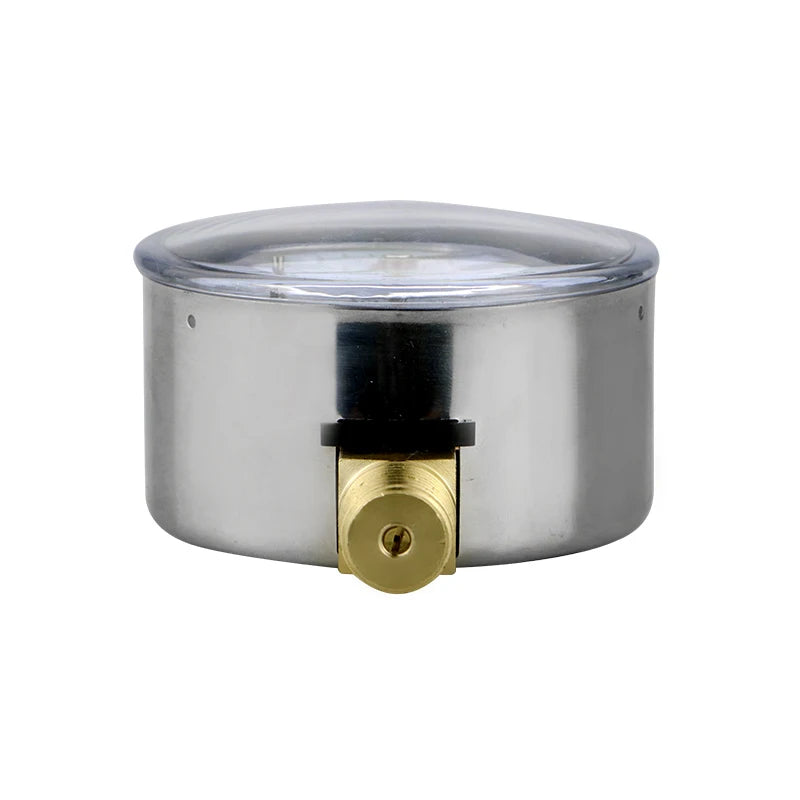

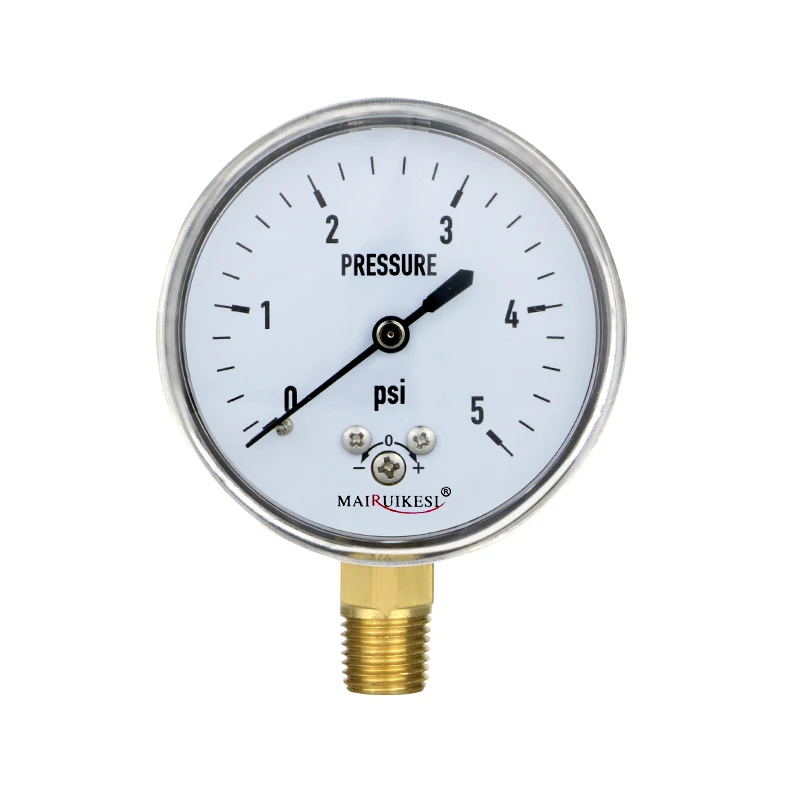

Description
For accurate measuring air, water, natural gas, or other medias not corrosive to copper alloy

Dial size: 2-1/2"
Process connection: 1/4"NPT lower mount
With restrictor installed
Case: steel case
Window: Snap on plastic window, easy to open
Capsule: beryllium diaphragm type capsule, ensures good accuracy, stable performance, long life
Movement: Brass
Connection: Brass
Dial plate: aluminum, white background
Pointer: aluminum, black, micro-adjustable
Range: 0-5psi,0-3Psi
IP class: IP54
Accuracy: +/-2-1-2%
Working temperature:-4 to 70 deg
