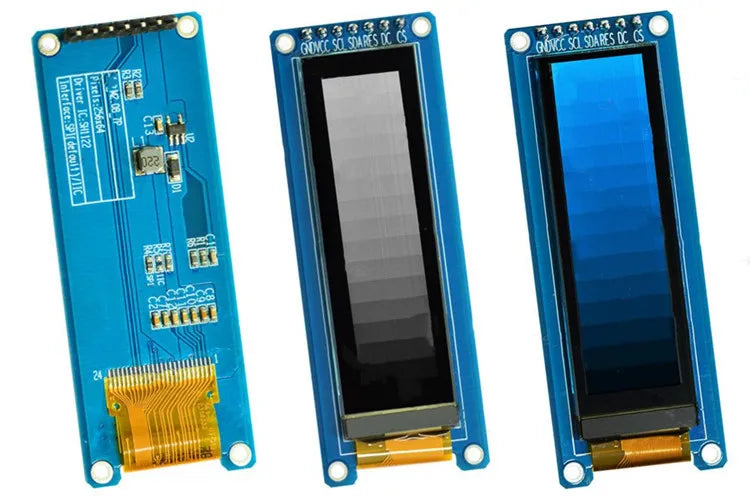

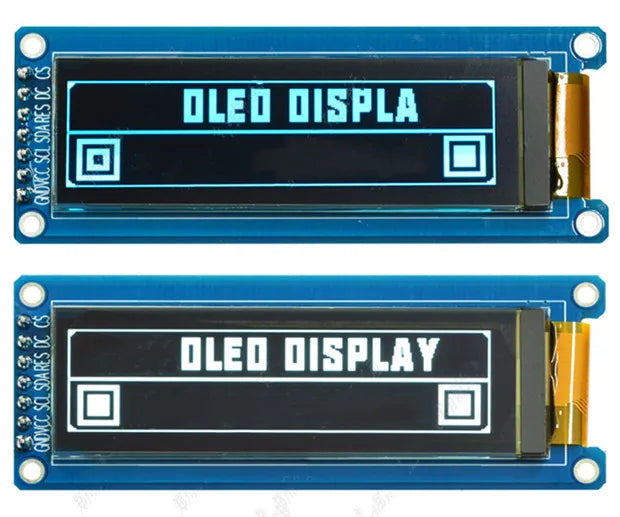

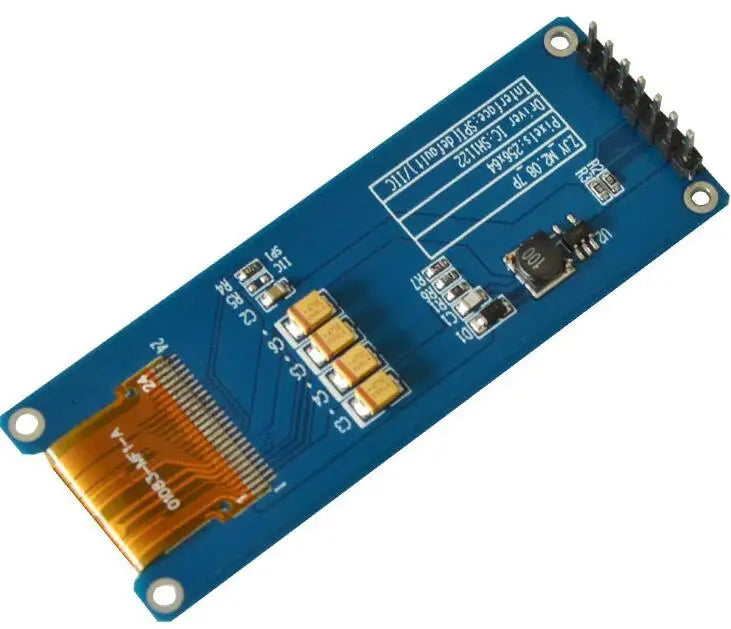

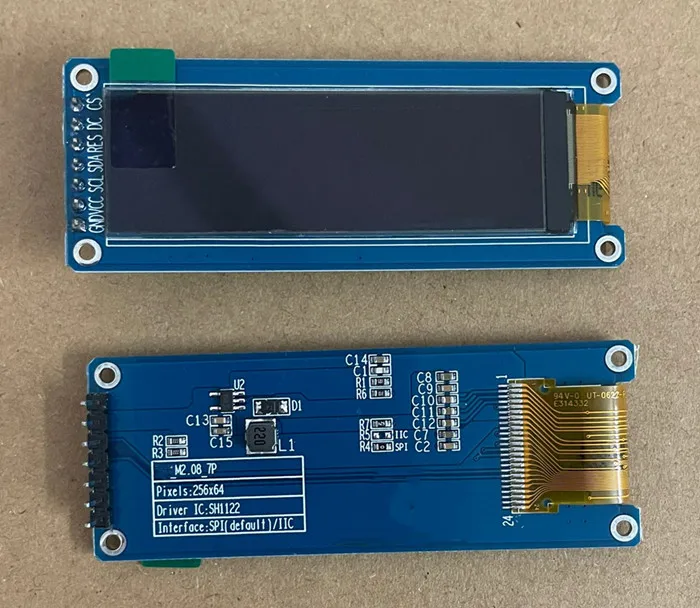

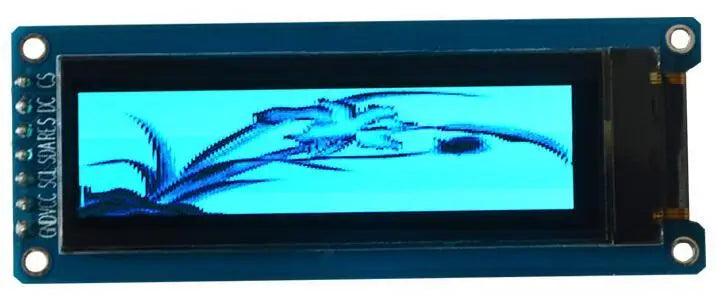

maithoga IPS 2.08 inch 7PIN White/Blue OLED Screen Module SH1122 Drive IC 256*64 SPI/IIC Interface
maithoga IPS 2.08 inch 7PIN White/Blue OLED Screen Module SH1122 Drive IC 256*64 SPI/IIC Interface
SPECIFICATIONS
Brand Name: maithoga
Compatible Brand/Model: None
High-concerned chemical: None
Model Number: /
Origin: Mainland China
Place of origin: Guangzhou, China
2.08 inch OLED LCD screen
Parameter
1. LCD Size: 2.08 inches
2. Dot Matrix Size: 256*64
3. LCD Color: Blue, White (Please choose the color when you order)
4. Hardware Interface: SPI interface
5. Driver IC: SH1122
6. Operating Temperature: -40 - 70
8. Working Power Supply: 3.3V
9. PIN NO.: 7P
10. Display Area: 51.18*12.78mm
11. Size: 72.5*27.24mm
Pin Definition
1 GND
2 VCC
3 SCL
4 SDA
5 RES
6 DC
7 CS
