SPECIFICATIONS

Alarm (option): (250V AC/3A, resistive load)

Appearance size: 160*80*125mm, horizontal opening size: 152*76

Battery Included: no

Brand Name: NONE

Communication (option): RS232,RS485 interface

Current output: (4-20) mA, (0-10) mA, and (0-20) mA.

Display Type: Dual 4-bit LED display

Display range: -1999-9999

External power supply (option): 24V ± 5% below 50mA

High-concerned chemical: None

Level measurement accuracy: 0.2

Origin: Mainland China

Power specifications: 100~240V AC 50/60 Hz

Resolution: 1/3000

brand name: manyyear

customized support: ODM, OBM, OEM

infrared resolution: Other

material: Plastic

model number: MEP-SC8

place of origin: Guangdong, China

thermal color palettes: Other

type: Temperature Controller

warranty: 1 Year

Hello, if I do not reply in time, you can contact me through the following: （WHATS ＋A＋PP）:+8617700267836 E+mail: 2039728528@qq.com （We＋Chat）: +86 17700267836 Welcome your inquiry, we will reply as soon as possible The specific price and shipping cost of the product. You need to communicate with me to confirm before delivery. Welcome to inquire, I am always here

Product Description

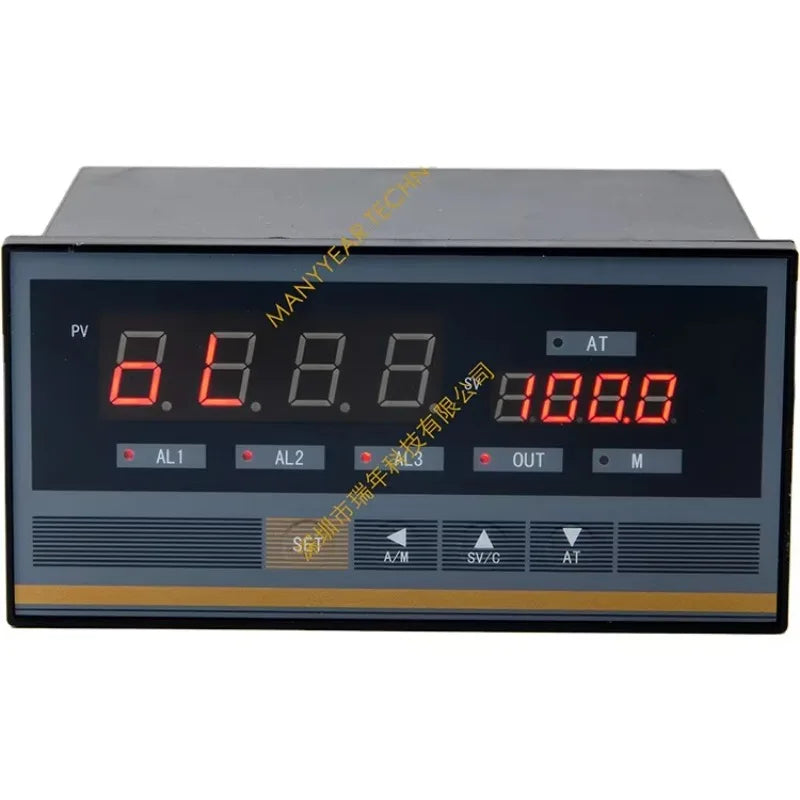

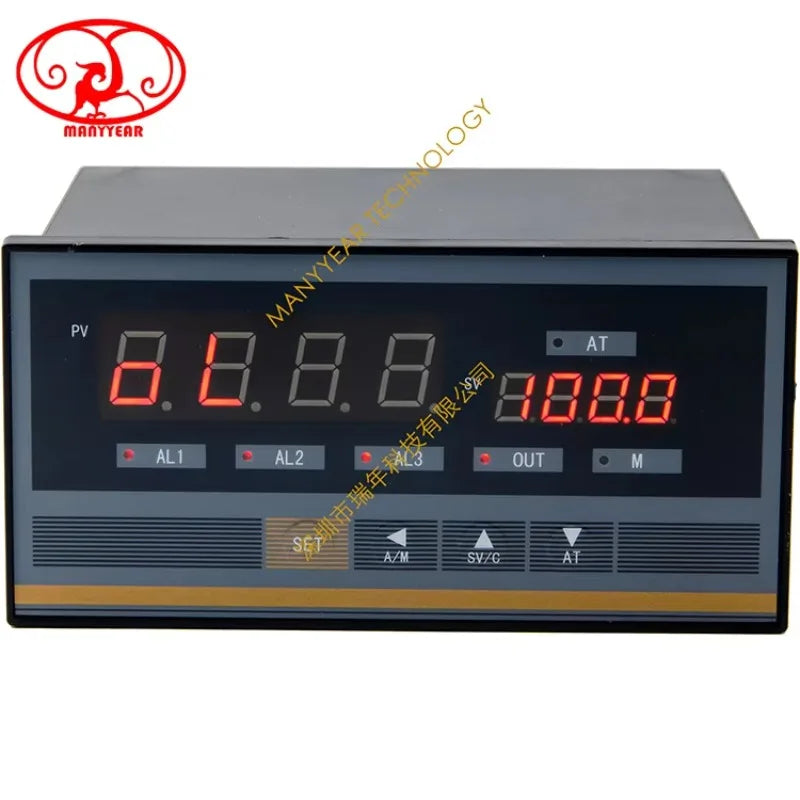

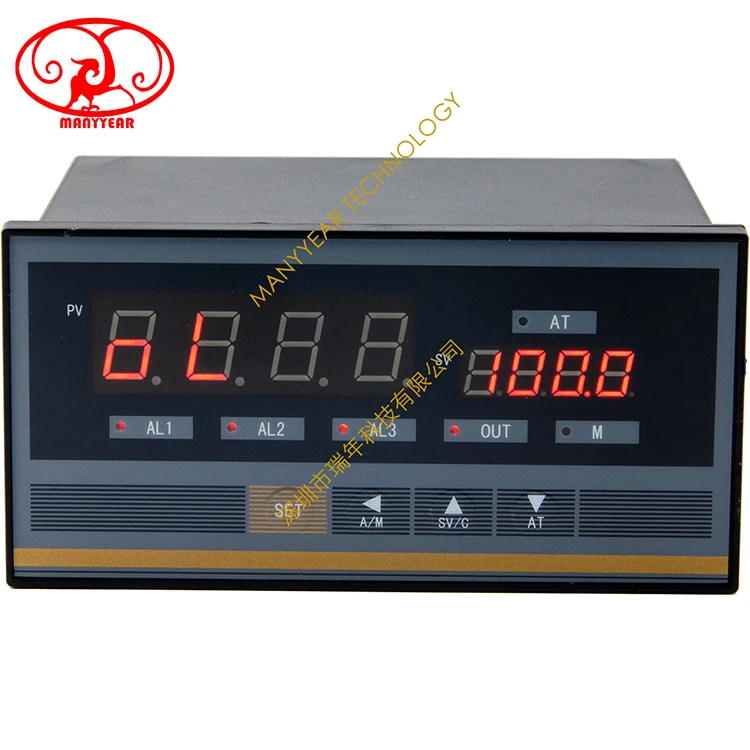

MEP-SC8 digital programmable PID pressure level temperature controller indicator

Main functions & features:
2 level accuracy, measurement and control speed 10 times per second, display range -1999-9999.
Advanced PID intelligent control algorithm, anti overshoot, with self tuning (AT) function.
Analog universal input, selected through settings. Note ②
Optional with 1-3 point alarm output. 10 basic alarm methods: upper (lower) limit of measured value, upper (lower) limit of deviation, upper (lower) limit of absolute deviation, and upper (lower) limit of standby upper (lower) limit and standby
deviation upper (lower) limit.

Optional communication or transmission

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

Content	Code Description
Content		MEP-XSC8-	Dual 4-bit LED display, universal analog input, 0.2 level display accuracy, 10 measurement and control speeds per second;
appearance			AH	160 ×80 × 125mm, horizontal opening size: 152 ×76
size			AS	80× 160 × 125mm, vertical opening size: 152 ×76

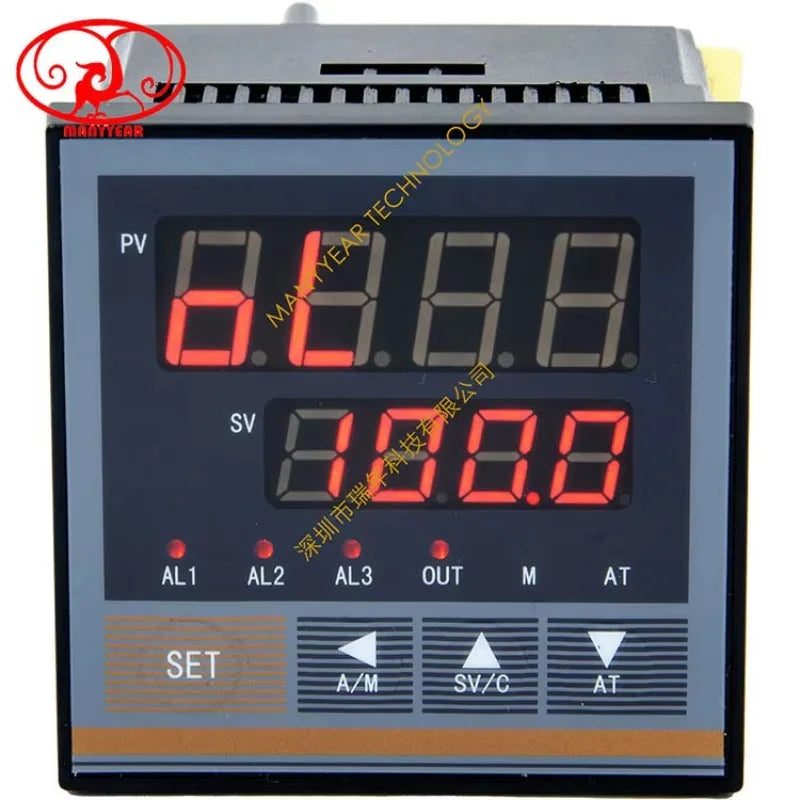

			B	96×96 × 76mm, hole size: 92 × 92

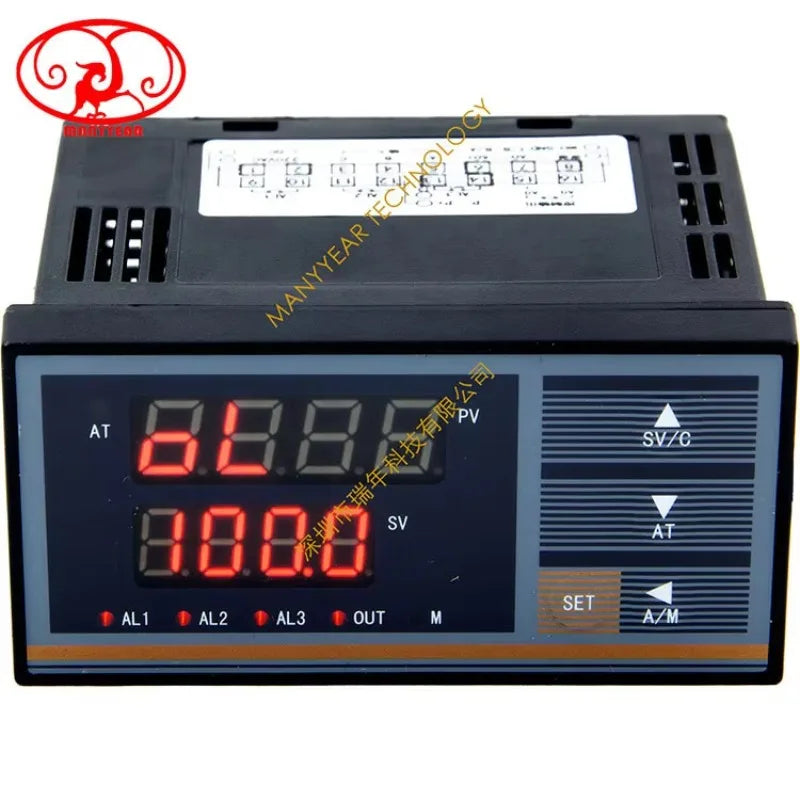

			CH	96× 48× 82mm, horizontal opening size: 92 × 45
			CS	48× 96× 82mm, vertical opening size: 92 × 45
			D	72×72× 75mm, hole size: 68 ×68

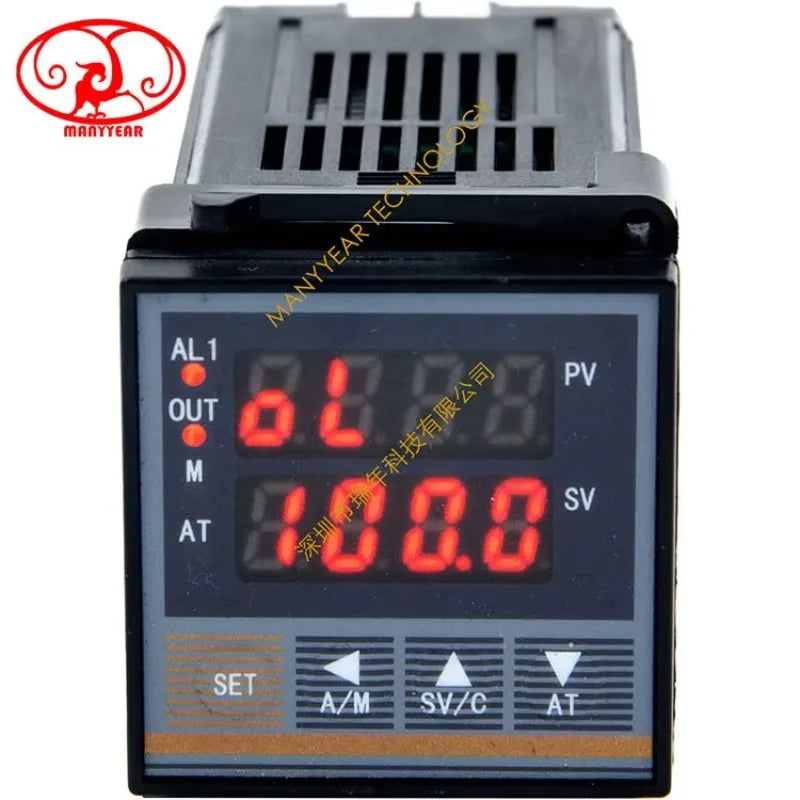

			E	48× 48 × 108mm, hole size: 45.5 × 45.5

Alarm (option)	Limit A	T1~T3	1-3 alarm relay outputs, both normally open and normally closed double contacts
(250V AC/3A, resistive load)	Limit B	T1~T2	1-2 alarm relay outputs, both normally open and normally closed double contacts
	Limit B		T3	3 point alarm relay outputs, all single normally open contacts
	Limit C	T1-T3	1-3 point alarm relay outputs are all single normally open contacts. When selecting external supply, T3 cannot be selected
	Limit D	T1~T2	1-2 alarm relay outputs, 1 point normally open+normally closed dual contact; 1 point single normally open contact
			T3	3 point alarm relay output, 1 point is a normally open+normally closed double contact, and the other 2 points are a single normally open contact.
				When selecting this model, external power supply, transmission, or communication cannot be selected;
	Limit E	T1~T2	1-2 alarm relay outputs, 1 point is a normally open+normally closed contact, and the other point is a normally open contact.
Control output			CA1	Current output (4-20) mA, (0-20) mA
				CA2	Voltage output (0-5) V, (1-5) V
				CA3	Voltage output (0-10) V
				CR	Relay output (single normally open) (250V AC/3A)
				CQ	Control solid-state relay output (SSR) (12V DC/21mA)
External power supply (option)			B1	24V ± 5% below 50mA

For details, please refer to Note ①	B2	Below 12V ± 5% 50mA
Transmission (option) (resolution: 1/3000; current output load ≤ 600 Ω, voltage output load ≥ 100K Ω);	A1	The current output is (4-20) mA, (0-10) mA, and (0-20) mA.
Communication (option) (optional through parameters: Modbus RTU or TC-ASCII protocol) (communication address: 0-99)	A1	The current output is (4-20) mA, (0-10) mA, and (0-20) mA.
For details, please refer to Note ②	A2	Voltage output (1-5) V, (0-5) V
		A3	Voltage output (0-10) V
		MS1	RS232 interface (limited to A, B, and C sizes)
		MS2	RS485 interface
Power specifications	V0	100~240V AC 50/60 Hz
Power specifications		V1	10~24V AC 50/60 Hz; 10~24V DC
① The size of E is limited by the number of terminals, and when the second alarm is selected, external power supply cannot be selected. ② : It is not possible to install both transmission and communication functions simultaneously: The size of D is limited by the number of terminals, and when external supply or the third alarm is selected, transmission or communication cannot be selected;
