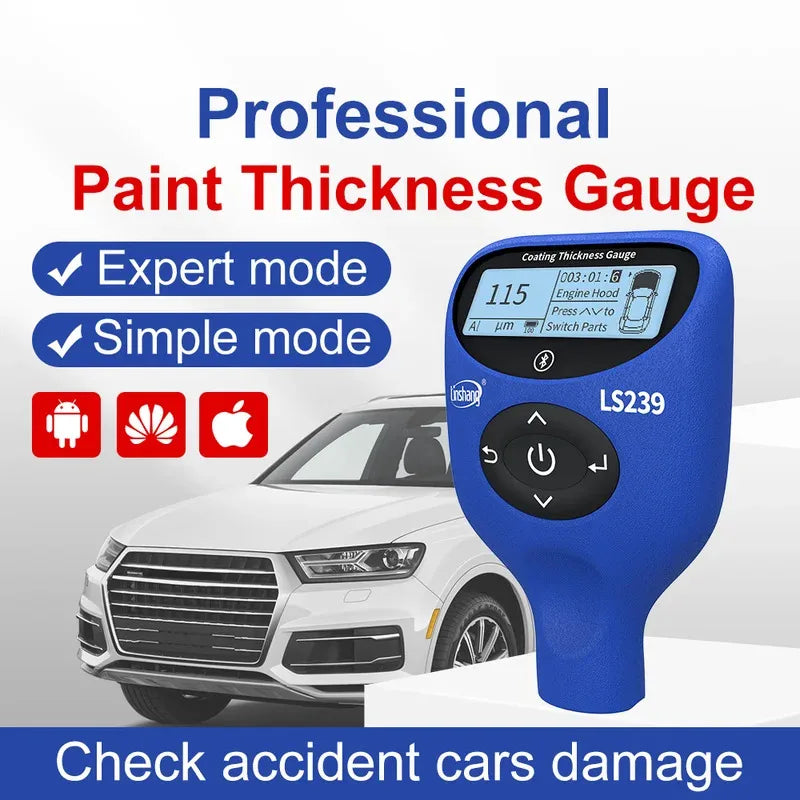

New LS239 Car Coating Thickness Gauge 0.0-5000μm Measuring Range Paint Tester Three-Color Display

Description

This brand-new intelligent paint thickness gauge is designed for accurate measurement of automotive paint thickness, especially on steel and aluminum surfaces.It can also identify non-metal body panels, putty layers, and galvanized steel, providing professional-grade detection.The device features a three-color backlight display for quick and clear readings, making it user-friendly for both pros and beginners.With built-in Bluetooth, the gauge connects to a mobile app or mini-program to record paint thickness values and body materials at different locations.You can even generate reports and visual info cards to share with customers or on social media.

Specifications

1.Probe tip: Ruby

2.Measurement principle: Fe: Hall effect / Al: Eddy current

3.Probe type: Integrated

4.Measuring range: 0.0-5000μm

5.Resolution: 0.1μm/1μm/10μm

6.Accuracy: 0-3000μm: ≤±(3%H+2μm); 3000-5000μm: ≤±(5%H+2μm), H is the standard value

7.Unit: μm / mil

8.Measuring interval: 0.5 s

9.Minimum measuring area: Ø = 25mm

10.Minimum radius of curvature: Convex: 5mm / Concave: 25mm

11.Minimum substrate thickness: Fe:0.2mm / Al:0.05mm

12.Display: 192×64 dot matrix LCD

13.Power supply: Rechargeable lithium battery 3.7V@1200mAh

14.Range of working temperature: -20℃-50℃

15.Storage temperature range: -20℃-60℃

16.Host size: 108*70*31 mm

17.Weight (including battery): 88.8g

18.Data transfer: BluetoothFeatures

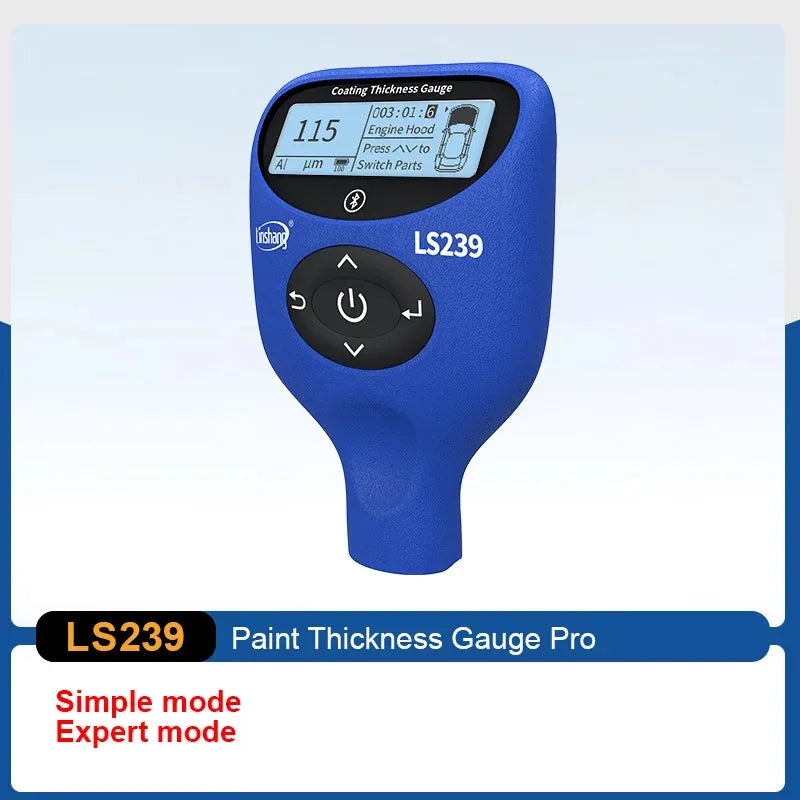

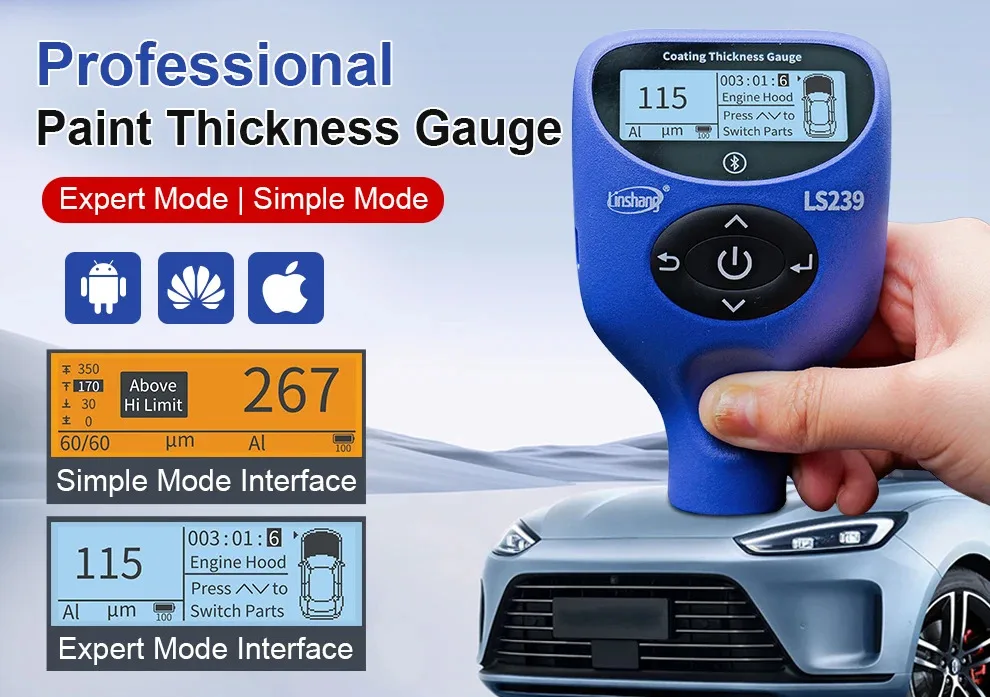

1.Easily switch between simple mode and expert mode to suit different user needs.

2.Each vehicle is divided into 19 components, with 6 data points stored per component for precise analysis.

3.Intelligently detects ferrous putty, making it easy to identify refinished vehicles.

4.Quickly identifies steel, aluminum, galvanized steel, and non-metal bodies—one device for all materials.

5.Customizable alert thresholds notify users when measurements exceed set limits.

6.Tri-color backlight display automatically adjusts to reflect different paint thickness levels.

7.Ultra-fast response time—each measurement completes in just 0.3 seconds.

8.Wide measurement range supports up to 5000μm for high-thickness detection.

9.Stores data for up to 999 vehicles in Pro Mode.

10.Works with a companion app to record full-vehicle data and generate inspection reports.

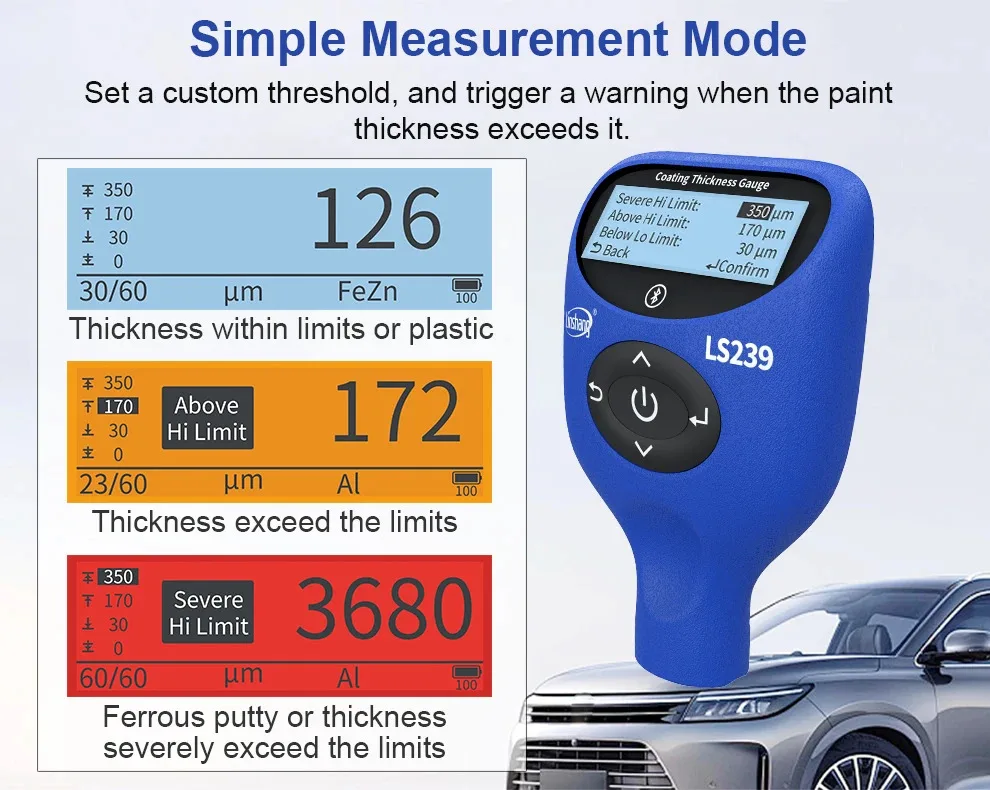

Simple Measurement Mode

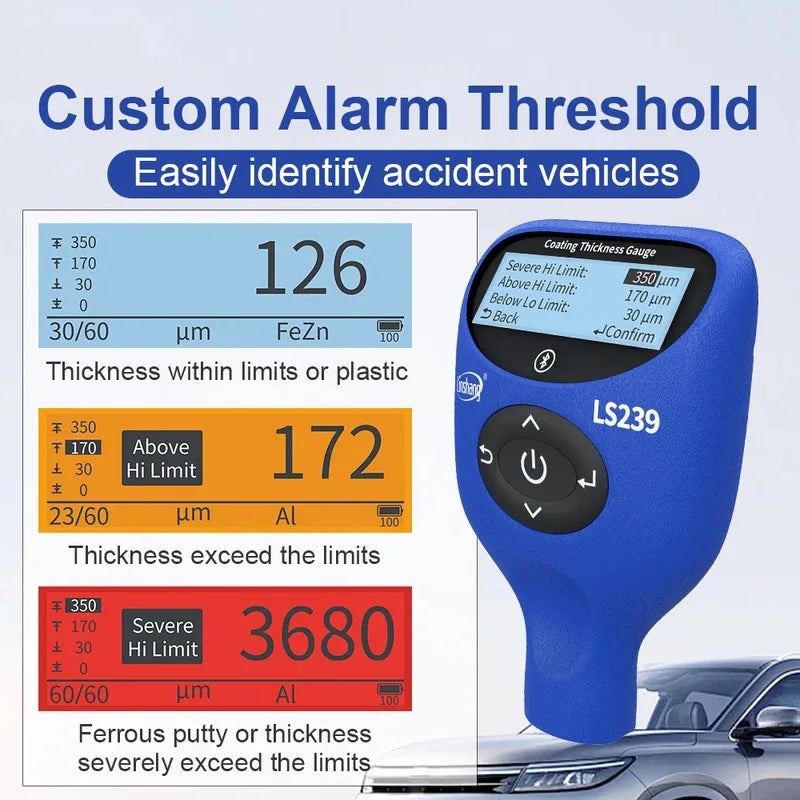

Set a custom threshold, and trigger a warning when the paint thickness exceeds it.

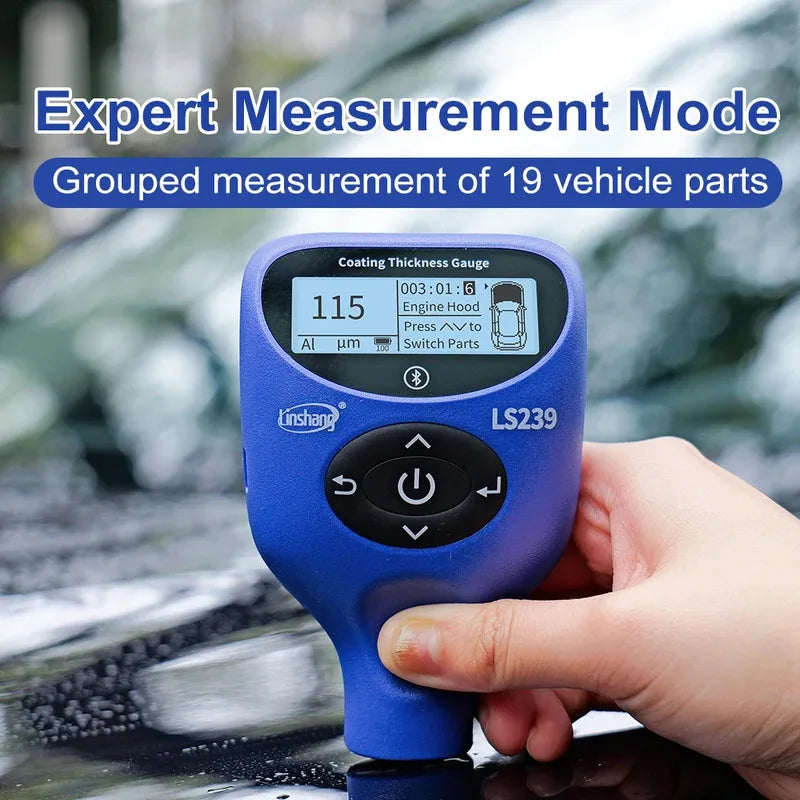

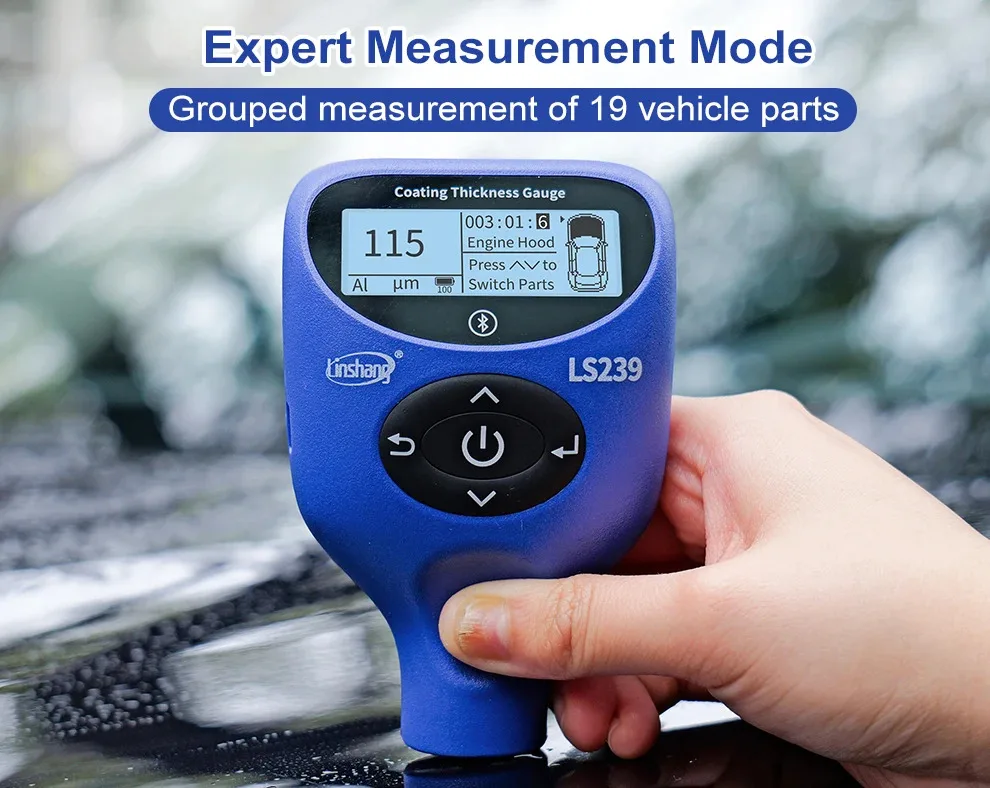

Expert Measurement Mode

Grouped measurement of 19 vehicle parts, with 6 data points per part.

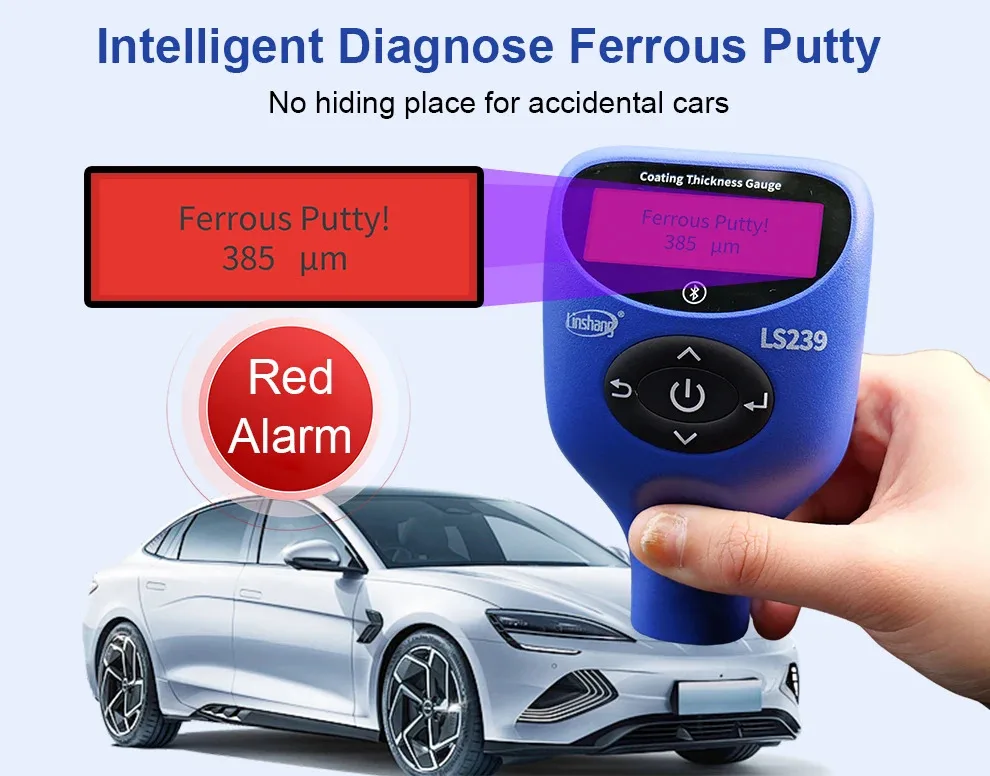

Intelligent diagnose ferrous putty

Automatically diagnoses repair ferrous putty with beeps and red warning prompts

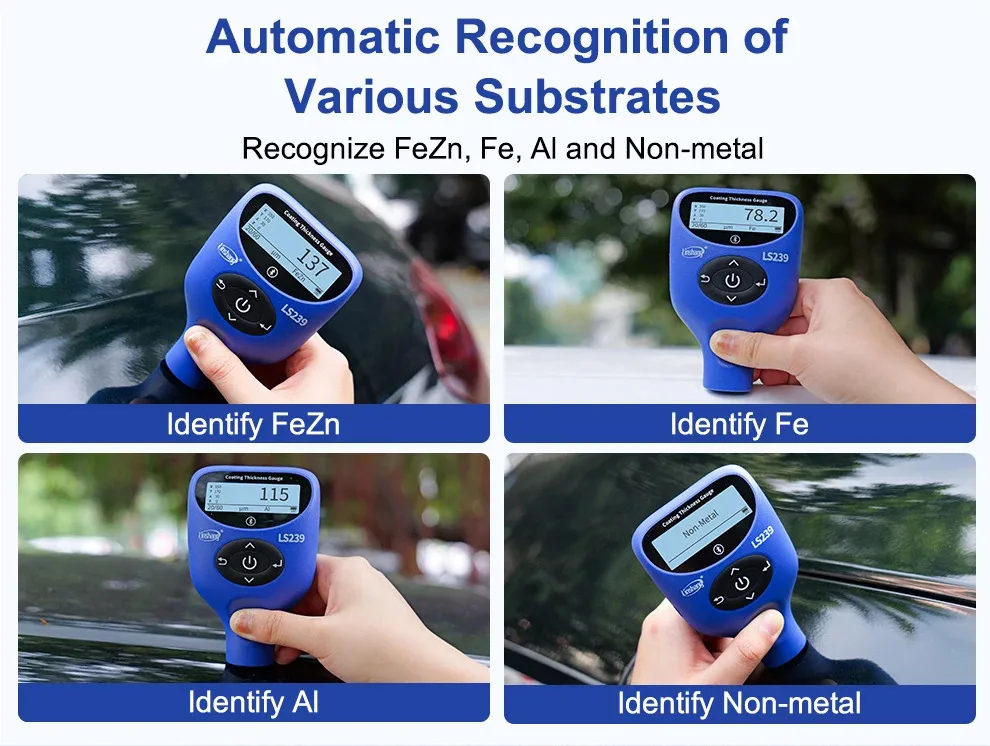

Automatic recognition of various substrates

The paint thickness tester can recognize FeZn, Fe, Al and non-metal.

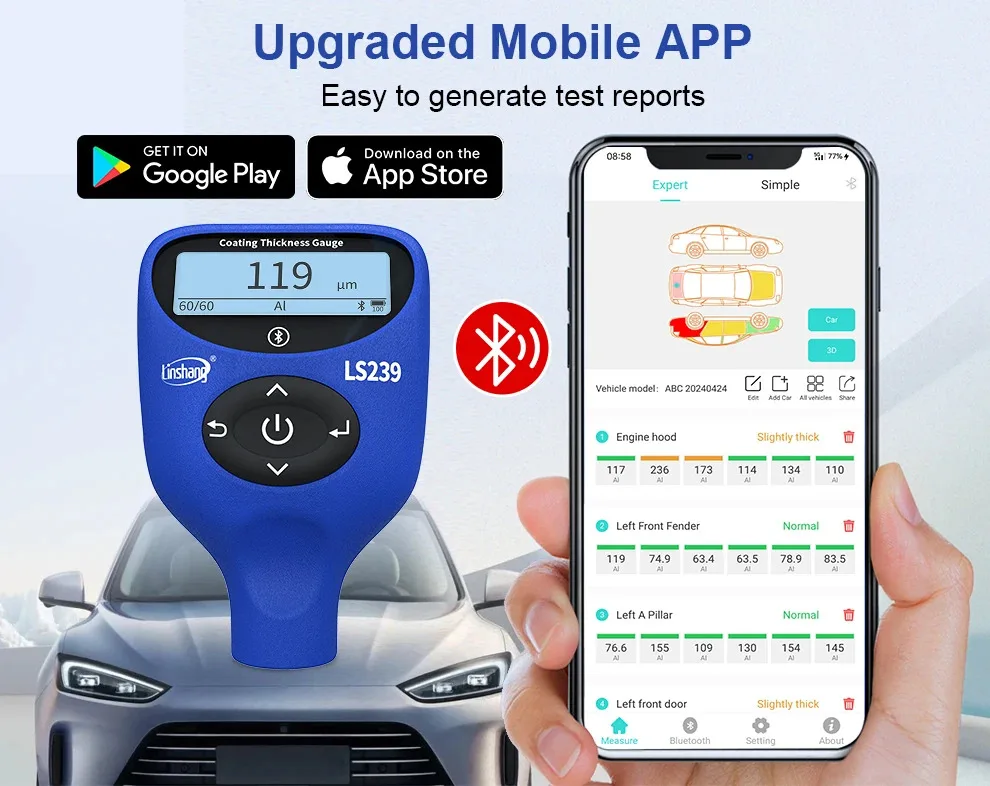

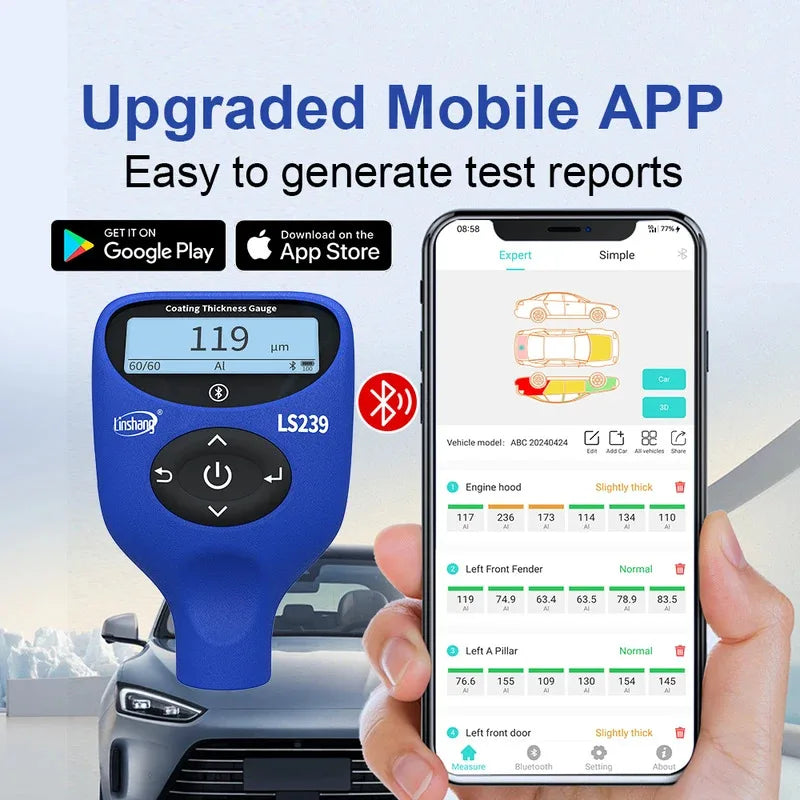

Upgraded Mobile APP

Connect to the mobile app via Bluetooth for automatic, comprehensive car inspection guides.

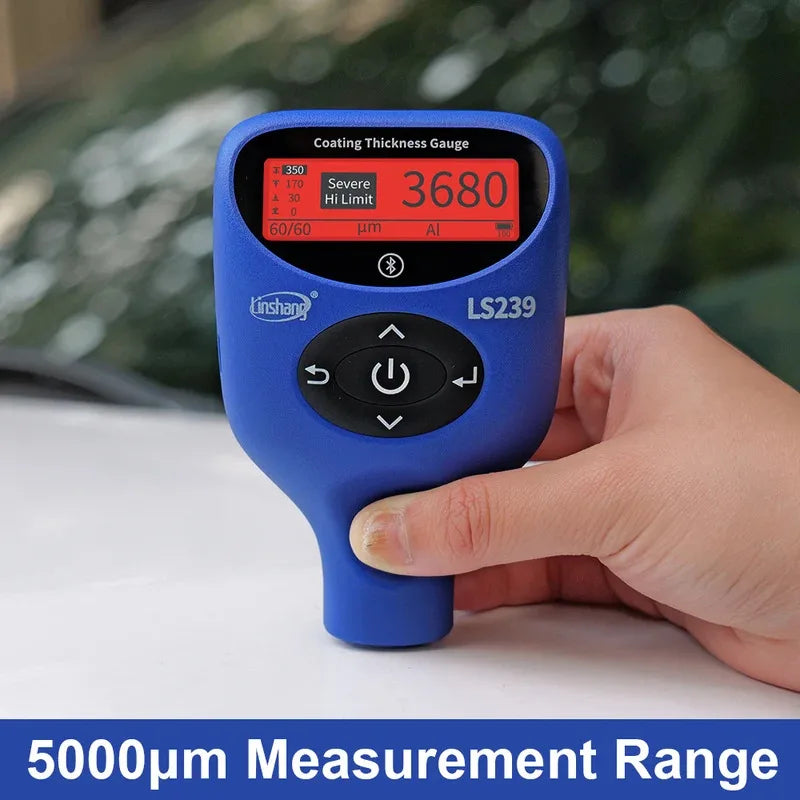

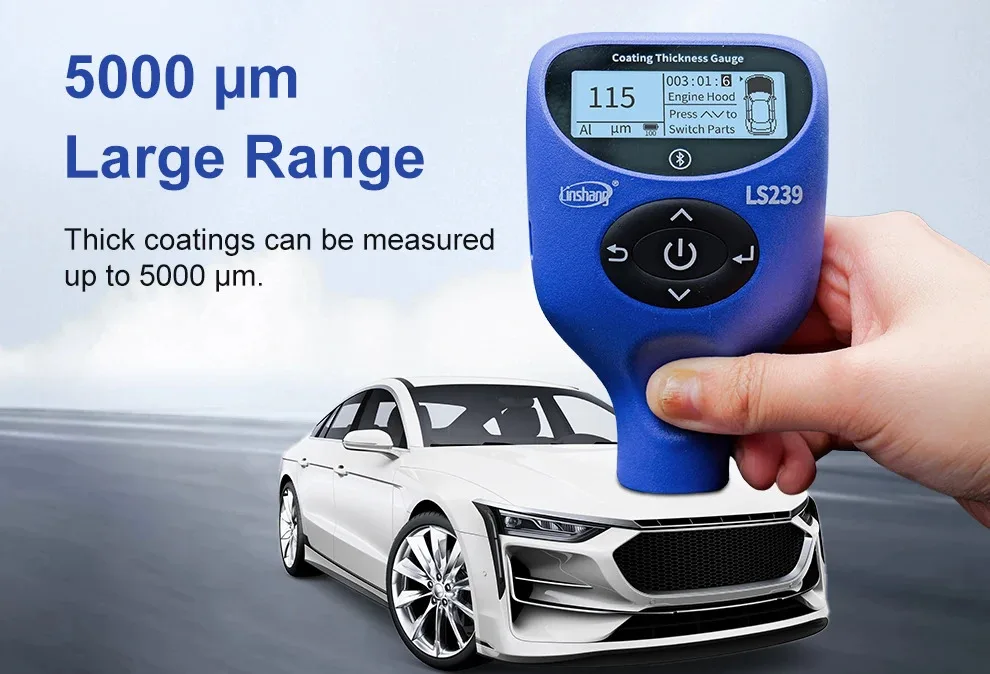

5000 µm large range

The paint thickness tester can measure thick coatings up to 5000 µm.

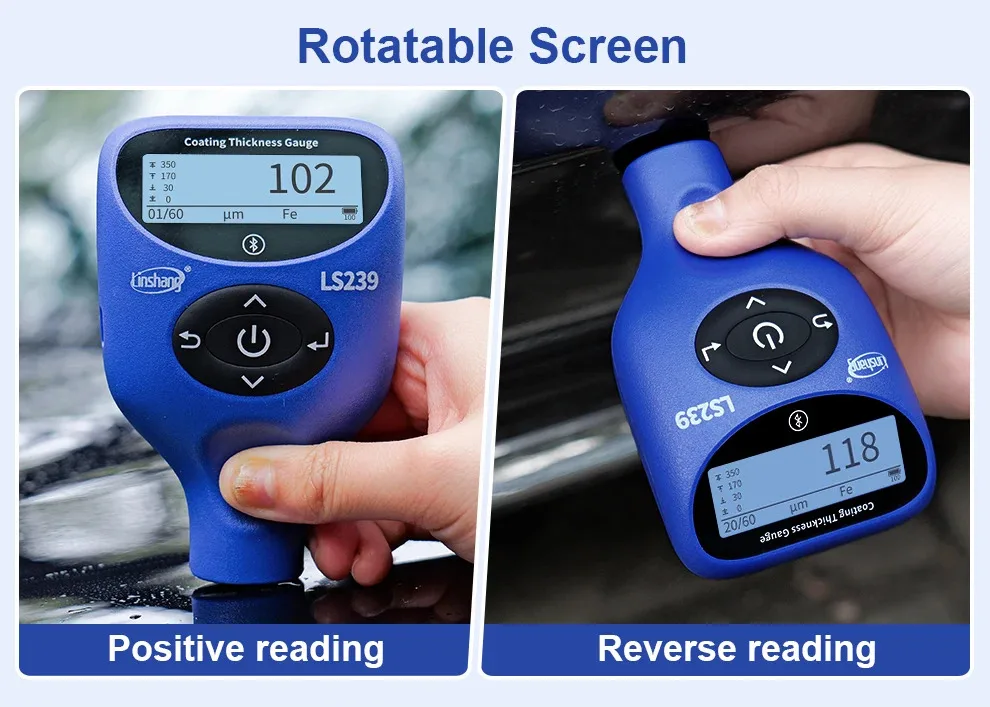

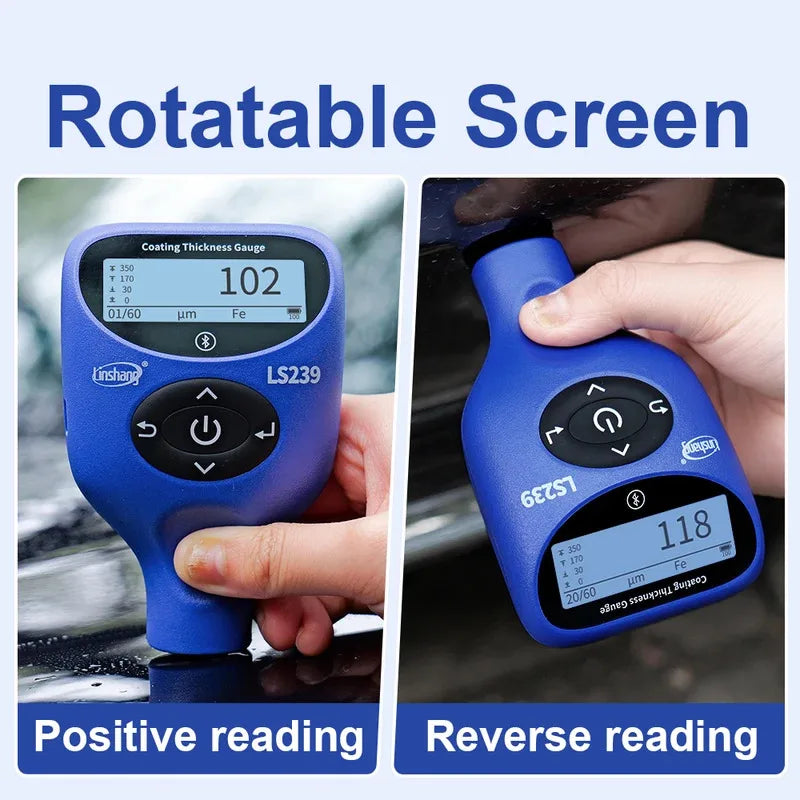

Rotatable display allows for easy reading

The car paint meter screen can be rotated by short press on the power button, enhancing readability.

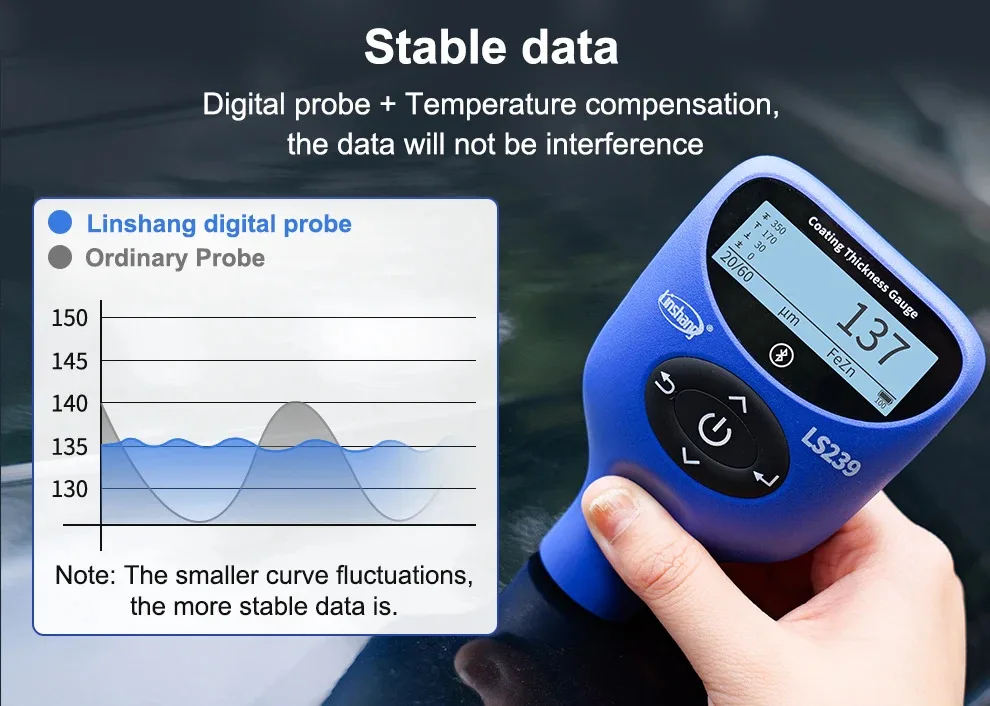

Stable data

LS239 coating thickness gauge uses digital probe and temperature compensation, the data will not be interference

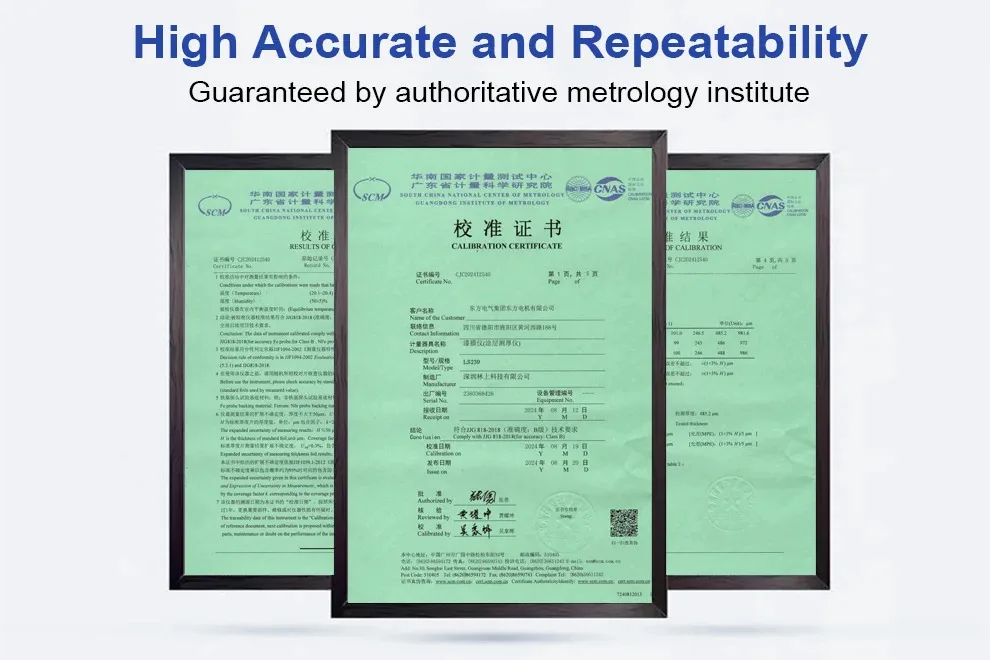

High accurate and repeatability

The coating thickness gauge for cars is guaranteed by authoritative metrology institute

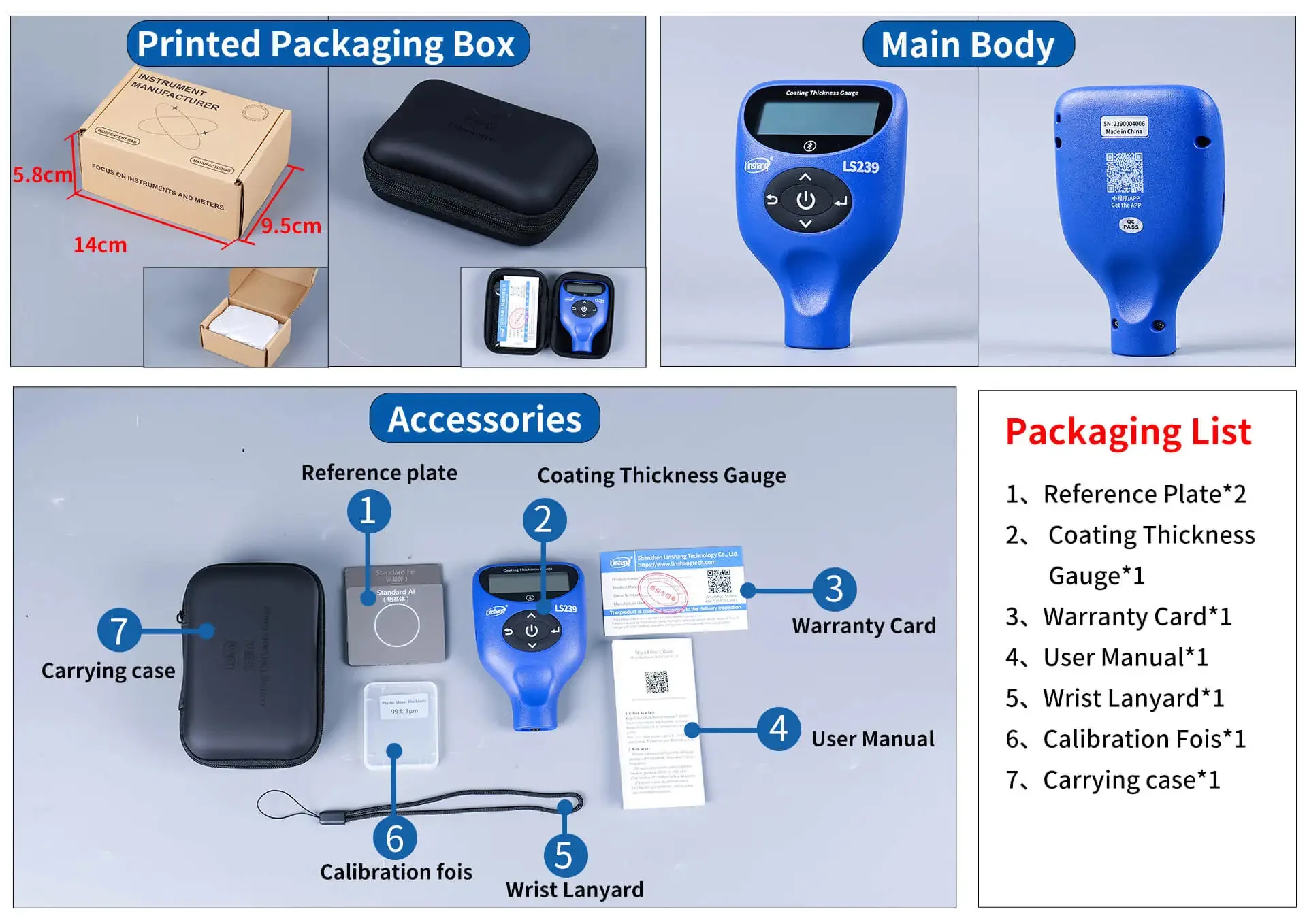

1.LS239 car paint meter*1

2.Fe plate of zero adjustment*1

3.NFe plate of zero adjustment*1

4. Standard film*1

5. User manual*1

Note

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-2cm measuring deviation due to manual measurement.
