SPECIFICATIONS

Battery Included: no

Brand Name: SONGGER

Certification: NONE

High-concerned chemical: None

Measuring range: 10-150m

Origin: Mainland China

Power supply: 9V battery

Resolution: 1mm

Semi-finishedproduct: No

Notice:

This product requires a 9V square battery.

Battery is NOT included due to international shipping regulations.

1.NOTE

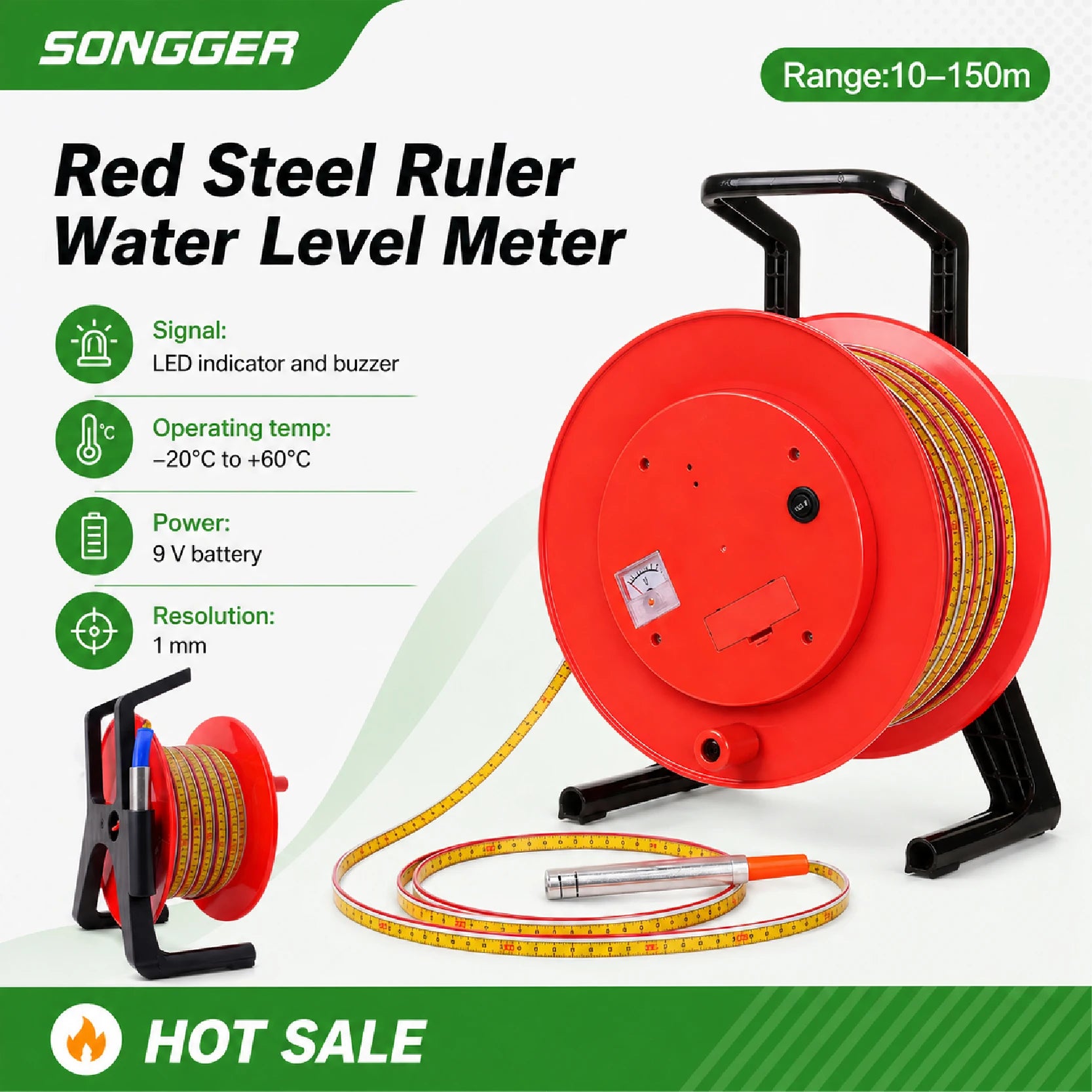

Default Configuration

Measuring Range: 10–150 m

Resolution: 1 mm

Power Supply: 9V battery, 6FF22 dry cell

Operating Temperature: -20°C to +60°C

Signal Display: LED indicator and buzzer

Customization

The measuring range can be customized according to your requirements.

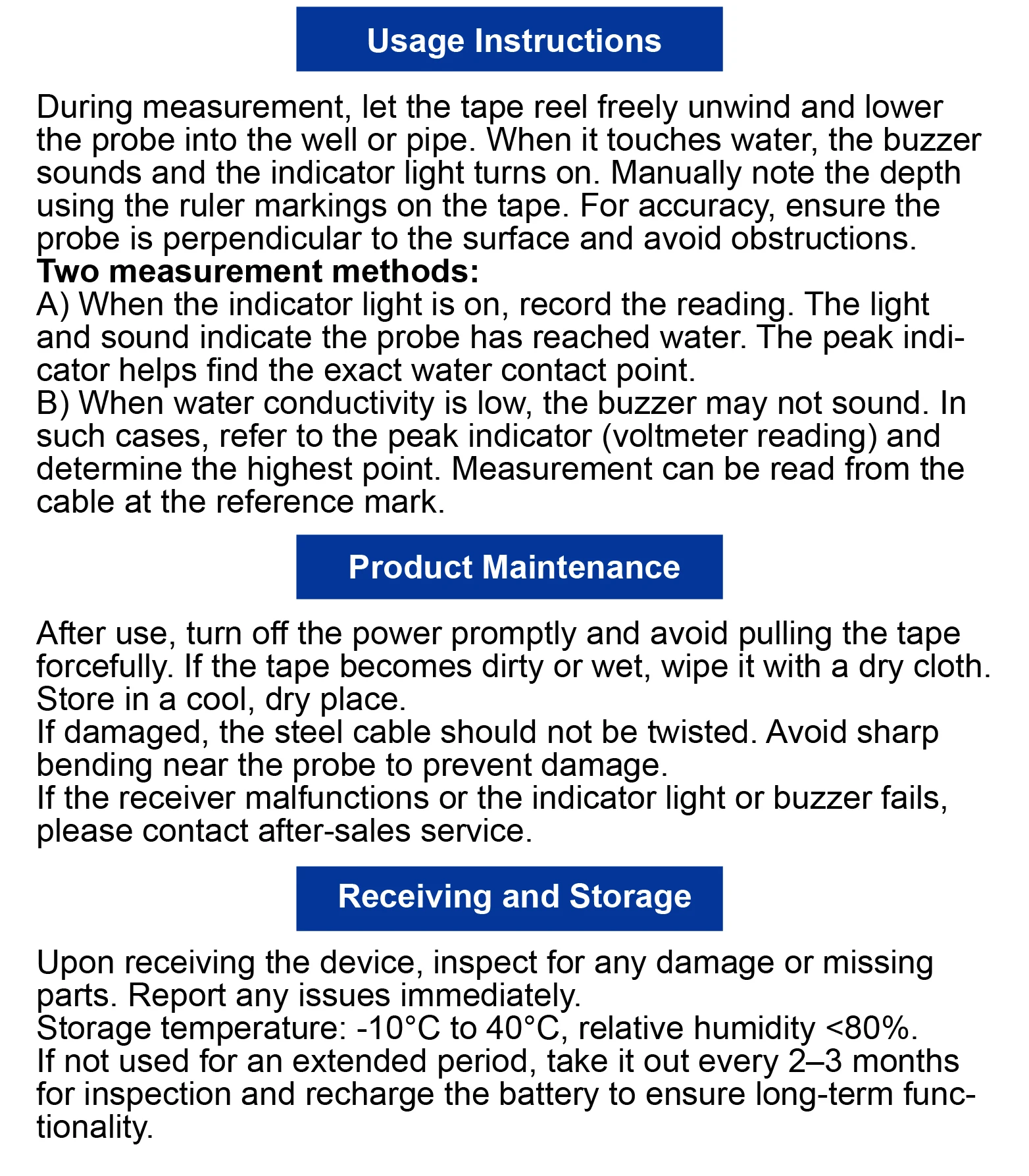

How to Use

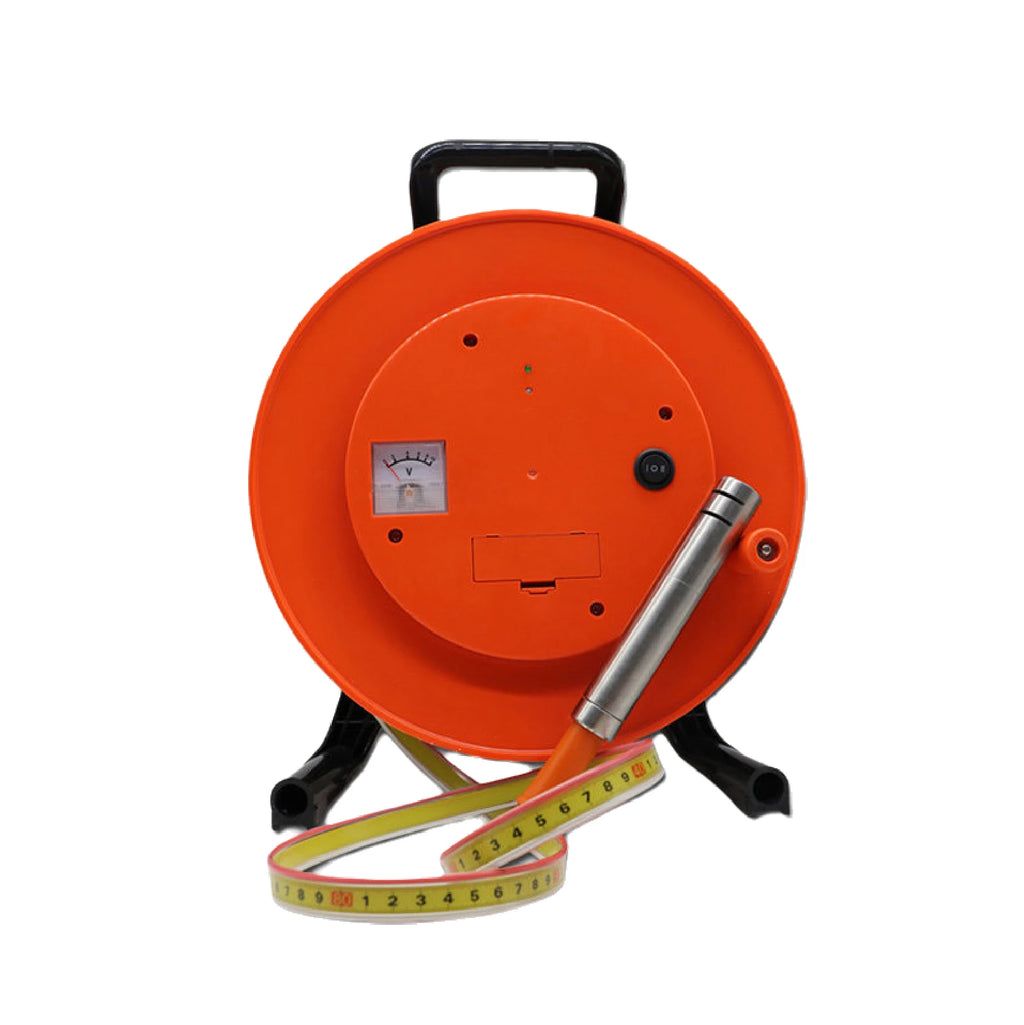

When the probe touches the water surface, the buzzer will sound, the indicator light will turn on, and the voltmeter needle will move.

Slowly lower the steel tape cable to find the exact point where the signal is triggered, then read the depth from the borehole opening.

Notes

Reading accuracy depends on how quickly the operator identifies the buzzer or indicator signal, as well as the operator’s experience and skill.

Repeated practice is recommended to improve measurement accuracy.

For custom orders or any questions, please contact us.

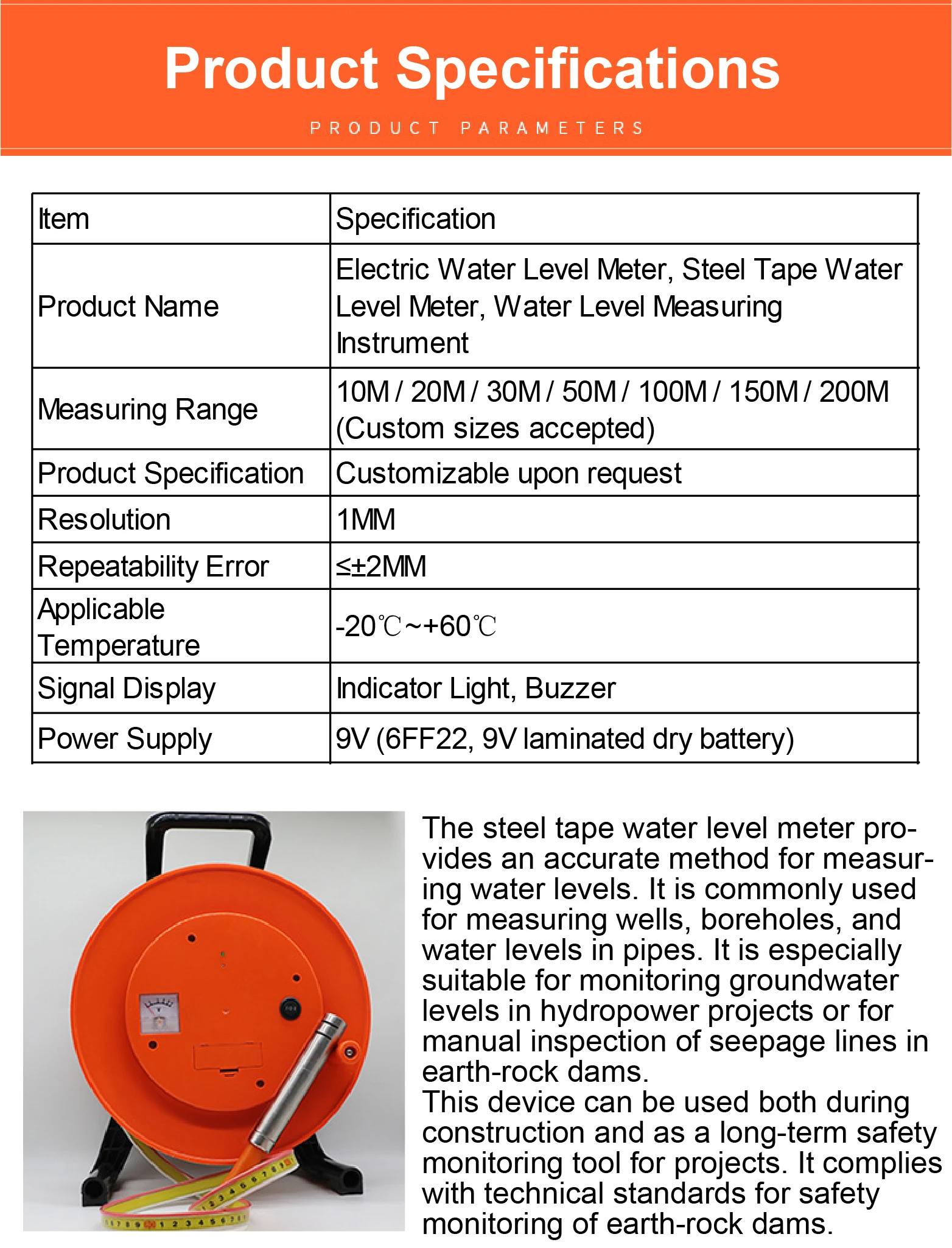

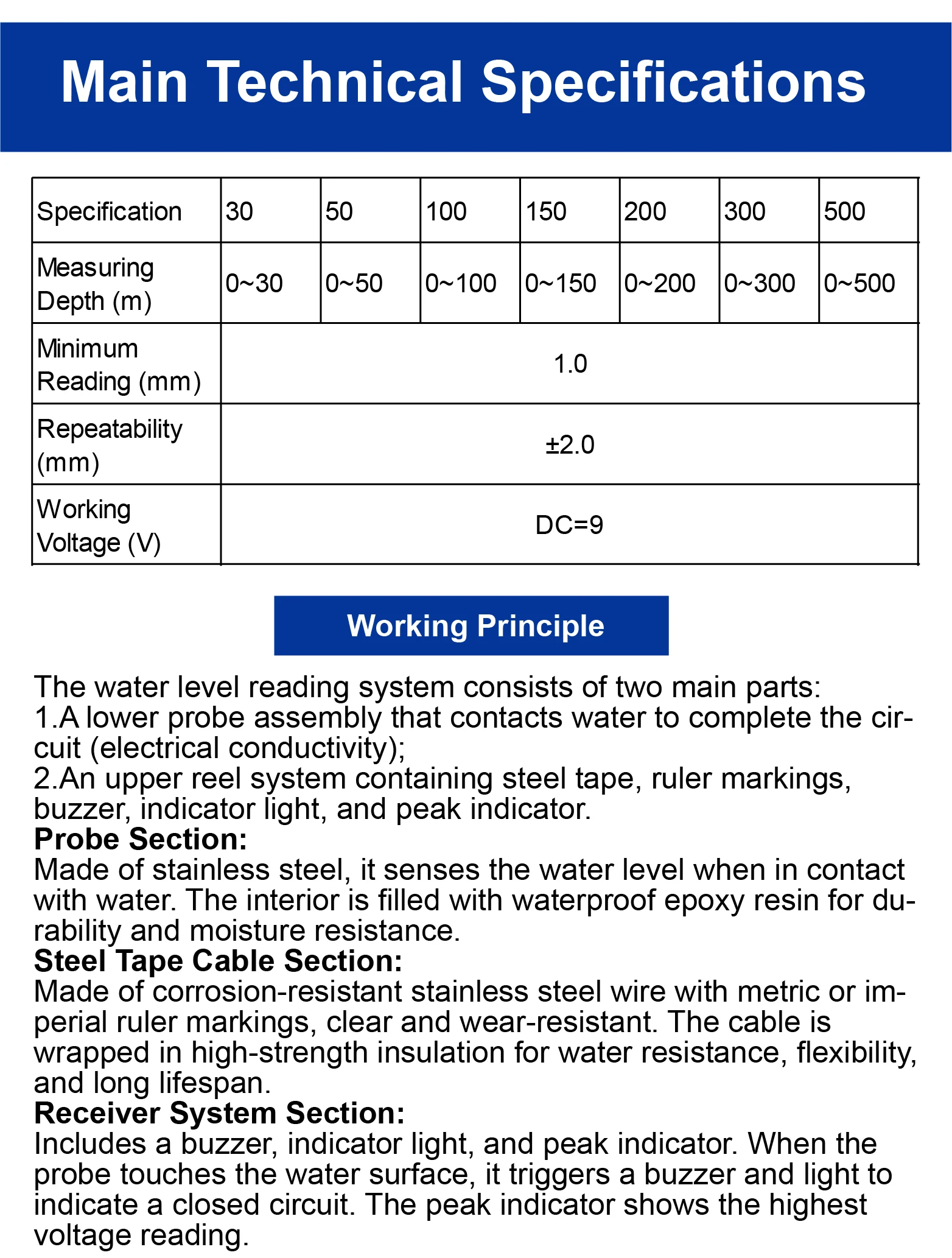

2. Parameters

3. Features

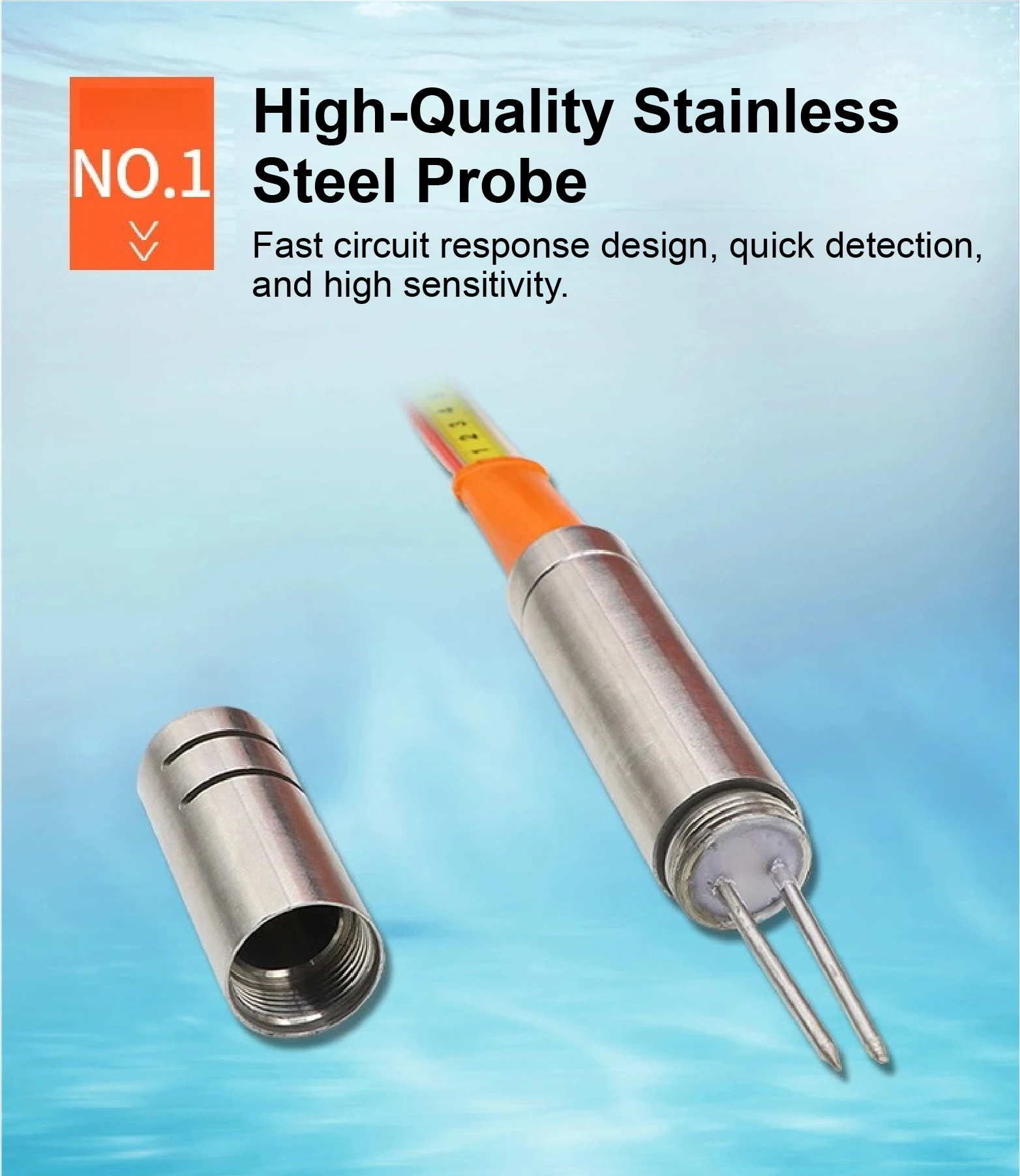

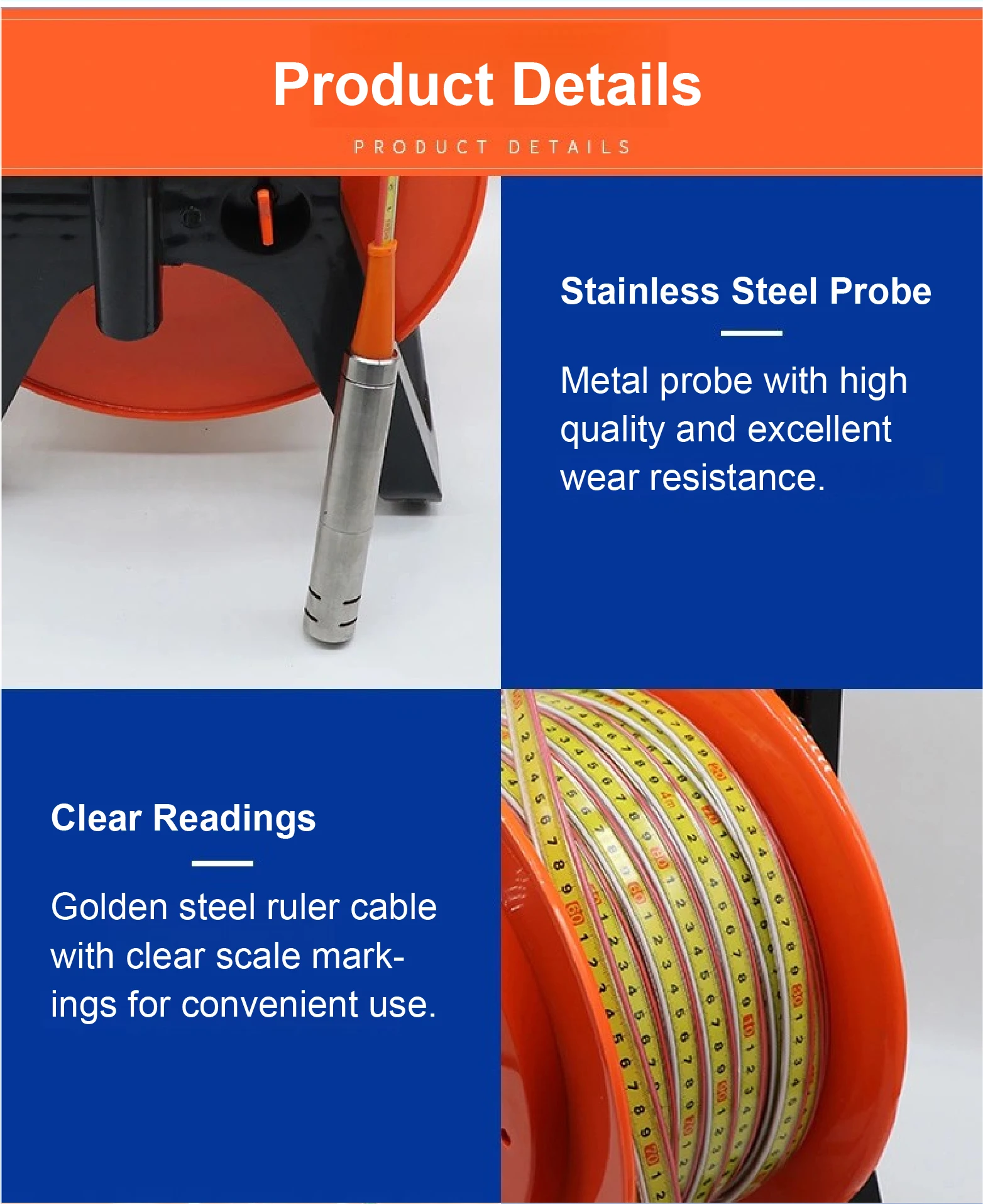

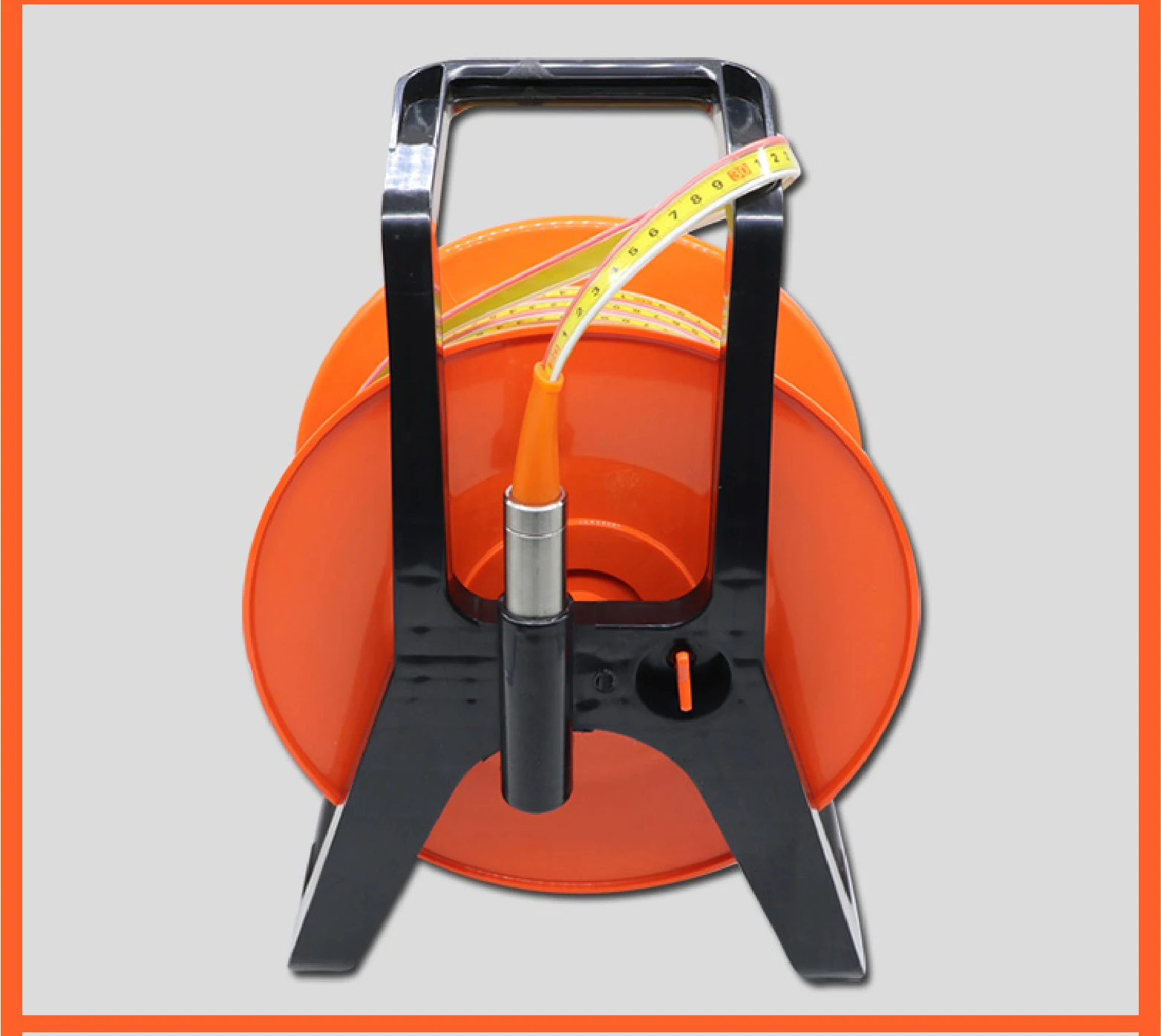

High-Quality Stainless Steel Probe

Made from premium stainless steel, offering excellent resistance to corrosion and wear for long-lasting performance in various environments.

Fast and Accurate Detection

Equipped with a quick-response circuit that delivers high sensitivity, allowing fast and precise water level detection.

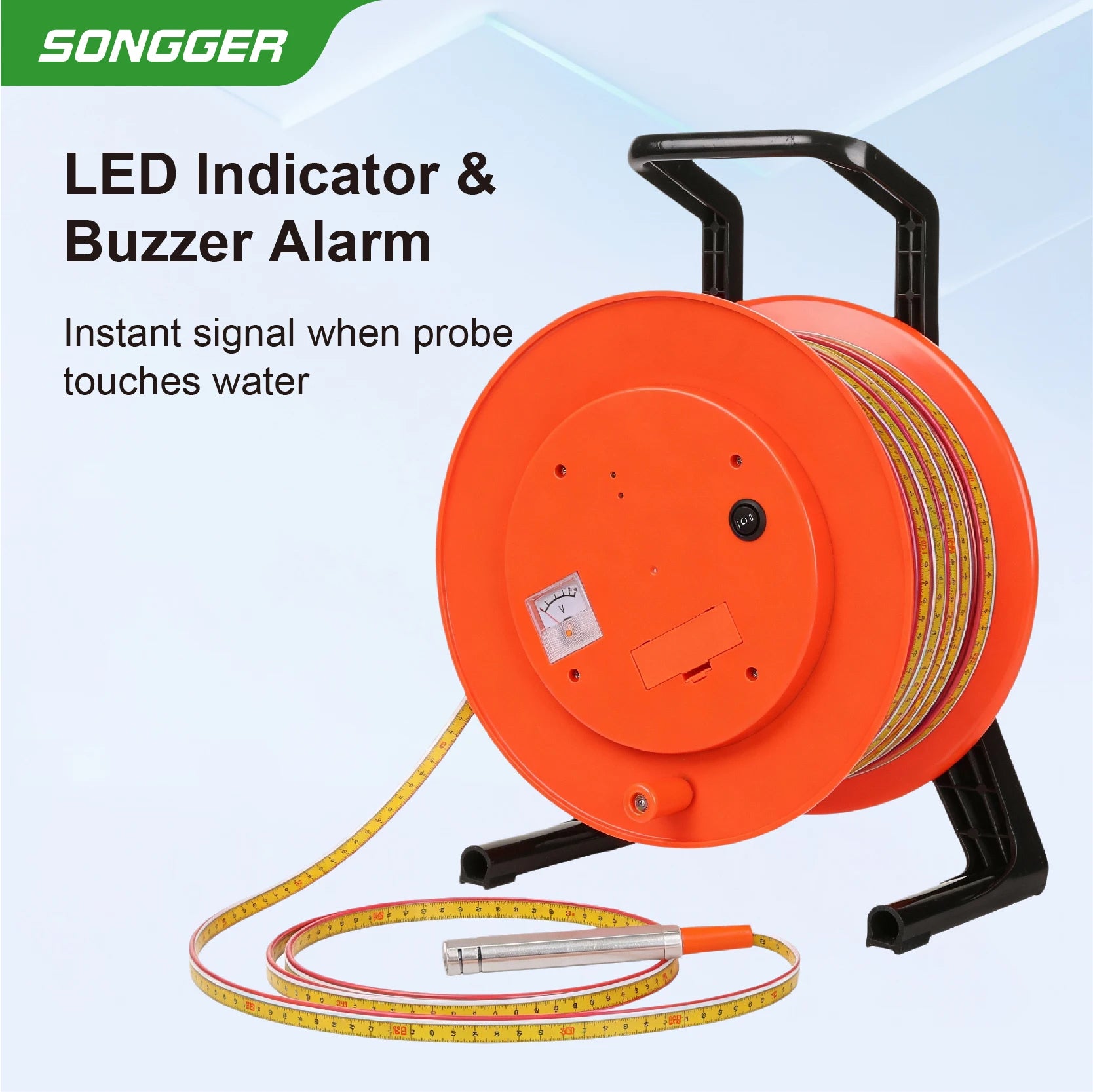

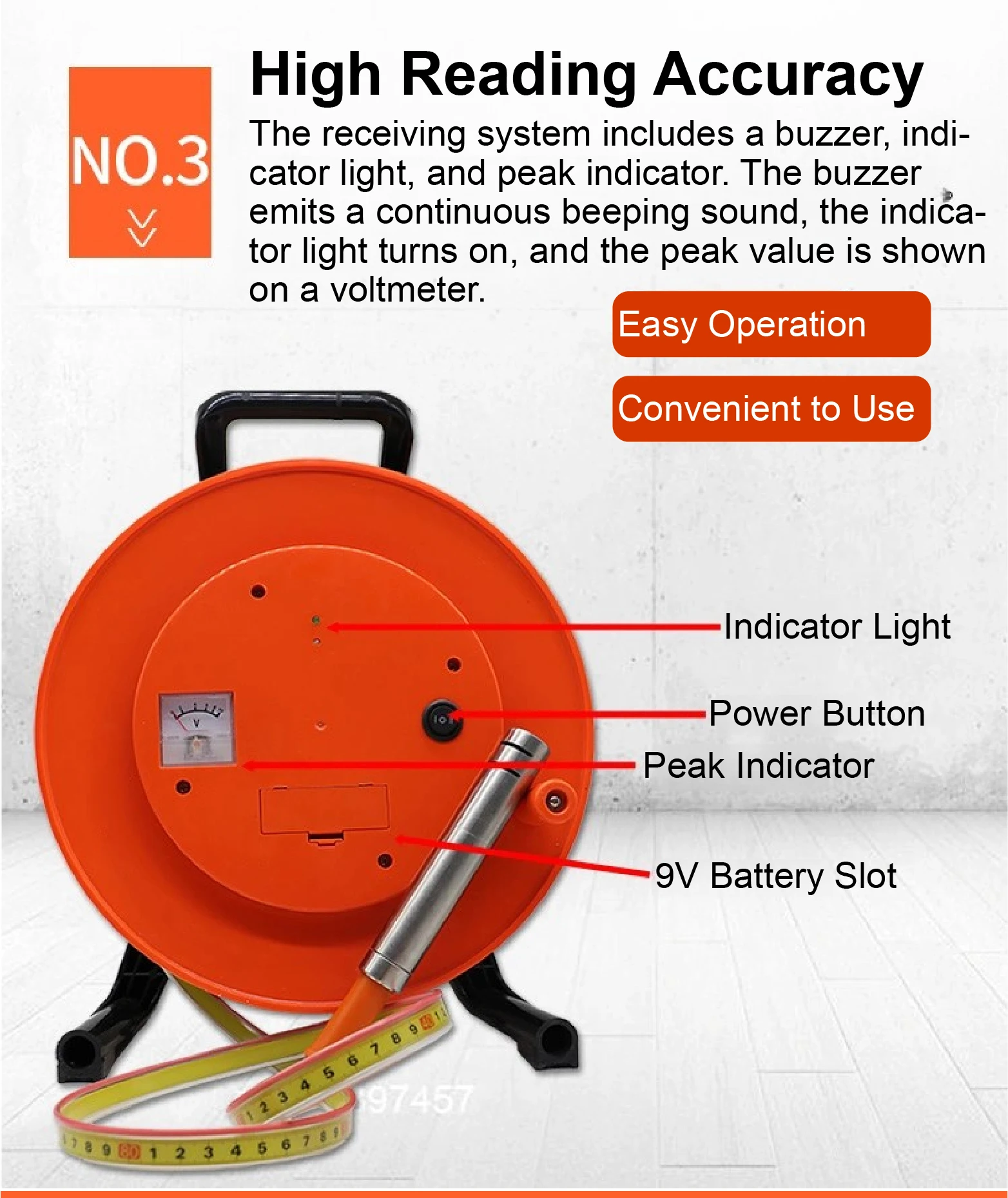

Clear Audible and Visual Alerts

Built-in buzzer and LED indicator provide clear and reliable signals when water is detected, ensuring easy operation in different conditions.

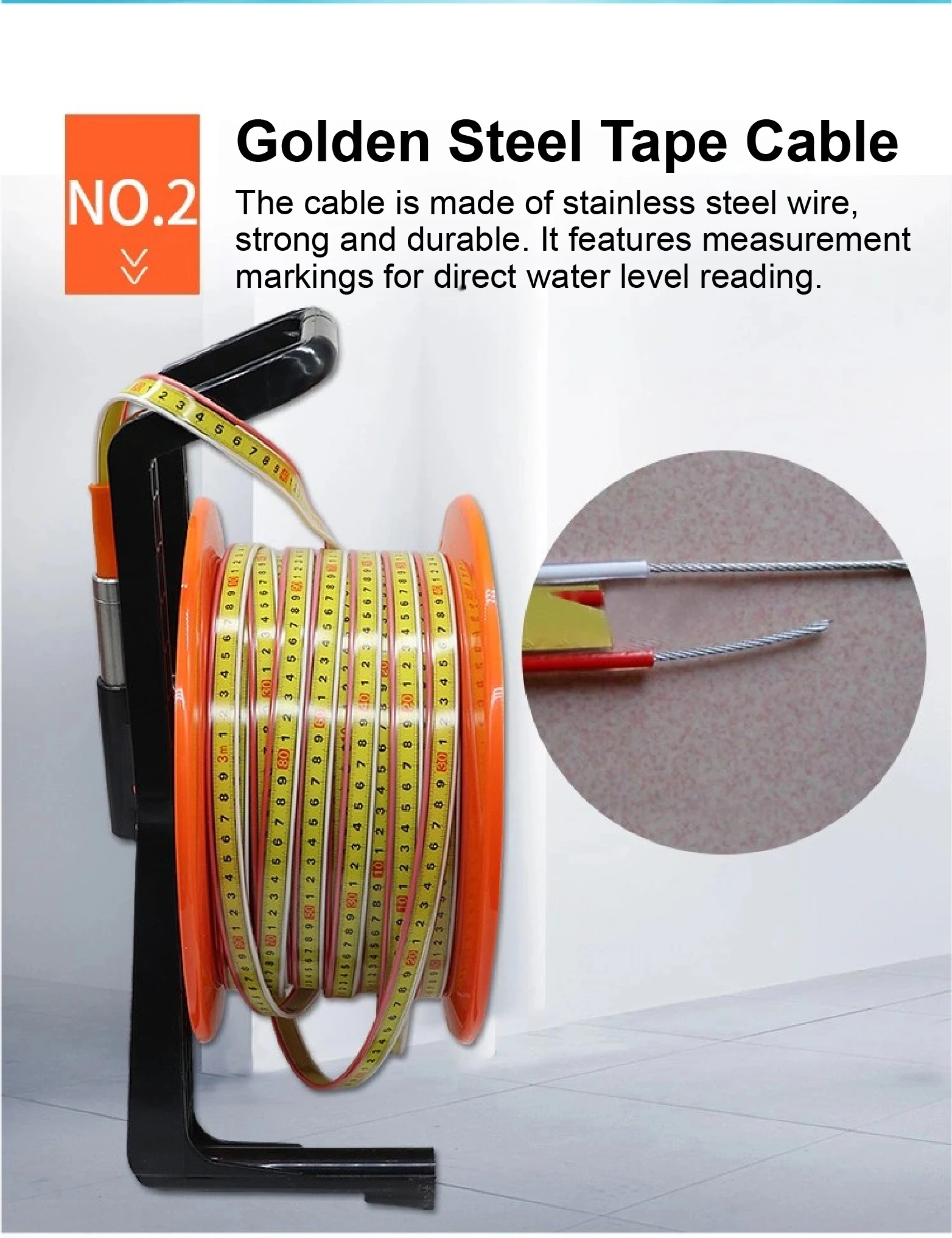

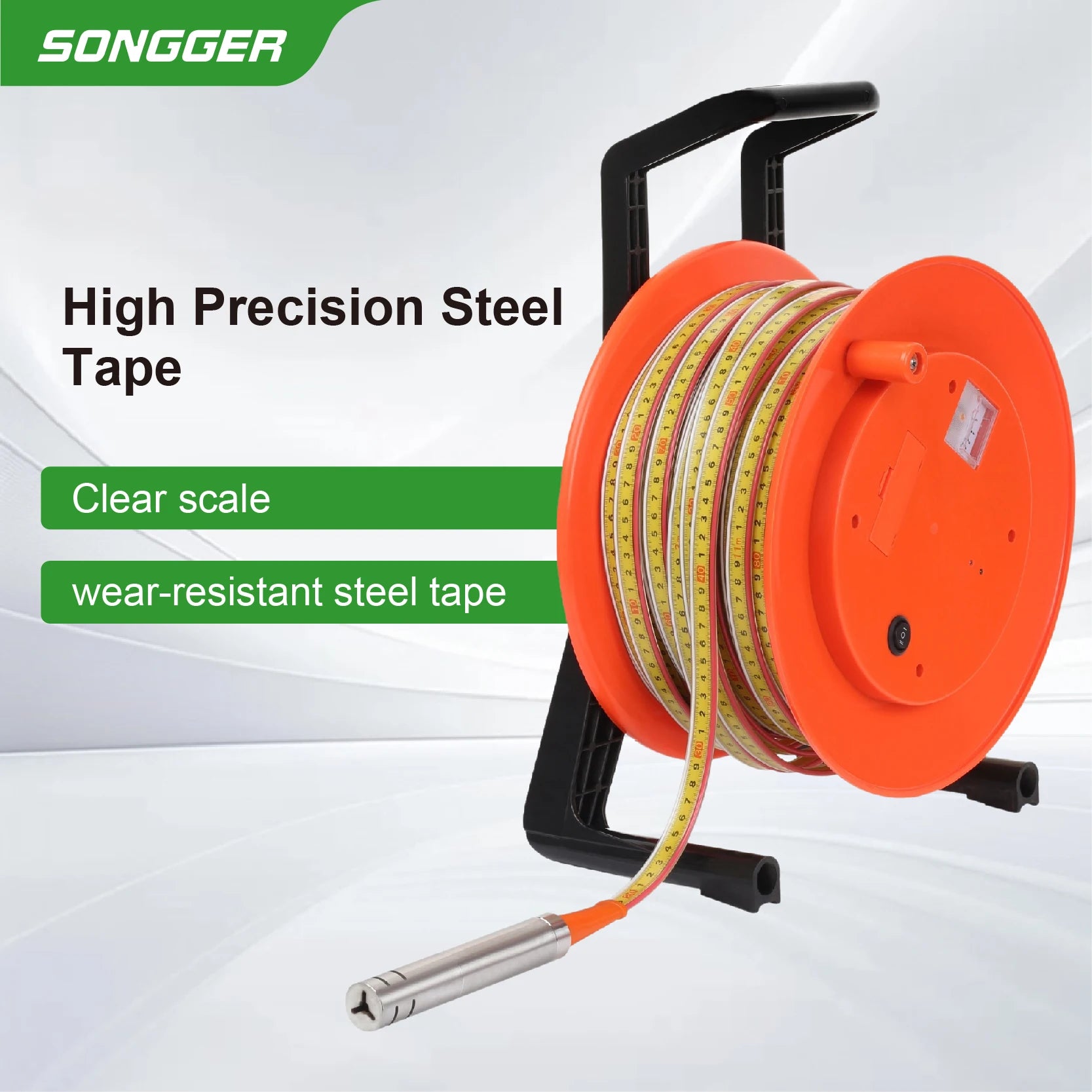

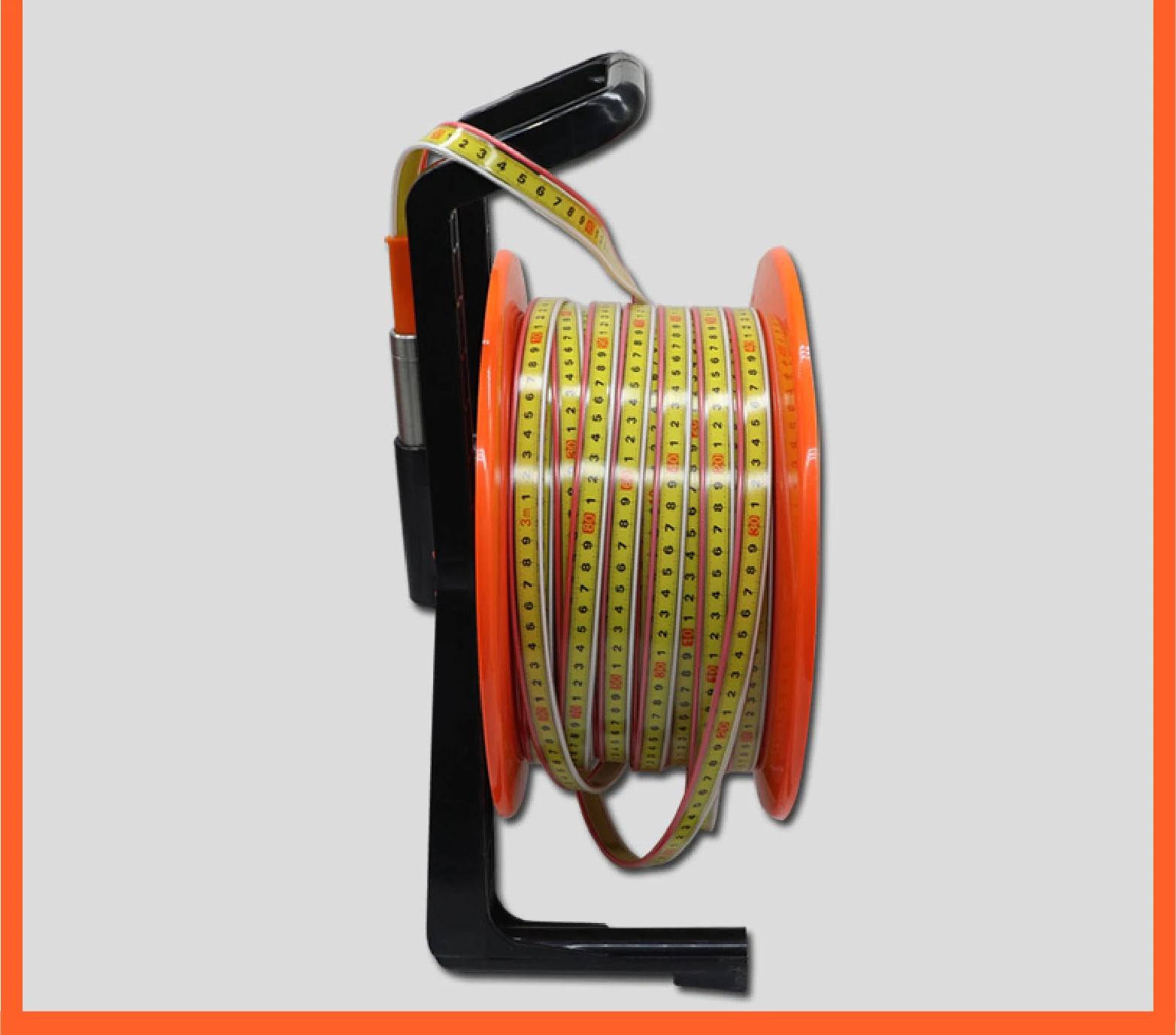

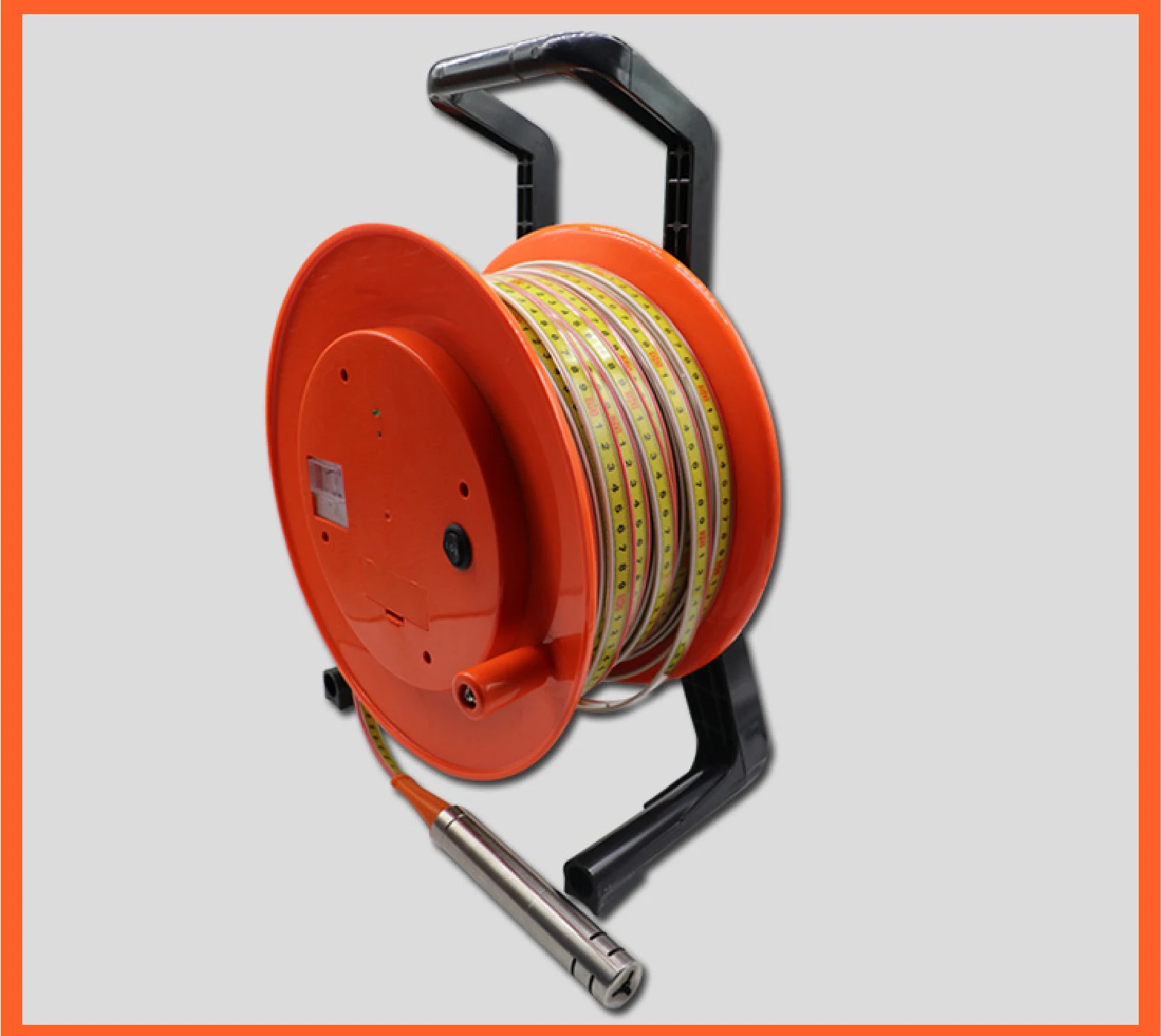

Durable Steel Tape Cable

Features a yellow stainless steel tape cable with precise scale markings, enabling direct and accurate reading of water levels.

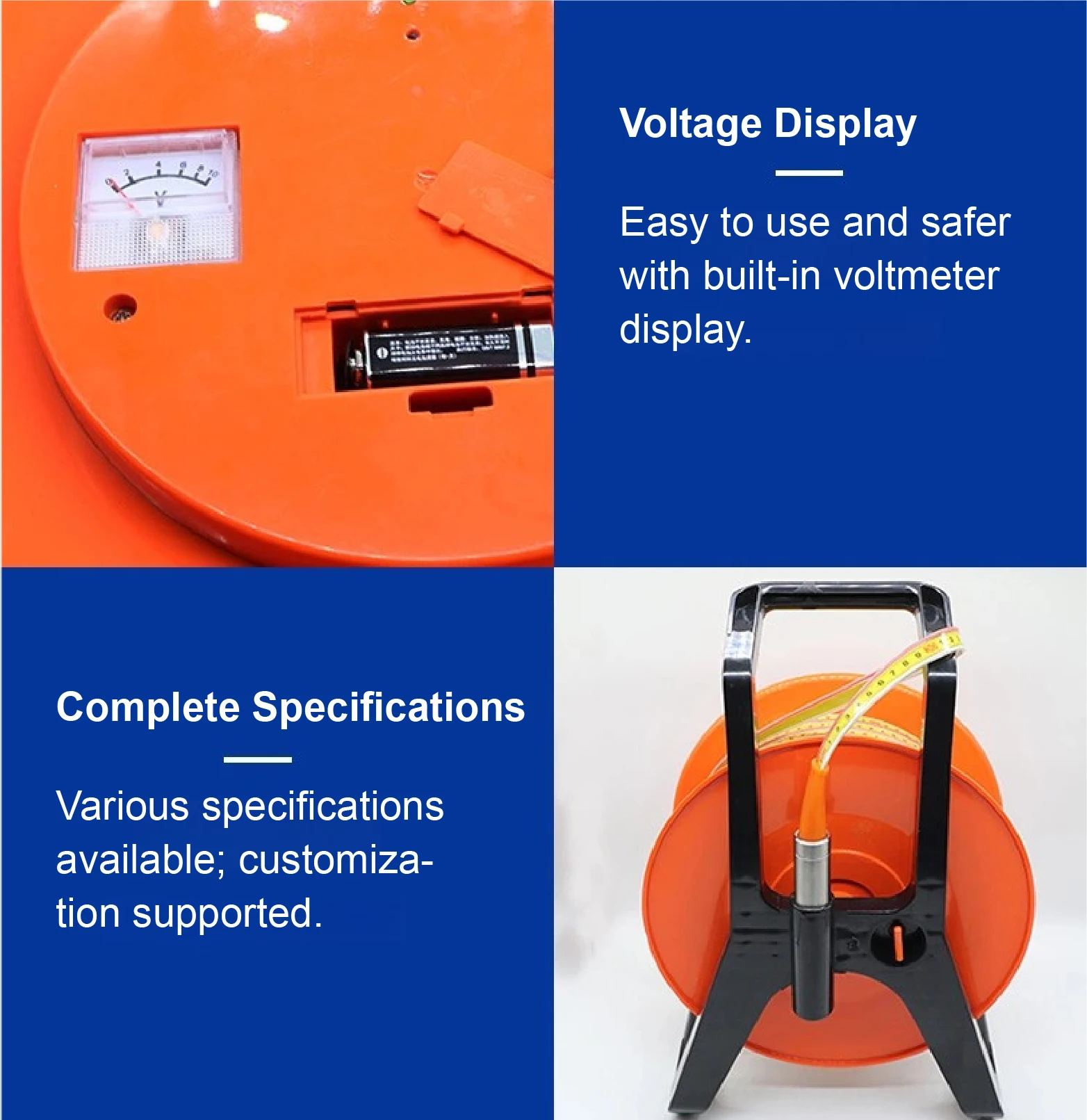

Voltage Display for Enhanced Safety

Includes an easy-to-read voltage indicator for safer and more convenient monitoring during operation.

Customizable Length Options

Available in multiple length options to meet different measurement needs and application scenarios.

4. Applications

5. FAQs

Q1: Can I customize the measuring range of the water level meter?
A1: Yes, measuring ranges from 10m to 200m are available and can be customized as needed.

Q2: What type of battery does the device use?
A2: It uses a standard 9V dry battery (6FF22), which is easy to replace.

Q3: Is the device suitable for outdoor use in harsh environments?
A3: Yes, it operates reliably in a wide temperature range from -20°C to +60°C.
