SPECIFICATIONS

Brand Name: NONE

Certification: NONE

High-concerned chemical: None

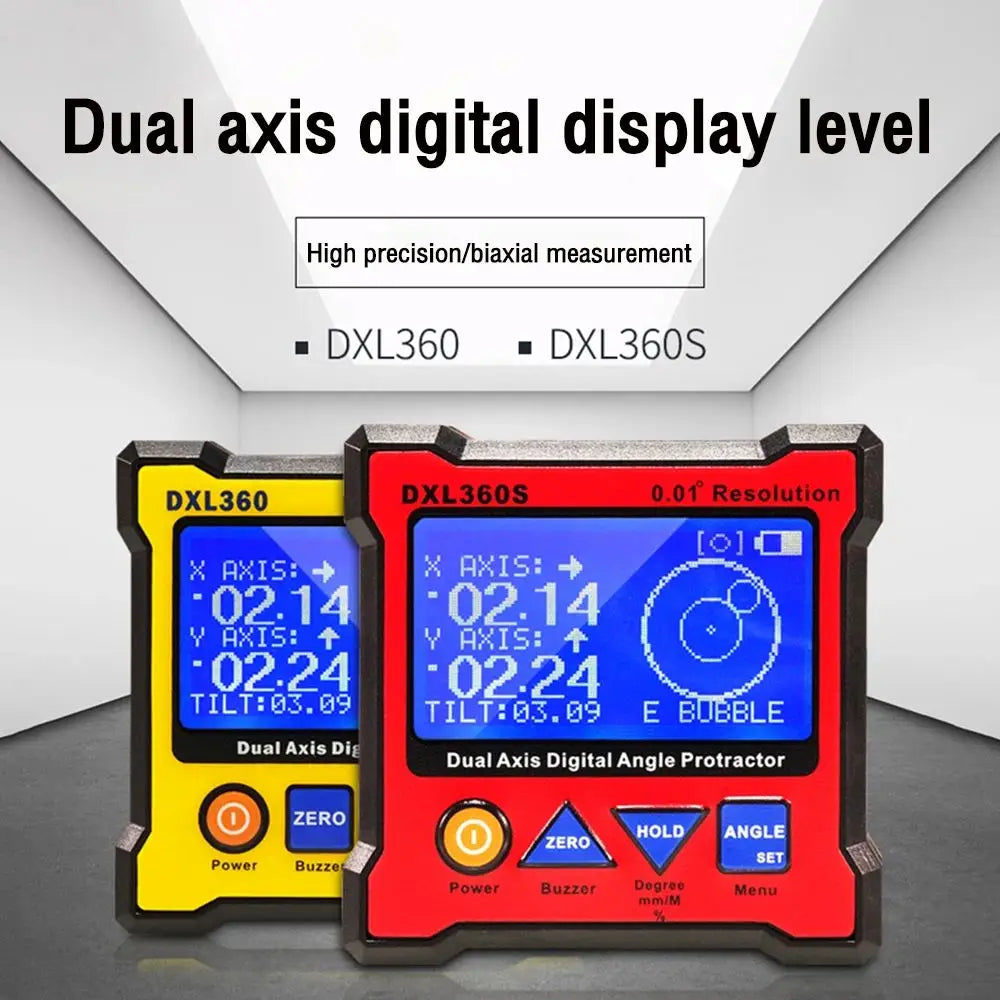

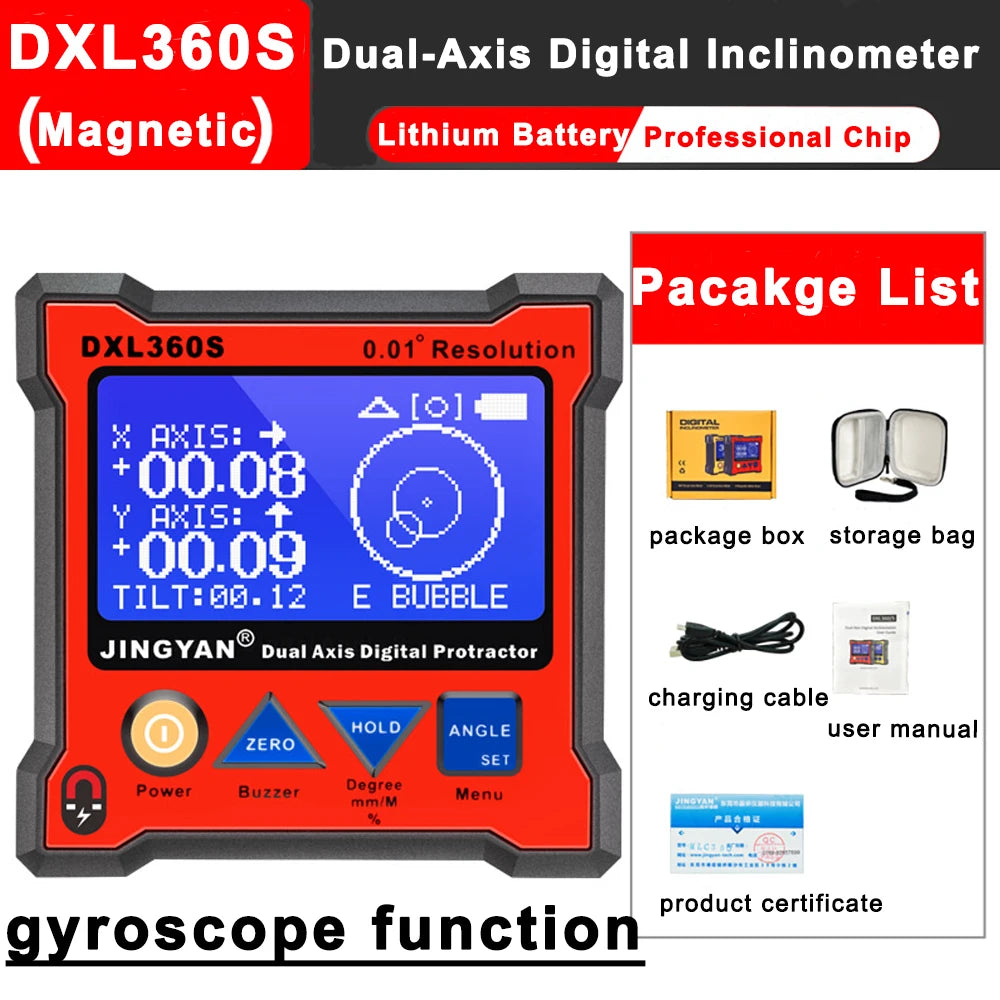

Model Number: Dual-axis inclinometer

Origin: Mainland China

Semi-finishedproduct: No

is_customized: Yes

Features:

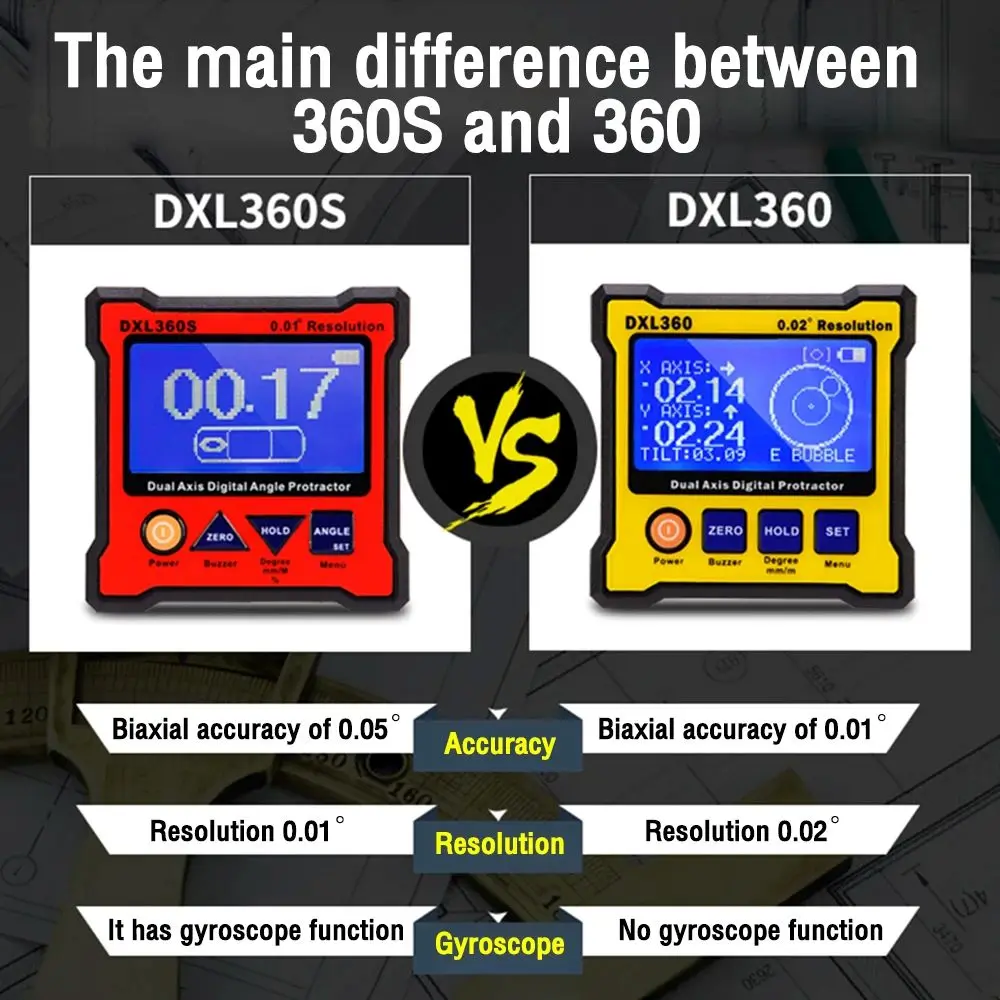

1.DXL360S high-precision ± (0.05 °+1%), high-resolution 0.01 °; DXL360 high-precision ± (0.1 °+1%), high-resolution 0.02 °;

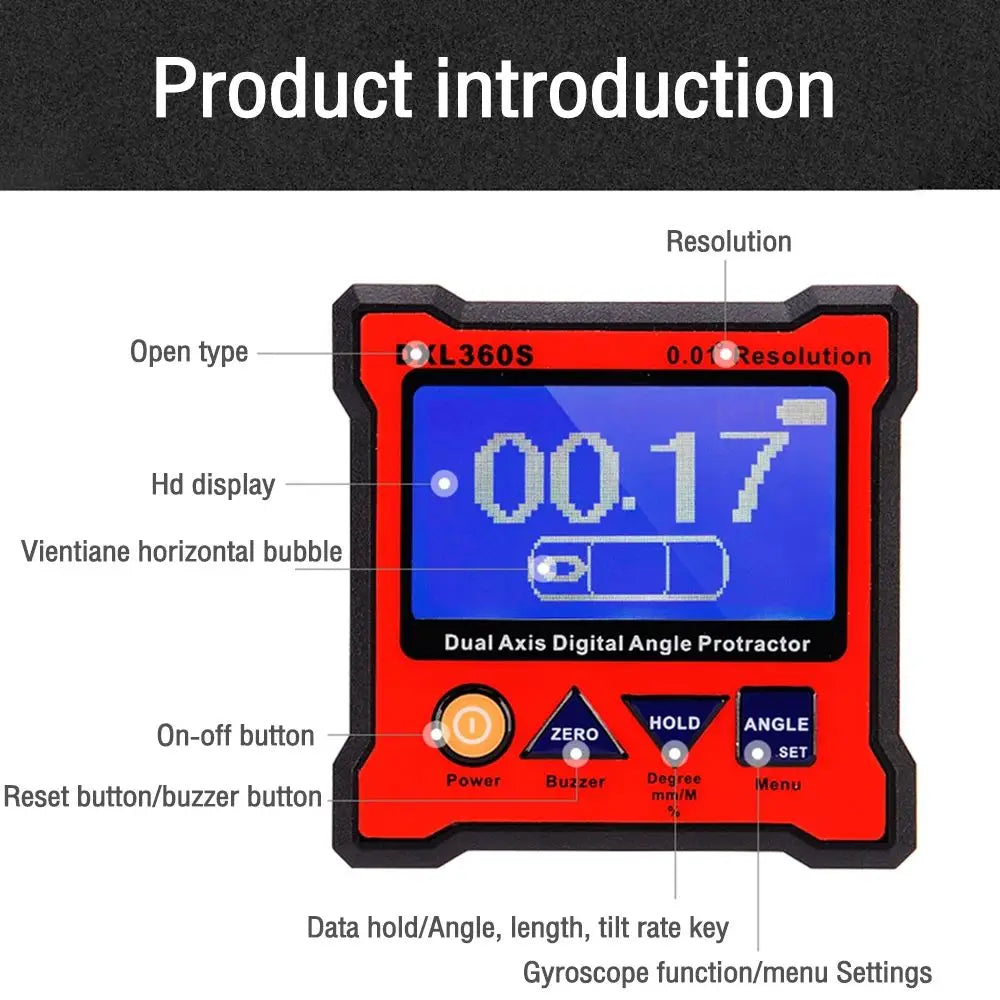

2.It can measure the tilt angle of single axis and dual axis, and the large screen LCD can clearly display the angle.

3.USB charger, lithium battery charging;

4.V-shaped groove design, easy to work in pipelines or corners;

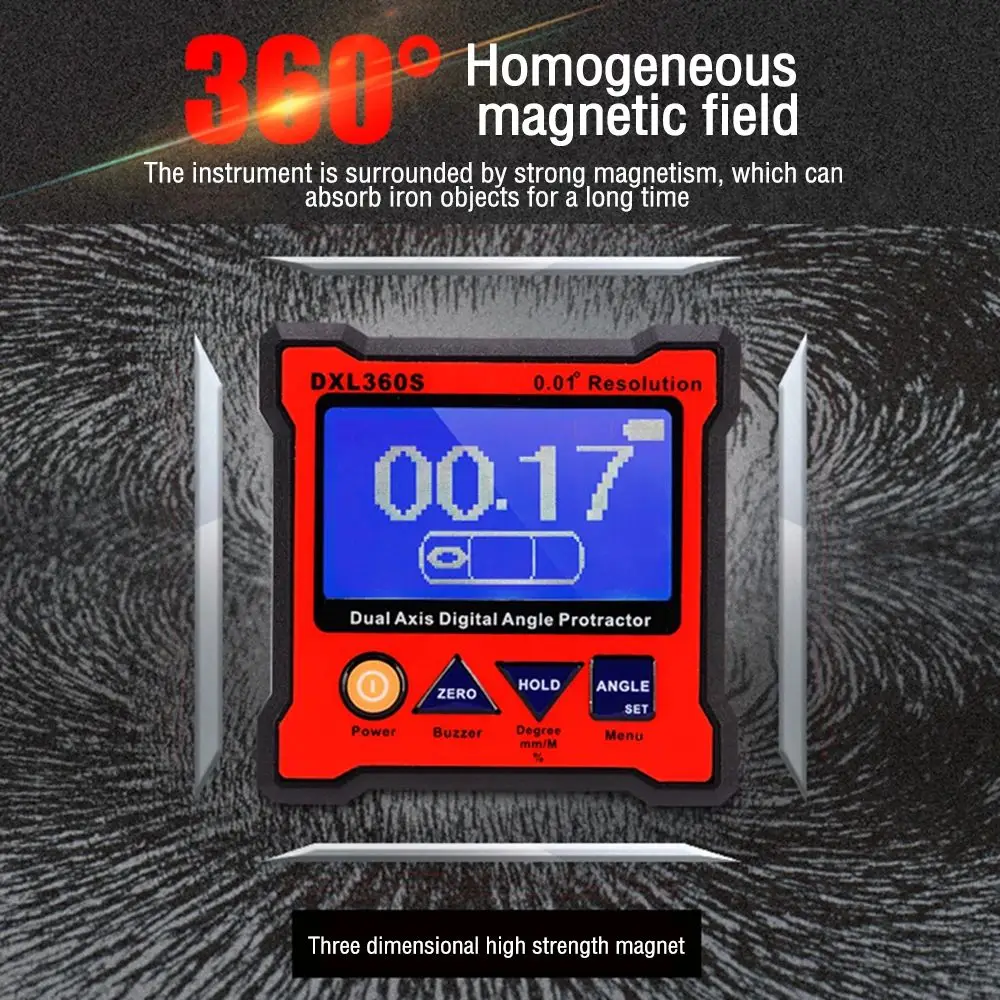

5.The instrument has strong magnetism inside and can adsorb on iron objects for a long time;

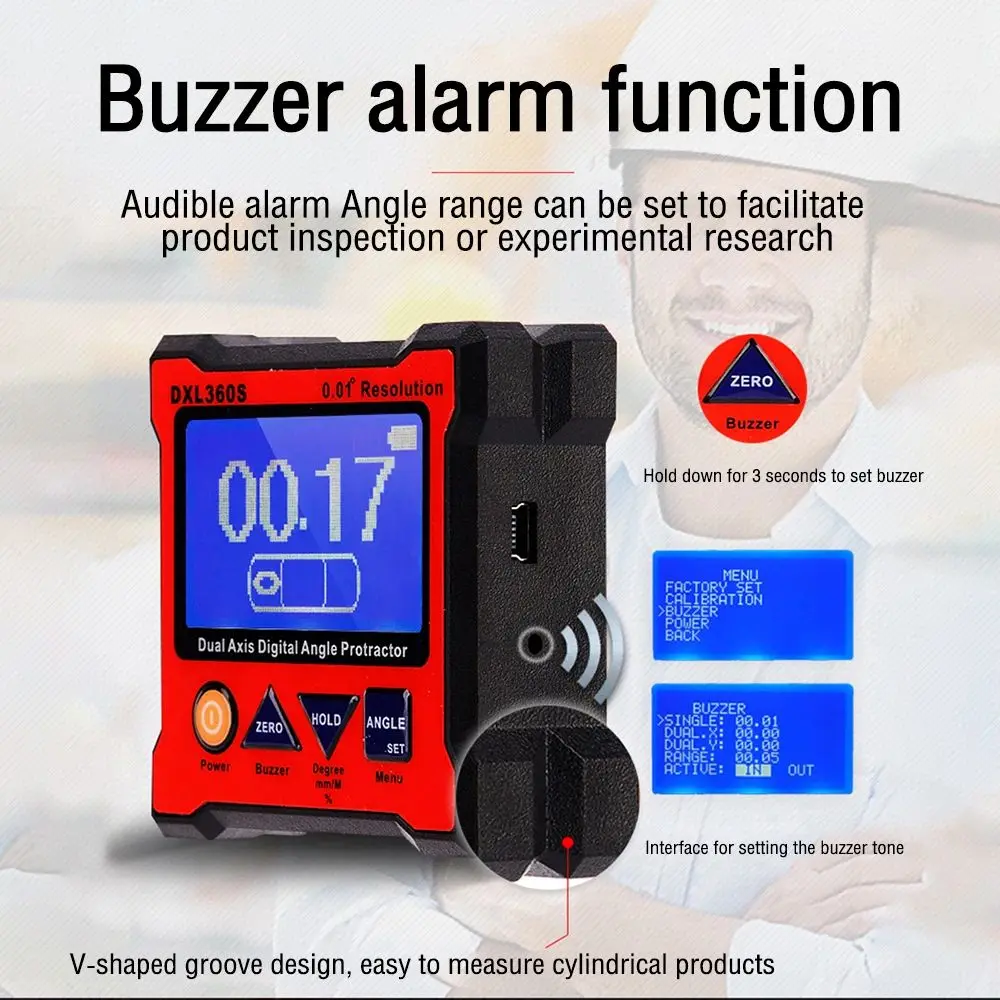

6.The range of sound alarm angles can be set for product verification;

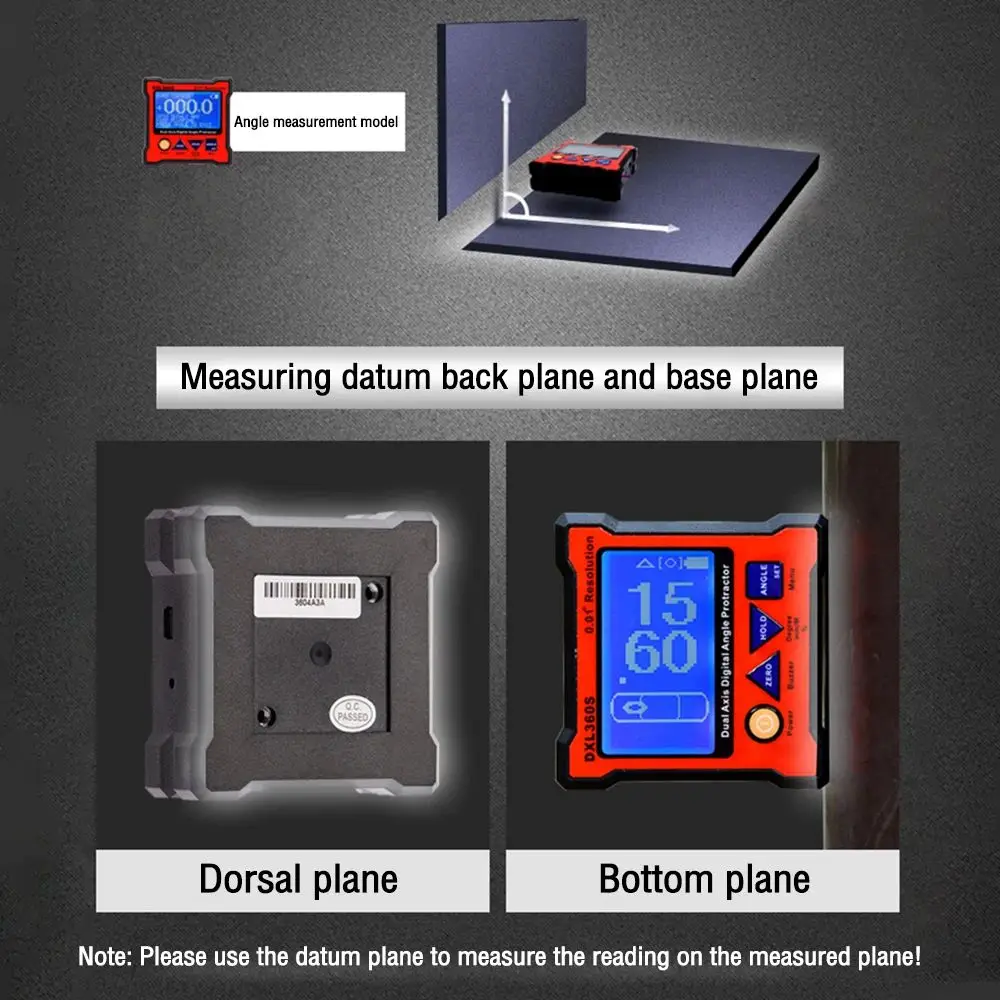

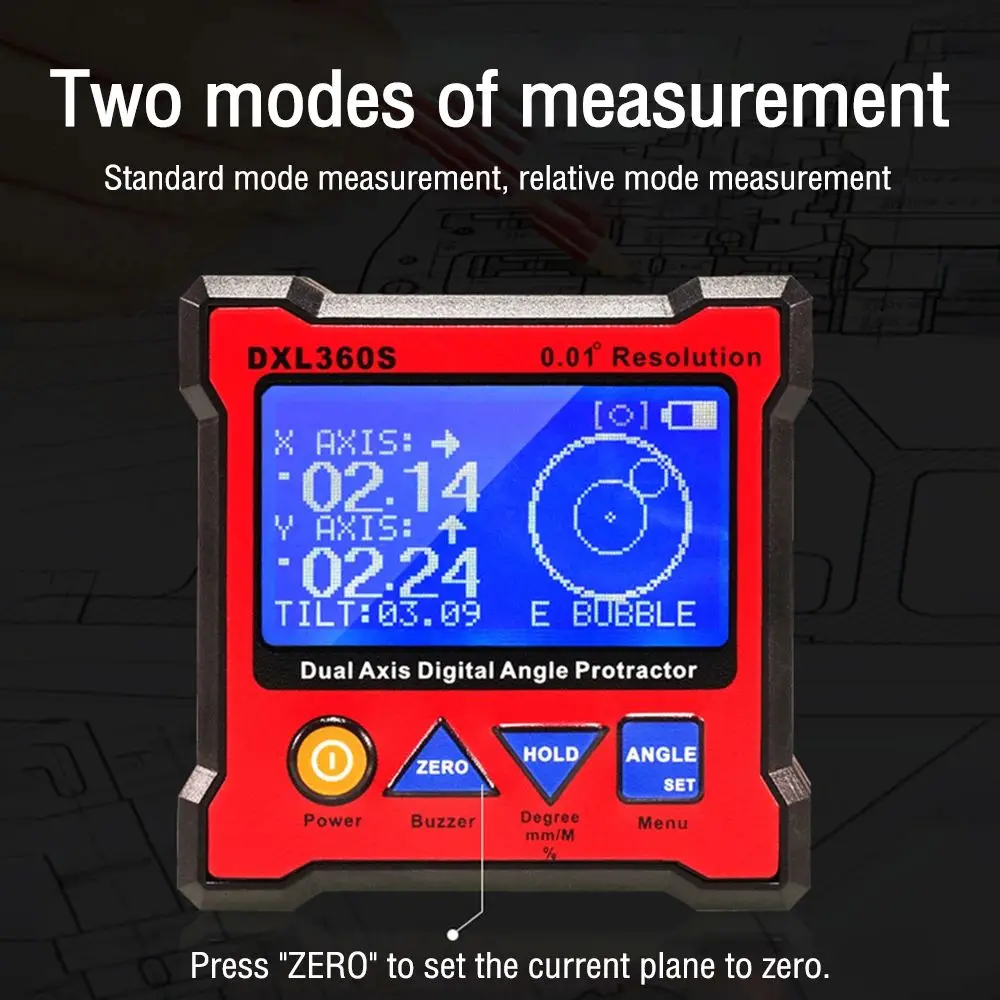

7.Absolute mode measurement (equivalent to the horizontal plane of the Earth), relative mode measurement, and recalculating the initial measurement angle (any plane can be set to a relative zero plane, and the measurement plane reading is the relative zero plane inclination angle);

8.Self calibration function, you can operate and calibrate according to the above instructions without worrying about direction calibration errors, and has added the function of preventing calibration direction errors;

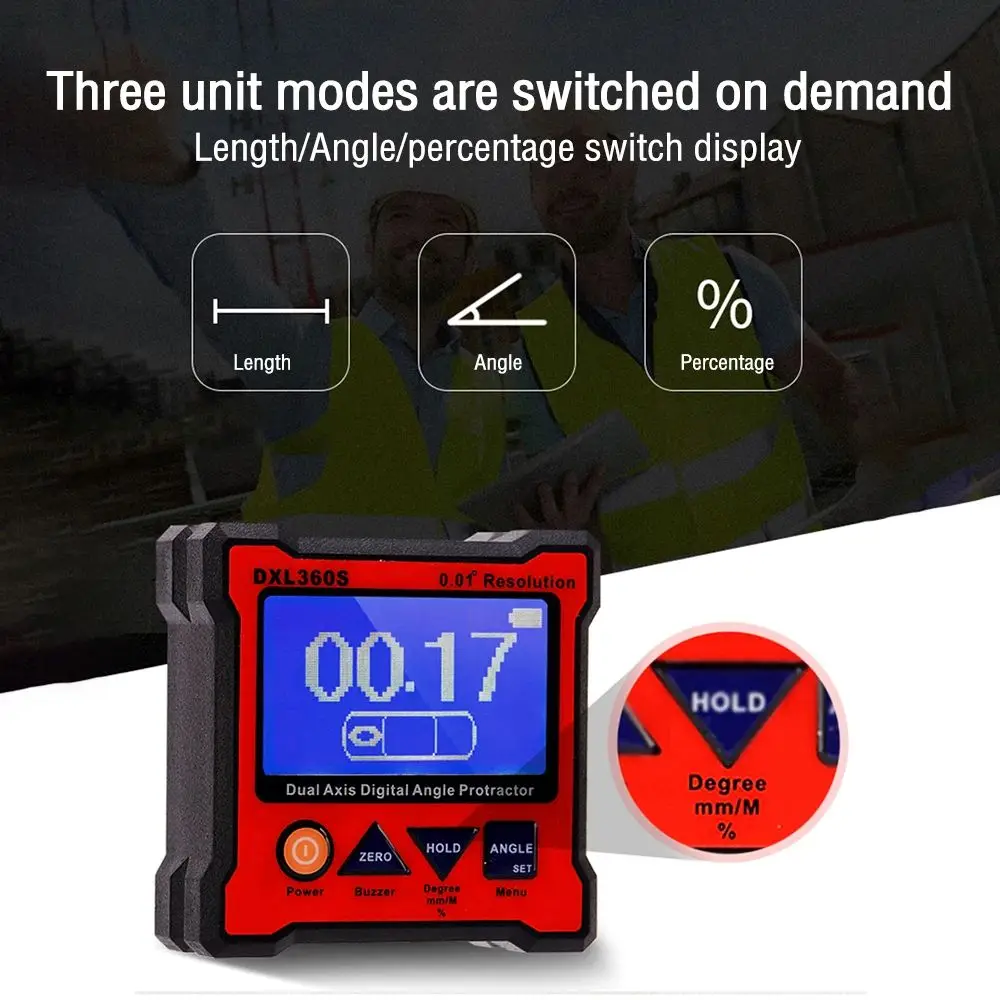

9.Added the function of converting length and size units, which can directly convert the tilt error of a 1-meter long object into a millimeter reading;

10.External adapters can be used for data transmission, either SVRS232 computer adapter or SV-BT wireless adapter;

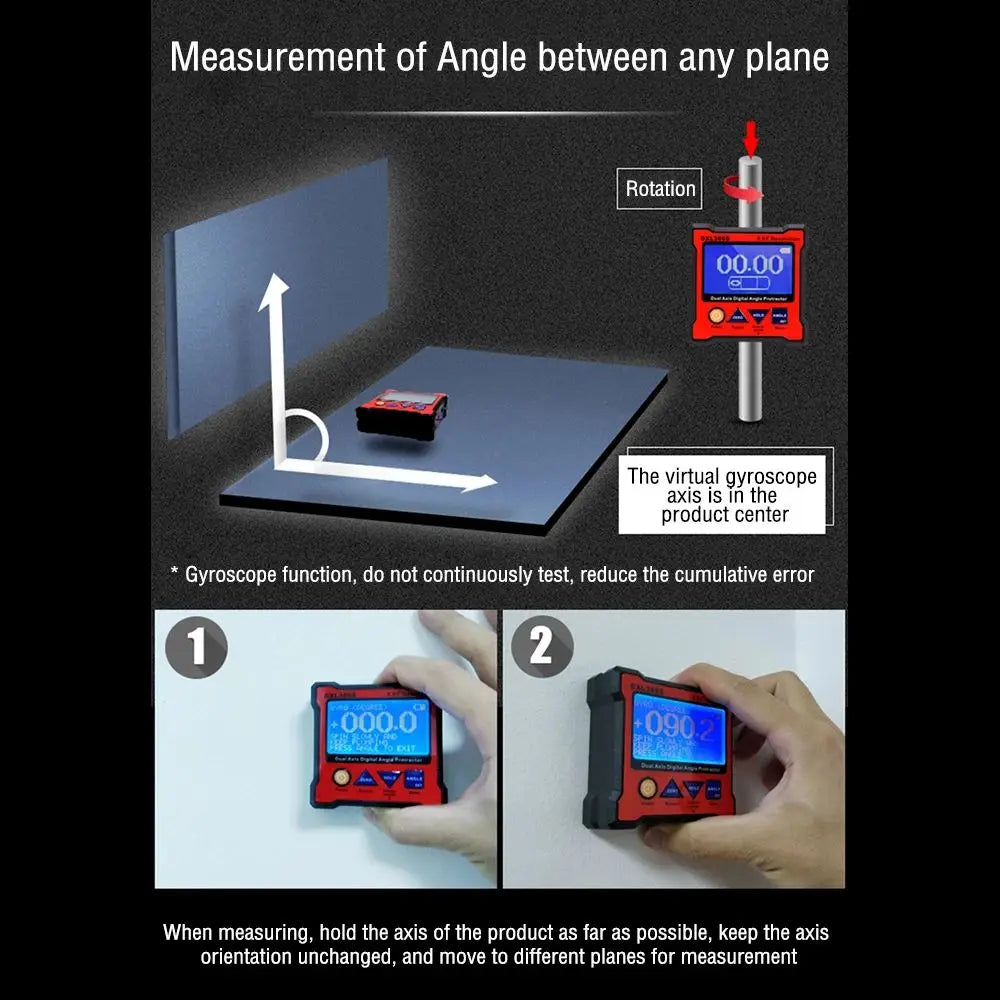

11.It can measure the angle between any object * Only DXL360S has this function * i.e. gyroscope function!

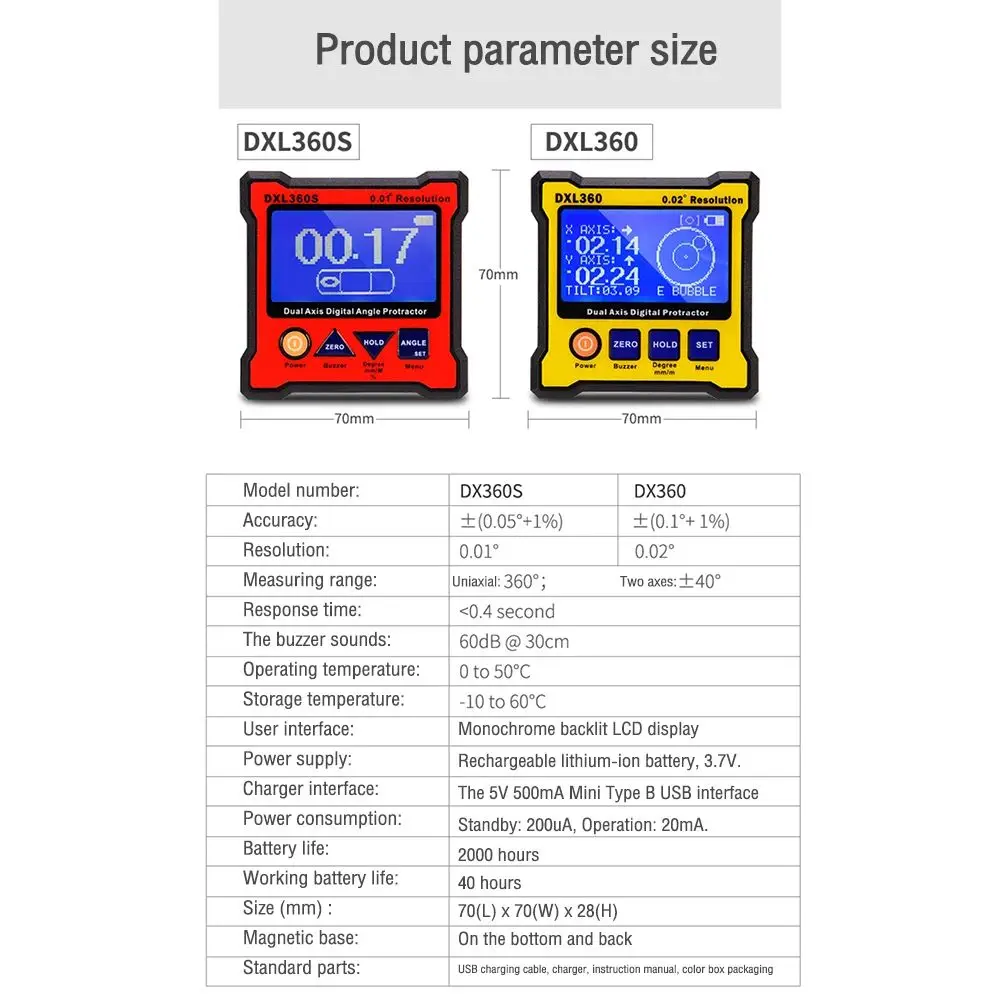

Specifications:

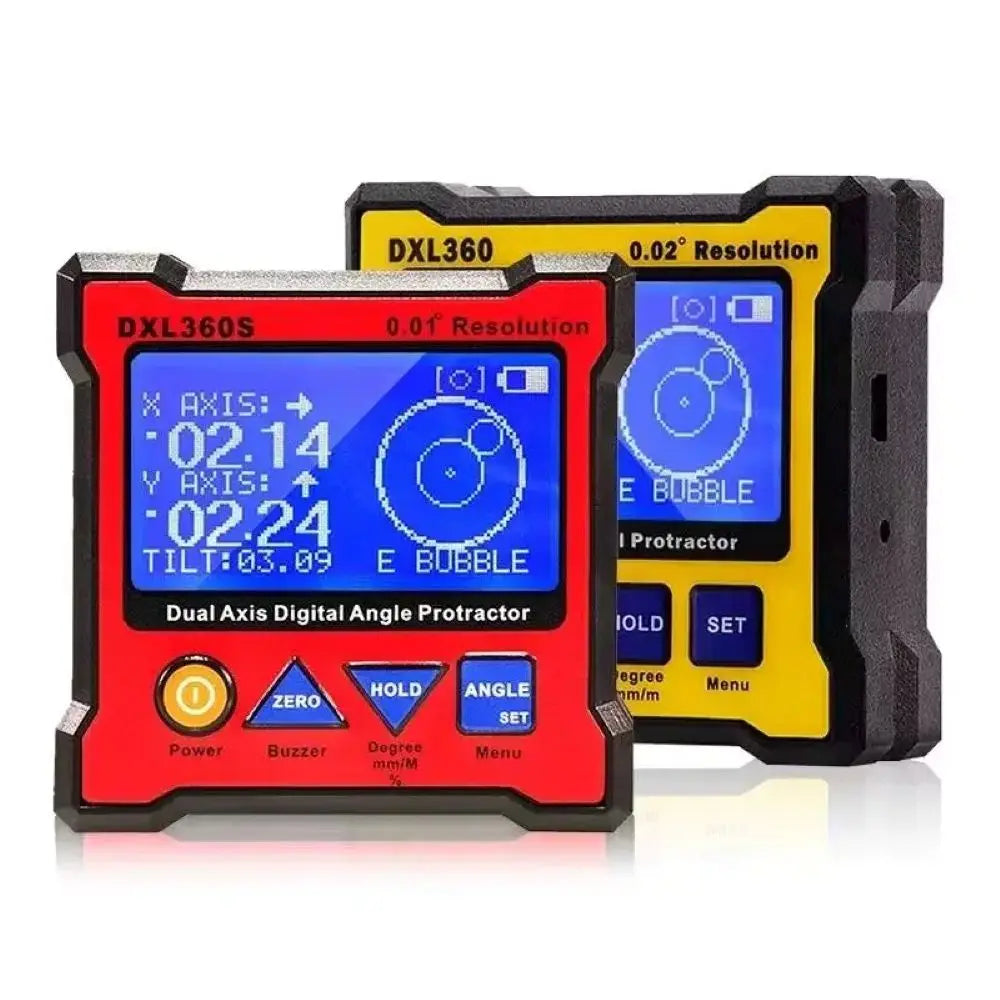

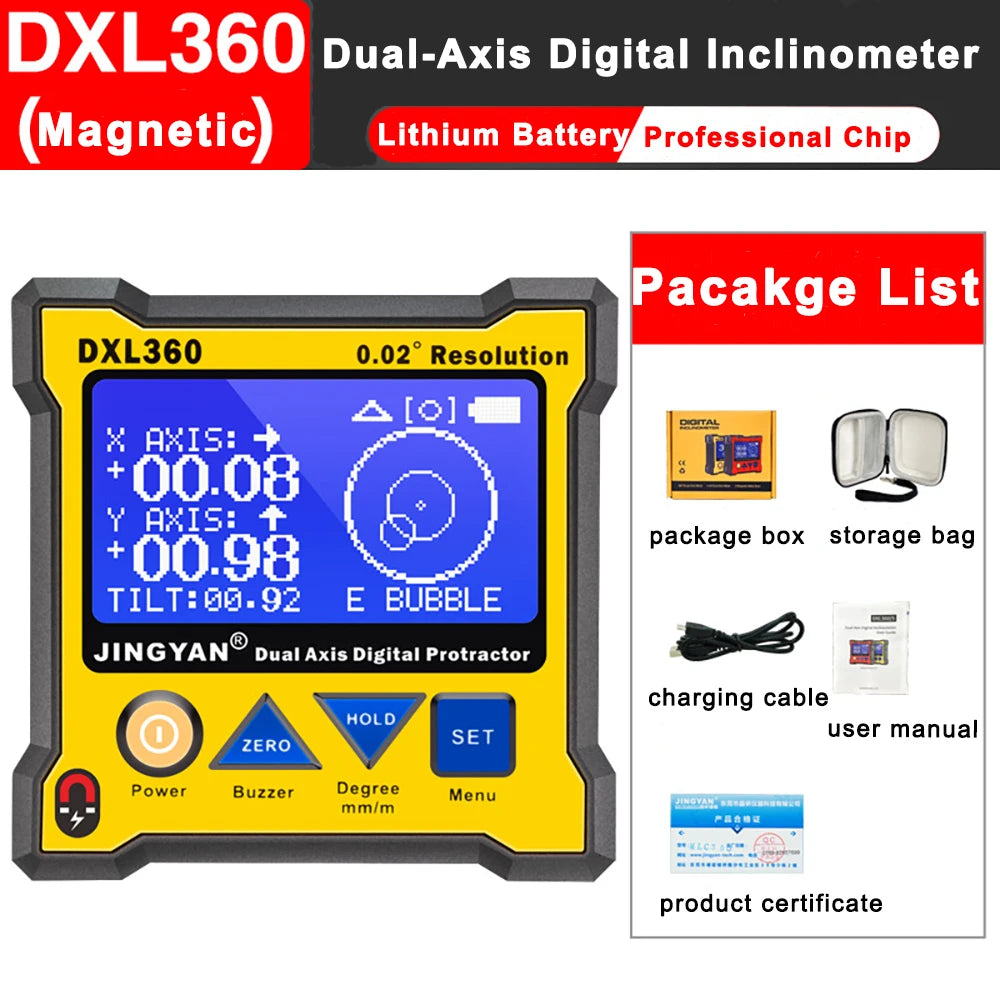

Product model: DXL360, DXL360S

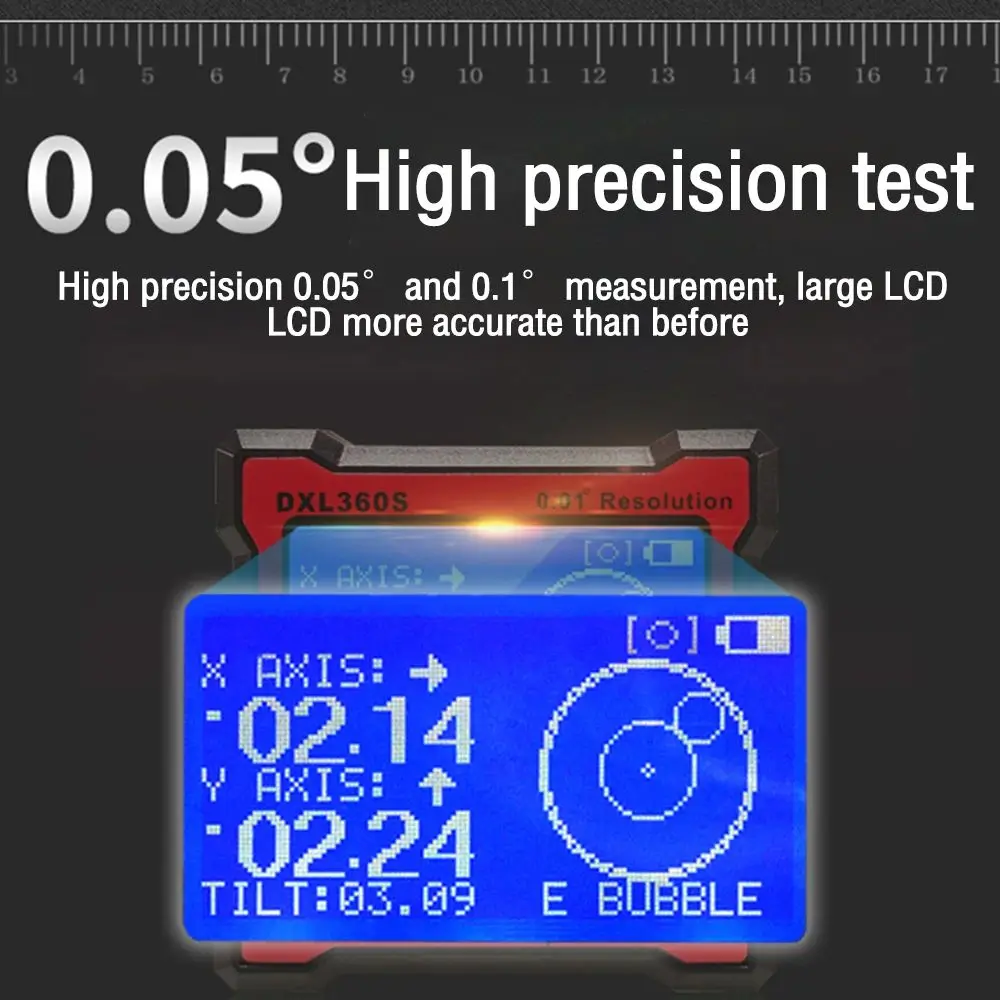

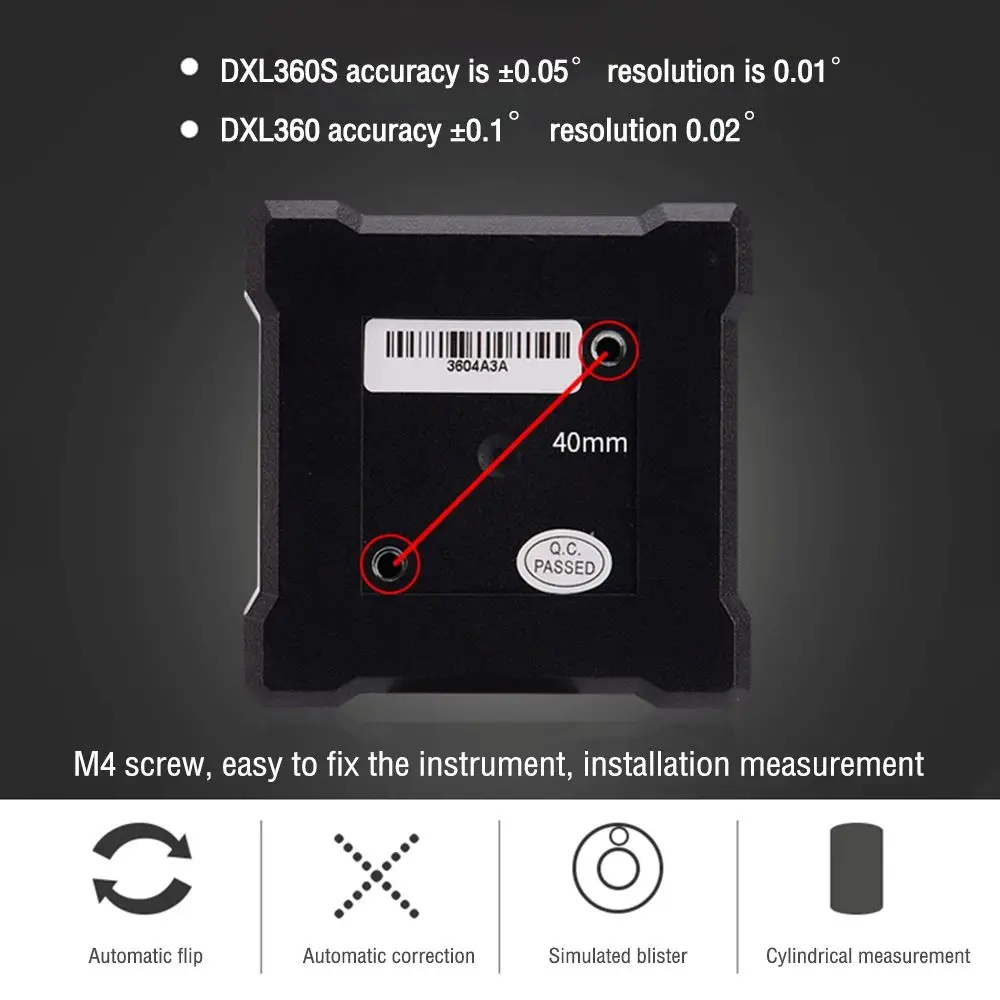

DXL360S accuracy: 0 ° -20 °: ± (0.05 °), 20 ° -70 °: ± (0.1 °), 70 ° -90 °: ± (0.05 °), resolution: 0.01 °

DXL360 accuracy: 0 ° -20 °: ± (0.1 °), 20 ° -70 °: ± (0.2 °), 70 ° -90 °: ± (0.1 °), resolution: 0.02 °

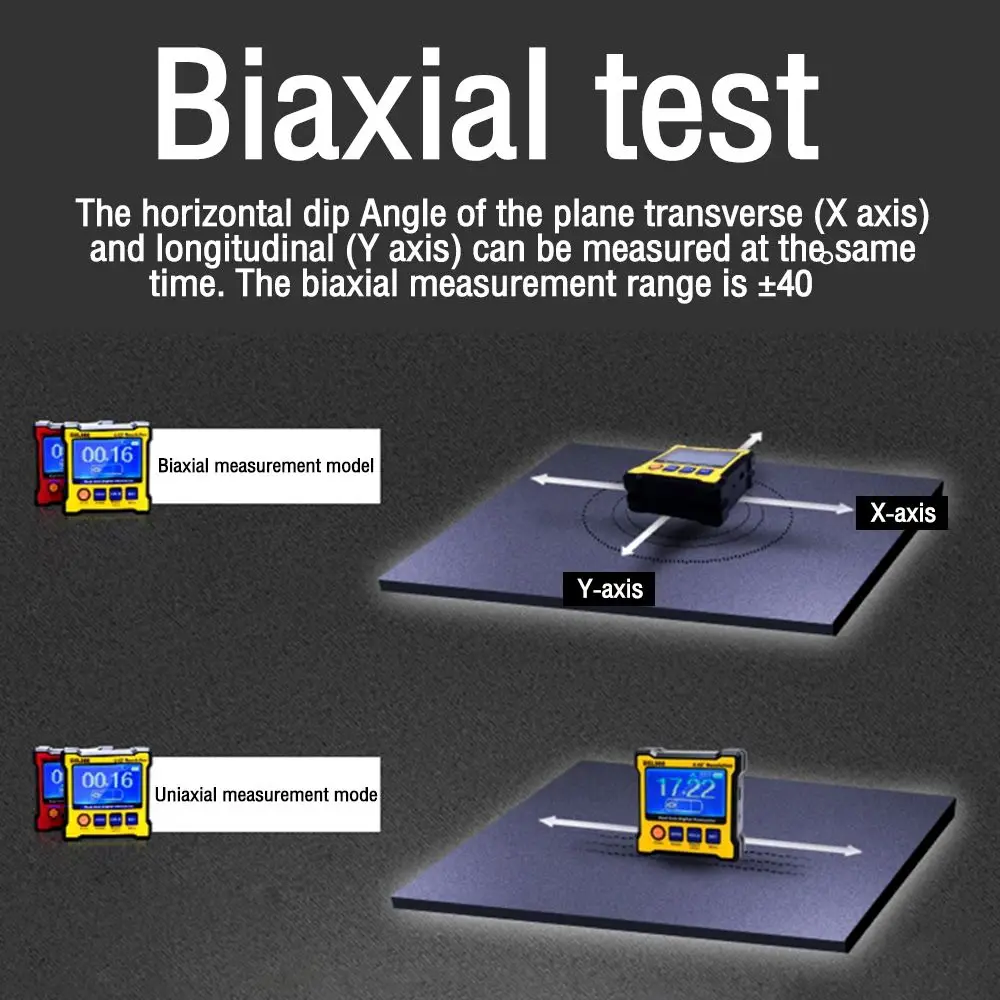

Measurement range: single axis: 360 °; Dual axis: ± 40 °

Response time:<0.4 seconds

Buzzing sound: 60dB @ 30cm

Working temperature: 0 to 50 ℃

Storage temperature: -10 to 60 ℃

User interface: monochrome backlit LCD display
