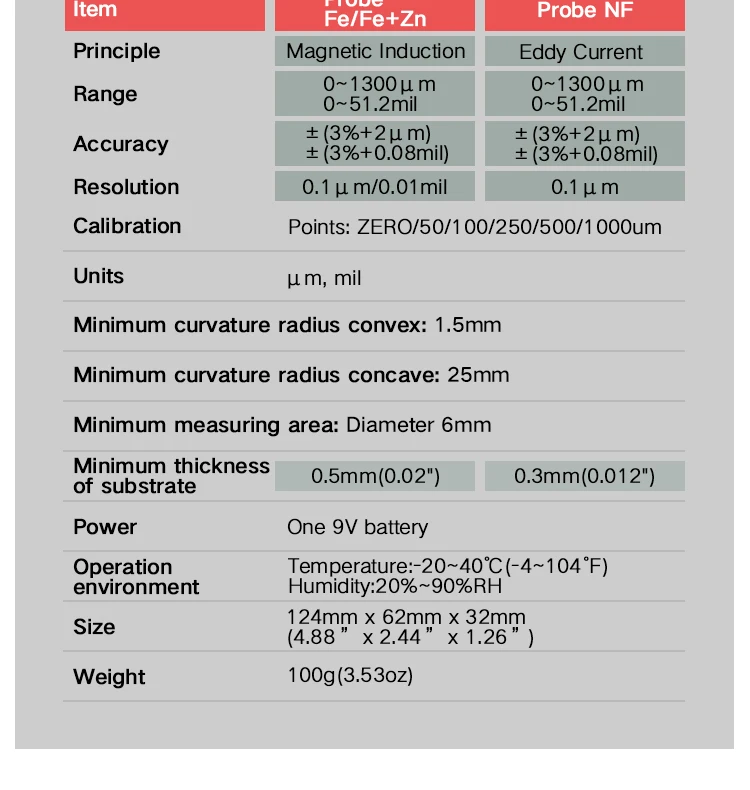

SPECIFICATIONS

Accuracy: 3%

Auto Fe & Nfe&Zn: Yes

Battery Included: no

Brand Name: R&D INSTRUMENTS

Certification: CE,FCC,RoHS

High-concerned chemical: None

Model Number: TC100 Putty

Origin: Mainland China

R&D Instruments Model: TC100

Range: 0-1300um

Semi-finishedproduct: No

With Backlight Or Not: no

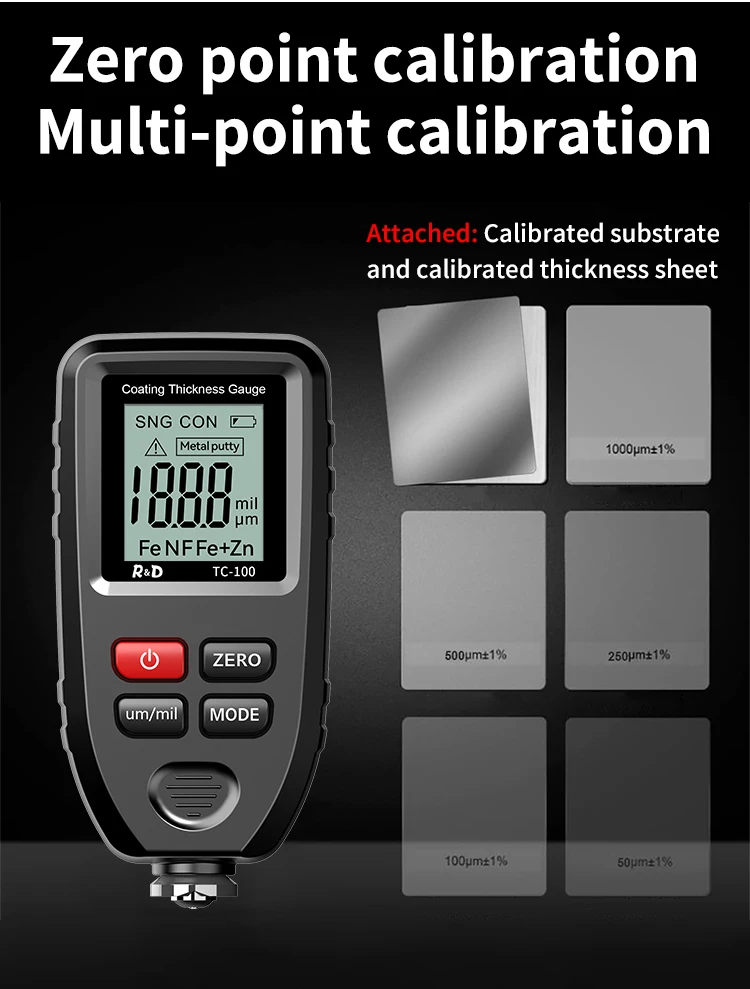

With Calibration Function: Yes

unit: um / mils

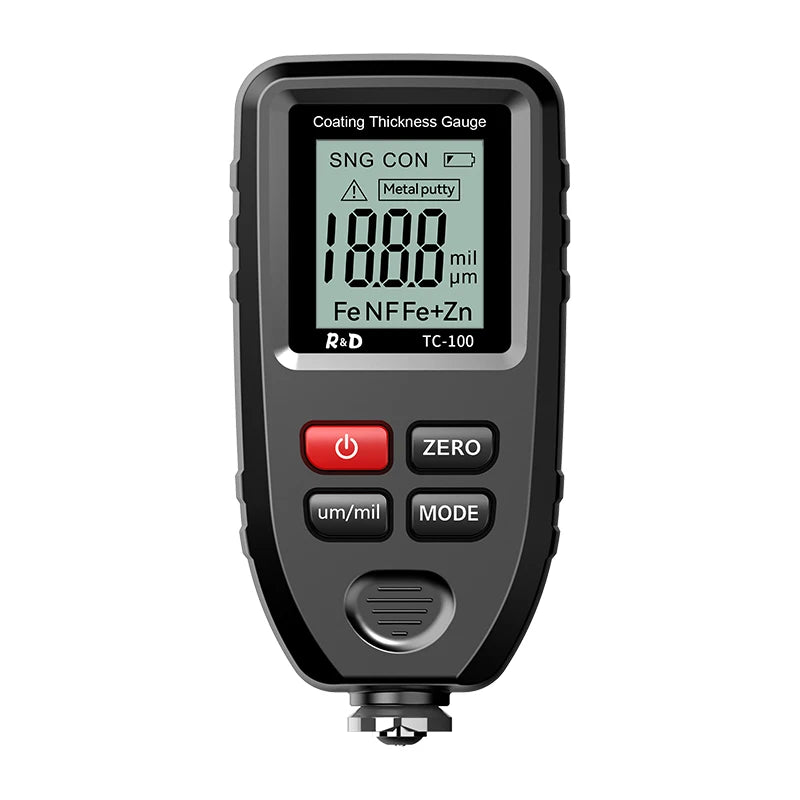

R&D TC100 Putty Metal Coating Thickness Tester Digital 0-1300um Fe NFe Zn Probe Car Paint High Speed Coating Thickness Gauge

Product introduction

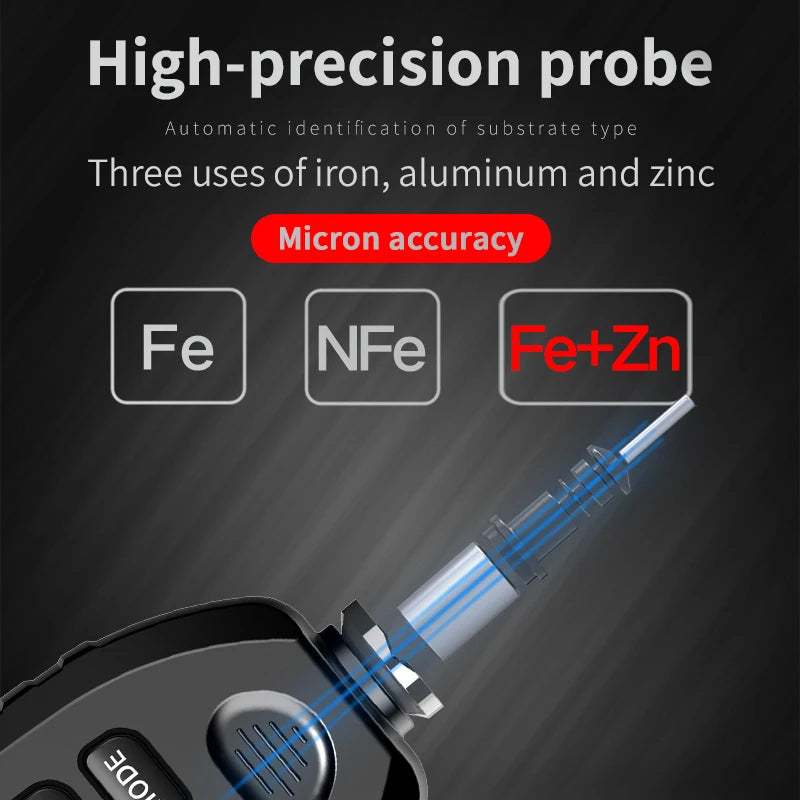

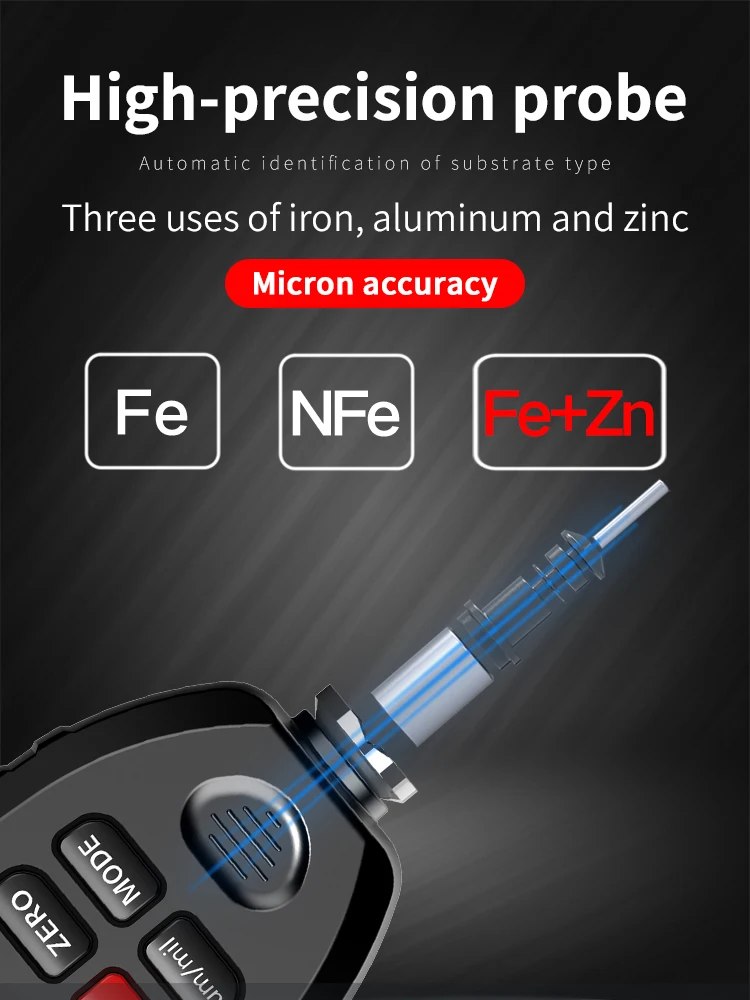

This instrument is a portable tester, which can measure the thickness of the electroplating layer or coating on the metal surface, specifically the thickness of the non-magnetic coating layer on the surface of magnetic materials such as steel and iron (such as chromium, paint, ceramics, etc.), and the coating thickness of the surface of non-magnetic materials such as copper and aluminum (such as paint, etc.). The instrument has a built-in precision probe that automatically detects substrate properties and detects coating thickness through electromagnetic induction and eddy current effects.

Measuring principle

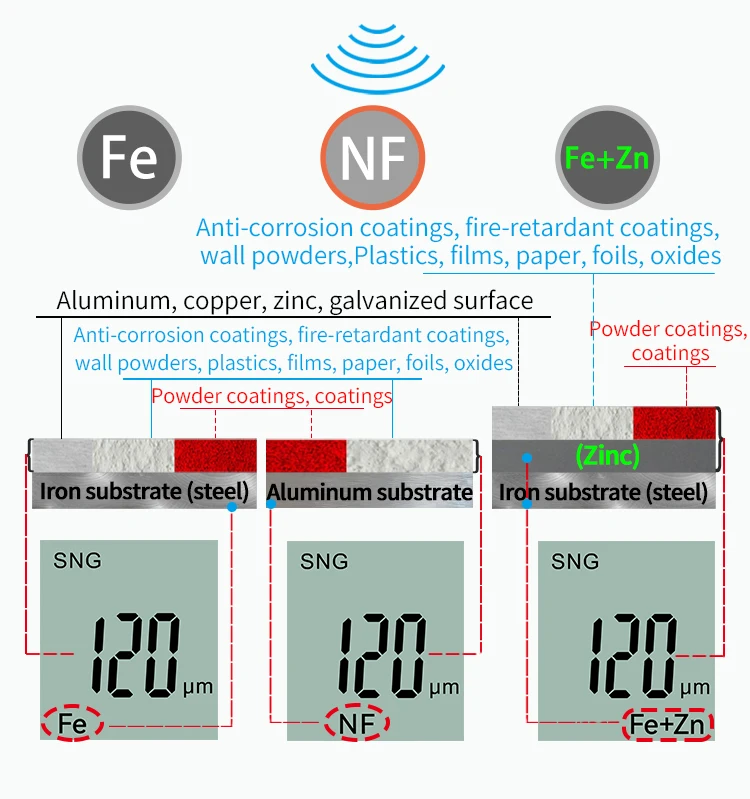

This instrument adopts two principles: electromagnetic induction and eddy current effect. It can non-destructively measure the thickness of non-magnetic coatings (such as paints, plastics, copper, chromium, zinc, etc.) on magnetic metal substrates (such as steel, iron and their alloys) and the thickness of non-conductive coatings (oxide films, plastics, paints, etc.) on non-magnetic metal substrates (such as copper, aluminum, zinc, tin, etc.).

Features

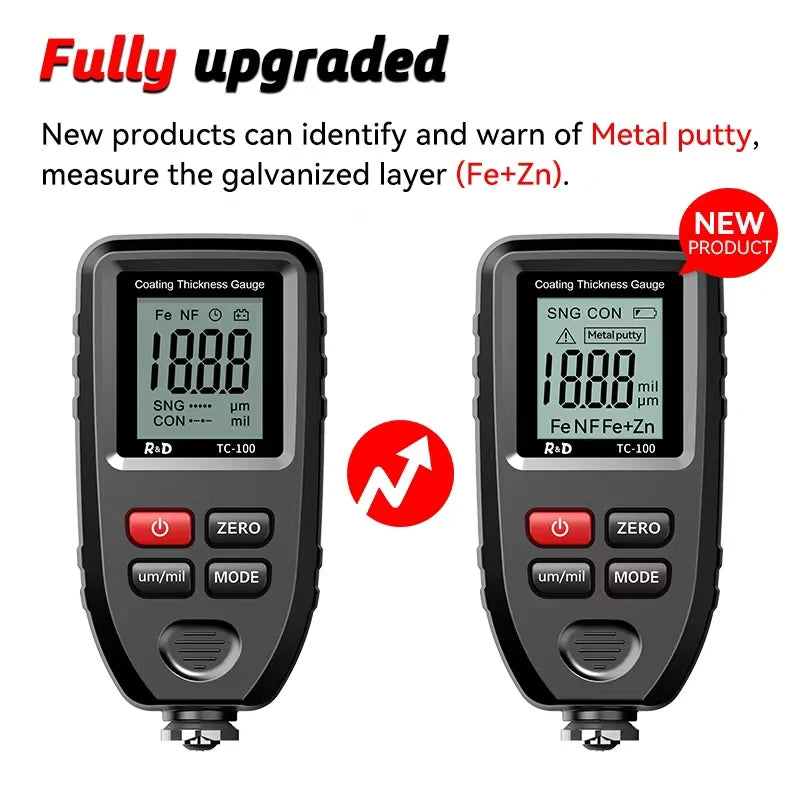

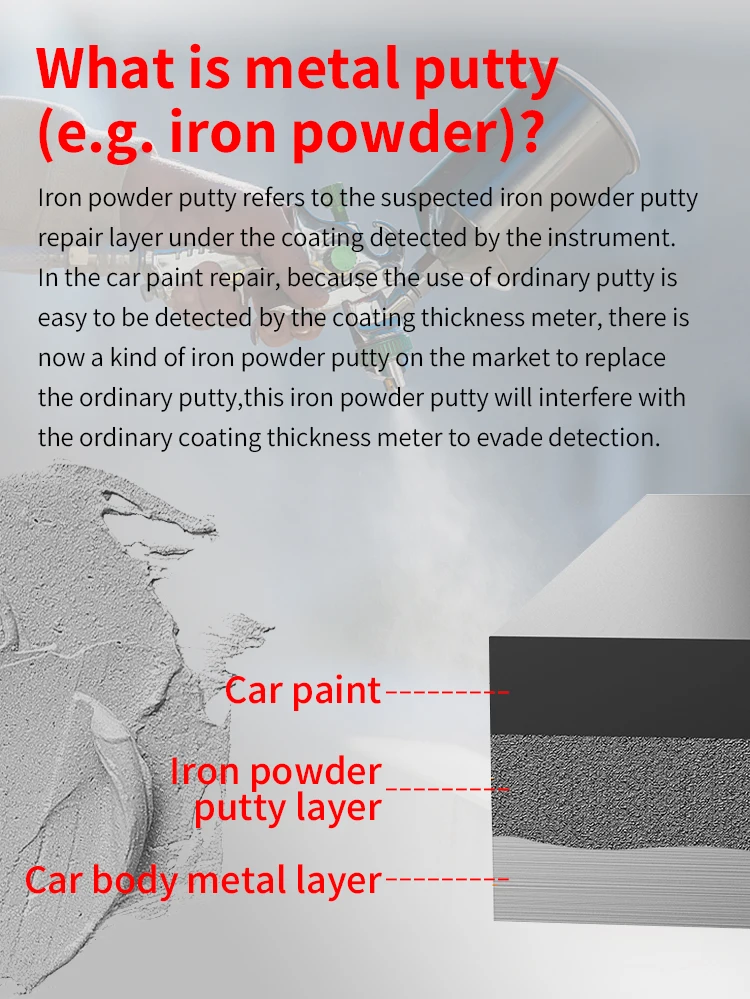

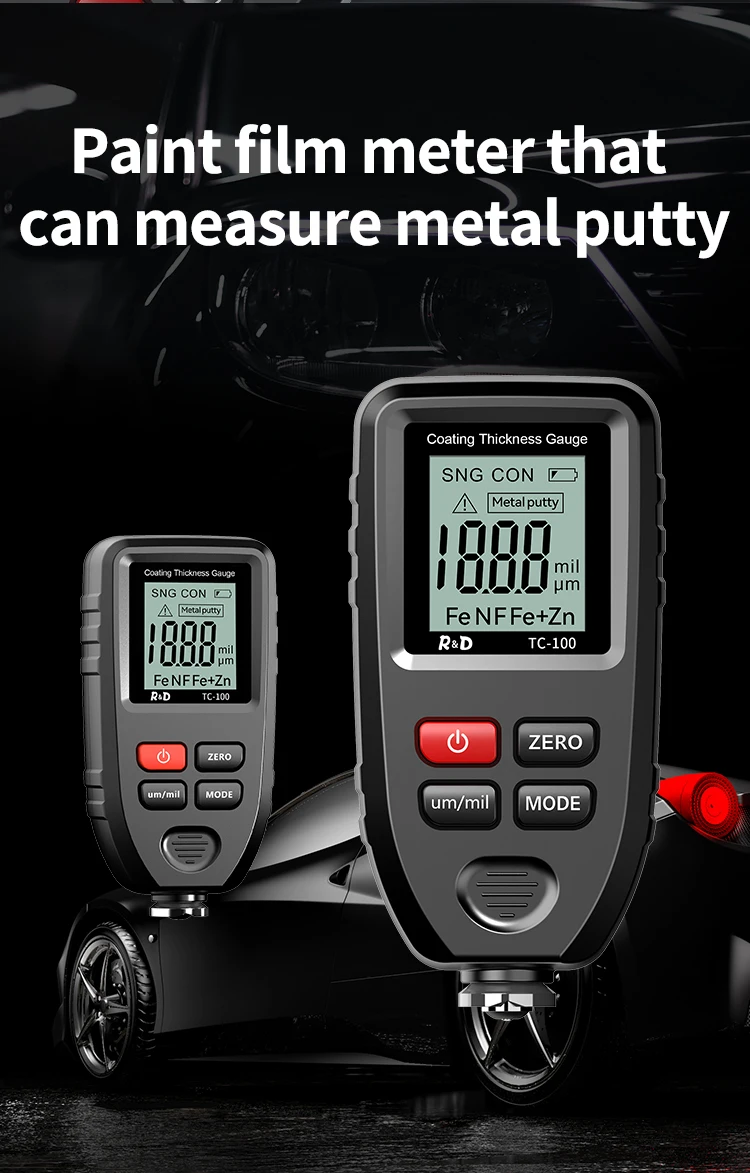

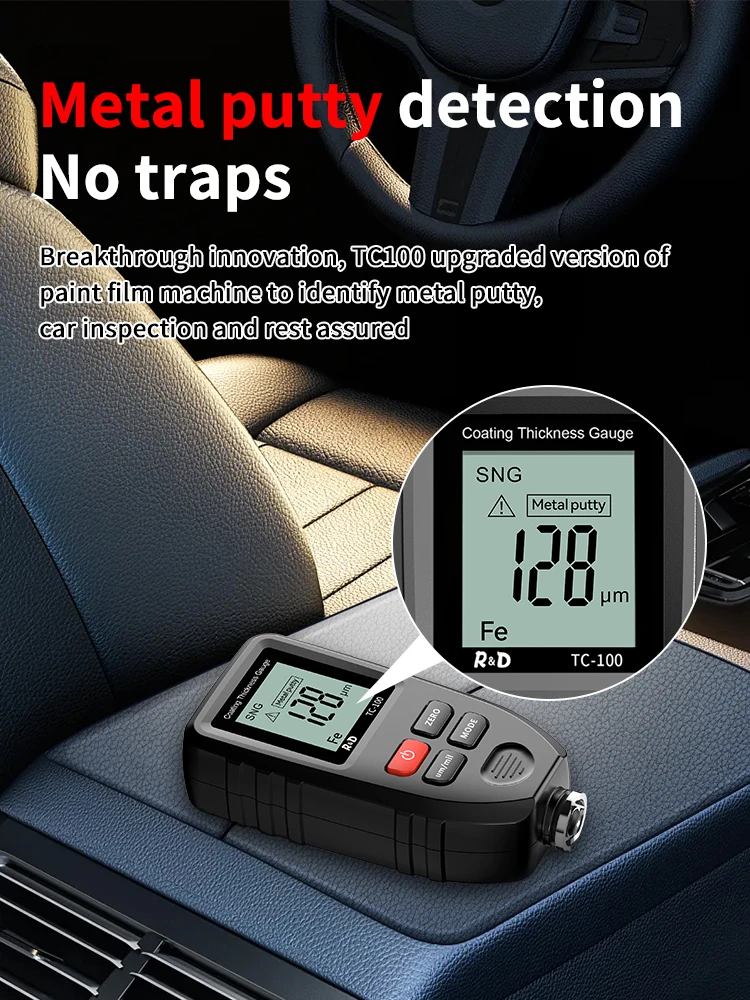

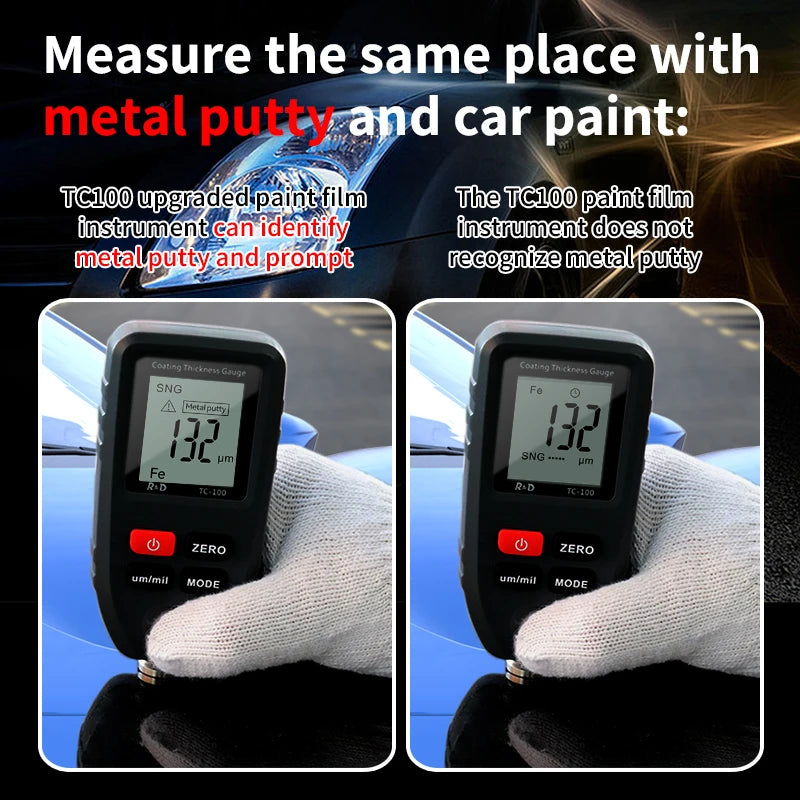

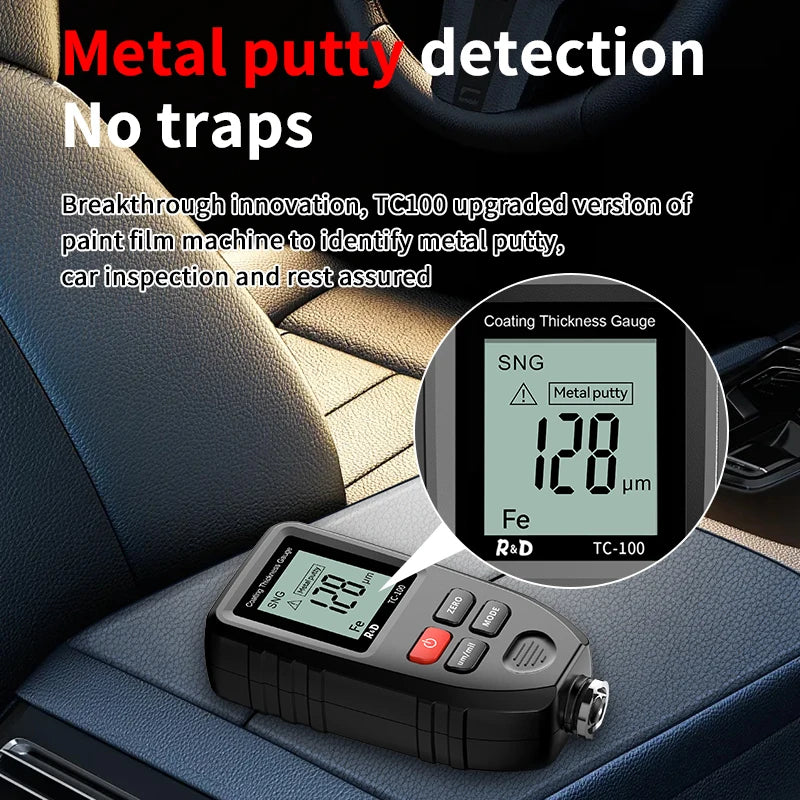

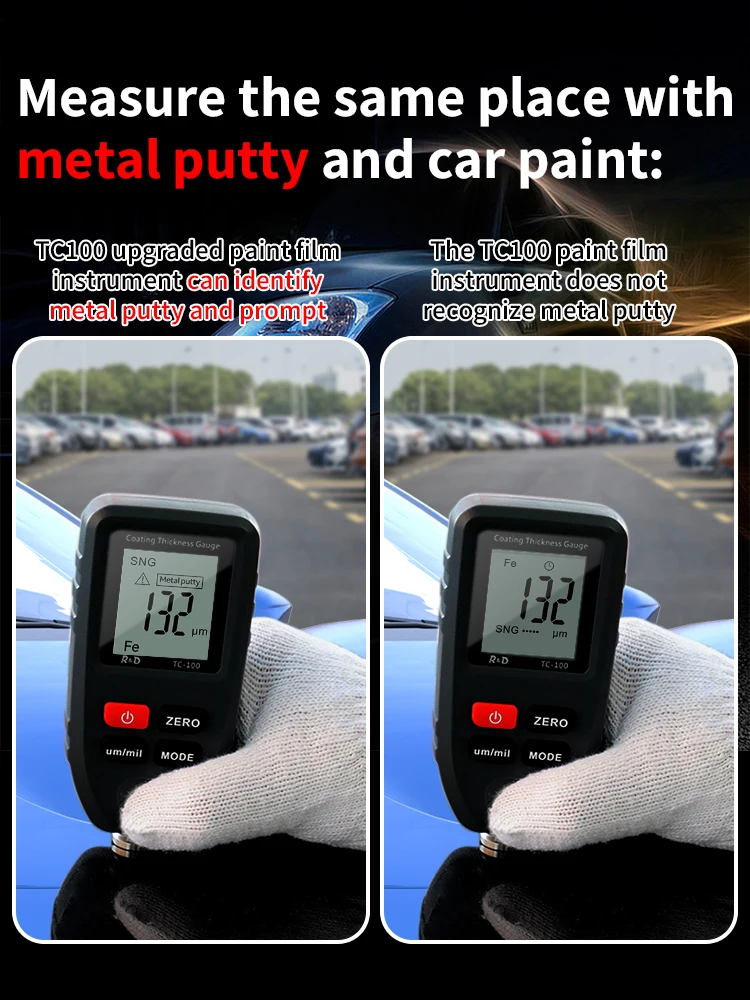

Test metal putty

Mini size, high precision.

Multiple internatinal certifications: CE/RoHS/FCC

Micron Level accurancy.

Use for Fe/NFe/Zn

Non-contact calibration

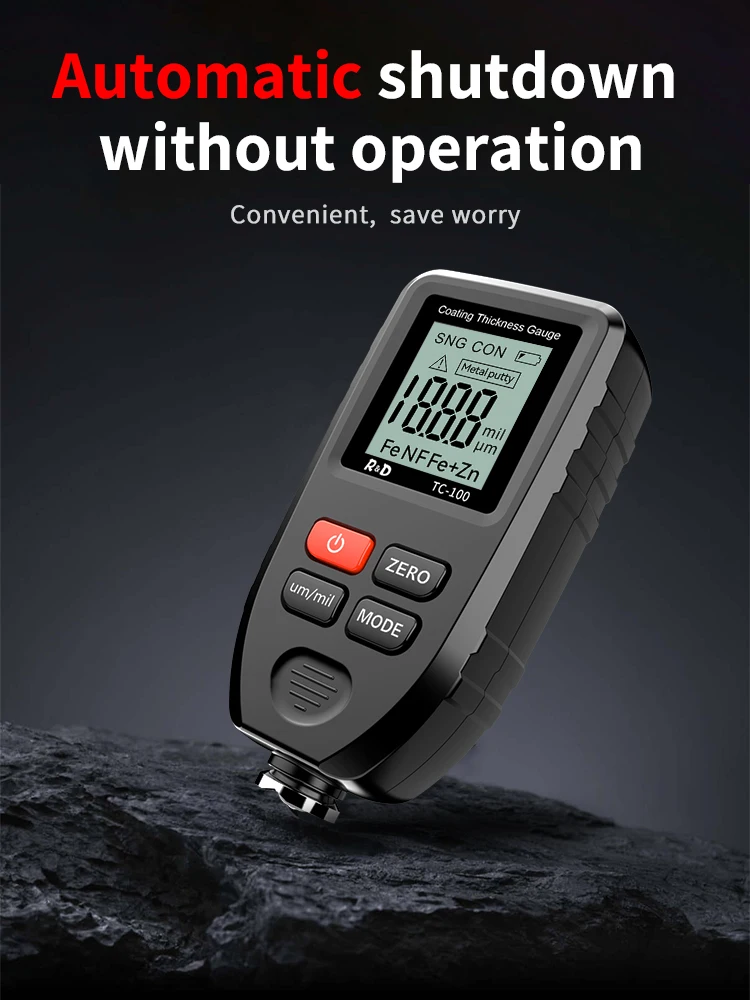

Auto power-off function
