SPECIFICATIONS

Battery Included: no

Brand Name: R&D INSTRUMENTS

Certification: CE,FCC,RoHS

Color: Black, Grey, White

Drop-shipping: Yes

High-concerned chemical: None

Measurement error: +-0.1mm

Measurement range: 0~1300um/0~51.2mil

Model Number: TC200

OEM/ODM: Yes

Origin: Mainland China

Power: 4 x AAA batteries

Resolution: 0.1um/0.01mil

Semi-finishedproduct: No

Size: 155mm x 62mm x 35mm

Units: um, mil

Weight: 125g(4.41oz)

With Backlight Or Not: Yes

Working Humidity: 20%~90%RH

Working Temperature: 0~40℃(32~104℉)

minimum curvature radius concave: 25mm

minimum curvature radius convex: 1.5mm

minimum measuring area: 6mm

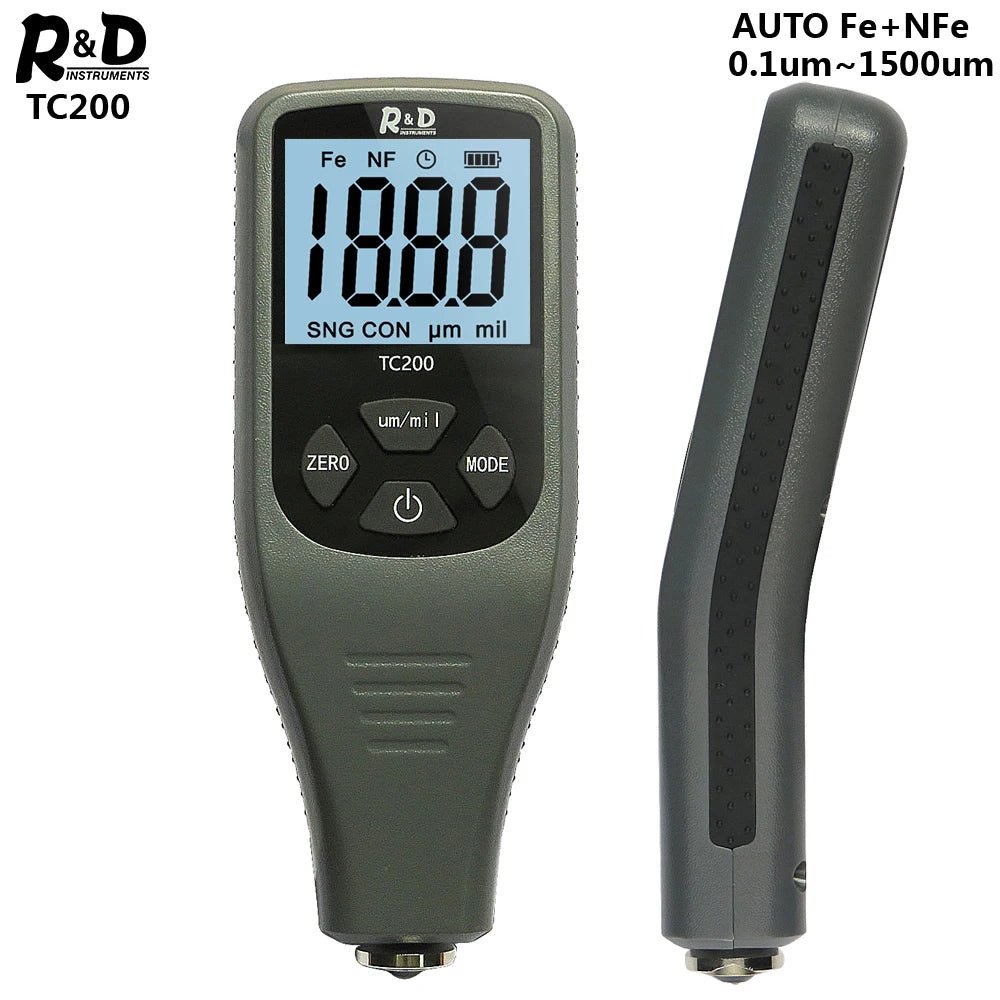

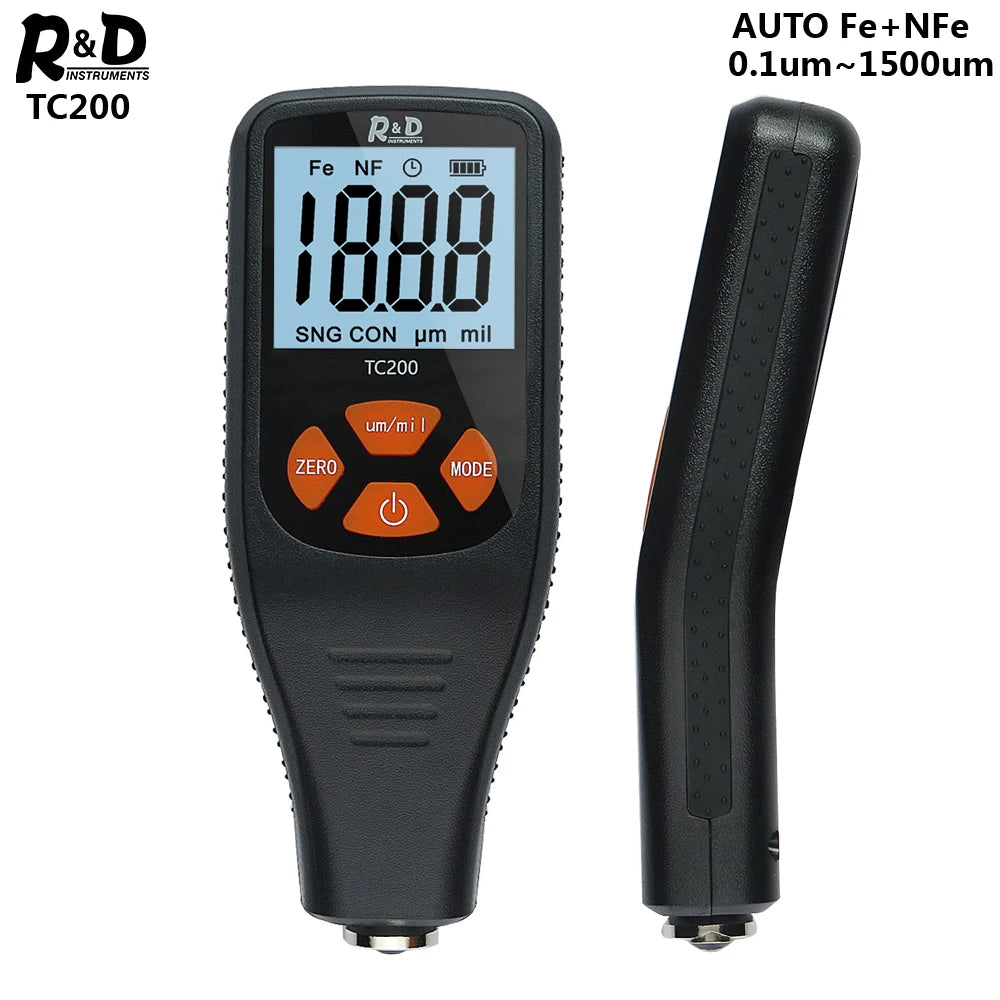

Description：

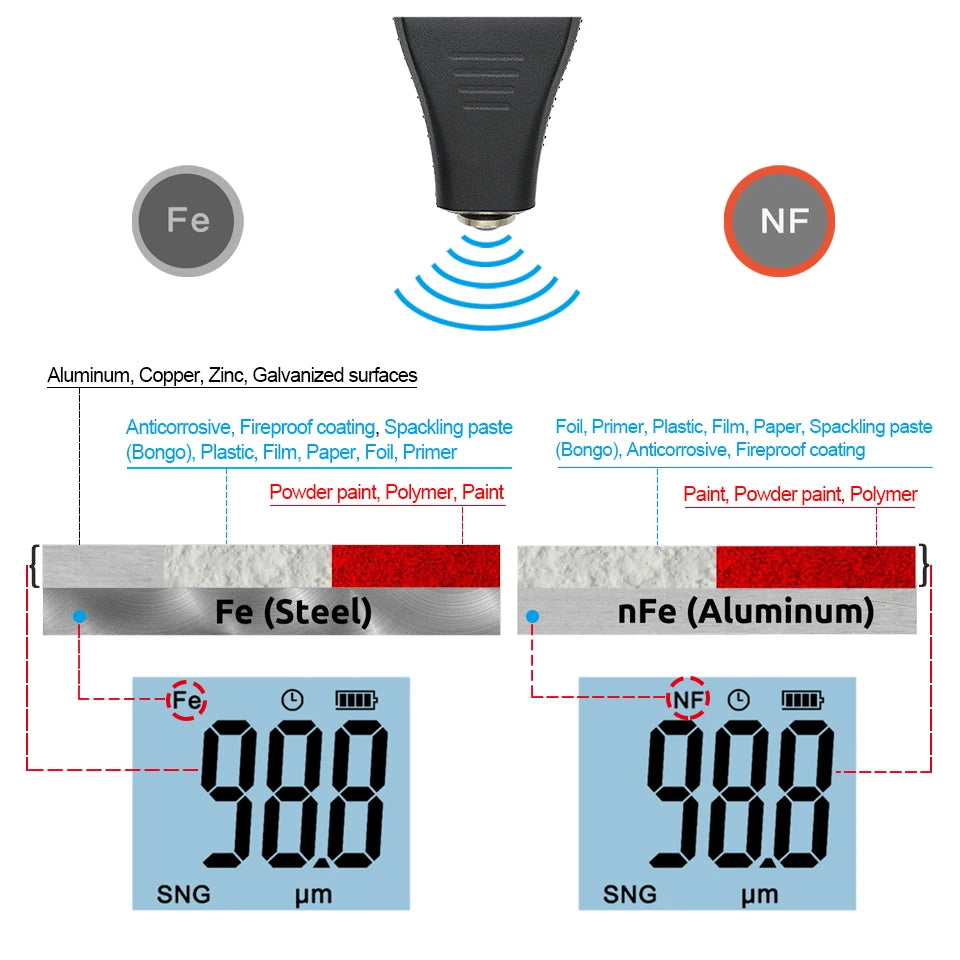

1. Fe--Magnetic substrate indicator: Steel/Iron
2. NF--Non-magnetic substrate indicator: Copper/Aluminum
3. Auto power off flag, auto power-off in 5 minutes with no-operation
4. Battery level indicator
5. Measured Reading Display
6. SNG: Single Measurement Mode
7. CON: Continuous Measurement Mode
8. Unit: um, mil
9. ON/OFF
10. um/mil: Unit Switch Key, System Resetting Key( Press and Hold More than 3s )
11. ZERO: Clearing Display when SNG shows;
Using for calibration when CON shows.
12. MODE: Switch SNG/CON; SNG shows, Single-point Mode; CON shows, Continuous Mode
13. Anti-Skid Slot

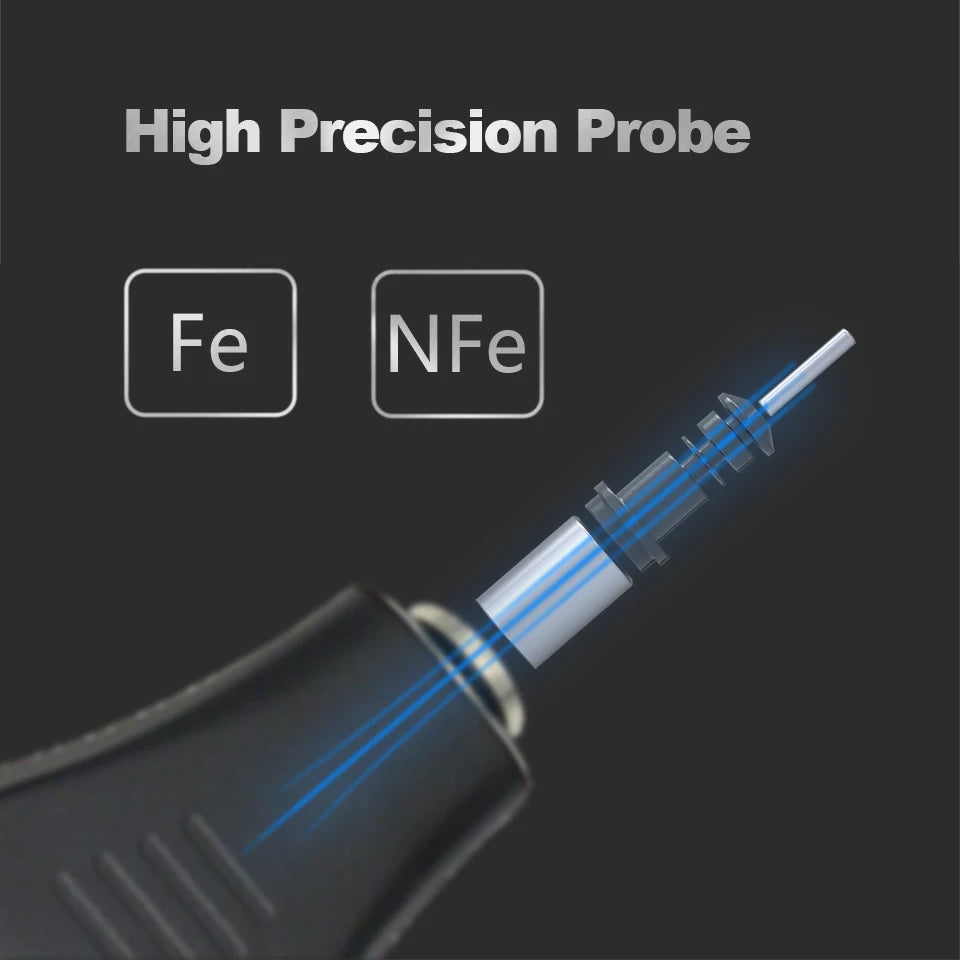

14. Probe
15.V-Groove

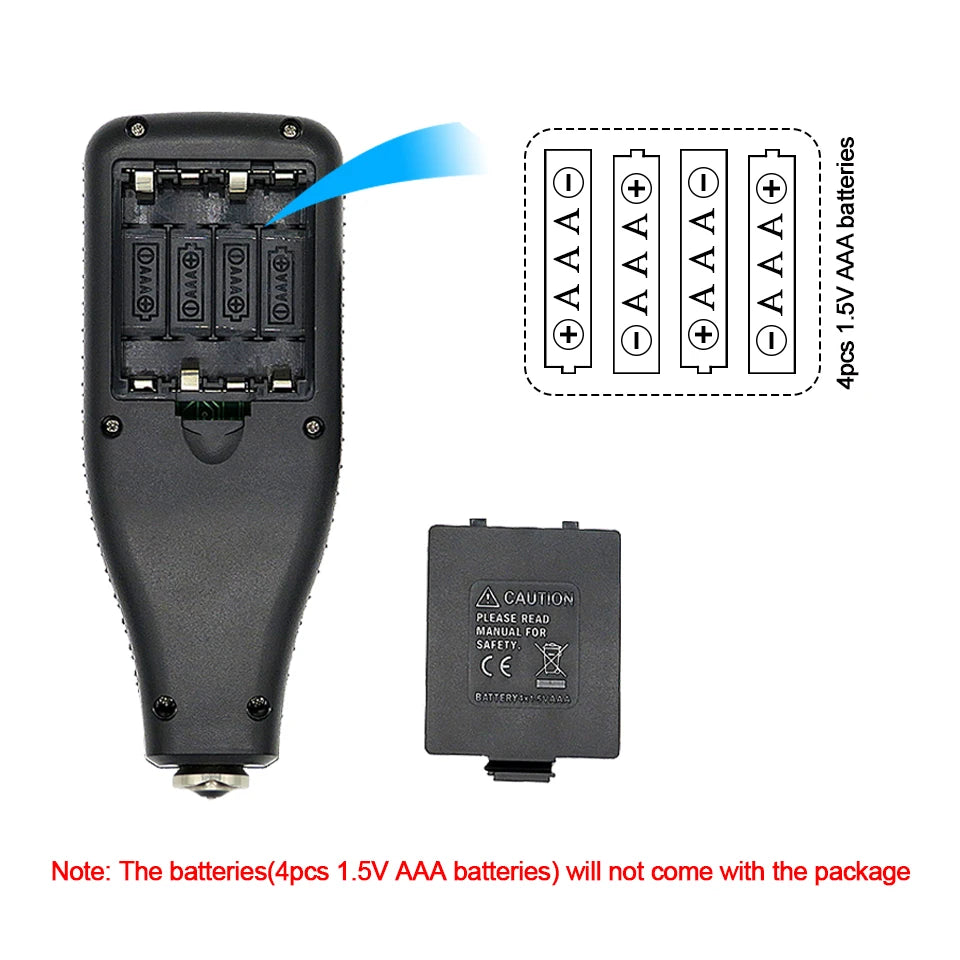

16. Battery Compartment
