SPECIFICATIONS

Auto Fe & Nfe/Zn: Yes

Battery Included: Yes

Brand Name: R&D INSTRUMENTS

Certification: CE,FCC,RoHS

High-concerned chemical: None

Model Number: TC300

Origin: Mainland China

Range: 0-3000um

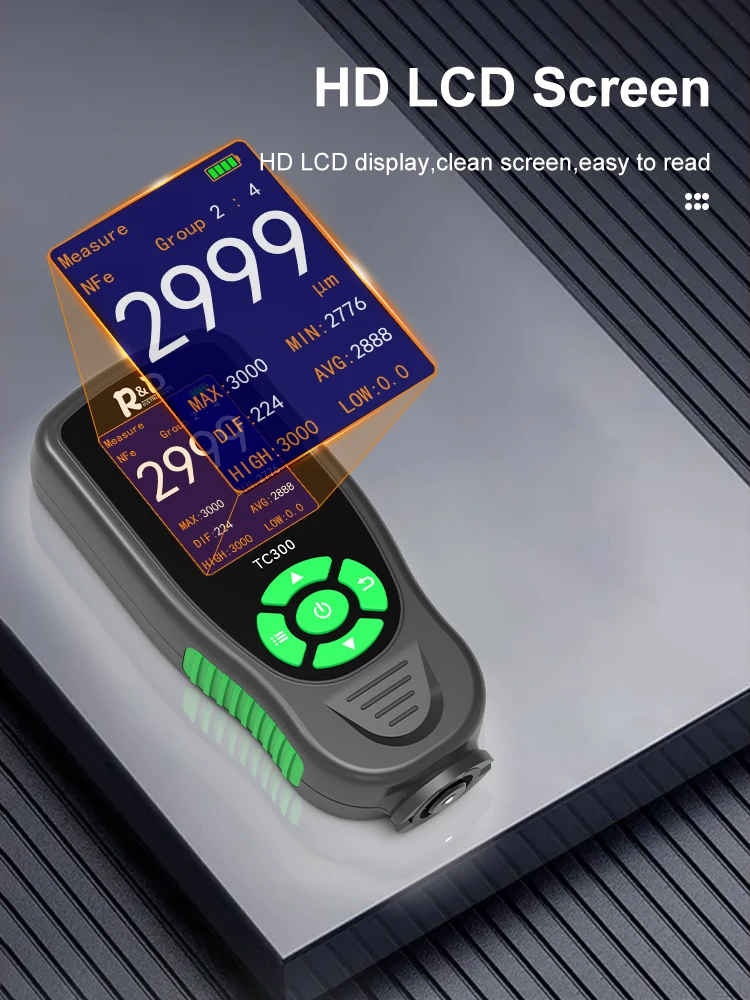

Screen: lCD

Semi-finishedproduct: No

Test Metal Putty: Support

With Backlight Or Not: Yes

unit: um / mils

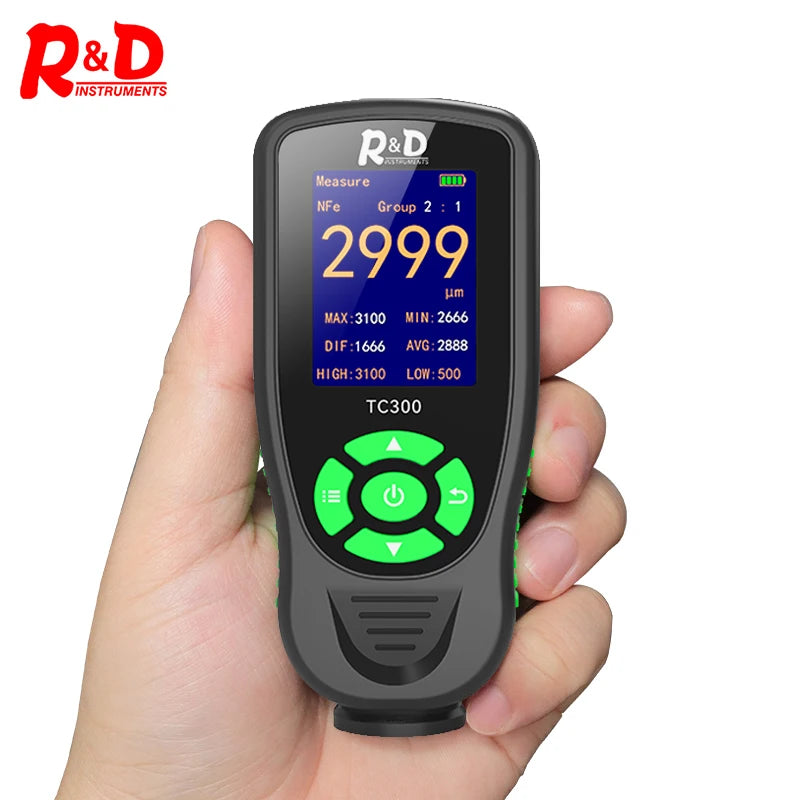

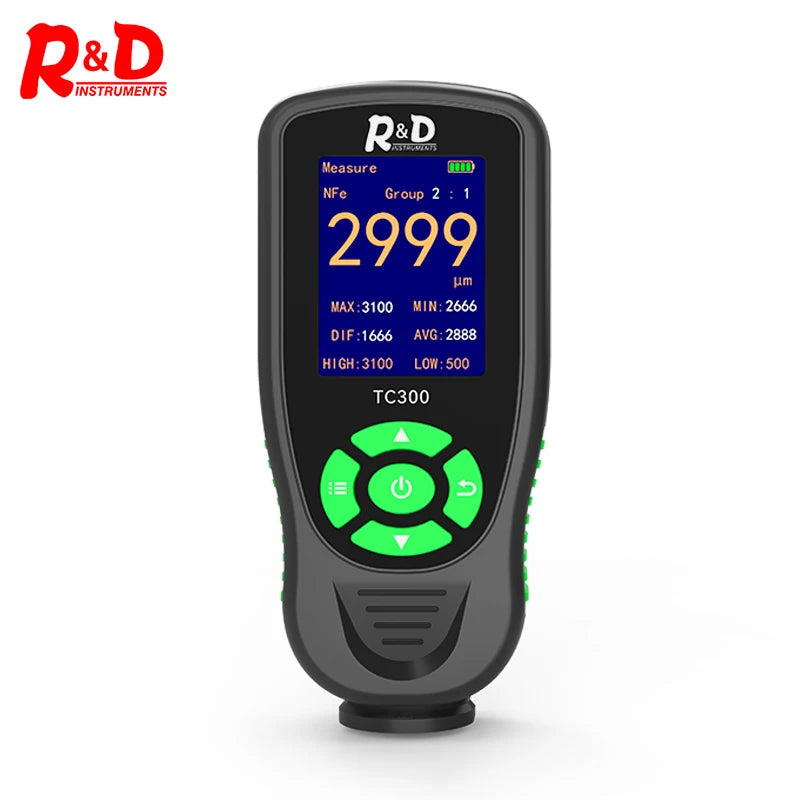

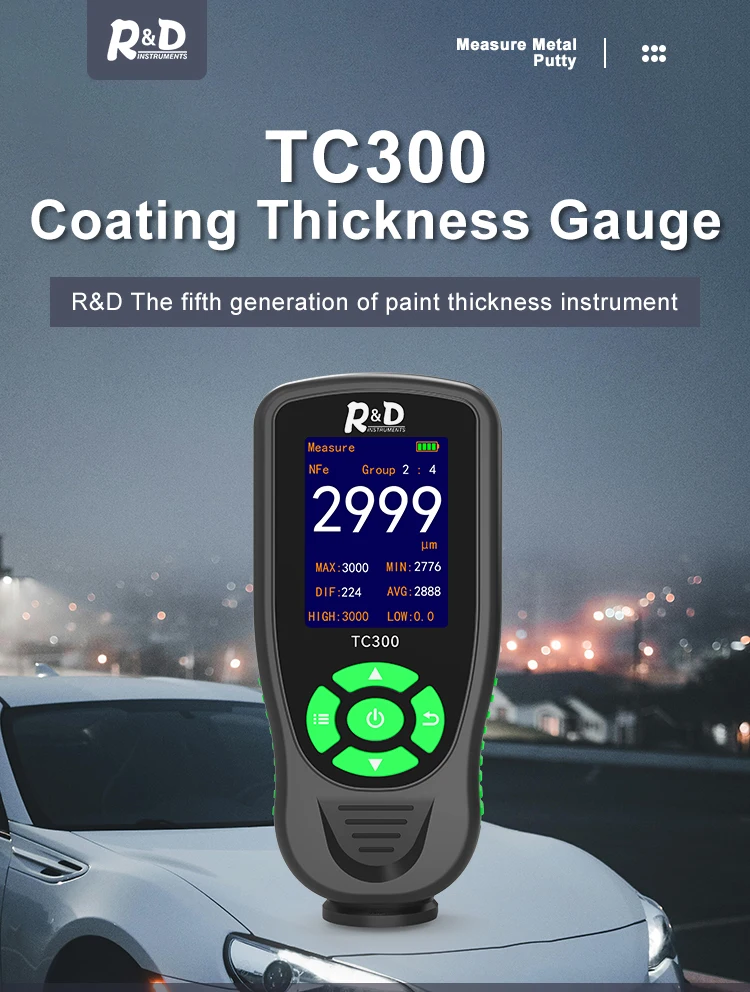

R&D TC300 Car Paint Thickness gauge Metal paint Tools 0-3000um Paint Thickness Tester FE/NFE Paint Film Thickness Tester Color

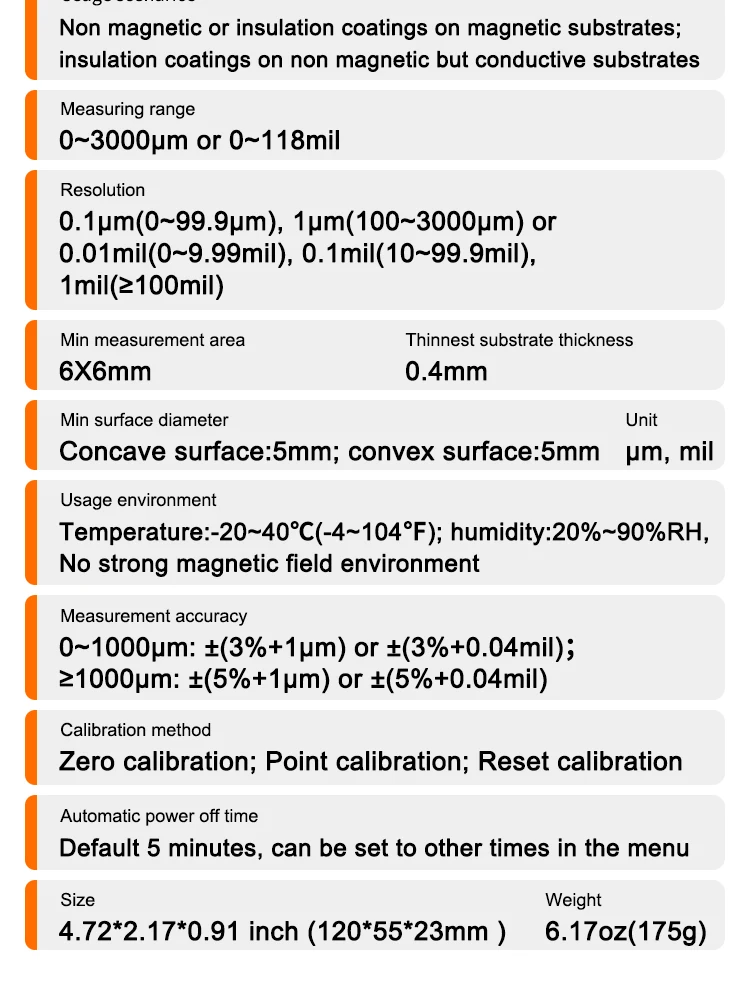

Specification:

Measuring range

0~3000μm or 0~118mil

Resolution

0.1μm(0~99.9μm),1μm(100~3000μm) or

0.01mil(0~9.99mil),0.1mil(10~99.9mil),

1mil(≥100mil)

Min measurement area 6X6mm

Thinnest substrate thickness 0.4mm

Usage environment

Temperature:-20~40℃(-4~104°F); humidity:20%~90%RH,

No strong magnetic field environment

Measurement accuracy

0~1000μm: ±(3%+1μm) or ±(3%+0.04mil);

≥1000μm: ±(5%+1μm) or ±(5%+0.04mil)

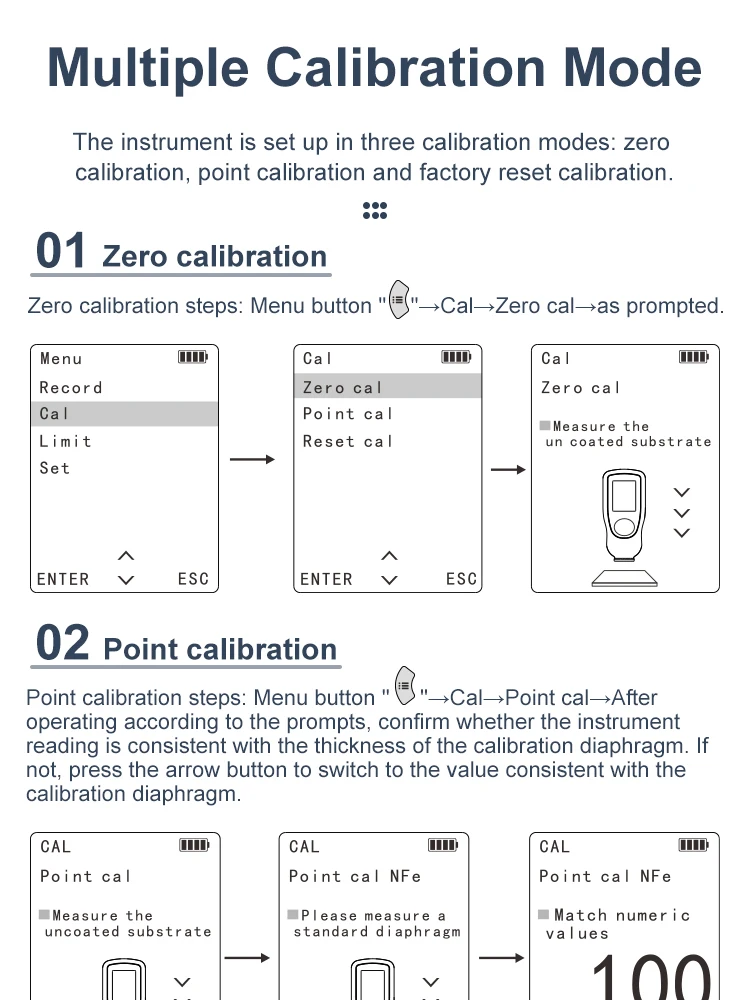

Calibration method

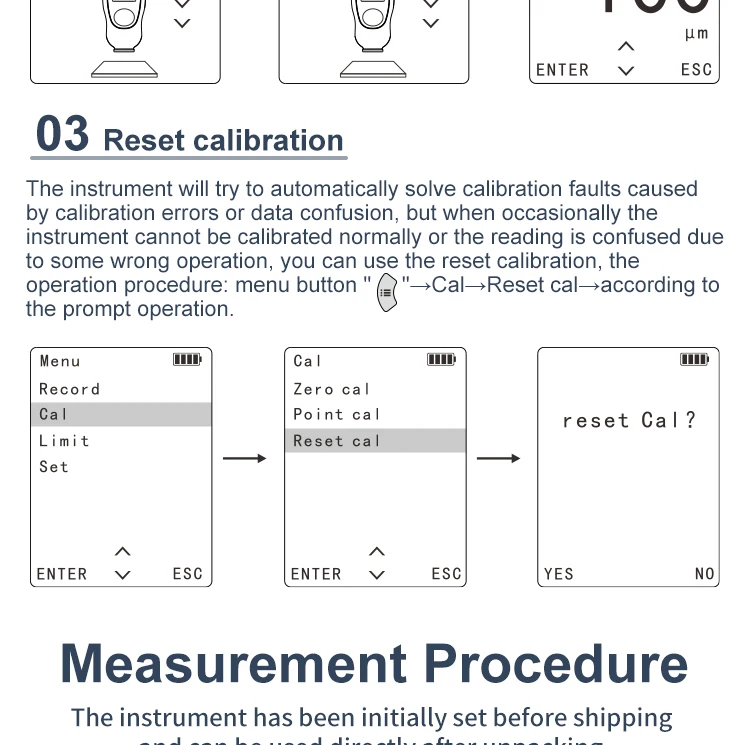

Zero calibration; Point calibration; Reset calibration

Features:

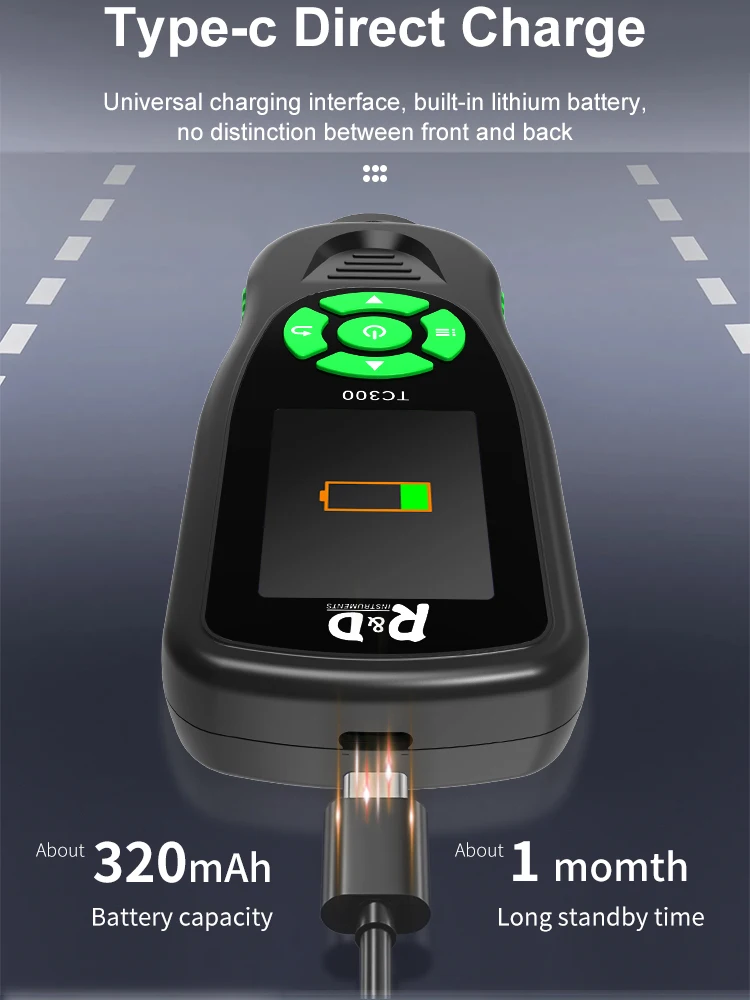

1.Rechargeable and Convenient: TC300 rechargeable coating thickness gauge comes with a rechargeable battery and a charging cable, ensuring that you never have to worry about running out of power during your measurements.

2.Wide Application: The digital coating thickness meter are widely used in manufacturing company, shipbuilding, aircraft industries, metal machinery industry, chemical industry, especially in automobile/car trading.

3.Fe-Probe/Magnetic Induction: The car paint mill thickness gauge can measures the thickness of non-magnetic coating layers on magnetic substrate. Such as (aluminum, chrome, copper, enamel, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel).

4.NFe-Probe/Eddy Current: The paint depth tester can also measures the thickness of nonconductive coating layers covered on nonferrous substrate. Such as, (enamel, rubber, paint, vanish, plastic anodic-oxide layer) covered on nonferrous substrate (aluminum, brass, zinc, tin and nonmagnetic stainless steel).

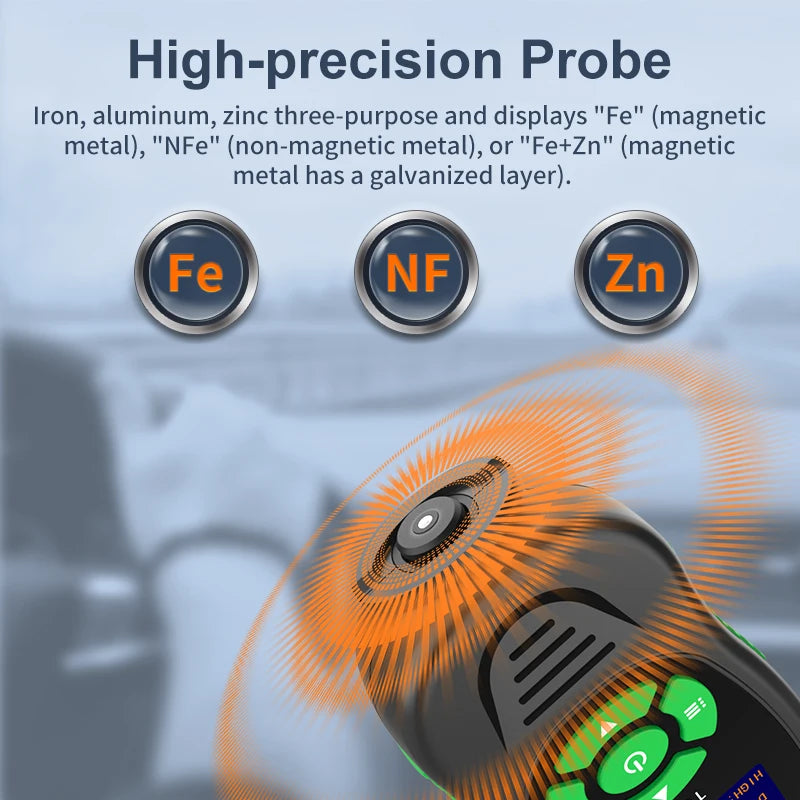

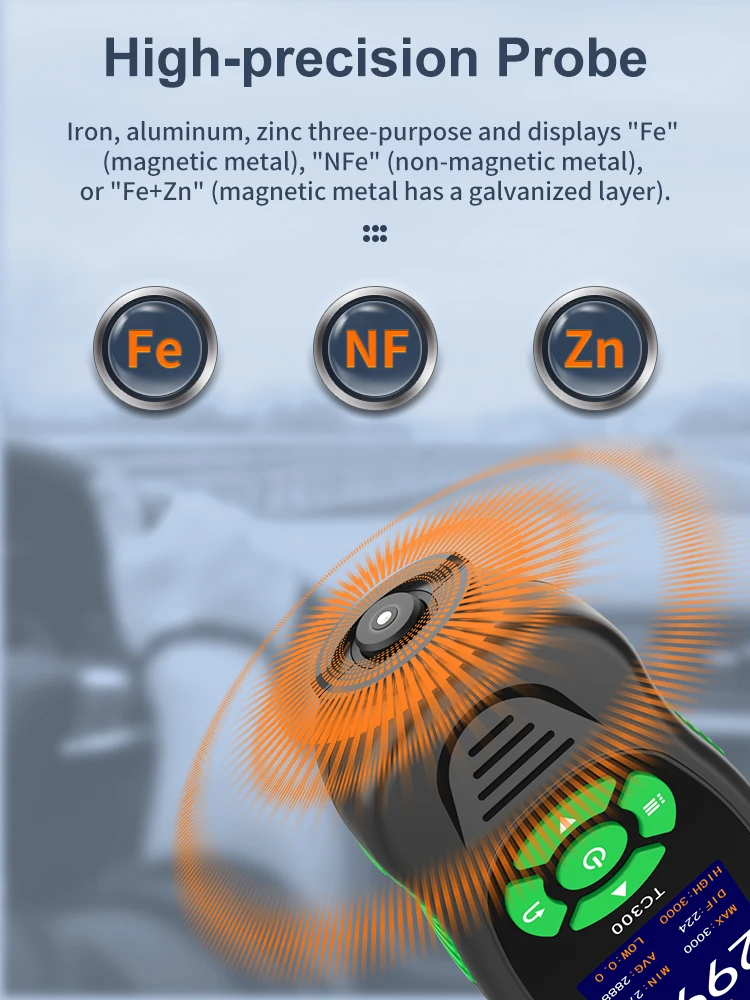

5.Fe+Zn probe: Automatically identify whether there is a galvanized layer on the surface of ferromagnetic materials.

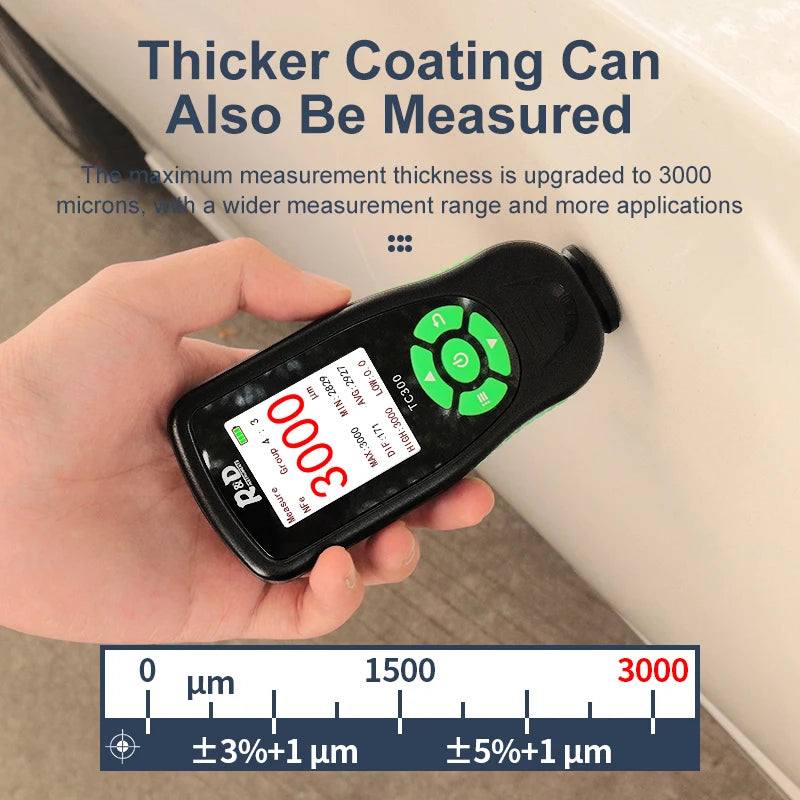

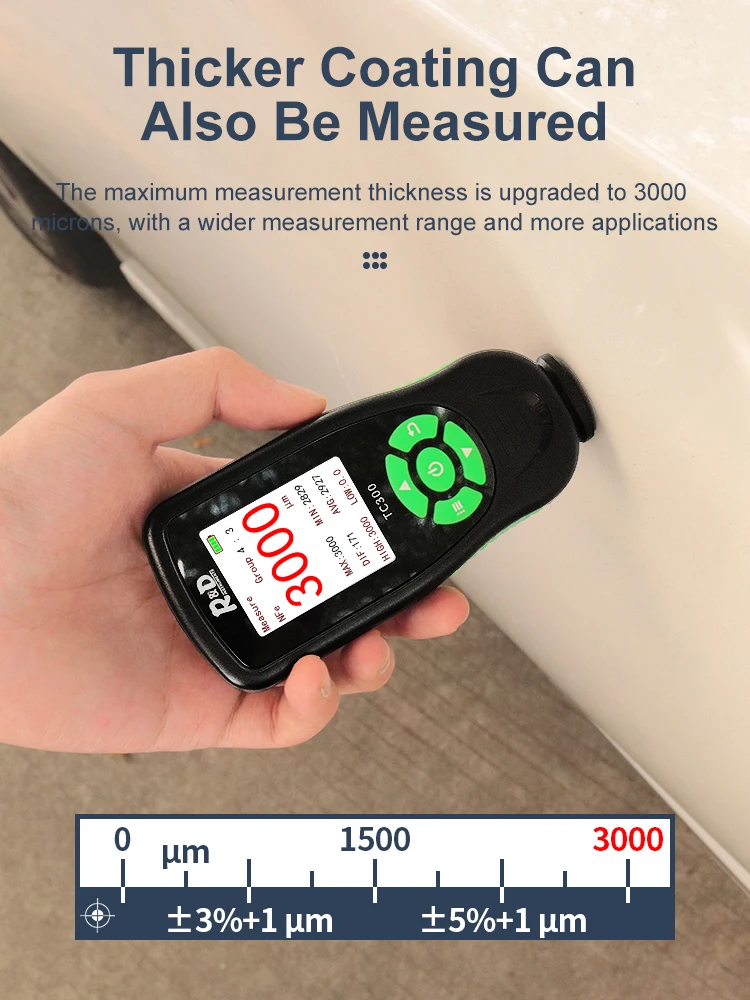

6.Wide Mearsuring range: 0-3000µm

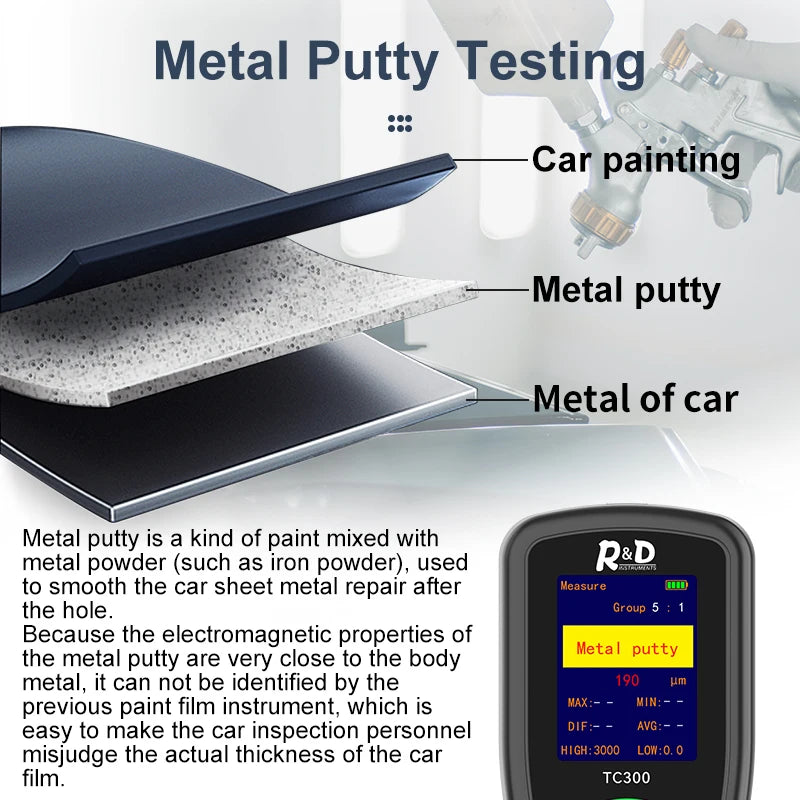

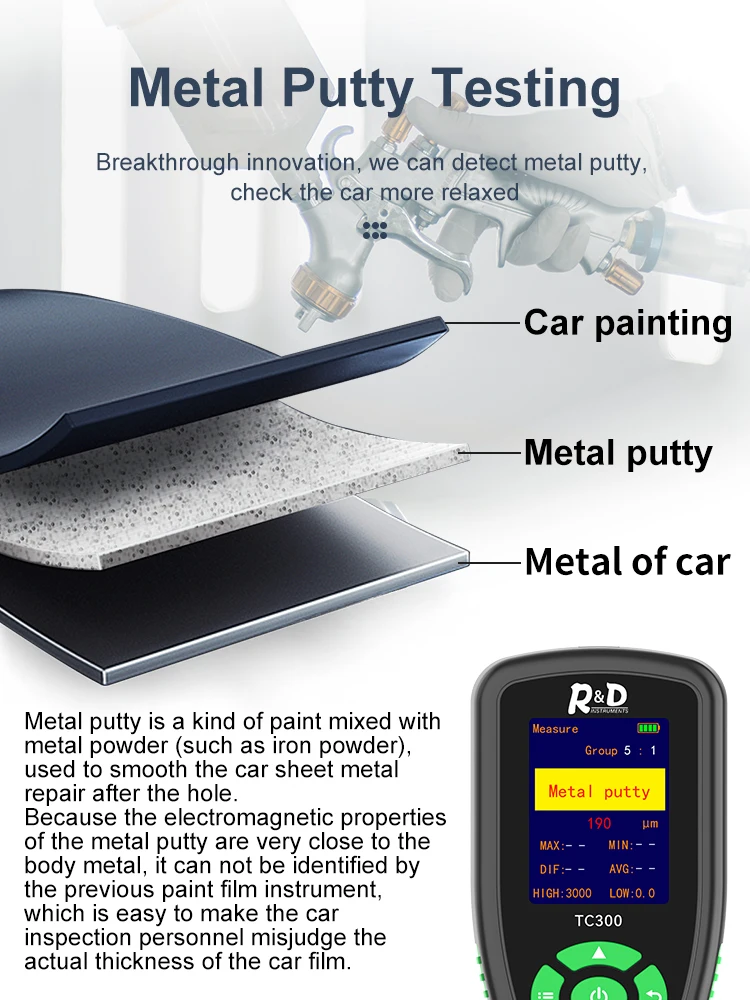

7.Test on Metal Putty:Determine whether the measured object has metal putty

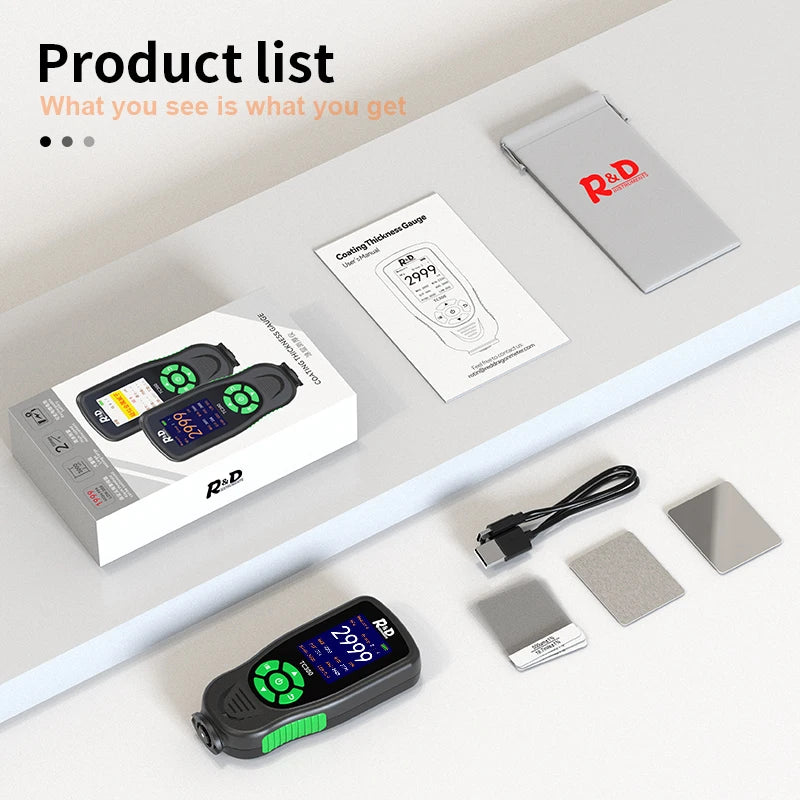

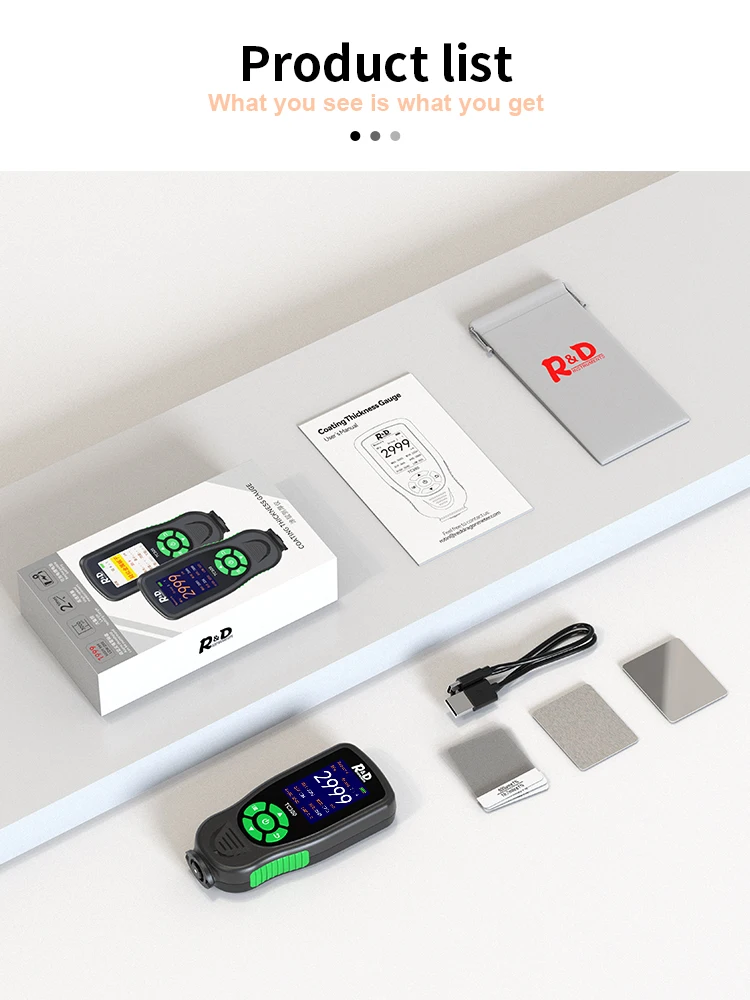

Packing List

1*TC300 Coating thickness gauge
1*Protective bag
1*Aluminum substrate

1*Lron substrate
1*English manual & Russian manual
5*Standard foils

1*Data cable
