Product Specifications:

Working voltage : AC 85V~240V
Quiescent Current : <5MA
Max current : 10A
Max load: 2200W

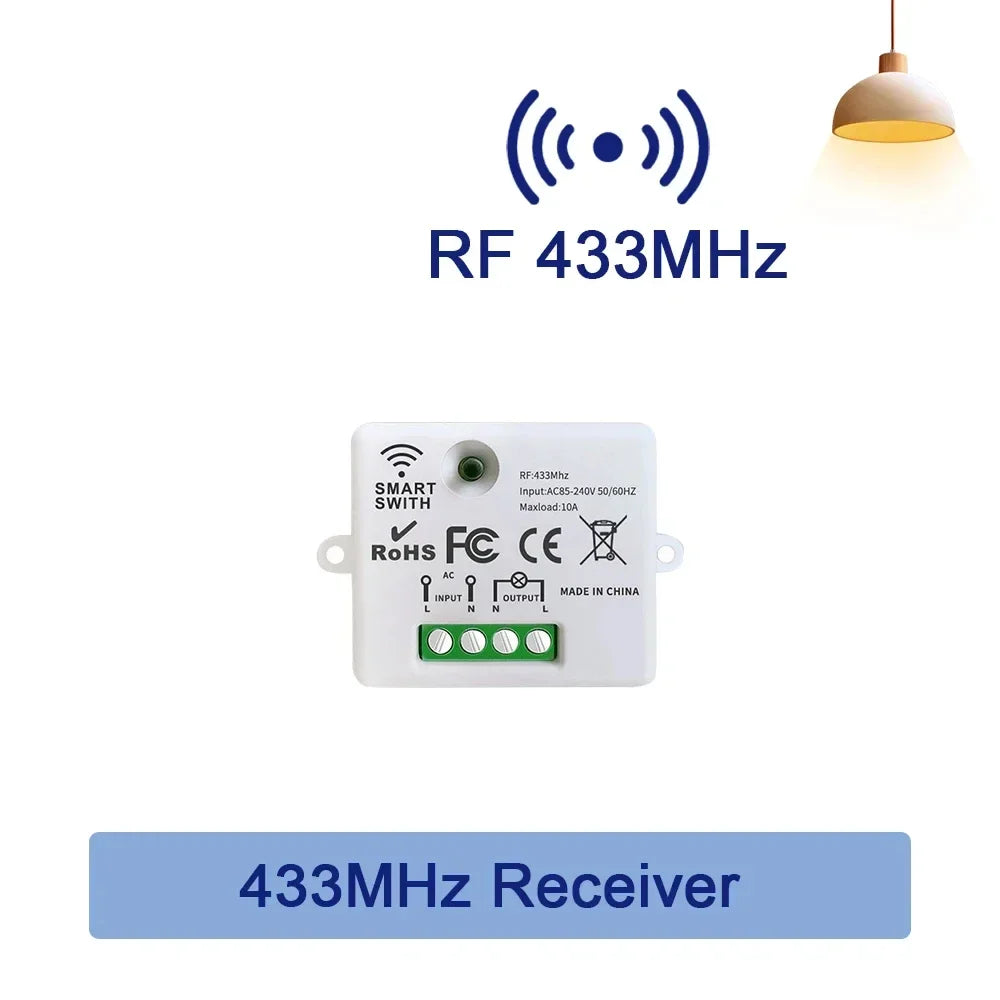

Receiver Body Size : 47*42*27mm
RF frequency : 433MHz

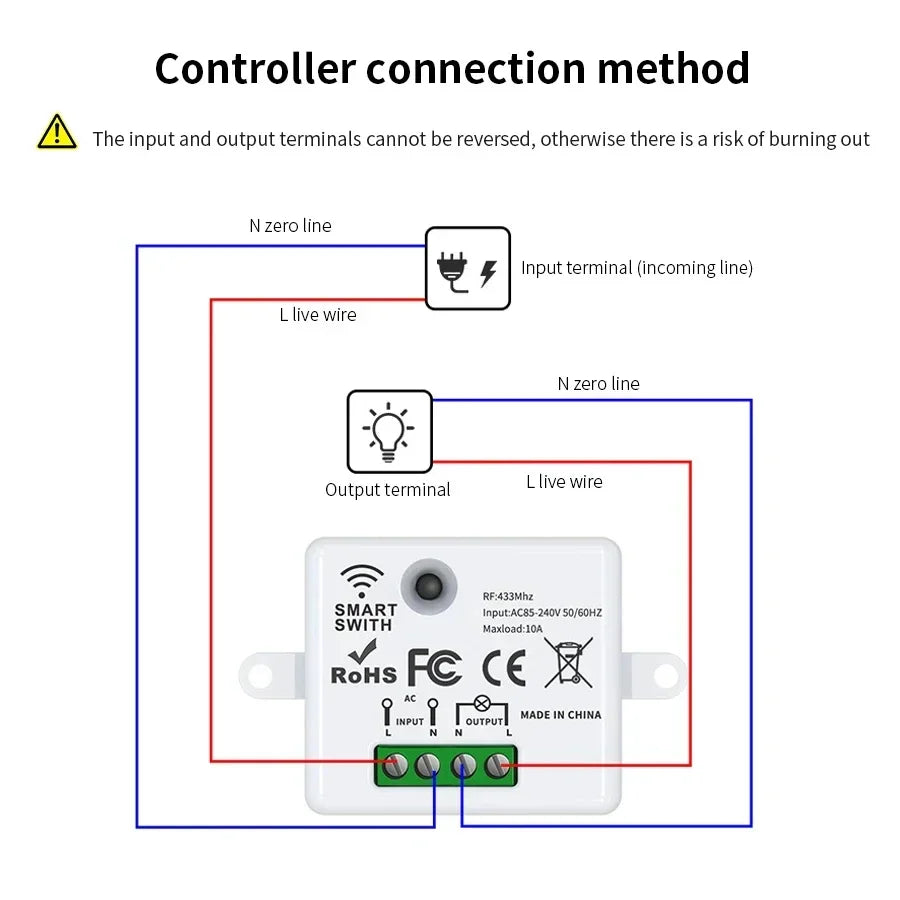

Pin : L \ N
Working temperature : -10~+70 Celsius
Receiving Sensitivity : >97dbm
Amount of storage remote controls : 20 pieces
Support encoding : EV1527 Leaning code
RF Operating mode : ASK superheterodyne wireless reception

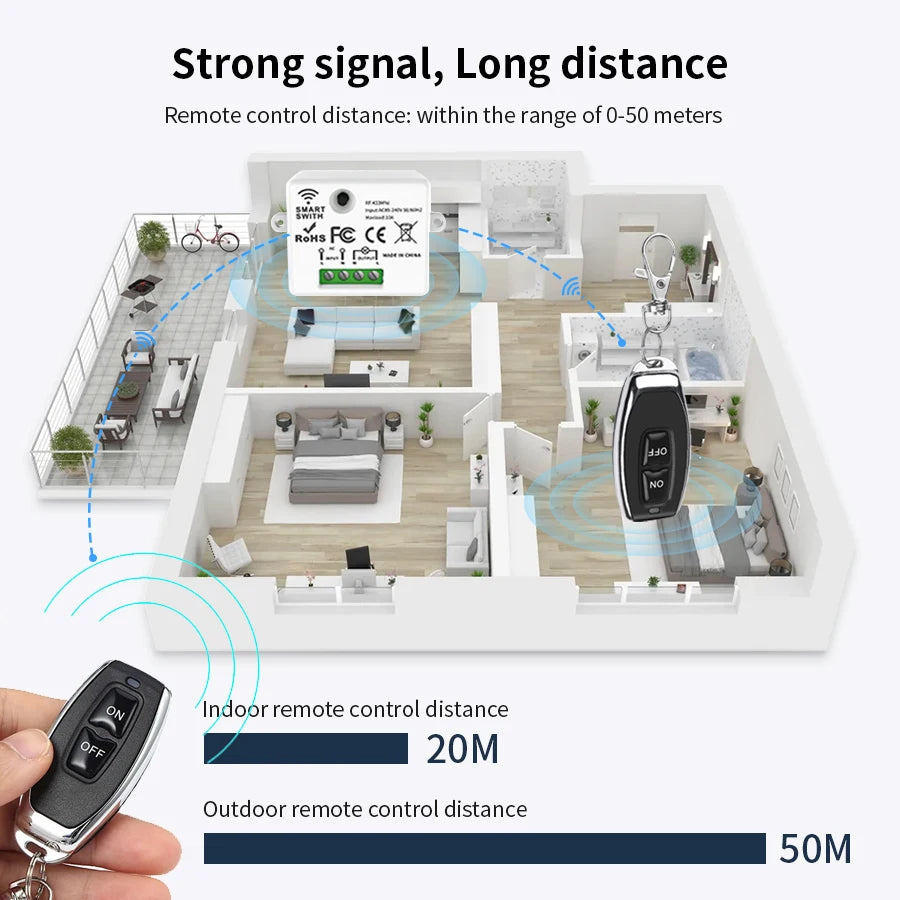

Receiving range : Open space is more than 20-100 meters
Remote operating mode : Toggle Mode / Latched Mode

Features：

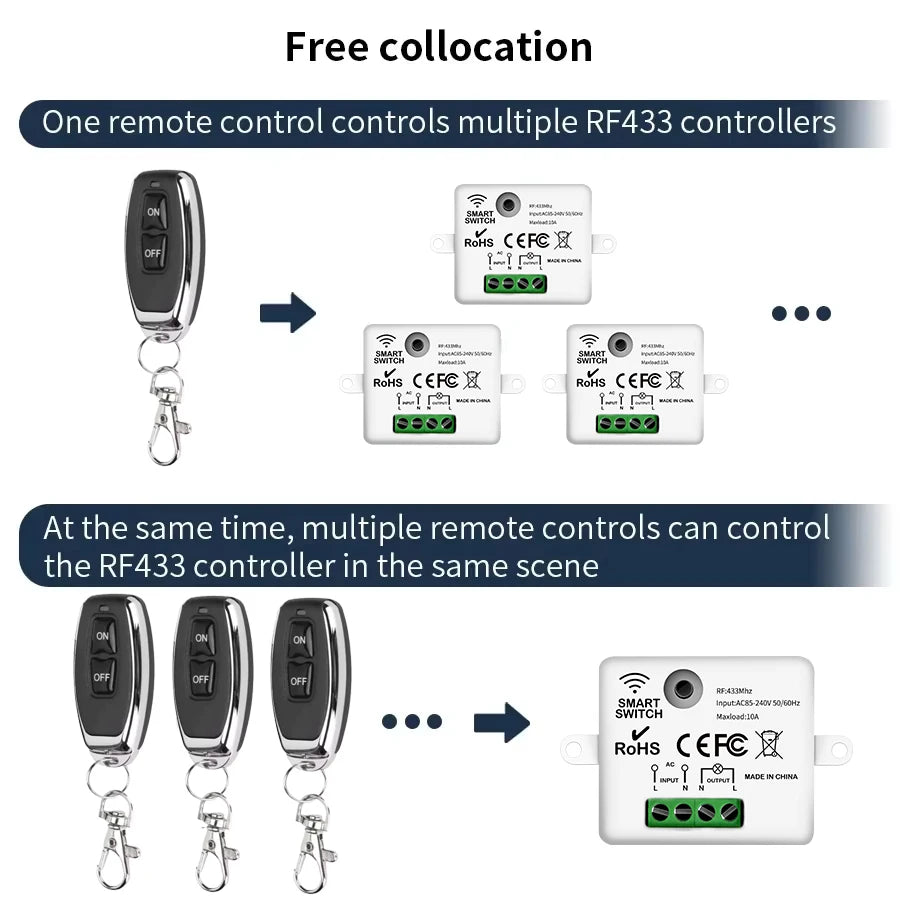

1.Multi Remote Control can control different receivers.Save energy,avoid darkness.
2.Working with all kinds of Lights and Ceiling Fan.LED,CFL,Fluorescent lamp can load 300W,other can load 2500w.

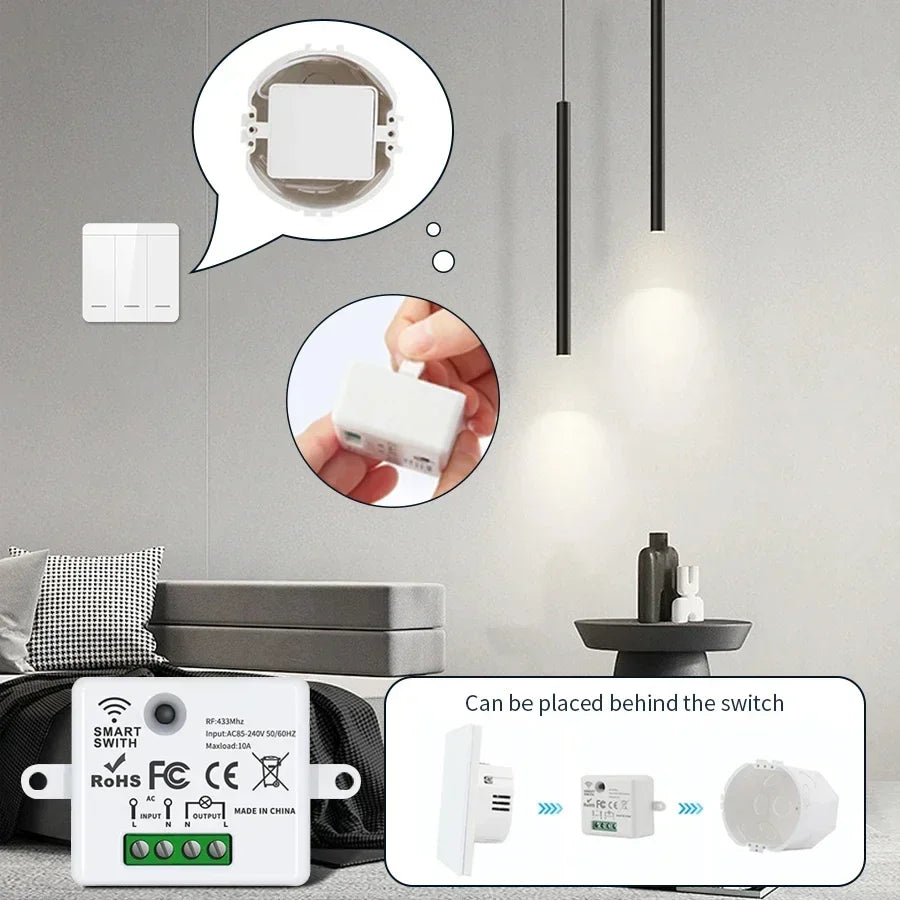

3.It is a 86 wall panel that can be stuck onto anywhere. It is a learning code transmitter EV1527 IC Chip. It can be learned into most of the learning code receiver.

How to get the signal

Step 1: Press the learning button(on the Receiver) twice. Wait for 3 seconds;
Step 2: Press one button on the remote control. Wait for 3 seconds. Succeed.

How to clear the signal

Only one step :Press the learning button(on the Receiver) 8 times. Wait for 3 seconds;
