SPECIFICATIONS

Battery Included: no

Brand Name: HYXC

High-concerned chemical: None

Model Number: HYLST

Origin: Mainland China

Semi-finishedproduct: No

                            Welcome to Global electronics wholesale

                          We provide low price & high quality and best service.

                         100% Customer satisfaction is our goal

                        Please note that we are Wholesale products.

                        If you need products in large quantities,

                          Please contact us, to negotiate! Cooperation Happy!!

HYXC-HYLST level sensor performance, reliability, price. Using diffused silicon core chip imports, Germany three sealing process, rigorous and reliable sealing, sealing characteristics, the stronger the pressure the better, so that in the deeper liquid and stable performance. Signal isolation amplifier circuit, the cutoff frequency interference design (anti-interference ability, lightning) overvoltage protection, current limiting protection, impact resistance, corrosion and other designs. Reliable performance in the domestic and foreign advanced level

Technical parameters:

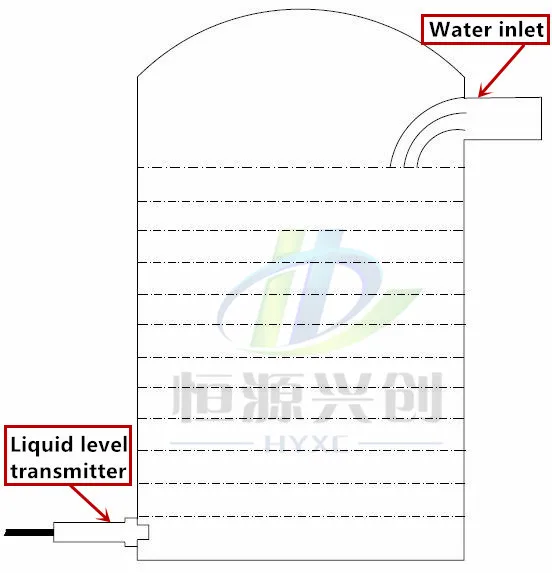

Installation drawing

Command function code meaning:

1. Read command code format(Liquid level range: 0 ~ 5 m, for example)

A .Send the read command code format (03 function code), for example:(01 03 00 00 01 84 0A)

B. Returns the numerical code format, for example:(01 03 02 02 AC B9 59)

Explanation: 02 AC data; Converted to a decimal is 684.

Current level value=5×684÷200=1.71 m

2. Modify command code format(Sensor address bits 01, modified to 09)

A. Send the modify command code (06 function code), for example:(01 06 00 00 00 09 79 CF)

B. Returns the data format:( 01 06 00 00 00 09 79 CF)

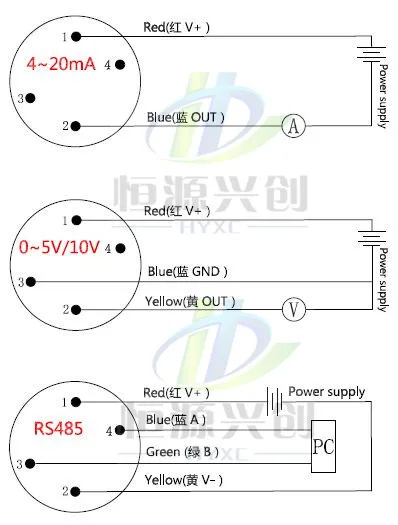

Wiring diagram:
