SPECIFICATIONS

Battery Included: no

Brand Name: Shahe

Certification: NONE

Display Type: DIGITAL

High-concerned chemical: None

Max Load: 500N

Model Number: AMF

Origin: Mainland China

Precision: 1%

Semi-finishedproduct: No

Sensor structure: Inner sensor

battery: 2 AAA batteries 1.5V (not included)

★Product details

Digital display push-pull force meter is a small, simple, multi-functional and high-precision push and pull test instrument, which is widely used in electronic appliances, construction hardware, light industrial textiles, auto parts, lighters and other ignition devices, fire equipment, pen making Push-pull load, insertion force test, destructive test of locks, fishing gear, chemical industry, power machinery, scientific research institutions and other industries.

The digital display has high resolution, fast sampling speed, and easy to use. It is a new generation of high-efficiency and high-precision push-pull test instrument.

★Characteristics

1.High precision and high resolution.

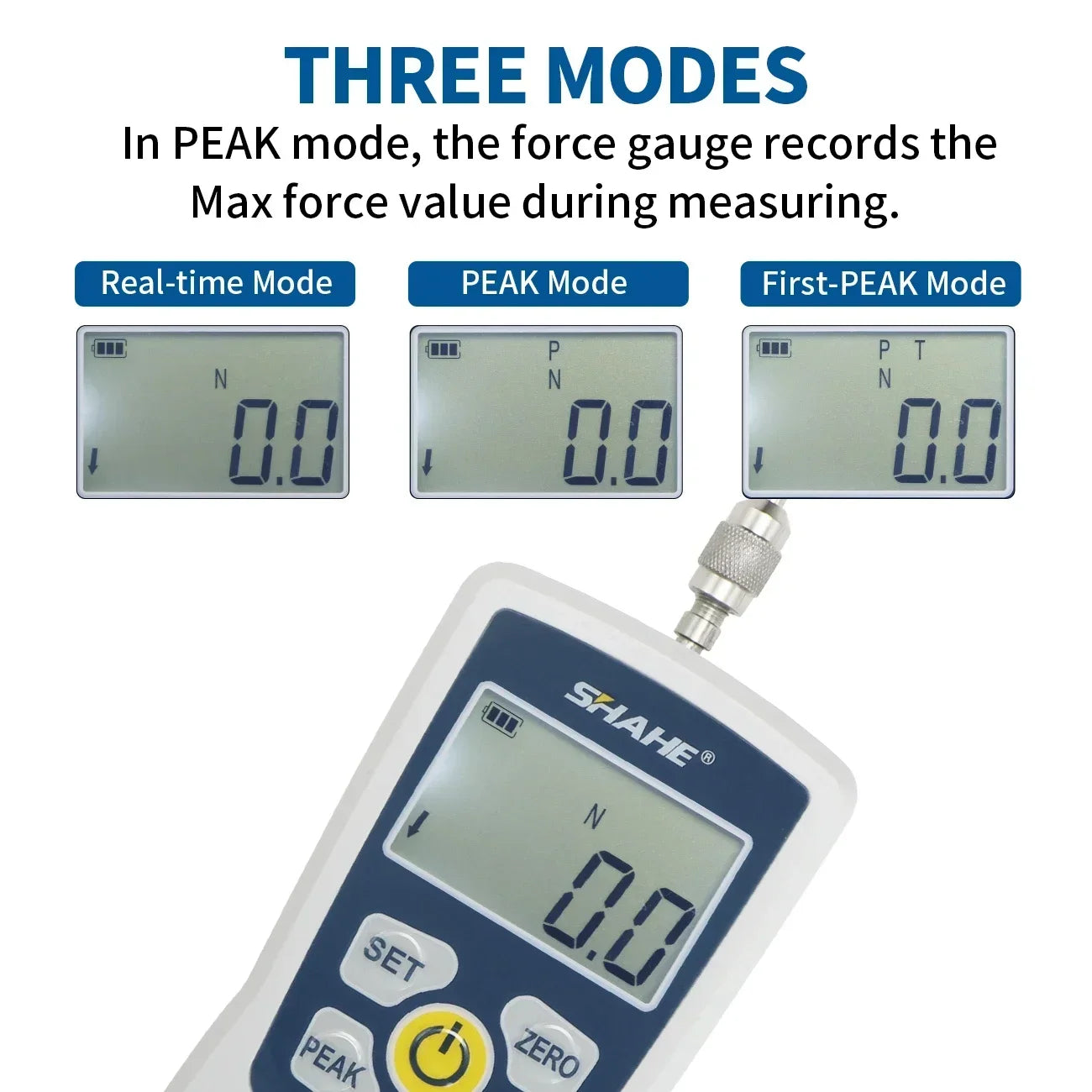

2.Three measurement mode for selection(Real time,Peak,First peak.

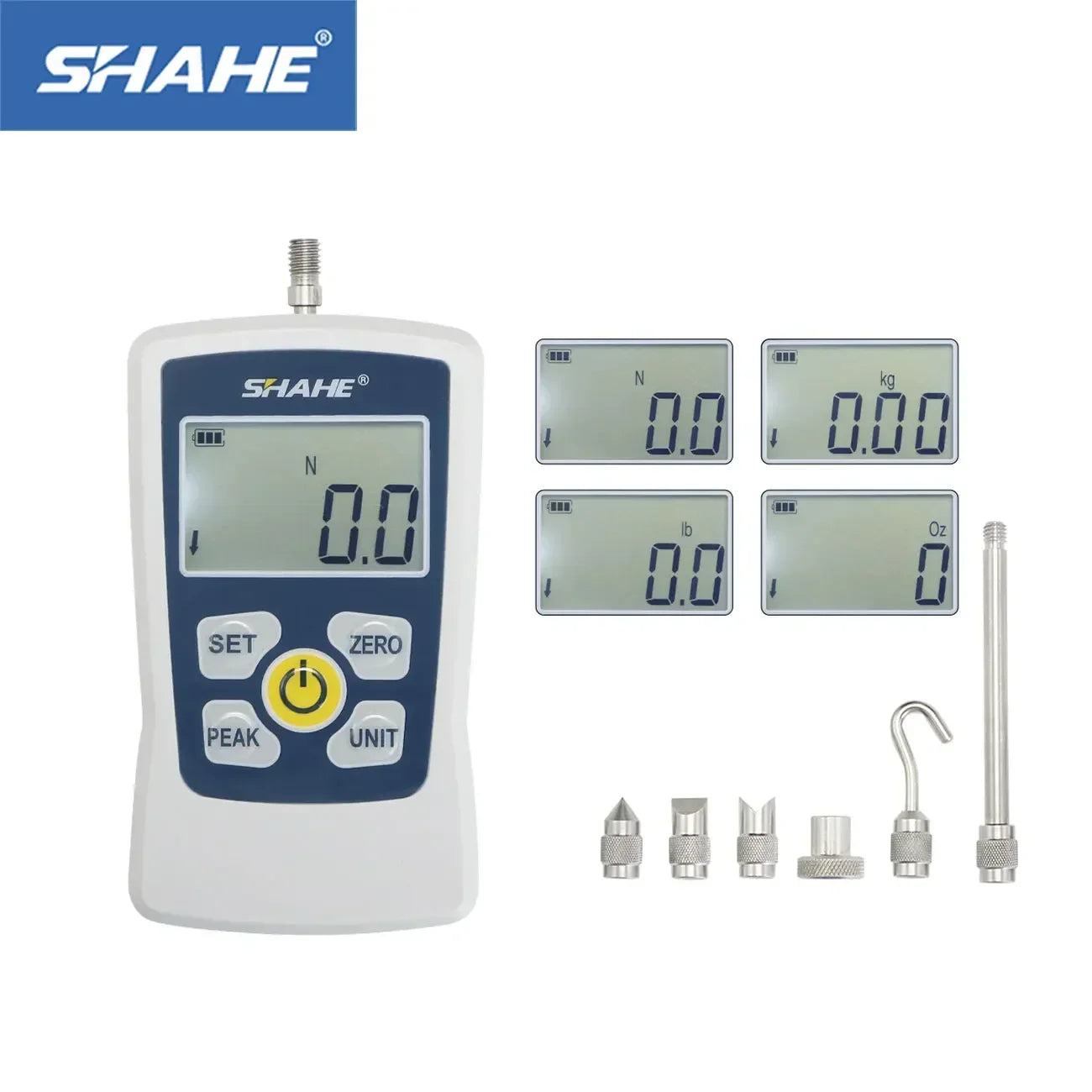

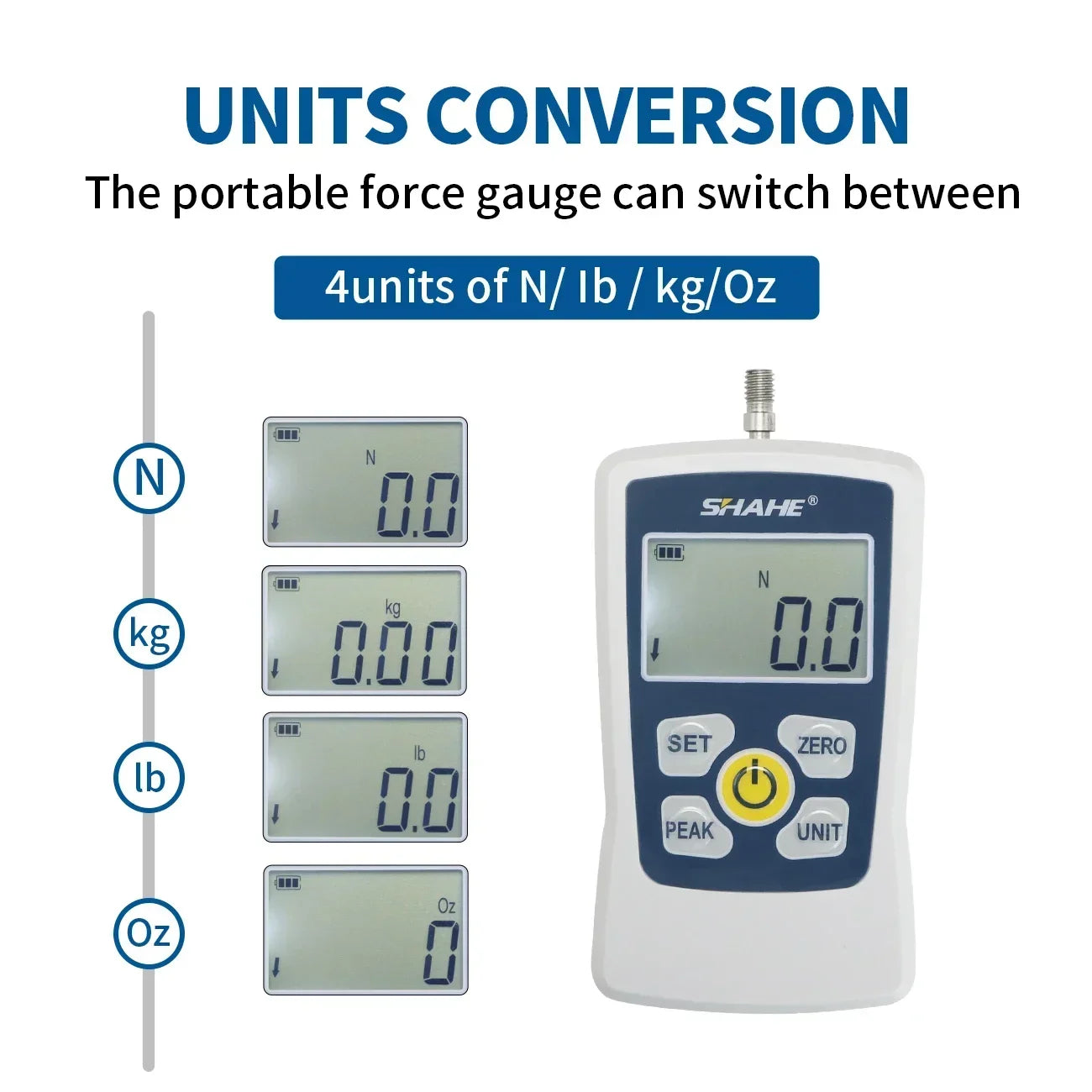

3.N(Newton),Kg (Kilogram) , Lb (Pound) and Oz(Ounce) four units for selection and conversion.
4.Setting function of gravity acceleration----User can input at your option the accurate value of gravity
acceleration at the using place so as to make the testing and unit conversion be more accurate.
5.Upper and lower limits can be set for statistic analysis. The buzzer will alarm if exceeding the limits.
6.Minimum force value shielding function: the data within the set minimum range can be shielded;
7.Automatic shutdown function: The automatic shutdown time can be set, and the automatic shutdown can achieve a point saving effect when there is no operation for a long time.
8.Power: 2pcs AAA battery (1.5V*2)
9.Automatic backlight, buzzer alarm function;

★Specification

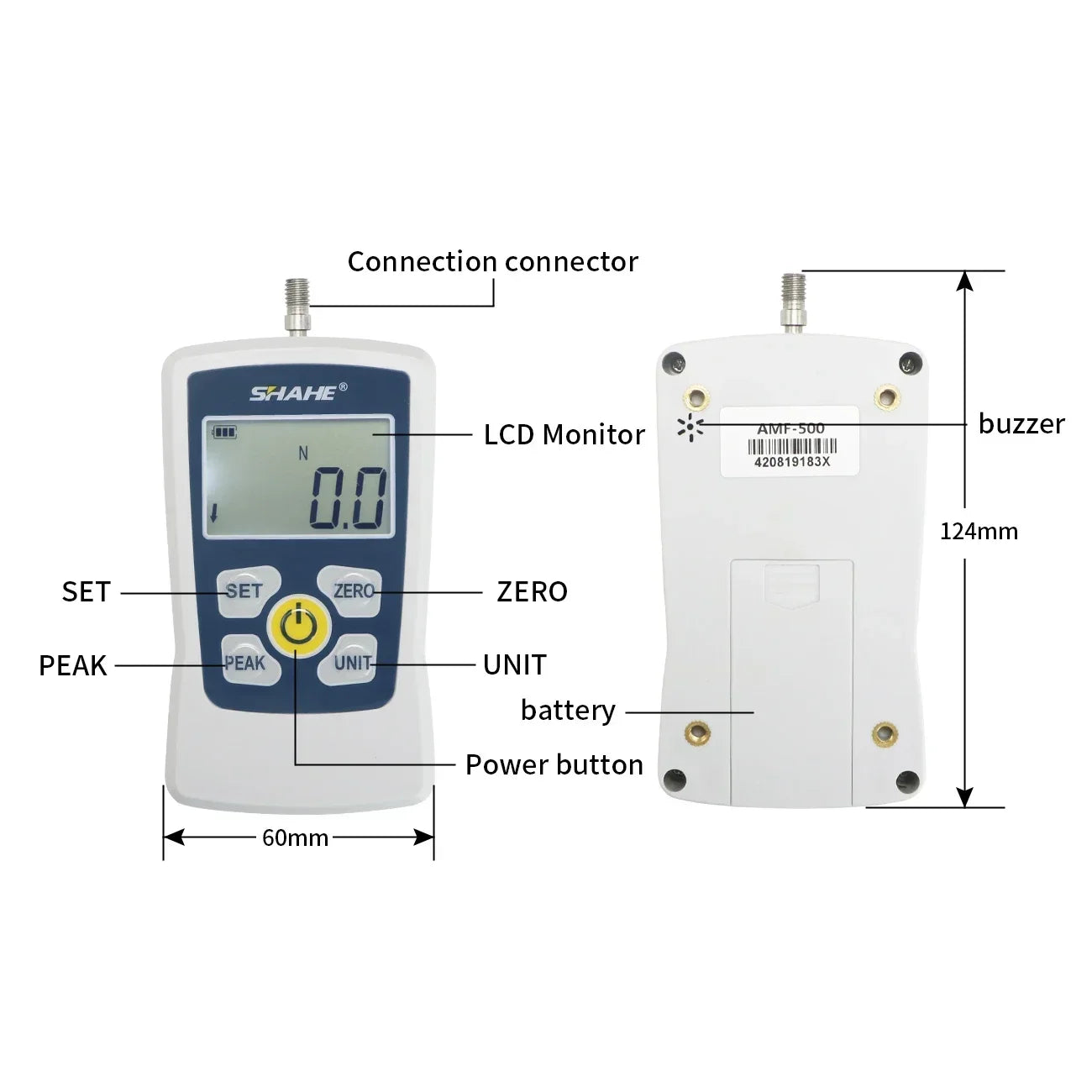

★Shape and structure

★Display

1.battery power.

2.The screen simultaneously displays "P" and "T" as the first peak mode, indicating that the first peak value measured within a period of time is recorded; the screen displays a single "P" as the peak mode, indicating that the measured period of time is recorded Maximum force value; press "PEAK" key to switch between peak and first peak mode freely.

3.unit display.

4.measurement force value display.

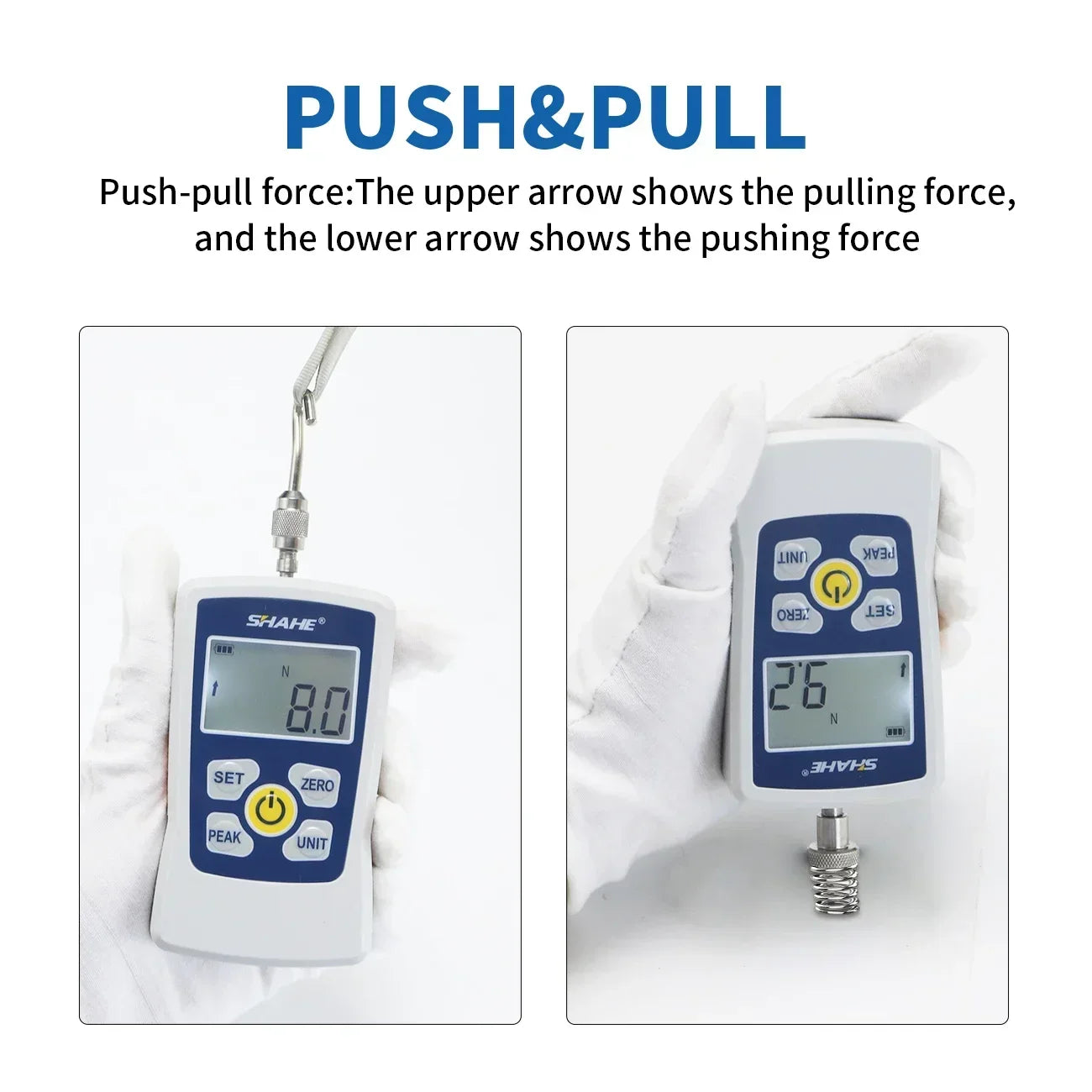

5.Push-pull force: the upper arrow shows the pulling force, and the lower arrow shows the pushing force.
