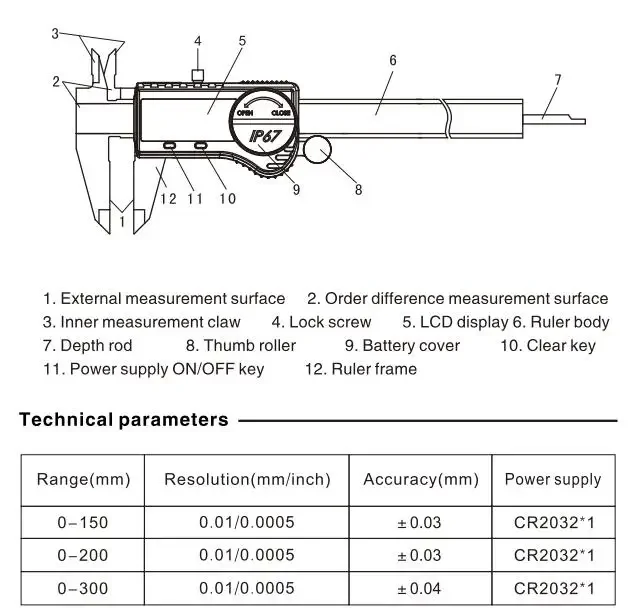

SPECIFICATIONS

Accuracy: 0.03mm

Battery: 3V CR2032 environmental lithium battery, battery life >1 year

Battery Included: no

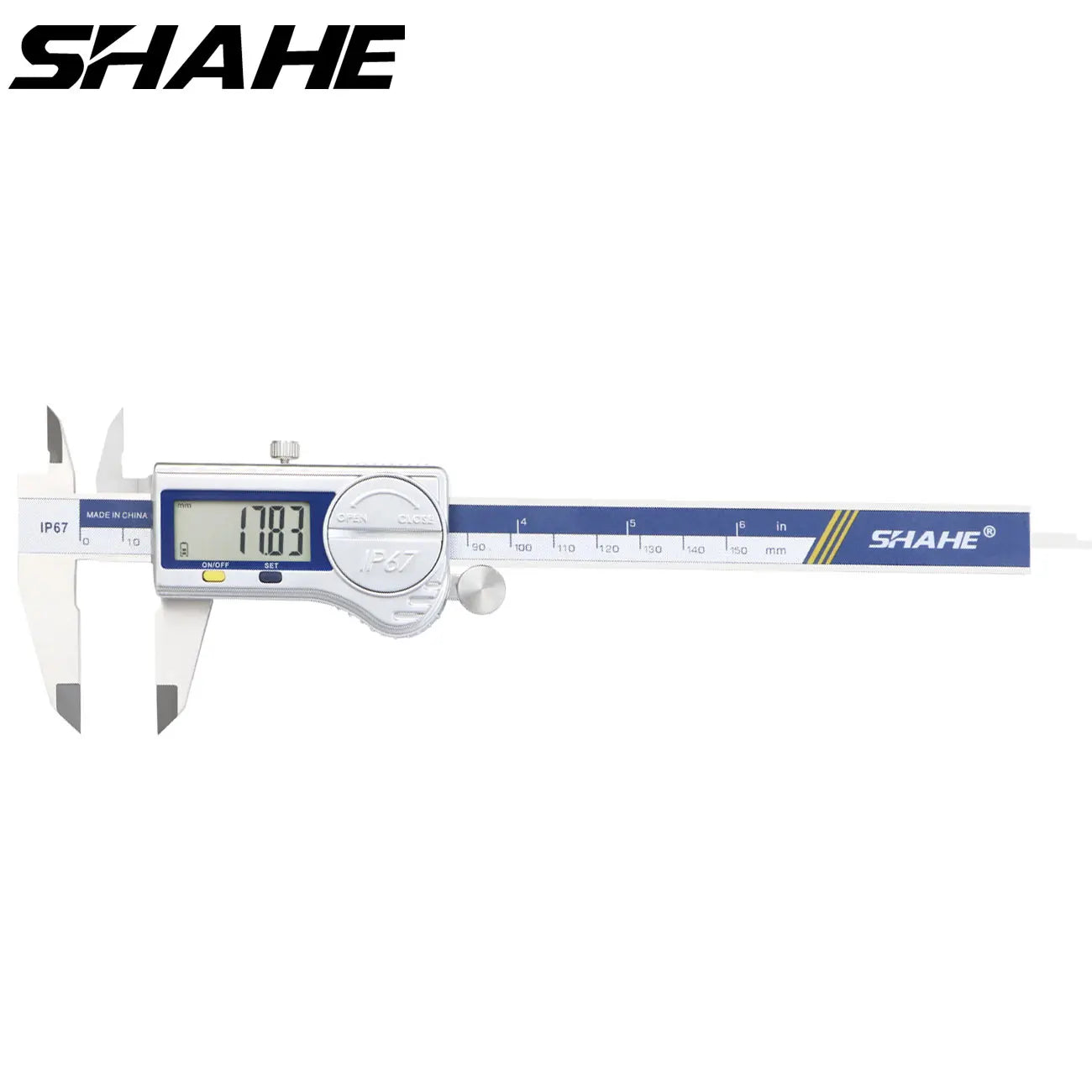

Brand Name: Shahe

Caliper Type: Digital Calipers

Capacitive grid transducer: Glass fixed grid

Certification: NONE

DIY Supplies: Metalworking

Delivery: 1-2 business days after order confirmation

High-concerned chemical: None

Material: Stainless steel

Measurement: Four way measurement (OD, ID, Step Depth)

Measurement Range: 0 - 150 MM

Model Number: 5143-150/200/300

Origin: Mainland China

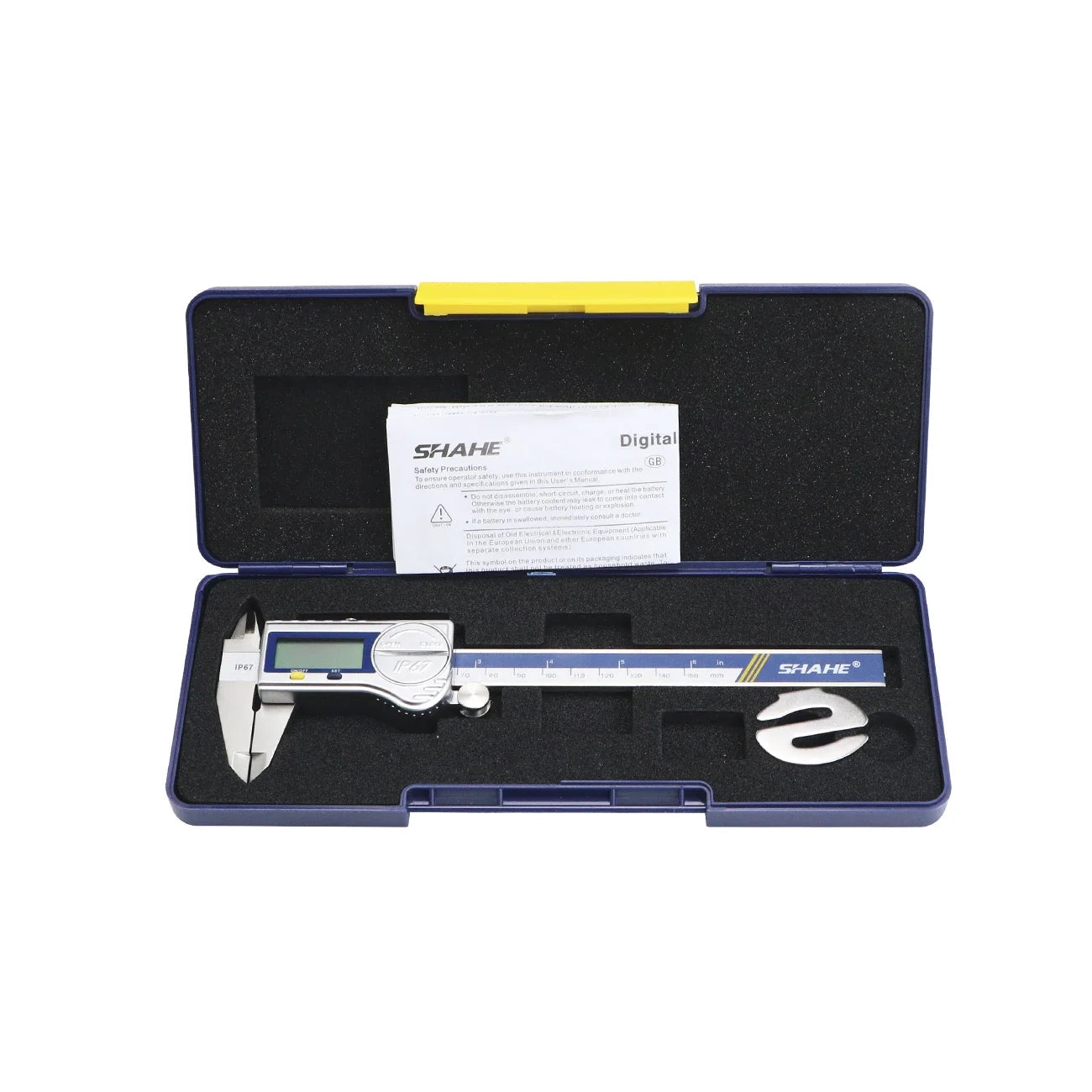

Package: Plastic Box

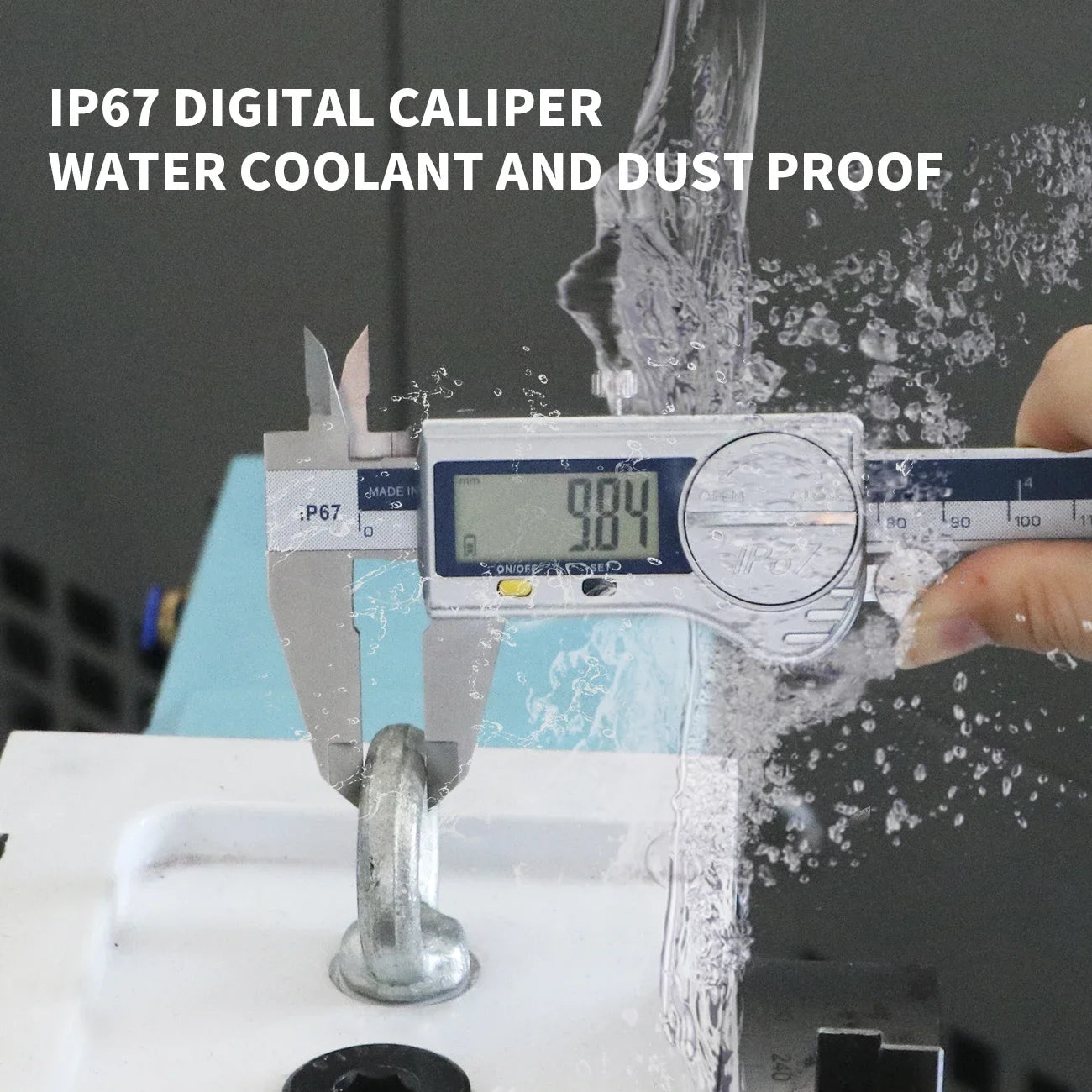

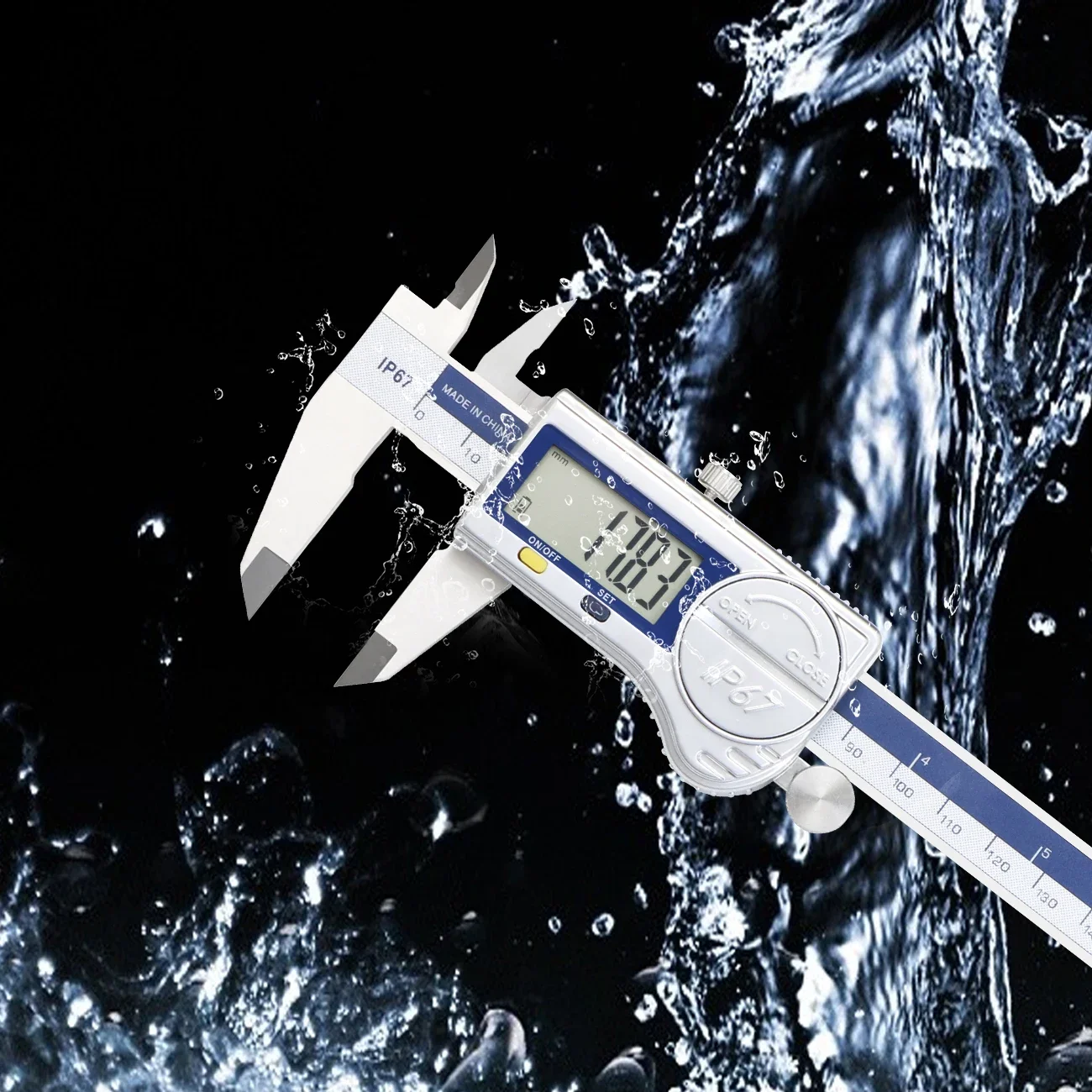

Protection: IP67 waterproof

Resolution: 0.01 mm /0.0005 inch

Semi-finishedproduct: No

Warranty: One year

is_customized: Yes

Note: The parcel will be sent without battery from China,battery type is one piece 3V CR2032 environmental Lithium battery

1.LCD readout display, with four measuring functions of inner diameter, outer diameter, depth and step.
2.It can work in both direct measurement and relative measurement.
3.It is made of hardened stainless steel material with advanced technology and excellent manufacturing.
4.Its complete sealed module structure, provides it with certain resistance to water, oil and coolant.
5.IP67 Waterproof and Dustproof ,NO data output
6.Response speed: 3 meter/second
7.Automatic power off in 5 minutes,battery life is one year under normal use.
8.Working environment: temperature 0-40C, storage temperature: -10-60C;

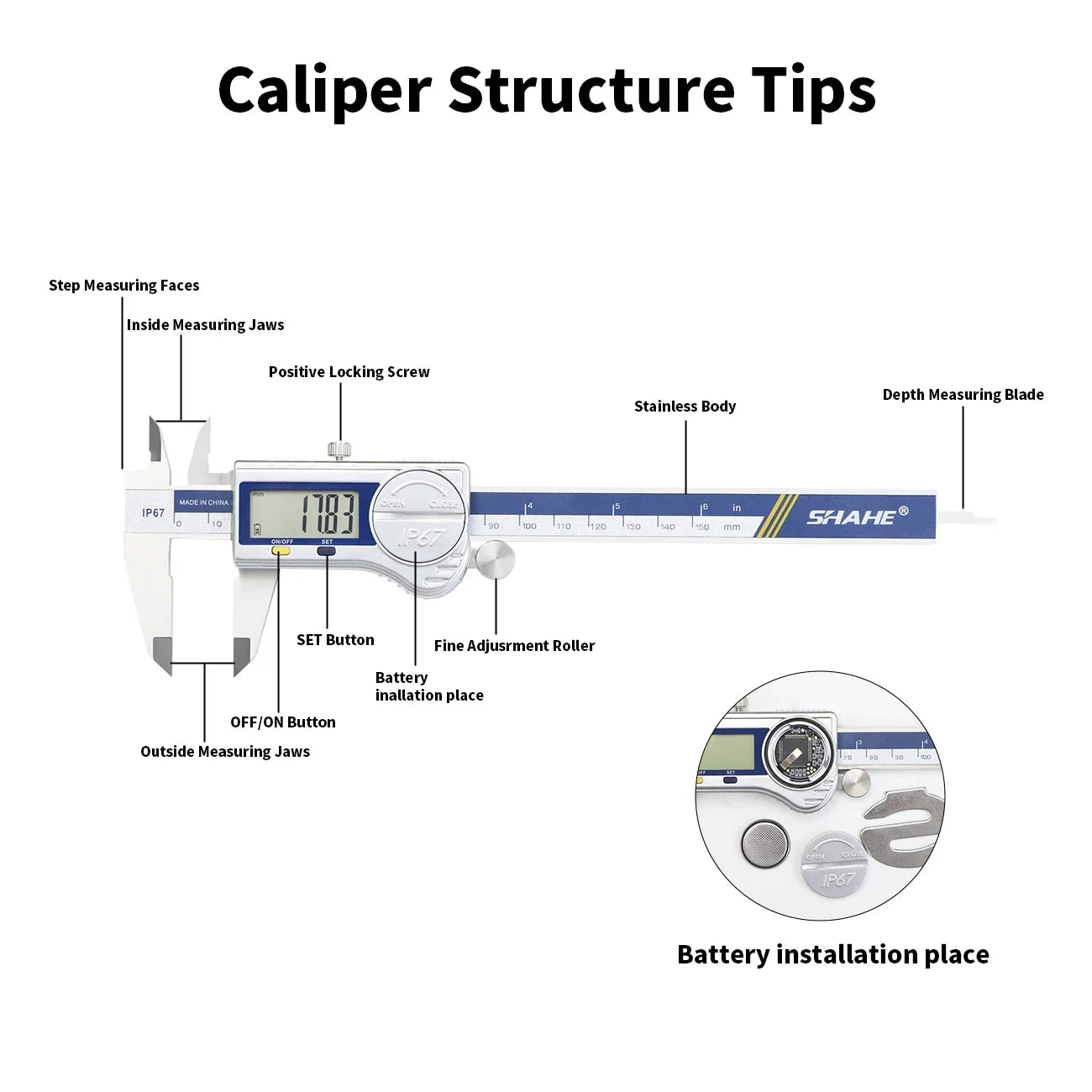

Buttons Function

1. The ON/OFF button is the manual power switch.

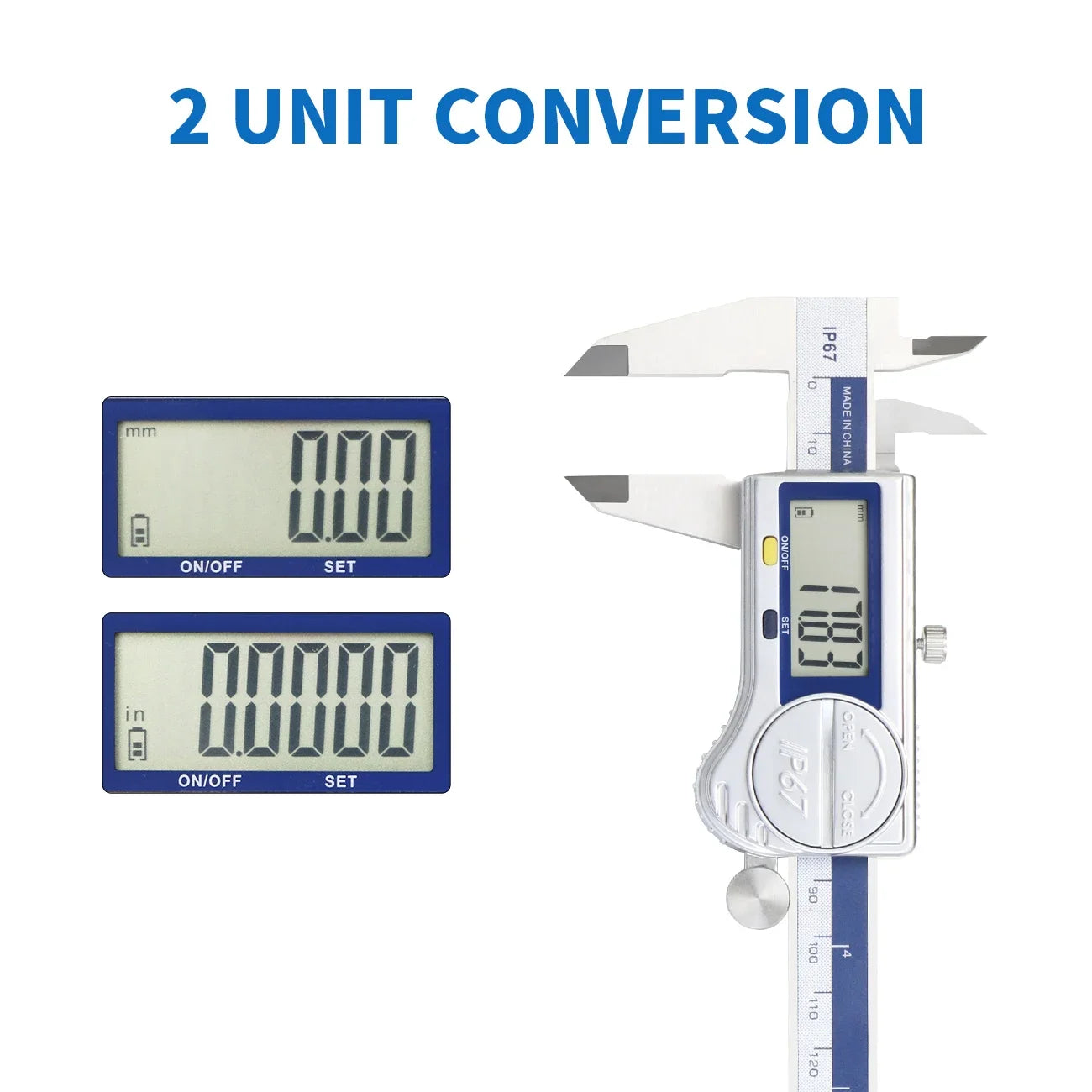

2. A short press of the SET button switches between ABS and INC modes, and a long press of 3 seconds switches between metric and imperial units (mm/in).

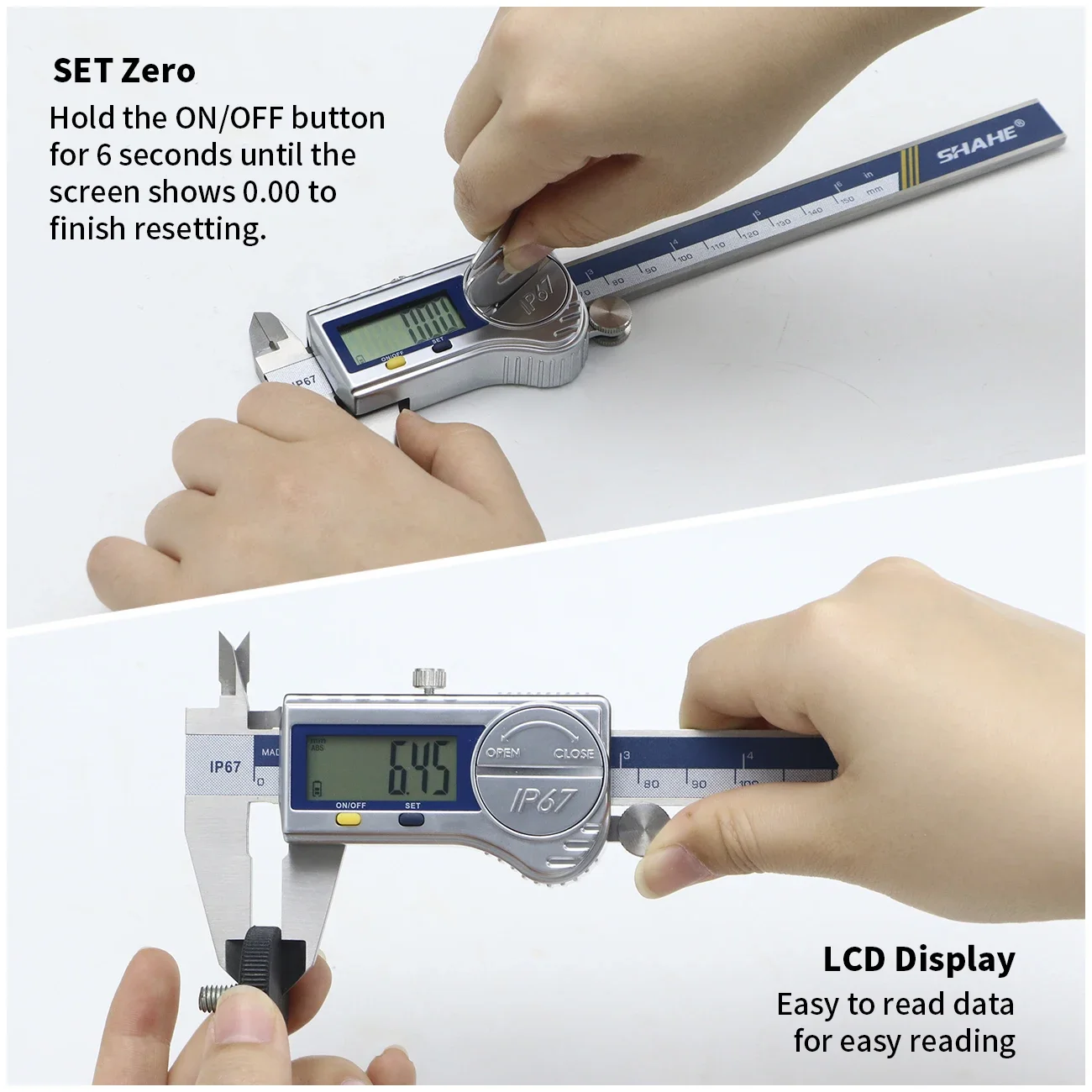

3. Calibrating the absolute origin: Due to factors like surface wear, when the measuring surface makes contact, if the display does not show "0.00," it indicates the absolute origin has shifted. In this case, calibration is required:
①Turn on the device and allow the measuring surface to make contact.
②Press and hold the ON/OFF button for 6 seconds until the LCD screen displays "0.00," indicating the zeroing process is complete.
