SPECIFICATIONS

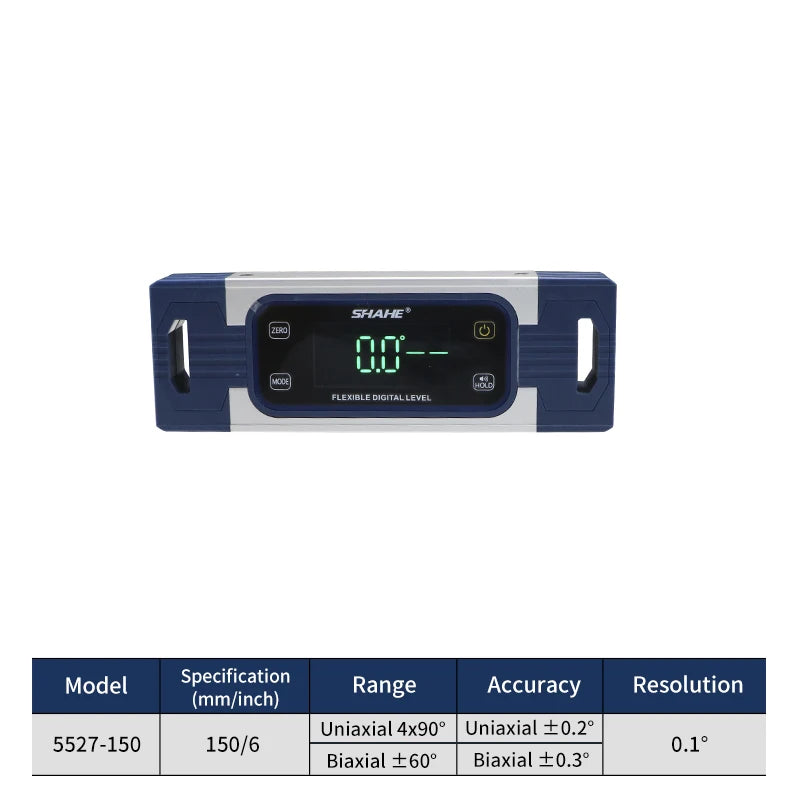

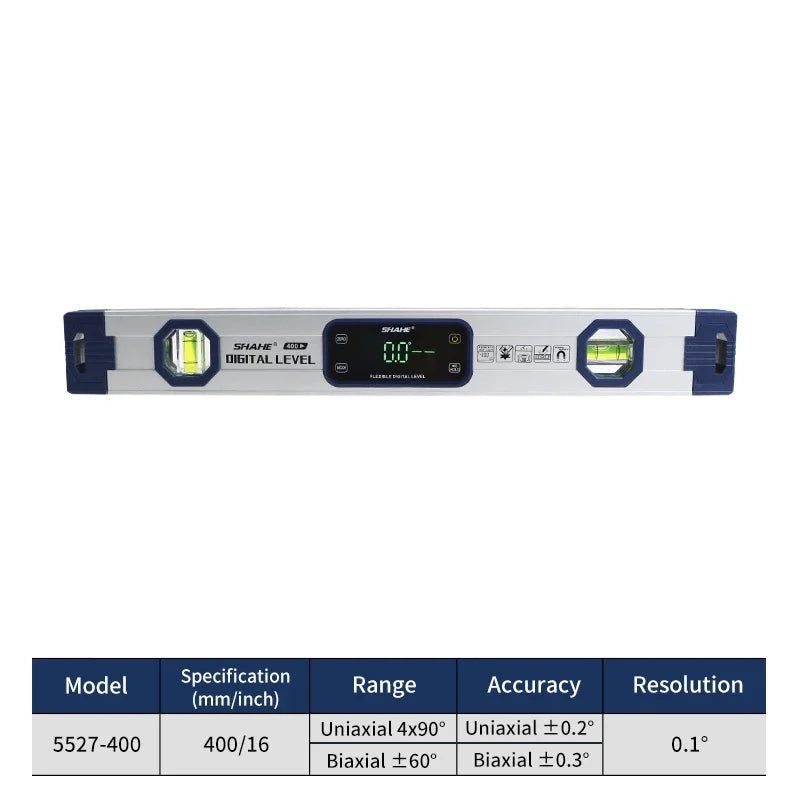

Accuracy: Uniaxial ±0.2° Biaxial ±0.3°

Battery Included: no

Brand Name: Shahe

Certification: NONE

High-concerned chemical: None

Magnet: YES

Measuring range: Uniaxial 4x 90° Biaxial ±60°

Model Number: 5527

Origin: Mainland China

Power supply: 2PCS AAA battery(not incluided)

Repeatability: 0.1°

Resolution: 0.1°

Semi-finishedproduct: No



Note: The parcel will be sent without battery ,The battery type is 2pcs AAA battery



Characteristic and Function

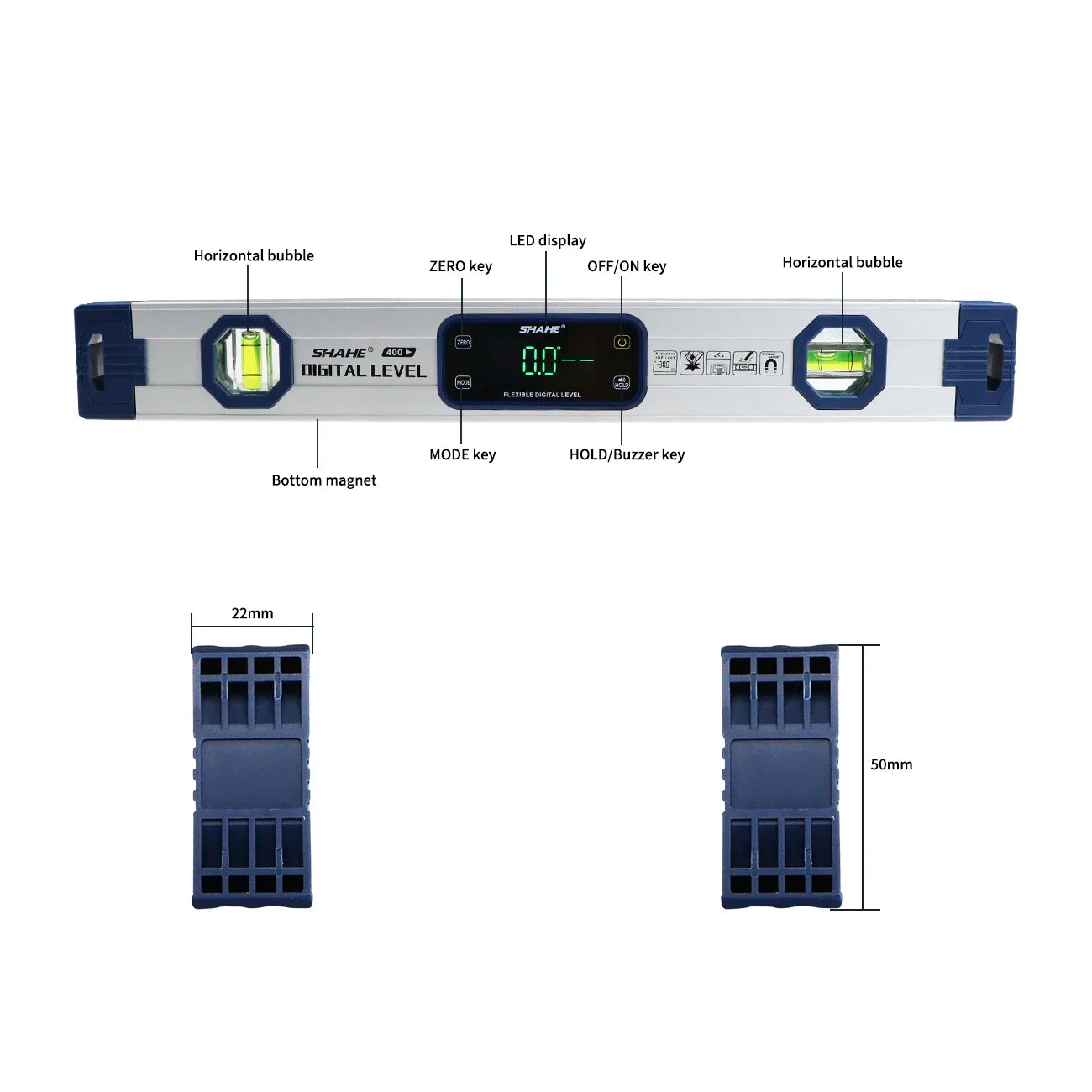

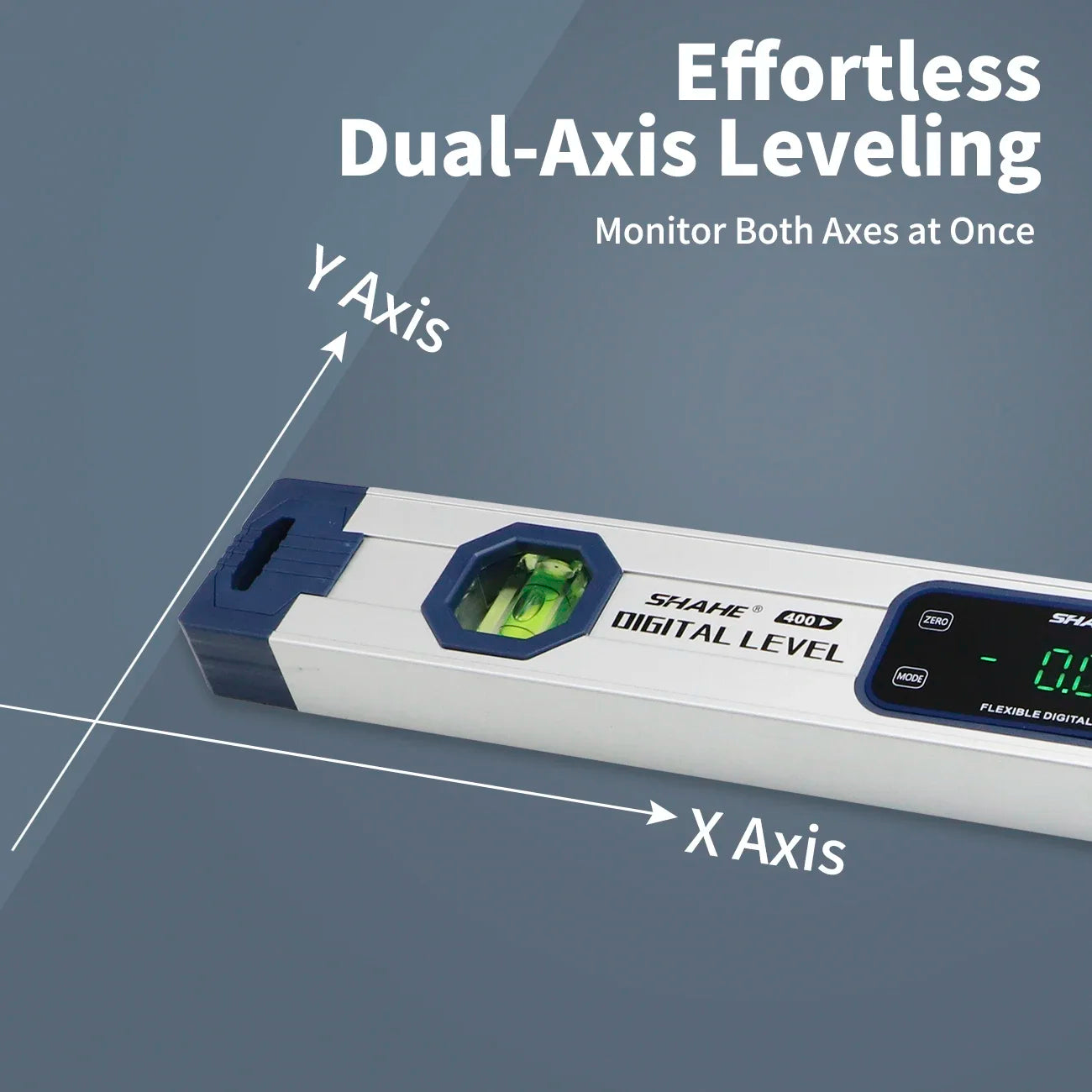

1.Precision Measurements : dual-axis digital display, measuring range :Uniaxial 4x 90° Biaxial ±60°,Accuracy:Uniaxial ±0.2° Biaxial ±0.3°,equipped with built-in highly accurate acrylic level bubbles ,magnets along the two edges of the level are for convenient, LED screen is clearly visible in dim environments,improve your work efficiency.

2.Portable and Lightweight : It has a compact structure, touch design, easy marking, and easy measurement,made of high quality aluminum profile, which will not rust and is durable

3.Buzzon Function: the buzzer alarm prompts, and an alarm will sound at the displayed angle number is: 0±1°, 30+1°, 45±1°, 60±1°, 90±1°,and the product will automatically shut down after 3 minutes of inactivity.It is intelligent and power-saving

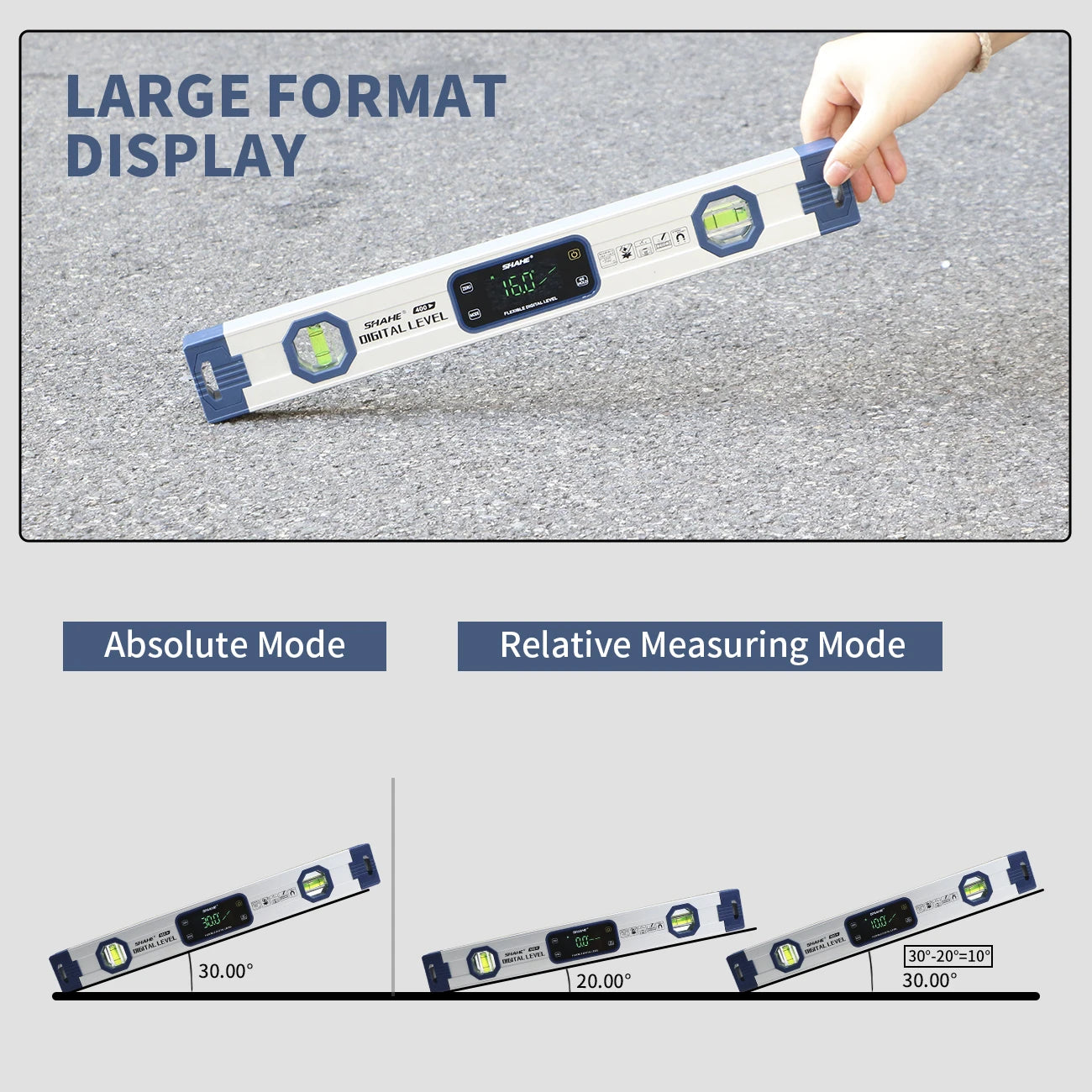

4.Three Units and Two Measuring Way:Press the "MODE" button briefly to switch units between“°''  ''%''  and "MM/M", this tool also has two measurement modes, absolute and relative, which can quickly measure the angle between two measuring surfaces

5. Easily read, large LCD Display and Automatic backlight, greatly improve visibility in poor or dim working conditions

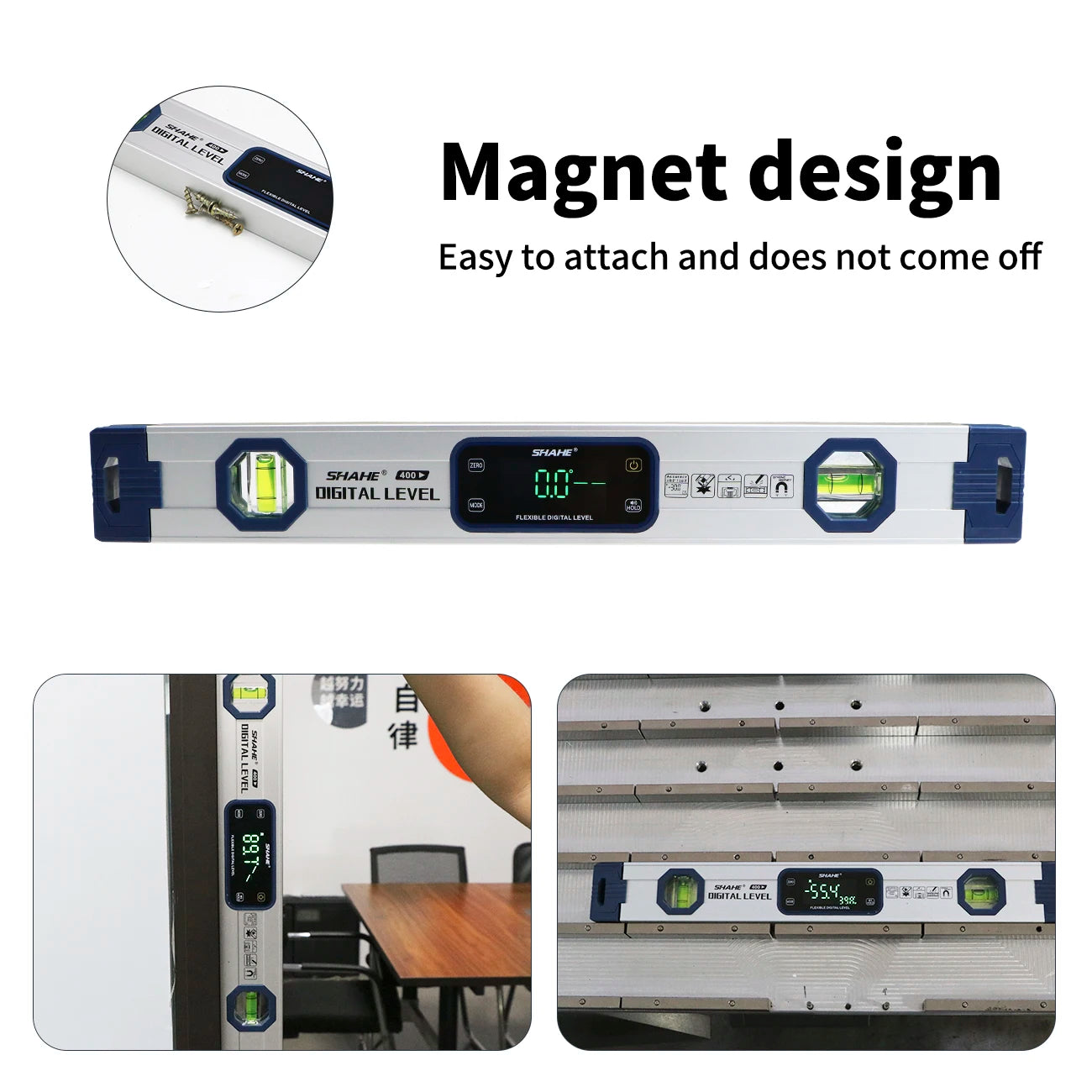

6. Strong magnetic base to attaches to conduit, pipes, saw blades, vents, ducts, and other ferromagnetic surfaces

7.Multi-function: The digital level is portable and convenient, especially useful for completing work on ladders, roofs or other dangerous locations, it can be used in woodworking, welding, fabrication, construction, machinery, home renovation, automobile etc.

Technical Parameters
