SPECIFICATIONS

Accuracy: ±0.2 degree

Brand Name: SHANHR

Certification: NONE

High-concerned chemical: None

Magnet: inside ,one side magnets

Material: aluminum alloy

Measuring Range: 4*90 degree

Model Number: 5515-90R

Origin: Mainland China

Power supply: AAA battery(not included)

Repeatability: 0.1 degree

Semi-finishedproduct: No

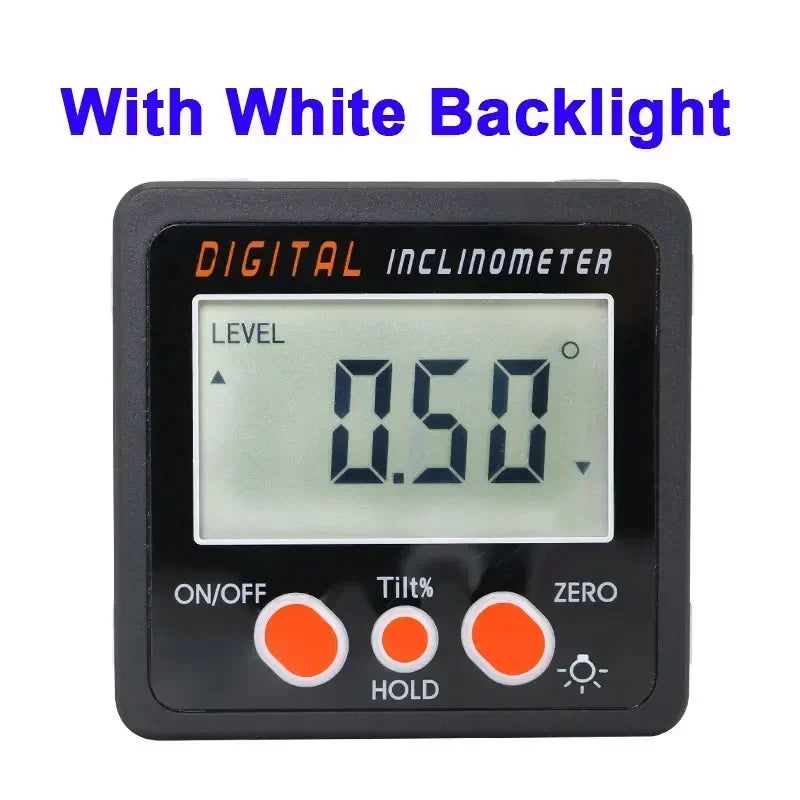

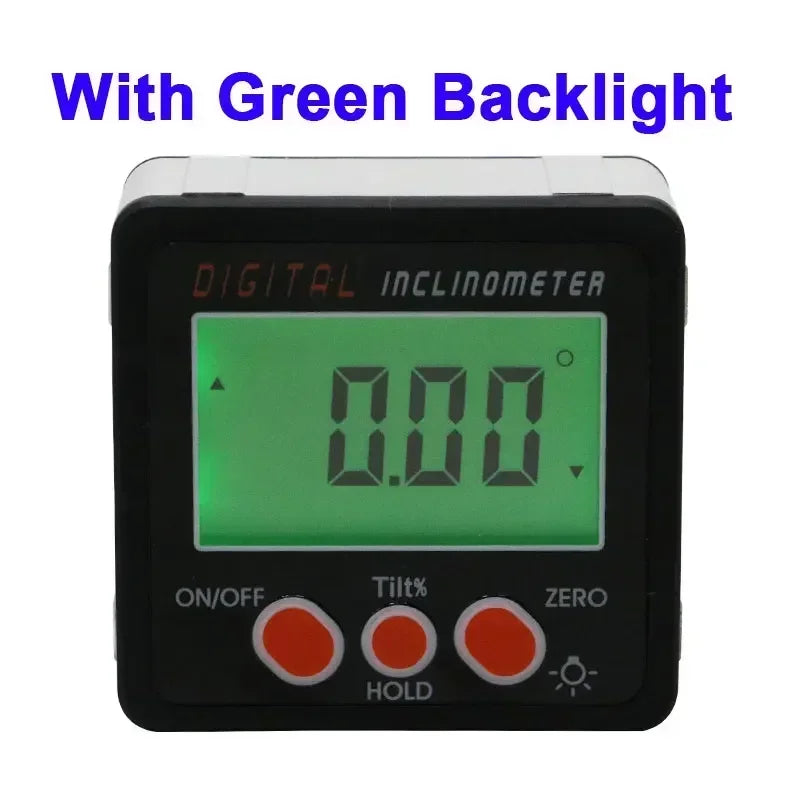

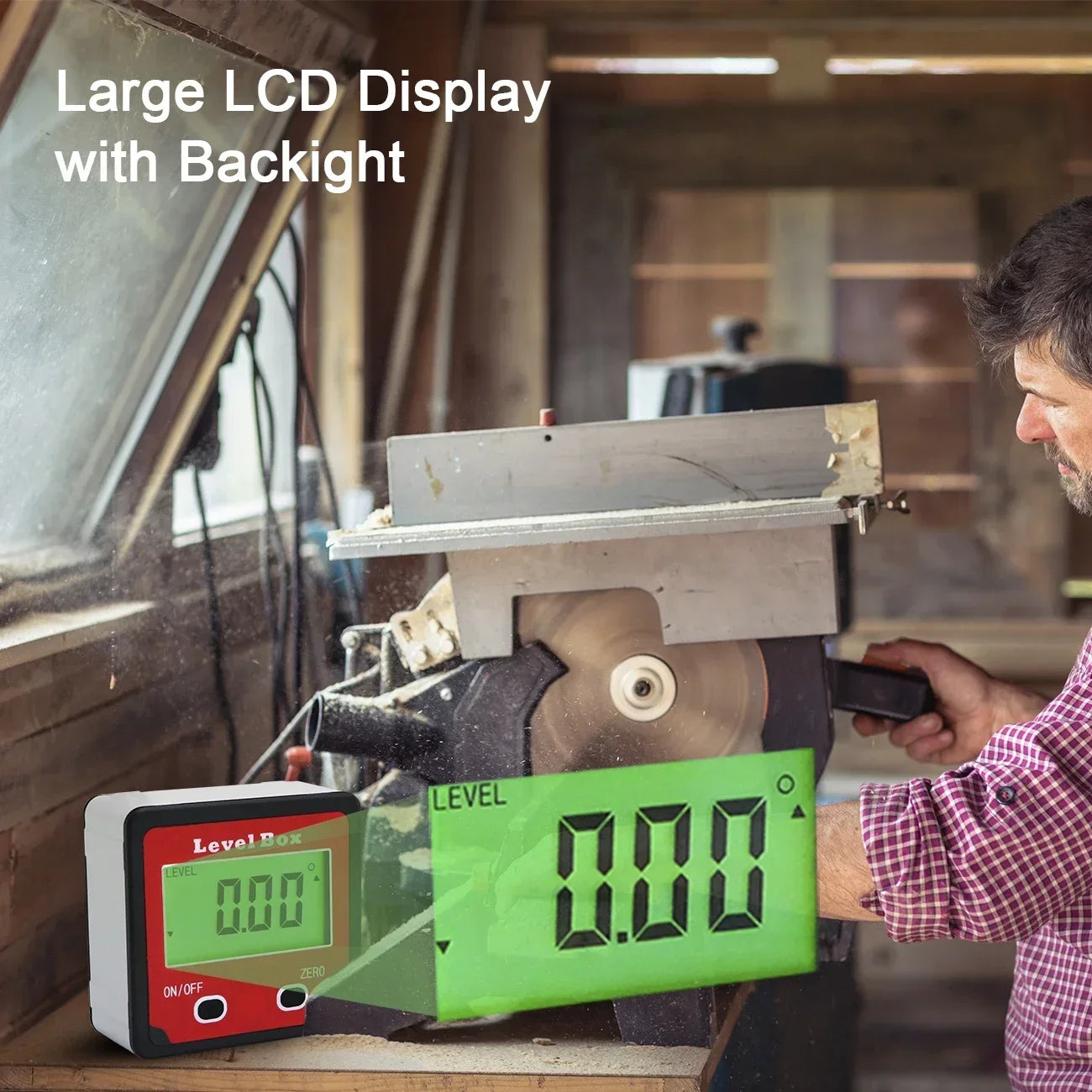

With backlight: YES

is_customized: Yes

resolution: 0.05 degree

Note: The parcel will be sent without battery ,The battery type is AAA battery

★Features

1.Aluminum alloy material

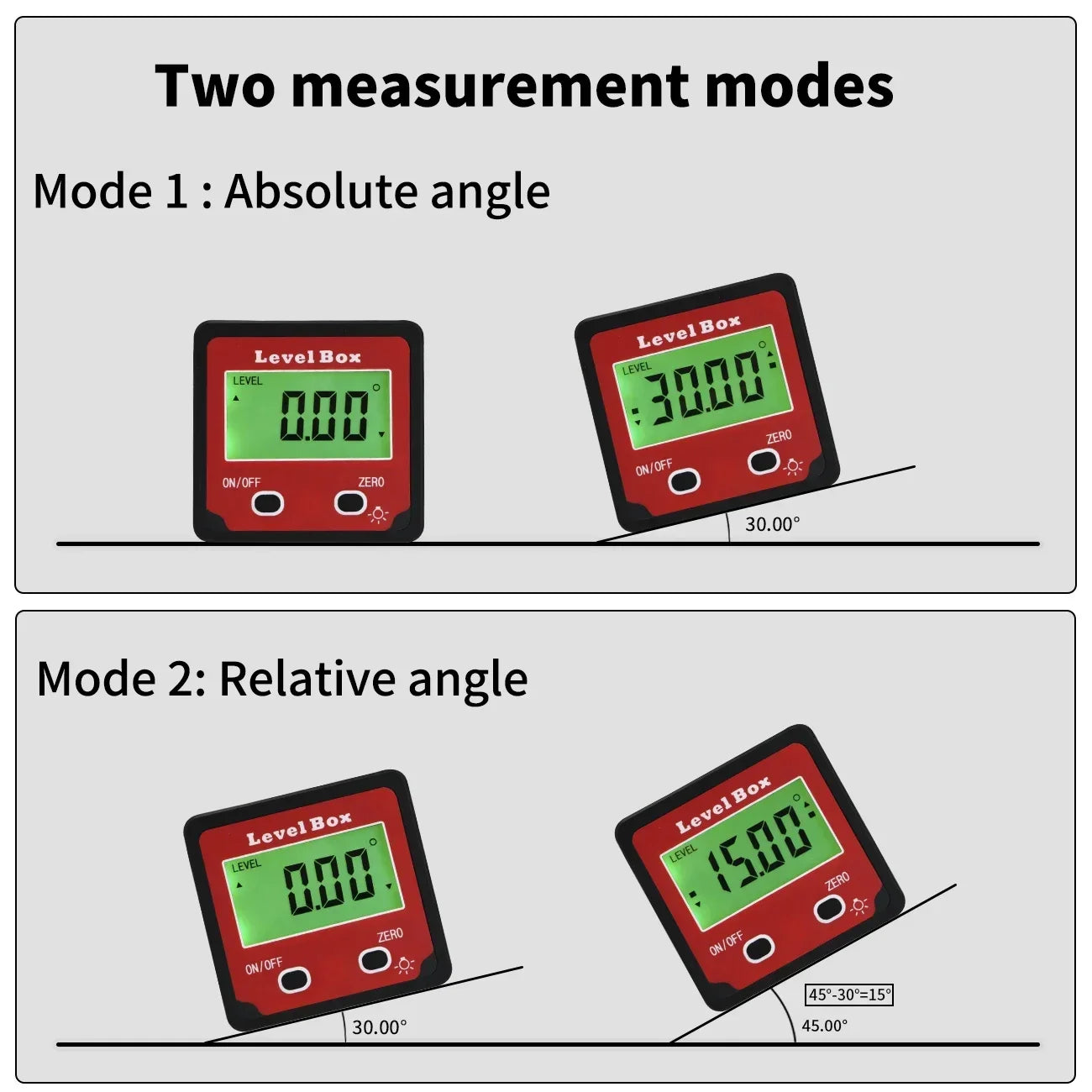

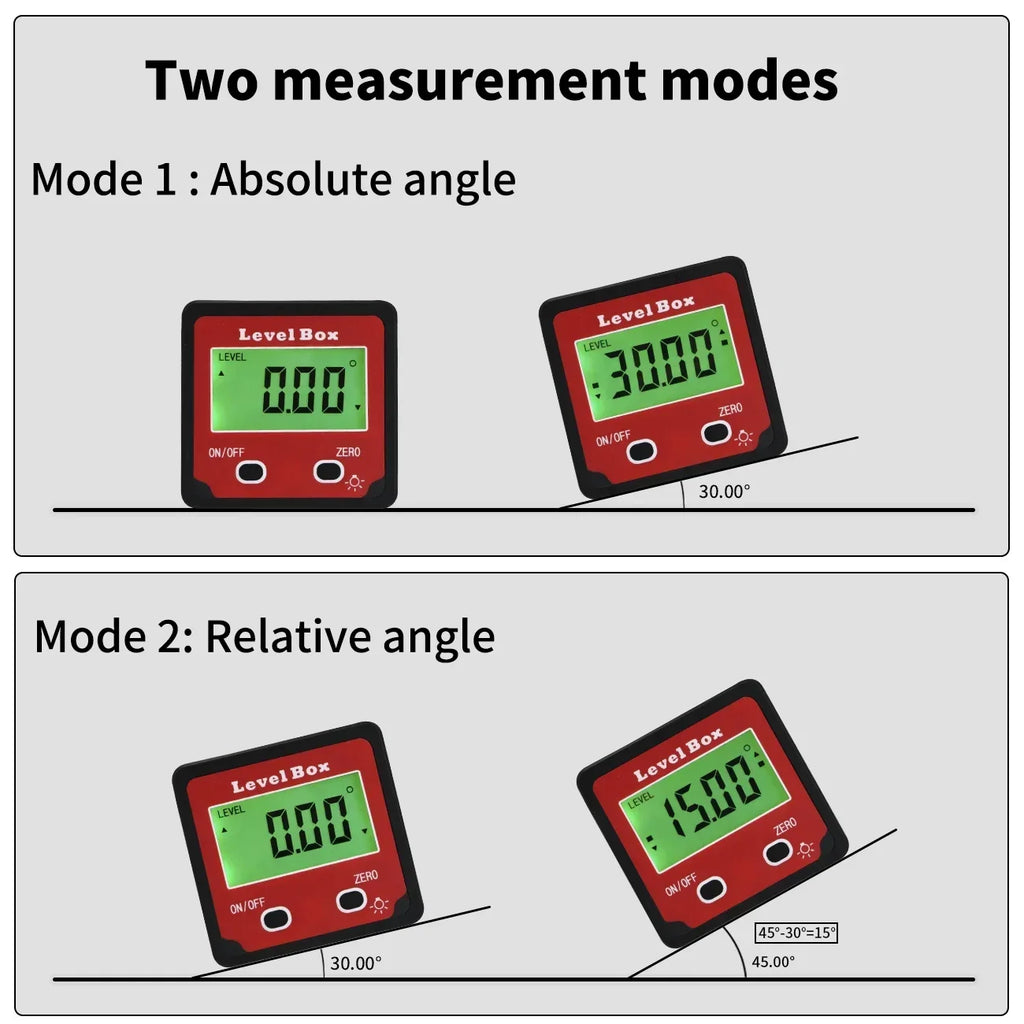

2.Relative/absolute measurement interchange at any position
3.Angle and slope readout conversion
4.Data hold

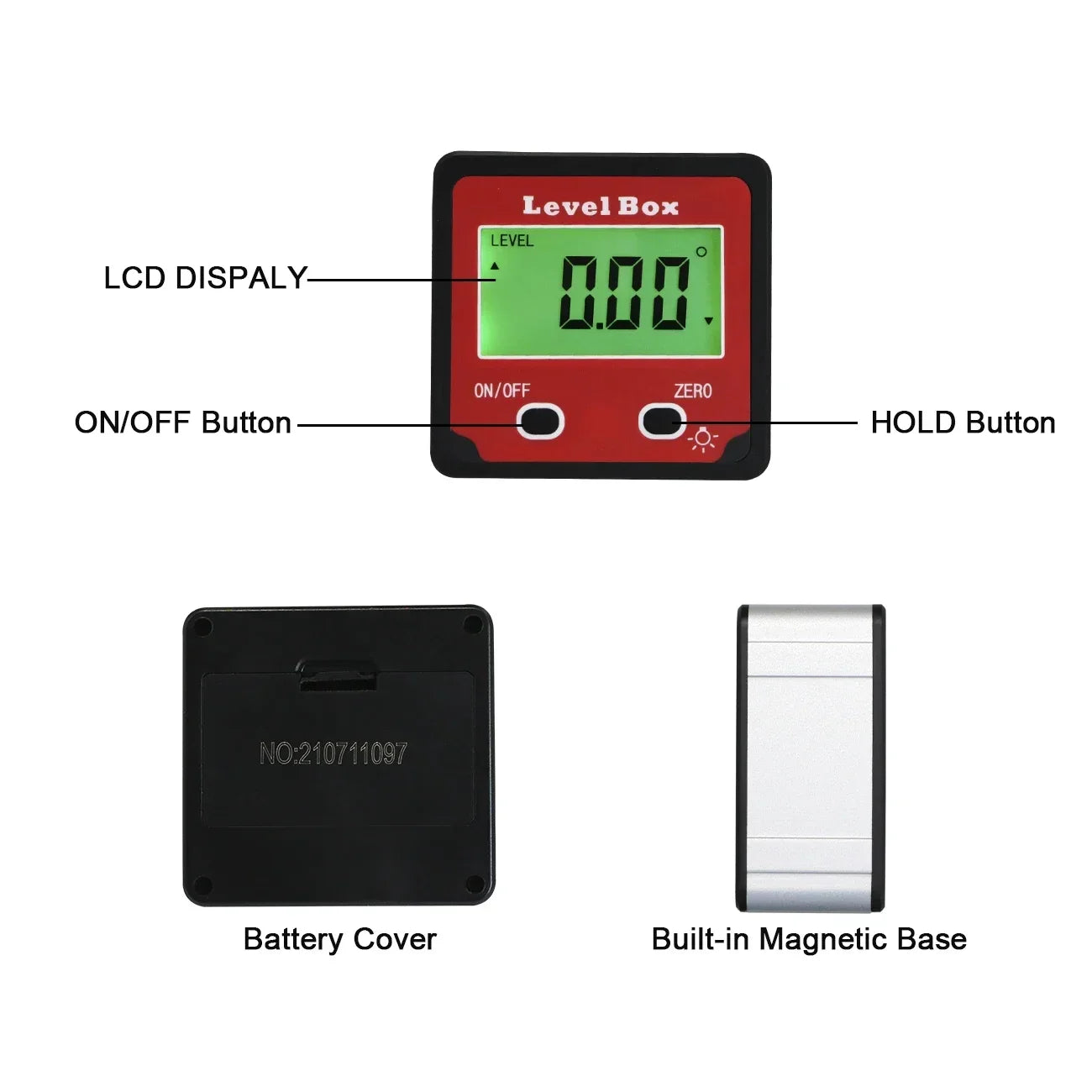

5.Magnets inside ,one side magnets
6.Quick display of the measured value on LCD screen
7.Power-off automatically in 5 minutes
8.Portable size, convenient to co-work with other measuring tools and enlarge measuring range
9.Works great for miter saws and table saws

★Parameters

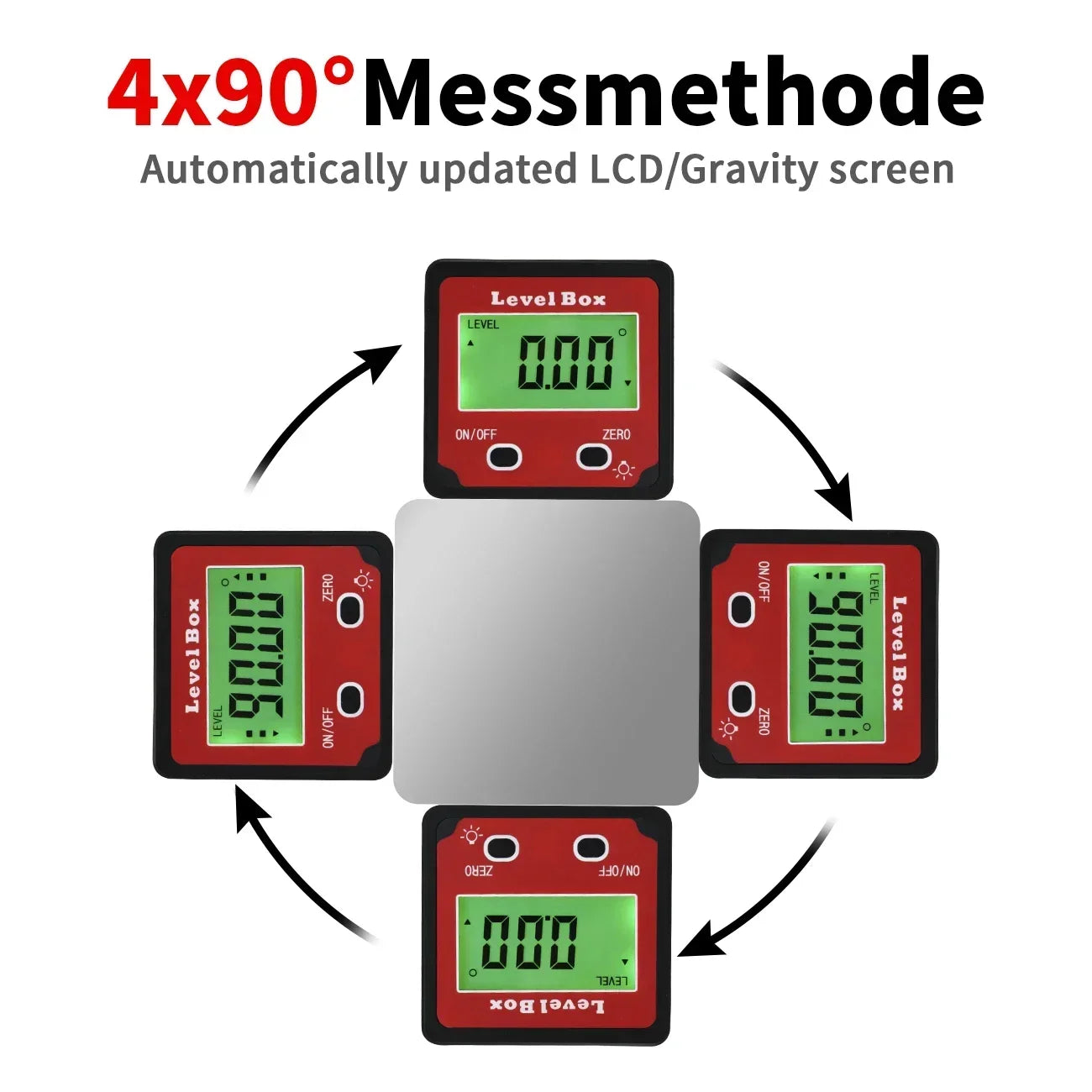

Measuring range: 4*90°
Resolution: 0.05°
Accuracy: ±0.2°
Repeatability: 0.1°
Battery: AAA(number 7) battery (not included)
Working temperature: 0°C-40°C

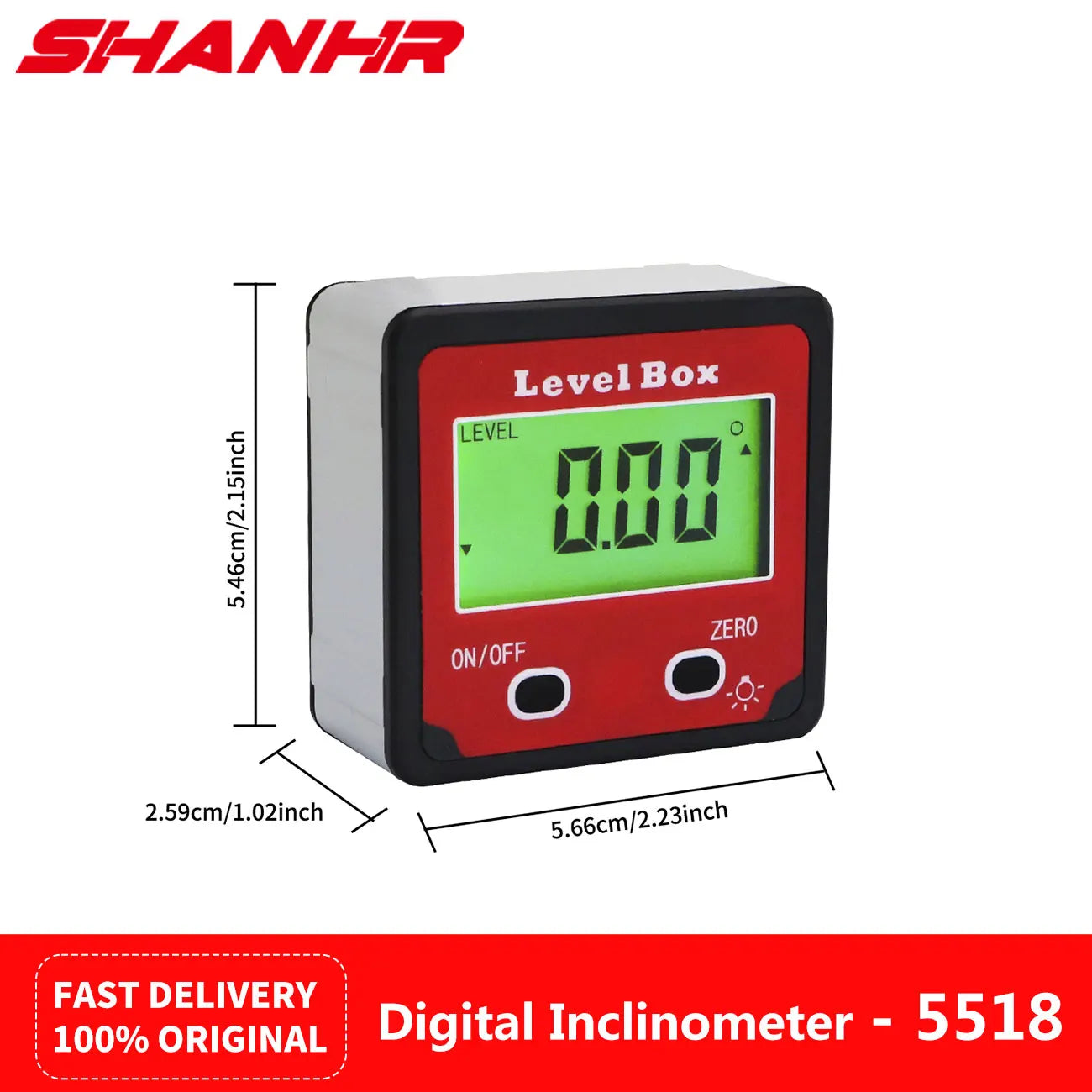

Dimension: 56.6*54.6*26mm
Magnet inside ,one side magnets
With backlight

★Application

More widely application is in wood processing industry (especially in furniture manufacturing industry) for wood angle accurate cutting; auto repair industry for tiring assembling angle accurate controlling; in machining industry for machine tool working angle accurate positioning, and large vehicle arm rotation angle etc.
