SPECIFICATIONS

Automatic off: YES,after 3 minutes inactivity

Backlight: YES

Battery: Rechargable 3.7V

Brand Name: SHANHR

Certification: NONE

Data hold: YES

High-concerned chemical: None

Magnet: YES

Material: Plastic

Measuring mode: Absolute and Relative

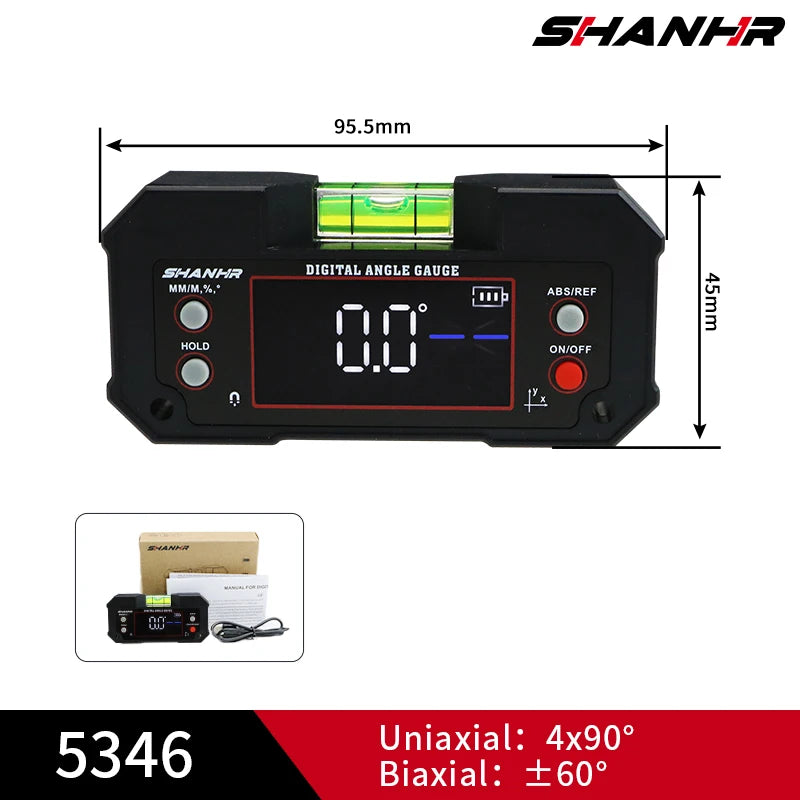

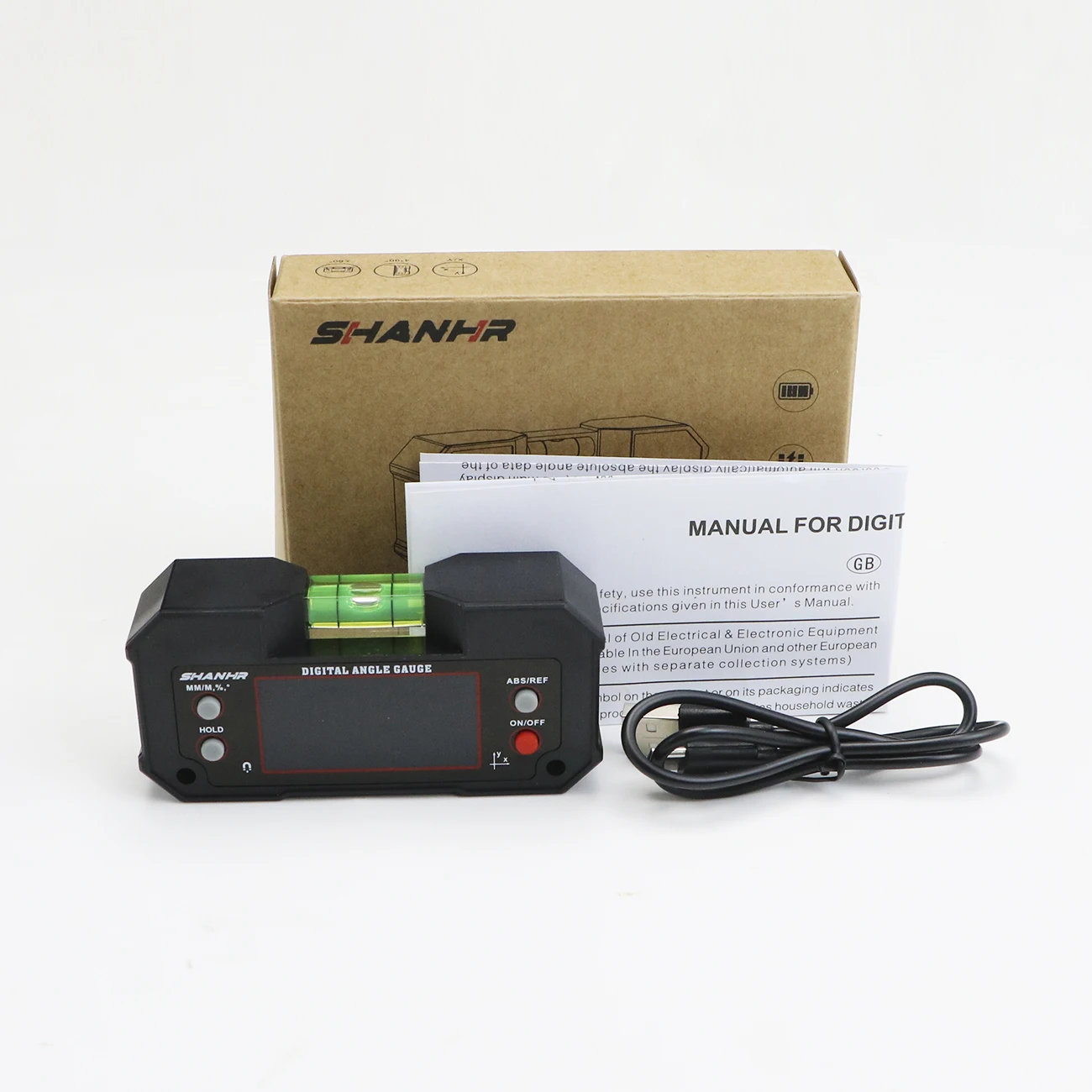

Model Number: 5346/5346-L

Origin: Mainland China

Semi-finishedproduct: No

Unit conversion key: mm/m,angle/slope

is_customized: Yes

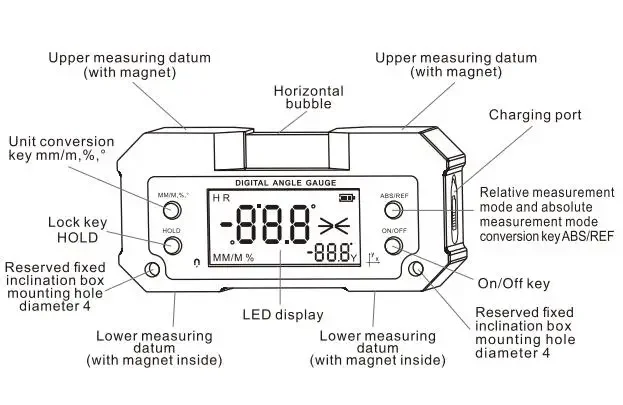

Characteristic and Function

1.Plastic material,lightweight and portable,easy to control with one hand
2.Two measuring mode:absolute angle and relative angle,easy to operate

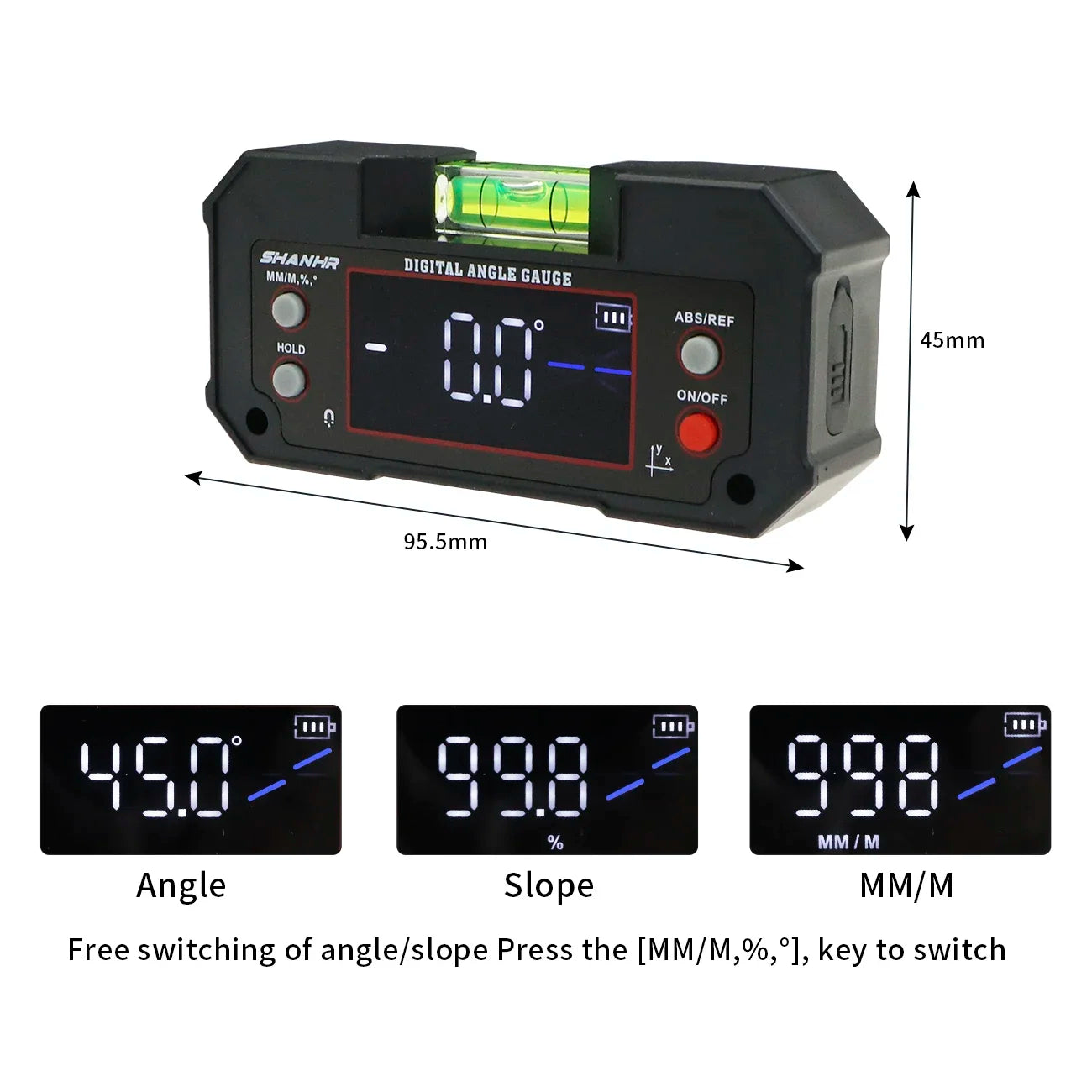

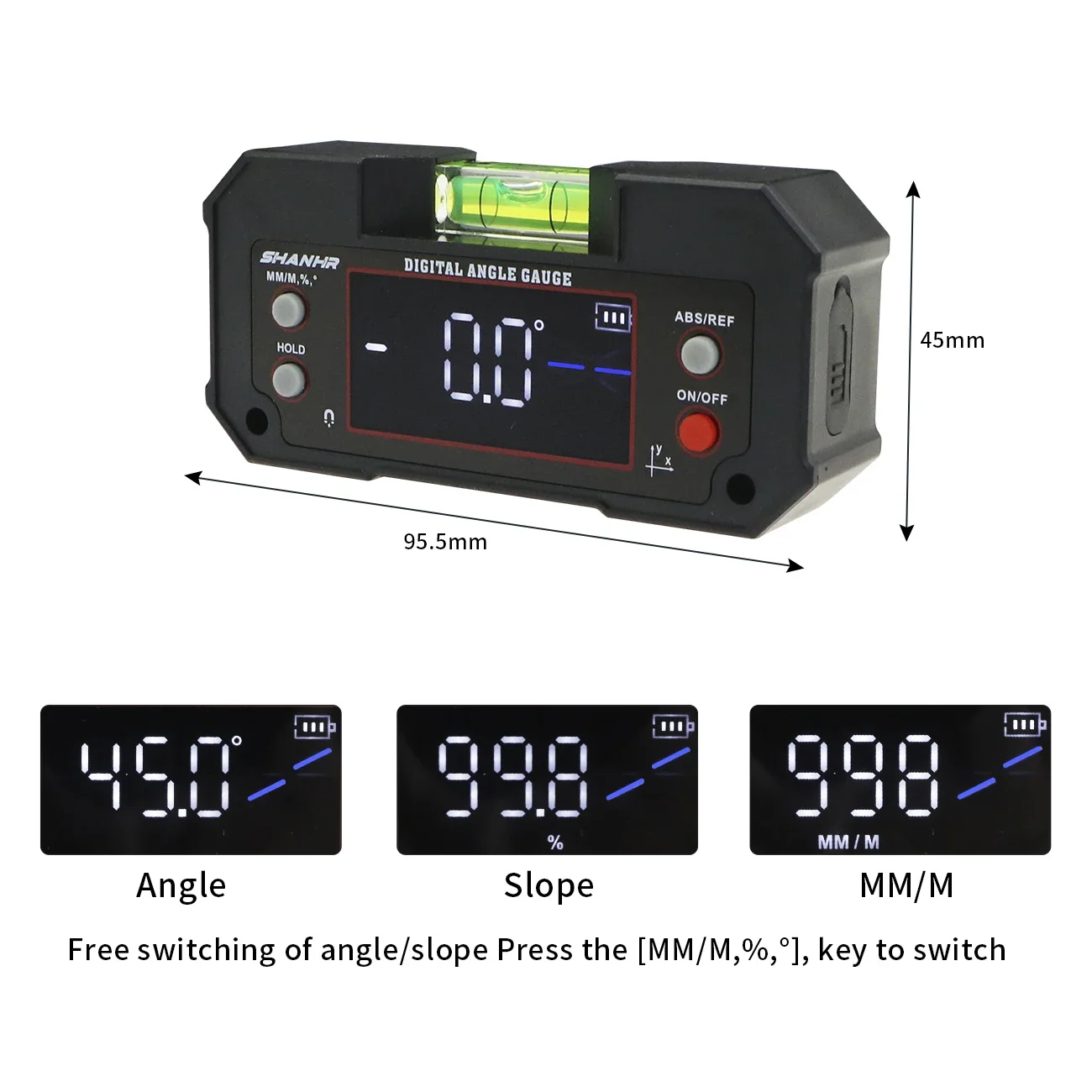

3.Unit conversion key:mm/m,angle/slope
4.Data hold, the current measurement value can be held on the display by short pressing the HOLD button

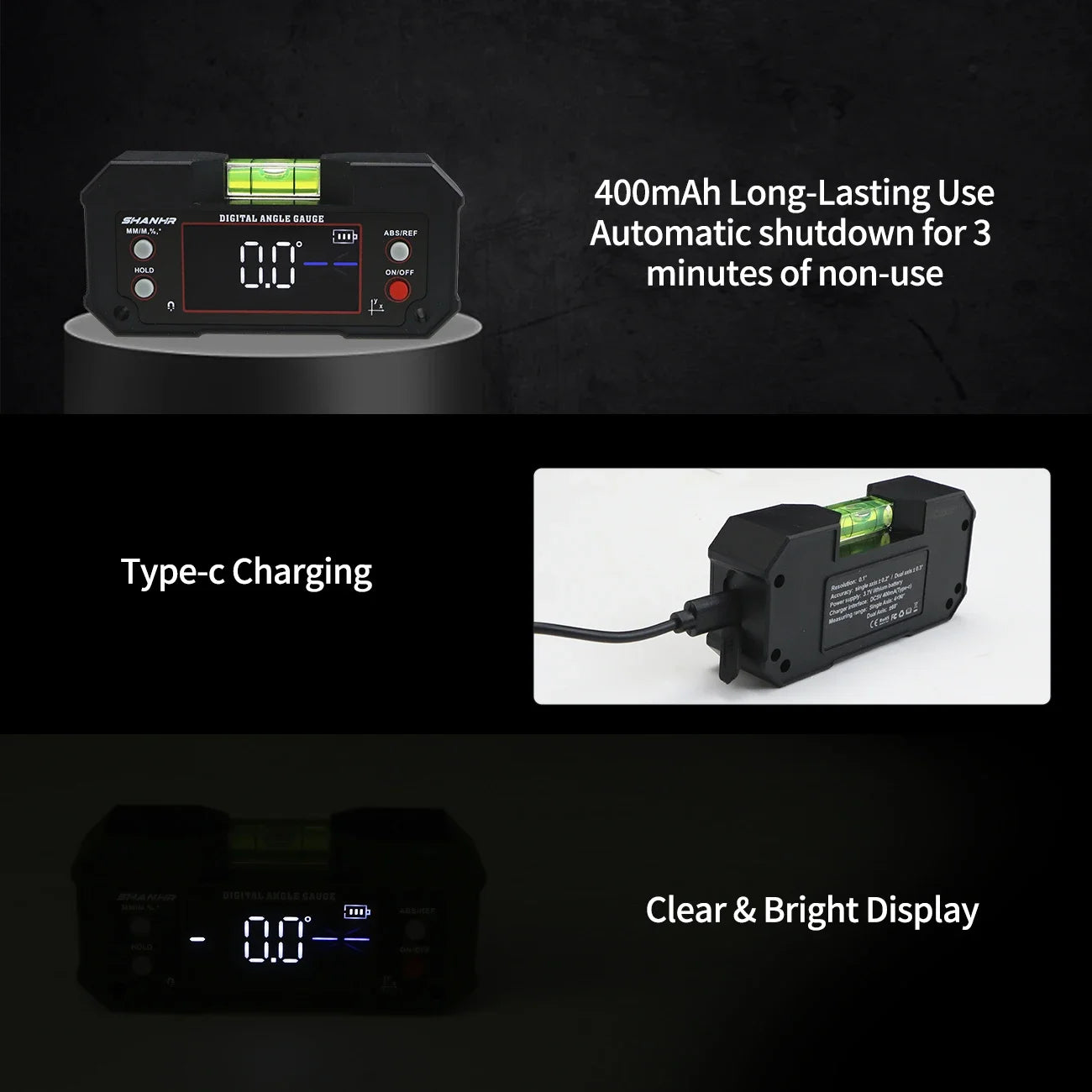

5.Automatic power off after 3 minutes inactivity to save battery life
6.With built-in powerful magnets,can be easily and firmly attached to miter saw, band saw, table saw blades,
7.With horizontal bubble to make measurement more accurate
8.Large LCD with backlight ,taking reading in dark space is too easy with backlight ,help work smoothly
9.Rechargable,Type-C Charging Port, can charge wherever you are

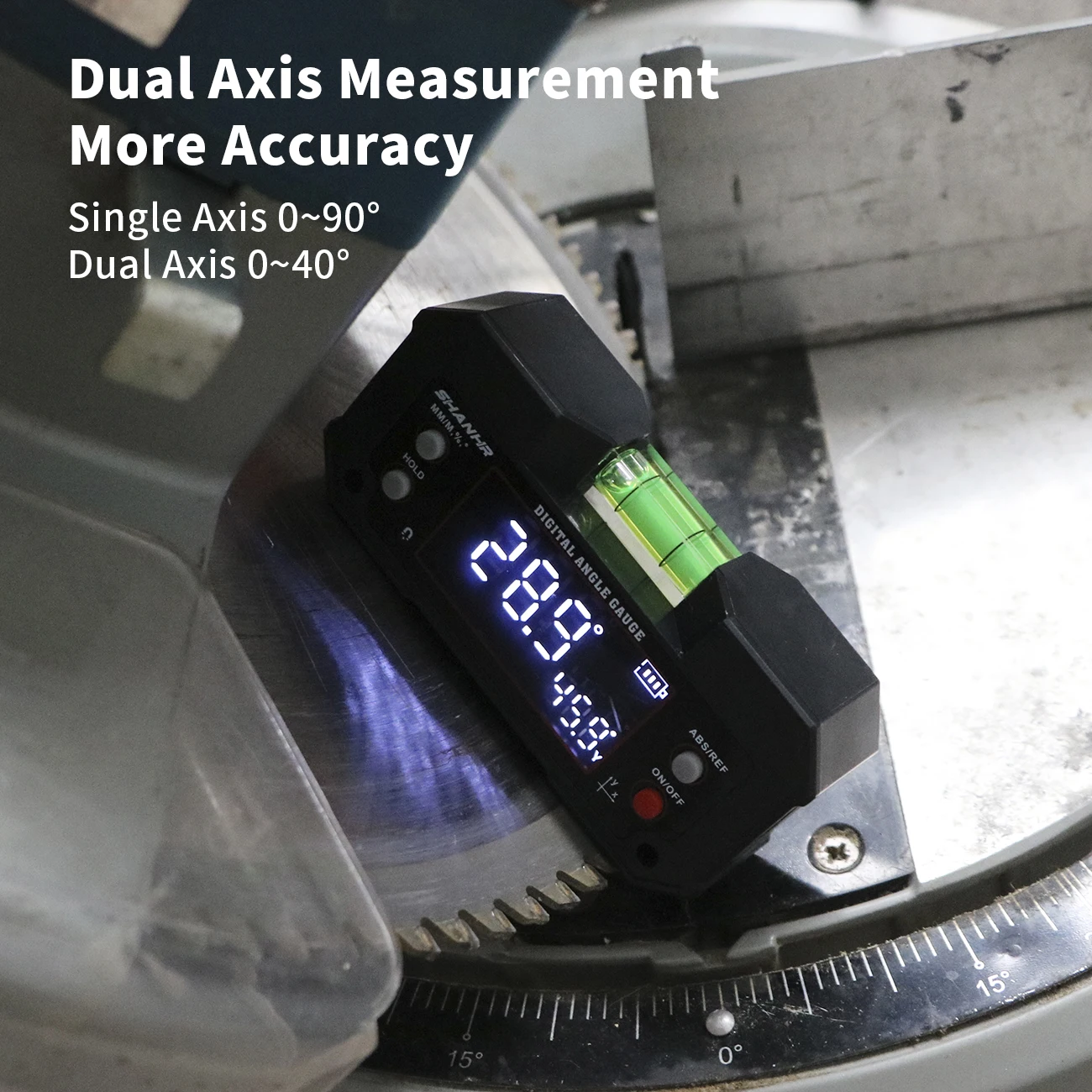

10.Main display:①For uniaxial measurement,the main display screen only displays X-axis data  ②For biaxial measurement,the main display screen displays X-axis data and Y-axis data at the same time

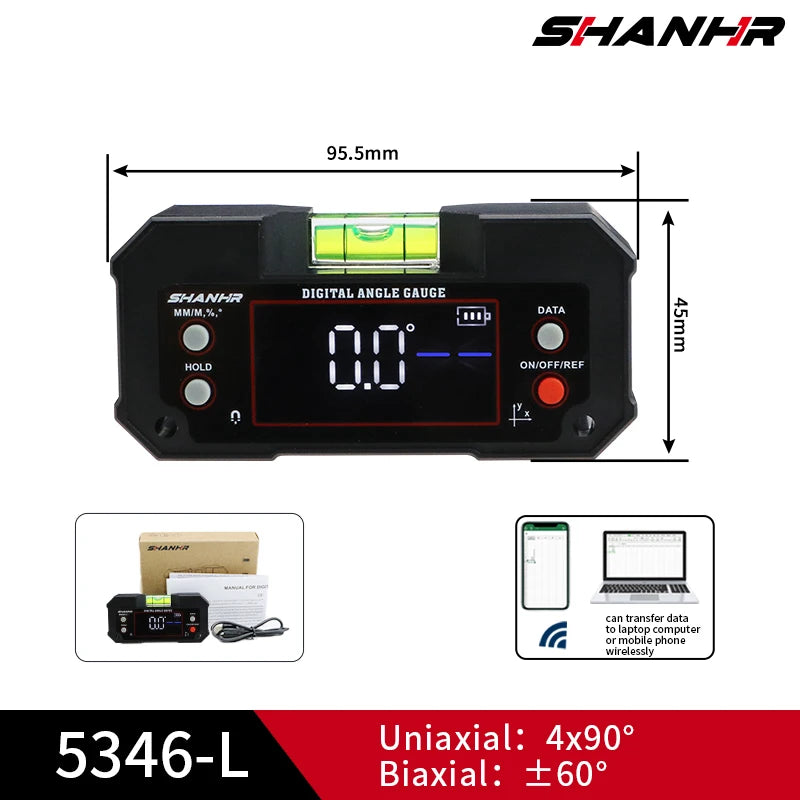

11.ONLY 5346-L with built-in wireless transmission function,please choose carefully before placing order

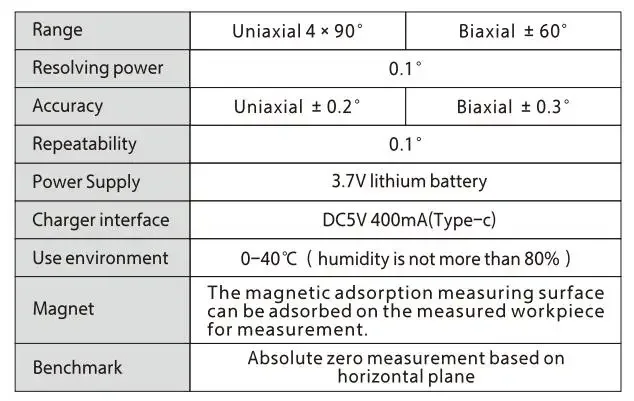

Technical Parameter
