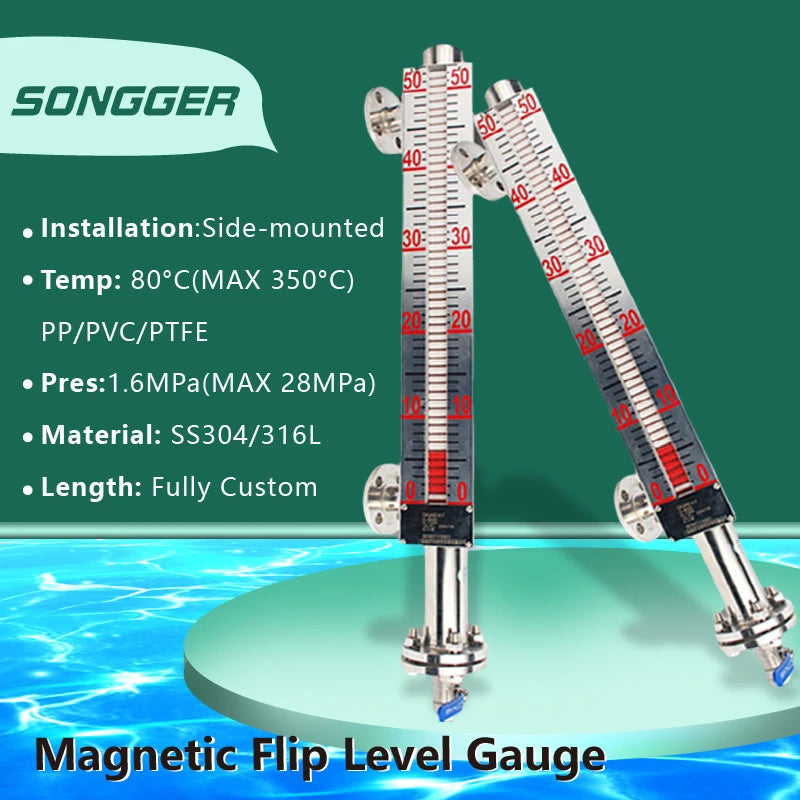

SPECIFICATIONS

Battery Included: no

Brand Name: NONE

Certification: NONE

High-concerned chemical: None

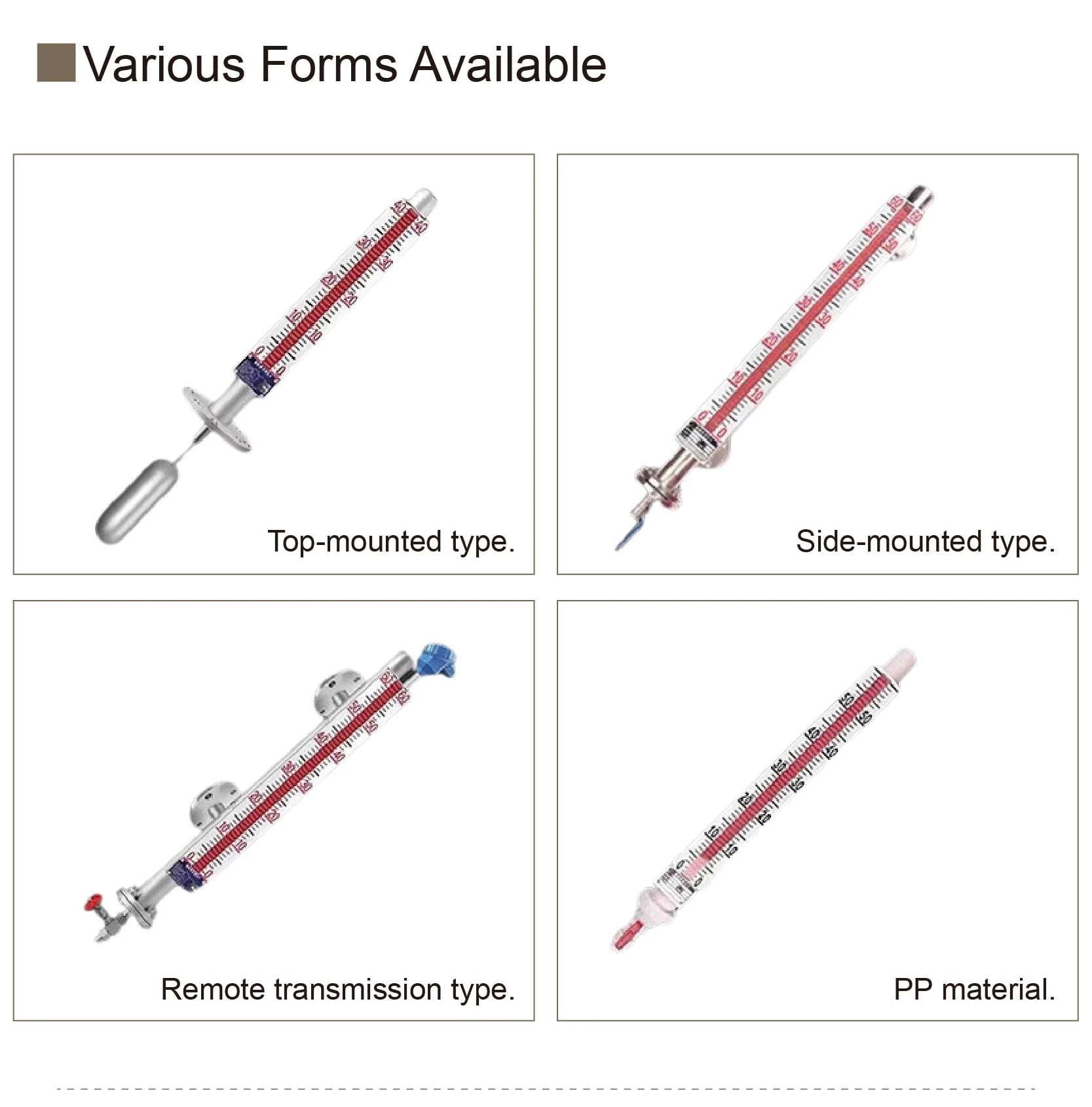

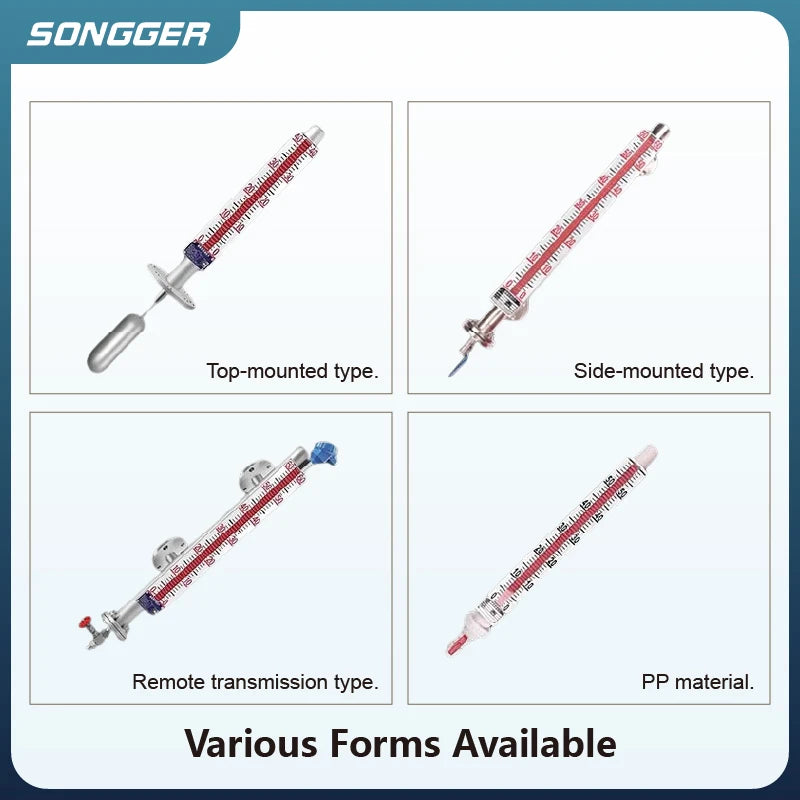

Installation: Side-mounted/Top-mounted

Material: SS304/316L /PP/PCV/PTFE

Origin: Mainland China

Output: None / 4-20mA / Switch

Semi-finishedproduct: No

The default flange connection standard is DIN/EN1092-1-2018 (German/European standard). For specific flange dimensions, please refer to the size chart on the product details page.

If you need customized flanges according to other standards such as ANSI/ASME (American standard), JIS (Japanese standard), BS (British standard), or GOST (Russian standard), please contact us directly.

1. NOTE

Magnetic level indicators are fully customizable products, and while we aim to standardize them as much as possible, optimal performance depends on precise configuration. To ensure seamless integration and the best results, we strongly recommend discussing your specific requirements with us directly.

For your convenience, feel free to reach out via WhatsApp or any other preferred communication platform.

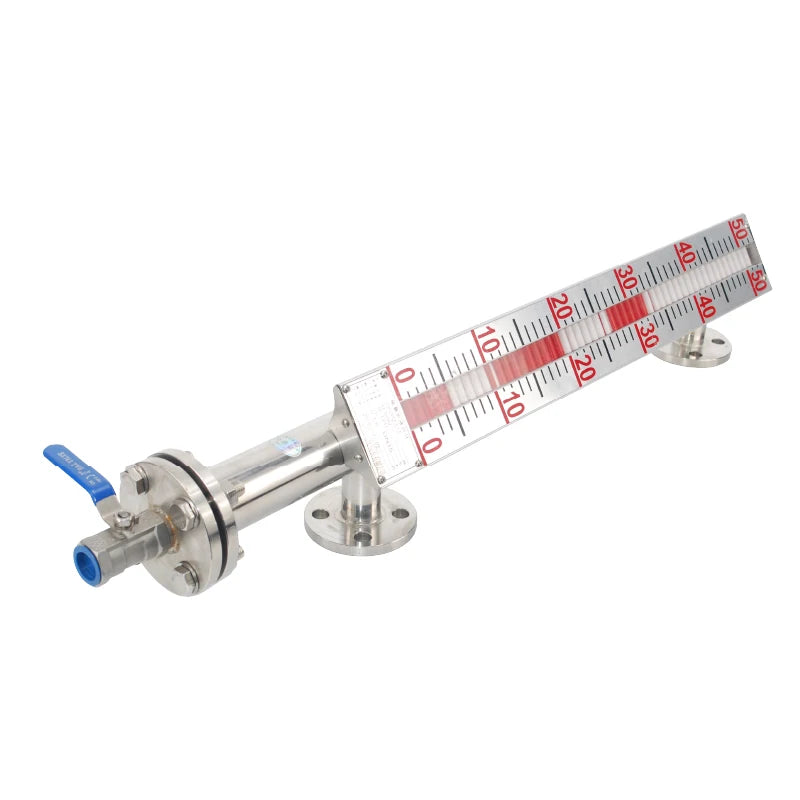

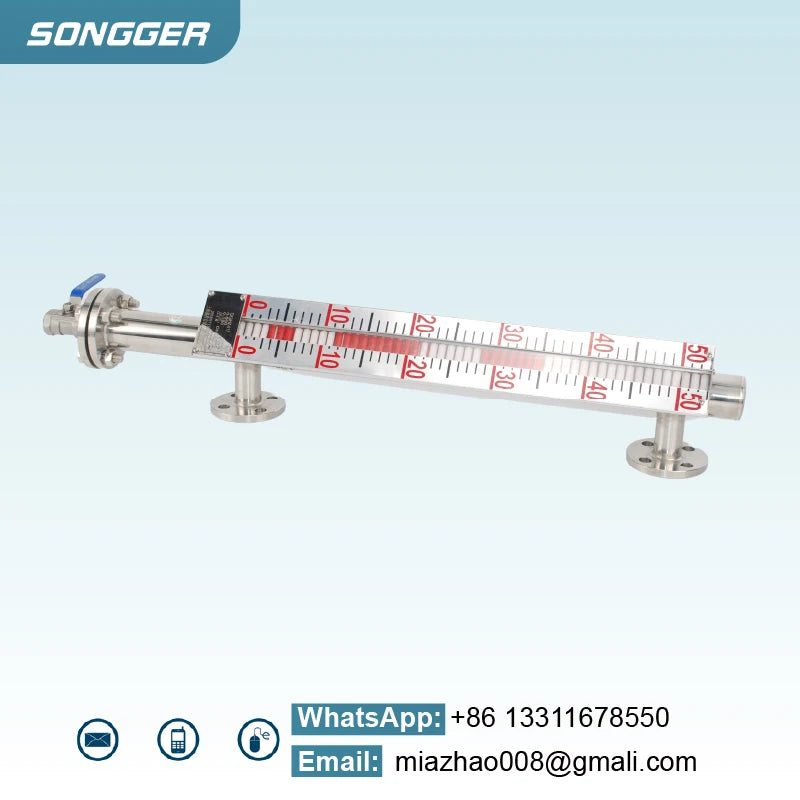

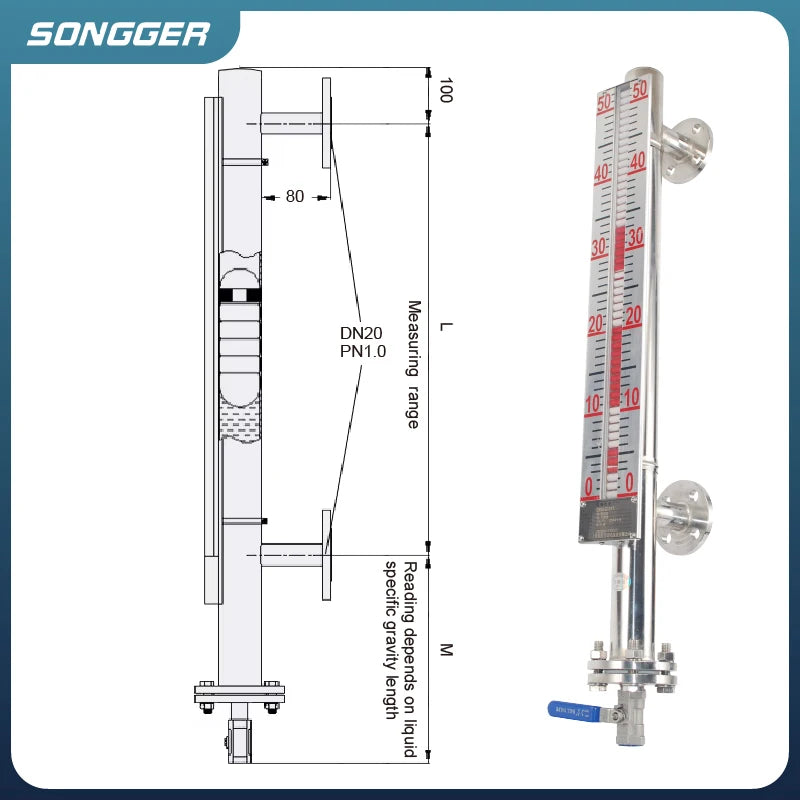

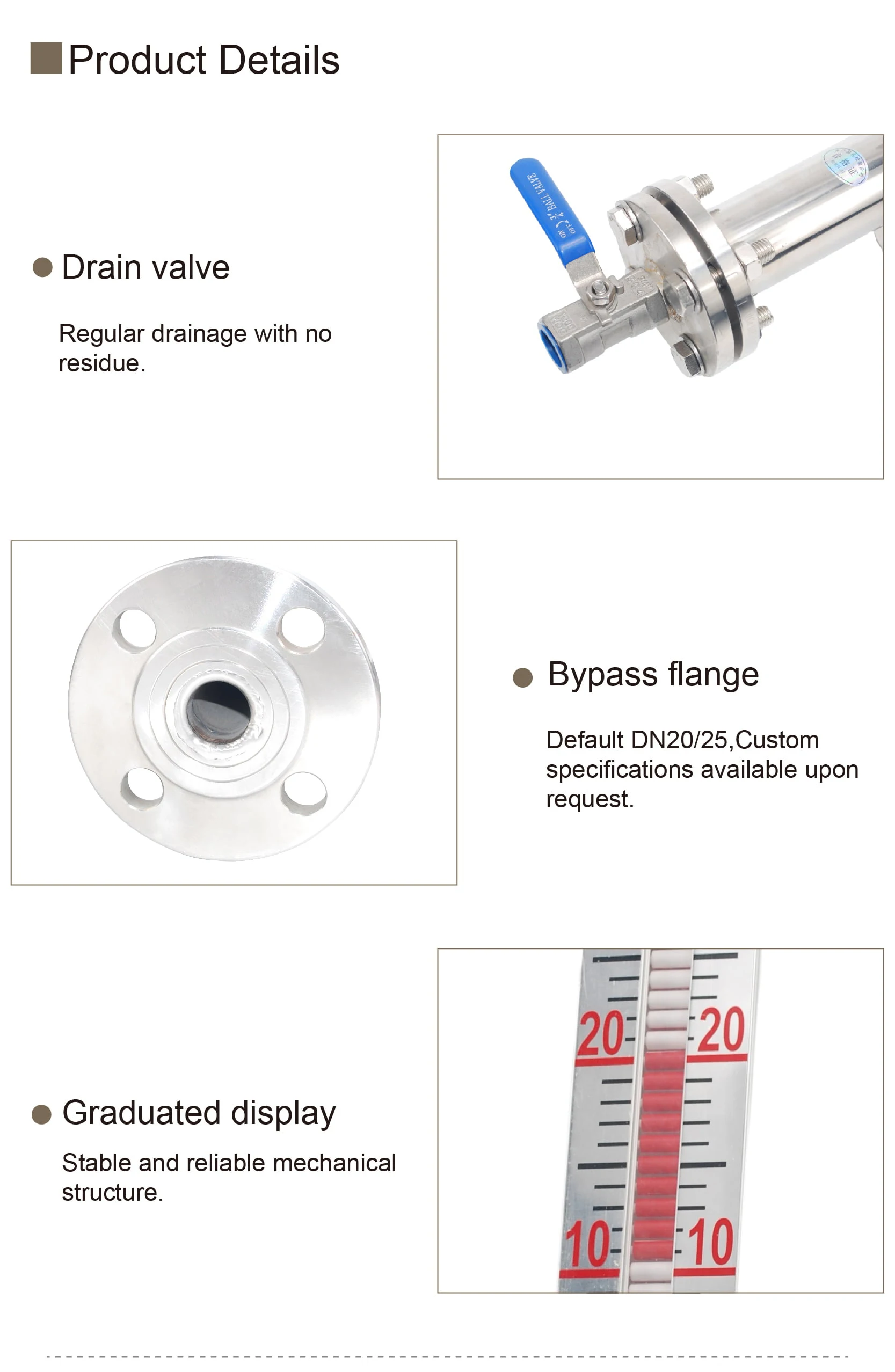

The selection options displayed on this page refer to standard side-mounted magnetic level indicators, designed for installation on the side of tanks. The specified measuring range indicates the actual liquid level you intend to monitor. Please note: due to the inclusion of a drain valve, approximately 35 cm should be added to the bottom of the measuring range to estimate the total length of the indicator.

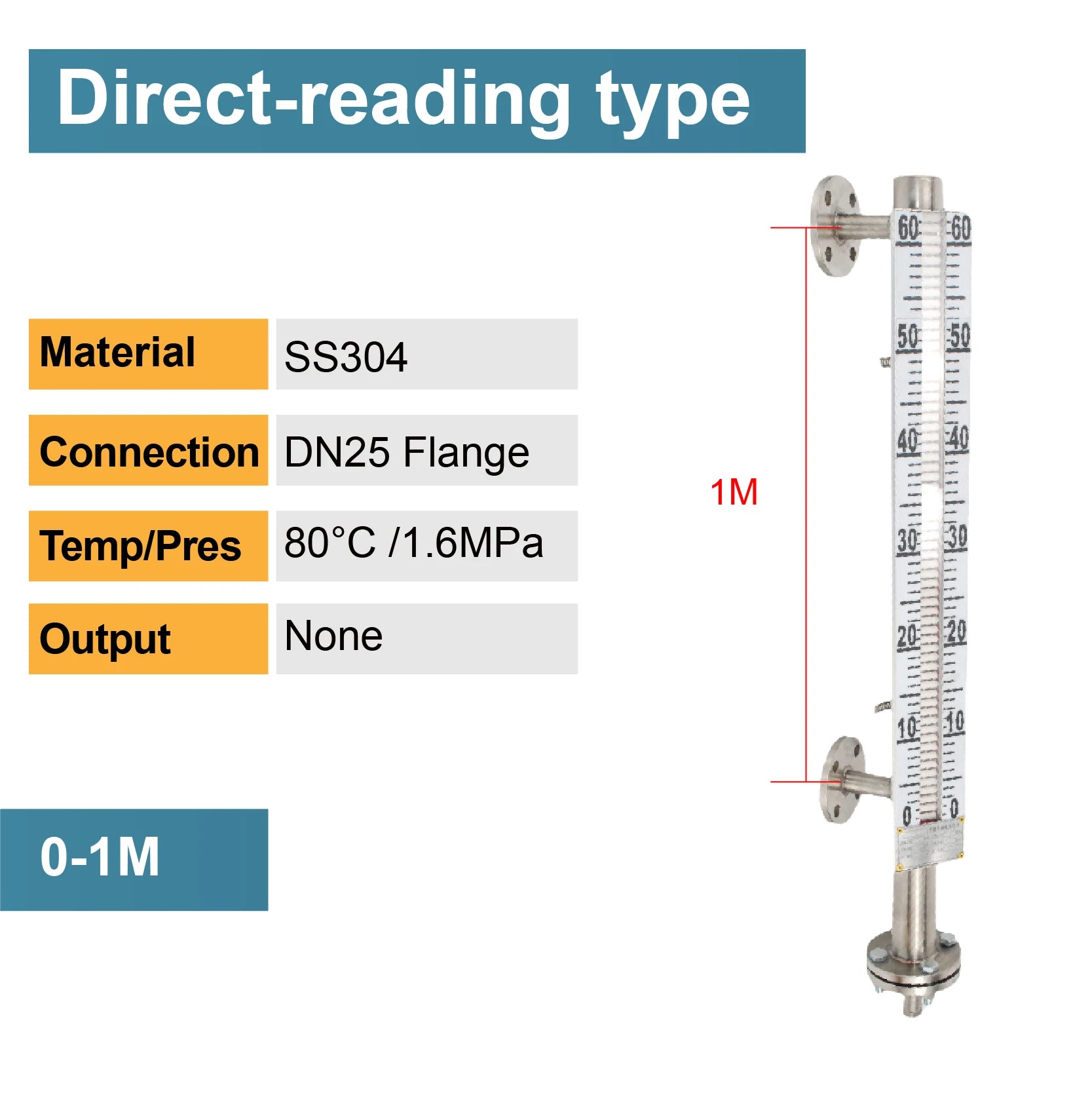

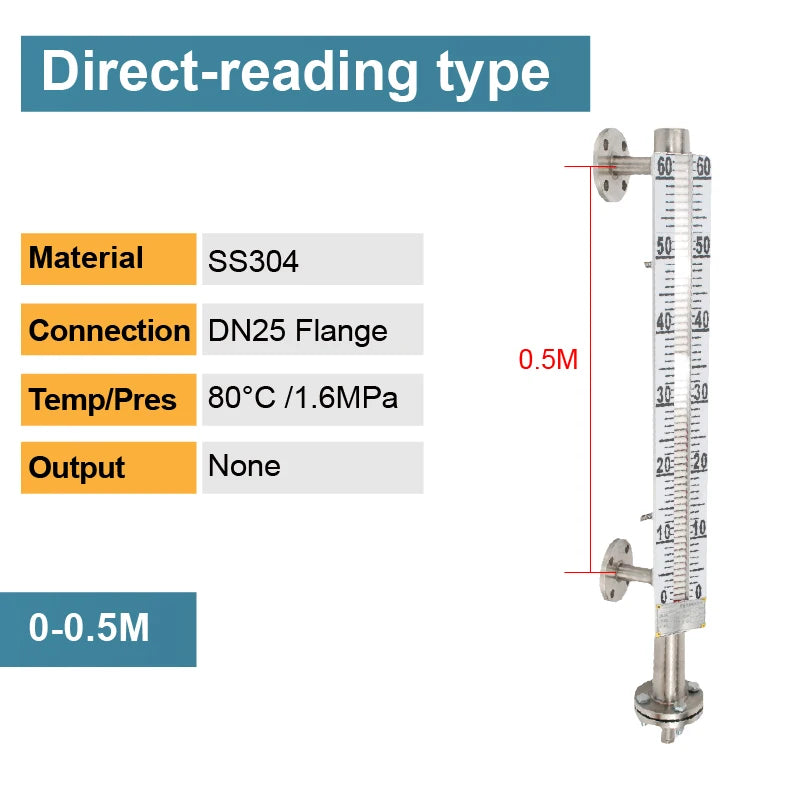

Default Specifications:
· Material: 304 stainless steel body
· Connection: DN25 flange
· Float Compatibility: Default float is calibrated for water (density = 1)
· Temperature Resistance: Up to 80°C
· Pressure Resistance: Up to 1.6 MPa

Price May Vary Based on:
· Body Material: Options include 316L stainless steel or PTFE
· Connection Type: Custom flange or thread specifications
· Pressure Rating: Higher pressure tolerance
· Temperature Rating: Low or high temperature resistance

If the standard configuration does not match your requirements, please contact us directly.

Applicable Media:
· Suitable for a wide range of liquids, including water, oil, acids, and alkalis
· Widely used in chemical, petrochemical, water treatment, and general industrial applications

Connection Methods:
· Standard options include flanged or threaded connections
· Custom configurations available based on your system design

Material Options:

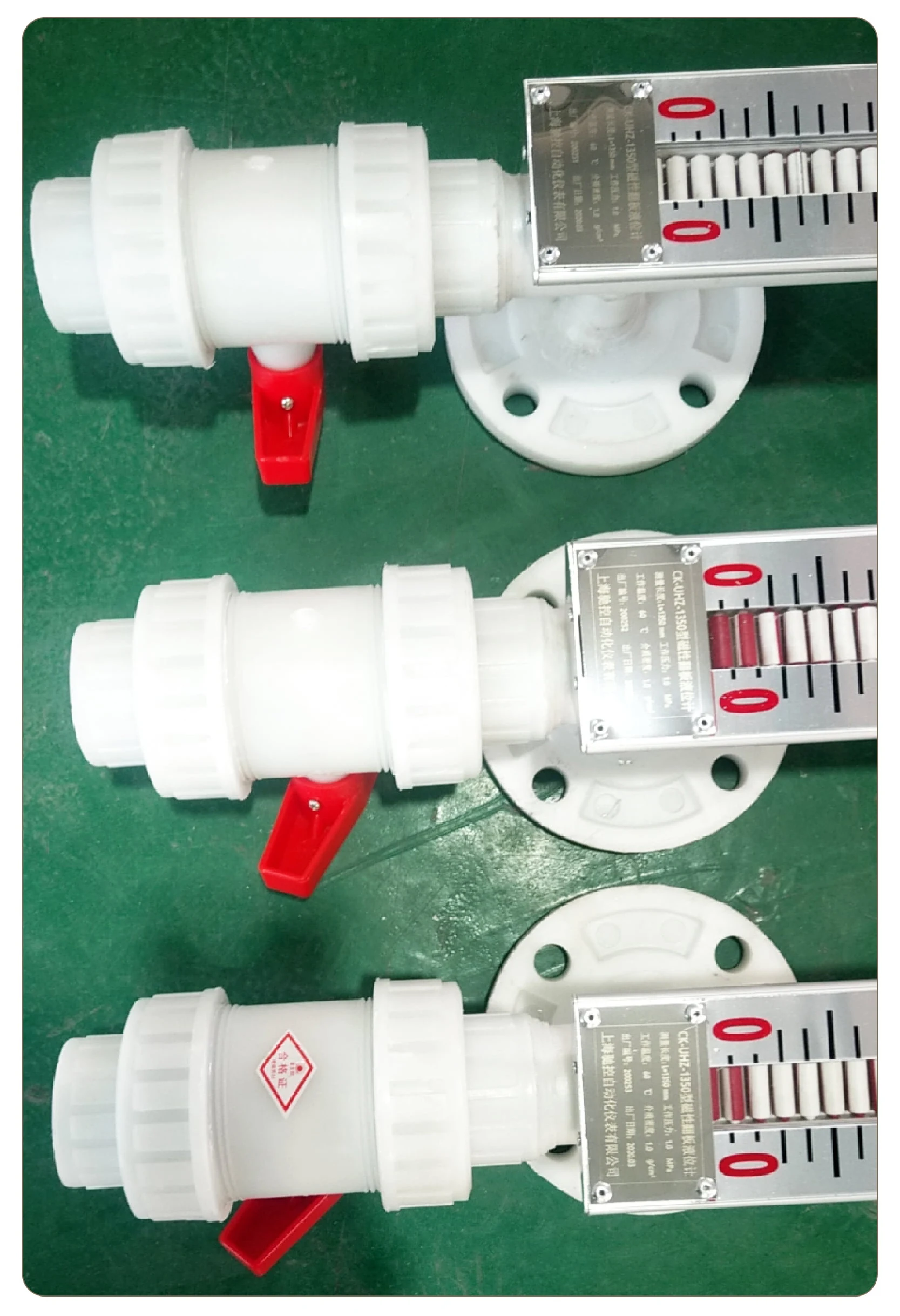

· Stainless steel, PVC, or PTFE for corrosion-resistant applications
· Floats are tailored to match the specific density of your medium for accurate measurement

Optional Signal Output:
· Local display via magnetic flip panels

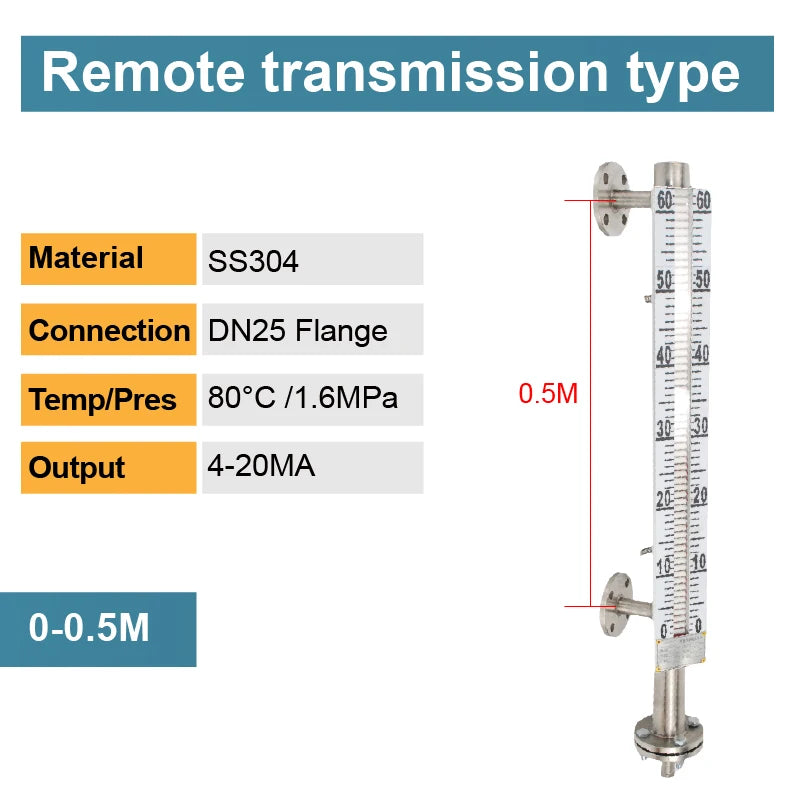

· Remote monitoring options: 4–20mA output, limit switches, or digital communication modules

Customization & Installation:
· Highly configurable: flange center distance, flange standard, operating pressure, and temperature
· Vertical installation required with proper support to prevent vibration and misalignment

Shipping Information:
· Due to the product's size and customization, shipping costs vary. Contact us for real-time freight estimates based on your location and order details.

Conclusion:
We are a professional supplier of industrial instrumentation, offering fully customized solutions to meet your unique requirements. Contact us today for expert support and personalized service.

2. PARAMETERS

Flange size chart

Note: The above dimensions apply only to flanges of PN16 rating.

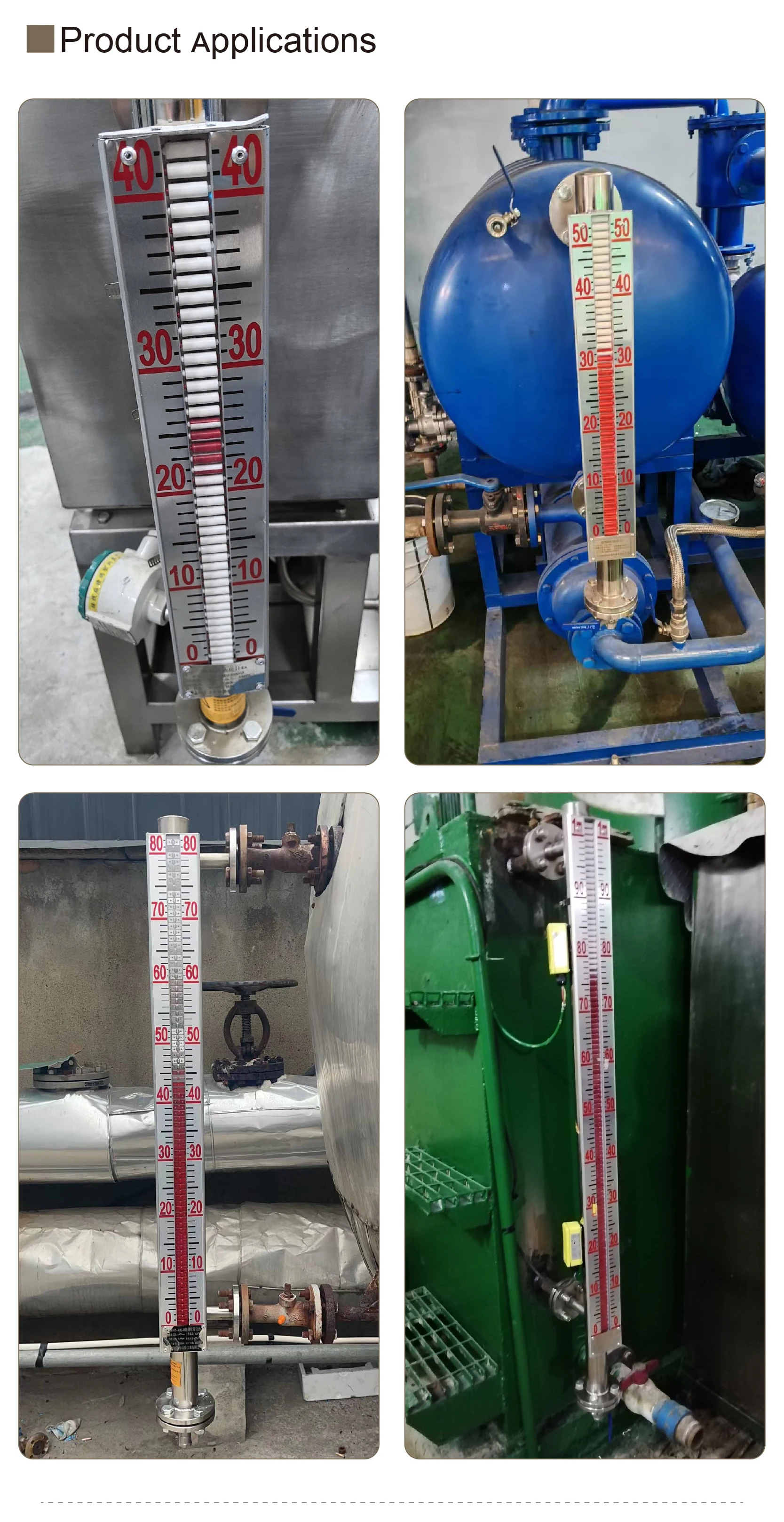

3. APPLICATION

Suitable for a wide range of applications, including aquaculture, sewage treatment, medical equipment, and the power industry.

Designed to perform reliably in high-temperature, high-pressure, and corrosive environments.

Fully customizable to ensure accurate liquid level monitoring under complex operating conditions.

4. FEATURES

Sealed and Durable:
Completely isolated from the measured medium to prevent leakage. Ideal for use in high-pressure, high-temperature, and corrosive environments.

Clear and Reliable:
Intuitive display with a wide measuring range and zero blind spots, ensuring accurate and visible readings.

Customizable Design:
Equipped with high-quality 304 stainless steel flanges (standard DN20/DN25), with options for other materials to suit specific needs.

Low Maintenance:
Robust and simple structure with excellent corrosion resistance, designed for long-term stability and minimal upkeep in harsh operating conditions.

5. FAQ

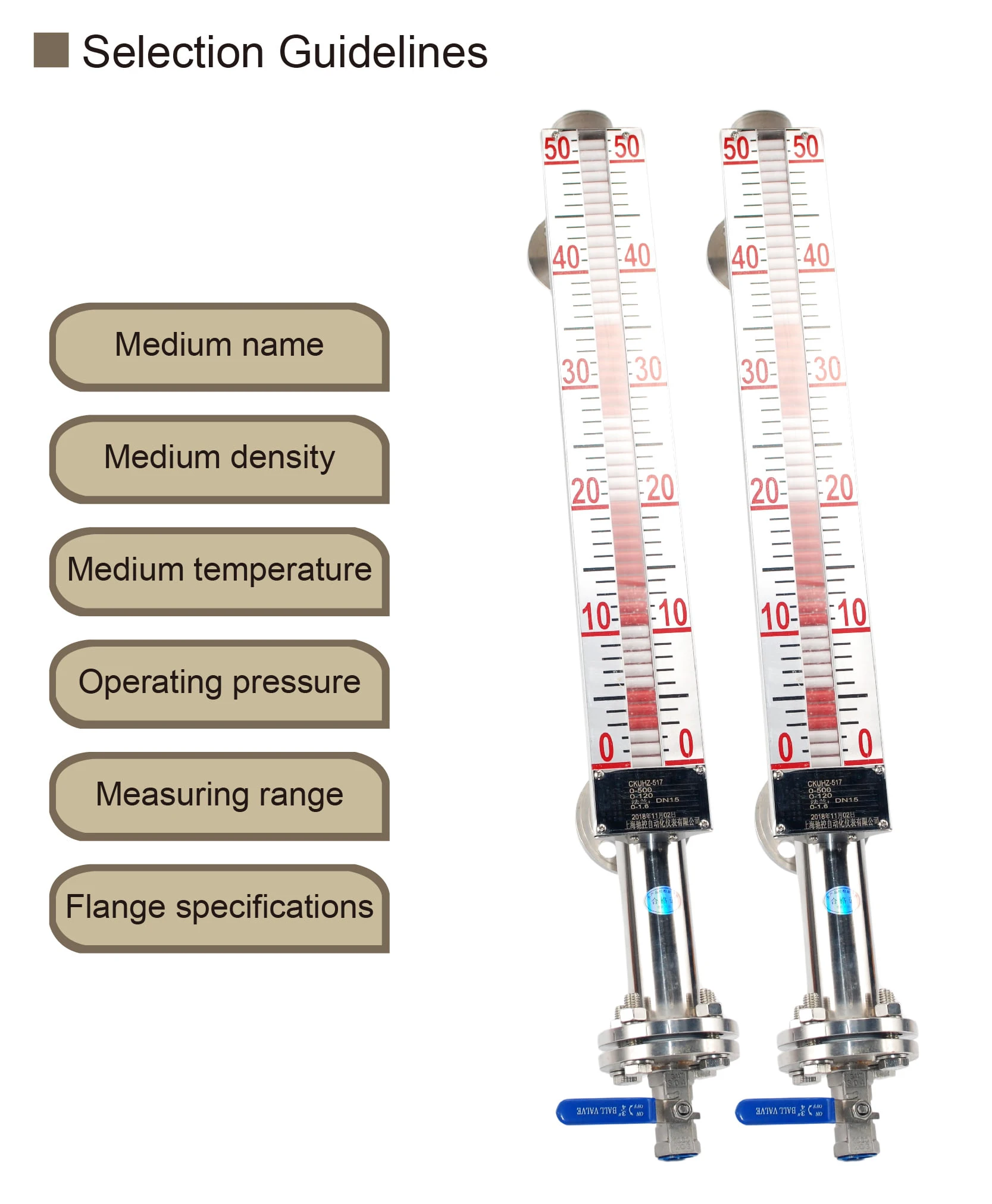

Q1: What parameters should I confirm before purchasing?

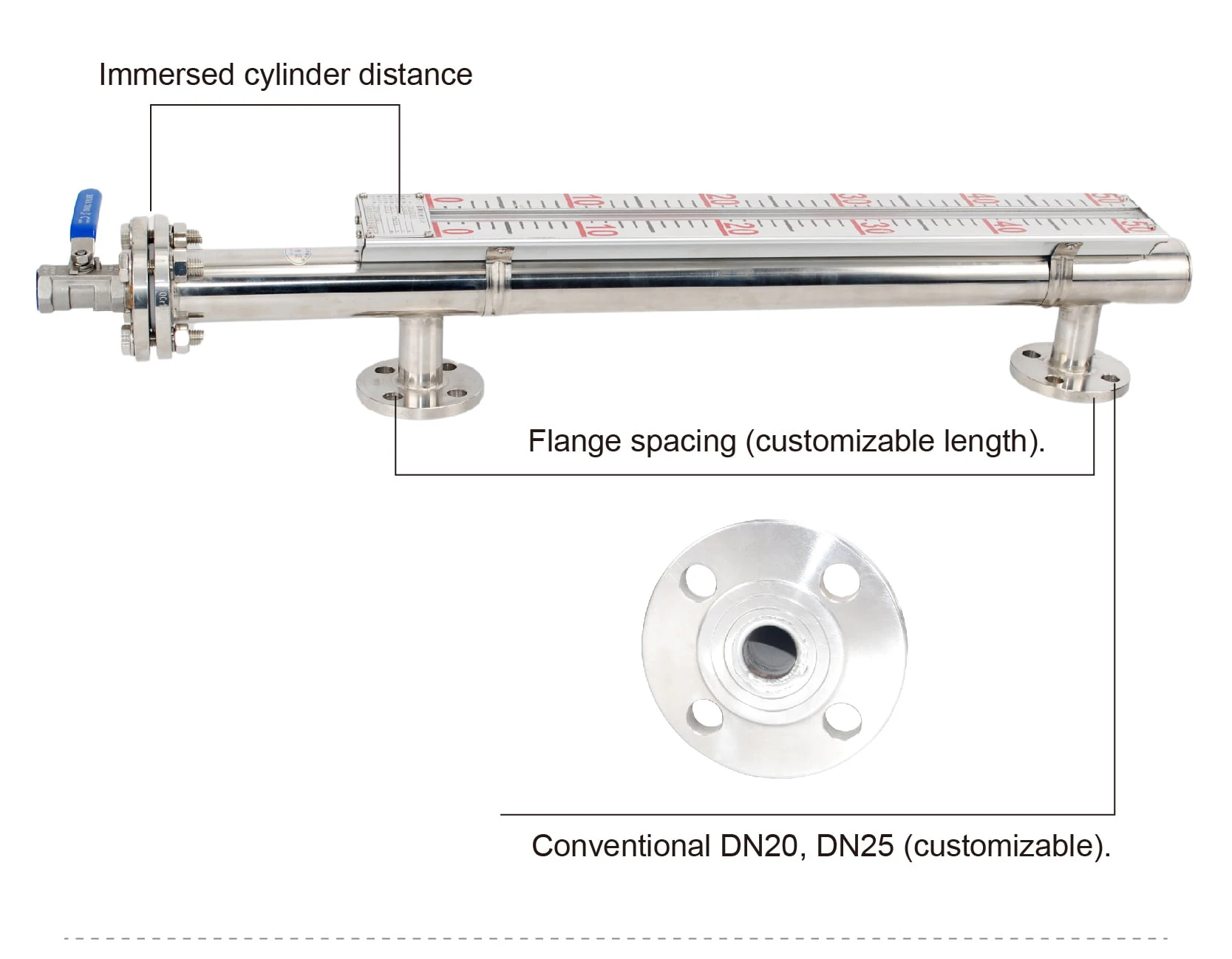

A1: Please confirm the following: the measured medium (including name, density, and temperature), the measurement range (flange center-to-center distance), and the flange size (standard options are DN20 or DN25).

Q2: Can this product handle high temperatures and corrosive environments?
A2: Yes, it is specifically designed for such conditions. With materials like stainless steel and PTFE, the product is suitable for high-temperature, high-pressure, and corrosive applications.

Q3: How do I ensure proper installation?
A3: Make sure the flange connections match your system, install the indicator vertically, and avoid placing magnetic materials nearby to prevent signal interference. Follow the included calibration and safety guidelines for best performance.
