SPECIFICATIONS

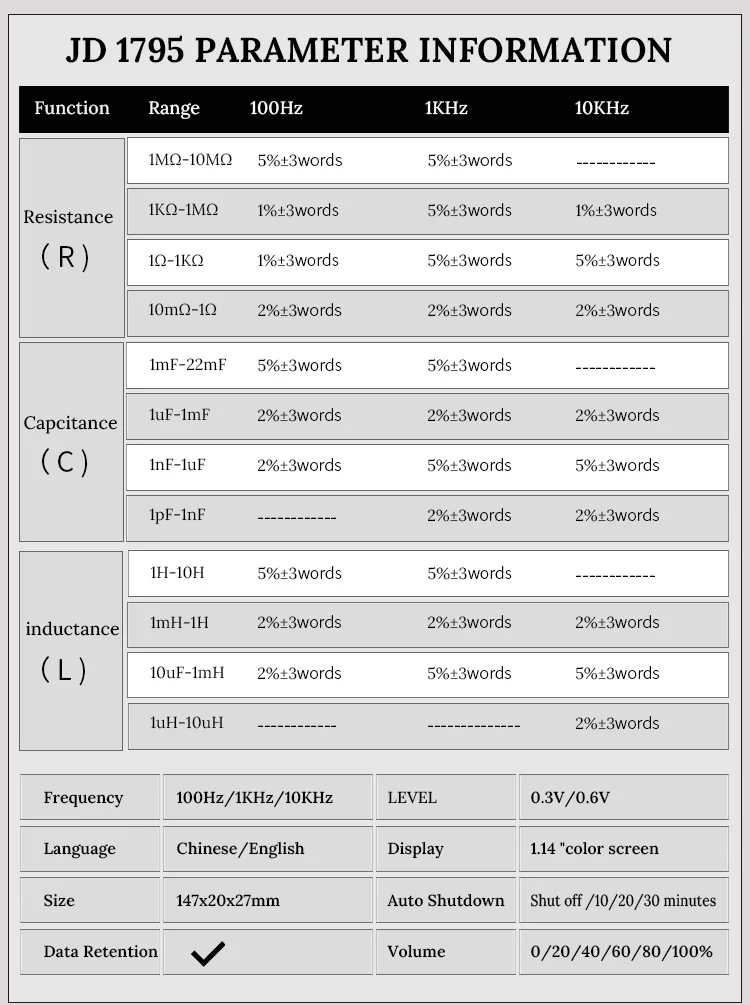

Accuracy: Up to 0.5%±3 digits (1KHz)

Brand Name: NONE

Capacitance Range: 1pF~22mF

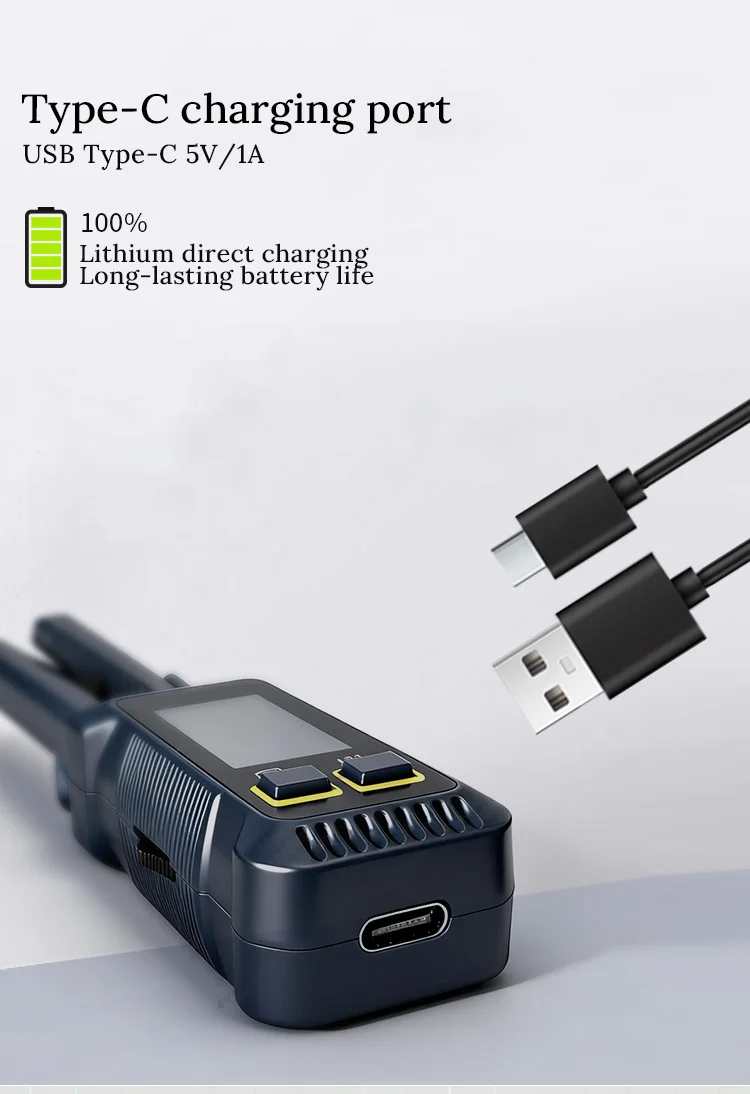

Charging: USB Type-C 5V/1A

Choice: yes

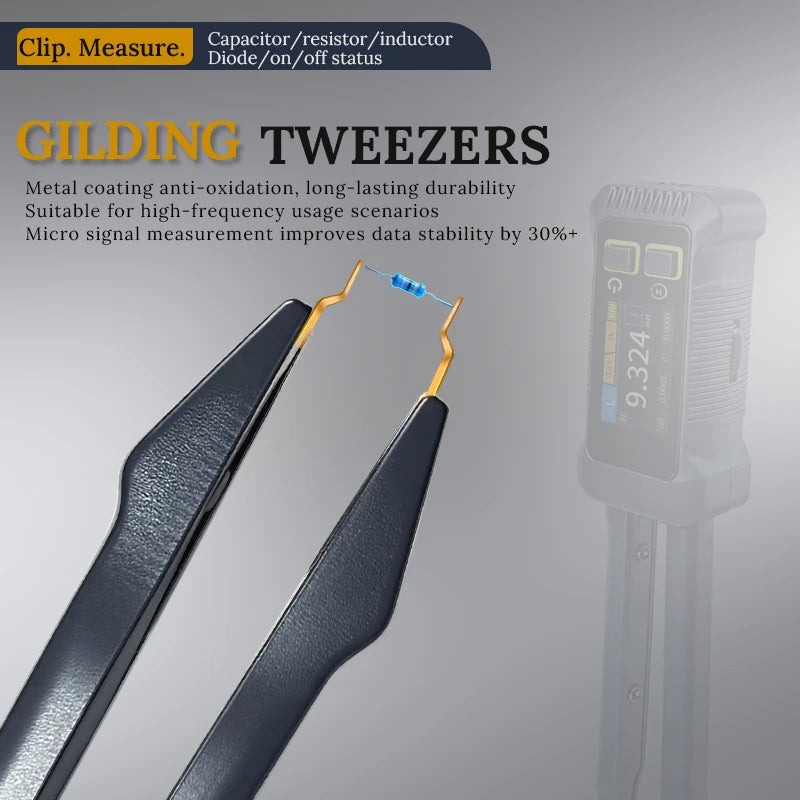

Design: Ergonomic tweezer, low contact resistance, stable clamp

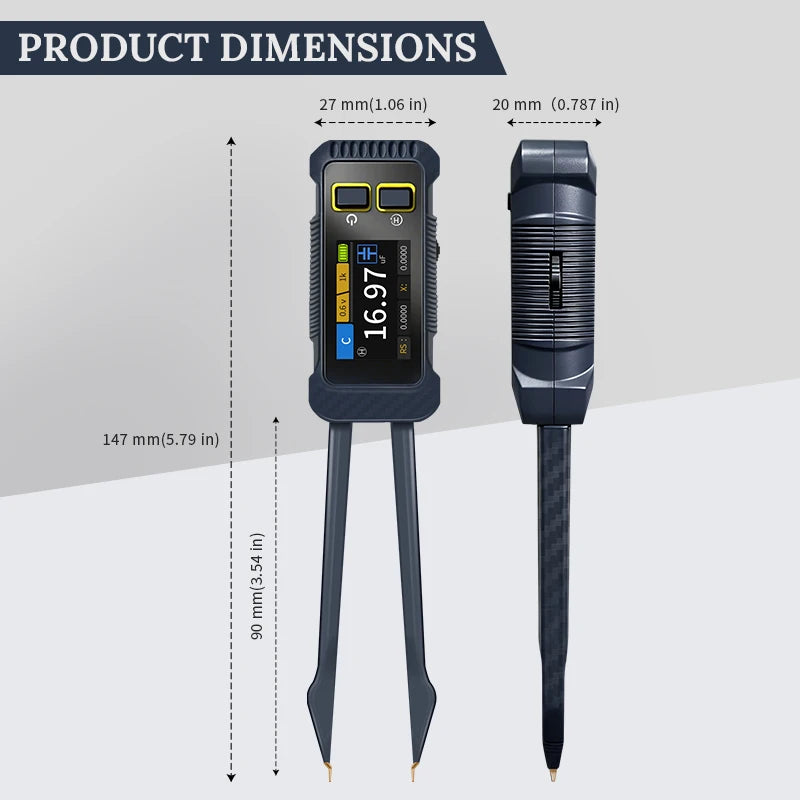

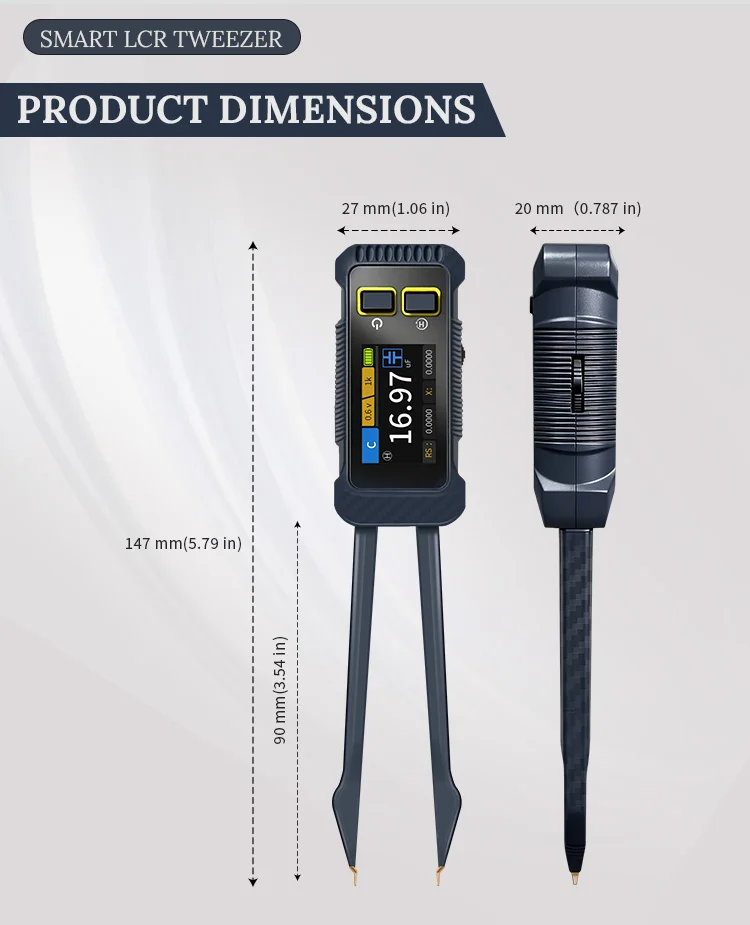

Dimensions: 147 * 20 *27 mm

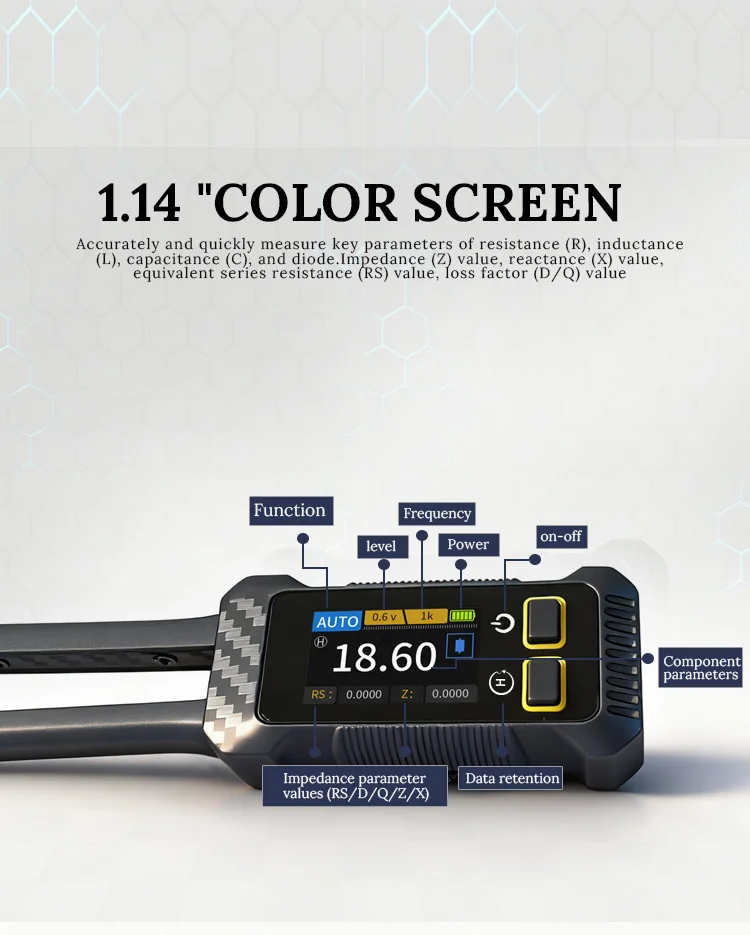

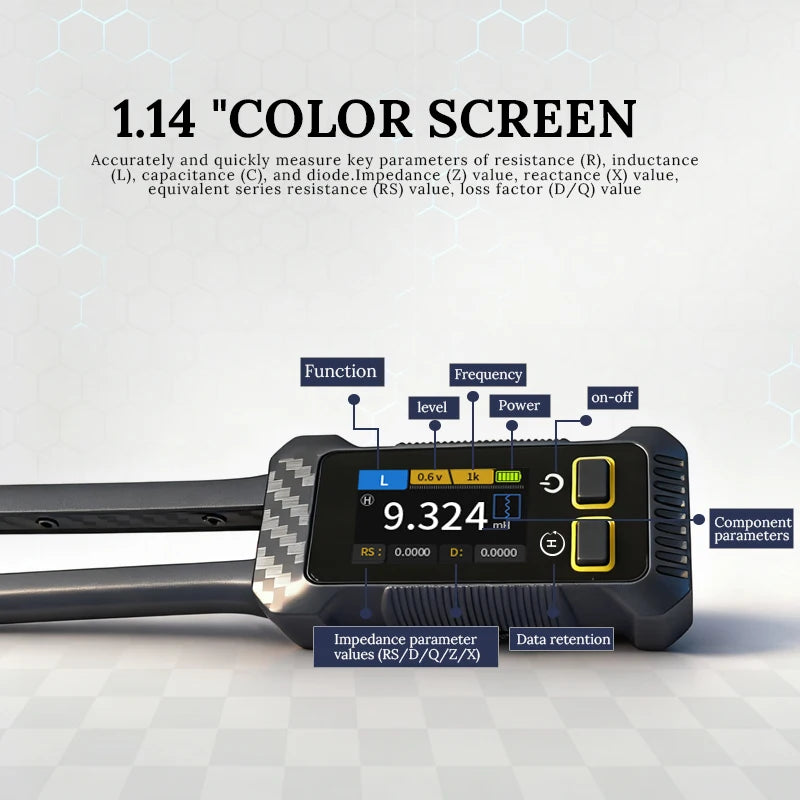

Display: 1.14-inch HD color screen

Features: Heat resistant

High-concerned chemical: None

Inductance Range: 1uH~10H

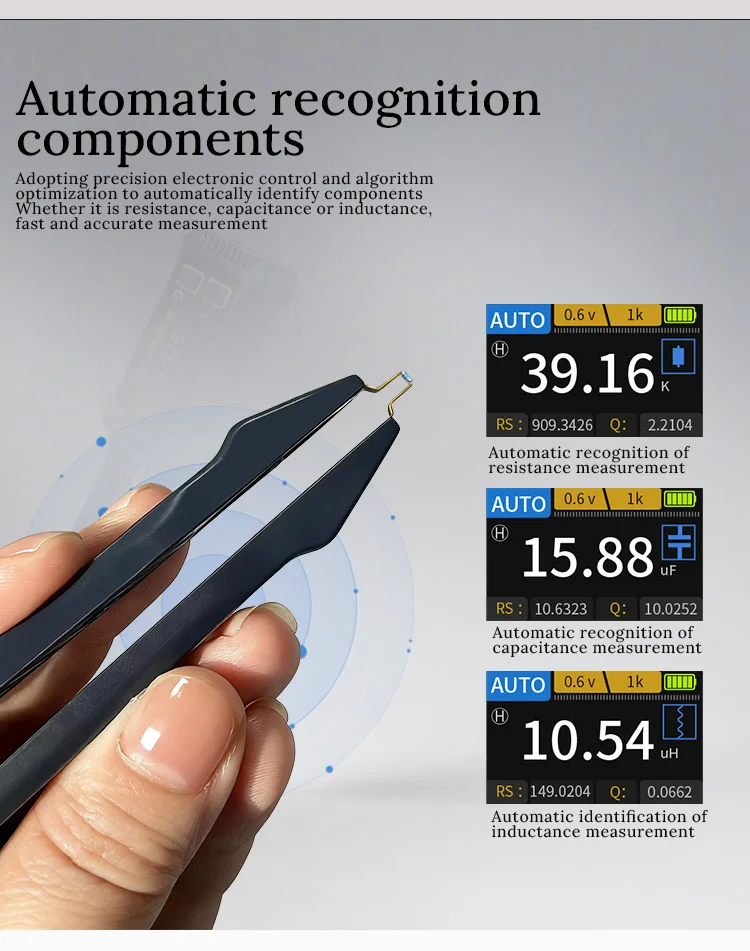

Key Features: Auto recognition, data hold, short test, buzzer, calibration, EN/CN, brightness/volume/Auto OFF, factory reset

Material: Plastic

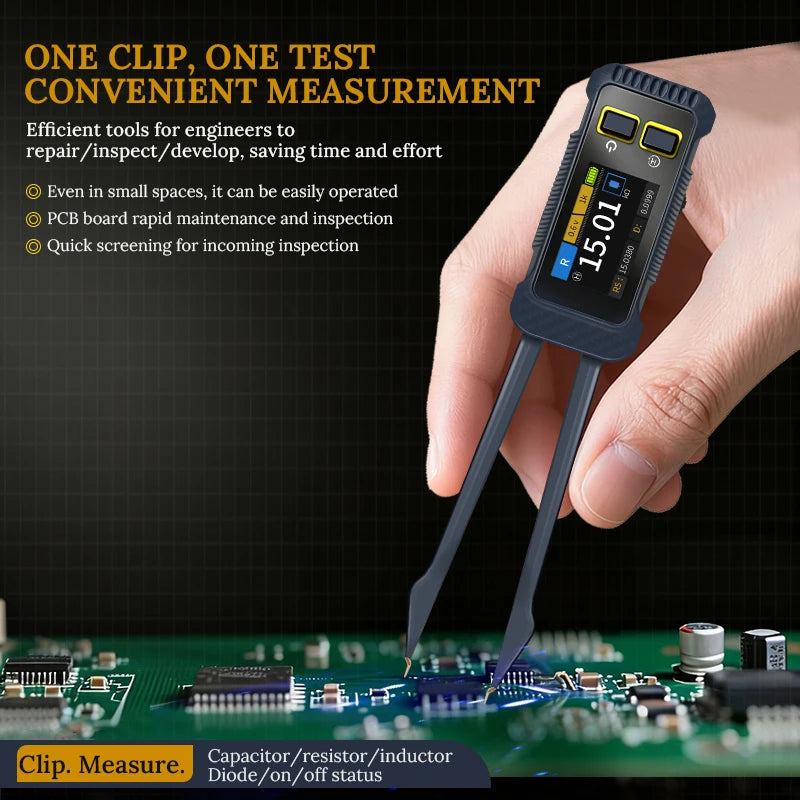

Measurement Mode: On-board measurement (no disassembly) + offline measurement

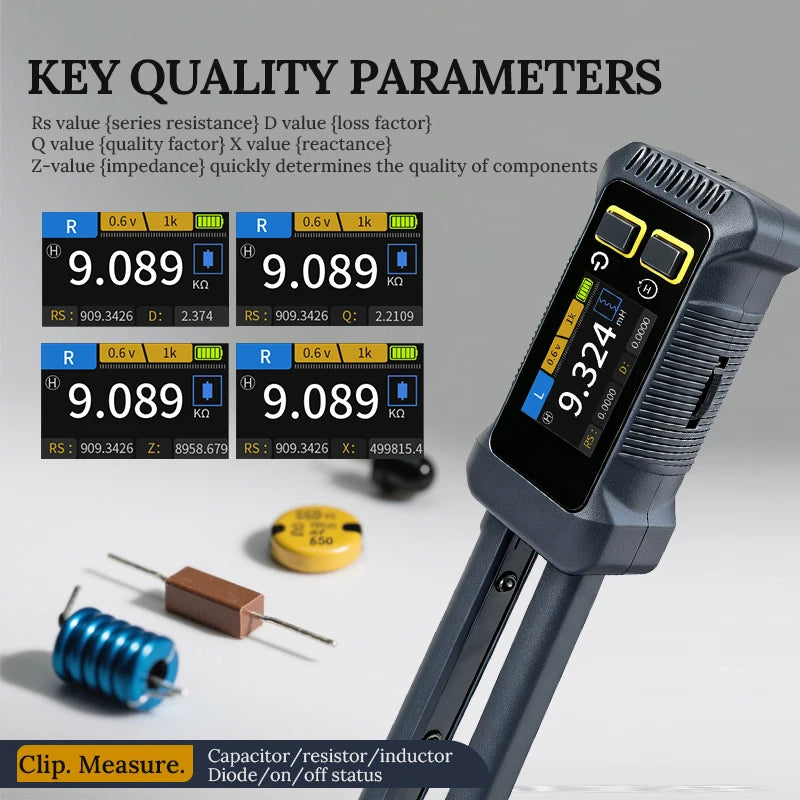

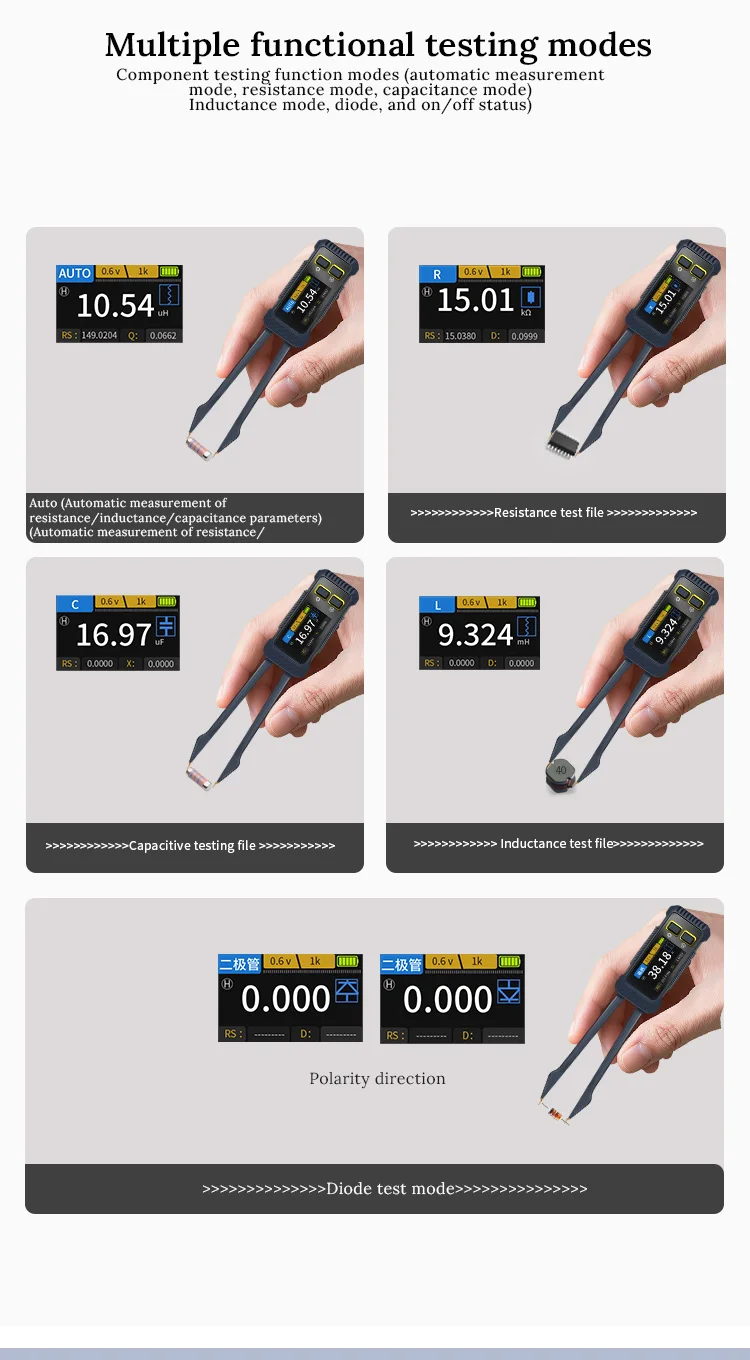

Measuring Functions: Resistance R, Capacitance C, Inductance L, Diode, Z, X, Rs, D/Q

Origin: Mainland China

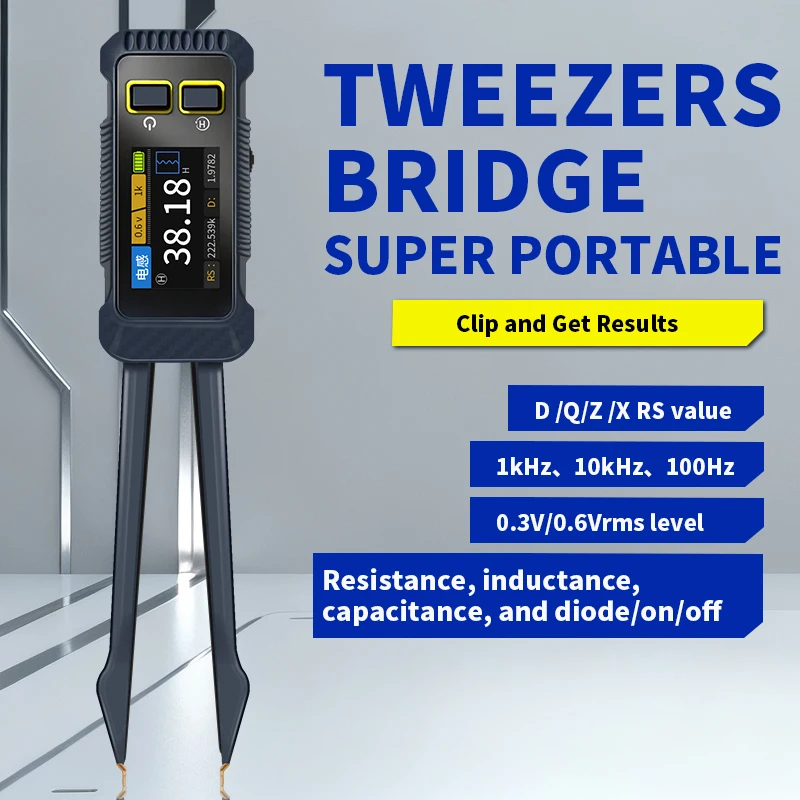

Product Name: Intelligent LCR Bridge Tweezer

Resistance Range: 0.1Ω~10MΩ

Test Frequency: 100Hz / 1KHz / 10KHz

Test Level: 0.3V / 0.6V adjustable

semi_Choice: yes

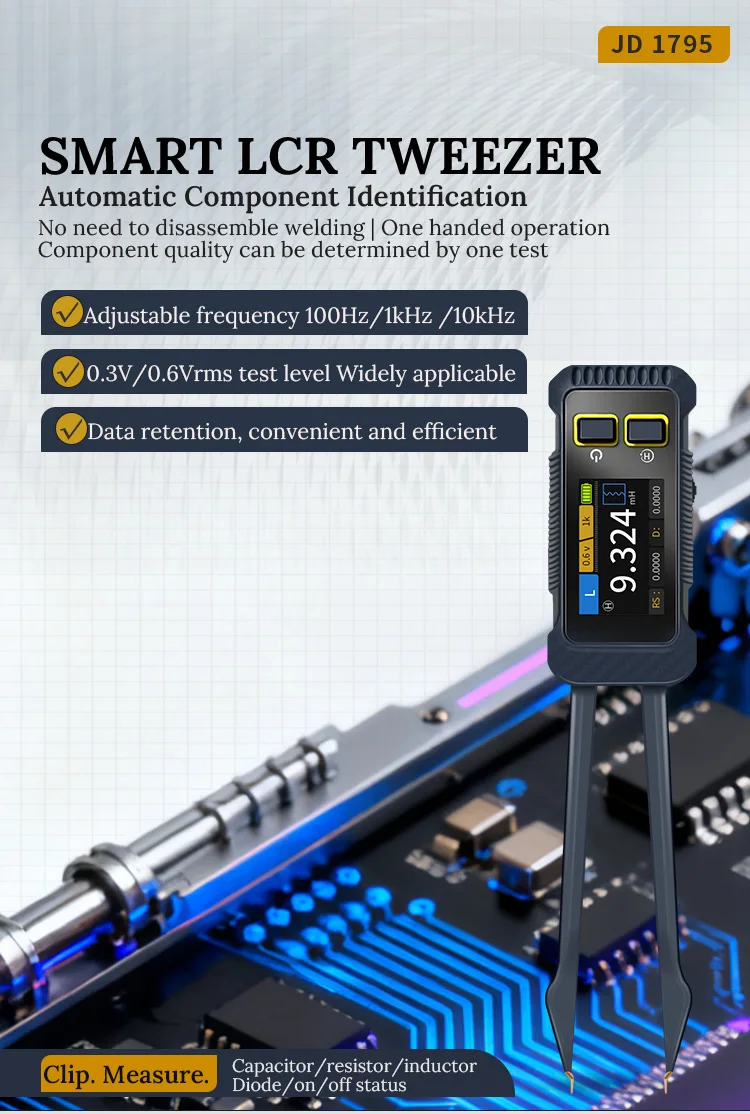

JD 1795 Smart LCR Bridge Tweezer Resistance Inductance Capacitance Diode Tester 100Hz/1KHz/10kHz 0.3V/0.6V Type‑C Portable Meter

📌 Precise Measurement：JD 1795 intelligent LCR bridge tweezer, quickly measures R/L/C/diode with 100Hz/1kHz/10kHz frequencies & 0.3V/0.6V test levels

🚀 High Efficiency：On-board & offline measurement, low contact resistance probe, 1.14-inch color screen for clear parameter display

🔋 Practical Settings：Type‑C 5V/1A charging, adjustable backlight/volume/auto-off, data hold & short-circuit buzzer alert

📏 Professional Specs：Size 147×20×27mm, high accuracy up to 0.5%±3 digits, ideal for debugging, fault diagnosis & component verification

✅ Safe & Durable：Power-off measurement, capacitor discharge protection, corrosion-resistant for long-term stable use
