SPECIFICATIONS

Battery Included: no

Brand Name: Aramox

Choice: yes

High-concerned chemical: None

Origin: Mainland China

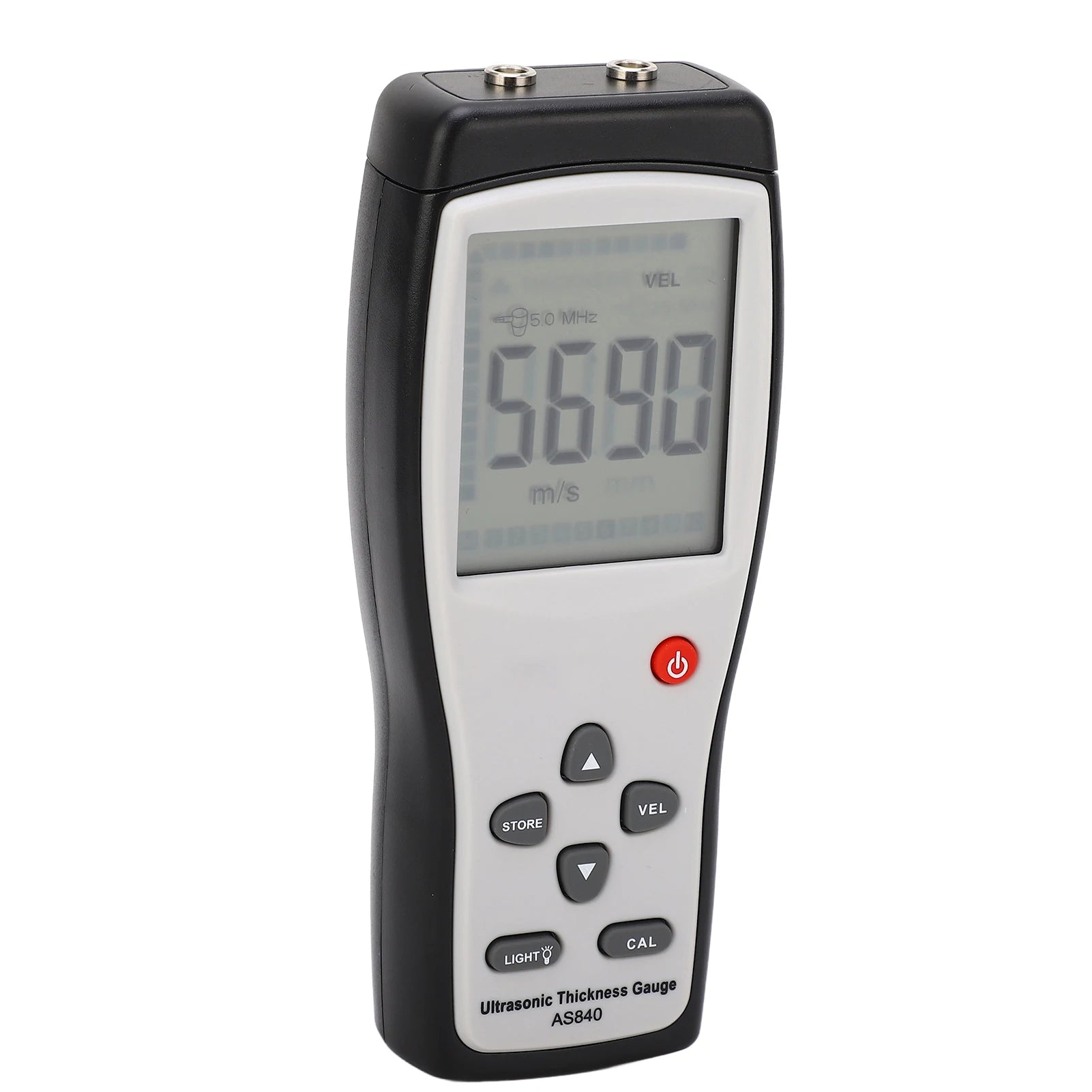

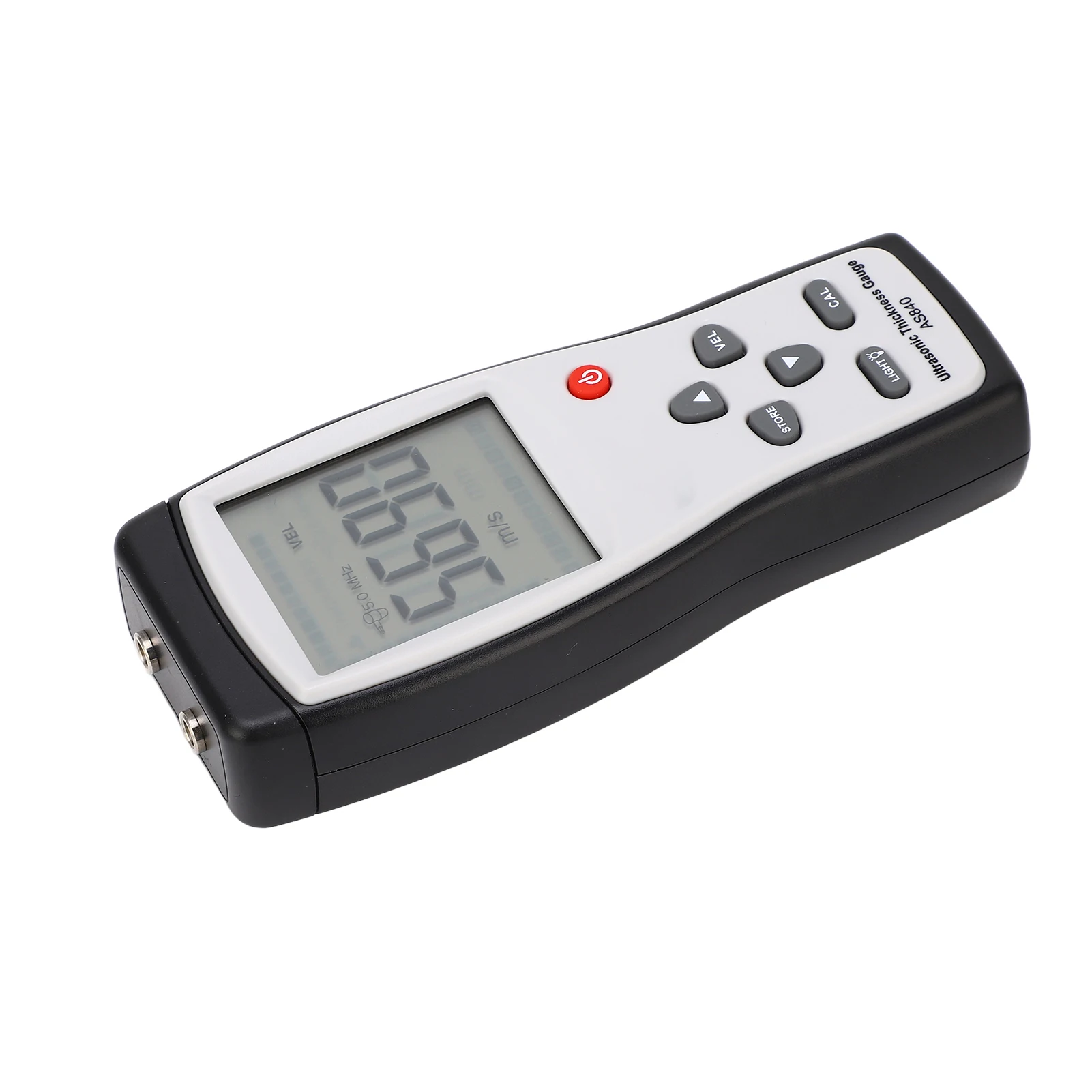

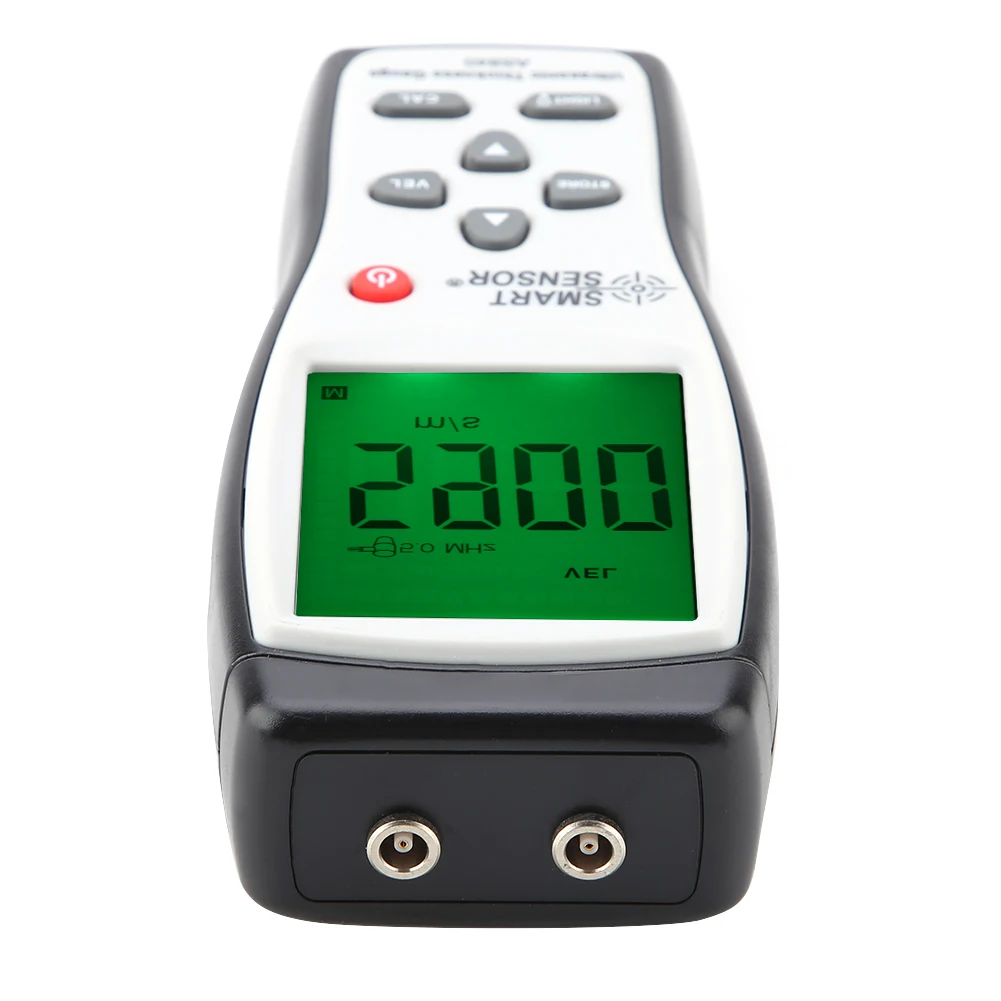

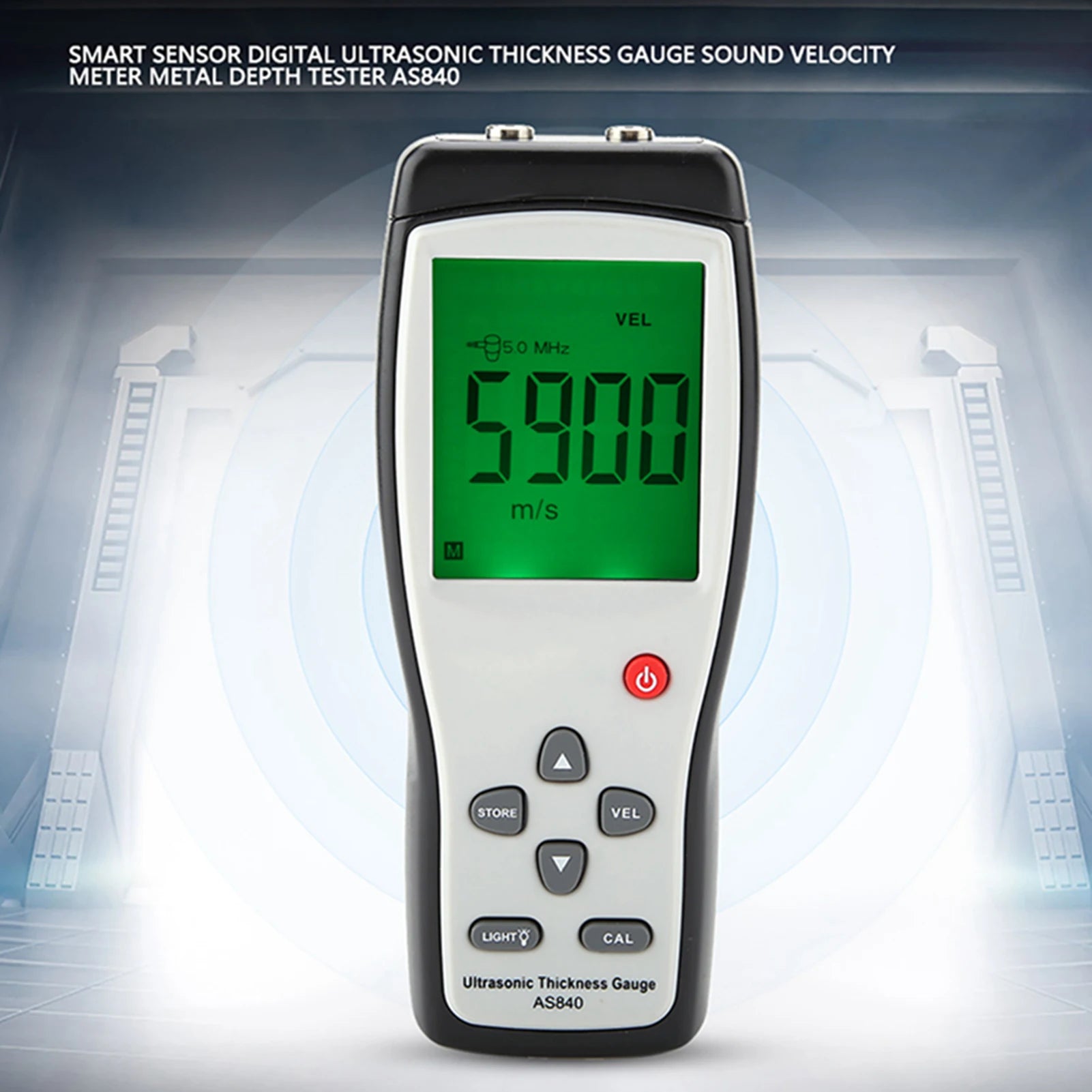

SMART SENSOR Digital Ultrasonic Thickness Gauge Sound Velocity Meter Metal Depth Tester AS840

Specification:

SMART SENSOR Ultrasonic Thickness Gauge This unit is an intelligent handheld product, which adopts ultrasonic measuring principle, and is controlled by micro processor, provides quick and precise measurement of thickness for most of industrial material. This unit is widely used in various precise measurement for different hardware / parts in industrial realm; one of its important application is to monitor the level of thickness-decreasing during operation of various and pressure container. Diffusely
applied in manufacture fields, metal processing, and commercial inspection.
Scope of application:

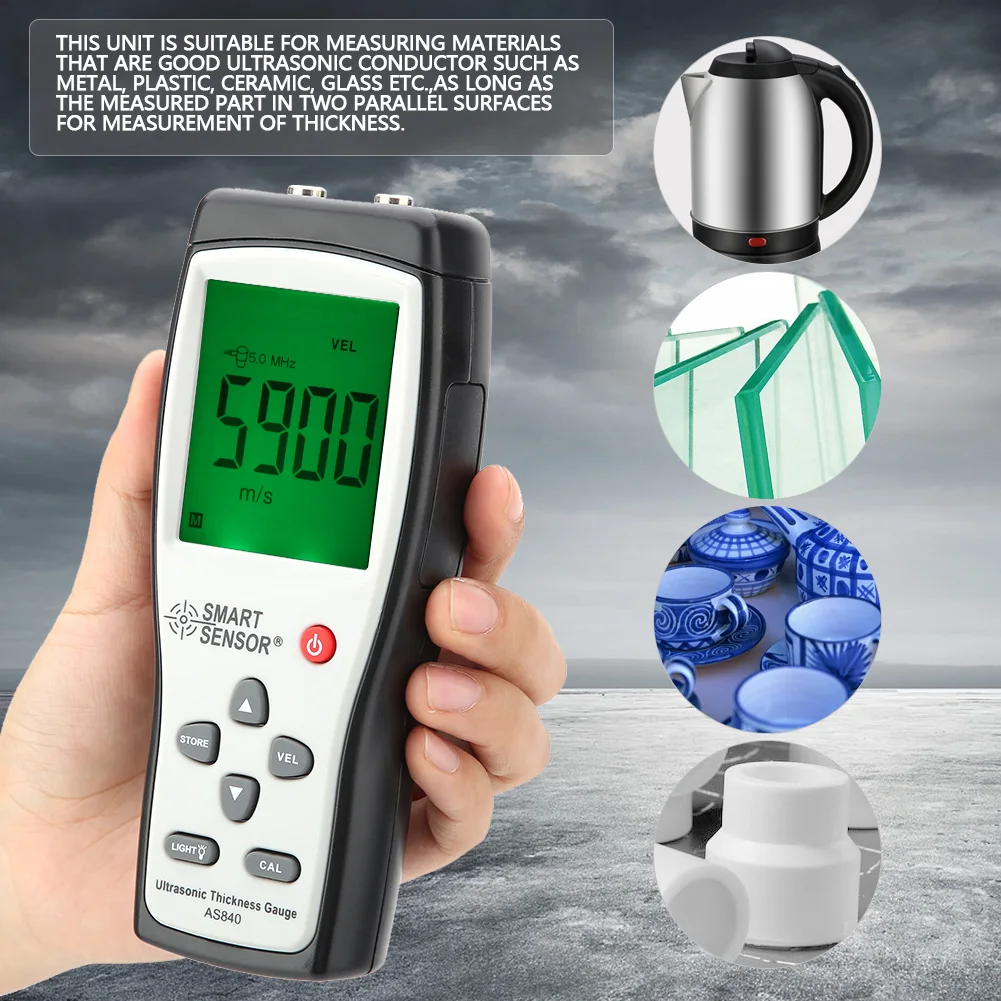

This unit is suitable for measuring materials that are good ultrasonic conductor such as metal, plastic, ceramic, glass etc.,as long as the measured part in two parallel surfaces for measurement of thickness. This unit is not suitable for cast iron
due to its big crystalloid composition.
Features:
1. Auto calibration to assure the accuracy.
2. Auto linear compensation: this advanced software program enhances the precision by correcting the non-linear accuracy of transducer.
3. Use and keys to make a quick adjustment for the sound velocity /thickness,and a quick recall to the stored data.
4. Coupling status indication: Observing the coupling icon to learn if the coupling is accomplished or not.
5. 10 thickness measurement storage and recall function is available
6. which facilitates the height work or working in wild area.
7. Sound velocity measurement: With a given thickness by a sample hardware to measure the sound velocity, which avoid the further conversion or consultation of the table.
8. 12 sound velocity for different material
9. Low battery indication
10. Auto power off mode designed to conserve battery power.
11. More than 10000 times long lift keys.
12. Manual power off
Specification:
Display: 4-digital LCD display
Minimum display unit: 0.1 mm
Measuring range: 1.2 to 225.0mm (steel)
Working frequency: 5MHz
Accuracy: (1%H+0.1)mm,H denotes the measured thickness.
Minimum limit for tube measuring: 20*3mm (steel)
Sound velocity range: 1000 to 9999 m/s
Measuring sound velocity with a given thickness: measuring range: 1000 to 9999 m/s. When the given thickness > 20mm, the accuracy is +/-5%; when the given thickness < 20mm, the accuracy is +/-1mm/H*100%.
Operation Condition temperature: 0°C~40°C Relative humidity: Hardware/workpiece/material temperature:
Operation current:    Normal operation current: 50mA With Backlight turn on current: 120mA Stand-by current: 20uA

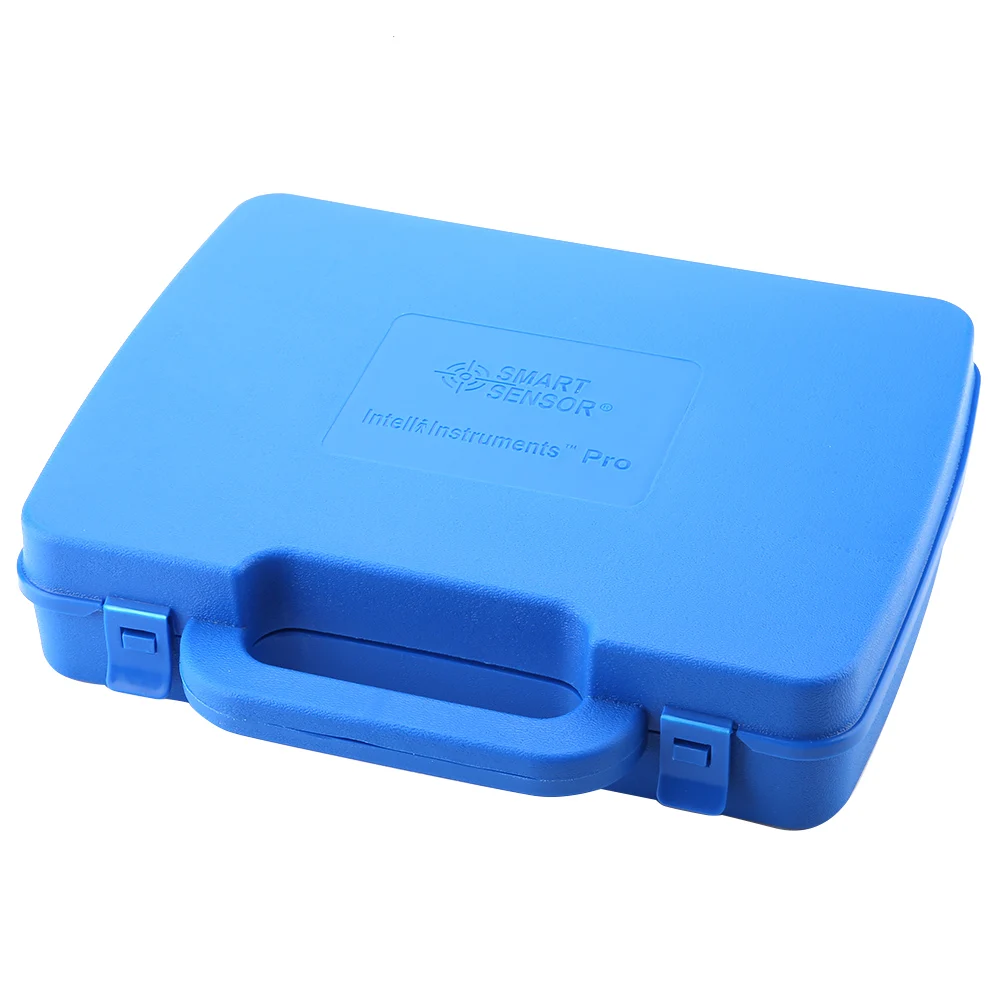

Packing Contents          Thickness Gauge-1PCS transducer-2 PCS(10mm 5MHz ) Storage Bag 4mmSample block-1PCS

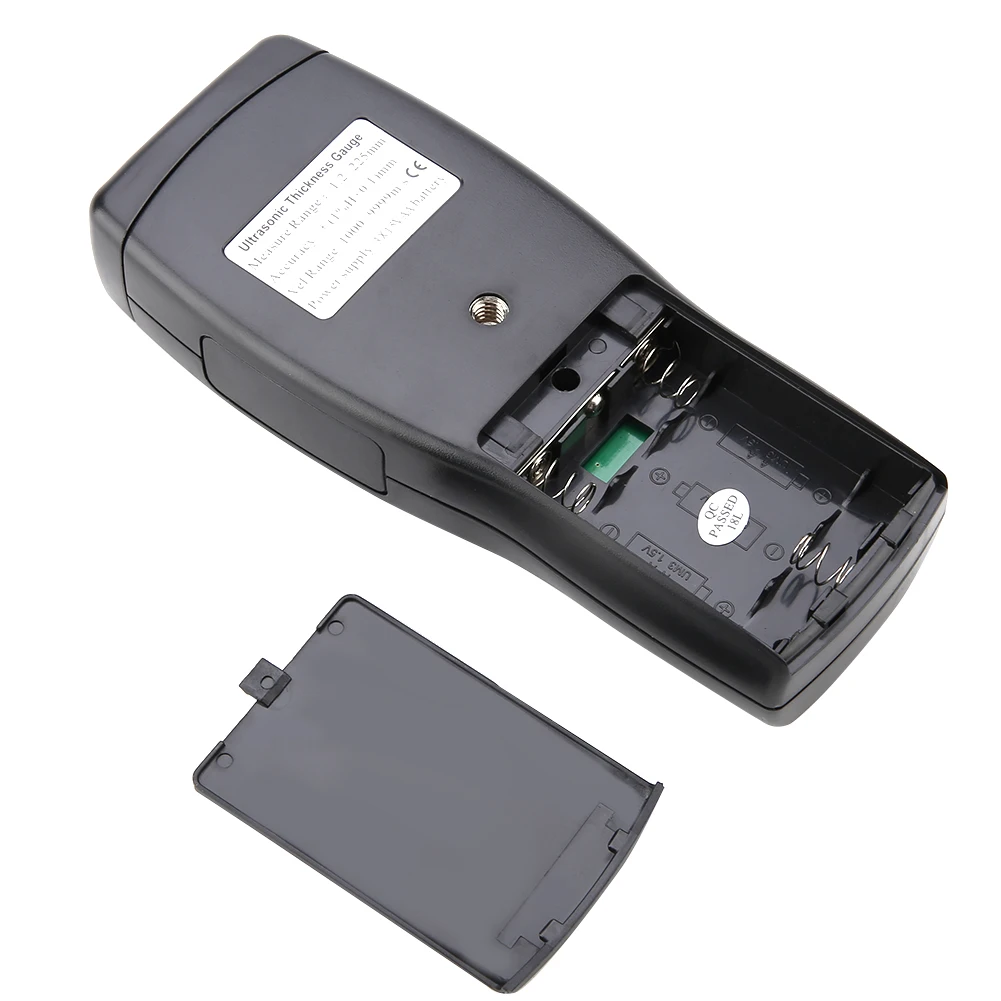

Power supply: 1.5V AAA * 3 PCS (not include due to air limit)

Minimum limit for tube measuring Dia.20*3mm(steel)
Auto Zero Calibration V
Auto linear compensation V
Coupling Indicator V
Metric / Imperial Switchable ---
Battery Indication / Auto Power Off V
Product Net Weight / Product Size
Size158*62*30mm/6.2*2.4*1.2in
WeightApprox.746g/26.3oz

Table of sound velocity (Sound velocity of common materials)
Material Velocity(m/s) Material Velocity(m/s)
Aluminum 6320 Acetate resin 2670
Zinc 4170 Phosphor bronze 3530
Silver 3600 Turpentine 4430
Glod 3240 Glass 5440
Tin 3230 Incoloy alloy 5720
Iron/Steel 5900 Magnesium 6310
Brass 4640 Monel alloy 6020
Copper 4700 Nickle 5630
SUS 5790 Steel 4330 mild 5850
Acrylic resin 2730 Steel 330 5660
Water 20C 1480 Titanium 6070
Glycerinl 1920    Zirconium       4650
soluble glass    2350      Nylon 2620

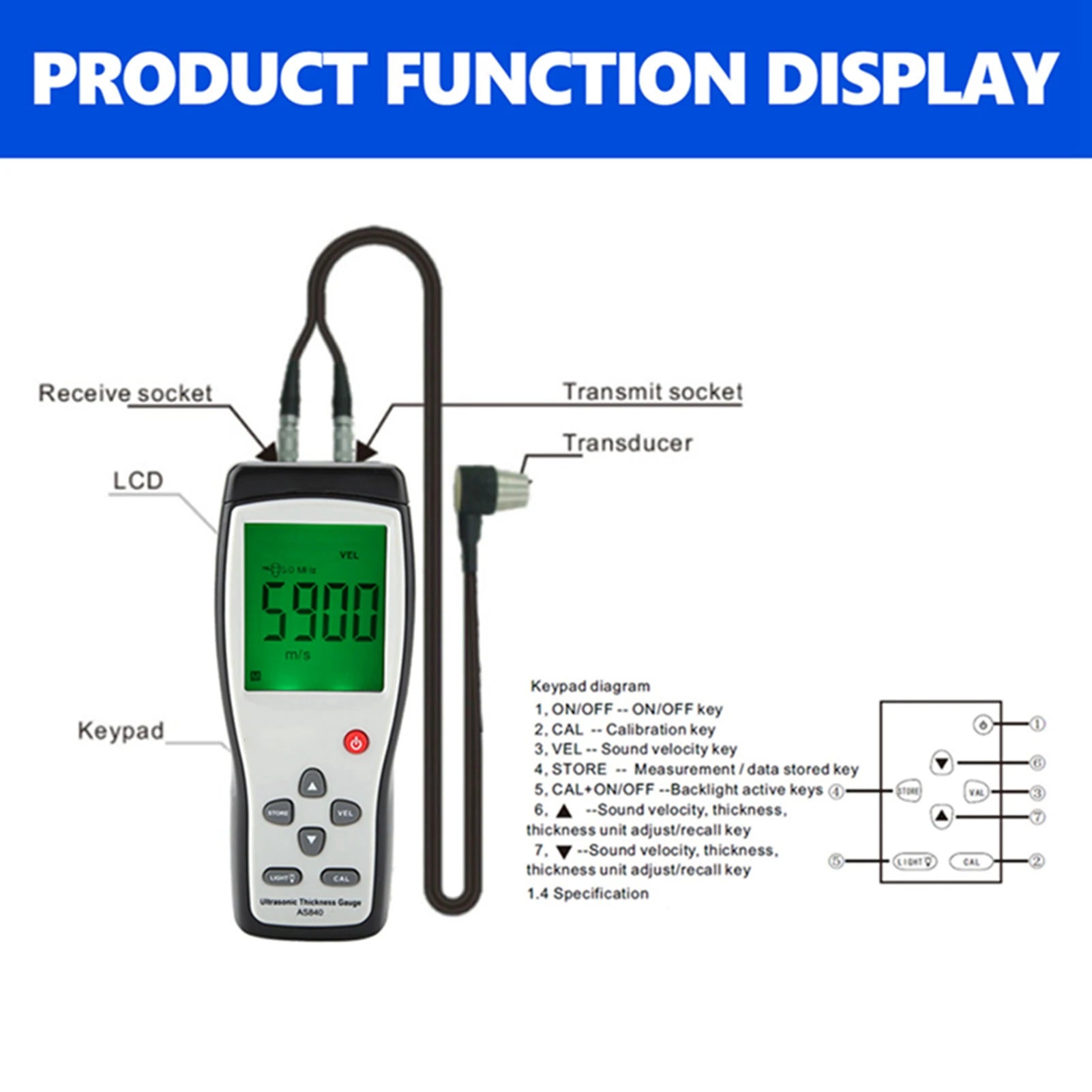

Operation Guide
1. Before measurement
(1) Connect the transducer with the main unit, press ON/OFF to turn on,LCD display full screen for 0.5 second with backlight,then vertical bar is displayed twice circularly, meanwhile the main display area show 0000 to 9999 progressively.After that, LCD display the last applied sound velocity with registered memory unit, indicating the gauge is ready for use. (2) Sound velocity selected & adjustment Press"VEL"to enter sound velocity interface, press"VEL"again, you can select reserved velocity data by pressing "" or"" with the word "VEL"blinking on LCD ; If you need to adjust sound velocity data, press "VEL" once more, the "VEL" and "m/s' will keep blinking, indentifying the unit is on adjusting status. Then, increase or decrease the sound velocity to the data you want by pressing"" and " ",and this data will be automatically stored into current sound velocity memory unit. After that, press"VEL" to confirm new sound velocity, and the icons of "VEL" and "m/s"stop blinking.
2. Calibration A calibration should be made for every replacement of transducer or batteries, this operation is sufficiently important to assure the measuring precision. If necessary,this step should be repeated. Pressing"CAL" for 2 seconds, LCD displays "CAL", indicating that the unit is on calibration status, vertical bar displayed circularly on the left of LCD. put few provided coupling agent on the stan-dard sample block to couple the transducer and the sample block. Until the LCD display 4.0mm indicating the calibration is completed. After calibration, sound velocity will back to your selected value, and ready to measurement.

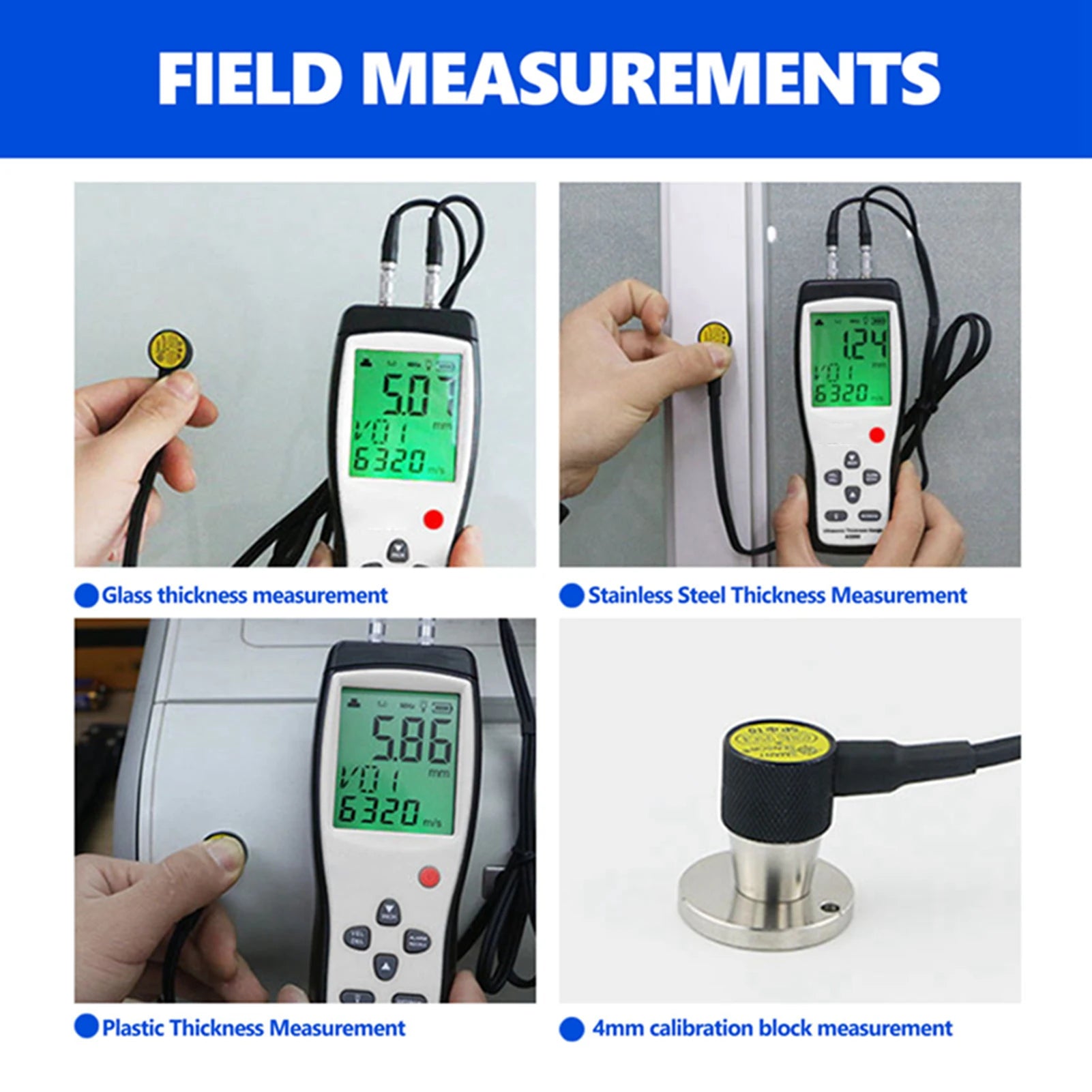

3. Thickness measurement Put the coupling agent on the area to be measured to couple the transducer with the hardware/workpiece, LCD will display the thickness reading. Notes:  icon on the screen indicates a well coupling, if the icon flashes or not shows that means a poor coupling. After remove the transducer, the reading will be hold.
4. Sound velocity measurement With a given thickness to read out sound velocity of material: Obtains the thickness of material by using vernier caliper / micrometer, then couple the transducer with that sample material until a reading displays on the LCD, remove the transducer and press or to adjust the reading match the thickness by caliper/mirometer, then press VEL to display the sound velocity and save in current velocity memory unit.
5. Data storage (1) Keep pressing STORE for 2 seconds to enter save thickness data mode, LCD display THICKNESS, mm, M icon with first memory unit. If the first memory unit is not being registered, so LCD will display 0.0. (2) Press or to select your desired memory unit (1-10). (3) After picked up the memory unit, it will begin to work. While measuring, the memory unit NO will flash and the new measurement will be renew the memory unit, when the measurement completed, the last reading will be stored in the selected memory unit automatically with the memory unit NO stop blinking.
6. Review the saved data Press the memory unit NO and stored data displayed. You can review the saved data in 1-10 units by pressing" " and" " and they are read-only. Press "STORE"will back to measurement mode.
7. Low battery indication When icon flashes, please replace the batteries for further measurement.
8. LCD back light & Automatic power off Before turn on the gauge, hold pressing "CAL ", and press ON/OFF button to turn on, the back light will active, every operation will turn on the back light for 7 seconds until press ON/OFF to turn off the unit. If no any operation for 2 minutes, the gauge will turn off automaticly and the back light function will be cancelled.

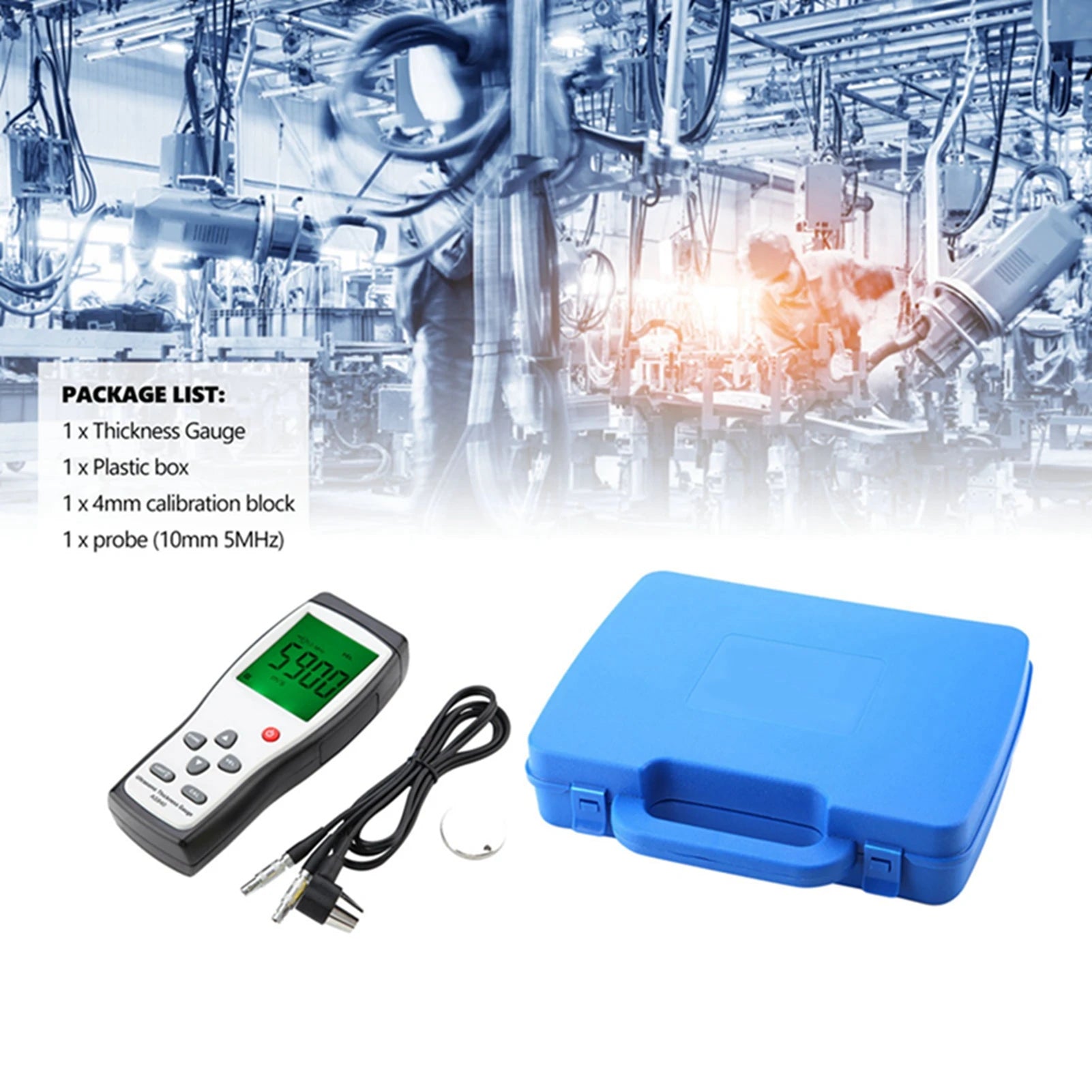

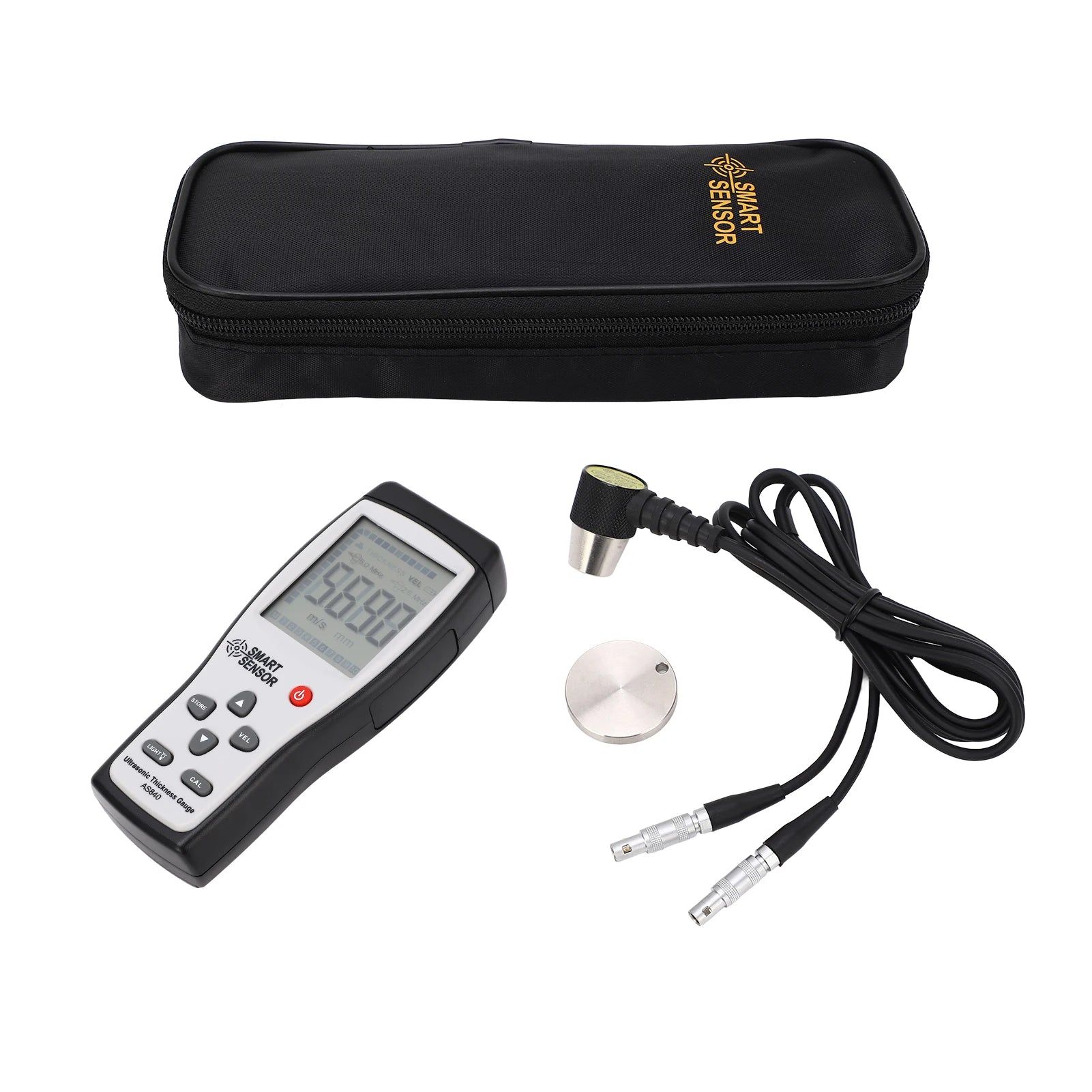

Package list:
1 x Thickness Gauge
1 x 4mm Calibration Block
1 x Probe (10mm 5MHz)
1 x Storage Bag
Note:

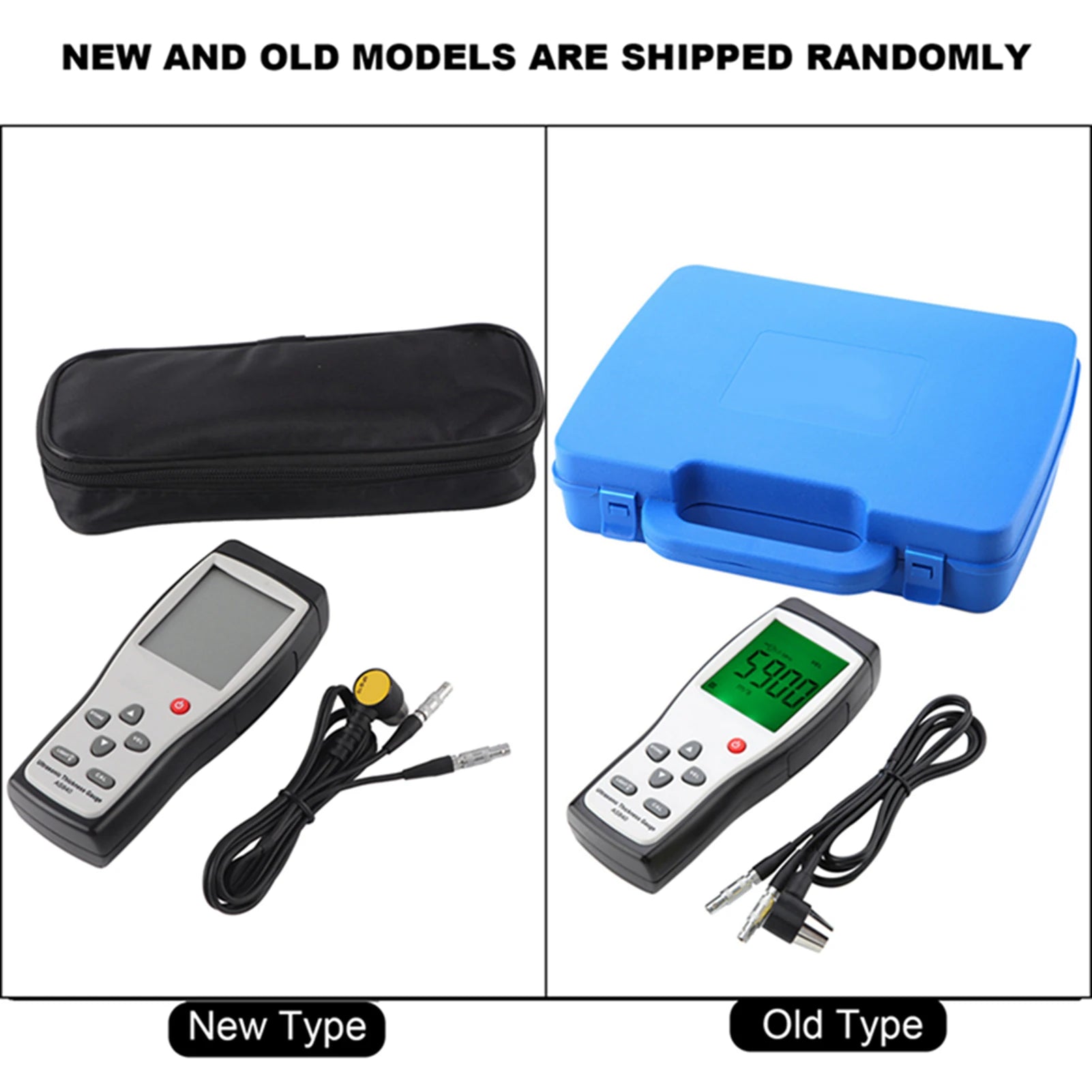

Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.

Package List:
1 x Thickness Gauge
1 x 4mm Calibration Block
1 x Probe (10mm 5MHz)
1 x Storage Bag
