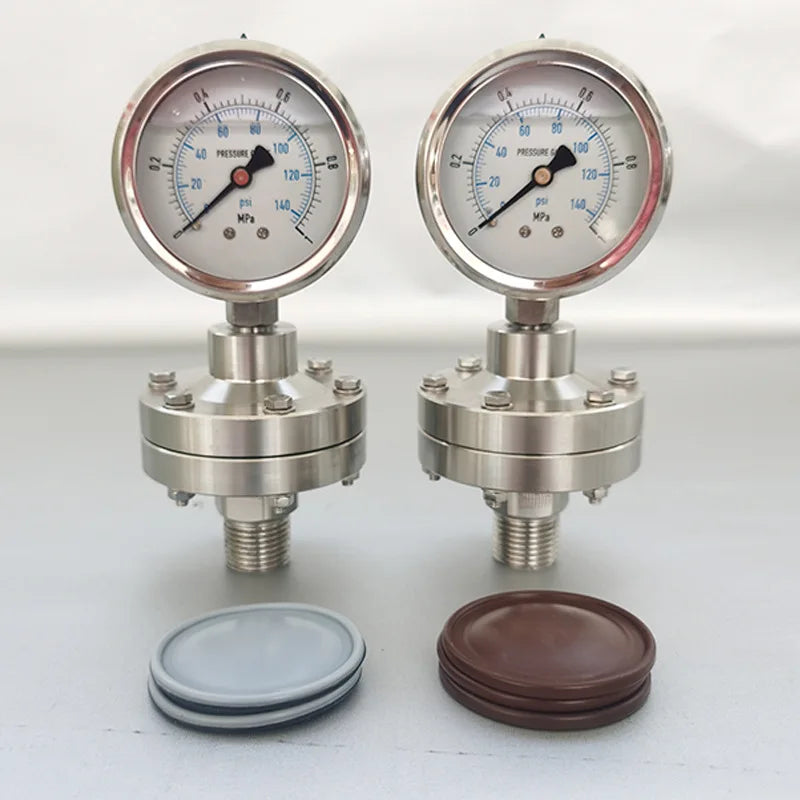

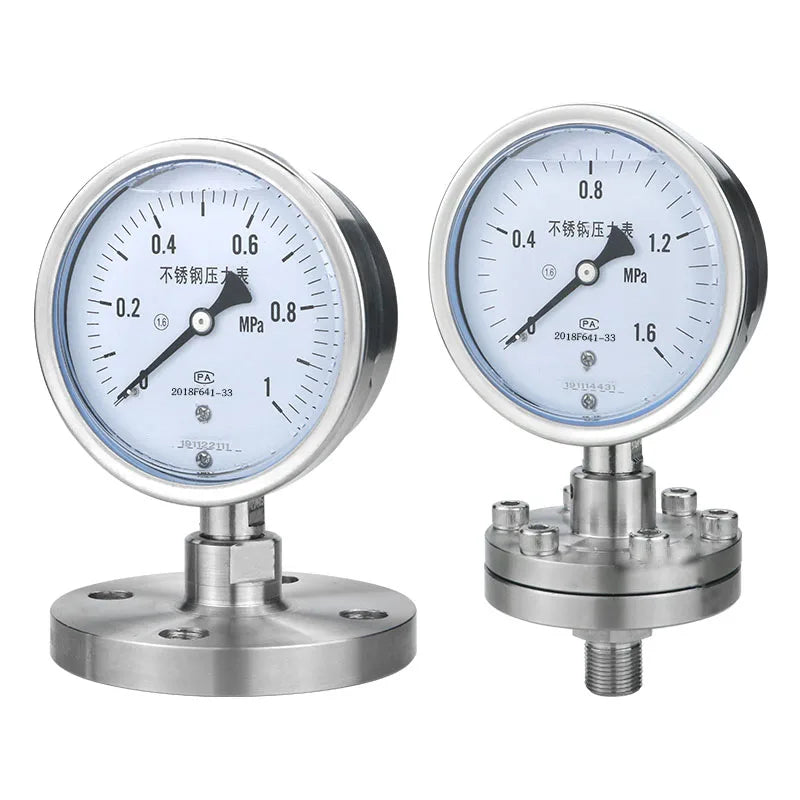

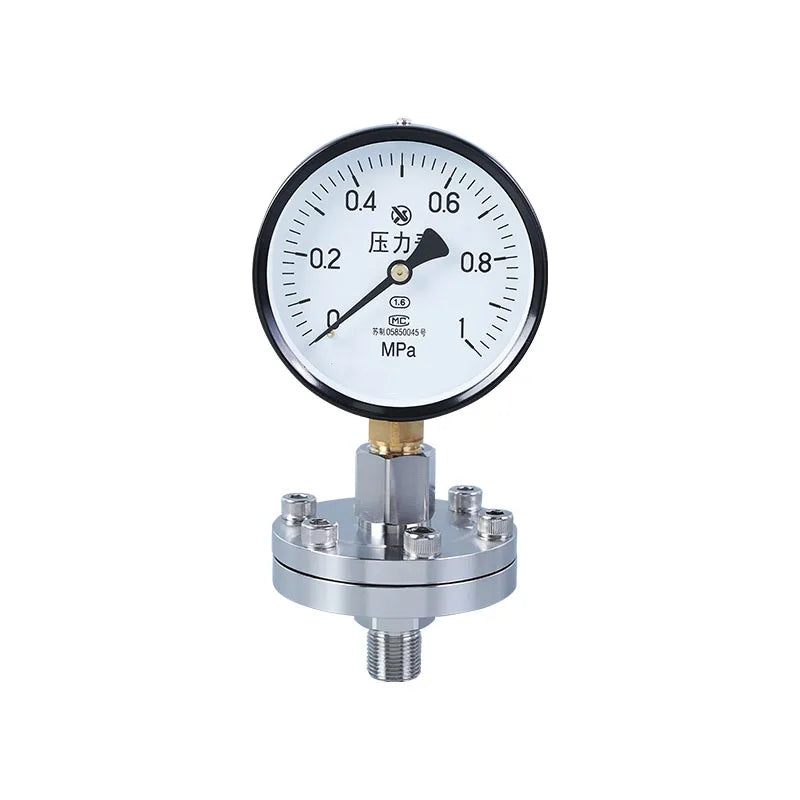

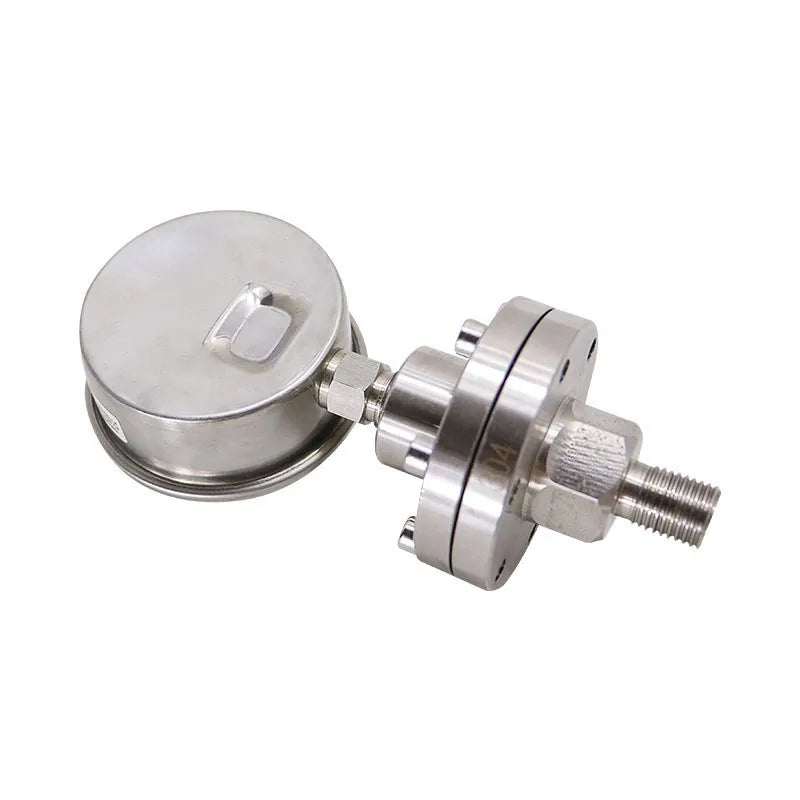

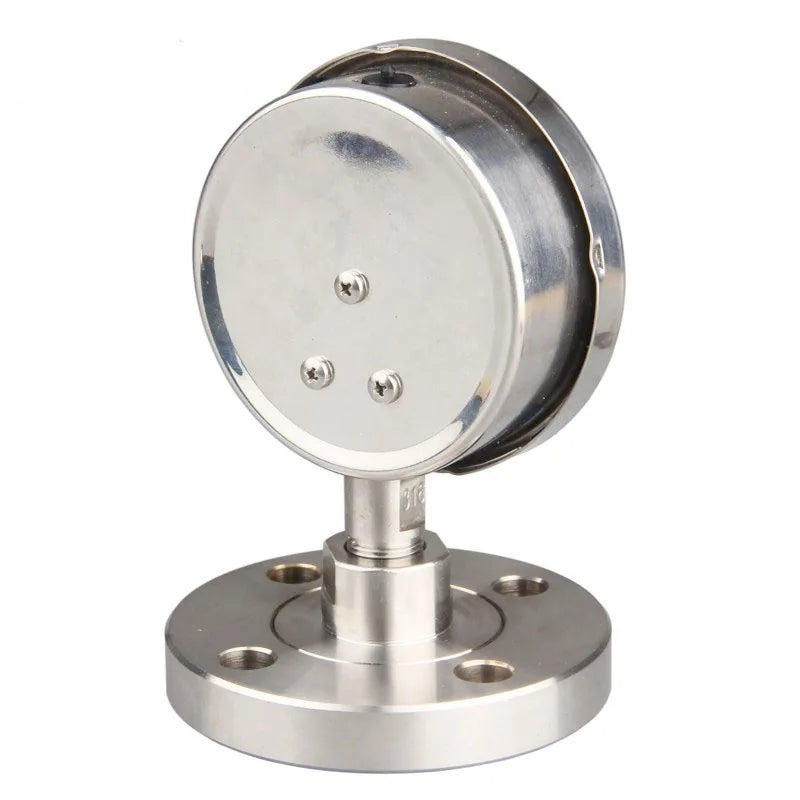

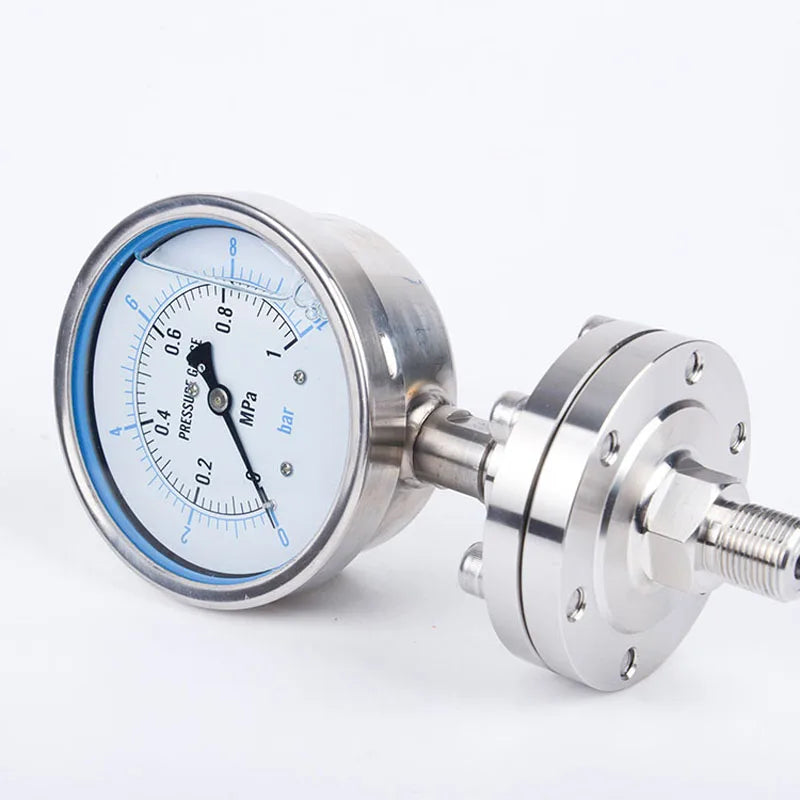

SS304 Stainless Steel DN50 M20*1.5 Diaphragm Pressure Gauge Liquid Application Membrane Manometer Gauge
SS304 Stainless Steel DN50 M20*1.5 Diaphragm Pressure Gauge Liquid Application Membrane Manometer Gauge
SPECIFICATIONS
Application: Liquid
Brand Name: NONE
Certification: NONE
Connection thread: M20*1.5 G1/4 G1/2 NPT1/2 NPT1/4
High-concerned chemical: None
Liquid: Silicone or Glycerin Oil
Material: Stainless Steel 304
Movement: 316 Stainless Steel
Origin: Mainland China
Pressure range: 2.5Mpa
Product Name: Oil Filled Pressure Gauge
Temperature Range: -40-200°C
brand name: Yanken
customized support: OEM, ODM
model number: YK100
place of origin: Shanghai, China
warranty: 1 year
Specification and model: YTP-100 stainless steel diaphragm pressure gauge
Dial diameter:100mm
Flange size: DN25 flange connection M20 * 1.5 threaded connection
Measurement range: 0-1MPA [full range supply]
Connection type: flange connection/threaded connection
Accuracy level: 1.6
Material: 201/304 stainless steel flange, 304 stainless steel gauge head, 316 diaphragm
Color: Body bright color, flange bright color
Environmental conditions for use: -40~200 ℃, relative humidity not exceeding 85%
Product Name: |
All Stainless Steel Pressure Gauge |
Normal Size: |
2.5"(63mm),4"(100mm),6"(150mm). |
Pressure Range: |
-1Bar(-30"Hg)-0-1000Bar(15000Psi) |
Accuracy: |
±1%,±1.6% |
Operating temperature: |
-20°C to +60°C |
Case: |
Stainless steel |
Bezel: |
Stainless steel |
Bourdon tube: |
Copper alloy or Stainless steel <100Bar: C-Type ≥100Bar: Helical Type |
Connection: |
304 or 316 Stainless steel |
Movement: |
316 Stainless steel |
Dial: |
Aluminum |
Pointer: |
Aluminum |
Window: |
Safety or Tempered Glass |
Thread: |
1/8",1/4", 3/8",1/2"; PT(BSPT,ZG),BSP(G,PF),NPT etc. |
Liquid: |
Glycerin or Silicone |
Gaskets Filling cap: |
Nitrile or Silica gel |
1.Q: How about the warranty ?
2 Q: How about the management quality?
A: We have complete quality control system, and all the products will be inspected by QC department before delivery.
