SPECIFICATIONS
Brand Name: ZGCJ
Display Type: ANALOG
High-concerned chemical: None
Model Number: CJ-YBT
Origin: Mainland China
Semi-finishedproduct: No
submersible type liquid level sensor 4-20mA 0-5V 0-10V RS485 output 1m 2m 3m 4m 5m 6m 7m 8m 9m 10m 15m range water level transmitter
Package will inlcude:
1 pcs liquid level sensor
Product Overview

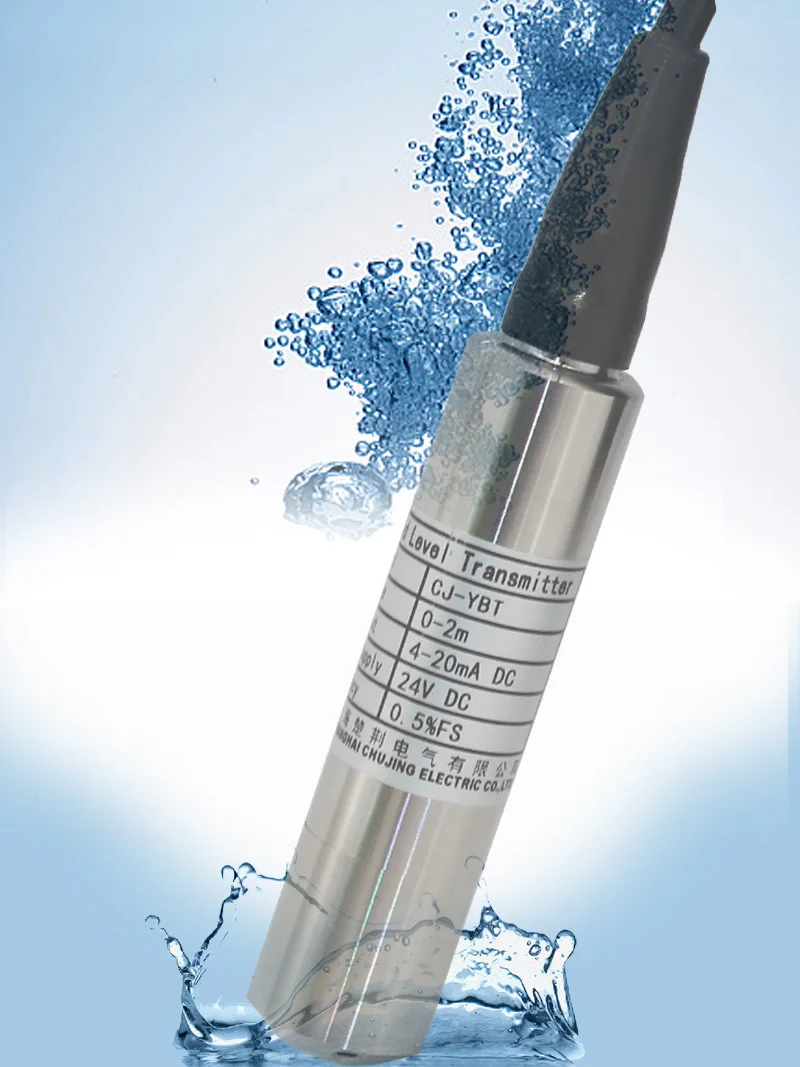

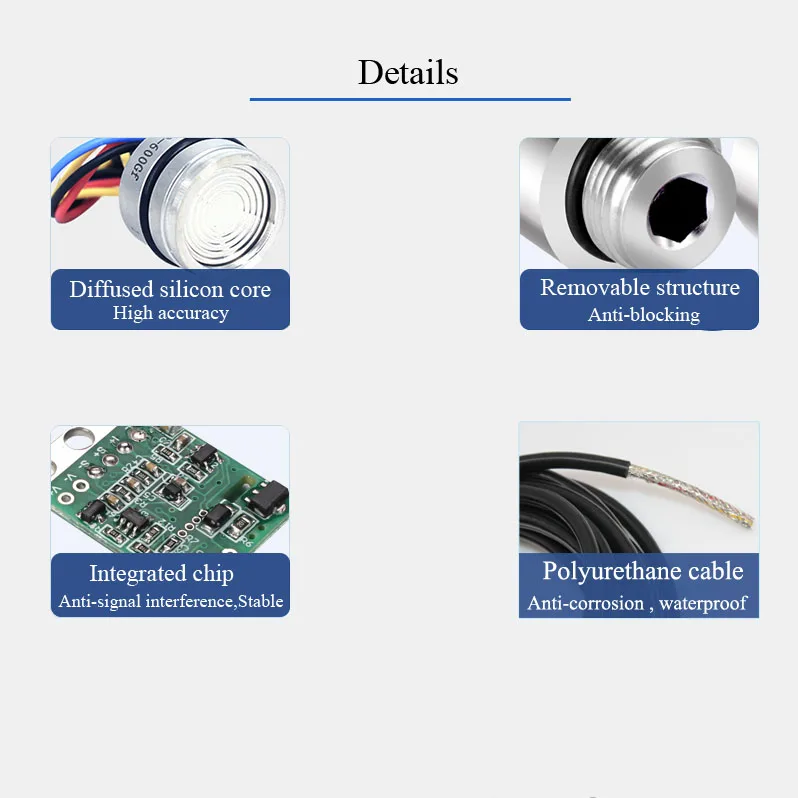

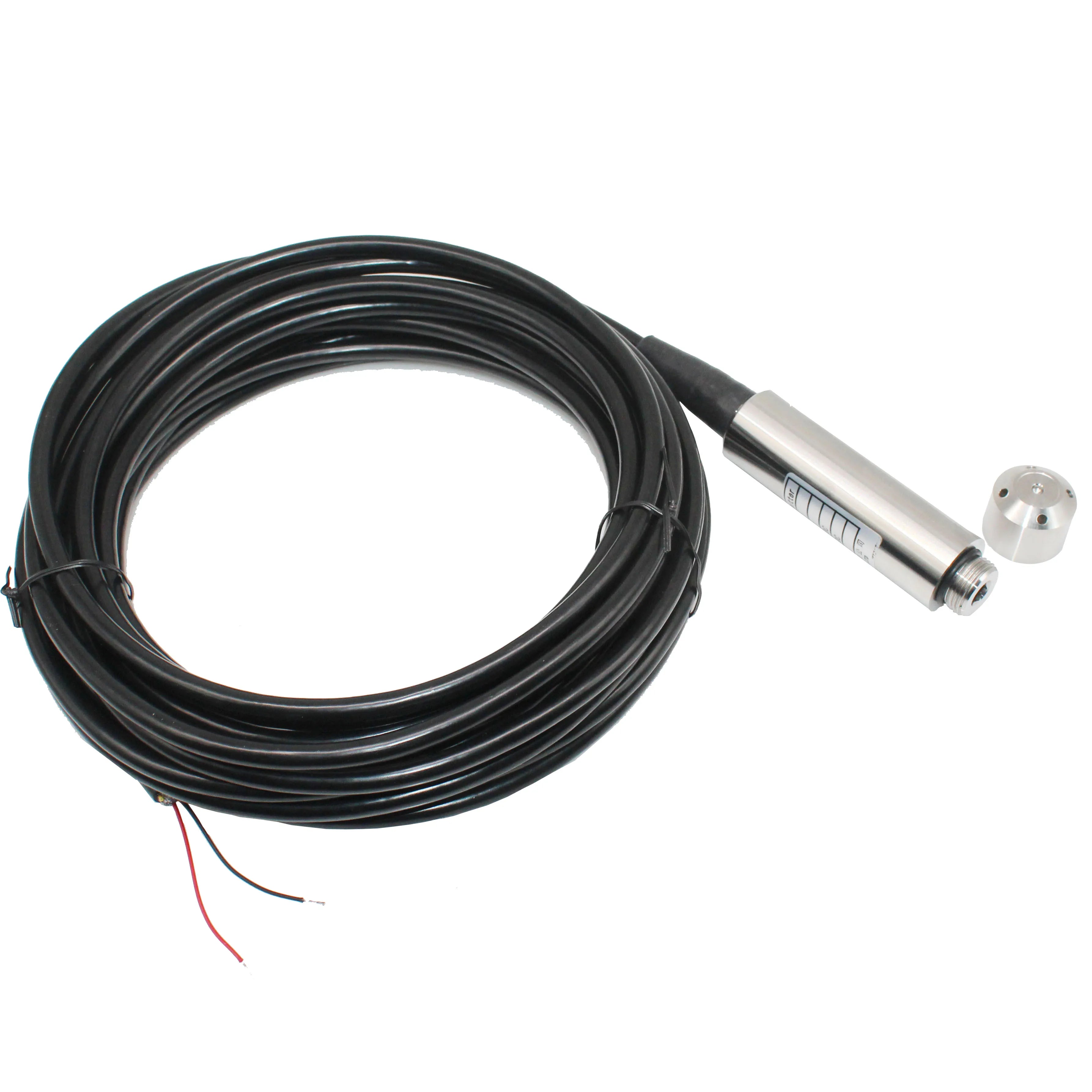

The input level/water level transmitter uses a diffusion silicon chip to encapsulate the diffusion silicone oil-filled core in a stainless steel housing. The front end protective cap functions as a protective sensor diaphragm, and also allows the liquid to smoothly contact the diaphragm. Wire and housing are sealed and connected. The vent pipe is connected to the outside in the cable. The internal structure is designed to prevent condensation. Built-in micro signal processing circuit can be used for remote transmission. It has good stability and reliability.

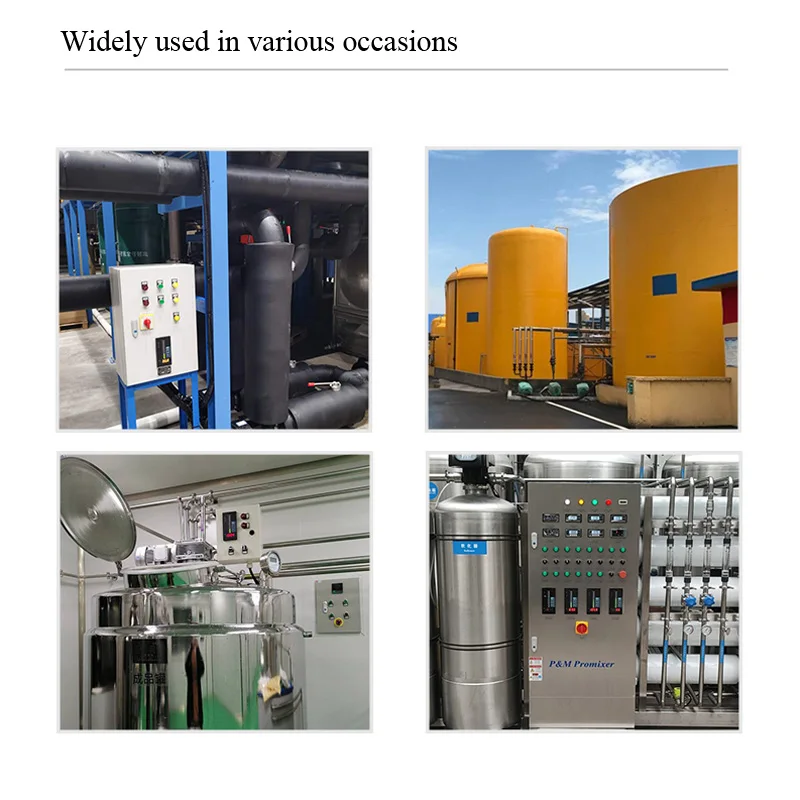

2. Application range
Widely used in water plants, sewage treatment plants, urban water supply, high-rise pools, wells, mines, industrial pools, water tanks, oil pools, hydrogeology, reservoirs, rivers, oceans and other places
3. Technical parameters
◆ fully enclosed circuit, with moisture, condensation, anti-leakage function
◆ One-piece
◆ Accuracy: 0.5%FS
◆ Appearance size is about 145mm, diameter 28mm
4. Technical parameters:
Measure range: 0-15m
Cable length:1-15m
Allow overload 2 times full scale pressure
Working temperature -20～60°C
Temperature compensation -10～60°C
Storage temperature -40～80°C
Output signal : 4-20mA/0-10V/0-5V/RS485
Power supply:
Sensor: 10~30 VDC (standard voltage 24VDC)
Shell Material 304 Stainless Steel

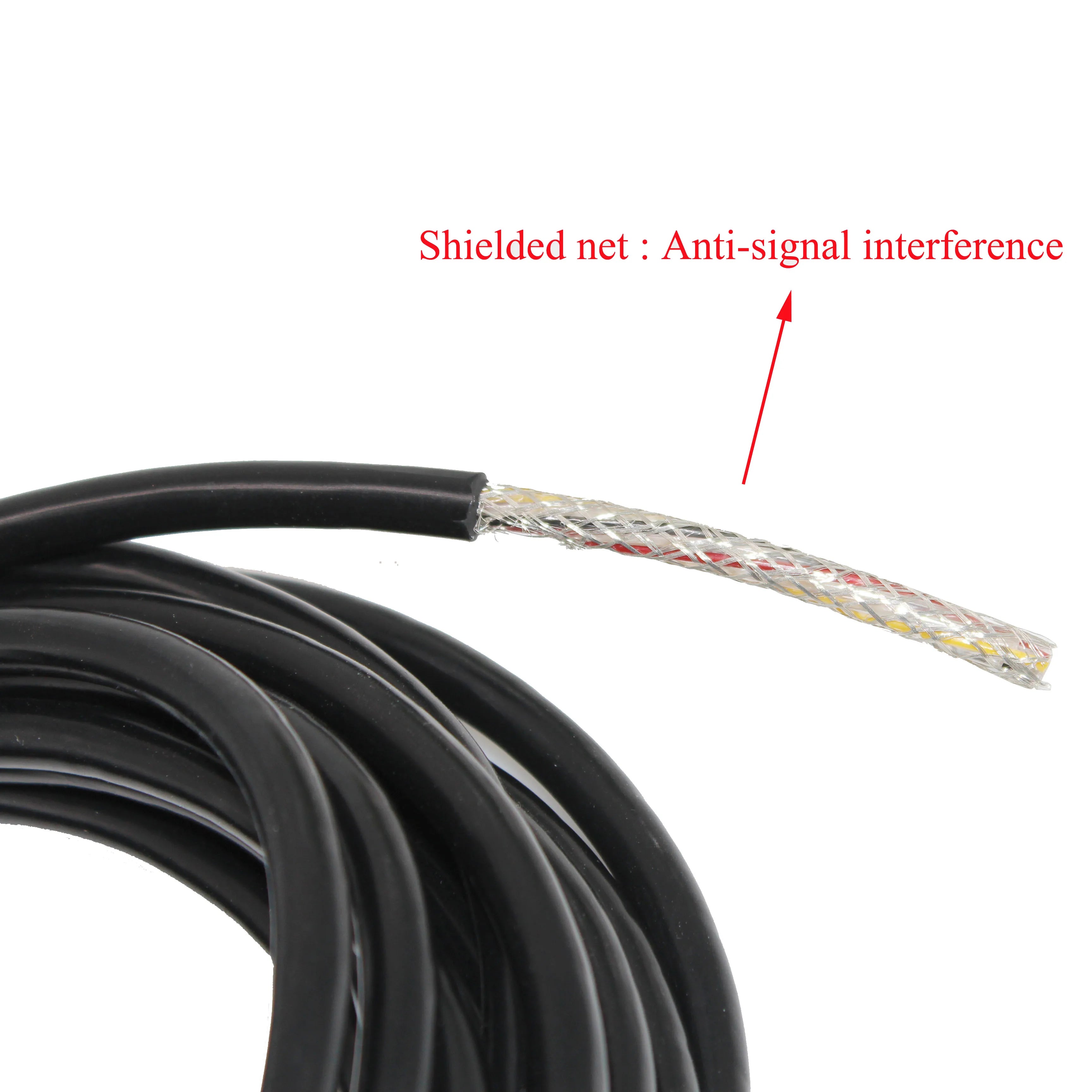

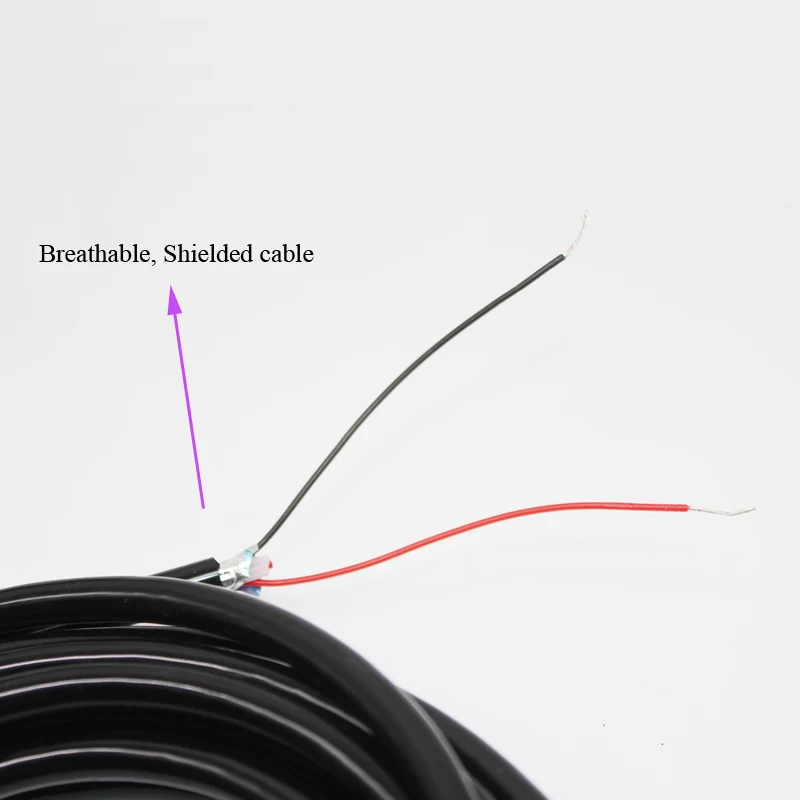

Cable waterproof breathable cable
Protection class IP68

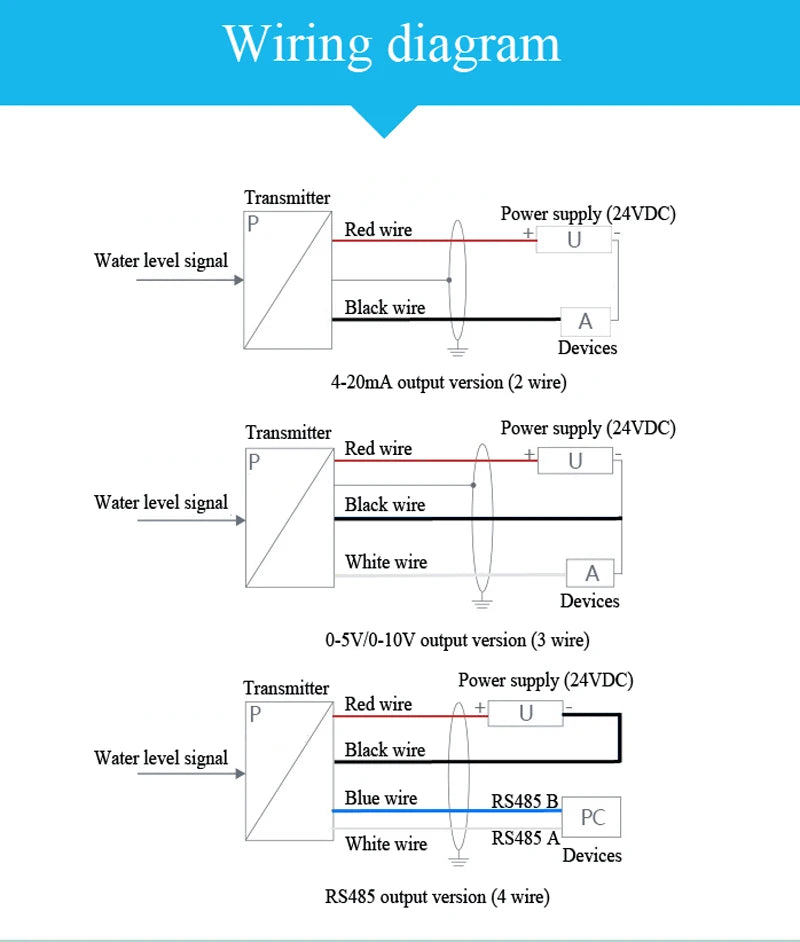

Product:

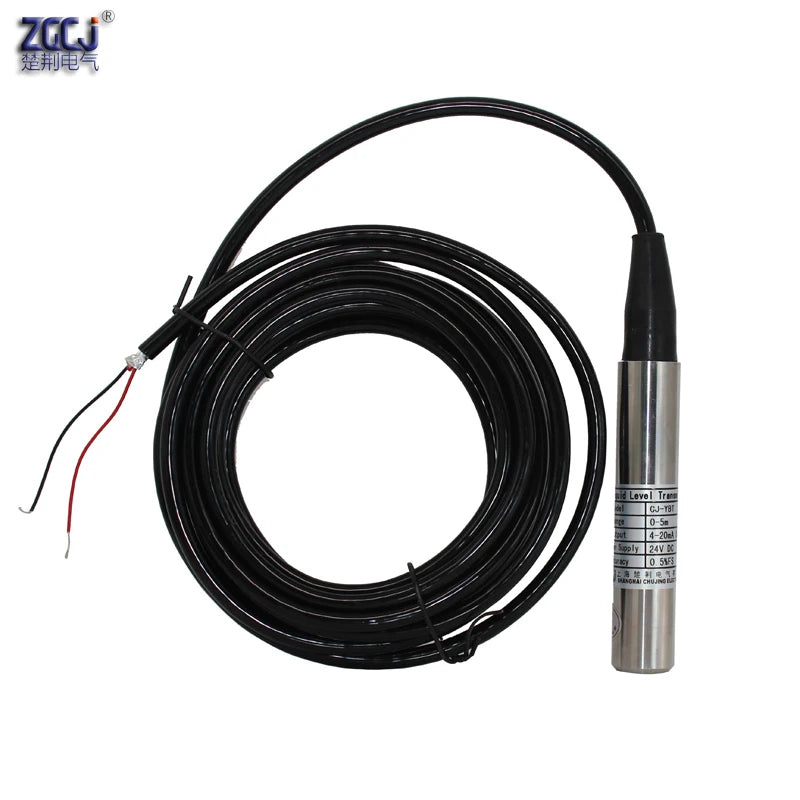

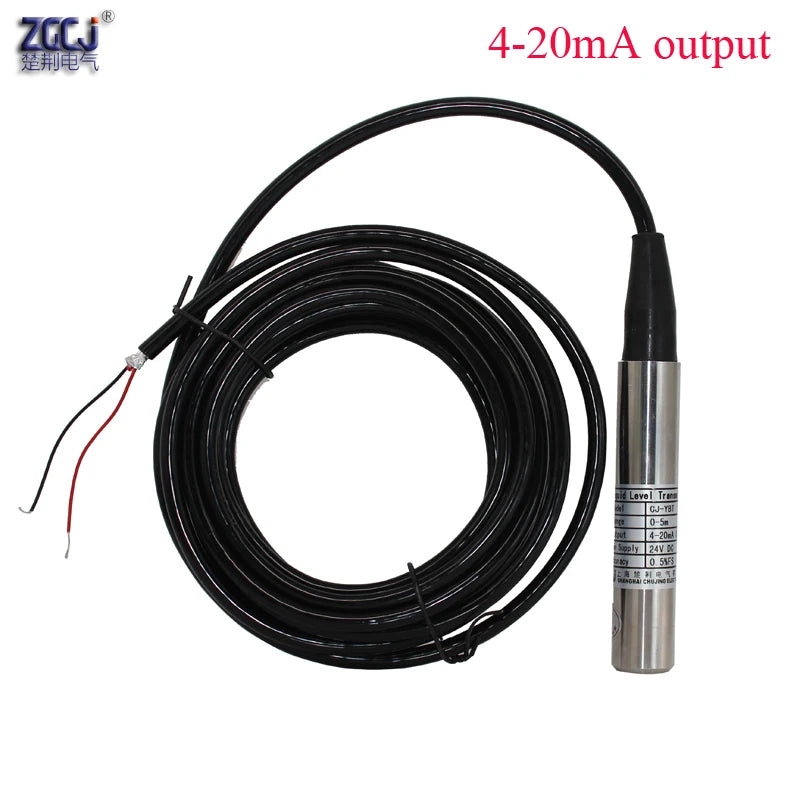

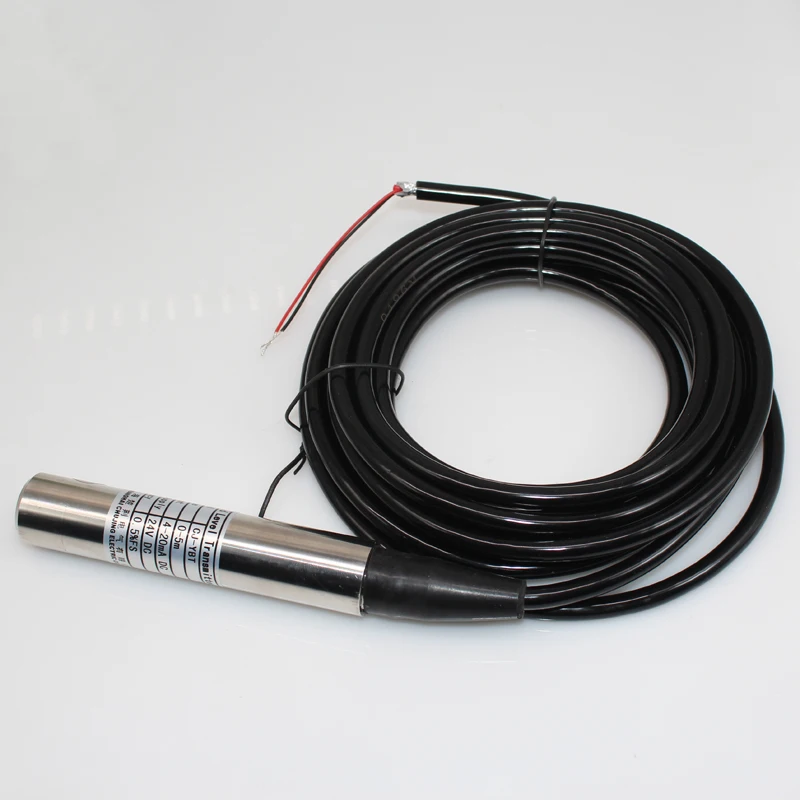

4-20mA output version (2 wire type):

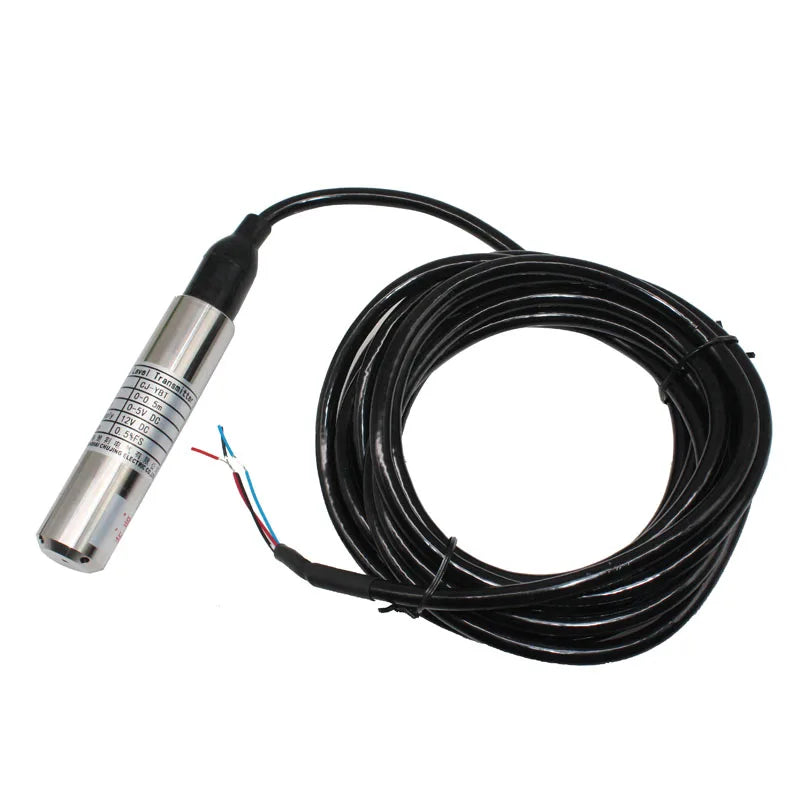

0-5V/0-10V output version (3 wire type):

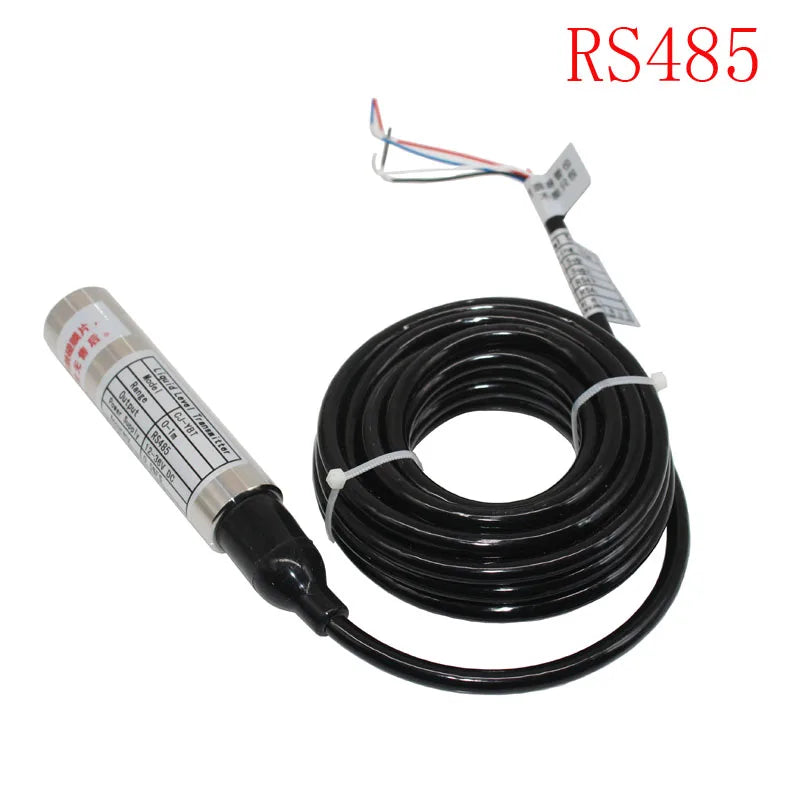

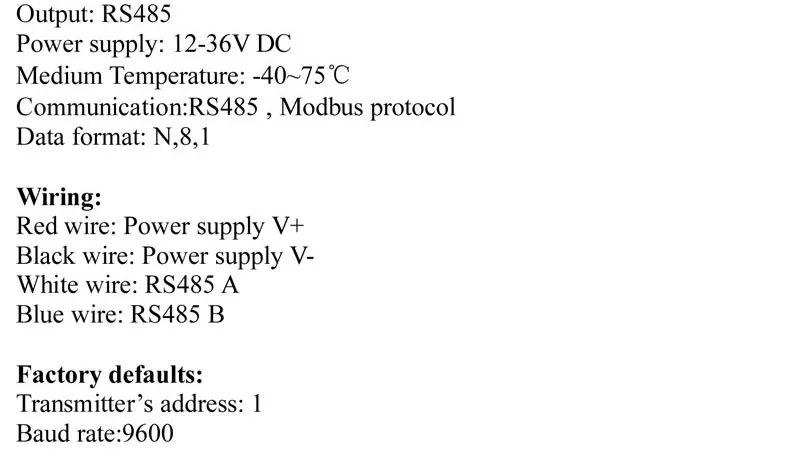

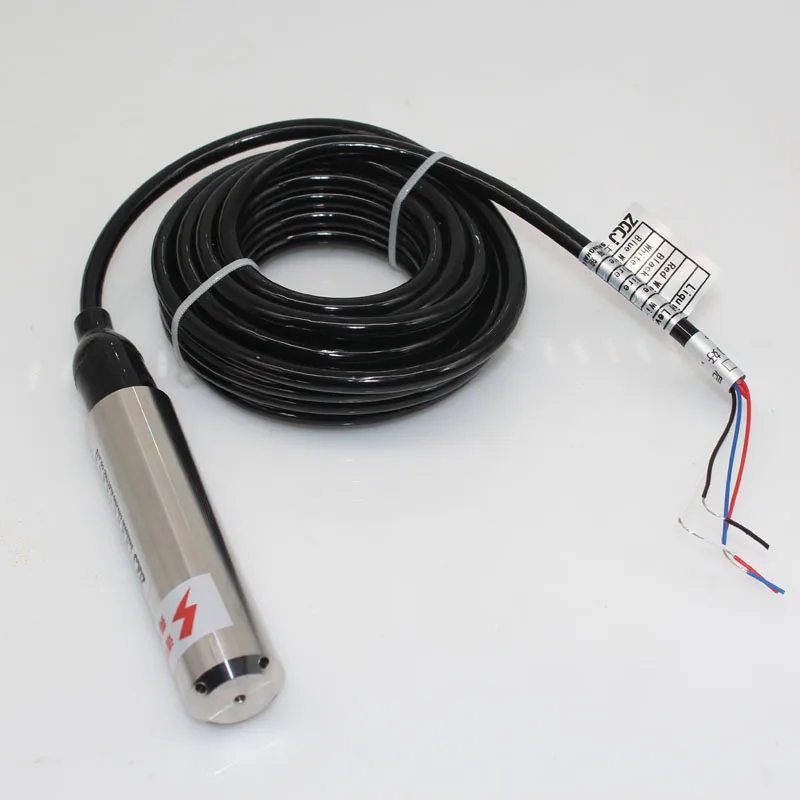

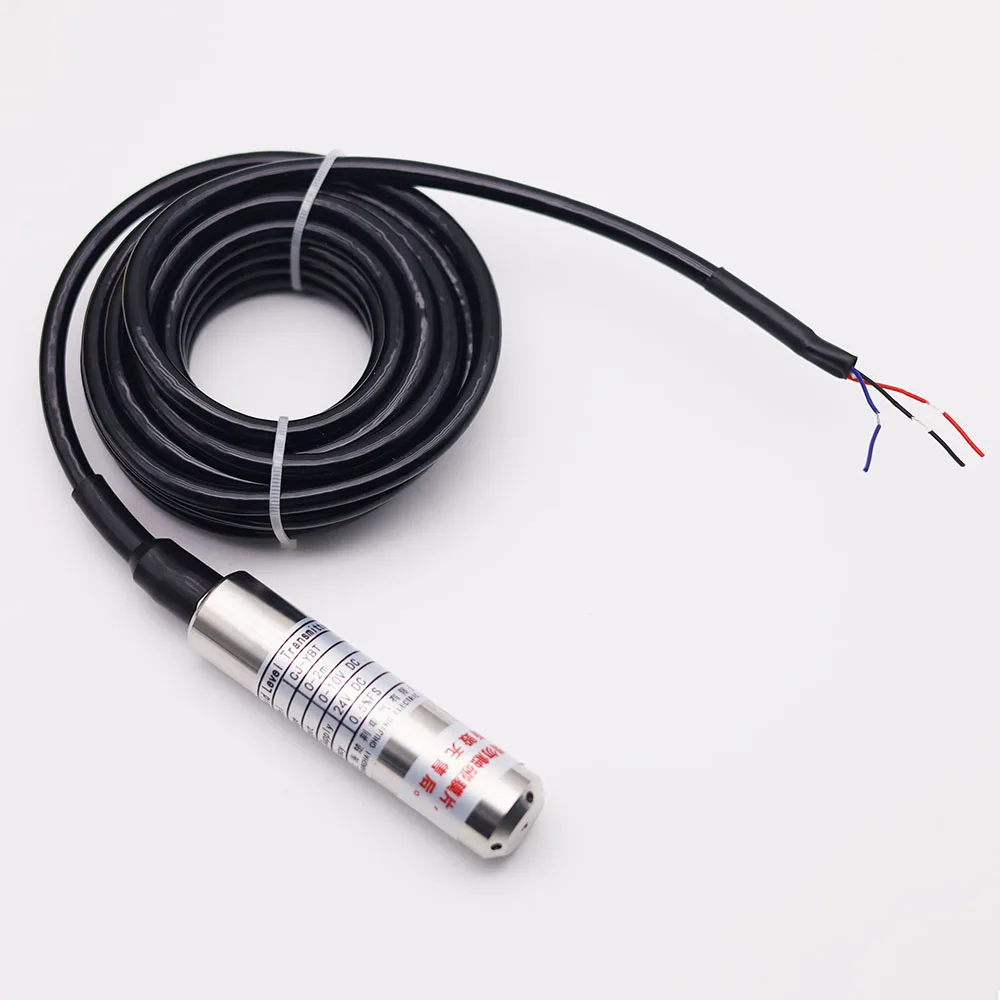

RS485 output version (4 wire type):

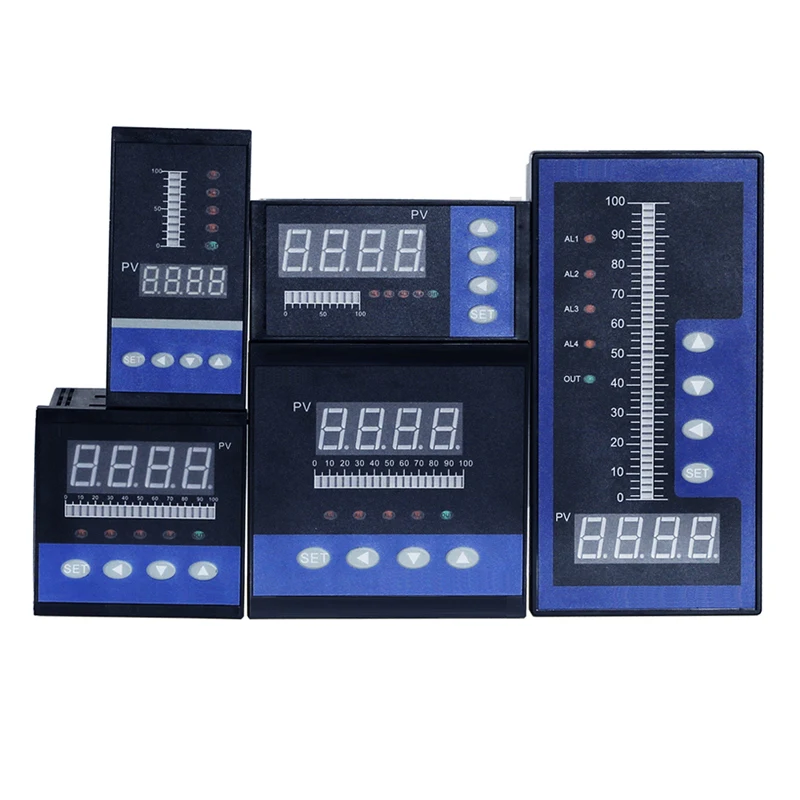

We also sell display meters , if you are interested in it , please click next picture:
