SPECIFICATIONS

Battery Included: no

Brand Name: NONE

High-concerned chemical: None

Origin: Mainland China

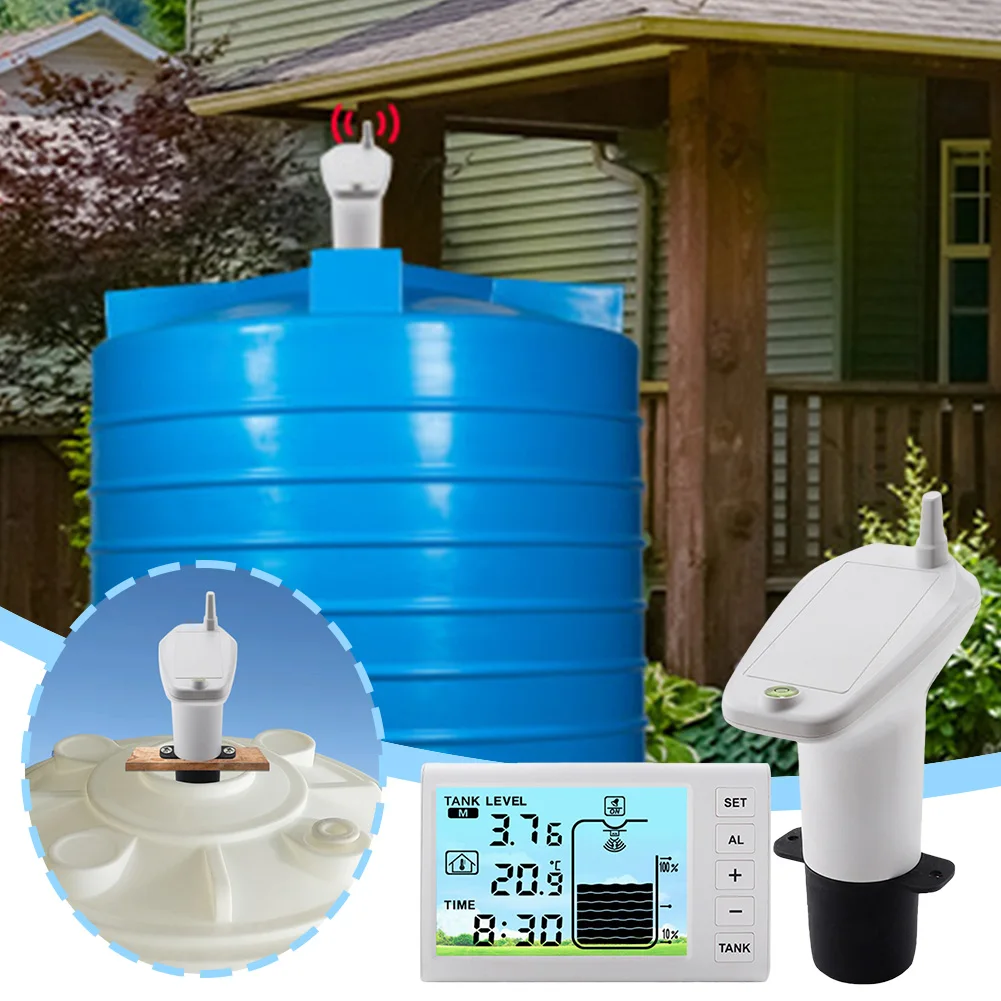

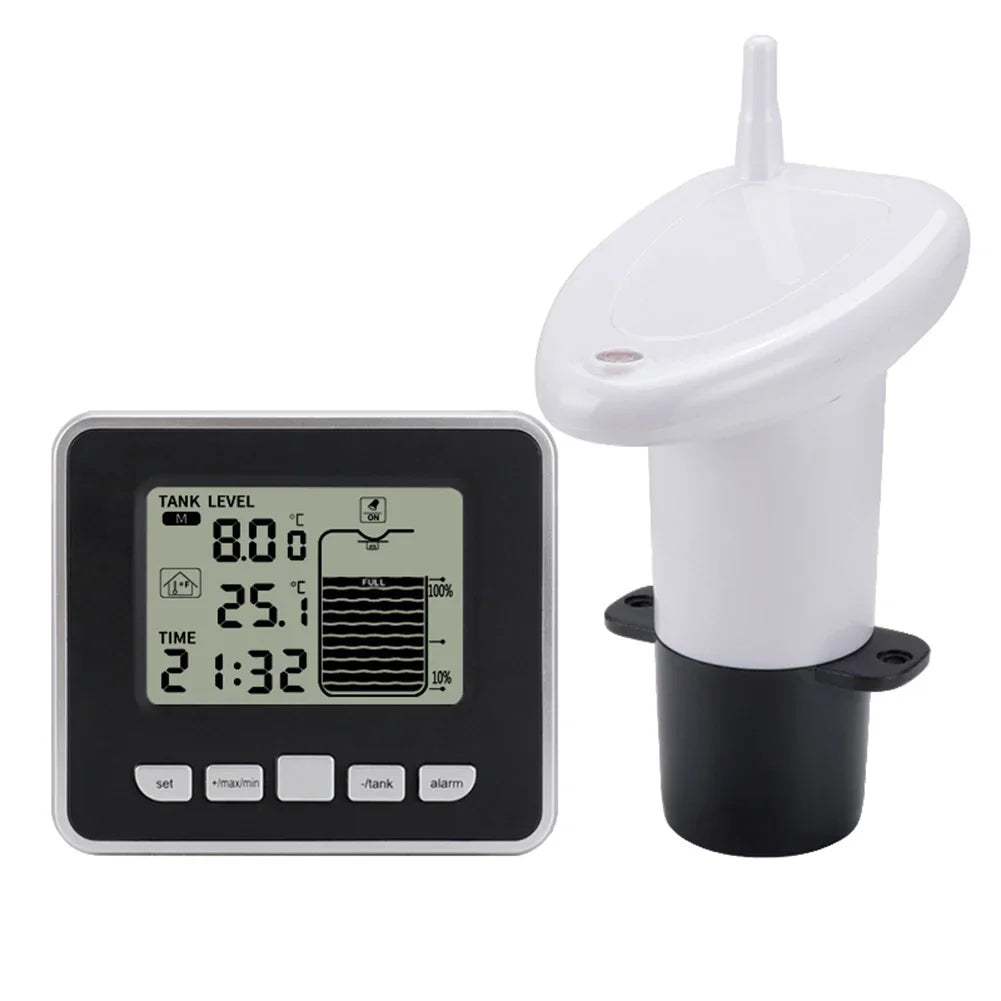

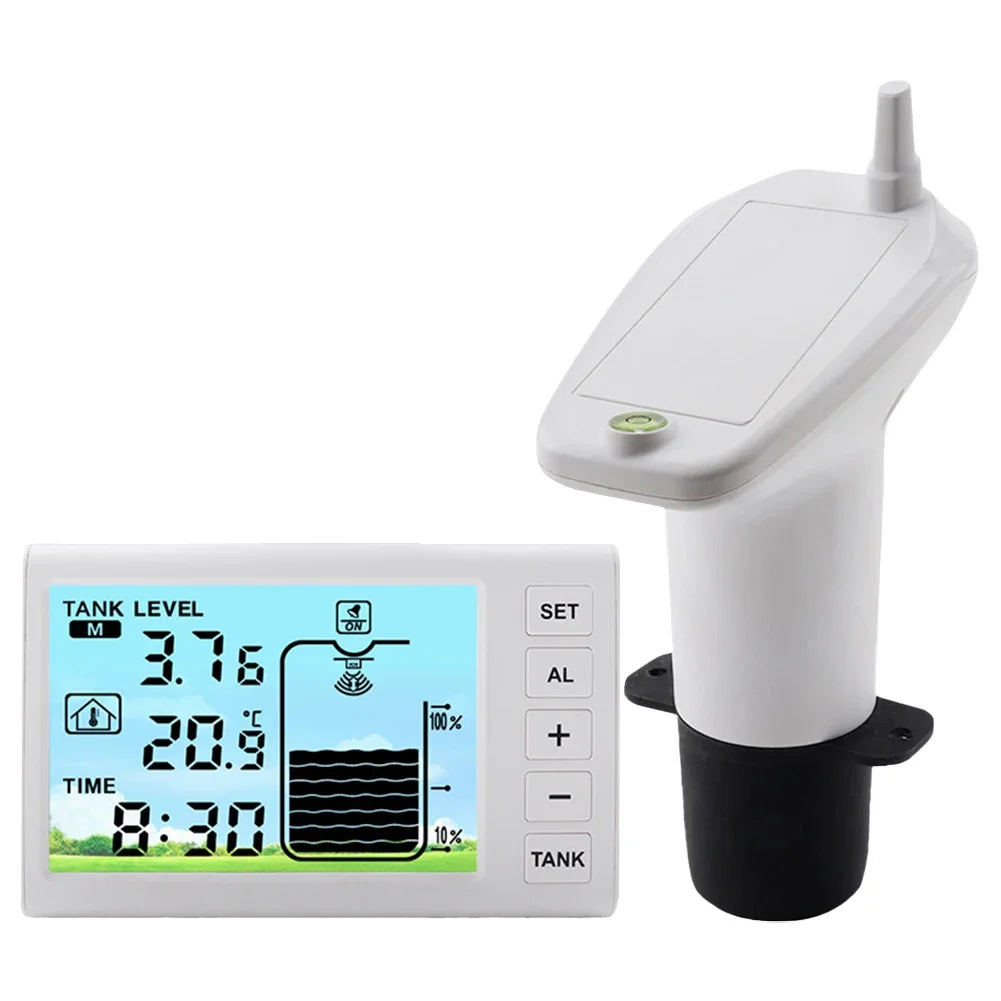

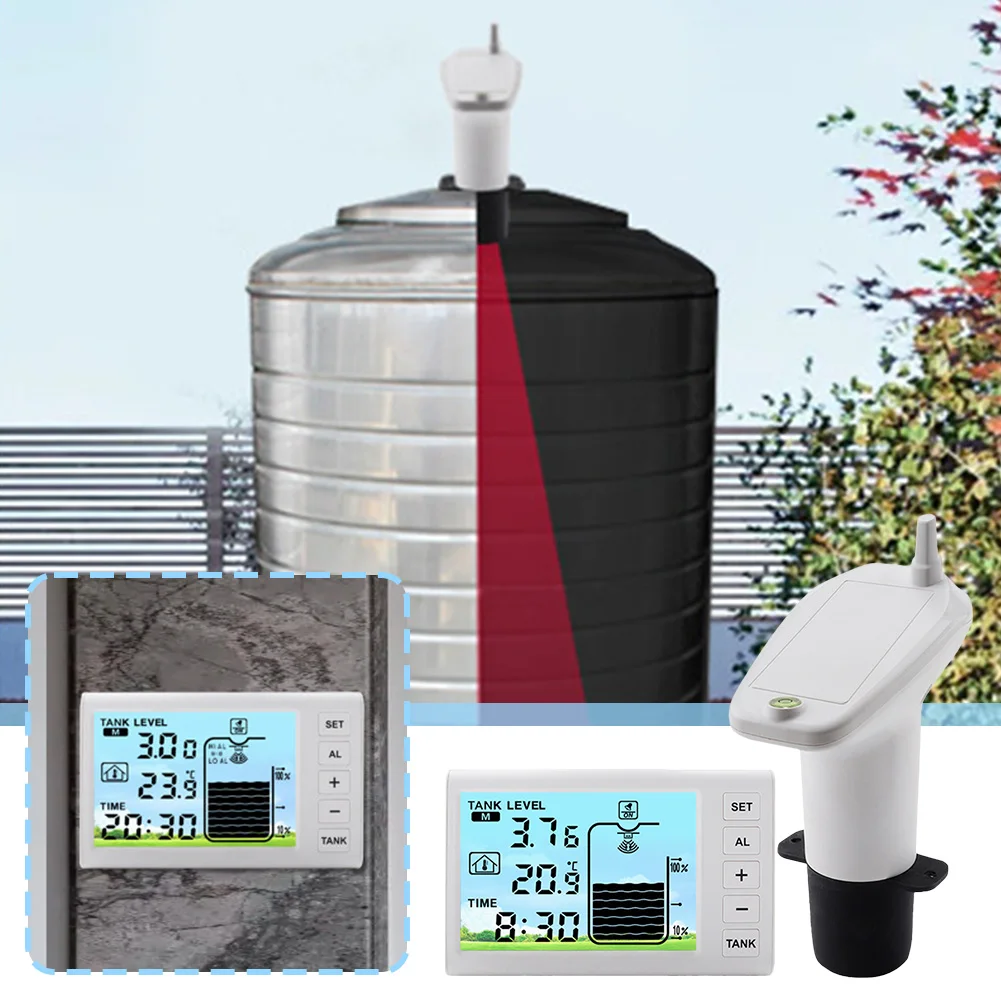

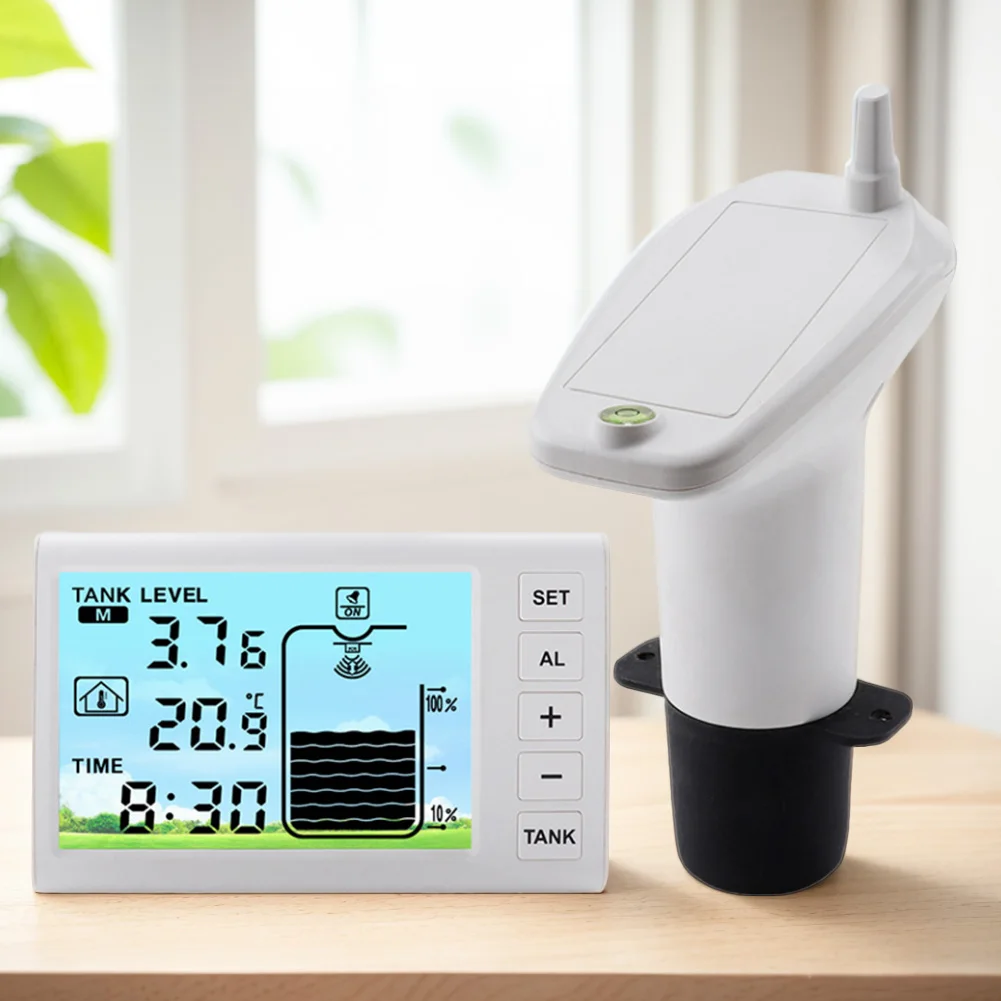

Ultrasonic Water Tank Liquid Depth Level Meter Temperature Sensor Time Display W/ Alarm Ultrasonic Tank Liquid Depth Level Meter

Feature:

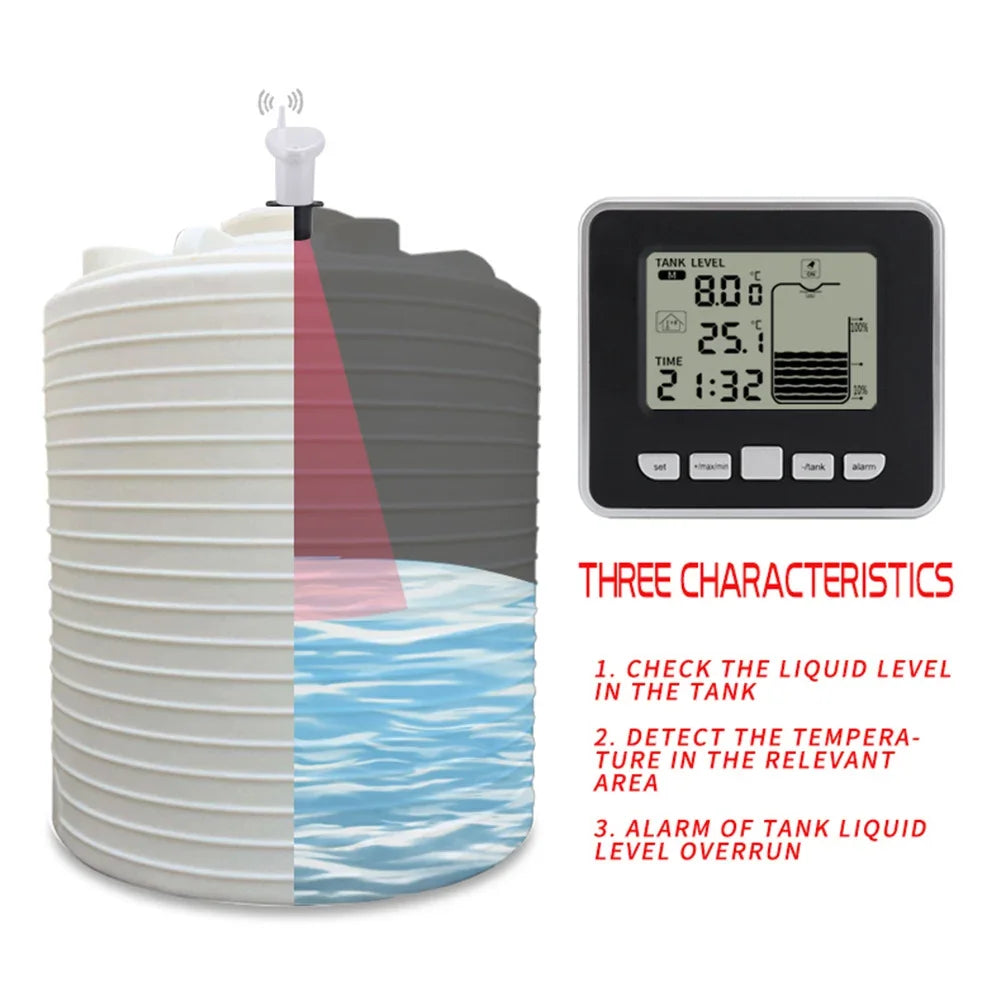

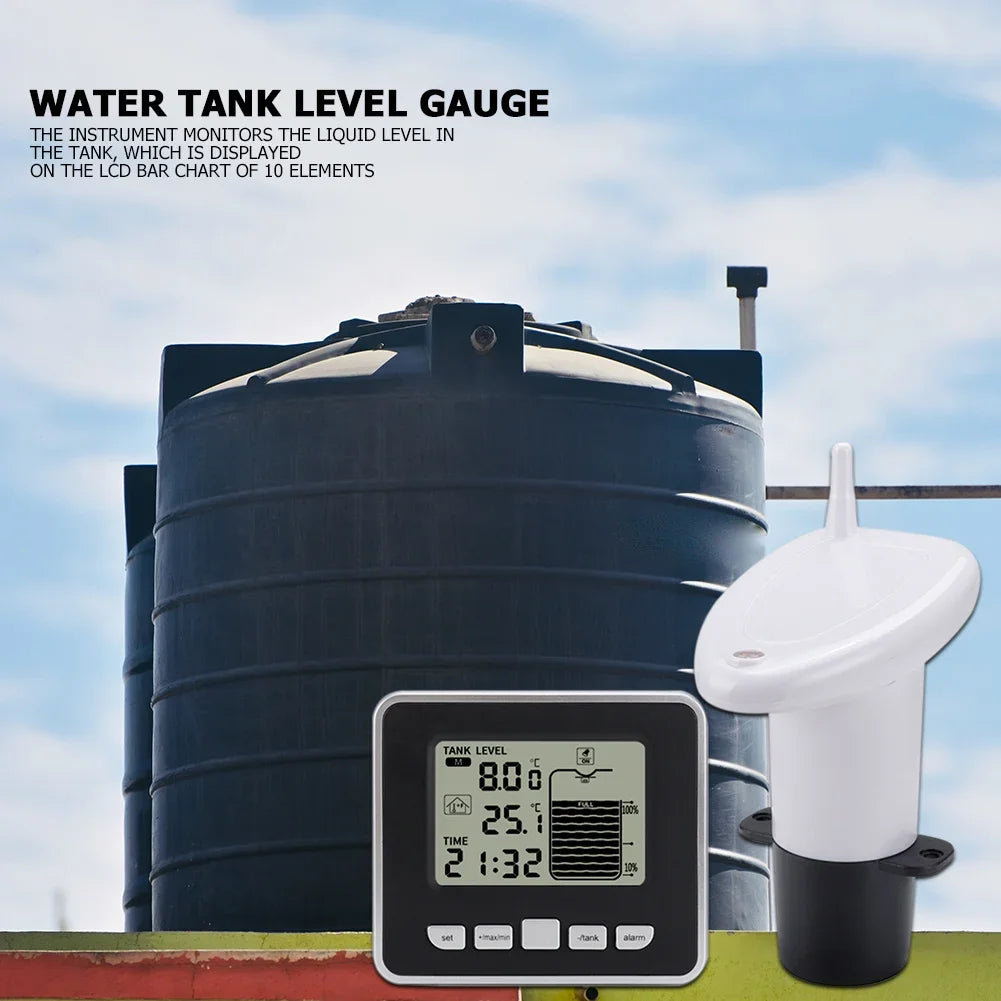

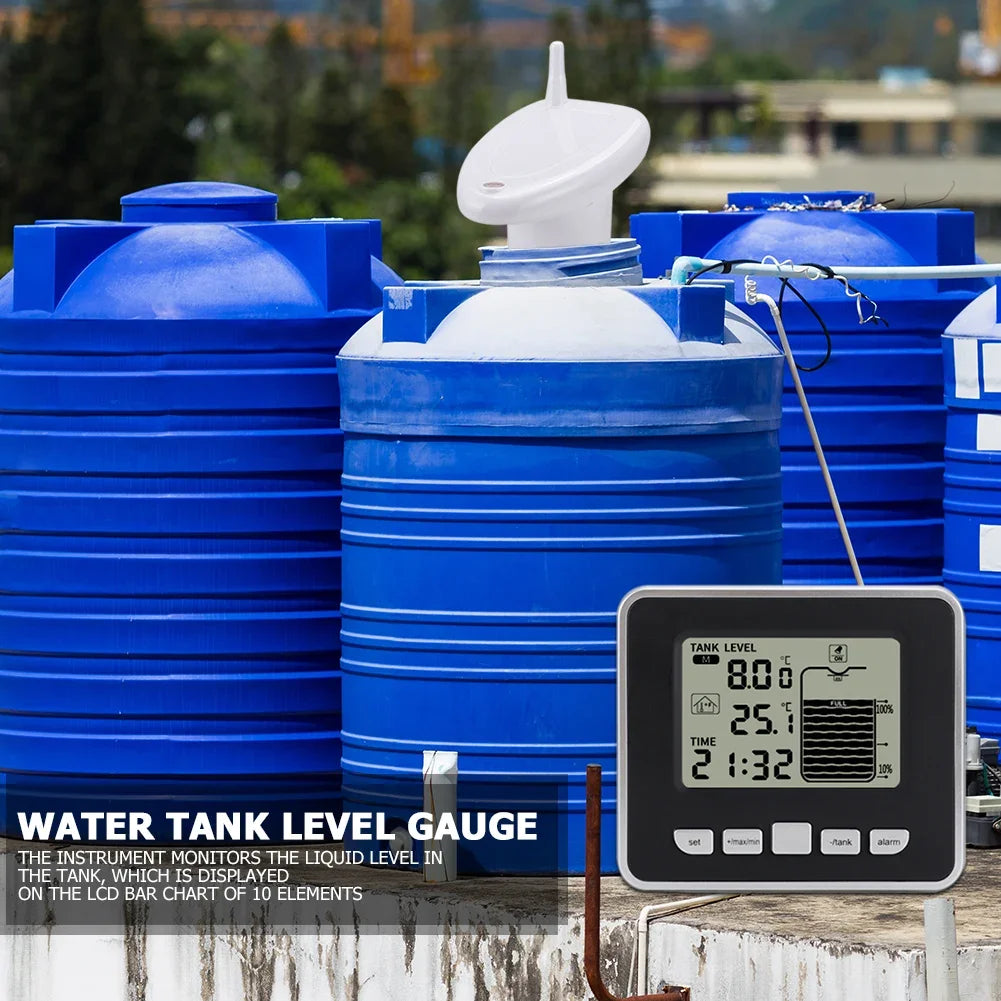

1. Clear and Intuitive Display: The ultrasonic water tank liquid level meter monitors the liquid level in the tank, which is shown on a 10-element LCD bar graph. This provides a clear and easy-to-read display, making it simple to quickly assess the current liquid level at a glance.
2. Comprehensive Record Keeping: The ultrasonic water tank liquid depth level meter can record the minimum and maximum liquid levels in the tank, allowing for efficient tracking and monitoring over time. This feature helps in analyzing usage patterns and detecting any unusual fluctuations in liquid levels.
3. Alert System: The ultrasonic level gauge supports high/low liquid level and empty tank alarms, ensuring timely notifications to prevent issues such as overflow or dry running. This proactive alert system helps in maintaining optimal tank conditions and avoiding potential damage or operational disruptions.
4. Dual Temperature Monitoring: The ultrasonic tank liquid depth level meter simultaneously displays both the internal temperature (°F or °C) and the tank temperature (°F or °C). This dual temperature monitoring provides comprehensive environmental data, which can be crucial for applications that are sensitive to temperature variations.

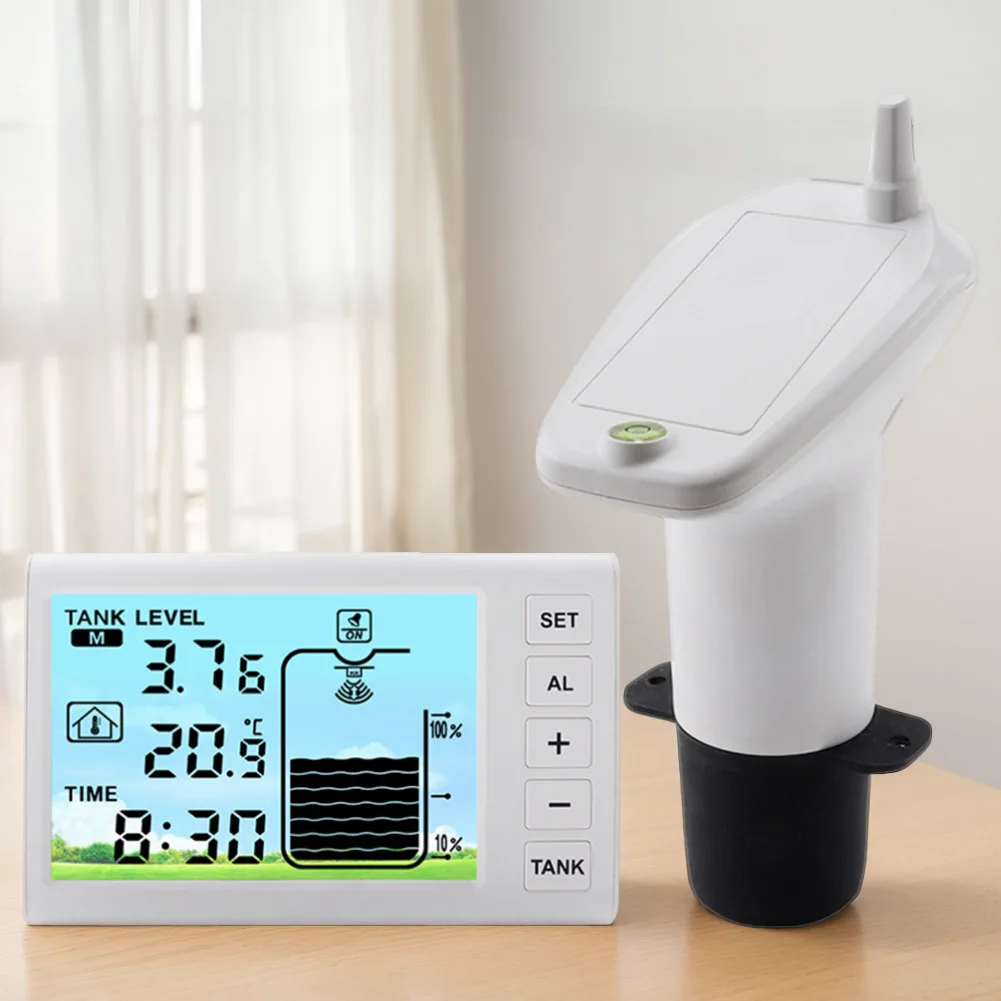

5. Flexible Installation Options: The receiver can be conveniently placed on a desk or mounted on a wall, offering versatile installation options to suit different settings. This flexibility ensures that the water level gauge can be easily integrated into various environments, enhancing its usability and convenience.

Specification:
Origin: Mainland China
Parameters:

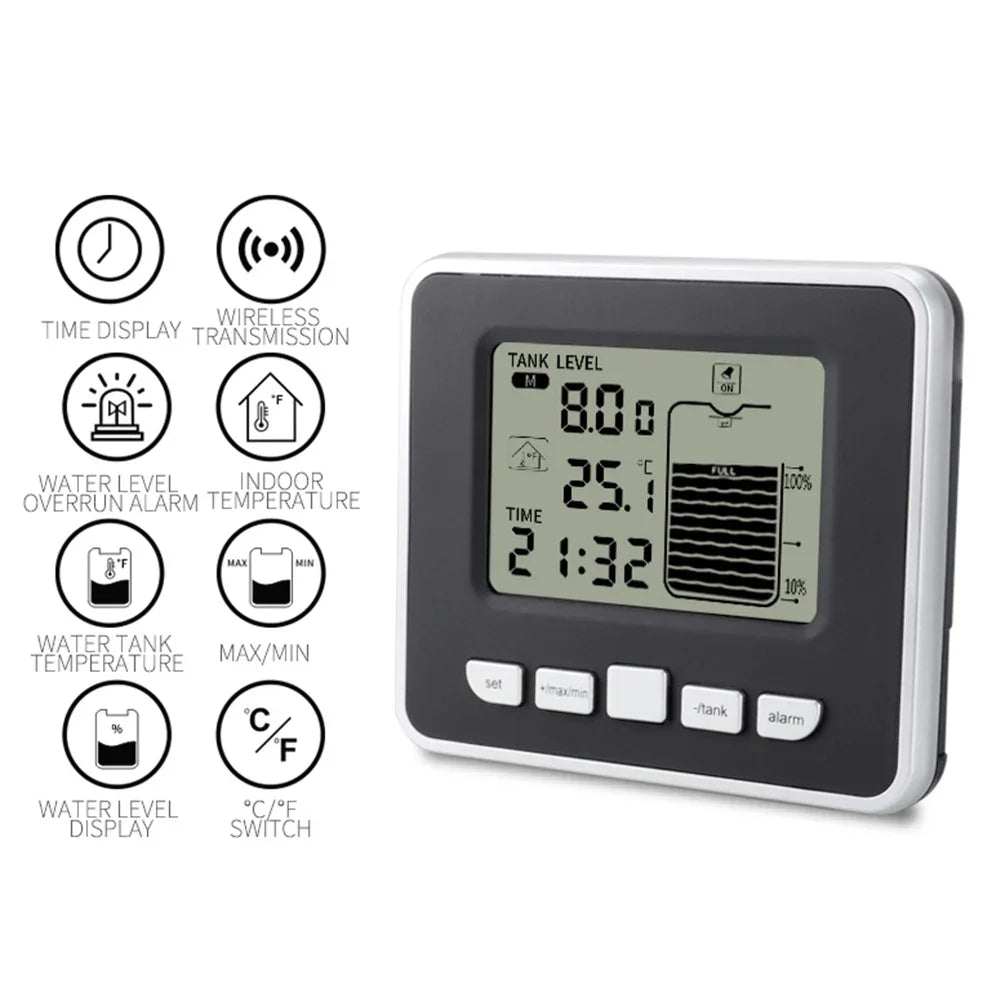

1. Backlight on/off function
2. Time function 12H/24H system (default display when powered on: 0:00 24 hours)
3. Transmitter low battery reminder
4. Alarm function (default display when powered on: 0:00)
5. Buzzer on/off (the buzzer function is turned on or off only for the key sound, the alarm mode is not affected by this)
6. Indoor temperature °C/°F (default °C)
7. Data signal indication
8. Water tank temperature °C/°F (Default °C)

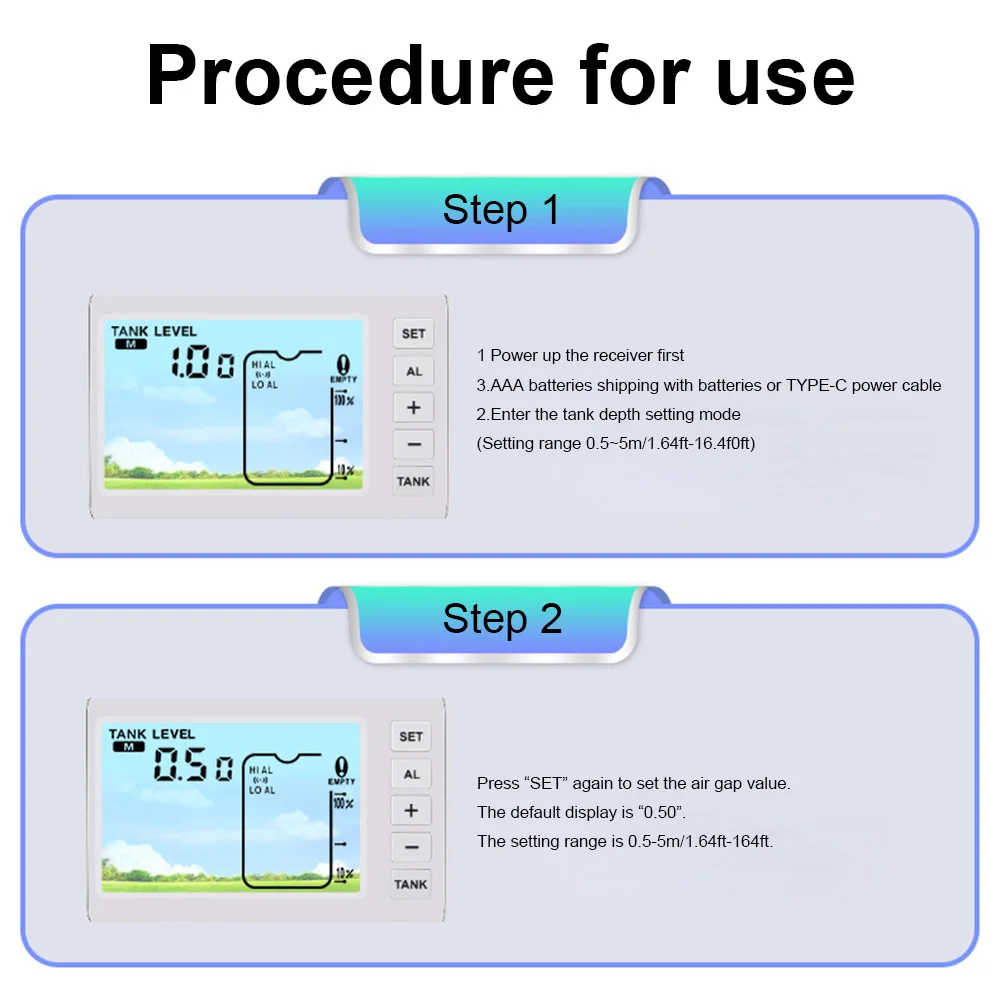

9. Water tank water level display unit: meter/foot (power-on default: meter)

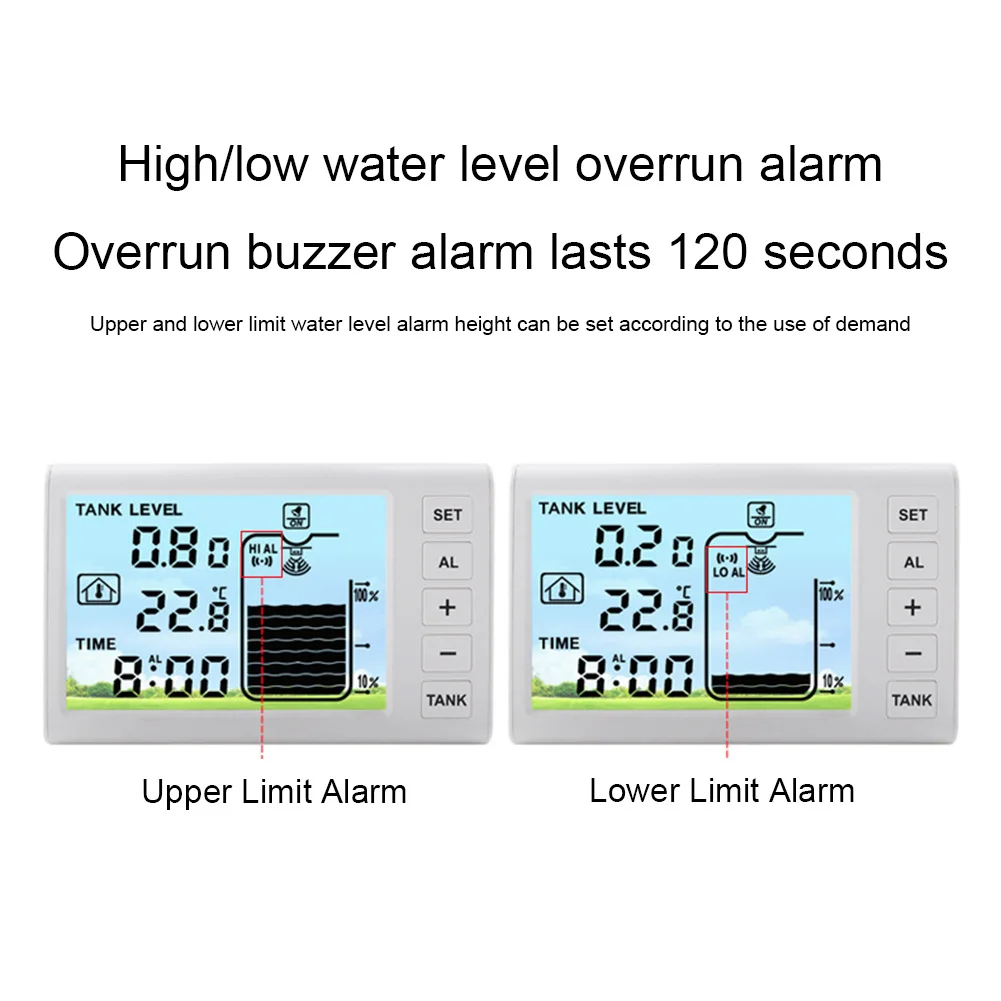

10. Water tank liquid level high/low alarm mode
11. Alarm sound on/off icon display, default on
12. Alarm duration: 120 seconds
13. High/low water level icon display
14. Water level depth analog display on 10-element LCD bar graph
15. Receiver indoor temperature range: 0°C~50°C/-32°F~122°F
16. Transmitter water tank temperature measurement range: -40°C~60°C/-40°F~140°F
17. Water level measurement range: 1~5m
18. Temperature resolution: 0.1°C Accuracy: ±1°C
19. Water level resolution: 0.01m Accuracy: ±0.05m

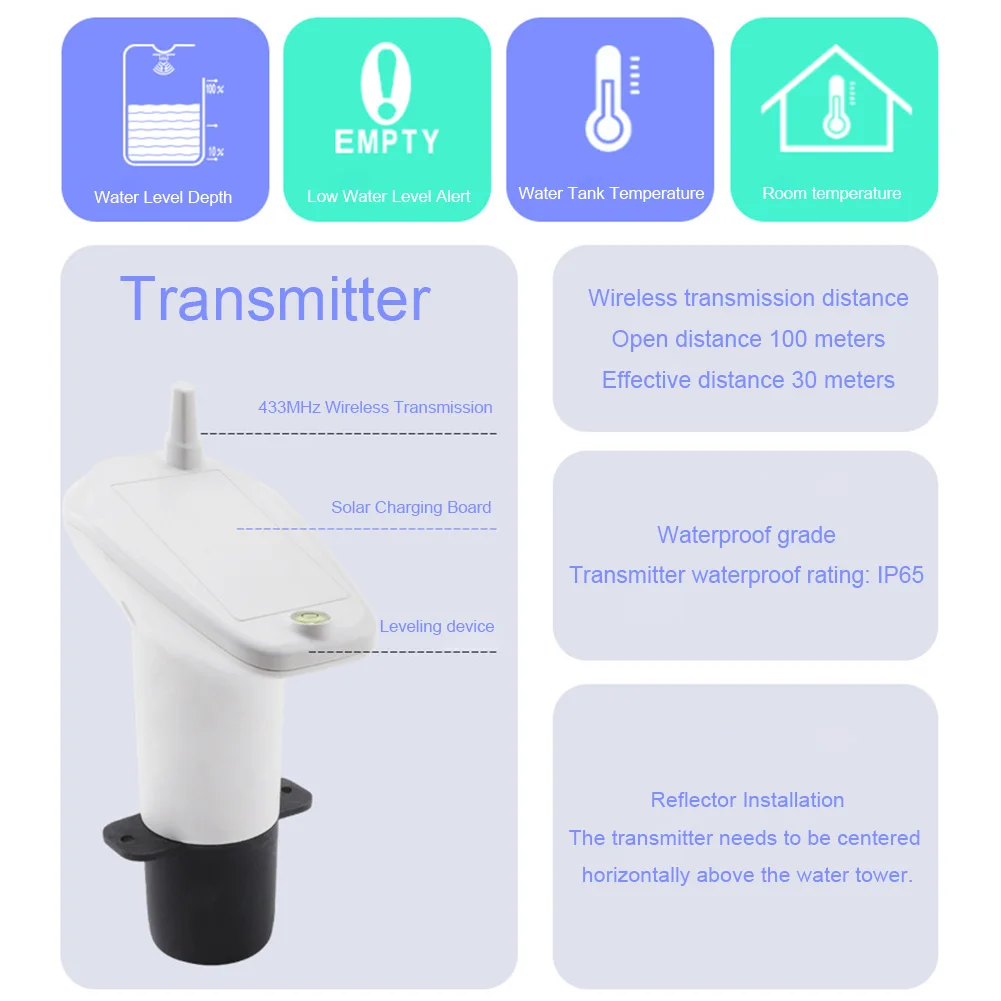

20. Transmitter protection level: IP65 (effective protection from rain splashes from any direction)
21. Wireless transmission distance: 100 meters in open space
22. Screen size: 4.3 inches
23. Body material: ABS

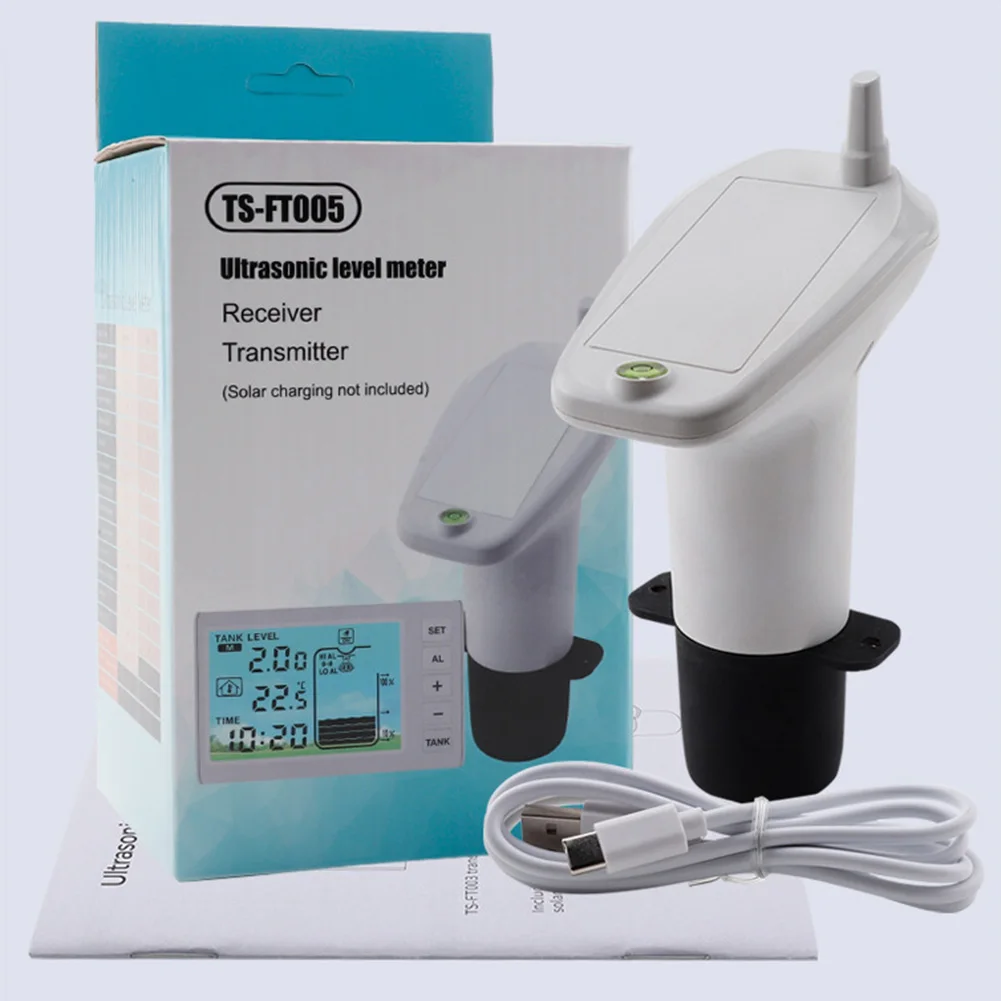

24. Power supply (battery not included):
Receiver: 3*AAA battery/TYPE-C power cord;

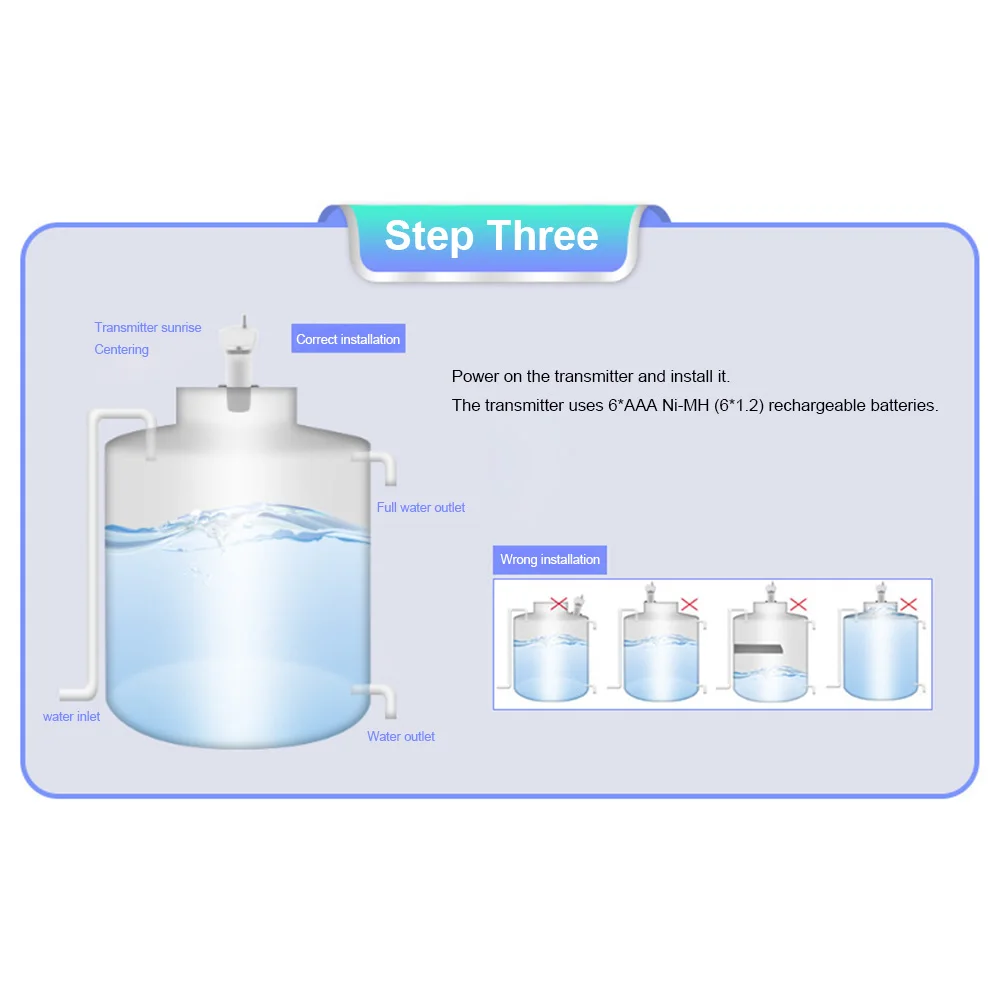

Transmitter: 6*AAA battery
Transmitter size: 16.7*10.9*6.8cm

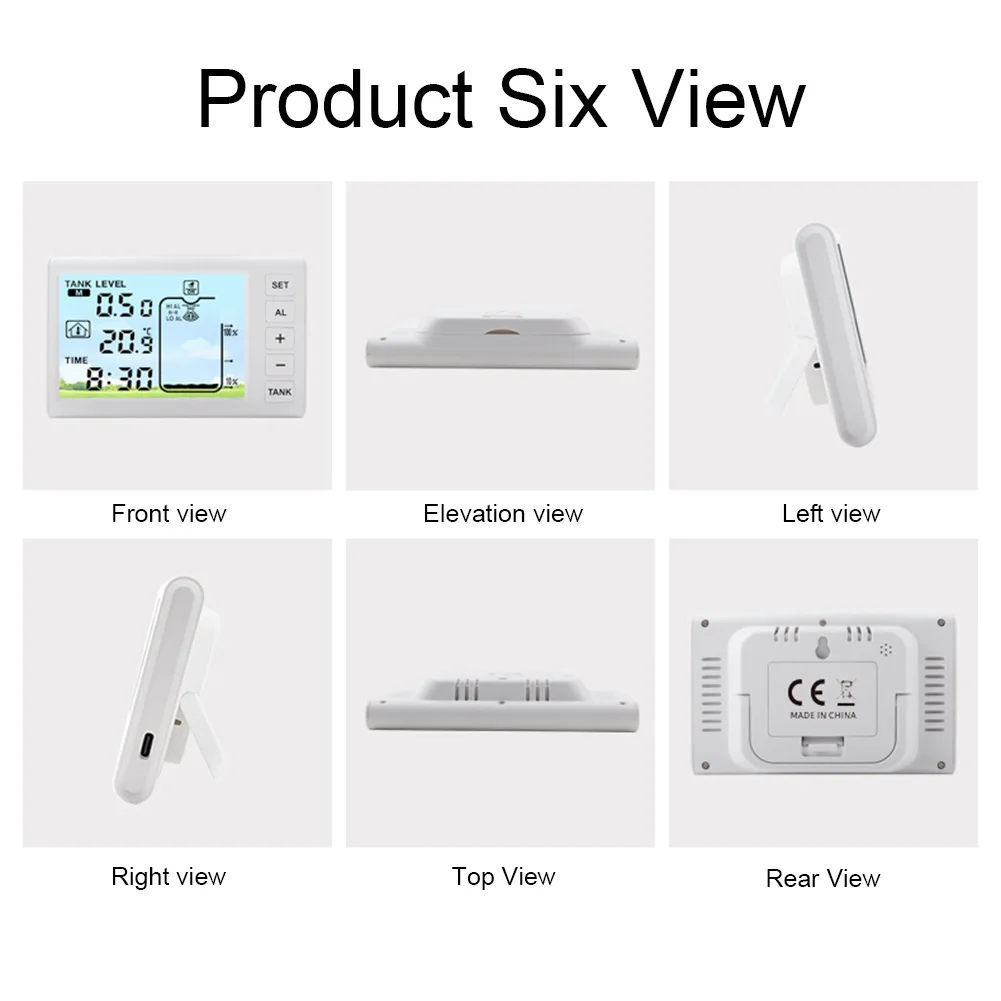

Receiver size: 135.00x84.00x26.00mm
Receiver size: 5.31x3.31x1.02inch
Certification: CE
Hign-concerned Chemical: None

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
