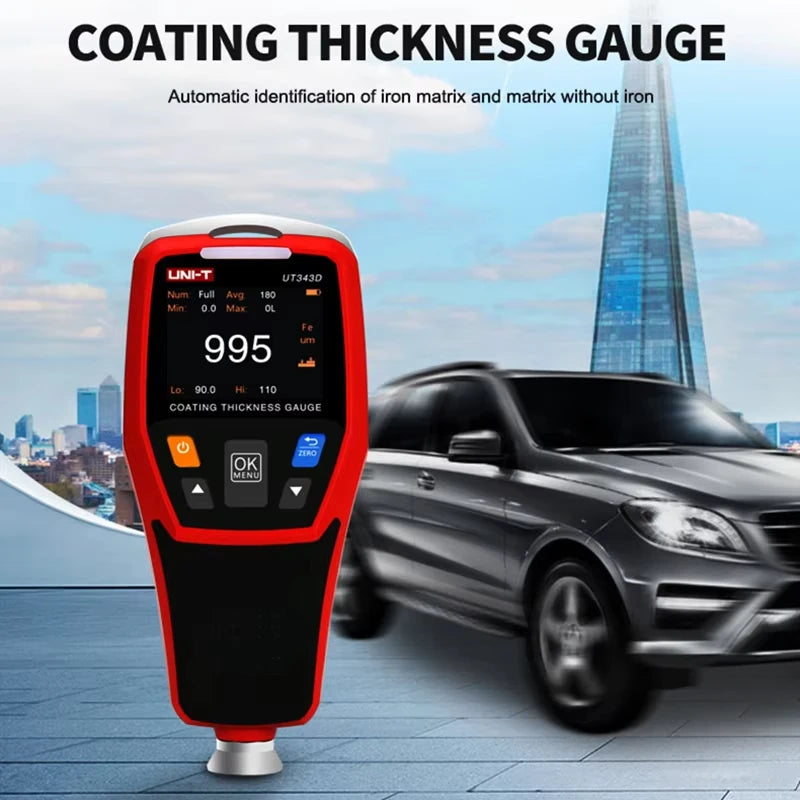

UNI-T Coating Thickness Gauge UT343E 0-2000µm Car Film Paint Thickness Tester TFT Screen Display With Bluetooth UT343A UT343D
UNI-T Coating Thickness Gauge UT343E 0-2000µm Car Film Paint Thickness Tester TFT Screen Display With Bluetooth UT343A UT343D
SPECIFICATIONS
Battery Included: no
Brand Name: UNI-T
Calibration methods: Single point/multi-point
Certification: CE
Data transmission (UT343D UT343E): Connect PC software, data storage/analysis
Ferrous/non-ferrous substrates: Automatic identification
High-concerned chemical: None
High-precision sensors: Precise, wear-resistant, stable
Lacquer meter: Car paint detector
Model Number: UT343D/UT343A/UT343E
Origin: Mainland China
Semi-finishedproduct: No
UT343A data storage: 199
UT343A iron matrix: Range: 0-1750μm
UT343A non-ferrous substrate: Range: 0-68.9mil
UT343D data storage: 500
UT343D iron matrix: Range: 0-1250μm
UT343D non-ferrous matrix: Range: 0-49.2mol
UT343E Voice broadcast: Yes
UT343E Data storage: 3300 data
UT343E Thickness gauge for cars: Paint meter
UT343E data storage: 3300
UT343E iron matrix: Range: 0-2000μm
UT343E non-ferrous matrix: Range: 0-78.7mol
Warning lights: Red, green, yellow
With Backlight Or Not: Yes
Working mode: Automatic recognition of substrate

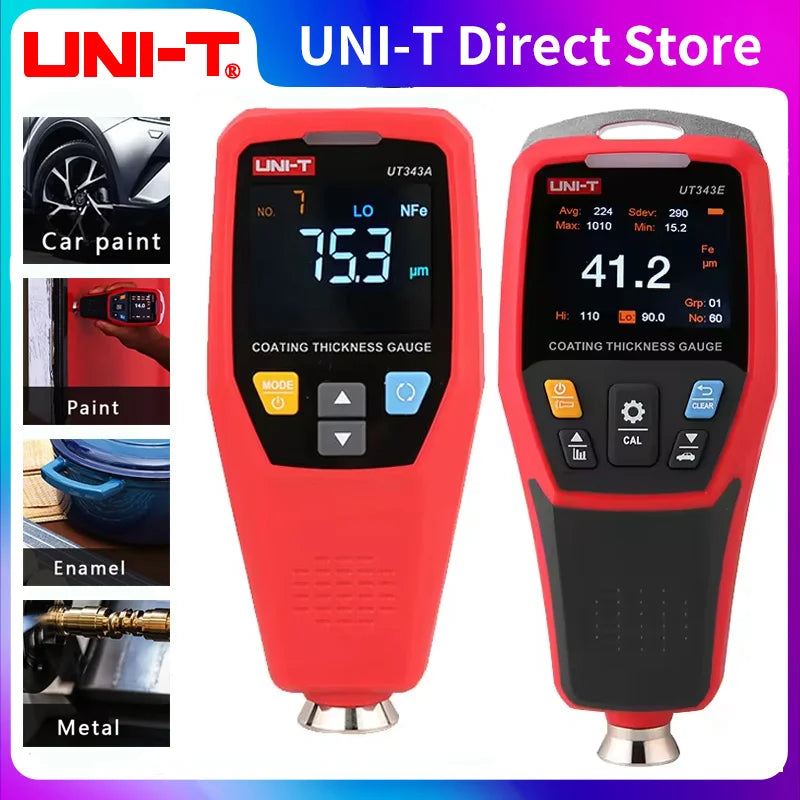

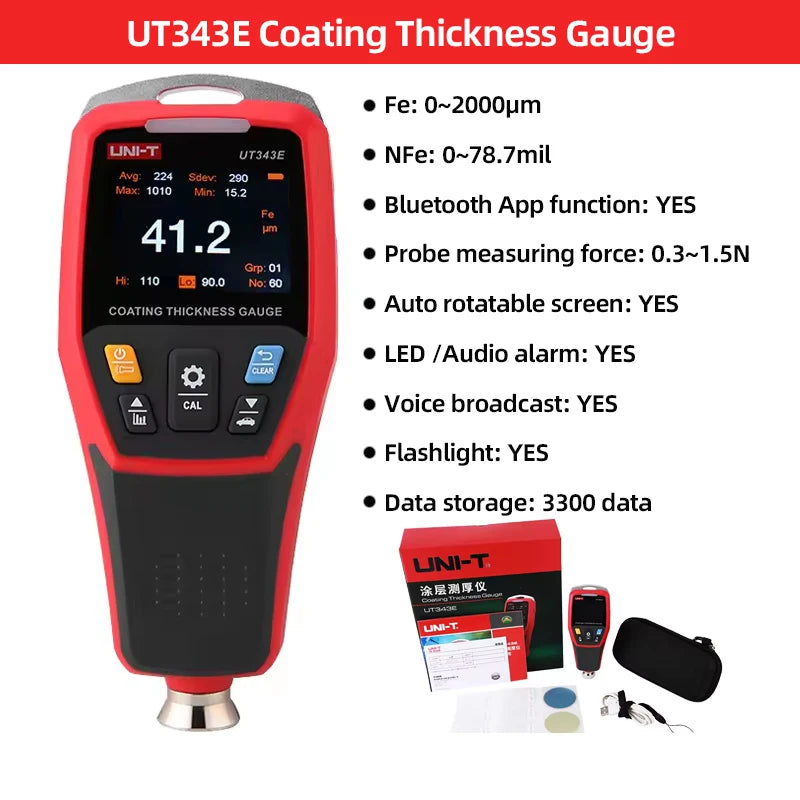

UT343E Coating Thickness Gauge
UT343E coating thickness gauge can measure coating thickness on ferrous and non-ferrous materials. The measuring range is up to 2000µm, and the data can be analyzed through Bluetooth APP and PC software of mobile phones, which can be widely used in manufacturing, metal processing, chemical industry, commodity inspection and other detection areas.
Features
1. Bluetooth APP
2. Conductive coating measurement (like chromium, zinc, tin)
3. Voice broadcast
4. Durable probe
5. Automobile mode
6. Multiple measurement modes
7. PC software analysis
Parameter
Specification |
Range |
Thickness |
Resolution |
Accuracy |
Certificates |
CE/UKCA |
|||
Ferrous and non-ferrous substrates measurement(FE and NFE) |
0~2000μm |
0~99.9μm |
0.1μm |
±(2%H+2μm) |
100~2000μm |
1μm |
|||
0~78.7mil |
0~4.99mil |
0.01mil |
±(2%H+0.08mil) |
|
5.0~78.7mil |
0.1mil |
|||
Bluetooth and App function |
√ |
|||
Probe measuring force |
0.3~1.5N |
|||
Display |
2''color TFT screen |
|||
Auto rotatable screen |
√ |
|||
Unit conversion |
μm/mil |
|||
LED /Audio alarm |
√ |
|||
Limit setting |
0~2000μm |
|||
Measurement method |
Single/continuous |
|||
Statistical measurement |
Max/Min/Avg |
|||
Matrix identification modes |
Auto/manual |
|||
Voice broadcast |
√ |
|||
Flashlight |
√ |
|||
USB communication |
Upper computer communication |
|||
Data storage |
3300 data |
|||
LCD brightness control |
√ |
|||
Auto power off |
5 minutes |
|||
Low battery indication |
√ |
|||
Power supply |
3.7V 1300mAh Lithium battery |
|||
General Characteristics | ||||
Power |
3.7V 1300mAh Lithium battery |
|||
LCD Size |
2 inch |
|||
Product color |
Red and Gray |
|||
Product net weight |
150g |
|||
Product size |
152*65*35mm |
|||
Standard accessories |
USB cable, Hand strap, Sensor protective cover, Ferrous matrix, Non-ferrous |
|||

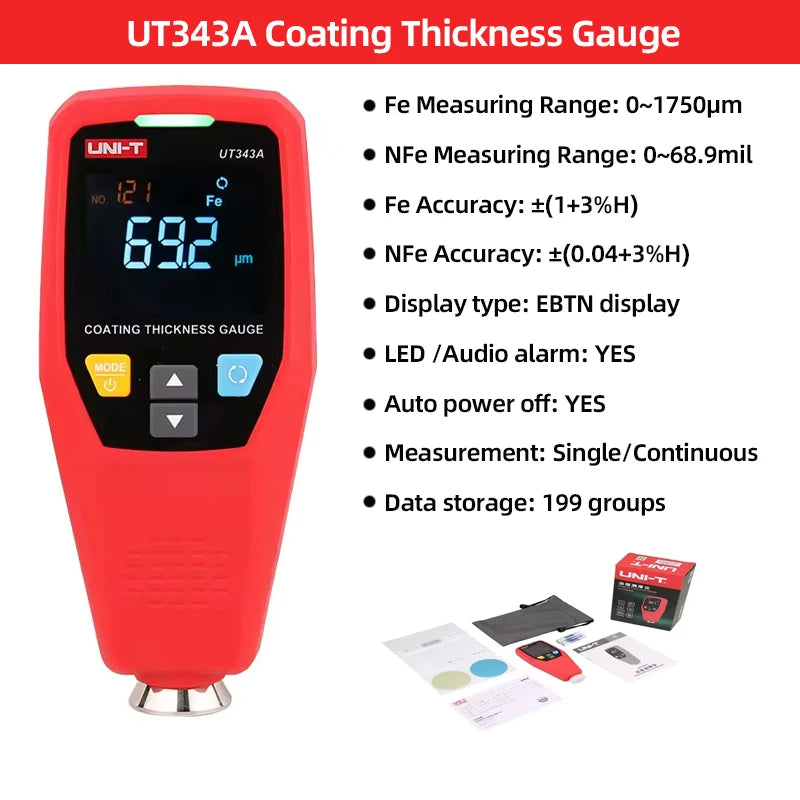

Specifications |
Range |
Certificates |
RoHS |
Measuring range |
0~1750um |
Accuracy |
±(3%H+1)um |
Measurement method |
Single/Continuous |
Measurement mode |
Max/Min/Avg |
Metal type |
Ferrous/non-ferrous |
Features | |
Display type |
EBTN display |
LCD brightness control |
√ |
Rotatable screen |
√ |
Unit conversion |
√ |
Audio alarm |
√ |
LED alarm |
√ |
Data storage |
199 groups |
Auto power off |
√ |
Low battery indication |
√ |
General Characteristics | |
Power |
1.5V battery (LR03) x 2 |
Product color |
Red and grey |
Product net weight |
About 111g |
Product size |
117mm x 53mm x 37mm |
Standard accessories |
Ferrous substrate, non-ferrous substrate |
Standard individual packing |
Gift box, English manual |

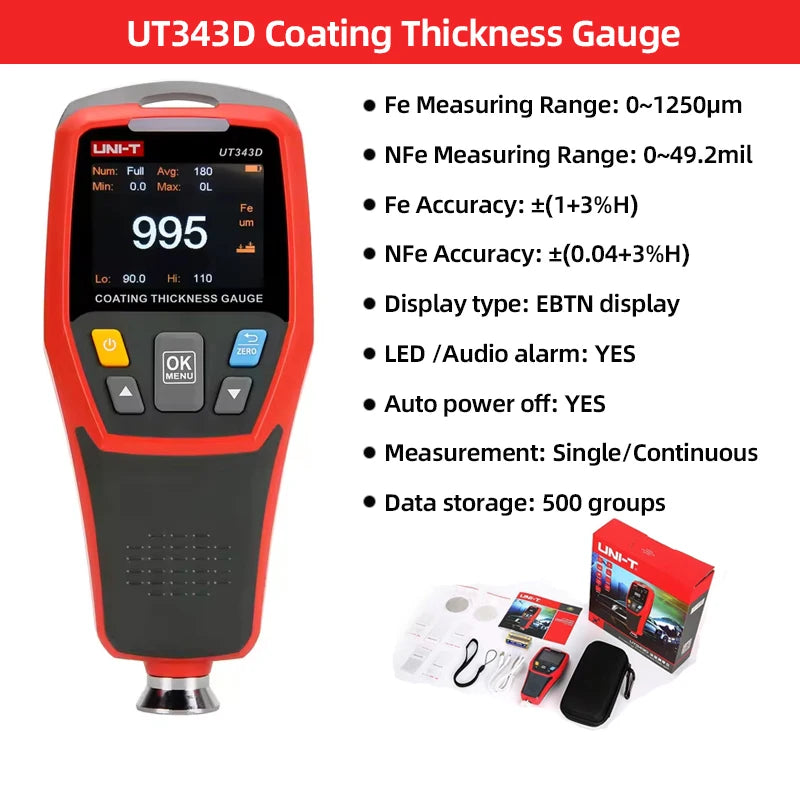

Specifications |
Range |
Measuring range |
0~1250um |
Accuracy |
±(3%H+1)um |
Resolution |
0.1um (0~99.9um); 1um (100~1250um) |
Measurement method |
Single/Continuous |
Measurement mode |
Max/Min/Avg |
Metal type |
Ferrous/ non-ferrous |
Features | |
Display type |
2.0-inches TFT LCD (320 x 240 pixels) |
LCD brightness control |
√ |
Auto rotatable screen |
√ |
Unit conversion |
√ |
Audio alarm |
√ |
LED alarm |
√ |
PC analysis software |
√ |
USB communication |
√ |
Quick test mode |
√ |
Data storage |
500 groups |
Auto power off |
√ |
Low battery indication |
√ |
General Characterisitics | |
Power |
3V battery (R03) x 2 |
Display |
48mm x 36mm |
Product color |
Red and grey |
Product net weight |
175g |
Product size |
153.5mm x 64.5mm x 41mm |
Standard accessories |
Micro USB interface cable, standard piece, batteries, cloth bag |
Standard individual packing |
Gift box, English manual |
Standard quantity per carton |
20pcs |
Standard carton measurement |
355mm x 320mm x 195mm |
Standard carton gross weight |
7.5kg
|
