SPECIFICATIONS

Accuracy: ±(3%H+1)um

Battery Included: no

Brand Name: UNI-T

Certification: CE

Digital coating meter 1: thick gauge for car

Digital coating meter 2: thick meter

Digital coating meter 3: paint meter

High-concerned chemical: None

LCD brightness control: YES

LED alarm: YES

Measurement method: Single/Continuous

Metal type Ferrous/ non-ferrous: Ferrous/ non-ferrous

Model Number: UT343A UT343D UT343E

Origin: Mainland China

Semi-finishedproduct: No

Unit conversion: YES

With Backlight Or Not: Yes

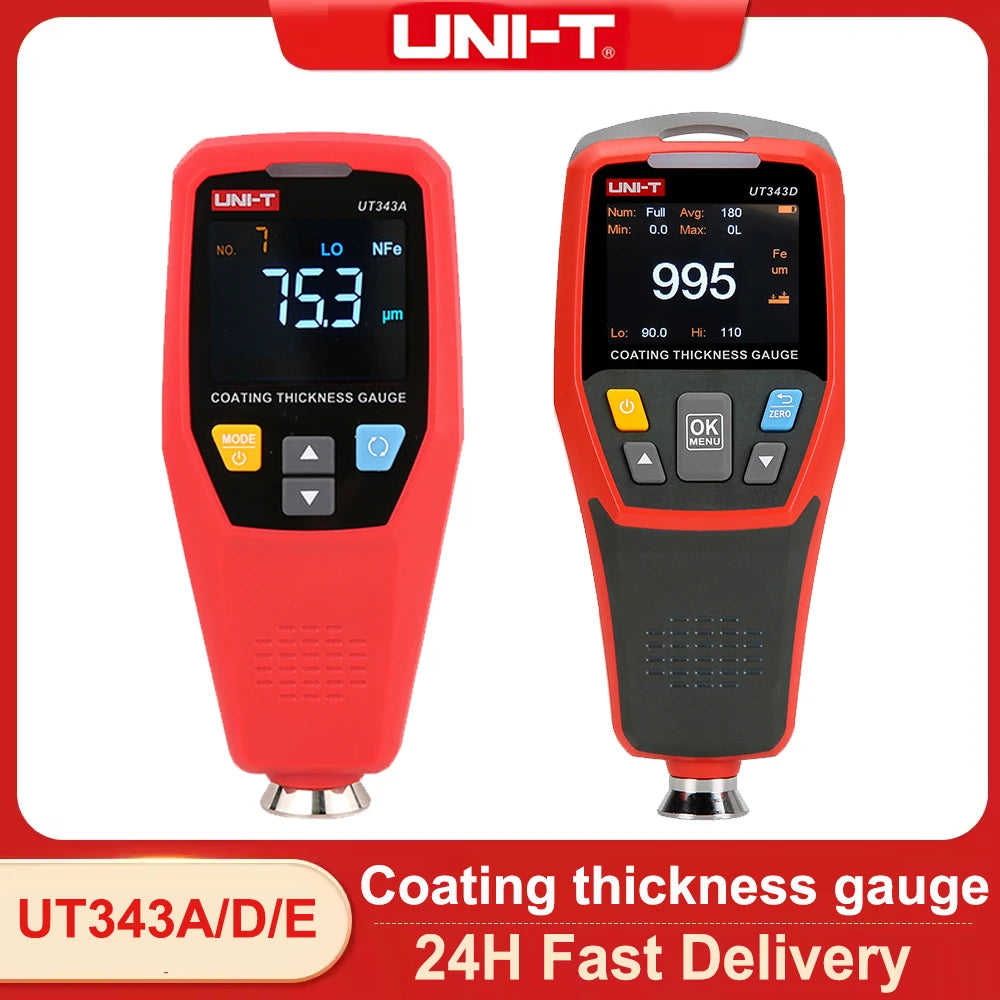

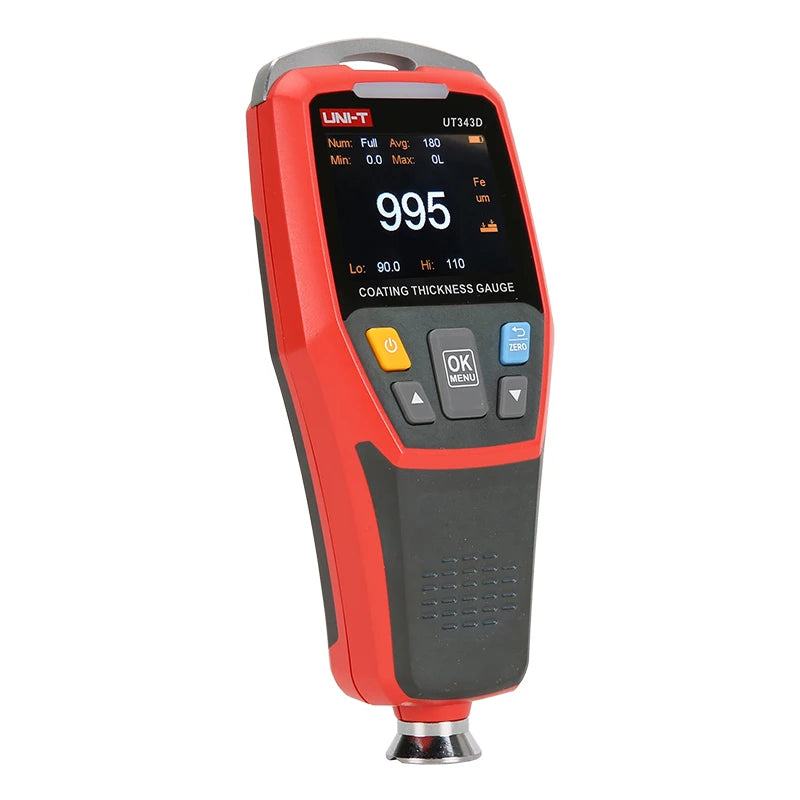

UNI-T UT343A UT343D UT343E Composite Coating Digital Thickness Gauge Micrometer Car Paint Auto Ceramic Metal FE NFE Tester Meter

UT343 series coating thickness gauge

It is a high-performance composite coating thickness gauge that integrates the measurement of iron and non-iron substrates. The product has the characteristics of high precision, stable and reliable performance, nondestructive measurement, etc., and has the functions and applications of professional paint measurement and judgment mode, measurement value voice broadcast, wireless Bluetooth APP, LED lighting, etc. in the automobile industry. It is a necessary instrument for automobile manufacturing, sales, evaluation, metal processing, coating, inspection and other industries. It is widely used in manufacturing industry, metal processing industry, aerospace, ships, motor vehicles, scientific research, quality supervision and other industries and fields

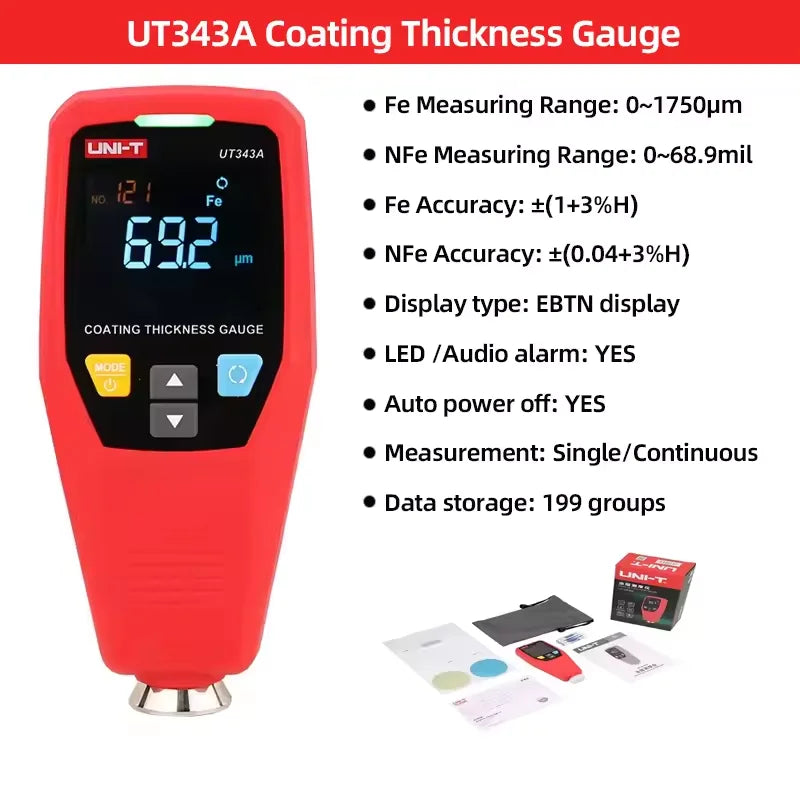

Main features of UT343A

The measurement method conforms to the magnetic method for measuring the thickness of non-magnetic coating on magnetic metal substrates (GB/T 4956).
The measurement method is in accordance with GB/T 4957 Eddy current method for thickness measurement of non-conductive coatings on non-magnetic metal substrates.
Two thickness measurement methods, magnetic and eddy current, can be used to measure the thickness of the non-magnetic coating on the magnetic metal substrate and the non-conductive coating on the non-magnetic metal substrate.
Automatic identification of ferrous and non-ferrous substrates.
It adopts high-precision sensors, which are precise, wear-resistant and stable.
Use single point and multi-point calibration methods for calibration,
Red, green and yellow warning lights indicate the current value attribute
Turn on/off and measure the sound prompt.
The screen display can be rotated up and down,
The mass storage chip can store 199 data.

Specification for UT343A

Specifications	Range
Certificates	RoHS
Measuring range	0~1750um
Accuracy	±(3%H+1)um
Measurement method	Single/Continuous
Measurement mode	Max/Min/Avg
Metal type	Ferrous/non-ferrous
Features
Display type	EBTN display
LCD brightness control	√
Rotatable screen	√
Unit conversion	√
Audio alarm	√
LED alarm	√
Data storage	199 groups
Auto power off	√
Low battery indication	√
General Characteristics
Power	1.5V battery (LR03) x 2
Product color	Red and grey
Product net weight	About 111g
Product size	117mm x 53mm x 37mm
Standard accessories	Ferrous substrate, non-ferrous substrate
Standard individual packing	Gift box, English manual

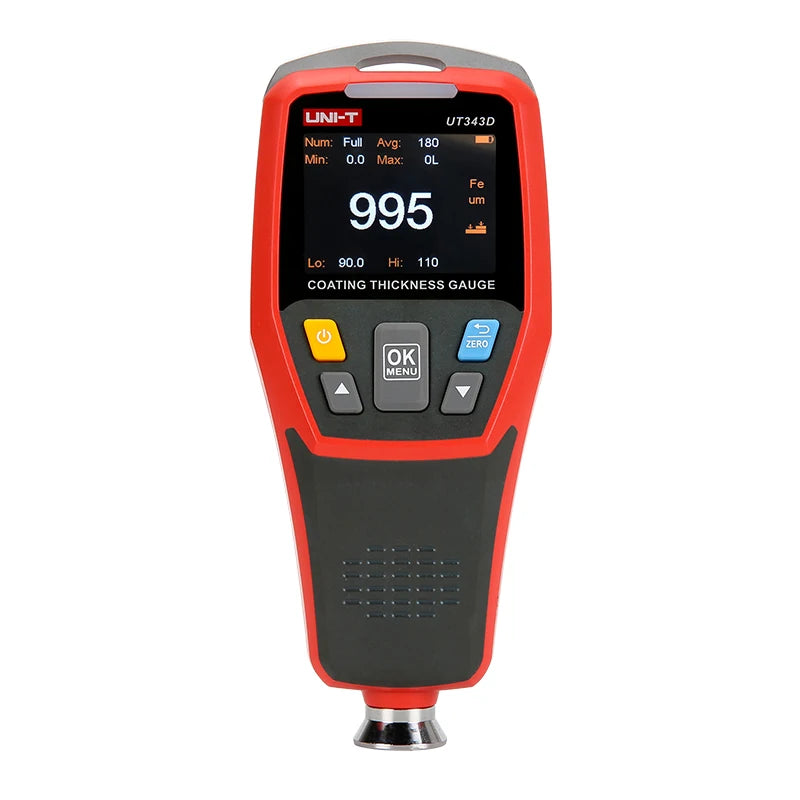

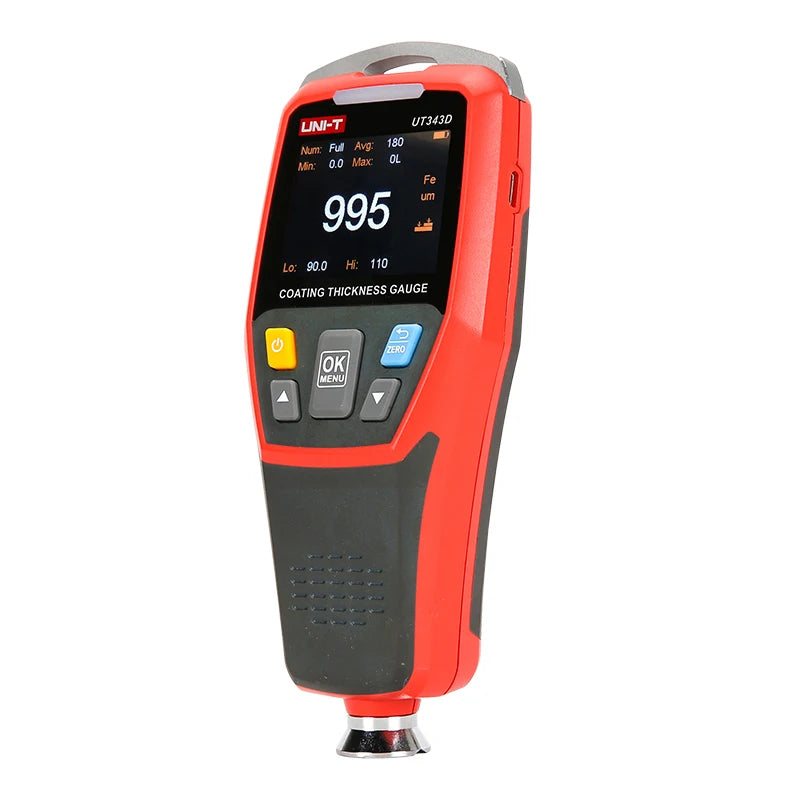

Main features of UT343D

Automatic identification of ferrous and non-ferrous substrates
The sensor adopts gem clamping technology, which is precise, wear-resistant and stable
It has single point and two point calibration methods to ensure the accuracy of measurement
Quick judgment and prompt of single point and multiple points
Red, green and yellow warning lights
Automatic rotation of screen display
500 groups of stored data and USB data transmission

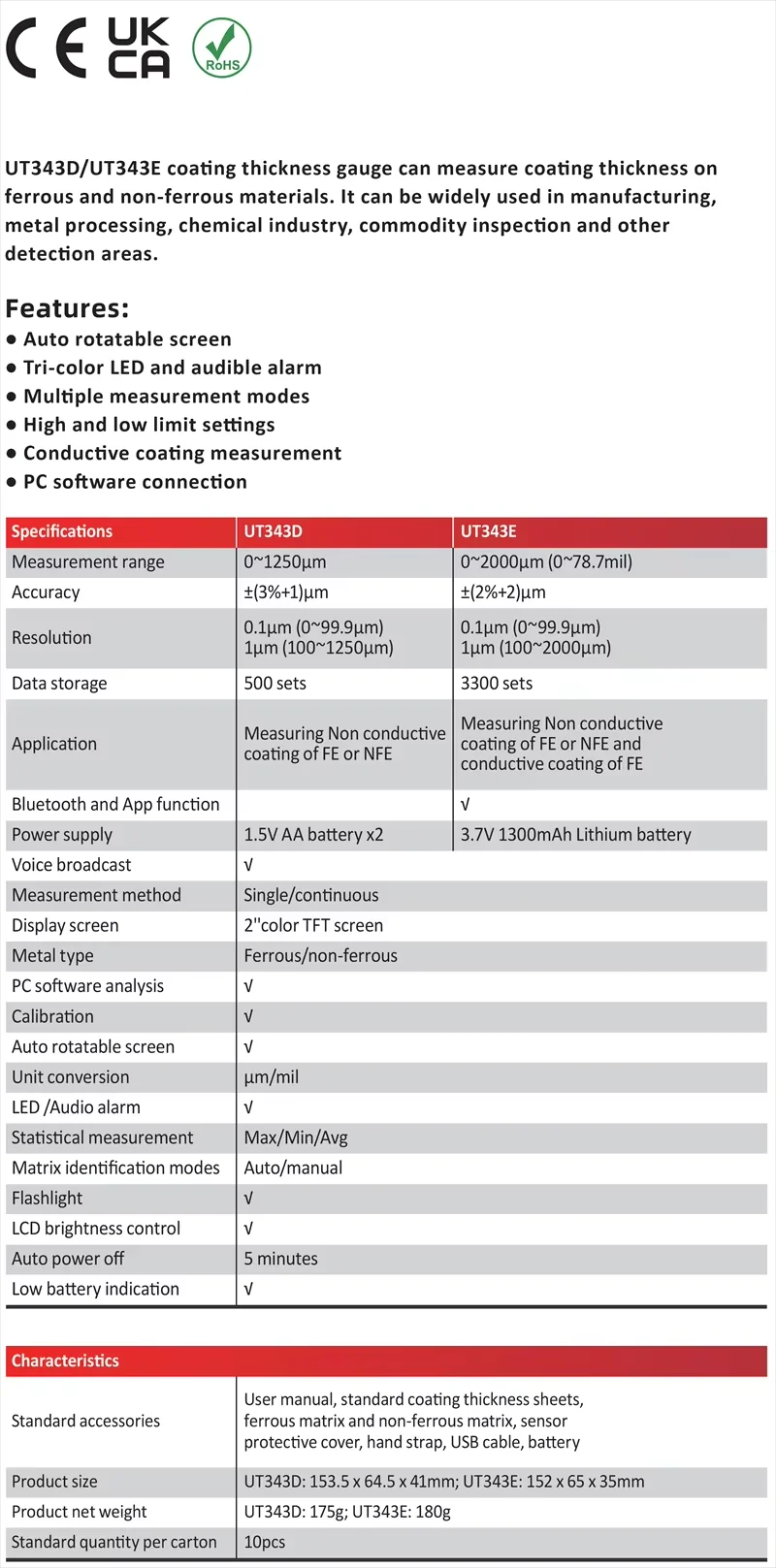

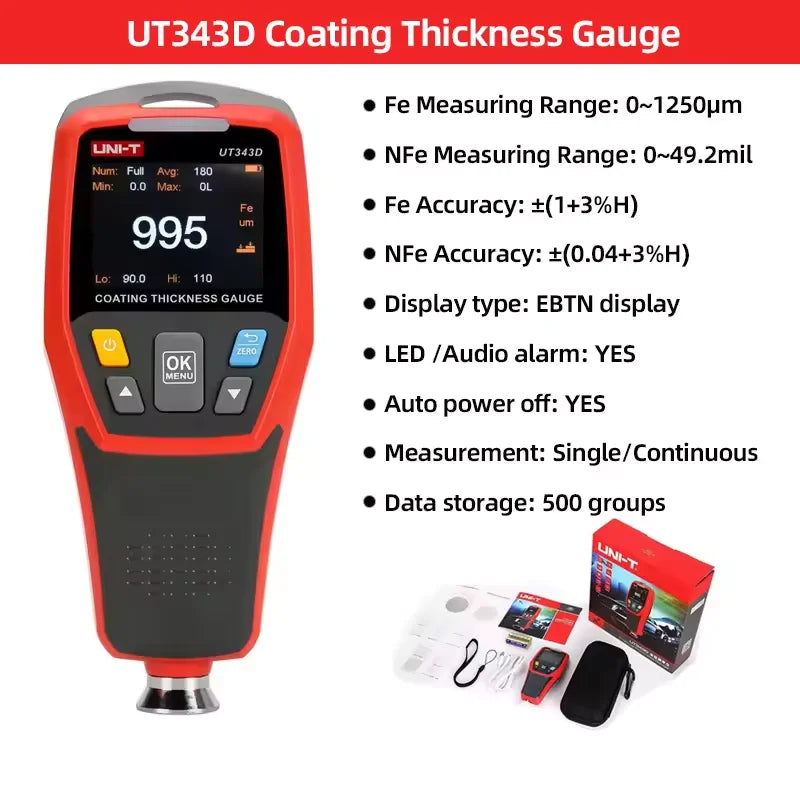

Specification for UT343D

Specifications	Range
Measuring range	0~1250um
Accuracy	±(3%H+1)um
Resolution	0.1um (0~99.9um); 1um (100~1250um)
Measurement method	Single/Continuous
Measurement mode	Max/Min/Avg
Metal type	Ferrous/ non-ferrous
Features
Display type	2.0-inches TFT LCD (320 x 240 pixels)
LCD brightness control	√
Auto rotatable screen	√
Unit conversion	√
Audio alarm	√
LED alarm	√
PC analysis software	√
USB communication	√
Quick test mode	√
Data storage	500 groups
Auto power off	√
Low battery indication	√
General Characterisitics
Power	3V battery (R03) x 2
Display	48mm x 36mm
Product color	Red and grey
Product net weight	175g
Product size	153.5mm x 64.5mm x 41mm

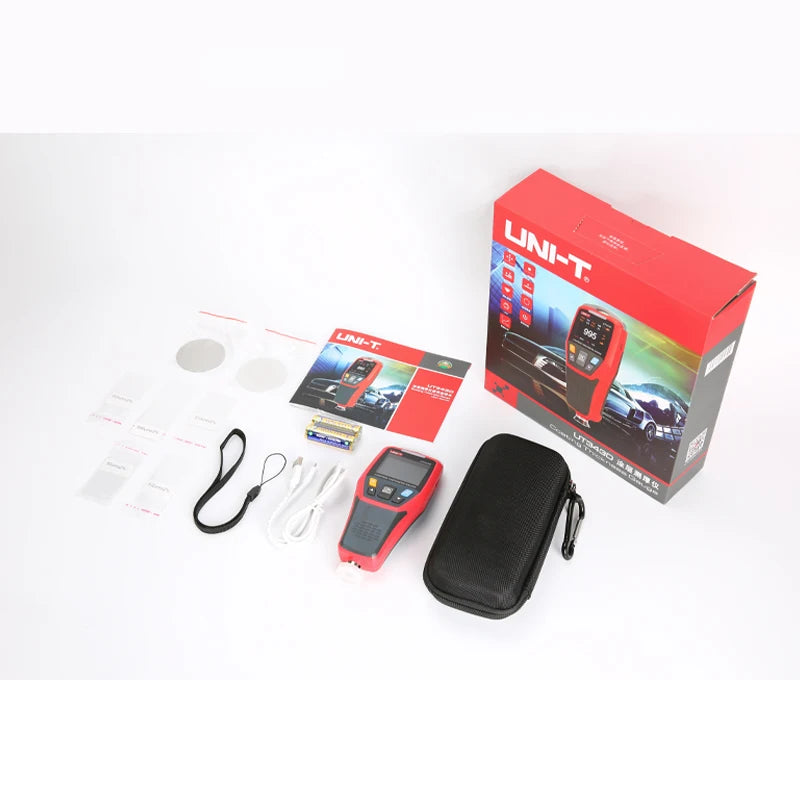

Standard accessories	Micro USB interface cable, standard piece, batteries, cloth bag
Standard individual packing	Gift box, English manual
Standard quantity per carton	20pcs
Standard carton measurement	355mm x 320mm x 195mm
Standard carton gross weight	7.5kg
