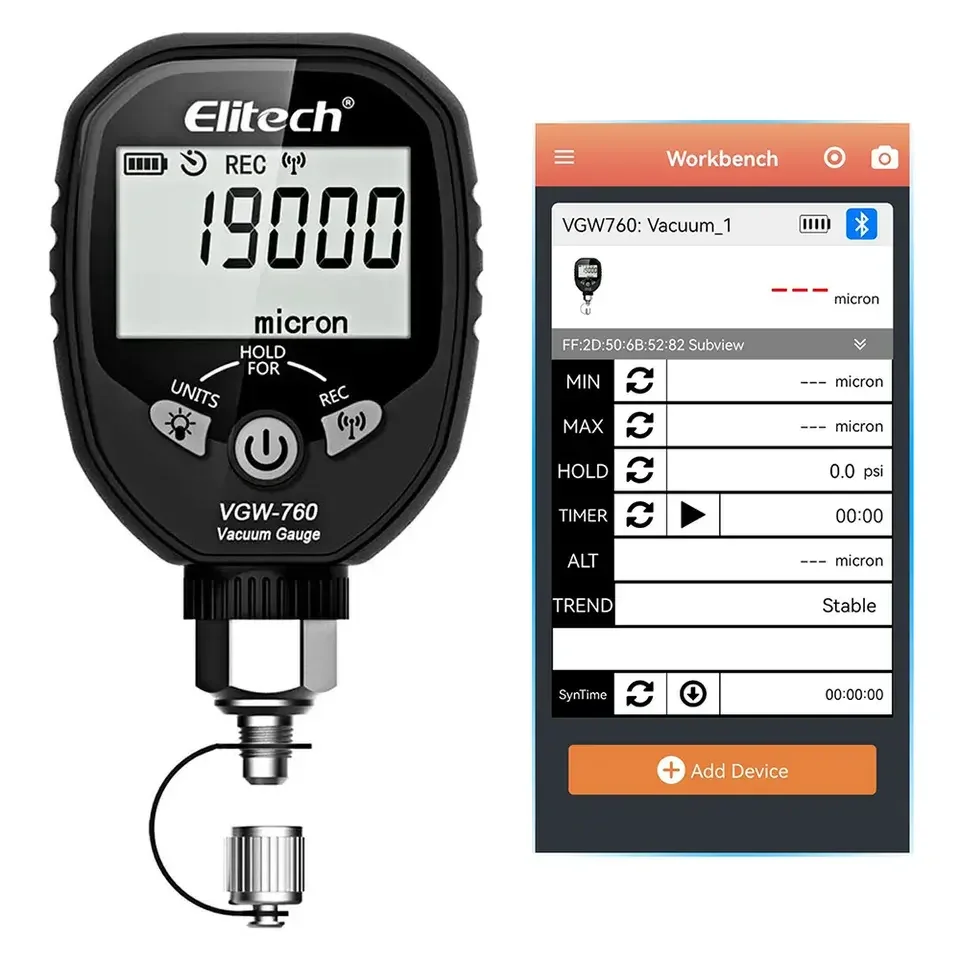

Elitech VGW-760 Wireless Digital Vacuum Gauge

Professional HVAC & Refrigeration Vacuum Measurement Solution

The Elitech VGW-760 Wireless Digital Vacuum Gauge is designed for accurate vacuum measurement during HVAC and refrigeration system evacuation. Equipped with a professional vacuum sensor, it helps technicians verify vacuum pump performance, detect system leaks, and evaluate evacuation quality before refrigerant charging.

To effectively remove moisture from the system, the vacuum level should generally be below 700 microns. For optimal evacuation performance, a vacuum level of approximately 300 microns is recommended.

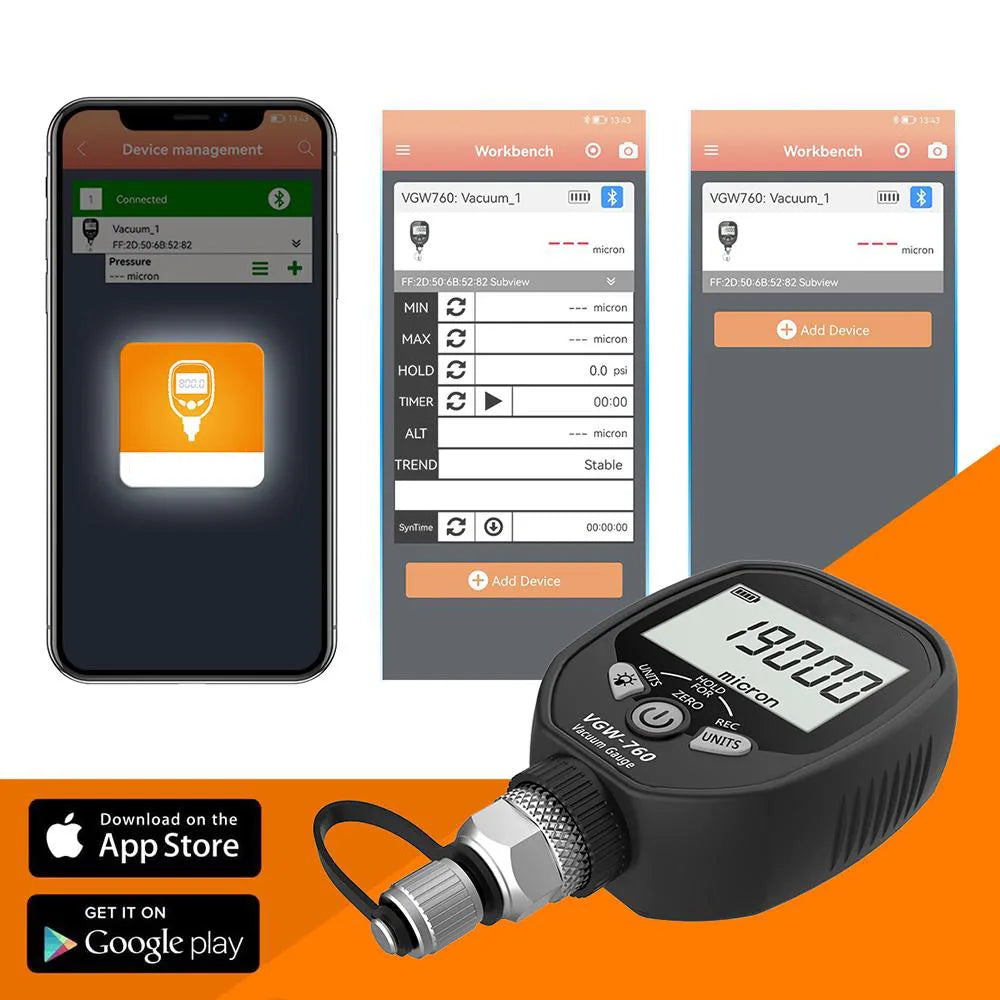

Upgraded Elitech Tools App

The latest Elitech Tools App for iOS and Android allows users to manage multiple Elitech devices within one platform, making HVAC service work more efficient and intelligent.

Compatible Elitech devices may include:

• Vacuum Pumps

• Digital Manifolds

• Vacuum Gauges

• Pressure Gauges

• Refrigerant Charging Scales

The app enables real-time monitoring, data recording, and report management directly from your smartphone.

Accurate Vacuum Measurement

Designed specifically for HVAC and refrigeration applications.

Measurement Range

0 to 19,000 Microns

Accuracy

±10% of Reading or ±10 Microns

Resolution

0–400 Microns: 1 Micron

400–3,000 Microns: 10 Microns

3,000–10,000 Microns: 100 Microns

10,000–19,000 Microns: 250 Microns

Wireless Bluetooth Monitoring

Monitor system vacuum levels remotely through the Elitech Tools App.

Wireless Communication Distance

Up to 30 m (98.5 ft)

Benefits include:

• Real-time vacuum monitoring

• Remote data viewing

• Improved service efficiency

• Convenient evacuation tracking

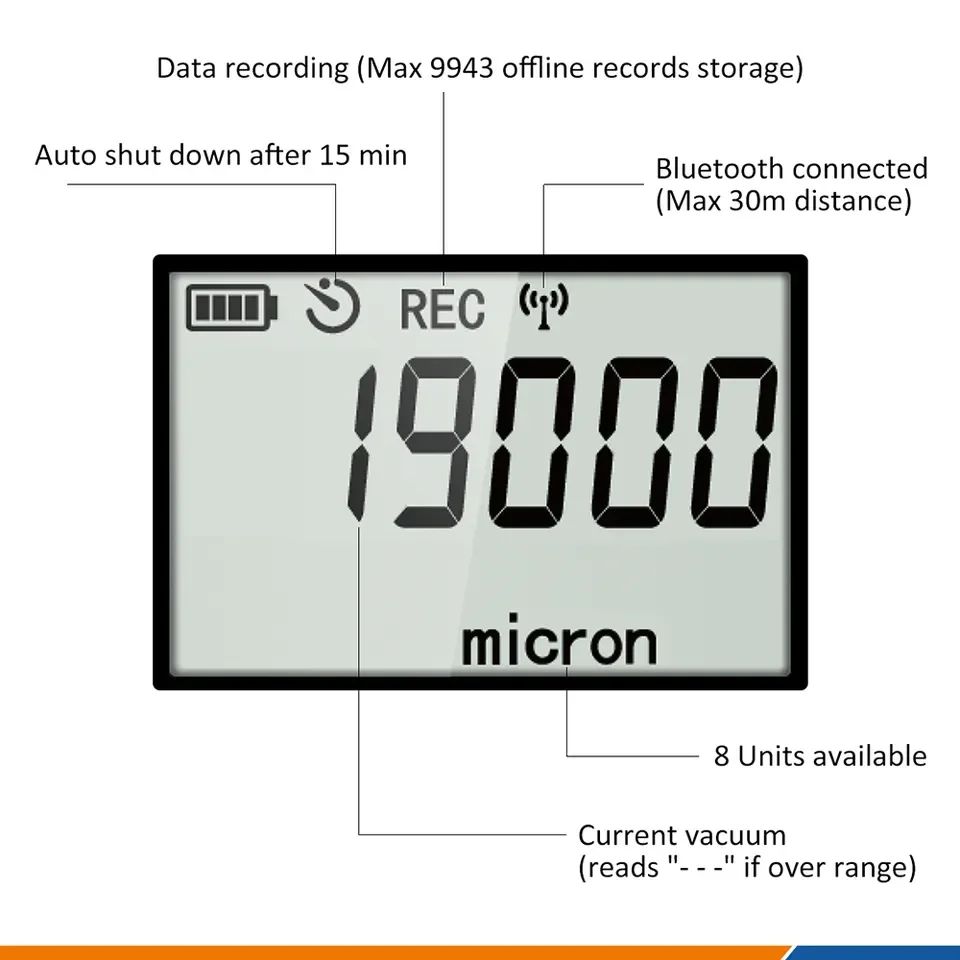

Data Logging & Report Export

The VGW-760 supports offline data storage and report generation.

Storage Capacity

Up to 9,433 Records

Export Formats

• Excel

• PDF

This makes it easy to create service records, maintenance reports, and performance documentation.

High & Low Alarm Function

Custom high and low alarm thresholds can be configured through the app.

When the measured value exceeds the preset limit, users receive notifications, allowing faster response and improved monitoring efficiency.

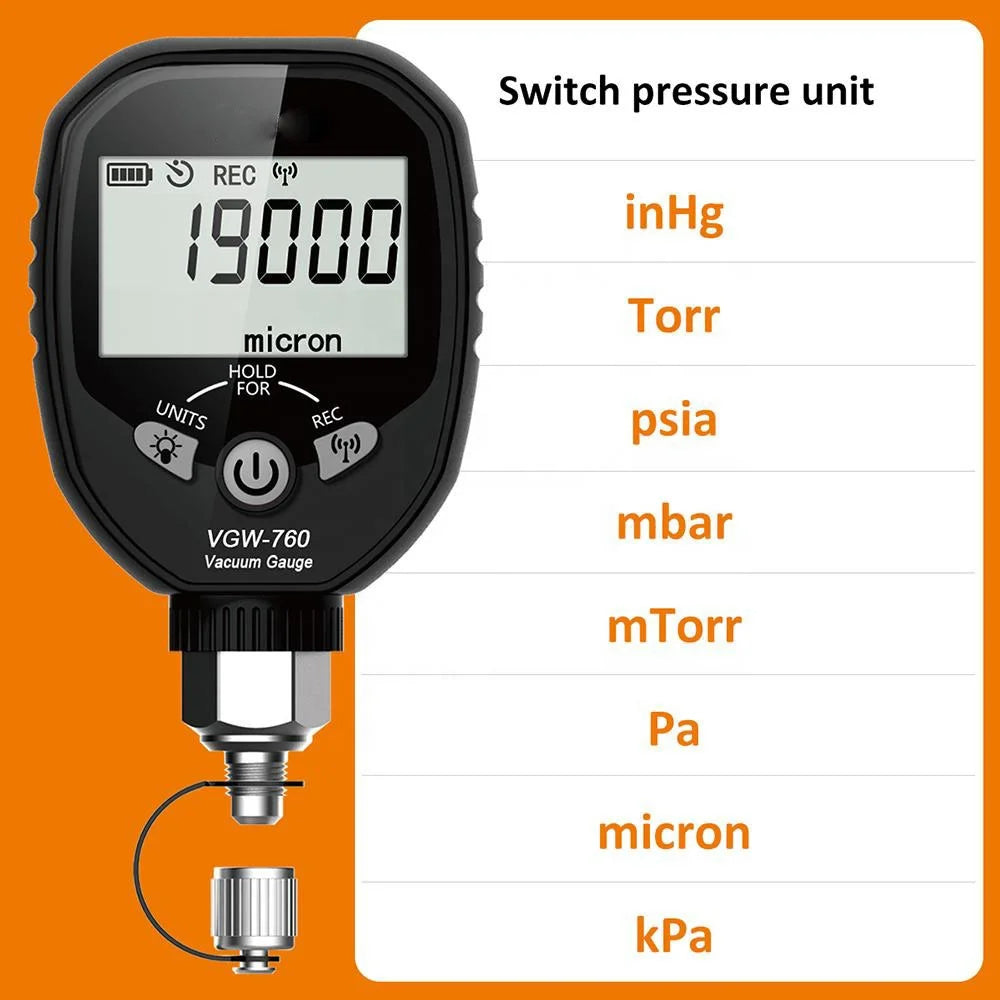

8 Selectable Measurement Units

Easily switch between:

• inHg

• Torr

• psi

• mbar

• mTorr

• Pa

• Micron

• kPa

No manual unit conversion is required.

IP65 Protection Rating

The IP65-rated housing provides reliable protection for daily HVAC and refrigeration service work.

Features:

• Dust Resistant

• Water-Resistant Design

• Suitable for Field Use

Technical Specifications

Model: VGW-760

Measurement Range: 0–19,000 Microns

Accuracy: ±10% or ±10 Microns

Operating Temperature: 0°F to 140°F (-17.8°C to 60°C)

Resolution:

0–400 Microns: 1 Micron

400–3,000 Microns: 10 Microns

3,000–10,000 Microns: 100 Microns

10,000–19,000 Microns: 250 Microns

Wireless Distance: 30 m

Offline Storage: 9,433 Records

Supported Units: 8 Units

Auto Power Off: 15 Minutes

Protection Rating: IP65

App Compatibility: iOS & Android

Applications

• HVAC System Evacuation

• Refrigeration System Maintenance

• Leak Detection

• Vacuum Pump Performance Testing

• Refrigerant Charging Preparation

• Commercial Refrigeration Service

• Air Conditioning Installation

Important Notes

• Use the gauge only within the specified operating environment.

• Do not use chemical solvents or corrosive liquids for cleaning.

• Do not disassemble the instrument.

• Remove the battery if the gauge will not be used for an extended period.

Why Choose Elitech VGW-760?

✔ Professional Vacuum Measurement

✔ Wireless Bluetooth Monitoring

✔ Elitech Tools App Support

✔ High & Low Alarm Function

✔ Data Logging & Export

✔ 8 Measurement Units

✔ IP65 Protection Rating

✔ Ideal for HVAC & Refrigeration Professionals
