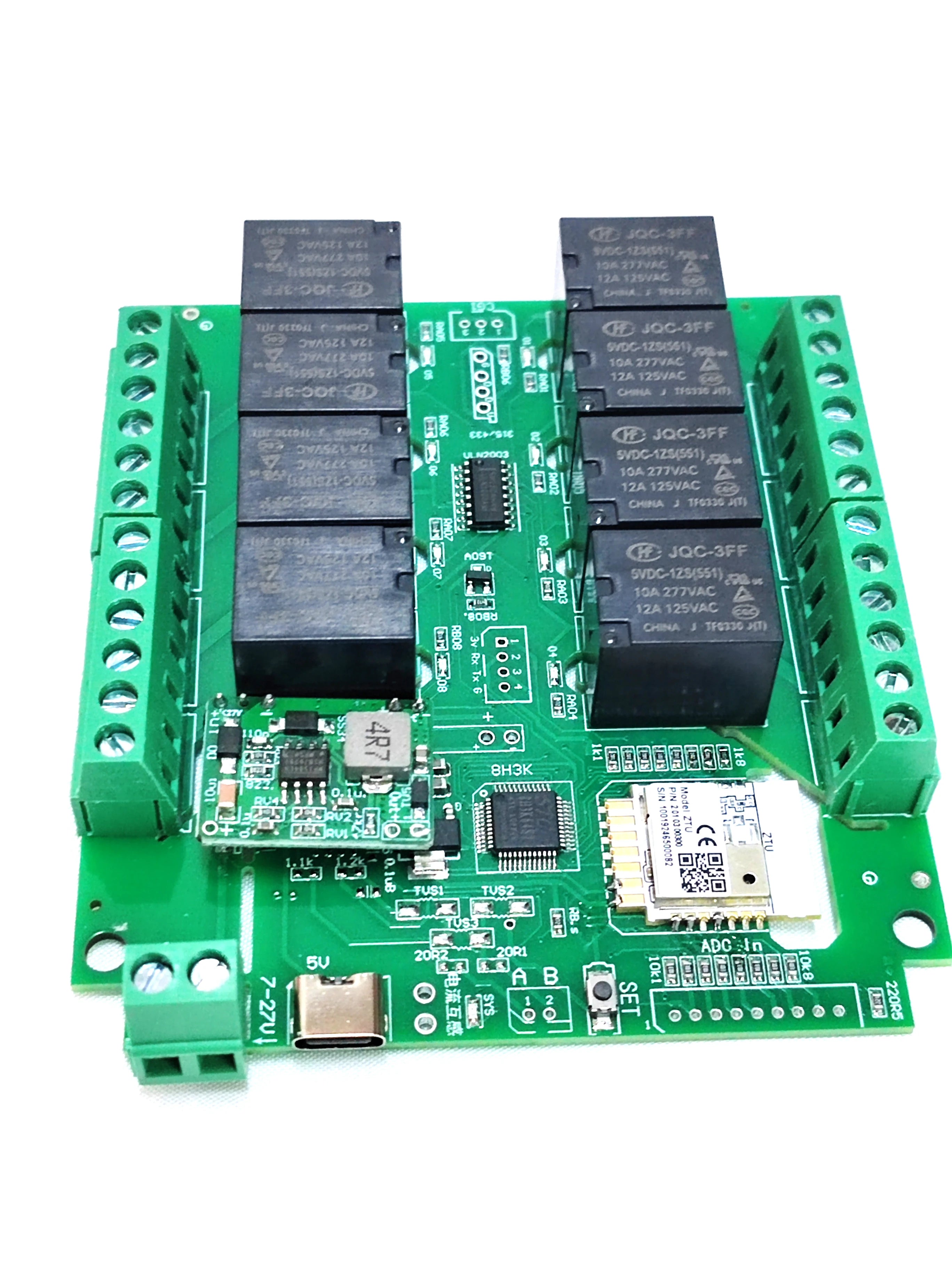

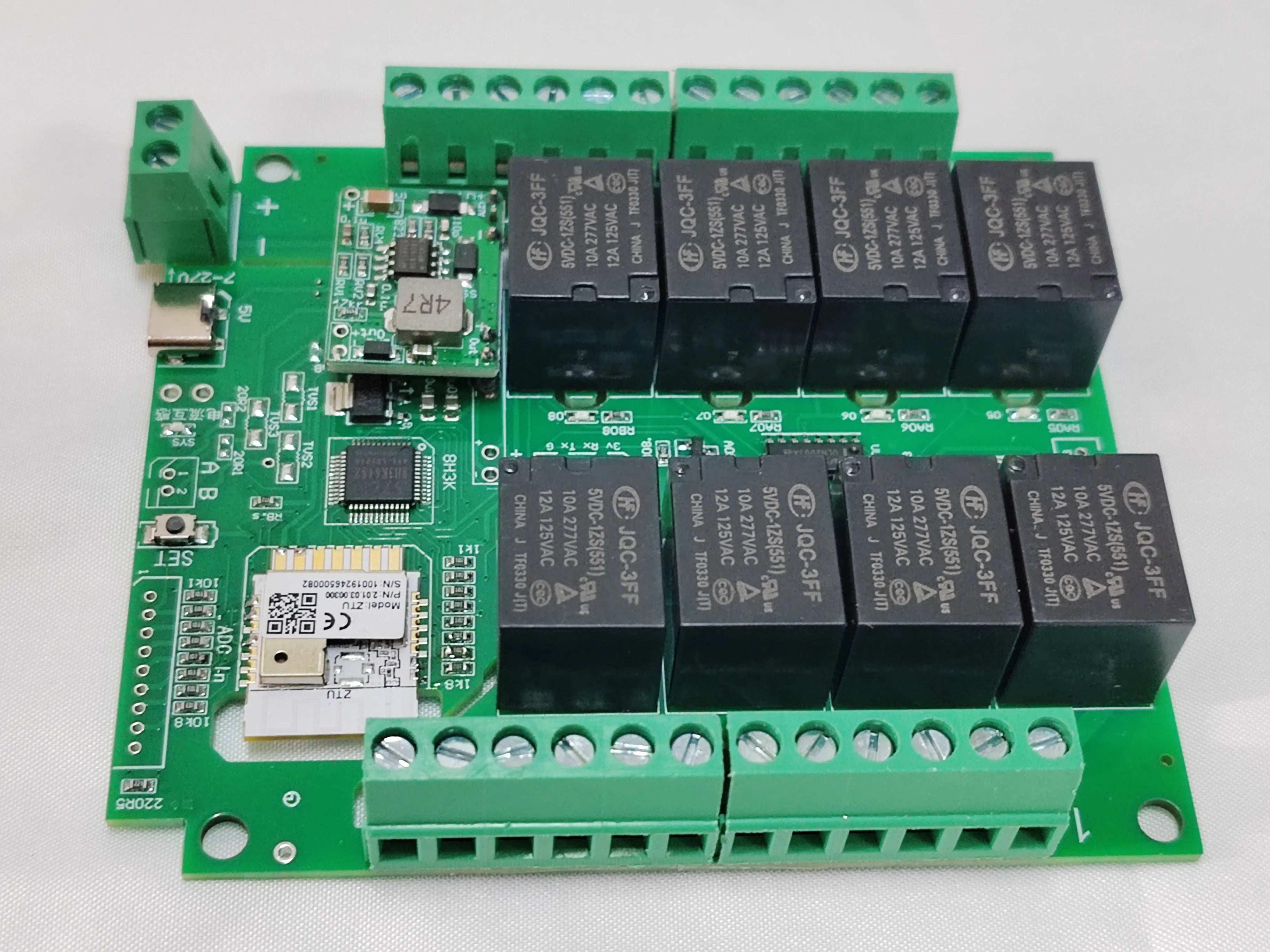

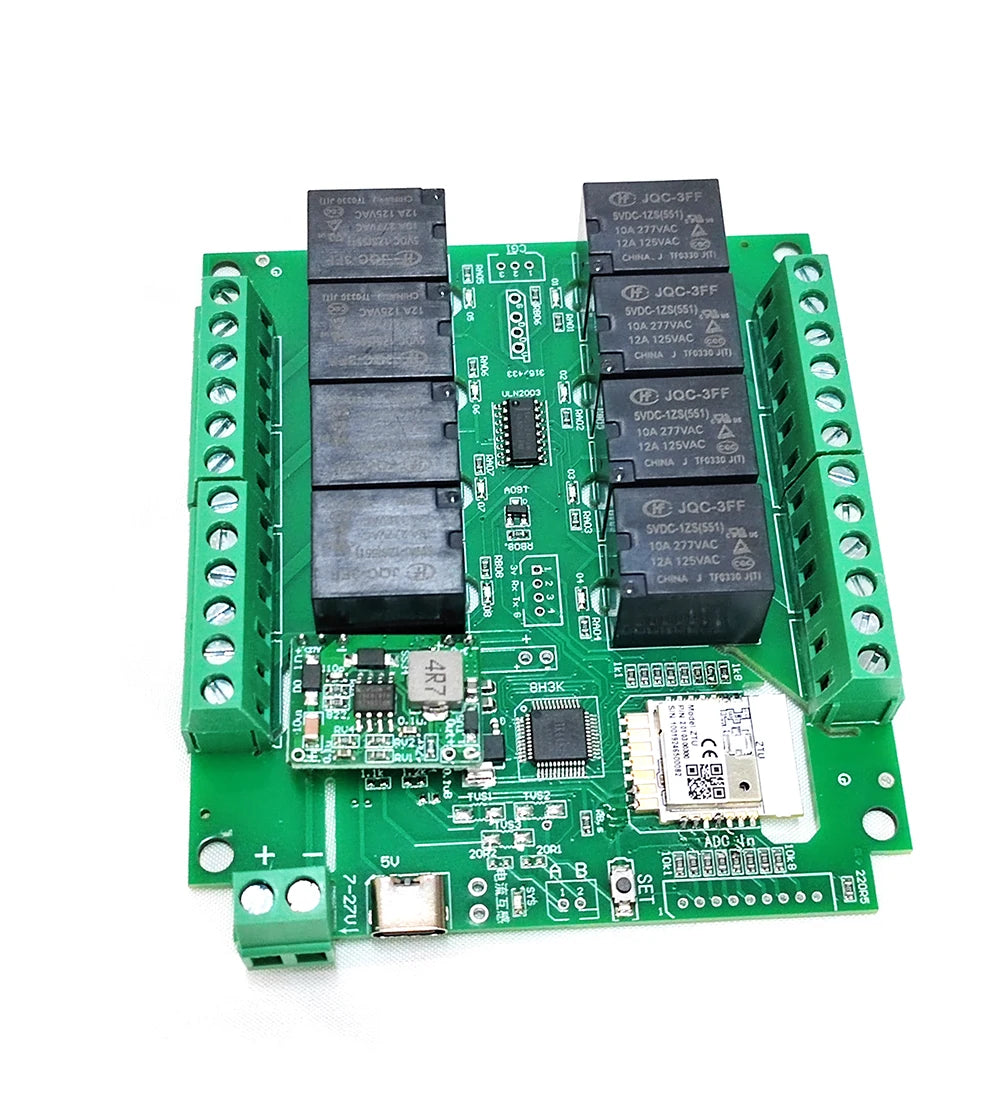

work with Tuya wifi or zigbee 8 channels Relay Switch Module with digital inputs Smart Home Remote Control board controller card
12V tuya wifi
Prix promotionnel
$59.99
Prix régulier $83.99
Passer aux informations sur le produit
work with Tuya wifi or zigbee 8 channels Relay Switch Module with digital inputs Smart Home Remote Control board controller card
Prix promotionnel
$59.99
Prix régulier $83.99
Expédition calculée lors du paiement.
SPECIFICATIONS
Brand Name: NONE
High-concerned chemical: None
Interface: Exit Button
Model: v7080
Origin: Mainland China
Basic data:
power input: 12 to 27VDC or 90v to 220VAC
board dimension:99X87X20CM
no RF433 module;
tuyz zigbee or tuya wifi module;
[wifi remote] (basic function):
Download "Tuya Smart" from the software market, install and register, power off the module and restart it, open the APP, and click the + sign in the upper right corner to add devices.
【Remote control】Only supported if you have purchased a remote control) (If there is a flash that does not meet the steps during the operation, please turn off the power and try again),
Note: Power off and restart, wait for the indicator light to finish flashing before operating.
Action explanation: self-locking (press once to open, press again to close)
Action explanation: jog (click and turn on and off automatically after about 0.5 seconds),
Action explanation: Press the lock (press and hold it, release it and close it)
Action explanation: only open (this key can only be opened, cannot be closed)
Action explanation: only close (this key can only be closed, not open)
Action explanation: interlock (this function needs to be set on the APP)
Action explanation: Timing (this function needs to be set on the APP)
Action explanation: delay (this function needs to be set on the APP)
Interlock setting instructions: (requires Tuya APP setting)
●Input 2 on the top and 2 on the bottom, which means channel 1.2. Interlock
●Input 3 on the top and 3 on the bottom, which means channel 1.2.3 interlock
●Input 10 on the top and 10 on the bottom, which means interlocking channel 1.2.3.4.5.6.7.8.9.10
●Input 4 on the top and 2 on the bottom, which means channel 1.2. Interlock, 3.4. Interlock
●Input 8 at the top and 2 at the bottom, which means 1-2 interlock, 3-4 interlock, 5-6 interlock, 7-8 interlock
●Input 10 at the top and 5 at the bottom, which means channel 1.2.3.4.5 interlock, 6.7.8.9.10. interlock
●Enter 0 above and 0 below, indicating no interlock
【Jog setting】
Tuya APP setting is required, and the jogging time range is 1-999999 milliseconds.
Jog setting instructions:
●Channel number input 1, the current jog time of channel 1 will be displayed below, and the jog time can be changed such as 500 milliseconds.
●Channel number input 2, the current jog time of channel 2 will be displayed below, and the jog time can be changed such as 500 milliseconds.
●Jogging time input 0 means this channel does not jog, set other channels by analogy.
