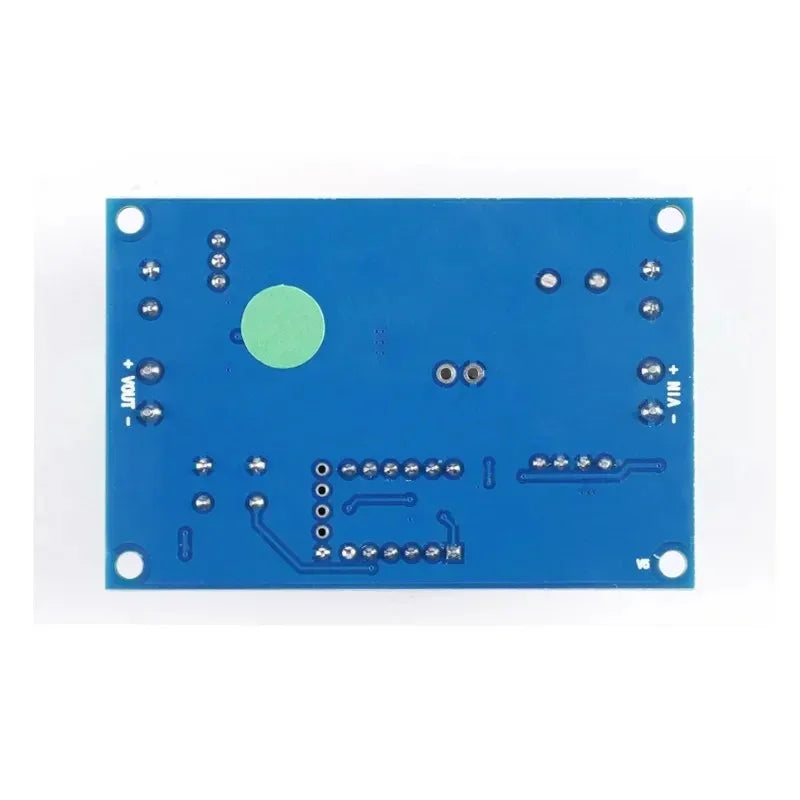

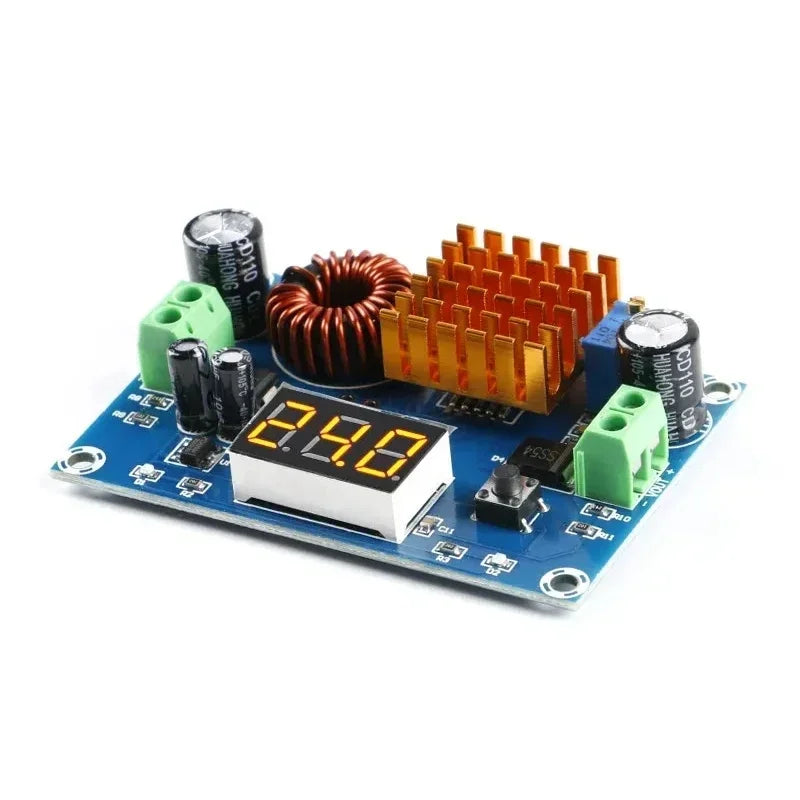

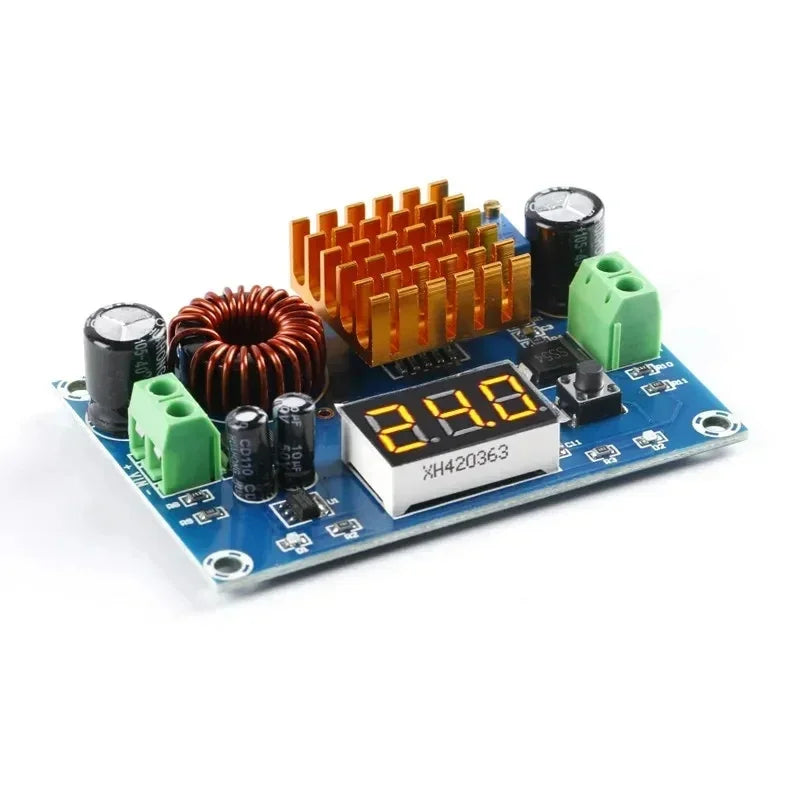

This product is a power boost module used when there is no suitable high-voltage power supply to match and drive the load. It has a voltage display function, which can display input voltage and output voltage, just switch by pressing the button; the accuracy of the voltage tested is quite high, and it can also manually adjust the output voltage, (5V-45V) is convenient and practical.

Product parameters:

Product Name: Digital Boost Module

Product model: XH-M411

Input voltage: 4~35V

Output voltage: 5~45V

Input current: MAX 5A

Maximum power: 100W

Control voltage accuracy: 0.1V

Instructions:

1. Connect the input terminal of XH-M411 to the power supply, the applicable power supply voltage is 4~35V, pay attention to its positive and negative poles.

2. Turn on the power switch, the XH-M411 screen will display the current boosted output voltage.

3. If the output voltage is not enough to meet the working voltage of the load, the voltage can be adjusted through the potentiometer.

4. Connect the output terminal to the load, pay attention to the positive and negative poles between them.

5. Press the voltage switch key to switch the display of output voltage and input voltage.
