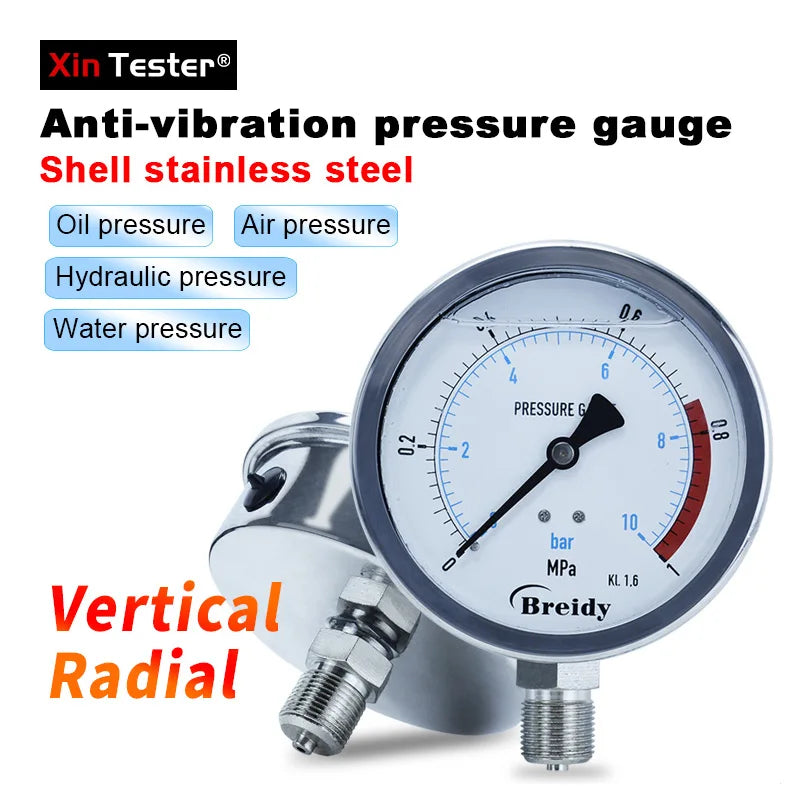

Xin Tester 0-60mpa Anti-vibration Pressure Gauge Radial/Axial Air Hydraulic Water Stainless Steel Oil Manometer Thread G1/4 G1/2
Xin Tester 0-60mpa Anti-vibration Pressure Gauge Radial/Axial Air Hydraulic Water Stainless Steel Oil Manometer Thread G1/4 G1/2
SPECIFICATIONS
Accuracy level: 2.5
Brand Name: Xin Tester
Connector Material: brass
Core Material: brass
Dial Diameter: 2 - 3.9 Inches
Display Type: ANALOG
High-concerned chemical: None

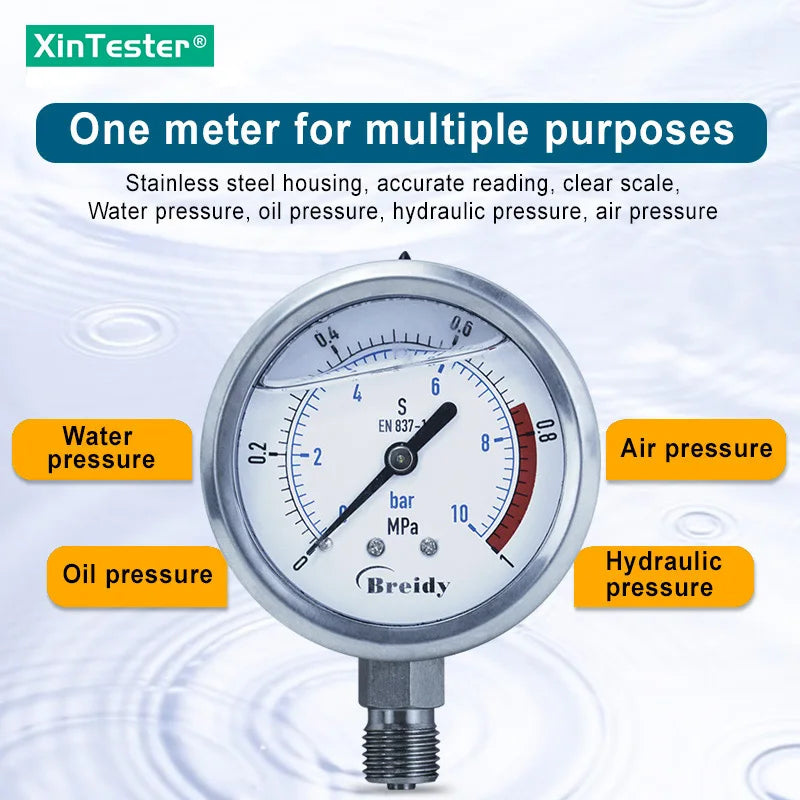

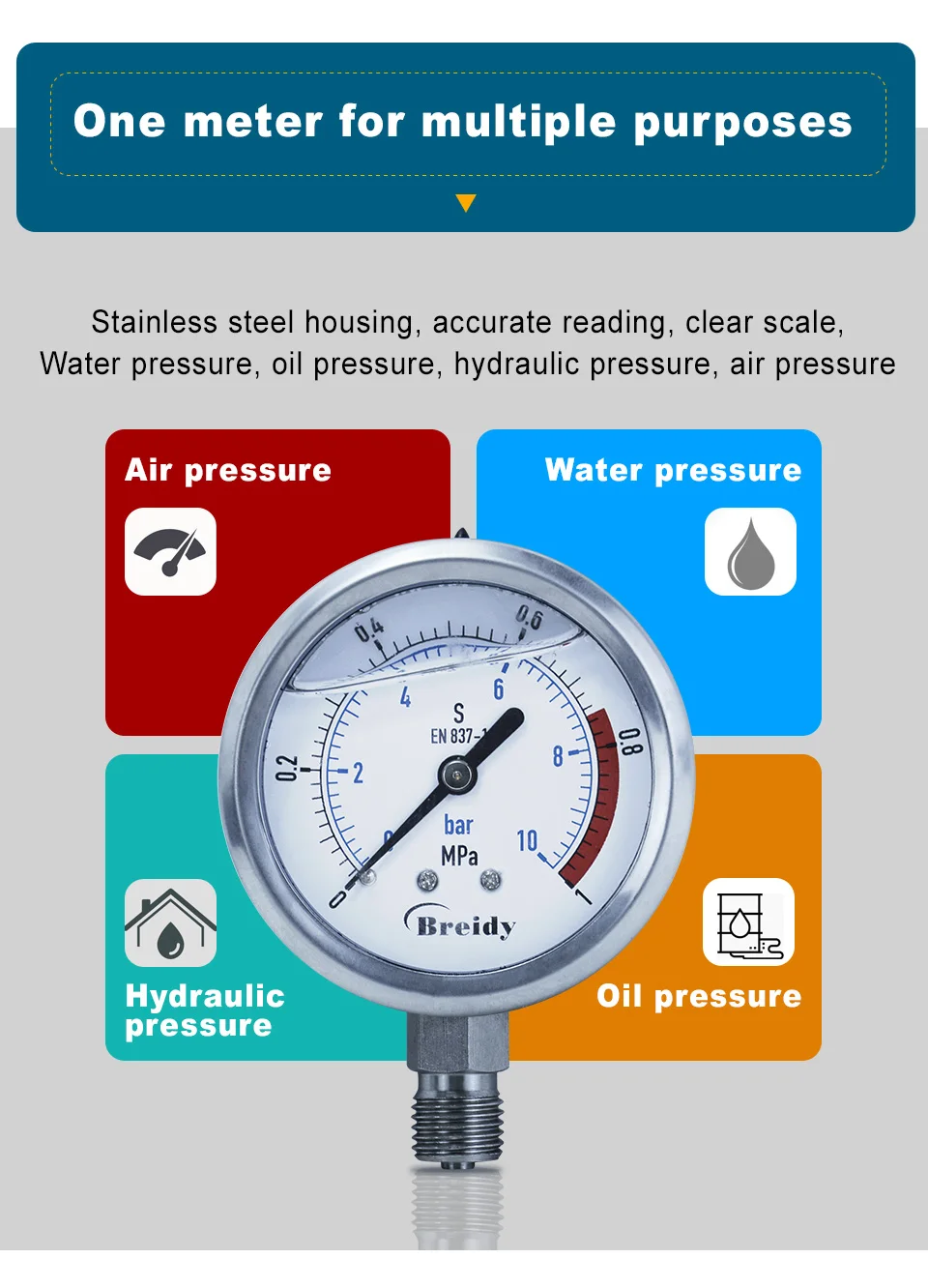

Item: Air oil water Hydraulic Pressure meter
Max Measuring Range: 200 PSI & Above
Model Number: YNBF60
Origin: Mainland China
PCB included: No
Radial &Axial: Yes
Semi-finishedproduct: No
Shell Material: stainless steel

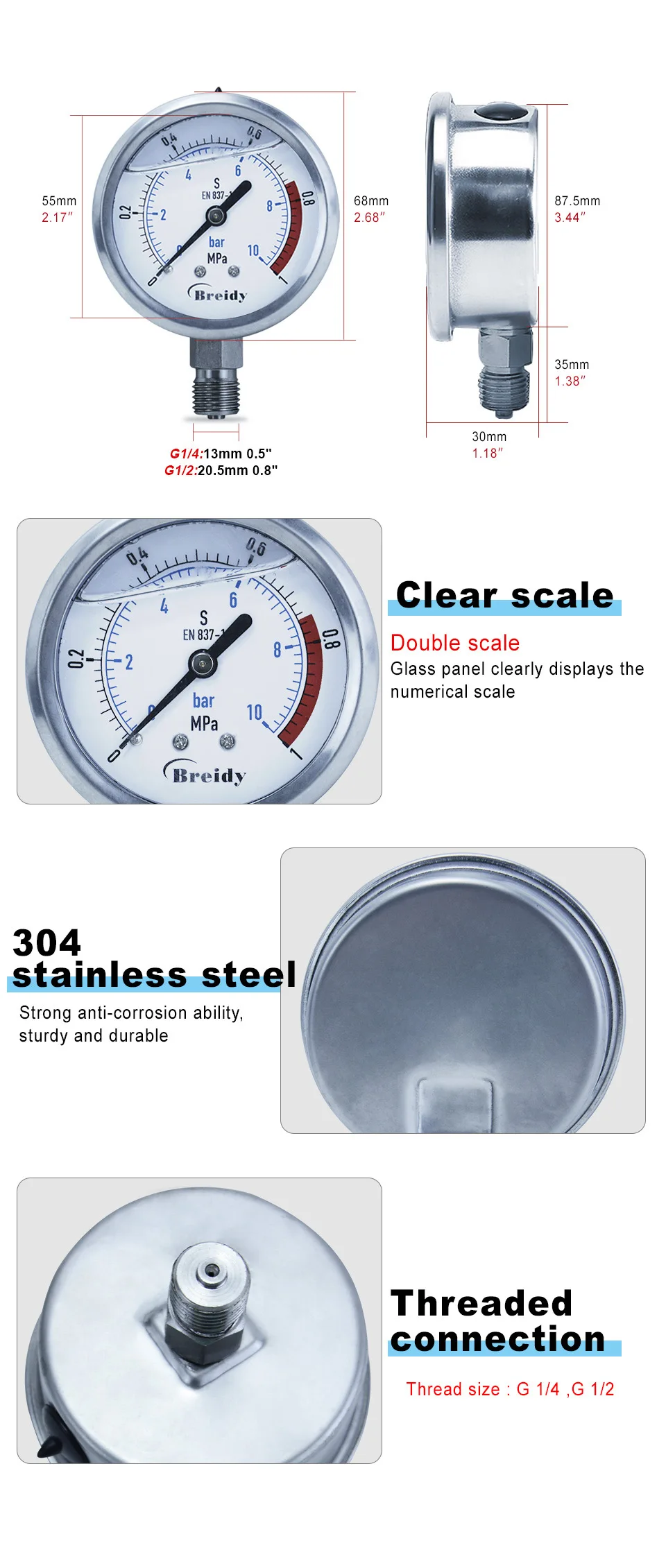

Surface Diameter: 60mm/2.36in
Thread: G1/4 or G1/2
Xin Tester 0-60mpa Anti-vibration Pressure Gauge Radial/Axial Air Hydraulic Water tainless Steel Oil Manometer Thread G1/4 G1/2

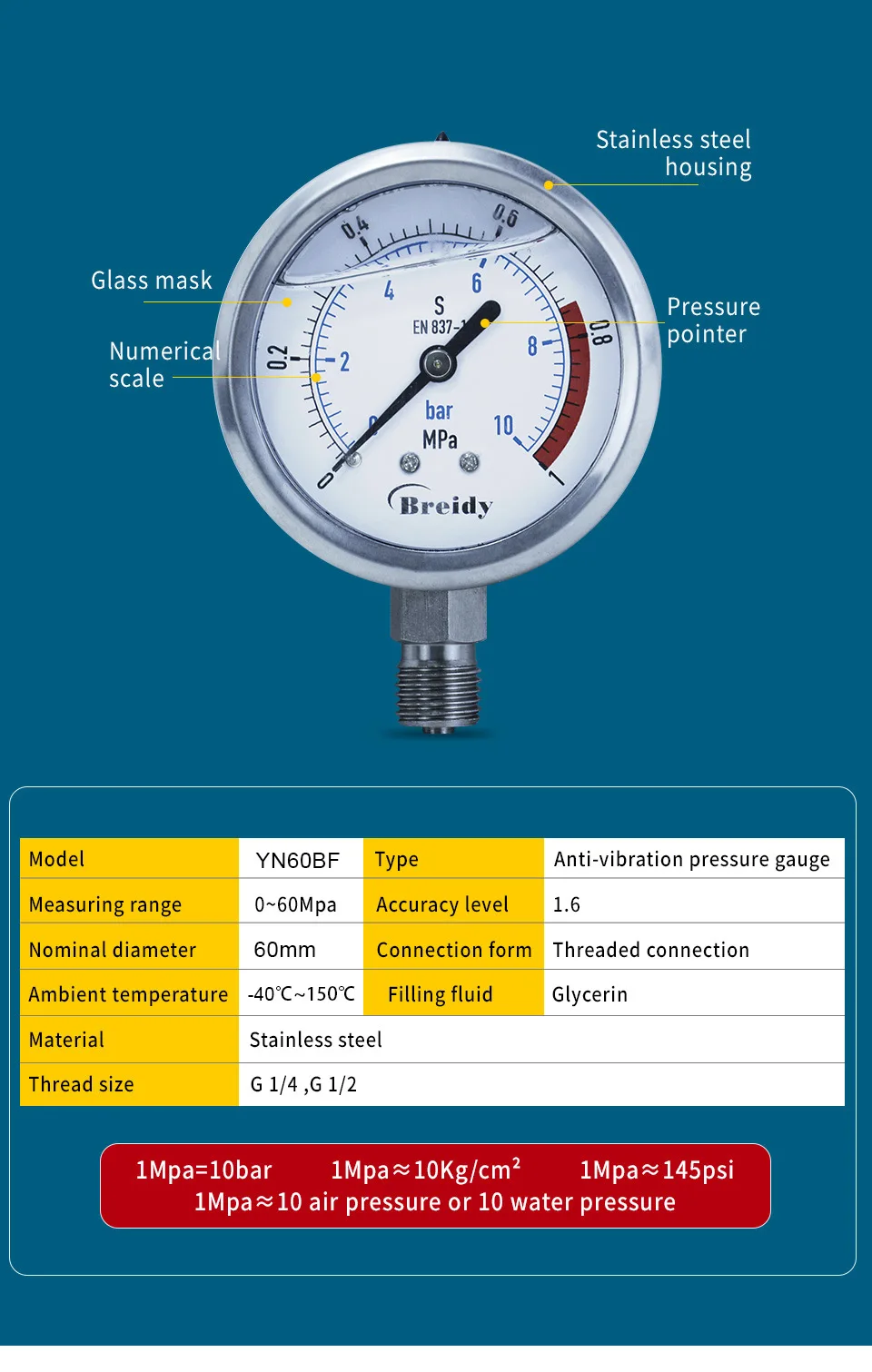

Item:YNBF60 Stainless steel Pressure Gauge

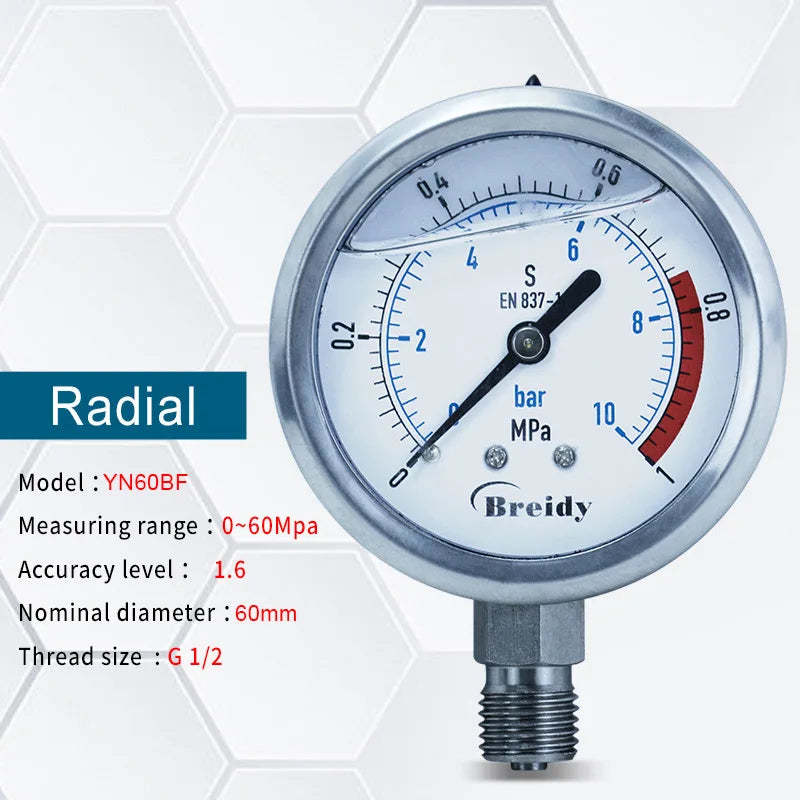

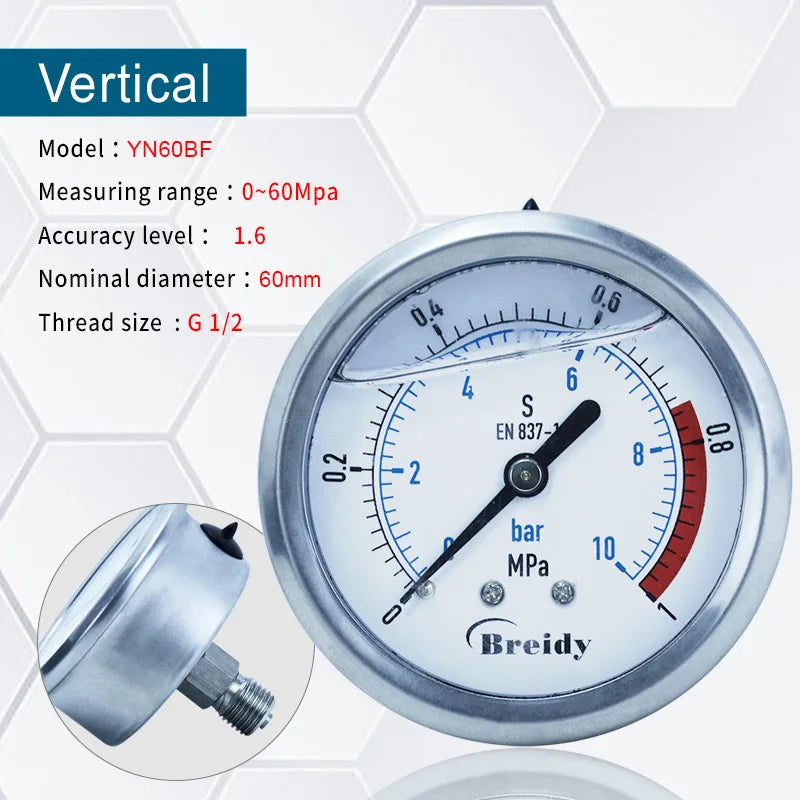

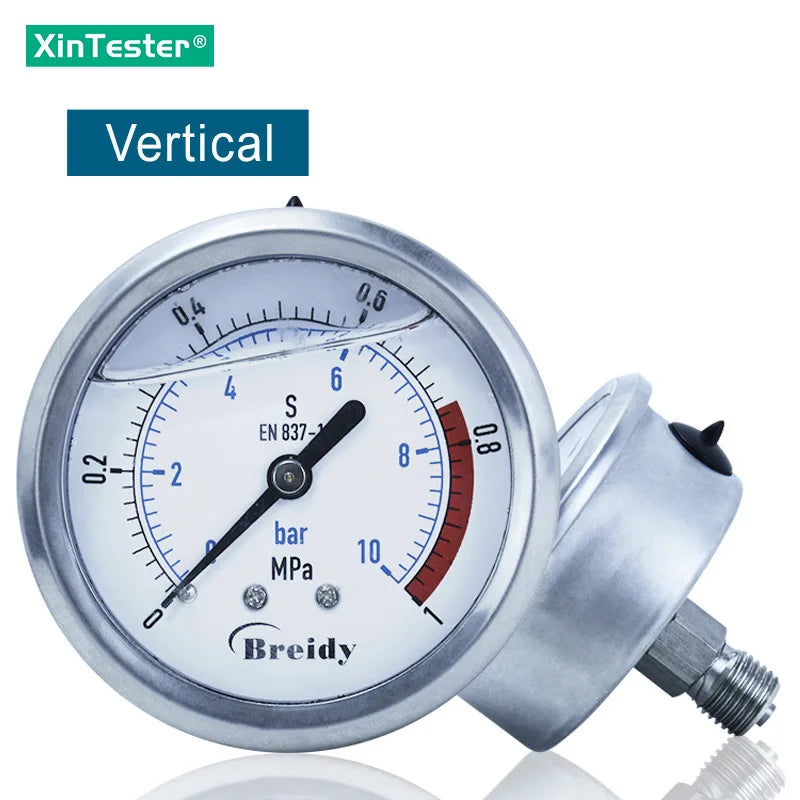

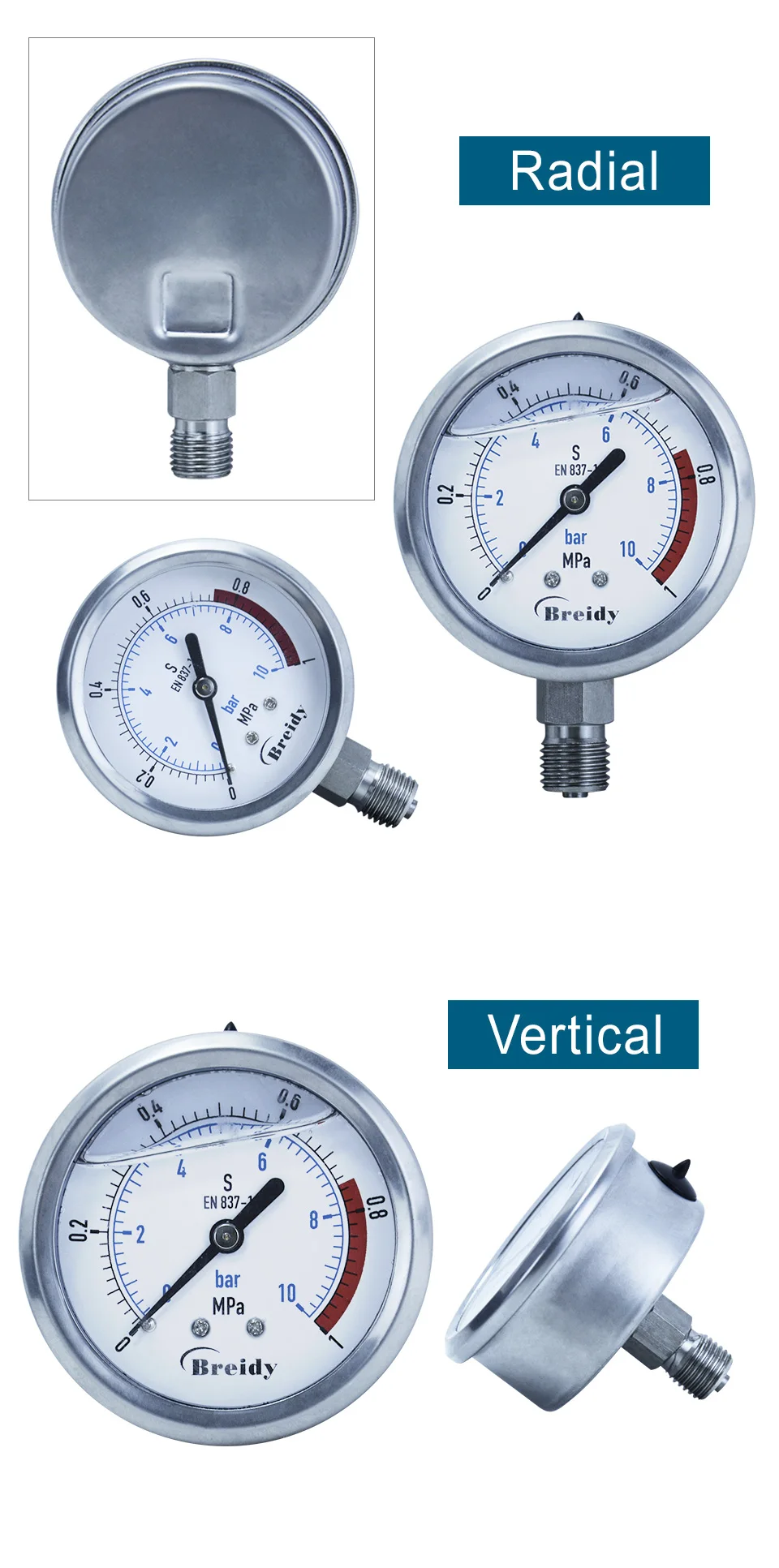

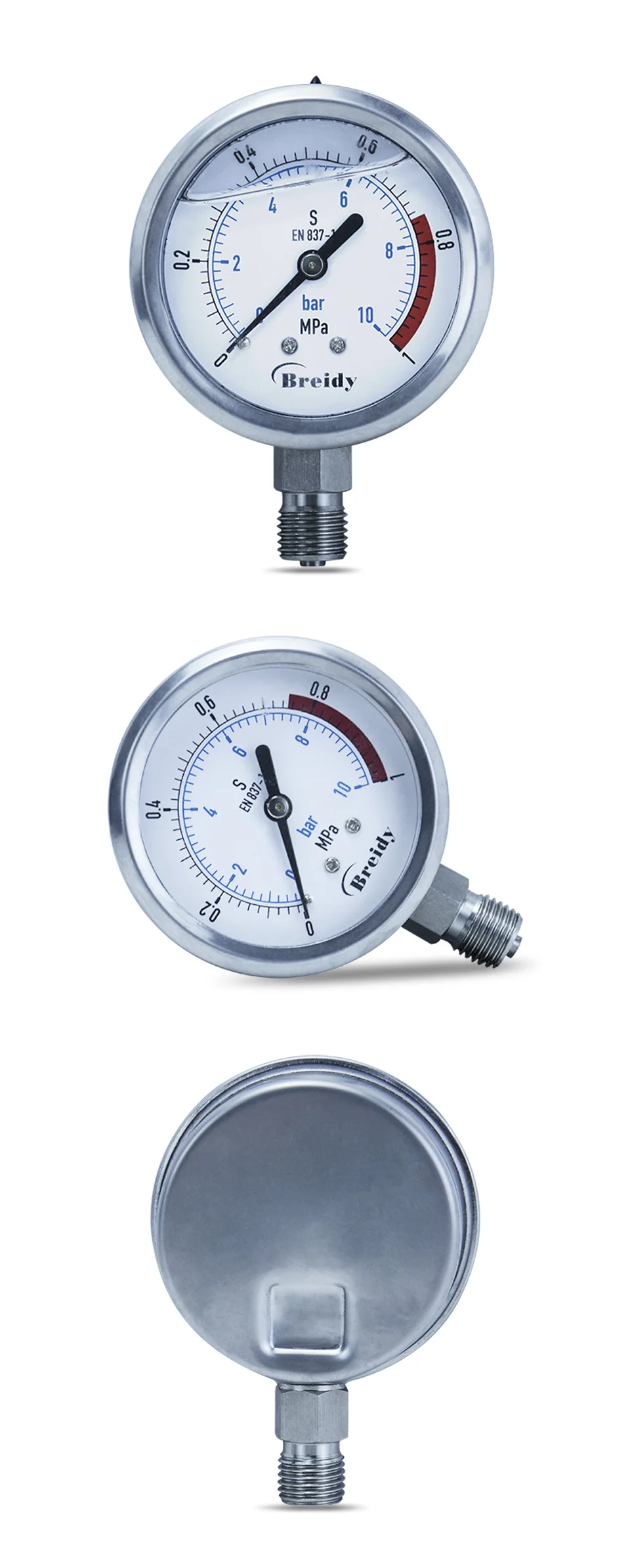

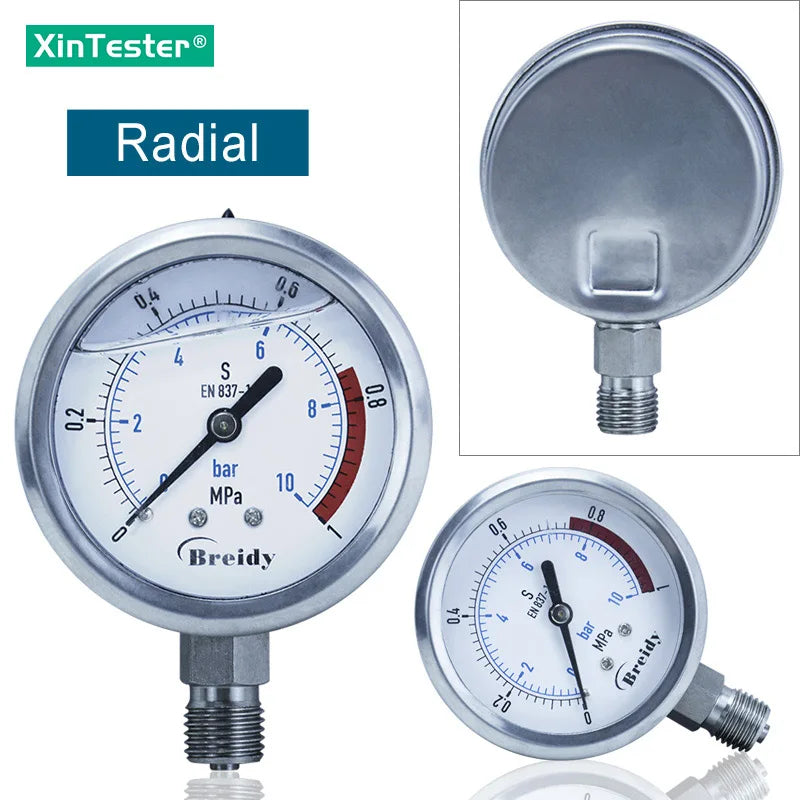

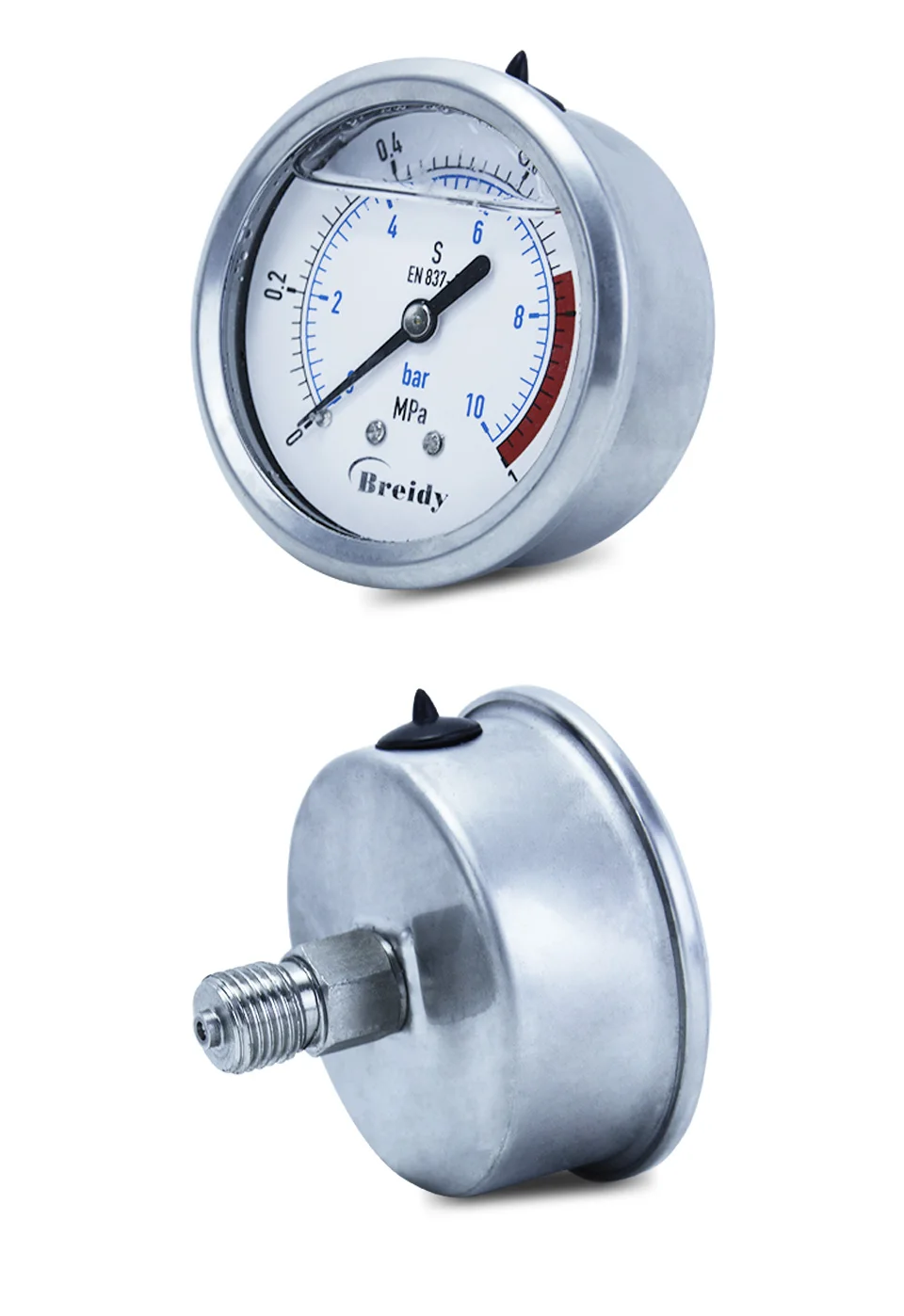

Install type:Radial/Axial

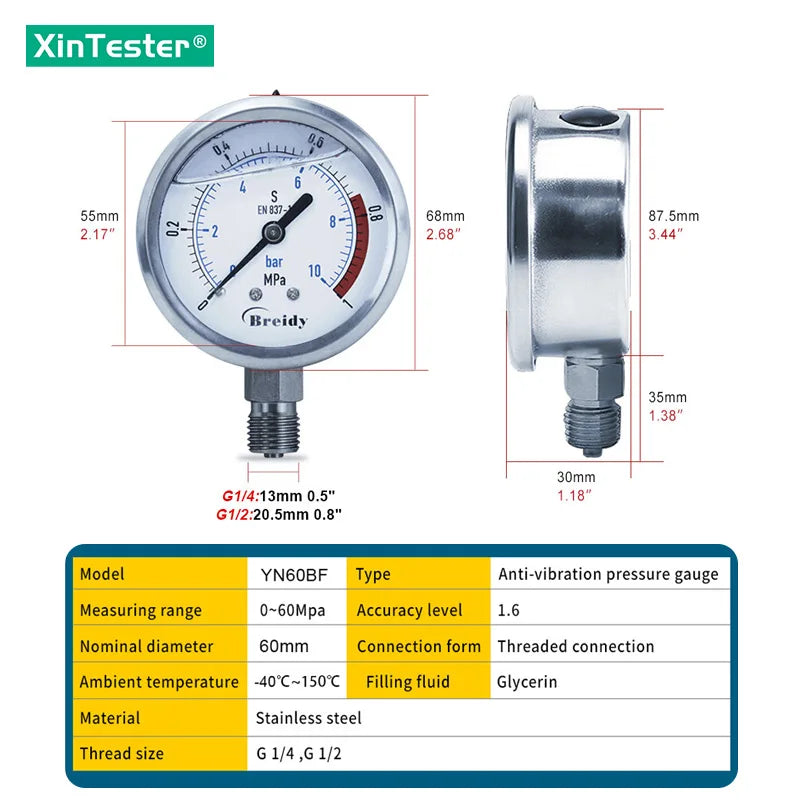

Surface Diameter:60mm
Accuracy level:2.5
Thread size：G1/4 or G1/2

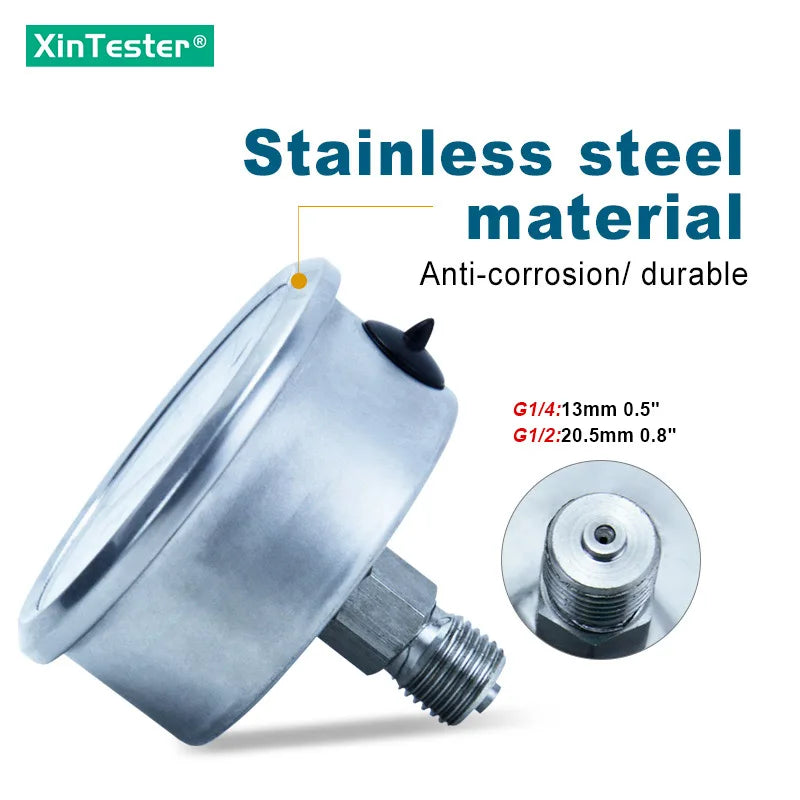

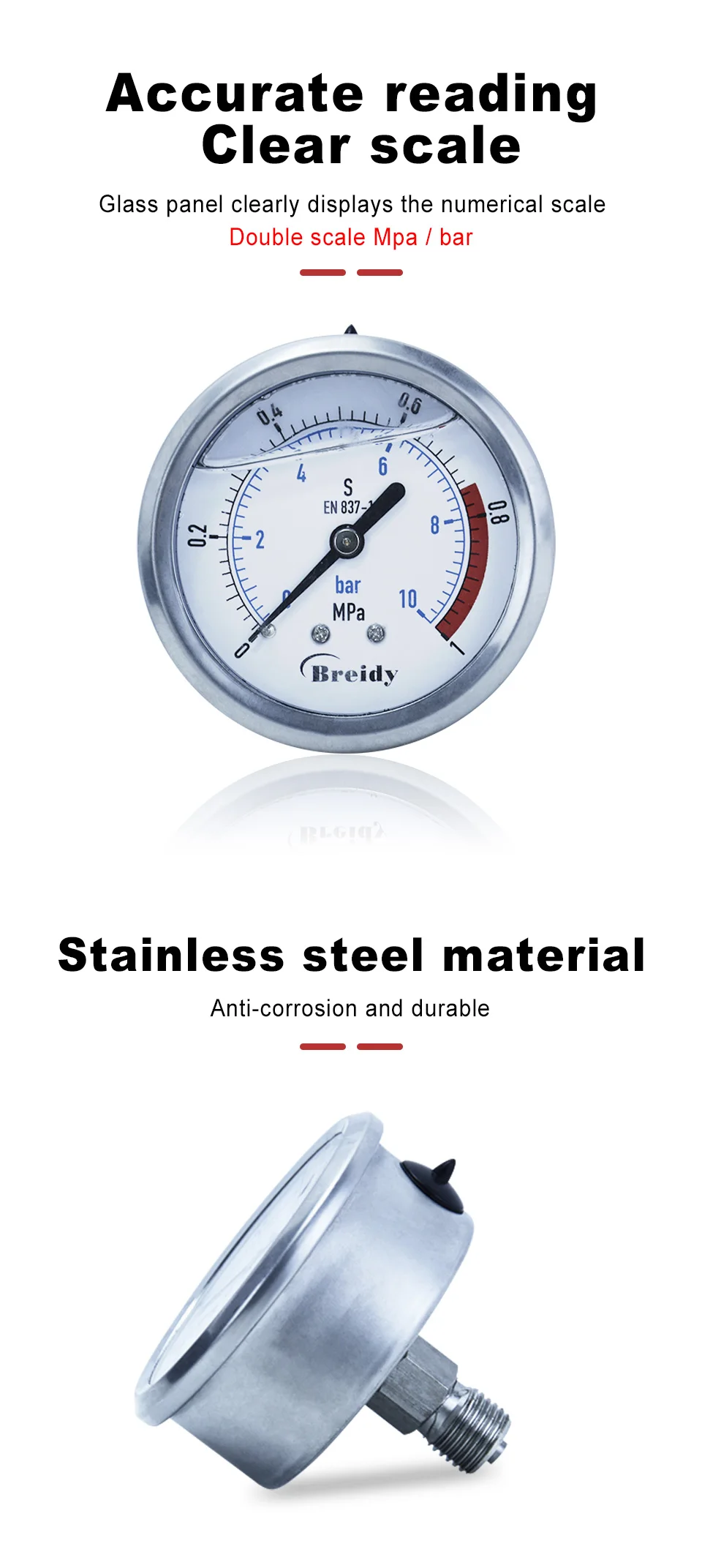

Material:304 stainless steel
(Notice:1mpa=10kg=10bar=145psi)
Description:
Pressure gauges are precision instruments and should be avoided during transportation, installation and use.
If the maximum stable pressure is used, it shall not exceed 2/3 of the upper limit of the measurement; when the pressure is fluctuating, it shall not exceed 1/2 of the upper limit of measurement. The applicable range of pressure gauges should maintain an optimum pressure of 1/3.
Installation and use ambient temperature range of -40 ° C to 70 ° C, the relative temperature is not more than 80%.
When using on equipment that is prone to pressure changes, install a protective device before installing it.
How to Choose manometer?
1.Confirm manometer diameter
2.Confirm measuring range
3.Confirm Radial or Axial
4.Confirm thread diameter
