SPECIFICATIONS

Battery: 2*1.5V AAA(not included)

Battery Included: no

Brand Name: Yunombo

Calibration: Basic calibration/Two Point calibration/Zero calibration

Certification: CE

Error Range(YNB-111): ≤150μm: ±5μm,>150μm: ±(3%H+1μm)

Gross Weight: 145g

High-concerned chemical: None

Model Number: YNB-111

Origin: Mainland China

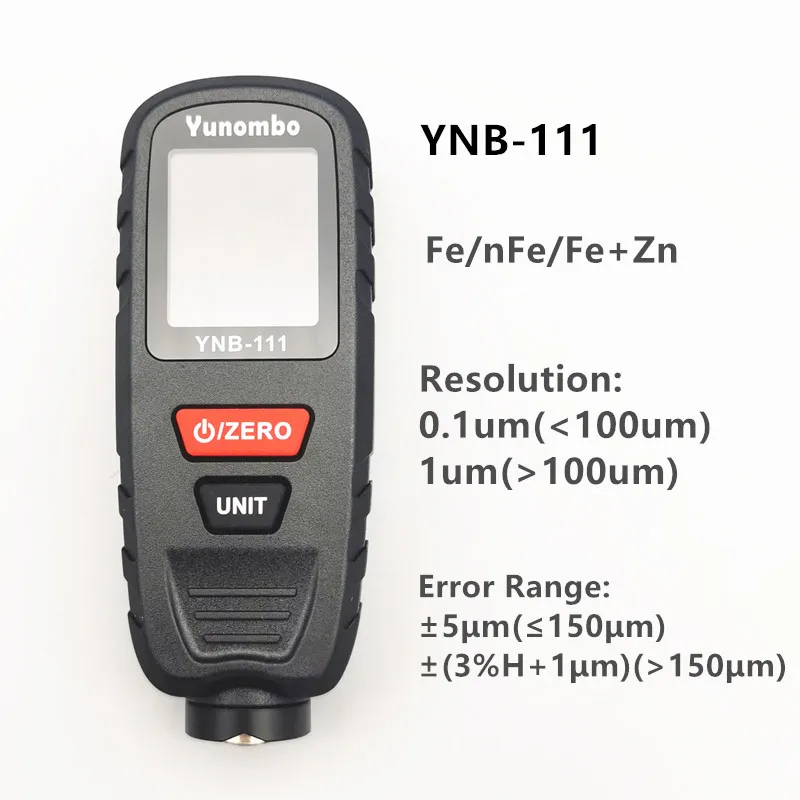

Resolution(YNB-111): ( 0.1μm(<100μm),1μm( ≥100μm))/0.1mil

Semi-finishedproduct: No

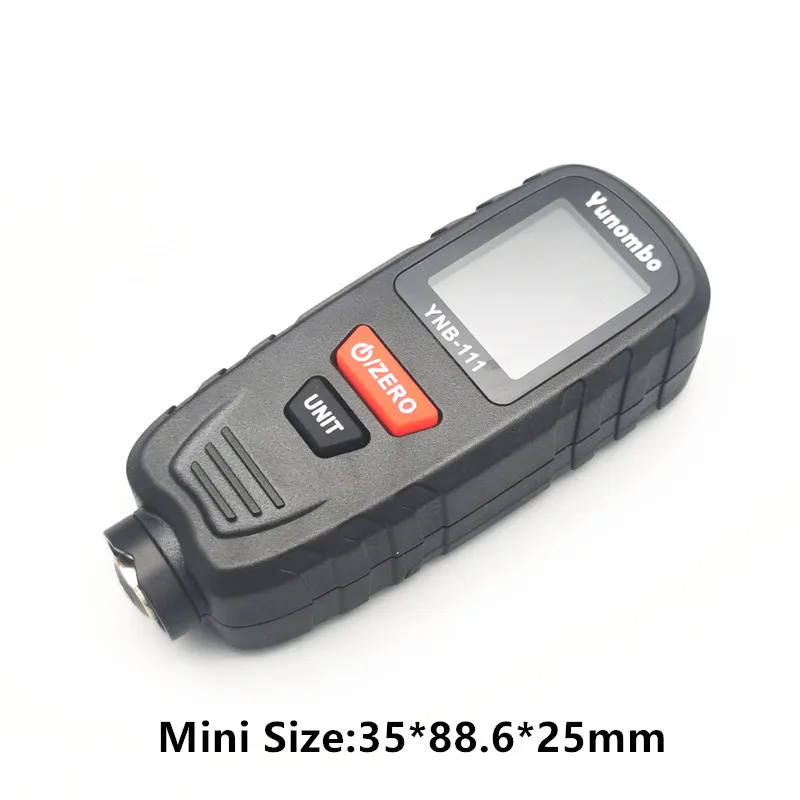

Size: 35*88.6*25mm

Unit: um/mm/mil

With Backlight Or Not: Yes

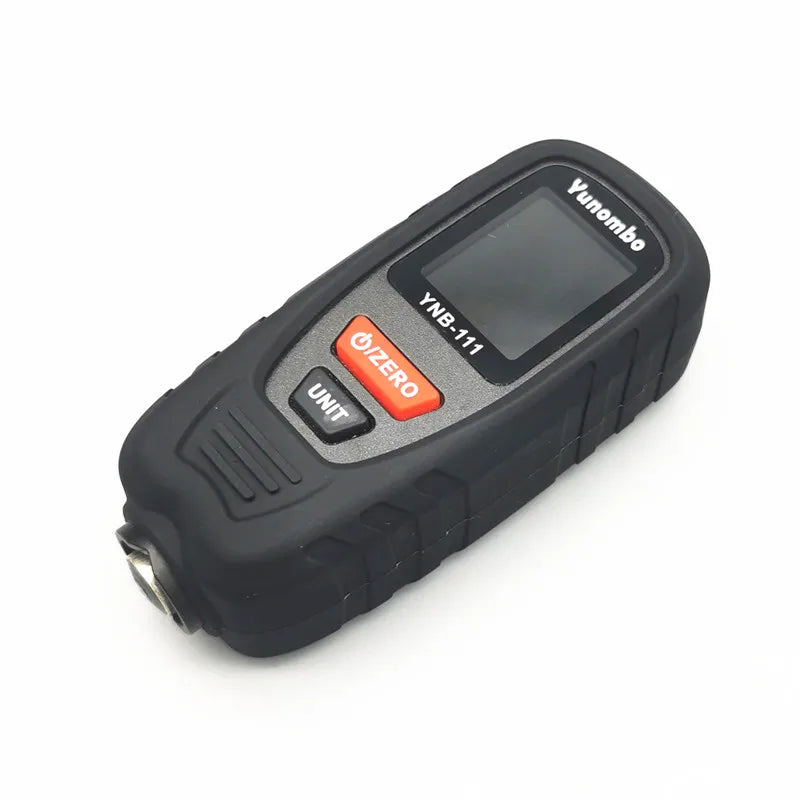

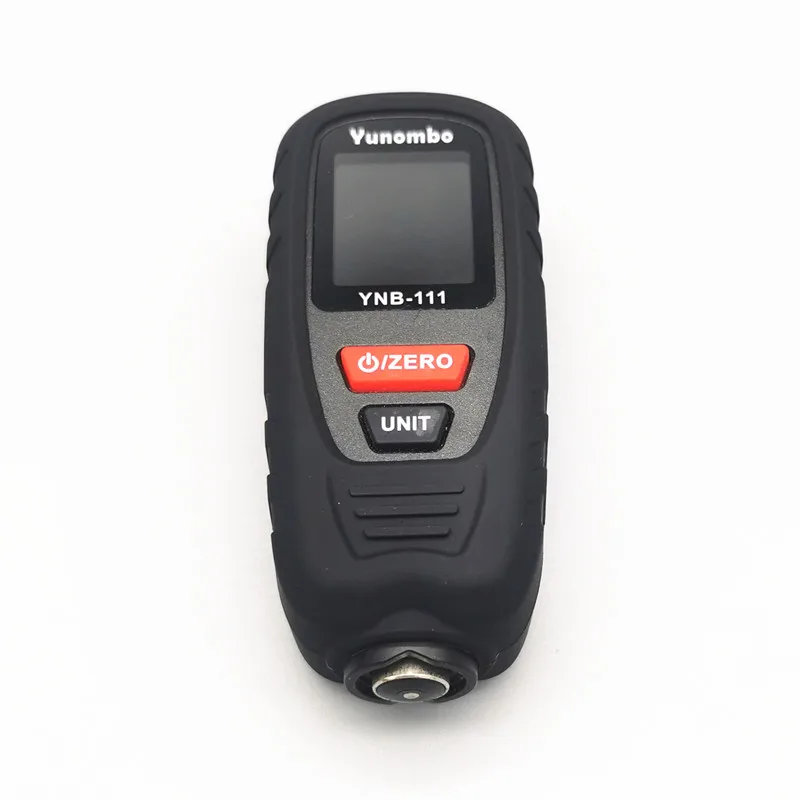

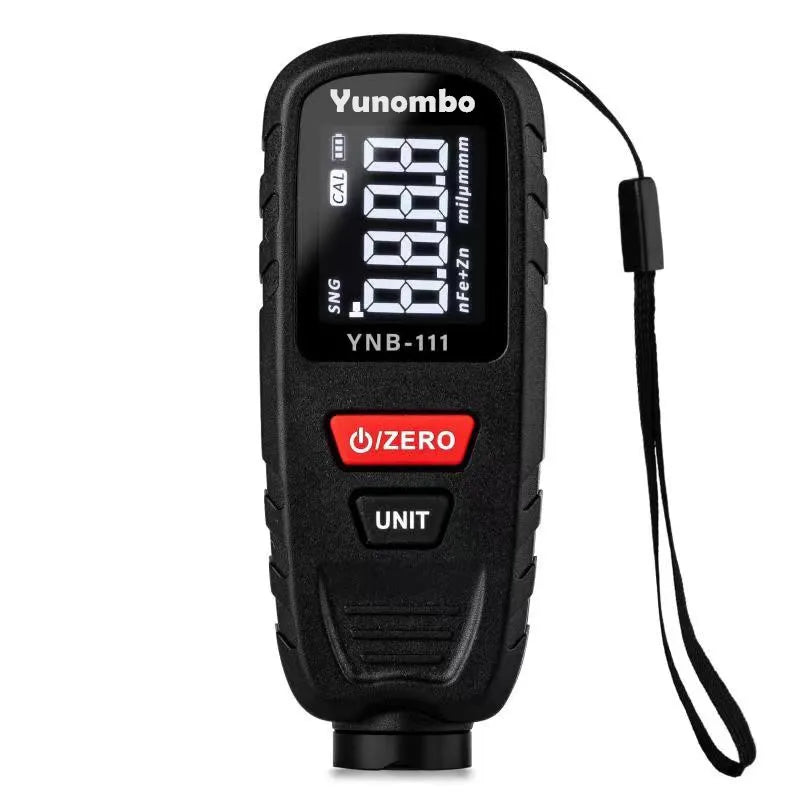

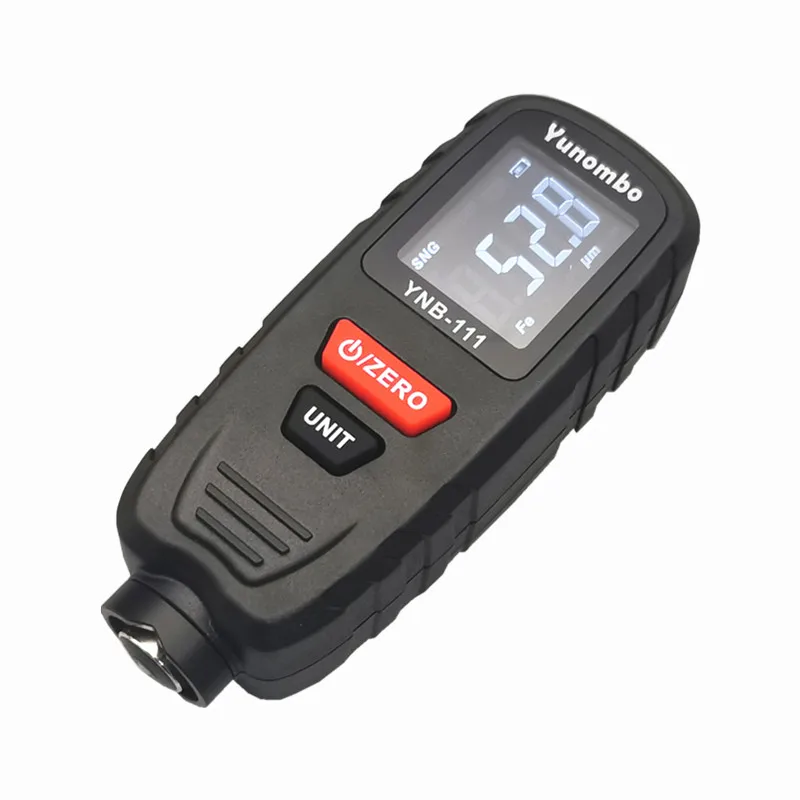

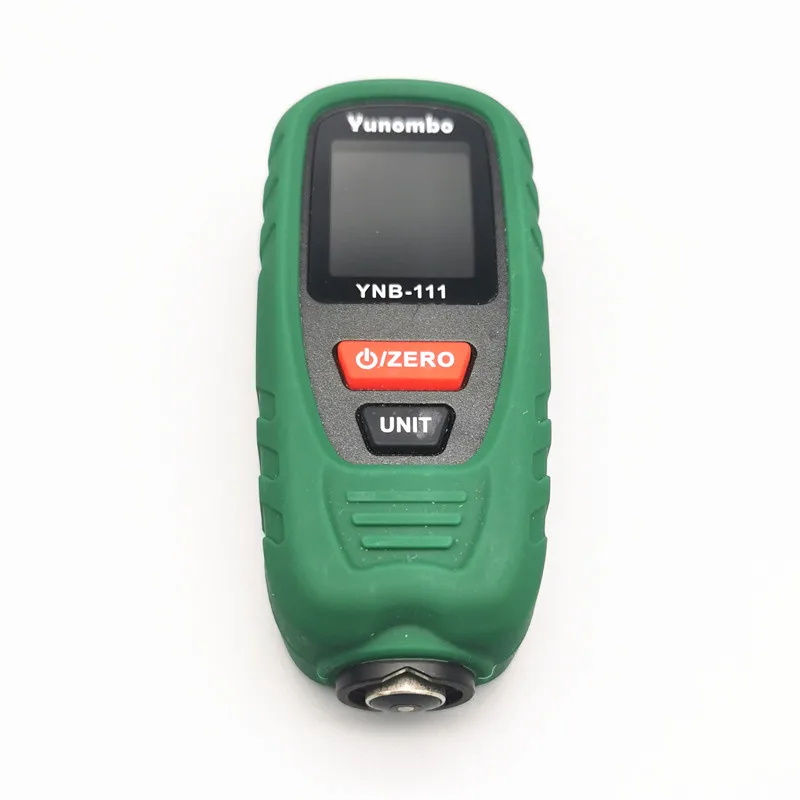

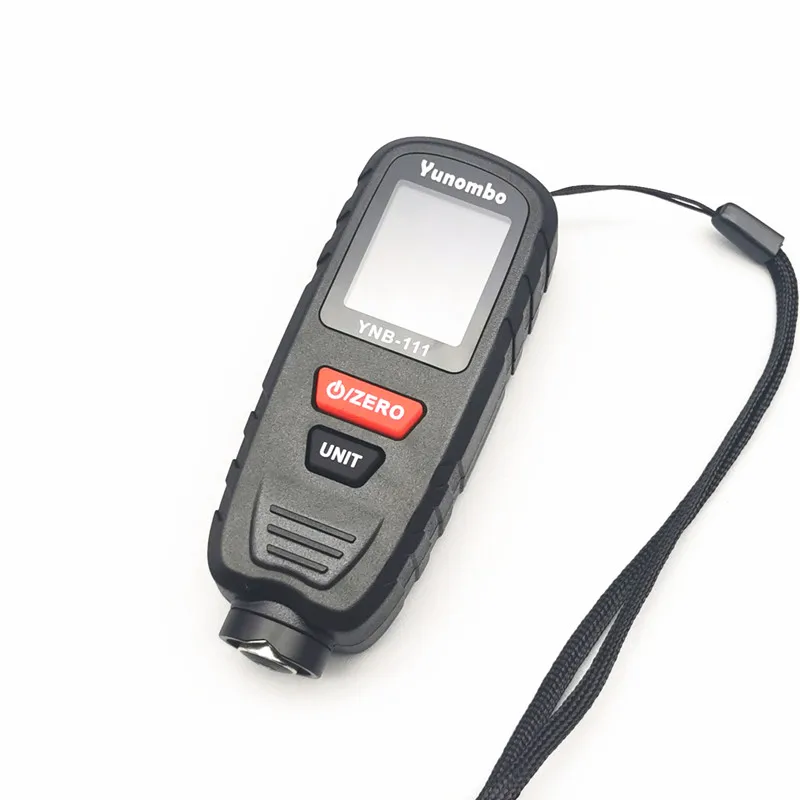

Yunombo YNB-111 Fe nFe Fe+Zn Mini Car Paint Thickness Tester Coating Thickness Gauge Film Thickness Meter

1.YNB-111: 0.1um resolution(<100um); 1um(>100um),with Fe,nFe,Fe+Zn function

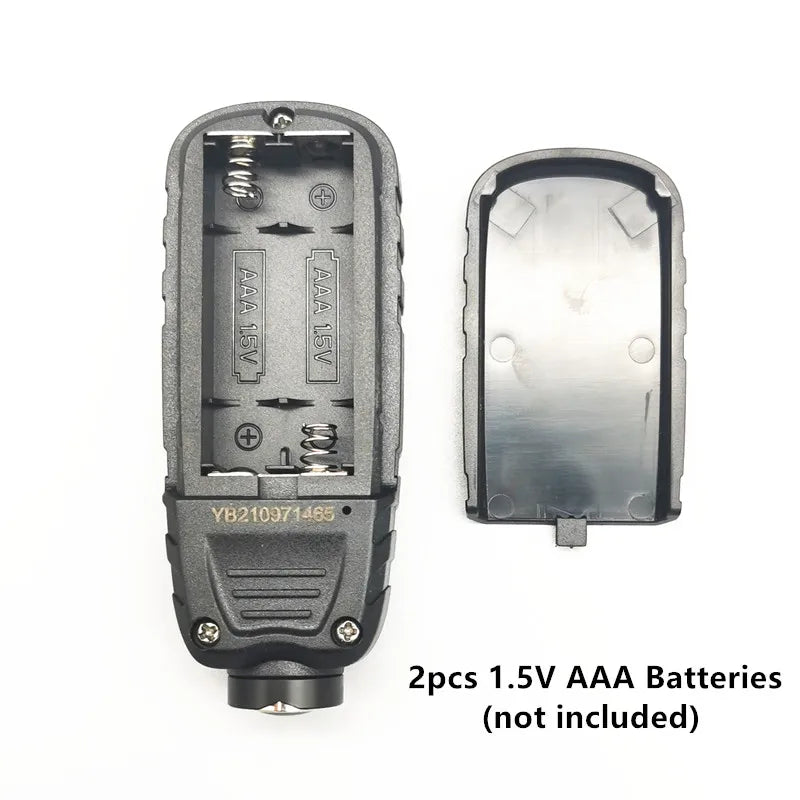

2. Batteries will not come with the package, the device needs 2pcs 1.5V AAA batteries.
3.There is a protective film on the screen,you can remove it before using.
4.The package comes with a gift pouch,but the pouch is a gift only,we don't take responsibility for this pouch if damaged.

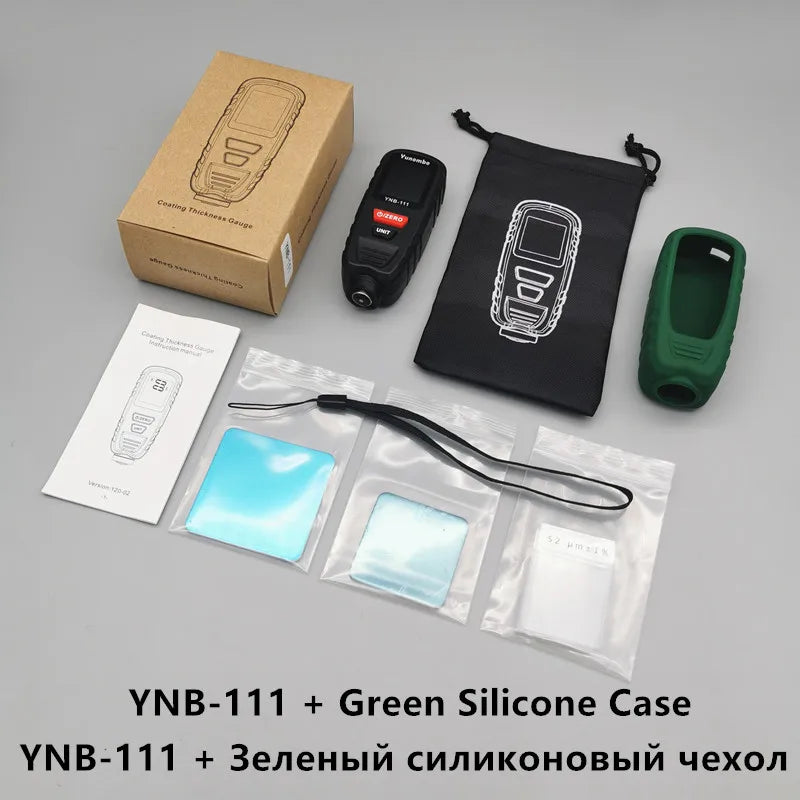

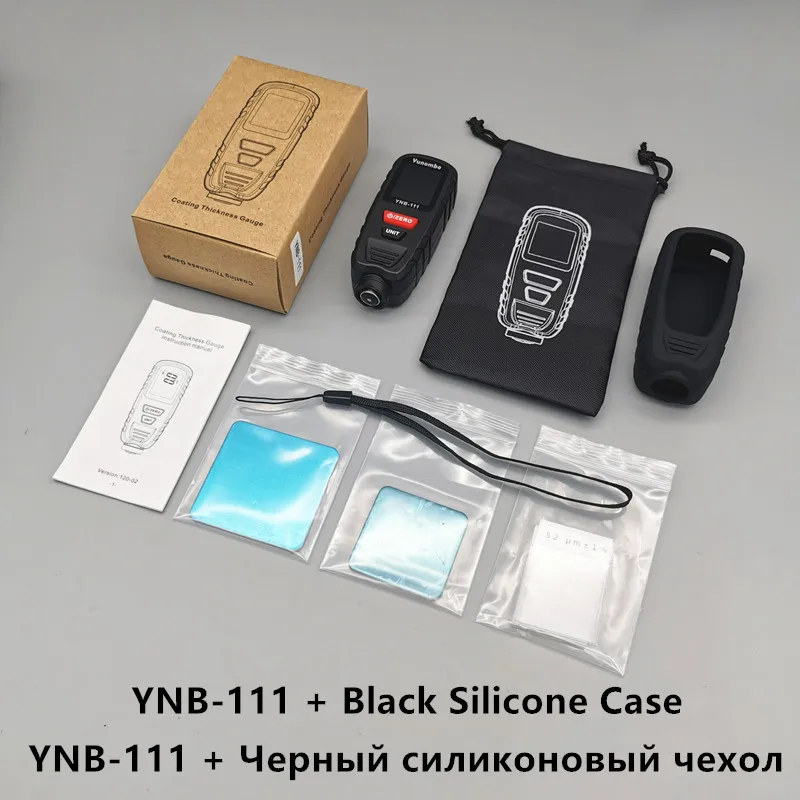

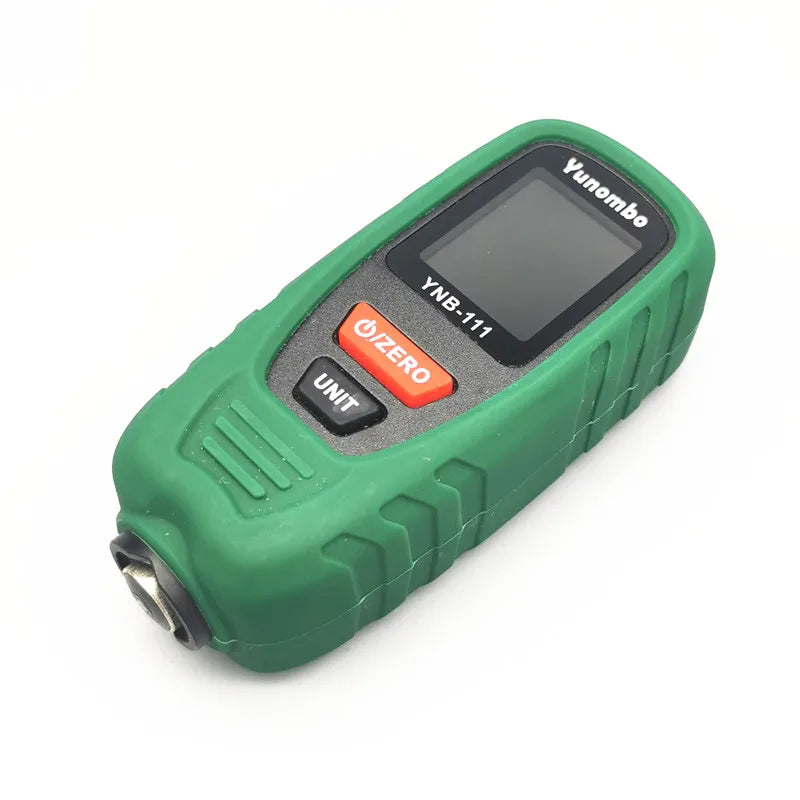

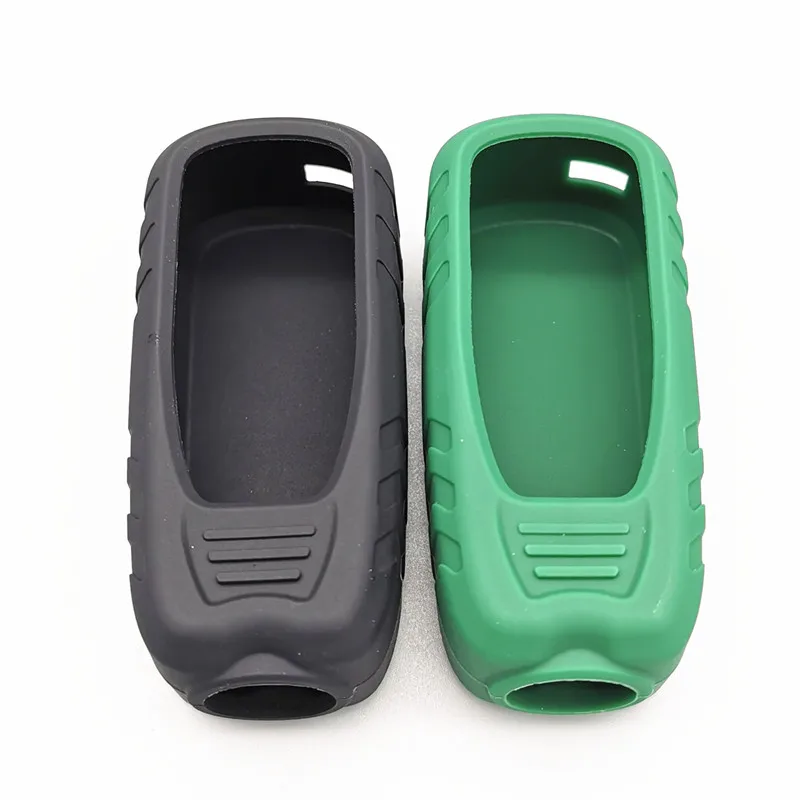

5.There are three packages, which includes the standard package, the package with black silicone case and the package with green silicone case.Please choose the correct package when you placing order.

I. Introduction:

YNB-111 can make a quick and effective measurement of the thickness of the non-metallic coating on the non-magnetic metal substrate and the thickness of the non-magnetic coating on the magnetic metal substrate, it can also automatically identify the magnetic metal substrate and non-magnetic metal substrate. It is widely used in the inspection field of automobile manufacturing, metal processing industry, chemical industry, commodity inspection, etc.

II.Functions:

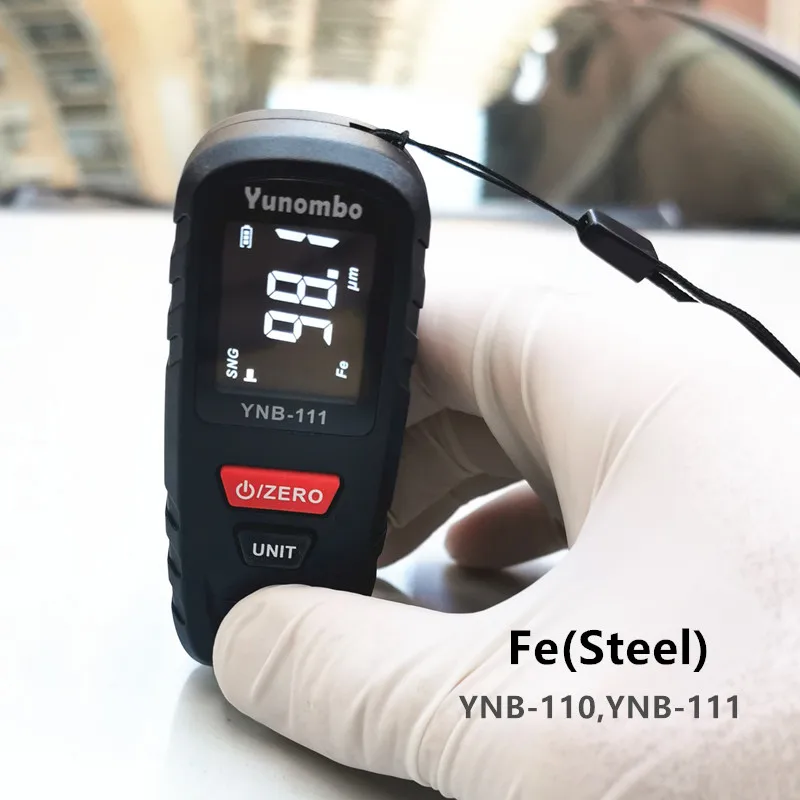

1.Measuring the thickness of the non-magnetic coating on the surface of magnetic metal substrate

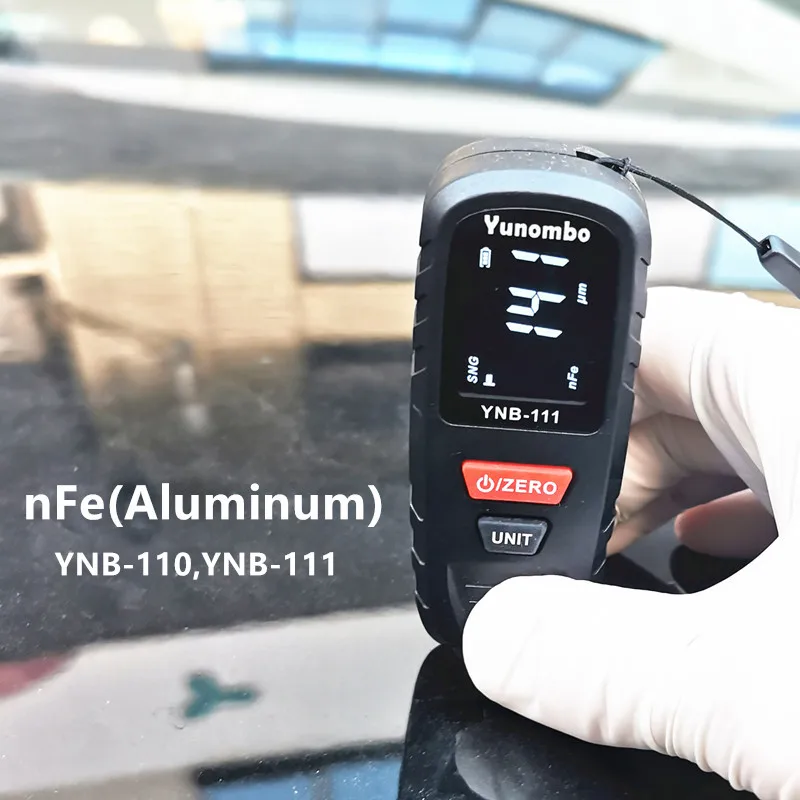

2.Measuring of the thickness of the non-metallic coating on the surface of non-magnetic metal substrate
3.Automatic identifying magnetic metal matrix and non-magnetic metal matrix

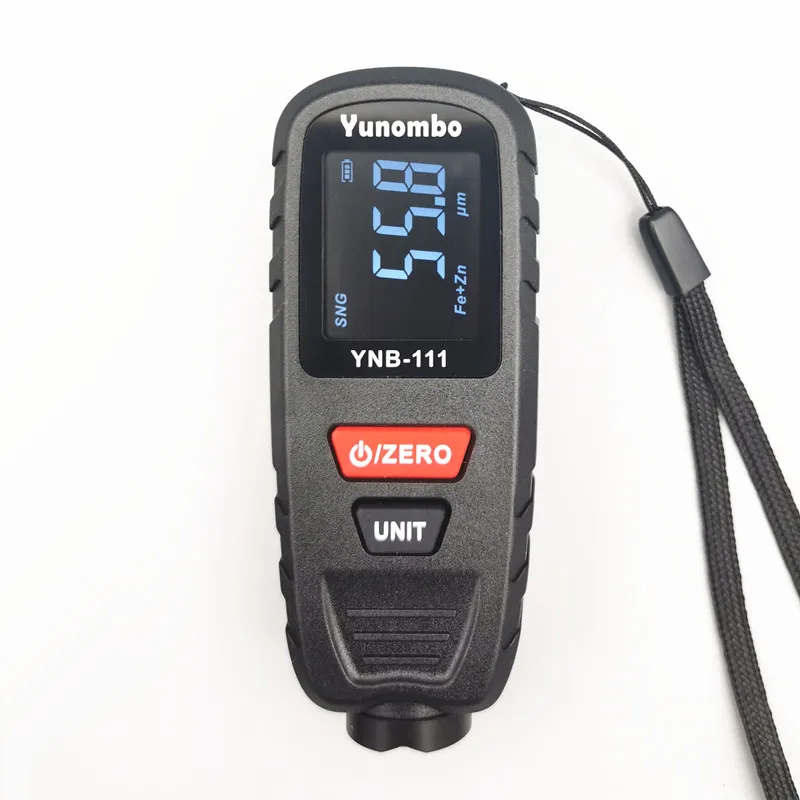

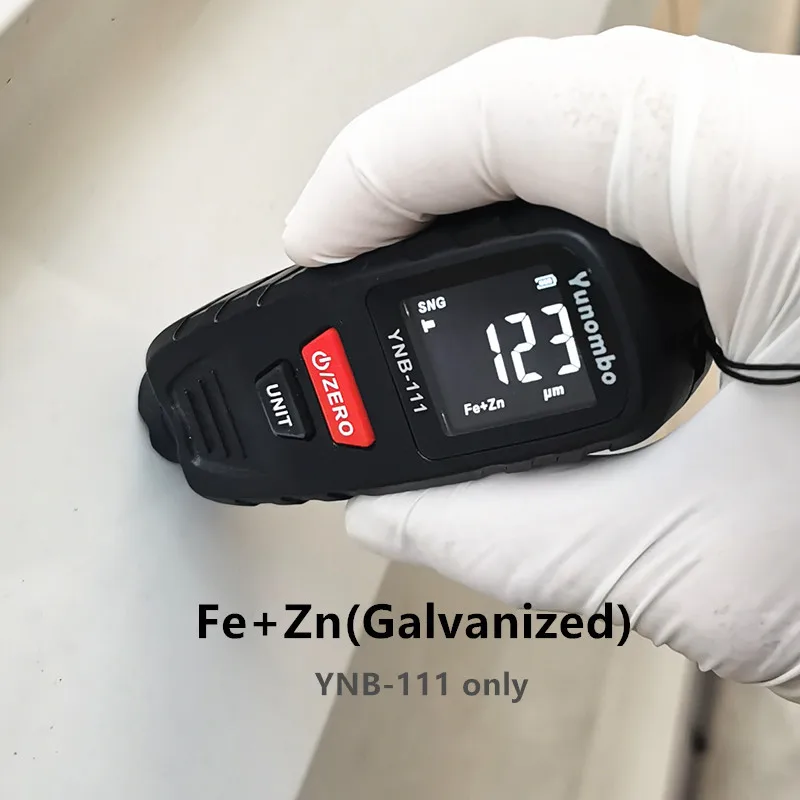

4.Automatic identifying whether magnetic metal matrix is covered with non-magnetic metal coating (generally zinc, this function is optional)
5.Three calibration functions including zero point, two point, basic
6.Choice between metric and imperial units
7.Automatic shutdown

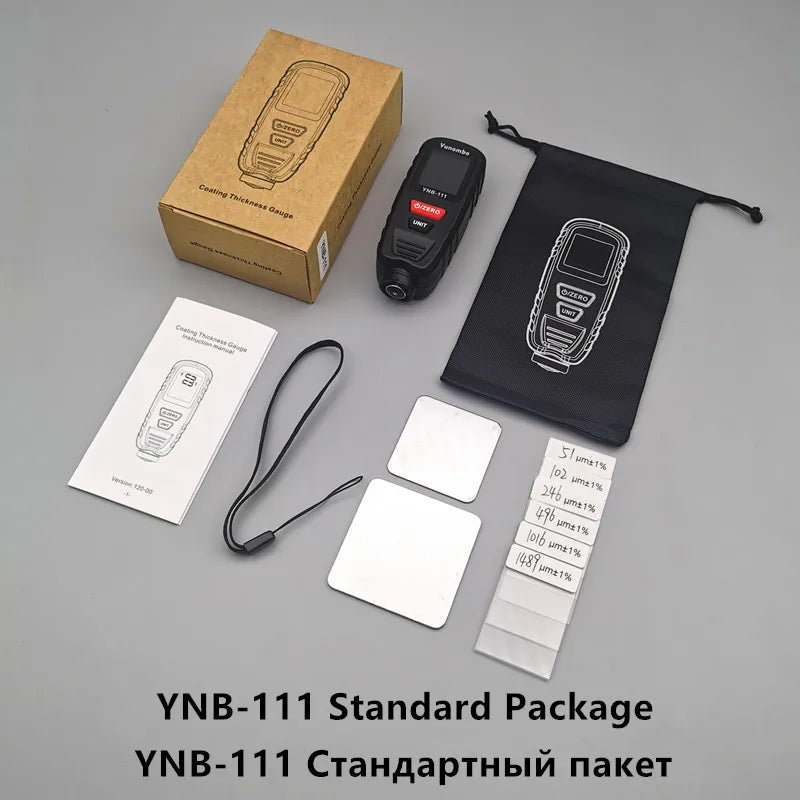

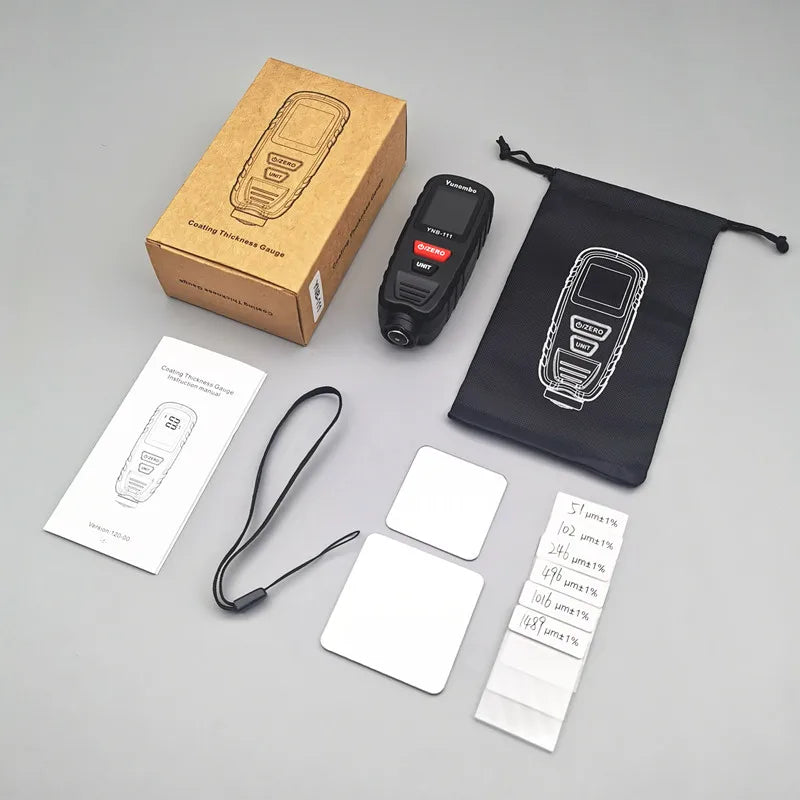

III.Package Includes:

1 X Coating Thickness Gauge YNB-111
1 X Iron Clibration Substrate
1 X Aluminum Clibration Substrate
6 X Calibraion Films
(50um,100um,250um,500um,1000um,1500um)
1 X English&RussianUser Guide
1 X Gift Pouch(gift only,no warranty)

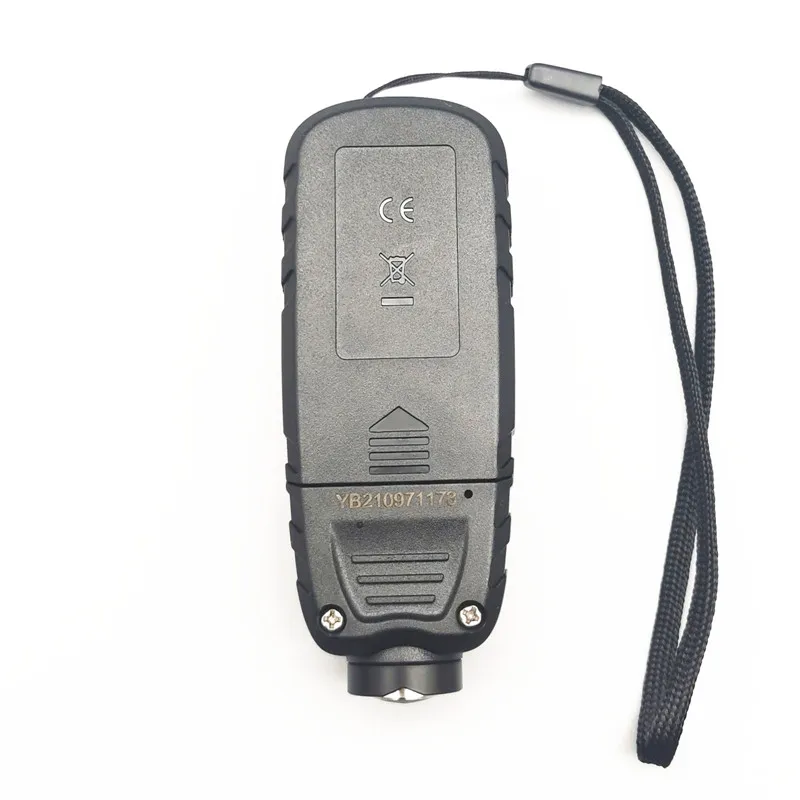

1 X Lanyard
1 X Retail Box
