SPECIFICATIONS

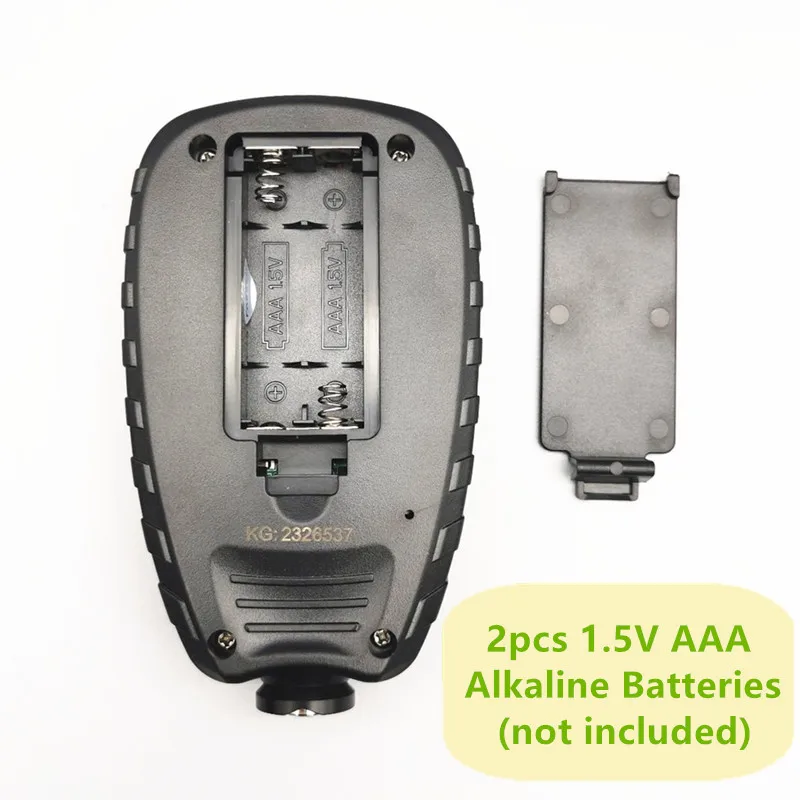

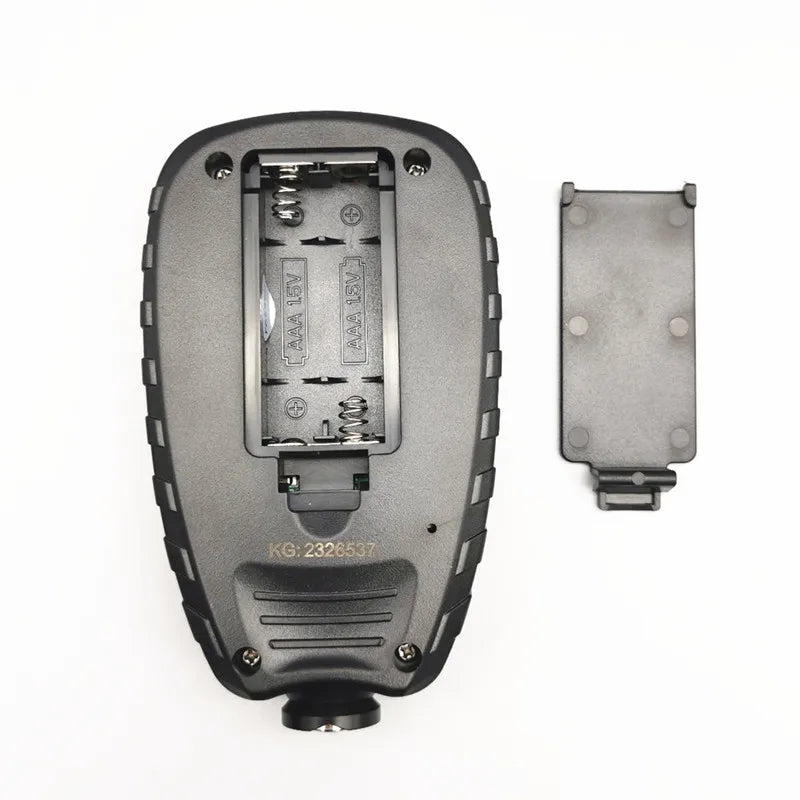

Battery: 2pcs 1.5V AAA Alkaline batteries(not included in the package)

Battery Included: no

Brand Name: Yunombo

Certification: CE

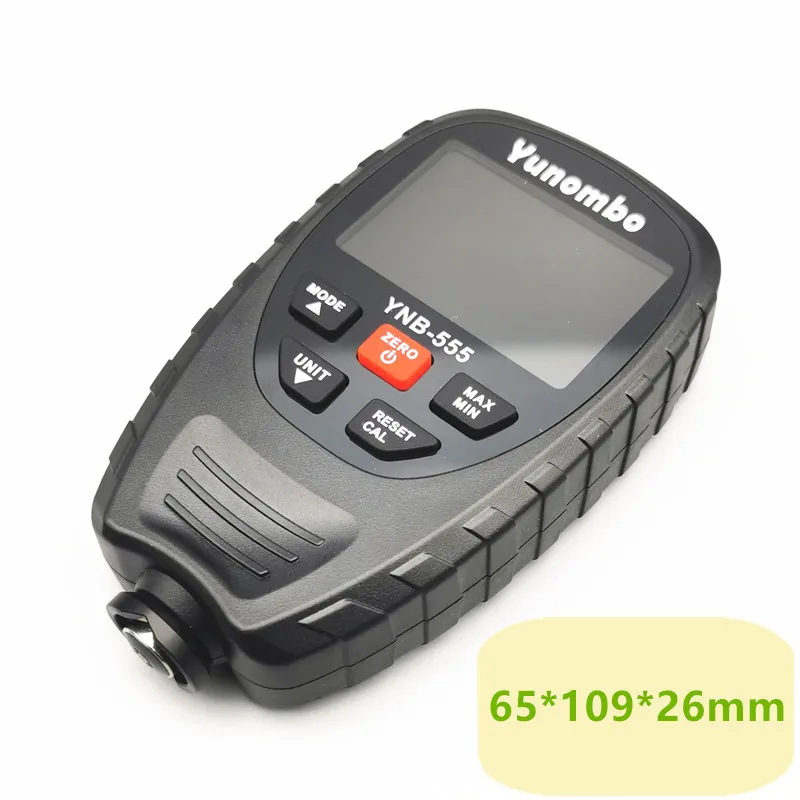

Dimension: 65*109*26mm

Display(Character) color: Green/Orange/Red

Error Range: +-5um(<150um); +-(3%H+1um)(>150um)

High-concerned chemical: None

Maximum/Minimum/Average Value: Yes

Measuring Mode: Single/Continuous/Difference value measurement

Measuring Range: 0-1500um

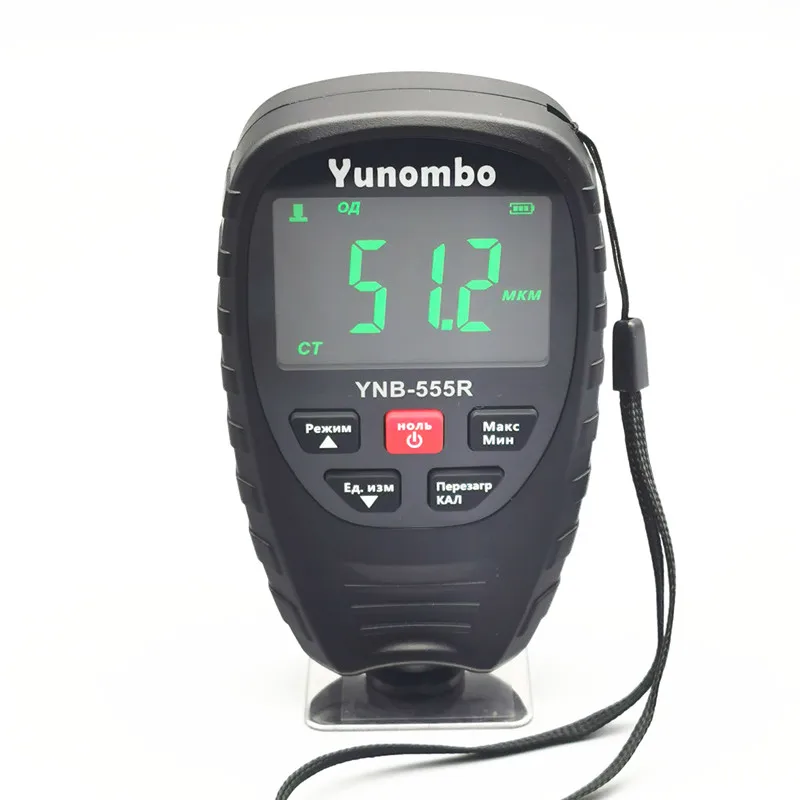

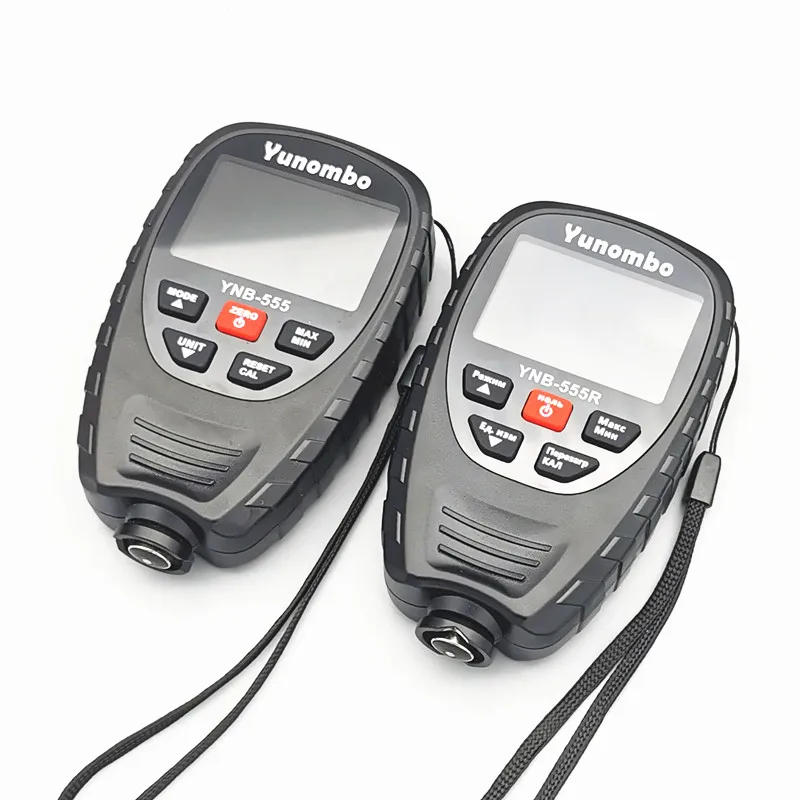

Model Number: YNB-555/YNB-555R

Operating humidity range: 10~95%RH

Operating temperature range: -20~+40℃

Origin: Mainland China

Resolution: 0.1um(<100um); 1um(>100um)

Semi-finishedproduct: No

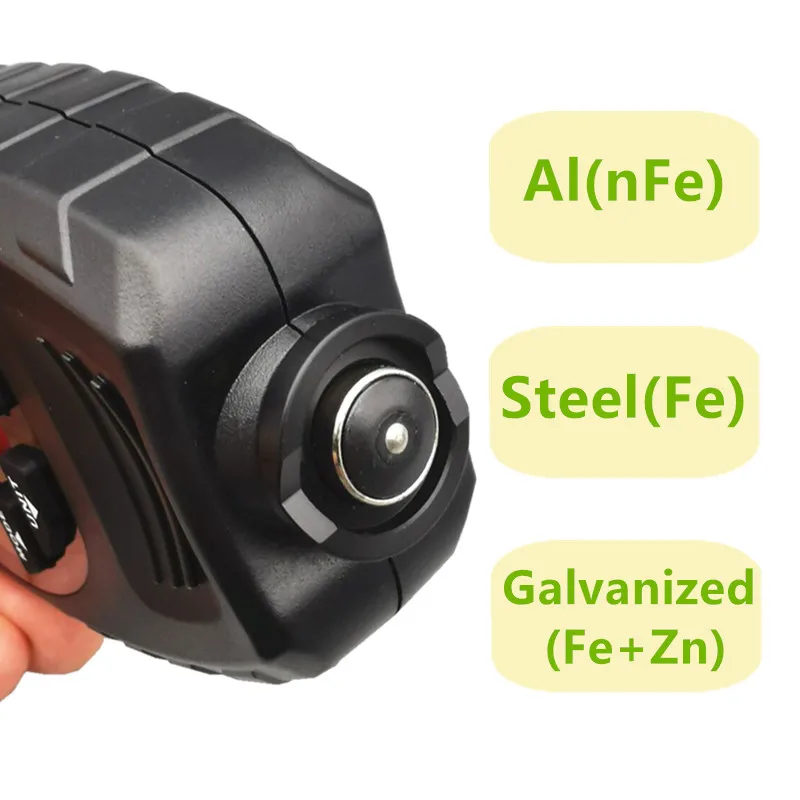

Substrate recognition: Al(nFe),Steel(Fe),Galvanized(Fe+Zn,optional function)

With Backlight Or Not: Yes

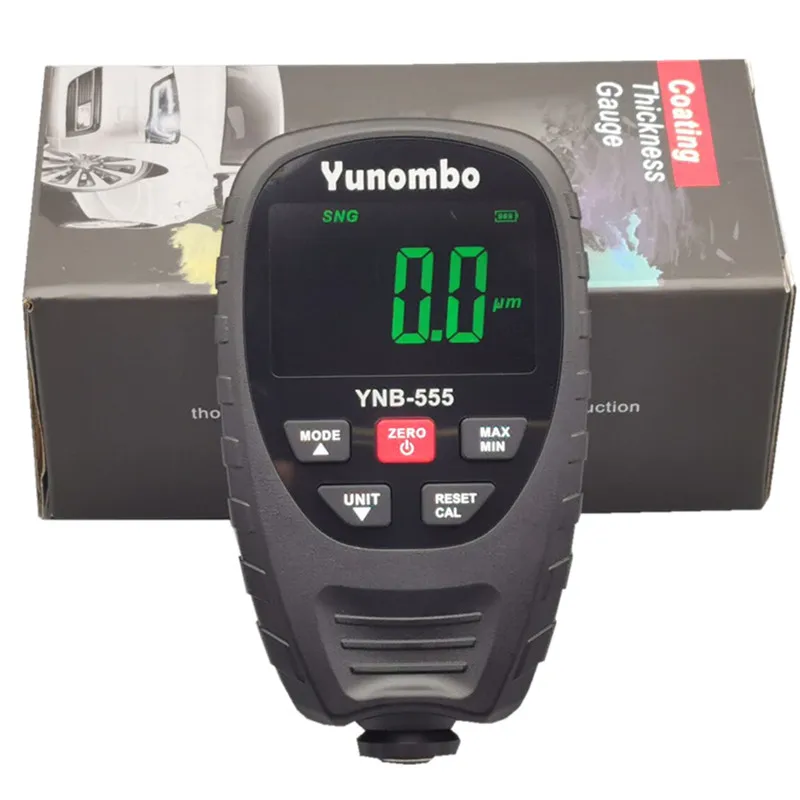

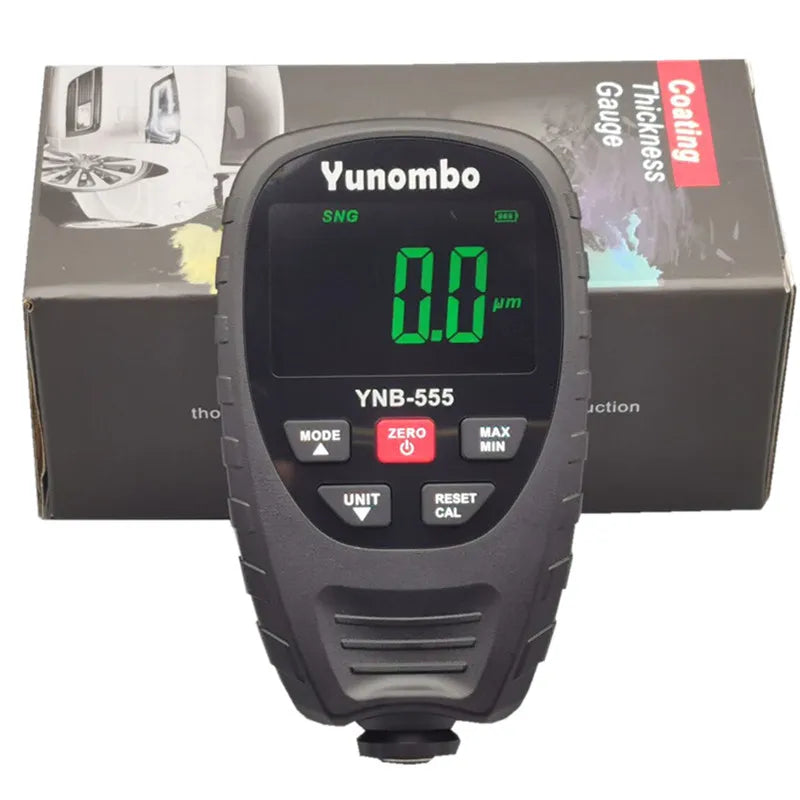

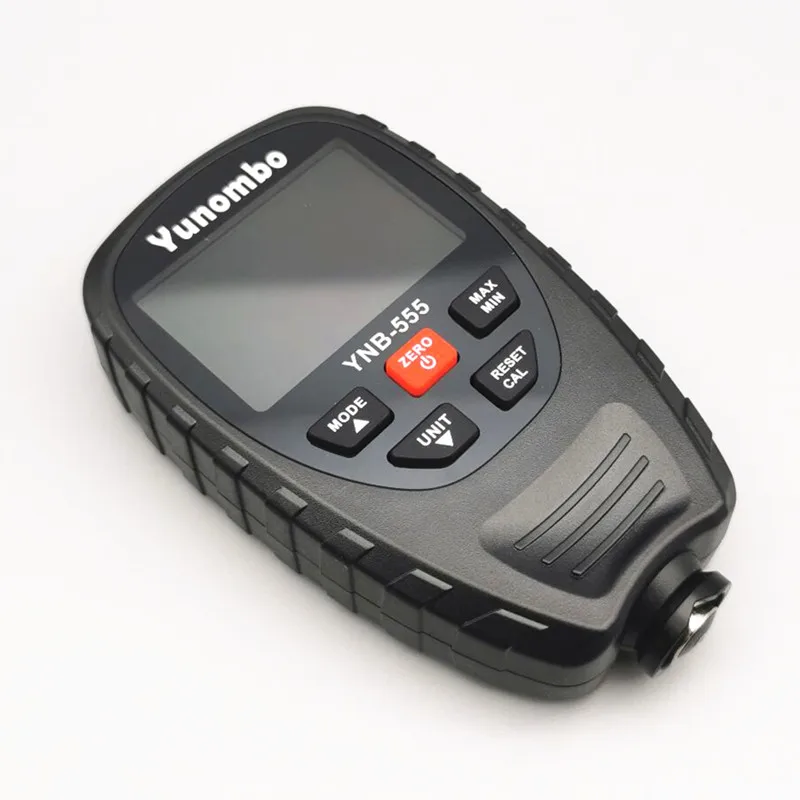

Yunombo YNB-555/YNB-555R Fe/nFe/Fe+Zn Car Paint Thickness Tester Coating Thickness Gauge Film Thickness Meter with Zinc Function

Note:
1.The batteries will not come with the package,please use 2pcs 1.5V AAA alkaline batteries, but not carbon battery.
2.Before you use the device to measure on the car,please make sure that the car engine has been turned off and the car body has returned to normal temperature
3.After a long period of use in a sub-zero environment, it may get stuck,it is not quality problem.You only need to restart the device and calibrate it again under same temperature.

I.Product Introduction

This device can make a quick and effective measurement of the thickness of the
non- metallic coating on the non-magnetic metal substrate and the thickness of the non-magnetic coating of the magnetic metal substrate, it can also automatically identify the magnetic metal substrate and non-magnetic metal substrate. It is widely used in the inspection field of automobile manufacturing, metal processing industry, chemical industry, commodity inspection, etc.

II.Product Functions

1.Measuring the thickness of the non-magnetic coating on the surface of magnetic metal substrate
2.Measuring of the thickness of the non-metallic coating on the surface of non-magnetic metal substrate
3.Automatic identifying magnetic metal matrix and non-magnetic metal matrix
4.Automatic identifying whether magnetic metal matrix is covered with non-magnetic metal coating (generally zinc, this function is optional)
5.It has three measurement methods: single, continuous and difference-value
6.It has the function of viewing the maximum, minimum and average value
7.Three calibration functions including zero point, two point, basic
8.Choice between metric and imperial units
9.Tri-color backlight(Green/Orange/Red)
10.Automatic shutdown

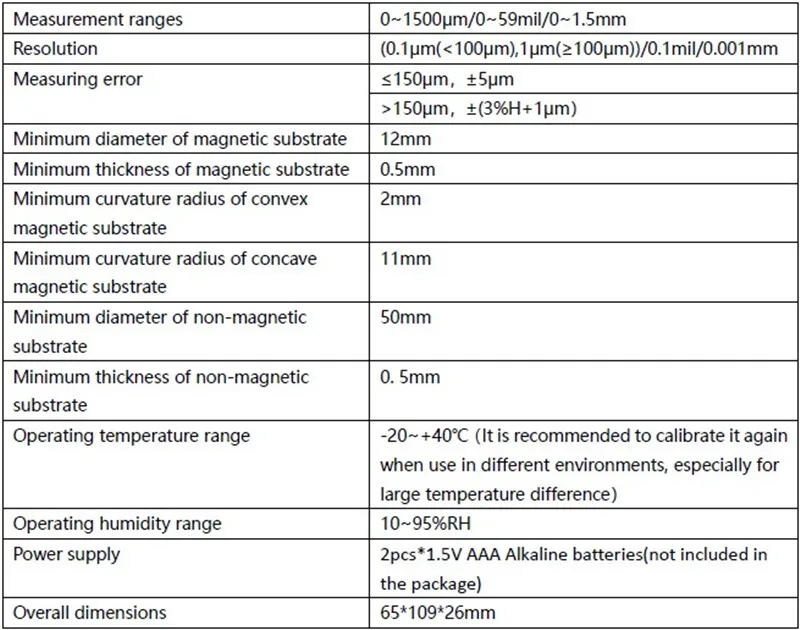

III.Product Specification

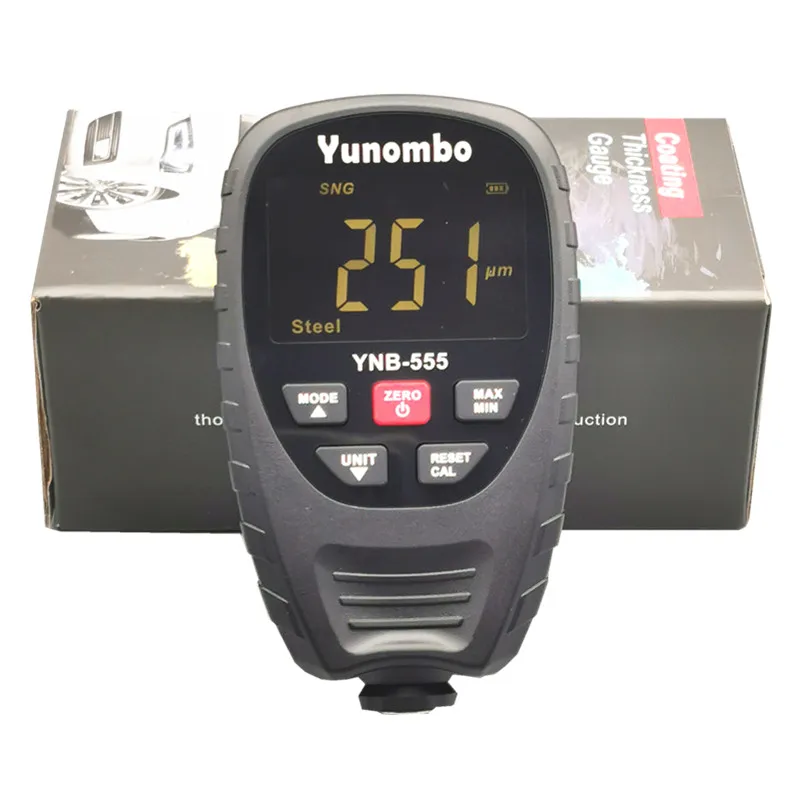

IV.LCD Display

A. Coupling Icon
B. SNG: Single Measurement
C. CTN: Continuous Measurement
D. DIF: Difference value Measurement
E. MAX: Maximum value
F. MIN: Minimum value
G.AVG: Average value
H.CAL: Entering calibration mode
I. Battery Power Tip
J. μm: Metric unit(1mm=1000μm)
K. mil: Imperial unit(1mil= 0.0254mm=25.4μm)
L. mm: Metric unit

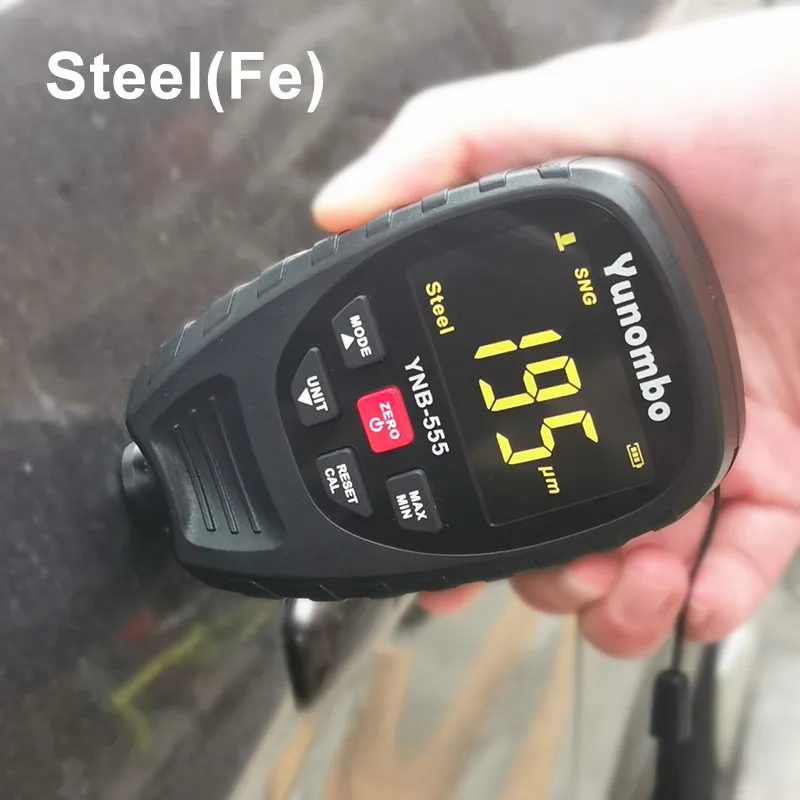

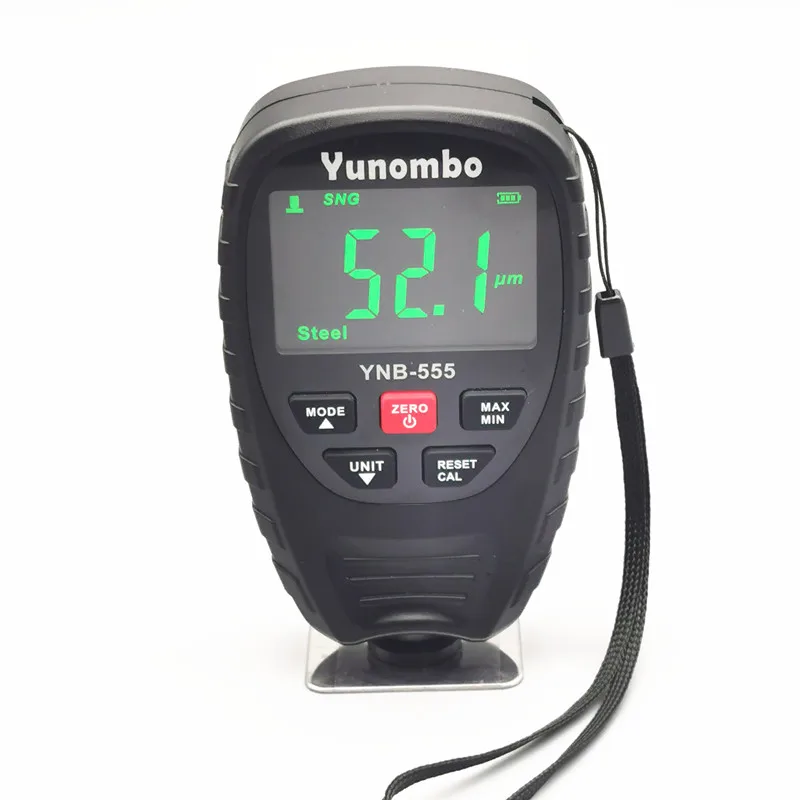

M.Steel: Icon for magnetic metal substrate

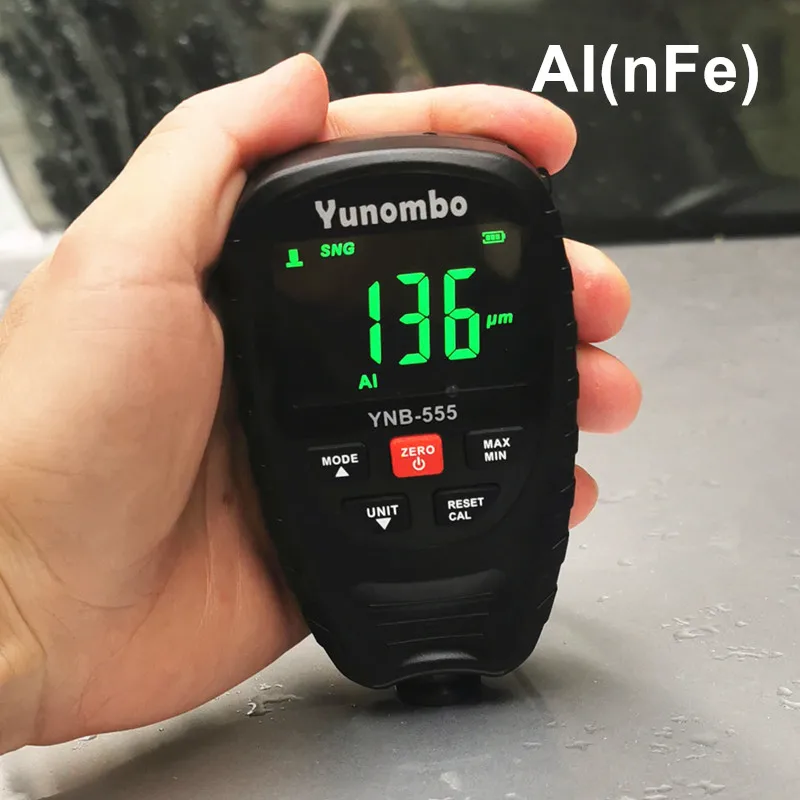

N. Al: Icon for non-magnetic metal substrate

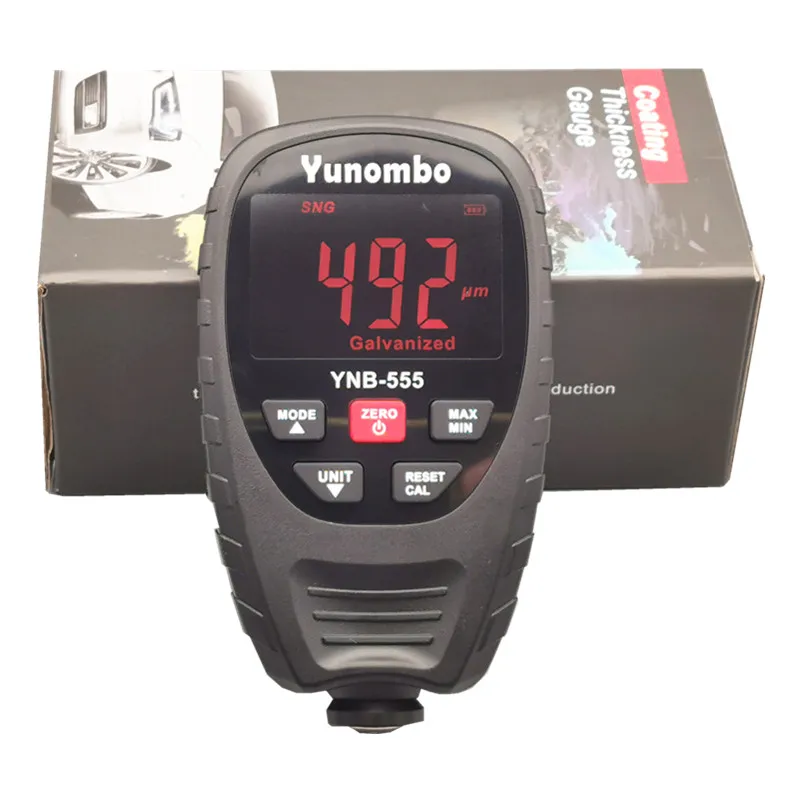

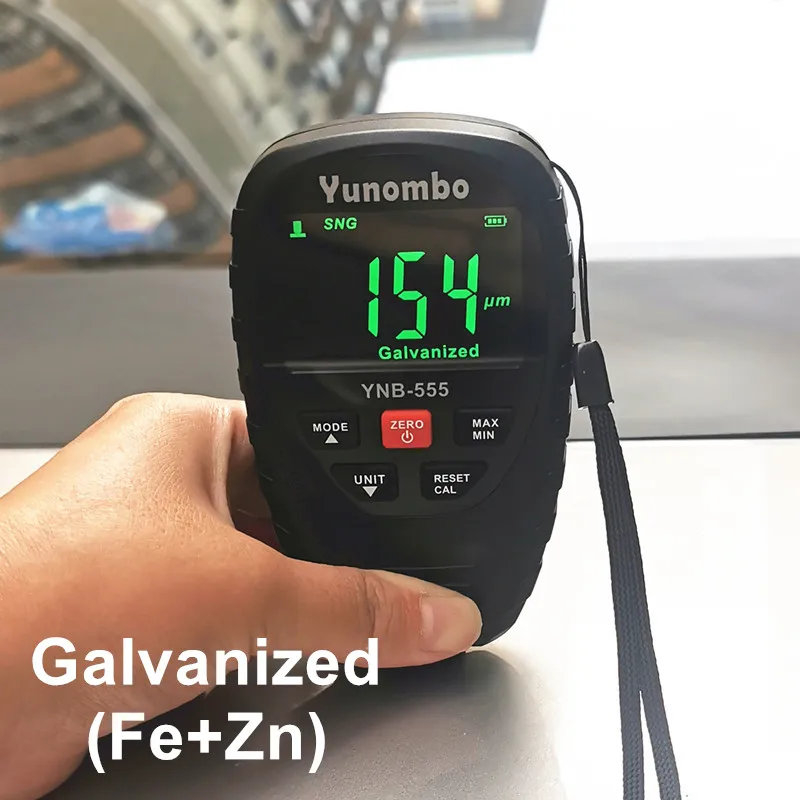

O. Galvanized: Icon for magnetic metal substrate,but the coating contains non-magnetic metal components(such as Zinc,aluminum or copper).
P. Indicates the measured value

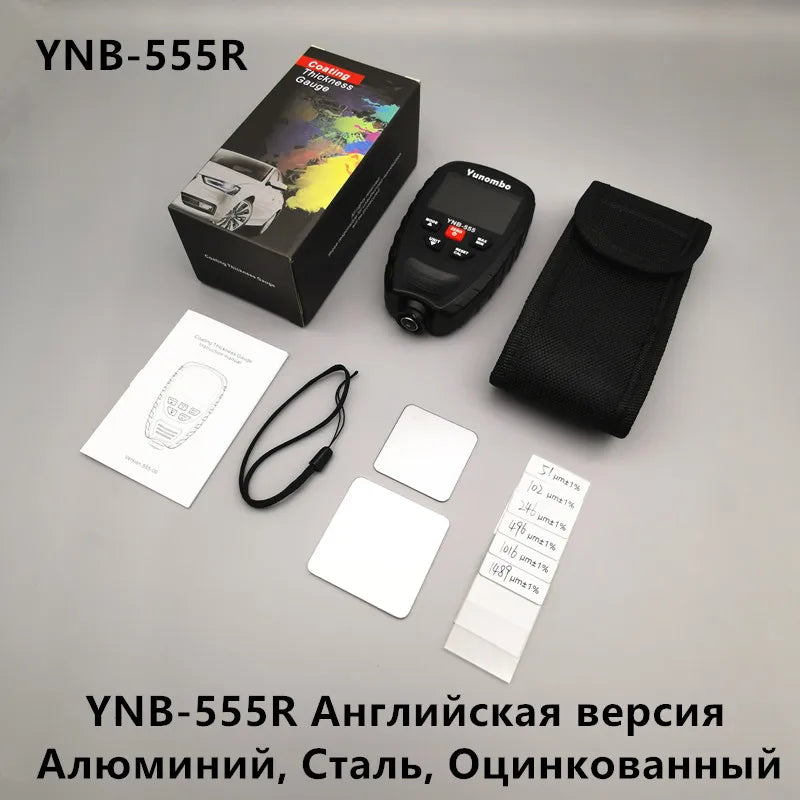

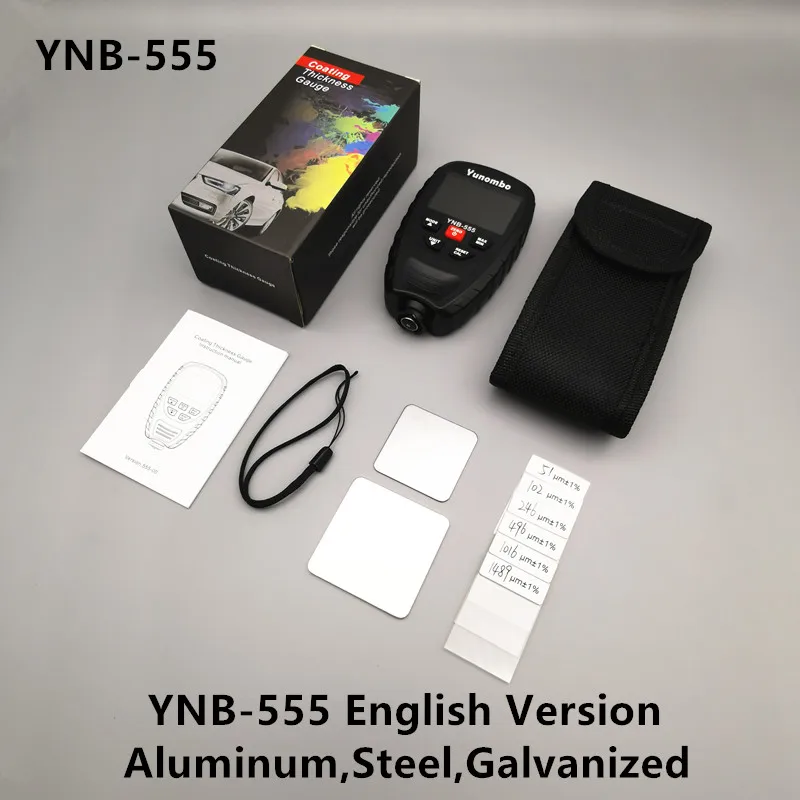

V.Package Includes:

1pc YNB-555/555Rcoating thickness gauge
1pc Steel plate
1pc Aluminum plate
1set Films(6pcs)
1pc Protective case
1pc Hanging rope
1pc English&Russian manual
1pc Retail box
