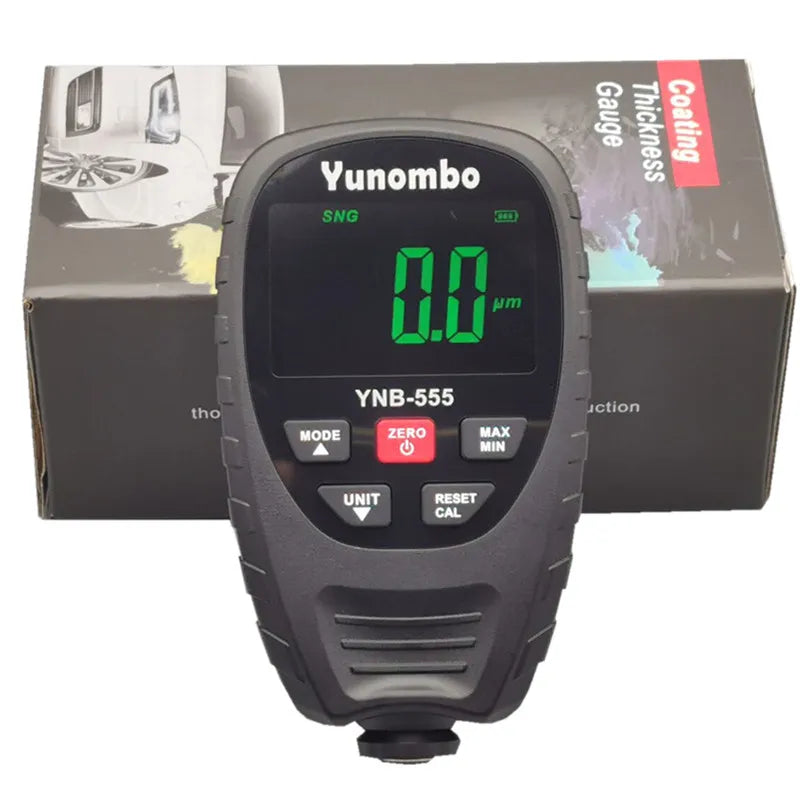

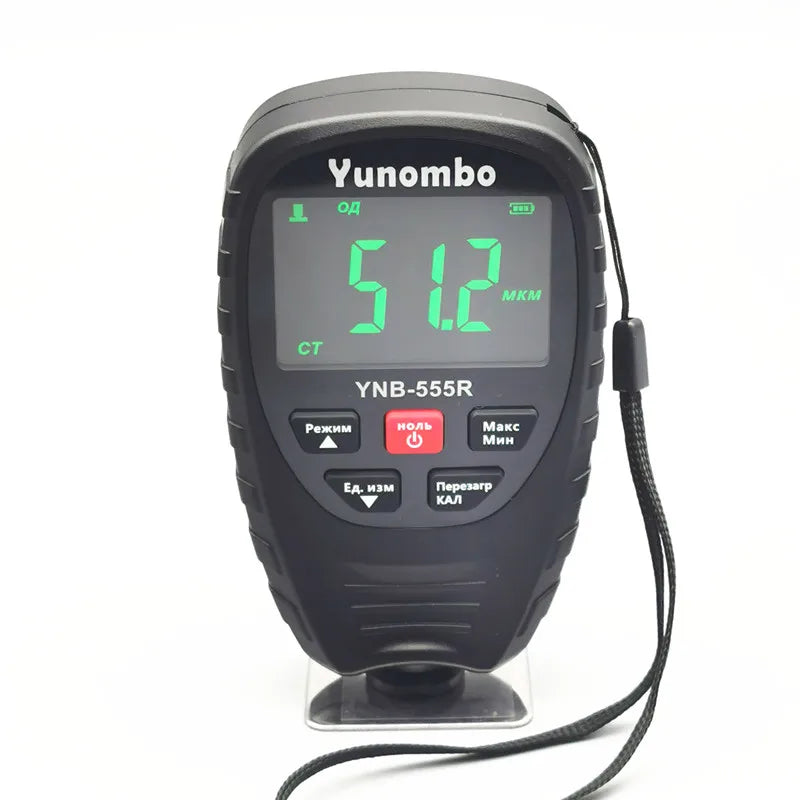

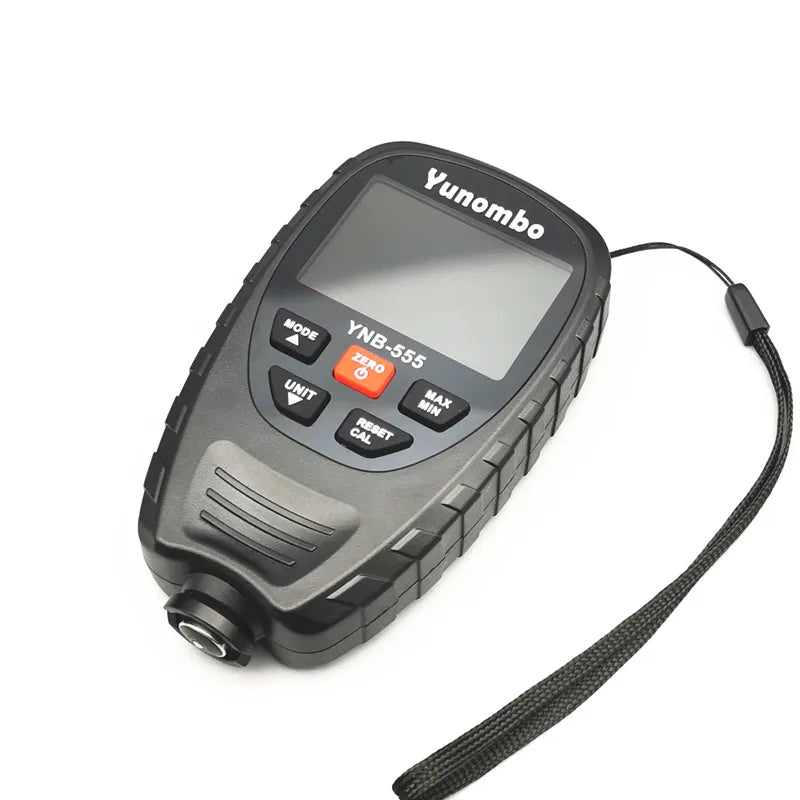

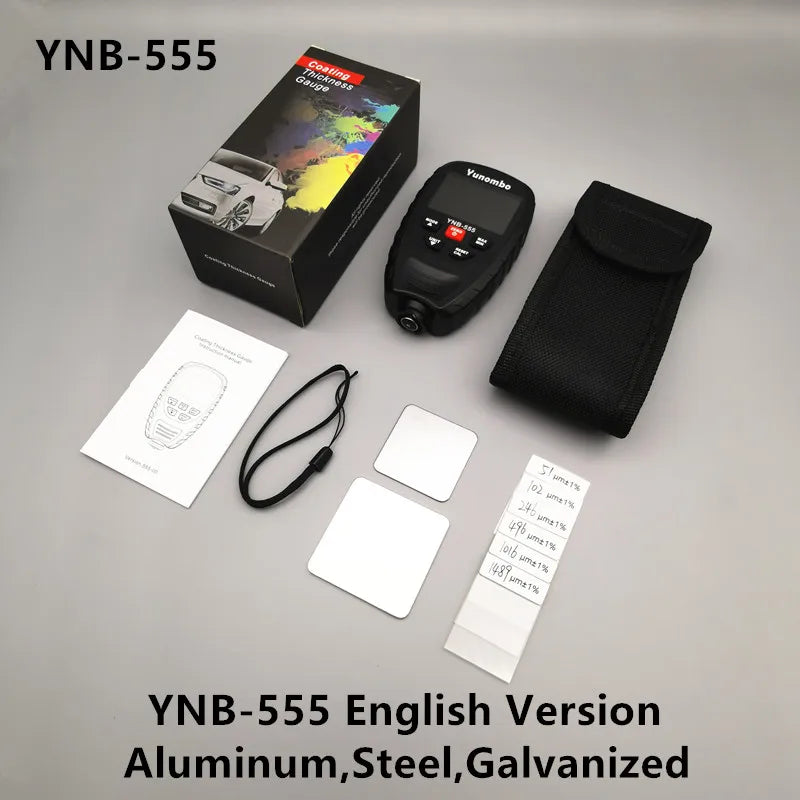

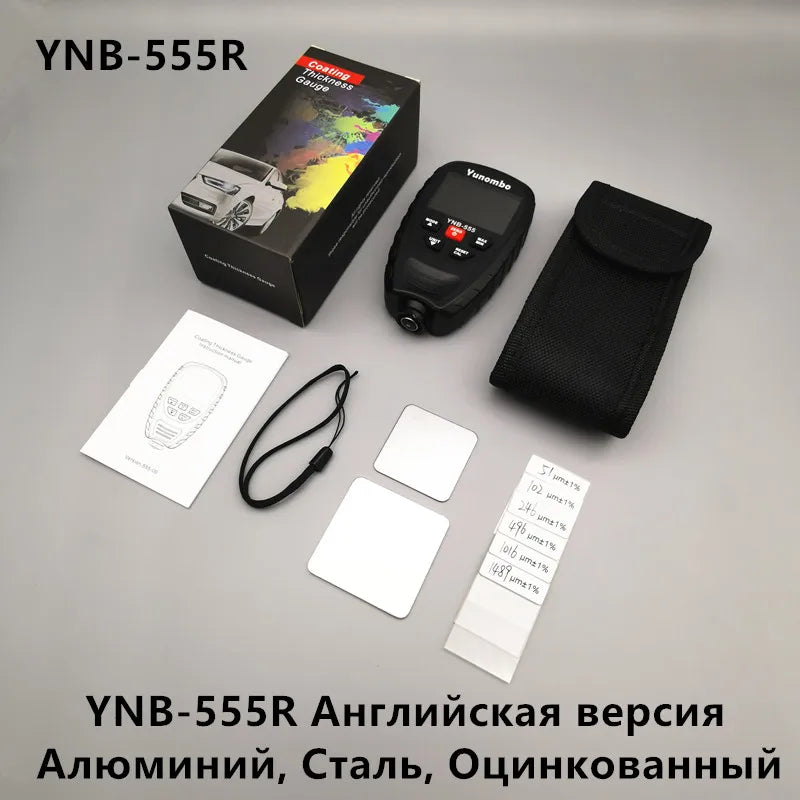

Yunombo YNB-555/YNB-555R Film Thickness Meter Car Galvanized Paint Thickness Gauge Coating Thickness Gauge

Note:

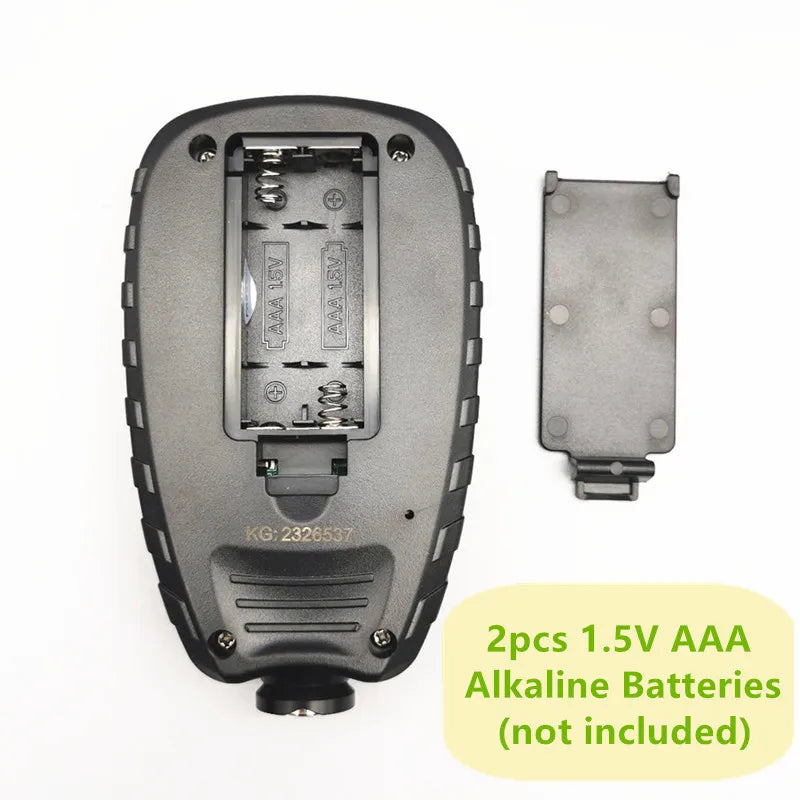

1.The batteries will not come with the package,please use 2pcs 1.5V AAA alkaline batteries, but not carbon battery.
2.Before you use the device to measure on the car,please make sure that the car engine has been turned off and the car body has returned to normal temperature
3.After a long period of use in a sub-zero environment, it may get stuck,it is not quality problem.You only need to restart the device and calibrate it again under same temperature.
4.There is a protective film on the screen,you can remove it before using.

I.Product Specification

This device can make a quick and effective measurement of the thickness of the
non- metallic coating on the non-magnetic metal substrate and the thickness of the non-magnetic coating of the magnetic metal substrate, it can also automatically identify the magnetic metal substrate and non-magnetic metal substrate. It is widely used in the inspection field of automobile manufacturing, metal processing industry, chemical industry, commodity inspection, etc.

II.Product Function:

1.Measuring the thickness of the non-magnetic coating on the surface of magnetic metal substrate
2.Measuring of the thickness of the non-metallic coating on the surface of non-magnetic metal substrate

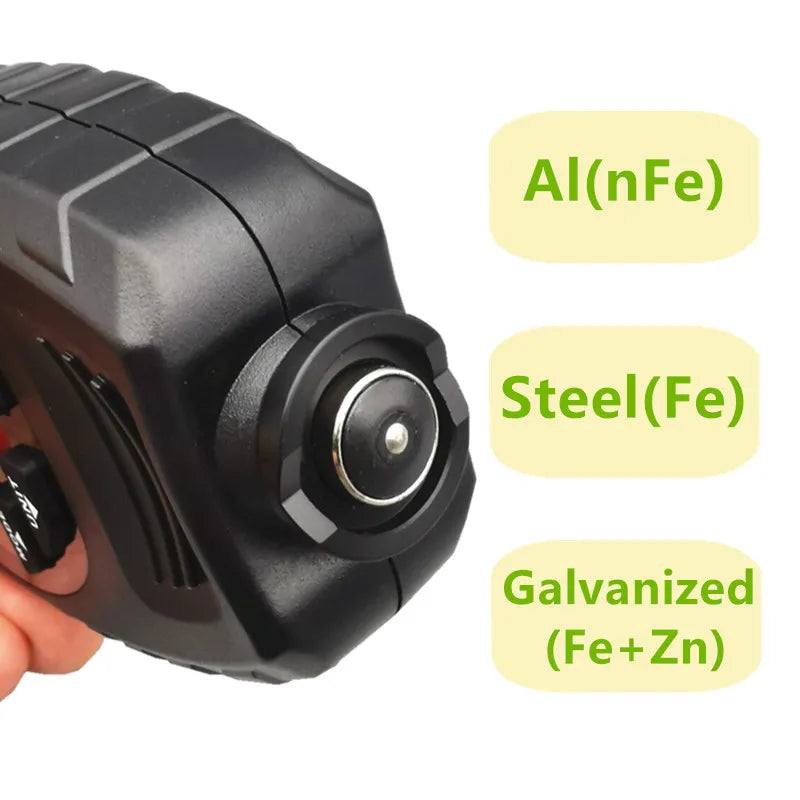

3.Automatic identifying magnetic metal matrix and non-magnetic metal matrix
4.Automatic identifying whether magnetic metal matrix is covered with non-magnetic metal coating (generally zinc, this function is optional)
5.It has three measurement methods: single, continuous and difference-value
6.It has the function of viewing the maximum, minimum and average value
7.Three calibration functions including zero point, two point, basic
8.Choice between metric and imperial units

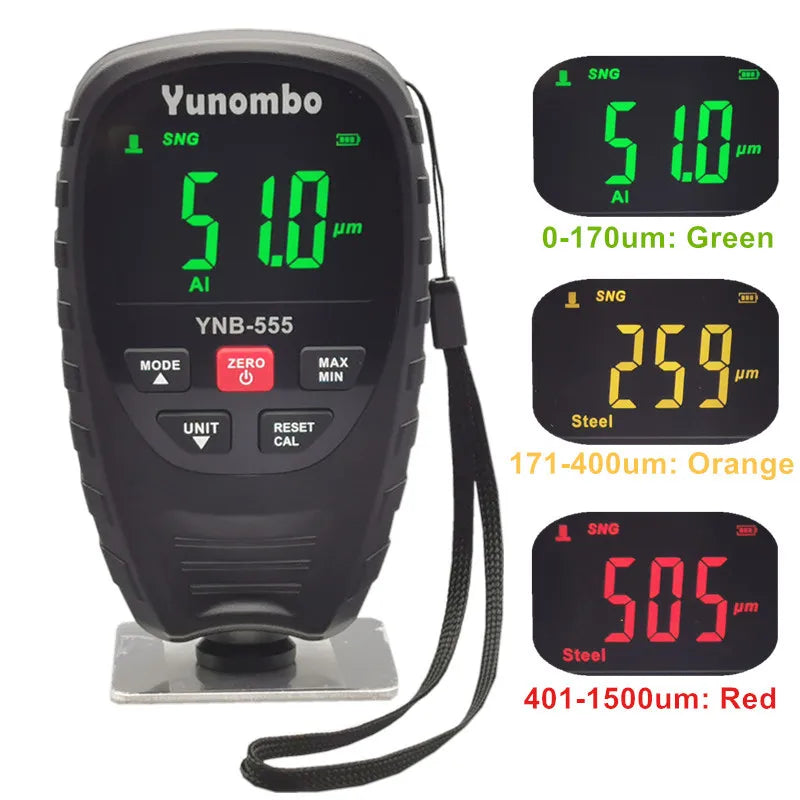

9.Tri-color backlight(Green/Orange/Red)
10.Automatic shutdown

A. Coupling Icon
B. SNG: Single Measurement
C. CTN: Continuous Measurement
D. DIF: Difference value Measurement
E. MAX: Maximum value
F. MIN: Minimum value
G.AVG: Average value
H.CAL: Entering calibration mode
I. Battery Power Tip
J. μm: Metric unit(1mm=1000μm)
K. mil: Imperial unit(1mil= 0.0254mm=25.4μm)
L. mm: Metric unit
M.Steel: Icon for magnetic metal substrate
N. Al: Icon for non-magnetic metal substrate
O. Galvanized: Icon for magnetic metal substrate,but the coating contains non-magnetic metal components(such as Zinc,aluminum or copper).
P. Indicates the measured value
